ZigZag and SR: Dynamic Swing Analysis with Support and Resistance

1) Introduction

The ZigZag indicator is a classic tool to filter out minor price fluctuations and highlight major swing points. The version presented here, ZigZag and SR, goes one step further by combining the swing structure with automatic support and resistance levels, as well as labels for trend classification.

This makes it particularly useful for traders who want a clean, structural view of price action without being distracted by noise.

2) What does “ZigZag and SR” add?

While a standard ZigZag only connects pivot highs and lows, this enhanced version introduces:

Dynamic support and resistance levels (green/red dotted lines).
Automatic trend labeling: Higher High (HH), Higher Low (HL), Lower High (LH), Lower Low (LL).
Customizable visualization: the user can enable or disable the ZigZag lines, support/resistance, and labels.
ATR-based positioning of labels to avoid overlap with price bars.

These features provide an intuitive chart overlay that helps traders quickly assess trend direction and key zones of interest.

3) How it works (step by step)

a) Pivot detection

The algorithm scans for pivot highs (highest[prd](high)) and pivot lows (lowest[prd](low)) over a user-defined lookback period (prd).

b) Direction of movement

Once a pivot is identified, the indicator determines the direction of the swing:

Uptrend segment (dir = 1) when a pivot high is confirmed.
Downtrend segment (dir = -1) when a pivot low is confirmed.

A variable tracks changes of direction (dirchanged) to ensure the ZigZag only updates when a genuine swing reversal occurs.

c) ZigZag construction with arrays

Arrays ($zigzag, $zigzagidx, $dir) are used to store pivot levels, their bar indices, and direction.
When a new pivot is confirmed:

If the trend has changed, a new segment is added.
If the trend continues, the last segment is updated to extend to the new extreme.

This ensures the indicator always reflects the most relevant market swings.

d) Dynamic support and resistance

For every confirmed pivot, the indicator projects horizontal dotted lines forward in time:

Green for support (pivot low).
Red for resistance (pivot high).

These lines dynamically extend until a new structure point invalidates them.

e) HH, HL, LH, LL classification

Based on the relative position of new pivots compared to previous ones, the code labels swings as:

HH (Higher High) or HL (Higher Low) in uptrends.
LH (Lower High) or LL (Lower Low) in downtrends.

To avoid clutter, labels are shifted up or down using ATR(14) as a margin.

f) Efficient rendering with `islastbarupdate`

To optimize performance, the drawing routines are executed only when the last bar updates, preventing unnecessary redrawing across all candles.

4) Parameters and recommended settings

prd (default = 15): Defines the sensitivity of pivot detection.
- Higher values → fewer swings, only major moves.
- Lower values → more swings, captures smaller fluctuations.
showSR (default = 1): Enables or disables the support/resistance dotted lines.
showLabels (default = 1): Toggles the HH/HL/LH/LL labels.
showZZ (default = 1): Toggles the ZigZag connecting lines.

These options give full flexibility: the user can display only the ZigZag, only support/resistance, or the complete setup.

5) Reading the chart: practical cases

Trending markets: The sequence of HH-HL or LL-LH clearly shows the dominant direction. Support and resistance levels confirm continuation or possible breakout points.
Range-bound markets: The ZigZag alternates between highs and lows of similar magnitude, highlighting horizontal zones of equilibrium.
Breakouts: When a support or resistance dotted line is breached, traders can quickly spot the transition to a new structural phase.

This makes the tool adaptable for both trend-following strategies and mean-reversion setups.

6) Limitations and best practices

Repainting nature: As with all ZigZag indicators, the latest swing may repaint until a pivot is fully confirmed. This is not a bug but a characteristic of ZigZag logic.
Choosing prd wisely:
- Use larger values on higher timeframes to capture meaningful structure.
- Use smaller values on intraday charts for short-term swing recognition.
Timeframe sensitivity: The indicator adapts to any timeframe but behaves best when aligned with your trading horizon.

By understanding these nuances, traders can avoid common pitfalls and integrate the tool effectively into their workflow.

7) Code

//------------------------------------//
//PRC_ZigZag and SR
//version = 0
//03.12.2024
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//------------------------------------//
// Inputs
//------------------------------------//
prd=15
showSR=1 //Show Support and Resistance//Boolean// 0 means false 1 means True
showLabels=1 //Boolean// 0 means false 1 means True
showZZ=1 //Boolean// 0 means false 1 means True
atr=averagetruerange[14](close)
//------------------------------------//
// Calculate Pivot High and Low
//------------------------------------//
ph = high=highest[prd](high)
pl = low=lowest[prd](low)
//------------------------------------//
// Calculate Direction
//------------------------------------//
if ph and pl=0 then
   dir=1
elsif pl and ph=0 then
   dir=-1
else
   dir=dir
endif
dirchanged=dir<>dir[1]
//------------------------------------//
// Calculate ZizZag levels and x
//------------------------------------//
if ph or pl then
   if dirchanged then
      if dir=1 then
         $zigzag[t+1]=highest[prd](high)
         $zigzagidx[t+1]=barindex
         $dir[t+1]=1
         t=t+1
      elsif dir=-1 then
         $zigzag[t+1]=lowest[prd](low)
         $zigzagidx[t+1]=barindex
         $dir[t+1]=-1
         t=t+1
      endif
   else
      if dir=1 and highest[prd](high)> $zigzag[t] then
         $zigzag[t]=highest[prd](high)
         $zigzagidx[t]=barindex
      elsif dir=-1 and lowest[prd](low)< $zigzag[t] then
         $zigzag[t]=lowest[prd](low)
         $zigzagidx[t]=barindex
      endif
   endif
endif
//------------------------------------//
// Draw ZigZag and Levels
//------------------------------------//
$zigzag[0]=undefined
$zigzagidx[0]=undefined
if islastbarupdate then
   if showZZ then
      //Last ZigZag
      drawsegment($zigzagidx[max(0,t-1)],$zigzag[max(0,t-1)],$zigzagidx[t],$zigzag[t])
   endif
   if showSR and $dir[t]=1 then
      drawsegment($zigzagidx[t],$zigzag[t],barindex,$zigzag[t])style(dottedline,3)coloured("green")
      drawsegment($zigzagidx[max(0,t-1)],$zigzag[max(0,t-1)],barindex,$zigzag[max(0,t-1)])style(dottedline,3)coloured("red")
      if $zigzag[t]<$zigzag[t-2] then
         drawtext("HL",$zigzagidx[t],$zigzag[t]+0.5*atr)coloured("green")
      else
         drawtext("HH",$zigzagidx[t],$zigzag[t]+0.5*atr)coloured("green")
      endif
   elsif showSR and $dir[t]=-1 then
      drawsegment($zigzagidx[t],$zigzag[t],barindex,$zigzag[t])style(dottedline,3)coloured("red")
      drawsegment($zigzagidx[max(0,t-1)],$zigzag[max(0,t-1)],barindex,$zigzag[max(0,t-1)])style(dottedline,3)coloured("green")
      if $zigzag[t]<$zigzag[t-2] then
         drawtext("LL",$zigzagidx[t],$zigzag[t]-0.5*atr)coloured("red")
      else
         drawtext("LH",$zigzagidx[t],$zigzag[t]-0.5*atr)coloured("red")
      endif
   endif
   if showLabels then
      drawpoint($zigzagidx[max(0,t-1)],$zigzag[max(0,t-1)],2)coloured("blue",100)
      drawpoint($zigzagidx[t],$zigzag[t],2)coloured("blue",100)
   endif

   //Draw all ZigZag
   for i=t-1 downto 3 do
      if showZZ then
         drawsegment($zigzagidx[max(0,i-1)],$zigzag[max(0,i-1)],$zigzagidx[i],$zigzag[i])
      endif
      if showSR and $dir[i]=1 then
         drawsegment($zigzagidx[i],$zigzag[i],$zigzagidx[i+1],$zigzag[i])style(dottedline,3)coloured("green")
         drawsegment($zigzagidx[max(0,i-1)],$zigzag[max(0,i-1)],$zigzagidx[i],$zigzag[max(0,i-1)])style(dottedline,3)coloured("red")
      elsif showSR and $dir[i]=-1 then
         drawsegment($zigzagidx[i],$zigzag[i],$zigzagidx[i+1],$zigzag[i])style(dottedline,3)coloured("red")
         drawsegment($zigzagidx[max(0,i-1)],$zigzag[max(0,i-1)],$zigzagidx[i],$zigzag[max(0,i-1)])style(dottedline,3)coloured("green")
      endif

      if showLabels and $dir[i]=-1 and $zigzag[i]>$zigzag[i-2] then
         drawtext("LH",$zigzagidx[i],$zigzag[i]-0.5*atr)coloured("red")
      elsif showLabels and $dir[i]=-1 and $zigzag[i]<=$zigzag[i-2] then
         drawtext("LL",$zigzagidx[i],$zigzag[i]-0.5*atr)coloured("red")
      elsif showLabels and $dir[i]=1 and $zigzag[i]>$zigzag[i-2] then
         drawtext("HH",$zigzagidx[i],$zigzag[i]+0.5*atr)coloured("green")
      elsif showLabels and $dir[i]=1 and $zigzag[i]<=$zigzag[i-2] then
         drawtext("HL",$zigzagidx[i],$zigzag[i]+0.5*atr)coloured("green")
      endif
   next
endif
//------------------------------------//
return

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

//------------------------------------//

//PRC_ZigZag and SR

//version = 0

//03.12.2024

//Iván González @ www.prorealcode.com

//Sharing ProRealTime knowledge

//------------------------------------//

// Inputs

//------------------------------------//

prd=15

showSR=1 //Show Support and Resistance//Boolean// 0 means false 1 means True

showLabels=1 //Boolean// 0 means false 1 means True

showZZ=1 //Boolean// 0 means false 1 means True

atr=averagetruerange[14](close)

//------------------------------------//

// Calculate Pivot High and Low

//------------------------------------//

ph = high=highest[prd](high)

pl = low=lowest[prd](low)

//------------------------------------//

// Calculate Direction

//------------------------------------//

if ph and pl=0 then

dir=1

elsif pl and ph=0 then

dir=-1

else

dir=dir

endif

dirchanged=dir<>dir[1]

//------------------------------------//

// Calculate ZizZag levels and x

//------------------------------------//

if ph or pl then

if dirchanged then

if dir=1 then

$zigzag[t+1]=highest[prd](high)

$zigzagidx[t+1]=barindex

$dir[t+1]=1

t=t+1

elsif dir=-1 then

$zigzag[t+1]=lowest[prd](low)

$zigzagidx[t+1]=barindex

$dir[t+1]=-1

t=t+1

endif

else

if dir=1 and highest[prd](high)> $zigzag[t] then

$zigzag[t]=highest[prd](high)

$zigzagidx[t]=barindex

elsif dir=-1 and lowest[prd](low)< $zigzag[t] then

$zigzag[t]=lowest[prd](low)

$zigzagidx[t]=barindex

endif

//------------------------------------//

// Draw ZigZag and Levels

//------------------------------------//

$zigzag[0]=undefined

$zigzagidx[0]=undefined

if islastbarupdate then

if showZZ then

//Last ZigZag

drawsegment($zigzagidx[max(0,t-1)],$zigzag[max(0,t-1)],$zigzagidx[t],$zigzag[t])

endif

if showSR and $dir[t]=1 then

drawsegment($zigzagidx[t],$zigzag[t],barindex,$zigzag[t])style(dottedline,3)coloured("green")

drawsegment($zigzagidx[max(0,t-1)],$zigzag[max(0,t-1)],barindex,$zigzag[max(0,t-1)])style(dottedline,3)coloured("red")

if $zigzag[t]<$zigzag[t-2] then

drawtext("HL",$zigzagidx[t],$zigzag[t]+0.5*atr)coloured("green")

else

drawtext("HH",$zigzagidx[t],$zigzag[t]+0.5*atr)coloured("green")

endif

elsif showSR and $dir[t]=-1 then

drawsegment($zigzagidx[t],$zigzag[t],barindex,$zigzag[t])style(dottedline,3)coloured("red")

drawsegment($zigzagidx[max(0,t-1)],$zigzag[max(0,t-1)],barindex,$zigzag[max(0,t-1)])style(dottedline,3)coloured("green")

if $zigzag[t]<$zigzag[t-2] then

drawtext("LL",$zigzagidx[t],$zigzag[t]-0.5*atr)coloured("red")

else

drawtext("LH",$zigzagidx[t],$zigzag[t]-0.5*atr)coloured("red")

endif

if showLabels then

drawpoint($zigzagidx[max(0,t-1)],$zigzag[max(0,t-1)],2)coloured("blue",100)

drawpoint($zigzagidx[t],$zigzag[t],2)coloured("blue",100)

endif

//Draw all ZigZag

for i=t-1 downto 3 do

if showZZ then

drawsegment($zigzagidx[max(0,i-1)],$zigzag[max(0,i-1)],$zigzagidx[i],$zigzag[i])

endif

if showSR and $dir[i]=1 then

drawsegment($zigzagidx[i],$zigzag[i],$zigzagidx[i+1],$zigzag[i])style(dottedline,3)coloured("green")

drawsegment($zigzagidx[max(0,i-1)],$zigzag[max(0,i-1)],$zigzagidx[i],$zigzag[max(0,i-1)])style(dottedline,3)coloured("red")

elsif showSR and $dir[i]=-1 then

drawsegment($zigzagidx[i],$zigzag[i],$zigzagidx[i+1],$zigzag[i])style(dottedline,3)coloured("red")

drawsegment($zigzagidx[max(0,i-1)],$zigzag[max(0,i-1)],$zigzagidx[i],$zigzag[max(0,i-1)])style(dottedline,3)coloured("green")

endif

if showLabels and $dir[i]=-1 and $zigzag[i]>$zigzag[i-2] then

drawtext("LH",$zigzagidx[i],$zigzag[i]-0.5*atr)coloured("red")

elsif showLabels and $dir[i]=-1 and $zigzag[i]<=$zigzag[i-2] then

drawtext("LL",$zigzagidx[i],$zigzag[i]-0.5*atr)coloured("red")

elsif showLabels and $dir[i]=1 and $zigzag[i]>$zigzag[i-2] then

drawtext("HH",$zigzagidx[i],$zigzag[i]+0.5*atr)coloured("green")

elsif showLabels and $dir[i]=1 and $zigzag[i]<=$zigzag[i-2] then

drawtext("HL",$zigzagidx[i],$zigzag[i]+0.5*atr)coloured("green")

endif

//------------------------------------//

return

support and resistance swing trading zigzag

Risk disclosure:

No information on this site is investment advice or a solicitation to buy or sell any financial instrument. Past performance is not indicative of future results. Trading may expose you to risk of loss greater than your deposits and is only suitable for experienced investors who have sufficient financial means to bear such risk.

ProRealTime ITF files and other attachments :

Filename : download the ITF files

How to import ITF files into ProRealTime platform?

Find other exclusive trading pro-tools on

PRC is also on YouTube, subscribe to our channel for exclusive content and tutorials

Vonasi There is another version of this indicator that can plot the same lines but onto an indicato...

Martin35 Hello Vonasi, do you think it is possible with PRT to code with the same principle as on thi...

mathiasKN Steffen Schmauch • 12/11/2018 # hello Nicolas, can I change the indicator that I only get t...

Nicolas Please open a new topic in the indicator forum and explain there your query, thank you.

upupandaway This seems like a very useful indicator. However, it does not seem to open properly in the c...

mscharstrom Hi @robertogozzi, I really love this indicator. However, I'd like to tinker with it to fit ...

Ahimsa Hi Roberto I cannot thank you enough for writing this code. It could help me more than you ...

Nicolas With PRT v11, you have to click on "price" at the upper left side of the price chart.

teddy58 Ich habe es mit N= 1,5 und N=2,5 getestet mit 200000 Einheiten. Es funktioniert leider erst ...

Matriciel I use this indicator to help me make a decision when there is a divergence. The divergences ...

Jan Wind Hi, I personnaly am not a big fan of ZIGZAG indicator, as it repaints itself during time. ...

Nicolas Sure, I suggest you open a new topic in the forum to discuss about your ideas.

hdgm Bonjour Nicolas, est ce que l'on peut en faire une stratégie de trading automatisée ?

Nicolas Non, pas en utilisant l'indicateur zigzag traditionnel de la plateforme.

Tradingrob Hi Tac Bolsa, thanks for the information. But after carefully ready all the material i still...

TAC Bolsa Hello, the indicator creates the support depending on the volume and is dynamic.

carlvan Not working on PRT 11.1. And the site https://www.tiburonesdealetacorta.com does not exist....

Gianluca ok i fixed it i hope is ok like this: //TAC trader zone 10.2 | indicator //01.01.2018 //R...

TAC Bolsa Hello try this new version or view the blog with the new indicators .. https://www.t...

TAC Bolsa Sorry, TAC Trader Zone V2 https://www.tiburonesdealetacorta.com/2018/11/indicador-tac-tr...

rama I want to use this indicator in trading system, it says zig zag is obsolete and not supported

Nicolas Right, due to its repainting behavior, the zigzag is not allowed in automated trading with r...

rama I noticed it changes as time progress, I am 7 as the average, how many period it wont chang...

FULVIO09 Attualmente non c'è sufficiente volatilità : la condizione "C0 = AverageTrueRange[1500](Clos...

vlongobardo67 Ma io intendevo in backtest ! Scusa non l’ho menzionato.

ciniselloftse salve fulvio .il trading sistem e sempre profittevole?

Actabi Thank you ! Have you realised your "next step" ?

Jessar guten Tag, gibt es bereits die Aktualisierte Datei?

Per Inge Gents - An update - I have been studying various trading approaches, as this one that is bas...

cervantes2 Buenas tardes y gracias por este magnifico indicador. Queria saber si tienes un proscreener ...

cervantes2 Que busque los valores que la linea verde acaba de cruzar al alza o a la baja

AngelPujalt Tenéis algún screener de este indicador?

Yannick Hello There is a mistake in trailing stop code, I think that this should fix the problem s...

Paul About the trailing-stop the way it's coded. That works for backtesting only, just look at th...

Jonny sorry paul, but system says that is not possible to put many stop order combined...what have...

Violet Abz, the arrows and circles are only the *first part* of a trade setup. If certain conditio...

gabri Violet, you did an excellent job. I attached here https://www.prorealcode.com/prorealtim...

fab.ub HI GABRI, if the cirled arrow is the intermediate point in which You can define your entry a...

Matt B RolanBay, L'ellipse apparaît-elle à la bougie notifiée et reste ?

gianlucapegaso scusa Gagry ma il programm da copiare è quello con tutte le modifiche di cui ho letto nei va...

Valentinocorse bonjour a tous , superbe travail j'aimerai si possible une indication pour modifier l'indic...

Nicolas Oui pourquoi pas? :)

claudiofred Bonjour Nicolas, merci encore pour ce super indicateur. se demander s'il est possible d'écr...

Nicolas Screener déjà présent sur le forum ici: https://www.prorealcode.com/topic/indicador-lastmans...

rb-72 Thank you, area of twist by dilatacion of the price, missing part of the code that is not pu...

Thomas007 after reading your blog now I understand why there is only a part of your code here. I'm try...

Juanjo Hola¡¡ la estrategia se podria aplicar sobre acciones con marco temporal diario?? gracias.

Leo Hi all, I posted a new version of this indicator ( I just add arrows to spot the local maxi...

Trading_En_El_Ibex35 Muchas Gracias por compartir este interesante indicador. Un saludo

xavieralava hola gracias leo

Nicolas https://www.prorealcode.com/topic/ayuda-screener-indicador-perfect-trend-line/#post-51291

Manu L. Bonjour Nicolas, suite a une de mes precedentes demande dans le forum indicateur, j'ai touv...

AntoGH C'est selon moi le meilleur indicateur, que j'ai vu, si vous trouvez mieux dîtes moi car dif...

1) Introduction

2) What does “ZigZag and SR” add?

3) How it works (step by step)

a) Pivot detection

b) Direction of movement

c) ZigZag construction with arrays

d) Dynamic support and resistance

e) HH, HL, LH, LL classification

f) Efficient rendering with `islastbarupdate`

4) Parameters and recommended settings

5) Reading the chart: practical cases

6) Limitations and best practices

7) Code

Share this

Likes

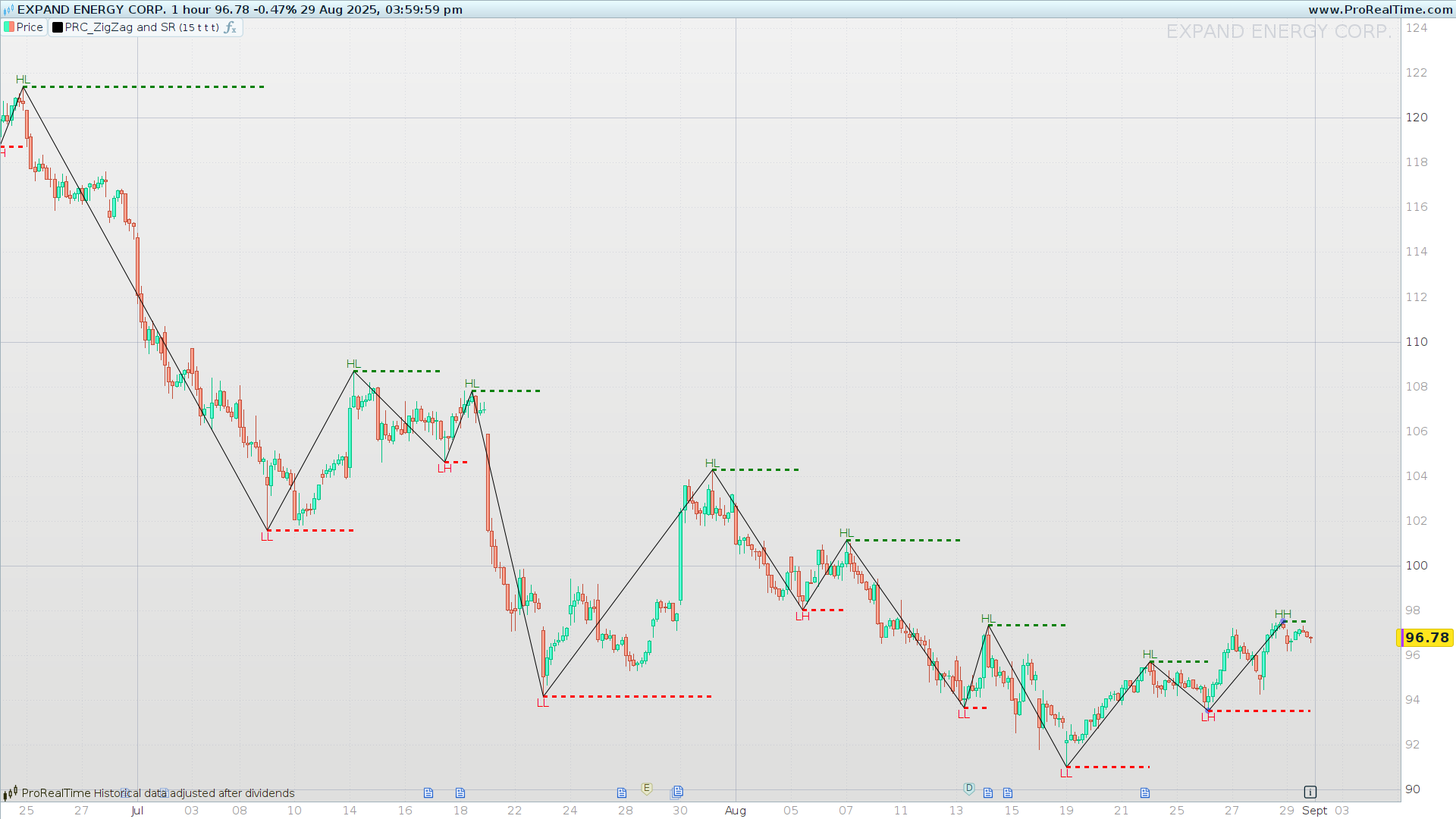

ZigZag and SR: Dynamic Swing Analysis with Support and Resistance

1) Introduction

2) What does “ZigZag and SR” add?

3) How it works (step by step)

a) Pivot detection

b) Direction of movement

c) ZigZag construction with arrays

d) Dynamic support and resistance

e) HH, HL, LH, LL classification

f) Efficient rendering with islastbarupdate

4) Parameters and recommended settings

5) Reading the chart: practical cases

6) Limitations and best practices

7) Code

Share this

Likes

f) Efficient rendering with `islastbarupdate`
