1 —– Introduction —–
Prices are always the result of a struggle between Buyers and Sellers. When one side leads, we are in a trend, and then it’s time to take profits. An equilibrium point is then reached, before the trend reverses. Every trader in the world sees these peaks and troughs, which materialize large liquidity outflows and serve as references for tracing Supports and Resistances.
2 —– Concept —–
I wanted a flexible tool for scalping – but it works on all Time Units – allowing you to
and display the most relevant Supports and Resistances very quickly.
Placed on the current candle, we look back and point to all the visible Peaks and Dips which
which will identify active Supports and Resistances. We’re not interested in what lies beyond!

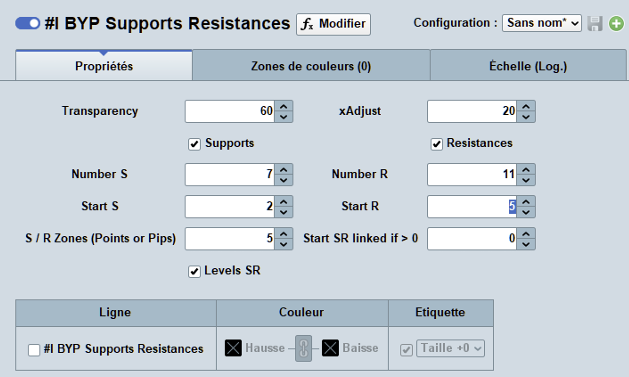

3 —– Fonctionnement et paramètres —–
- Number S or R: Selects the number of Supports (or Resistors) to be displayed, theoretically unlimited.
- Start S or R : Selects the first Support (or Resistance) to be displayed.
- S/R Zones (Points or Pips): Displays a Support (or Resistance) zone of influence.
- Start SR linked if > 0: This parameter – positive – links Support/Resistance of the same index. 0 by default. For example, to identify a single channel. S3-R3.
- Levels SR: Displays or not Supports (or Resistors) information. For example: S2 3320.56 -130.80 -3.77% 55 UT
Support index / Price / Absolute variation and Variation% relative to Close / Support duration - xAdjust: Information display margin. 20 by default.
- a : Transparency: Transparency of SR influence zones.
4 —– Graphics —–
Standard representation: Green supports and red resistances. Zones of influence dimmed.
A commented symbol in the top right-hand corner of the screen indicates the number of Points or Pips chosen for the width of the
zones. Useful for getting an immediate idea of the price scale when juggling several market instruments.
5 —– Code —–
I don’t speak English, but I’ve commented all the code in English to make it more user-friendly.
Please bear with me if the translations are not always accurate.
6 —– Proof-of-concept —–

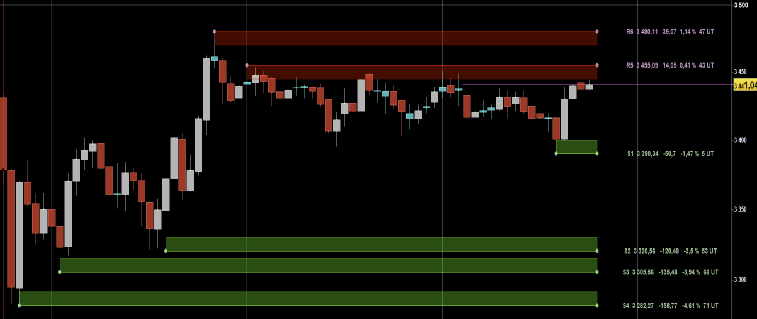

– Example 1: Free choice of first Support and Resistance. S1 – R5

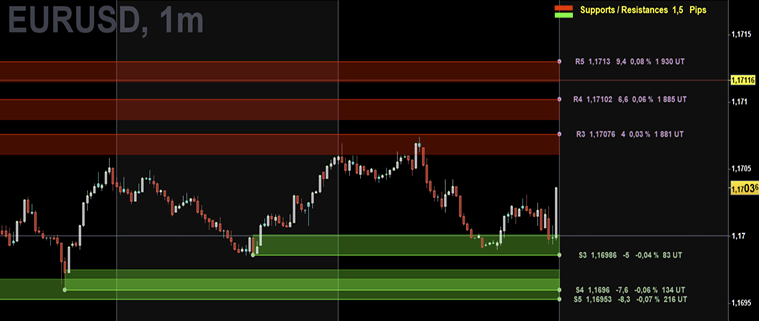

– Example 2: Choice of linked resistance support. S3 – R3
Good trades to all.
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 |
//====================================================================================================================== // ProRealTime V12 / Partage des connaissances ProRealTime. / Sharing ProRealTime knowledge. // 2025 09 26 18:25 // 2025 08 16 00:13 // by Bernard13 "BYP" //====================================================================================================================== // #I BYP Supports Résistances //====================================================================================================================== DEFPARAM DrawOnlastBarOnly= True // Force the graph to the right Margin= 1 // Margin of the segment, point, rectangle. //====================================================================================================================== // POINTS / PIPS DrawText("▀▀", -310, -16, Dialog, Bold, 18) Coloured("Red") Anchor(TopRight) DrawText("▄▄", -310, -20, Dialog, Bold, 18) Coloured("Lime") Anchor(TopRight) IF PipSize = 0.0001 THEN DrawText("Supports / Resistances #Zone# Pips", -150, -20, Dialog, Bold, 16) Coloured("Aqua") Anchor(TopRight) ELSE DrawText("Supports / Resistances #Zone# Points", -150, -20, Dialog, Bold, 16) Coloured("Yellow") Anchor(TopRight) ENDIF //=================================================================================================================== // SUPPORTS RESISTANCES LINKED //=================================================================================================================== IF NumRS > 0 THEN //----- Linked S/R pairs (S1/R1, S2/R2, S3/R3, ...) StartR= NumRS StartS= NumRS ELSE // Free (S2, R5, S6, R3, ...) NumRS= 0 ENDIF //=================================================================================================================== // RESISTANCES //=================================================================================================================== IF Resistances THEN goUp= High[1] >= High i= 0 //----- Start Résistance FOR r= 1 TO StartR DO // Search for the first selected resistance level y= High[i] WHILE High[i+1] <= y DO // Not below the highest point i= i + 1 WEND WHILE goUp[i] DO // Highest point above i= i + 1 WEND NEXT StartR= r - 1 // First resistance level selected //----- All Résistances FOR NumR= StartR TO NumberR DO y= High[i] dy= y - Zone * PipSize var= y - Close varpc= ROUND((var / close * 100), 2) IF PipSize = 0.0001 THEN // In Pips, not in Points var= (y - Close) / PipSize ENDIF //----- Display Résistance DrawPoint(BarIndex[i], y, 2) Coloured(200,150,200) DrawPoint(BarIndex+Margin, y, 2) Coloured(200,150,200) DrawSegment(BarIndex[i], y, Barindex+Margin, y) Coloured(255,0,0) DrawRectangle(BarIndex[i], y, BarIndex+Margin, dy) Coloured(255,0,0,a) BorderColor(255,0,0,a) IF LevelsSR THEN // Optional information i= i + 1 DrawText("R#NumR# #y# #var# #varpc#% #i#UT", BarIndex+xAdjust, y, Dialog, Bold, 14) Coloured(200,150,200) ENDIF //----- Next Résistance WHILE High[i] <= y DO // Not below the highest pont i= i + 1 WEND WHILE goUp[i] DO // Highest point above i= i + 1 WEND NEXT //... NumR ENDIF //... Resistances //=================================================================================================================== // SUPPORTS //=================================================================================================================== IF Supports THEN goDown= Low[1] <= Low i= 0 //----- Start Support FOR s= 1 TO StartS DO // Search for the first selected support level y= Low[i] WHILE Low[i+1] >= y DO // Not above the lowest point i= i + 1 WEND WHILE goDown[i] DO // Lowest point below i= i + 1 WEND NEXT StartS= s - 1 //----- All Supports FOR NumS= StartS TO NumberS DO y= Low[i] dy= y + Zone * PipSize var= y - Close varpc= ROUND((var / close * 100), 2) IF PipSize = 0.0001 THEN // In Pips, not in Points var= (y - Close) / PipSize ENDIF //----- Display Support DrawPoint(BarIndex[i], y, 2) Coloured(150,200,150) DrawPoint(BarIndex+Margin, y, 2) Coloured(150,200,150) DrawSegment(BarIndex[i], y, Barindex+Margin, y) Coloured(0,255,0) DrawRectangle(BarIndex[i], y, BarIndex+Margin, dy) Coloured(0,255,0,a) BorderColor(0,255,0,a) IF LevelsSR THEN // Optional information i= i + 1 DrawText("S#NumS# #y# #var# #varpc#% #i#UT", BarIndex+xAdjust, y, Dialog, Bold, 14) Coloured(150,200,150) ENDIF //----- Next Support WHILE Low[i] >= y DO // Not above the lowest point i= i + 1 WEND WHILE goDown[i] DO // Lowest point below i= i + 1 WEND NEXT //---NumS ENDIF //---Supports //====================================================================================================================== RETURN //====================================================================================================================== |
