Grid orders with one combined stop loss and limit, can it be done?

• 06/08/2016 at 8:09 PM #9101
  cfta

  I’m still working on the screener I mentioned in my last post but I havn’t been able to devote as much time as I would like to it. So far my parameters for a screener are;

  Triggers:

  • MACD Zero lag to cross the zero line and for candle to close, or;
  • Divergence MACD open source to give signal for divergence and close.

  Filters for the candle giving the trigger must close with;

  • Heiken Ashi candle in the same color as the trigger, green for buy and red for sell.
  • Envelopes ADX (10) to be above 25 and rising, the most recently closed candle must have a higher value than the previous one.

  An additional filter may be added and I’m somewhat uncertain about the ADX since it also filter out a few good entries, the point is to filter out ranging periods with entries which will not lead to substancial moves. ATR may work better but I don’t have much experience from using it so I’m uncertain about how to implement it.

  CCI divergence may also be an additional trigger.

  As Nicolas mentioned please share your ideas for developement or if any existing screeners would be useful 🙂



  cfta

  Participant

  Topics: 2

  Replies: 110

  Been thanked: 62 times
  06/08/2016 at 8:17 PM #9102
  davidp13

  So are you mainly focusing on the entry signals at the moment?



  davidp13

  Participant

  Topics: 8

  Replies: 25

  Been thanked: 2 times
  06/08/2016 at 8:30 PM #9103
  cfta

  @ davidp13

  Yeah mainly entry signals for the time being but also experimenting a bit with different uses of the system such as scalping small to medium market moves with smaller grid steps and more contracts at each entry, it can yield large gains very fast but also requires very well timed entries and virtually watching your screen for quite a while to find an entry and then keep on watching as the trade progresses.

  I have not done anything regarding the dynamic grid step since I’m almost clueless about the coding I leave that to Nicolas…



  cfta

  Participant

  Topics: 2

  Replies: 110

  Been thanked: 62 times
  06/08/2016 at 8:42 PM #9104
  davidp13

  Personally I think the effort should go into managing the trade rather than finding the perfect entry. Tape readers don’t care about perfect all the care about is take profit off the table when the time is right. I have messed around with the money management code trying to find the best balance of when to close out or stay in across multiple systems and it seems very promising. Think we should work on the management aspect. Just my 2c



  davidp13

  Participant

  Topics: 8

  Replies: 25

  Been thanked: 2 times
  06/09/2016 at 7:07 PM #9131
  Nicolas

  This money management strategy is only reliable if the market don’t retrace too much.. So entries IMO are very important and must be made before the market ‘explode’. Use of many different periods Bollinger bands could be helpful, or Keltner/…any other band into Bbands.. I have don’t came across something very relevant for the moment. I need to spend time on it.


  @davidp13

  What are you calling money management aspect? Since it’s already built-in? You mean: exit trades at the right moment? A big problem here is the no possibility to manage trades individually, so it’s kind of rough to find the best exit.. 🙂



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4741 times
  06/10/2016 at 9:06 AM #9179
  simon_json

  Hi friends!

  Maybe a Squeeze for entry?

  All the best!

  3 users thanked author for this post.

  Patrick Andersson, cfta, Robin



  simon_json

  Participant

  Topics: 14

  Replies: 53

  Been thanked: 5 times
  06/14/2016 at 11:25 AM #9377
  Nicolas

  At least, I had time to finish the dynamic grid step function. This is only an indicator for the moment, but it would be easy to integrate it into the whole function later, or if anyone got time to test, I would be grateful!

  As discussed this dynamic grid step has an inverted scale to the recent ATR volatility. So if the instant volatility increase, the grid step is dynamically reduced and vice-versa.

  I implemented lower and higher boundaries to the grid (minSTEP and maxSTEP), so we can limit the effect of the dynamic step to not go too much high or low (a grid step of only 1 point would mean nothing for example).

  The other parameter that can be changed at will is the ATRcurrentPeriod one, which represent the instant volatility of the instrument: understand that if this variable is low, the dynamic step would be quick to change its value or if this variable is higher, the dynamic step would be smoother.

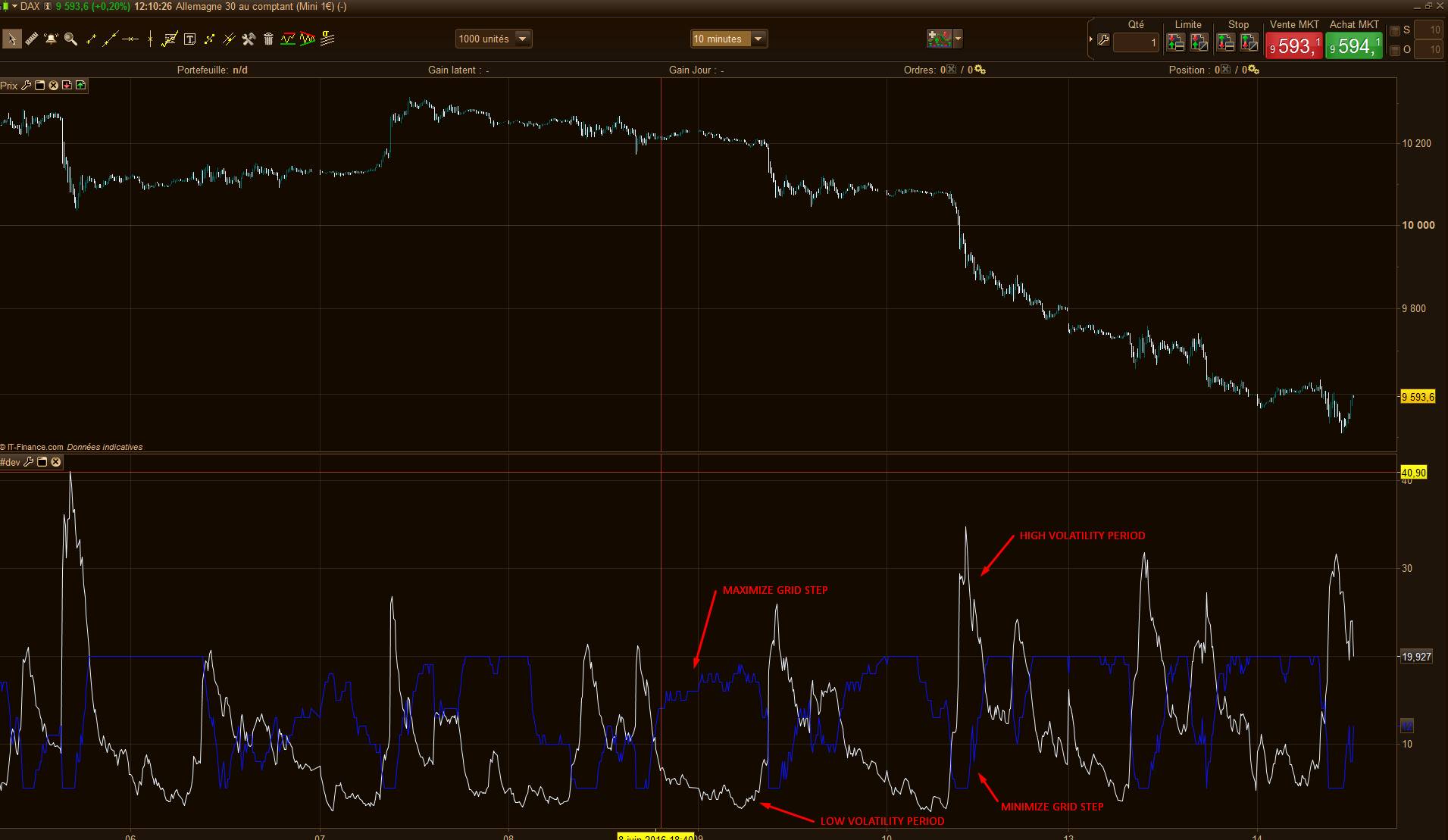

  I attach a picture of the indicator for comprehension purpose 🙂

  Here is the code:

  //dynamic step grid minSTEP = 5 //minimal step of the grid maxSTEP = 20 //maximal step of the grid ATRcurrentPeriod = 5 //recent volatility 'instant' period ATRhistoPeriod = 100 //historical volatility period ATR = averagetruerange[ATRcurrentPeriod] histoATR= highest[ATRhistoPeriod](ATR) resultMAX = MAX(minSTEP*pipsize,histoATR - ATR) resultMIN = MIN(resultMAX,maxSTEP*pipsize) step = ROUND(resultMIN) RETURN ATR, step coloured(10,20,255)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

  //dynamic step grid minSTEP = 5 //minimal step of the grid maxSTEP = 20 //maximal step of the grid ATRcurrentPeriod = 5 //recent volatility 'instant' period ATRhistoPeriod = 100 //historical volatility period   ATR = averagetruerange[ATRcurrentPeriod] histoATR= highest[ATRhistoPeriod](ATR)   resultMAX = MAX(minSTEP*pipsize,histoATR - ATR) resultMIN = MIN(resultMAX,maxSTEP*pipsize)   step = ROUND(resultMIN)   RETURN ATR, step coloured(10,20,255)

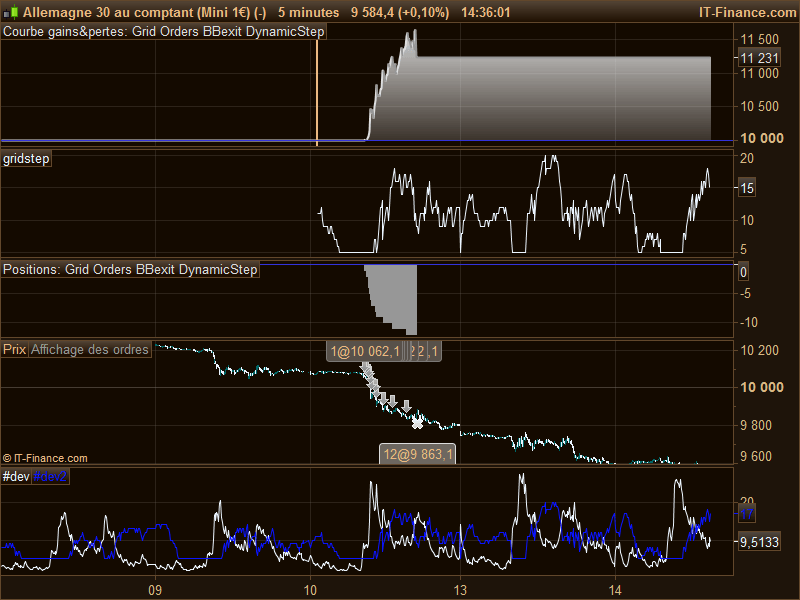

  (edit: add a picture of the strategy with the dynamic grid step built-in, seems ok).



  3 users thanked author for this post.

  Robin, Brage, cfta



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4741 times
  06/14/2016 at 7:51 PM #9404
  cfta

  Great work Nicolas, I will start testing asap! Judging by the second picture above I guess you managed to integrate the dynamig step grid into the system? Can the function be pasted anywhere in the code or does it need to be added at any specific line? Since I’m so eager to try it I have tried integrating it myself but not quite managed…

  @ Simon, excellent suggestion with the Squeeze indicator, it’s new to me and I’m trying it with different settings to optimize it. I have also been trying Nicolas’s indicator Choppiness index but the Squeeze seem more suitable. In fact I have never noticed Keltner before but put the regular bands on my chart since those are a good substitut for Heiken Ashi Smoothed which I’m used to trade with have not managed to find for PRT yet.

  @ davidp13, I appreciate your input and two cents however since we have a fairly aggresive money management entries must be selected very carefully when the market conditions are right otherwise we will be stopped out very quick and there will be no trade to manage left 🙂

  So testing goes on and I will come back with updates however progress will be slower since I’m very distracted by the Euro football 🙂

  2 users thanked author for this post.

  simon_json, Brage



  cfta

  Participant

  Topics: 2

  Replies: 110

  Been thanked: 62 times
  06/15/2016 at 9:57 AM #9407
  Nicolas

  Please find attached the complete code of the grid orders + dynamic step. For learning and further development purpose! 🙂

  Total of 11 users thanked author for this post. Here are last 10 listed.

  HerveS_67, GraHal, MikeGC, siaoman, sylvess, simon_json, yassel, Brage, Henrik, Robin



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4741 times
  06/15/2016 at 6:56 PM #9429
  cfta

  Awesome! I’ll start testing asap 🙂

  1 user thanked author for this post.

  GraHal



  cfta

  Participant

  Topics: 2

  Replies: 110

  Been thanked: 62 times
  06/24/2016 at 8:08 PM #9820
  simon_json

  Hello friends!

  Here is Squeeze screener, from a friend. I have not tested it.


  @cfta How is the testing going? 🙂



  simon_json

  Participant

  Topics: 14

  Replies: 53

  Been thanked: 5 times
  06/25/2016 at 7:38 AM #9833
  Sofitech

  If somebody can post the code  (text code ) of the last Grid-Orders-BBexit-DynamicStep.itf pposted by Nicolas it would be great.  I have an Itf import problem… thanks



  Sofitech

  Participant

  Topics: 50

  Replies: 140

  Been thanked: 10 times
  06/25/2016 at 10:46 AM #9837
  simon_json

  defparam preloadbars = 200 once RRreached = 0 //parameters accountbalance = 10000 //account balance in money at strategy start riskpercent = 2 //whole account risk in percent% amount = 1 //lot amount to open each trade rr = 4 //risk reward ratio (set to 0 disable this function) //dynamic step grid minSTEP = 5 //minimal step of the grid maxSTEP = 20 //maximal step of the grid ATRcurrentPeriod = 5 //recent volatility 'instant' period ATRhistoPeriod = 100 //historical volatility period ATR = averagetruerange[ATRcurrentPeriod] histoATR= highest[ATRhistoPeriod](ATR) resultMAX = MAX(minSTEP*pipsize,histoATR - ATR) resultMIN = MIN(resultMAX,maxSTEP*pipsize) gridstep = ROUND(resultMIN) //first trade whatever condition //if NOT ONMARKET AND close>close[1] AND STRATEGYPROFIT=0 then //BUY amount LOT AT MARKET //endif if NOT ONMARKET AND close<close[1] AND STRATEGYPROFIT=0 then SELLSHORT amount LOT AT MARKET endif // case BUY - add orders on the same trend if longonmarket and close-tradeprice(1)>=gridstep*pipsize then BUY amount LOT AT MARKET endif // case SELL - add orders on the same trend if shortonmarket and tradeprice(1)-close>=gridstep*pipsize then SELLSHORT amount LOT AT MARKET endif //money management liveaccountbalance = accountbalance+strategyprofit moneyrisk = (liveaccountbalance*(riskpercent/100)) if onmarket then onepointvaluebasket = pointvalue*countofposition mindistancetoclose =(moneyrisk/onepointvaluebasket)*pipsize endif //floating profit floatingprofit = (((close-positionprice)*pointvalue)*countofposition)/pipsize //actual trade gains MAfloatingprofit = average[20](floatingprofit) BBfloatingprofit = MAfloatingprofit - std[20](MAfloatingprofit)*2 //floating profit risk reward check if rr>0 and floatingprofit>moneyrisk*rr then RRreached=1 endif //GRAPH floatingprofit as "float" //GRAPH RRreached as "rr" //GRAPH floatingprofit as "floating profit" //GRAPH BBfloatingprofit as "deviation of floating profit" //GRAPH positionprice-mindistancetoclose //GRAPH moneyrisk //GRAPH onepointvaluebasket GRAPH gridstep //stoploss trigger when risk reward ratio is not met already if onmarket and RRreached=0 then SELL AT positionprice-mindistancetoclose STOP EXITSHORT AT positionprice-mindistancetoclose STOP endif //stoploss trigger when risj reward ratio has been reached if onmarket and RRreached=1 then if floatingprofit crosses under BBfloatingprofit then SELL AT MARKET EXITSHORT AT MARKET endif SELL AT positionprice-mindistancetoclose STOP EXITSHORT AT positionprice-mindistancetoclose STOP endif //resetting the risk reward reached variable if not onmarket then RRreached = 0 endif

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88

  defparam preloadbars = 200 once RRreached = 0   //parameters accountbalance = 10000 //account balance in money at strategy start riskpercent = 2 //whole account risk in percent% amount = 1 //lot amount to open each trade rr = 4 //risk reward ratio (set to 0 disable this function)   //dynamic step grid minSTEP = 5 //minimal step of the grid maxSTEP = 20 //maximal step of the grid ATRcurrentPeriod = 5 //recent volatility 'instant' period ATRhistoPeriod = 100 //historical volatility period   ATR = averagetruerange[ATRcurrentPeriod] histoATR= highest[ATRhistoPeriod](ATR)   resultMAX = MAX(minSTEP*pipsize,histoATR - ATR) resultMIN = MIN(resultMAX,maxSTEP*pipsize)   gridstep = ROUND(resultMIN)   //first trade whatever condition //if NOT ONMARKET AND close>close[1] AND STRATEGYPROFIT=0 then //BUY amount LOT AT MARKET //endif   if NOT ONMARKET AND close<close[1] AND STRATEGYPROFIT=0 then SELLSHORT amount LOT AT MARKET endif   // case BUY - add orders on the same trend if longonmarket and close-tradeprice(1)>=gridstep*pipsize then BUY amount LOT AT MARKET endif   // case SELL - add orders on the same trend if shortonmarket and tradeprice(1)-close>=gridstep*pipsize then SELLSHORT amount LOT AT MARKET endif   //money management liveaccountbalance = accountbalance+strategyprofit moneyrisk = (liveaccountbalance*(riskpercent/100)) if onmarket then onepointvaluebasket = pointvalue*countofposition mindistancetoclose =(moneyrisk/onepointvaluebasket)*pipsize endif //floating profit floatingprofit = (((close-positionprice)*pointvalue)*countofposition)/pipsize //actual trade gains MAfloatingprofit = average[20](floatingprofit) BBfloatingprofit = MAfloatingprofit - std[20](MAfloatingprofit)*2   //floating profit risk reward check if rr>0 and floatingprofit>moneyrisk*rr then RRreached=1 endif   //GRAPH floatingprofit as "float" //GRAPH RRreached as "rr" //GRAPH floatingprofit as "floating profit" //GRAPH BBfloatingprofit as "deviation of floating profit" //GRAPH positionprice-mindistancetoclose //GRAPH moneyrisk //GRAPH onepointvaluebasket GRAPH gridstep   //stoploss trigger when risk reward ratio is not met already if onmarket and RRreached=0 then SELL AT positionprice-mindistancetoclose STOP EXITSHORT AT positionprice-mindistancetoclose STOP endif   //stoploss trigger when risj reward ratio has been reached if onmarket and RRreached=1 then if floatingprofit crosses under BBfloatingprofit then SELL AT MARKET EXITSHORT AT MARKET endif SELL AT positionprice-mindistancetoclose STOP EXITSHORT AT positionprice-mindistancetoclose STOP endif   //resetting the risk reward reached variable if not onmarket then RRreached = 0 endif





  simon_json

  Participant

  Topics: 14

  Replies: 53

  Been thanked: 5 times
  06/26/2016 at 11:34 AM #9859
  cfta

  Hi fellows,

  @ Simon, thanks for sharing the screener but would you care to explain what it screens for? Judging by the name one might think it screens for Squeeze On but we want to detect when Squeeze changes from on to off right? 🙂

  As for the testing I have been very buys the last two weeks and have not had time for any real time testing at all, however next week I think I will manage and the backtests look good. I hope some more traders around here test it too in order to find the best parameters for ATR period along with min and max grid distance. There has been a general delay for a while now but more progress is to come!



  cfta

  Participant

  Topics: 2

  Replies: 110

  Been thanked: 62 times
  06/28/2016 at 6:04 PM #9975
  siaoman

  Hi all,

  Firstly, I want to say a big thank you to cfta for bringing up this idea to ProRealCode, and also a massive thanks to Nicolas for spending so much time getting it to the state it’s currently in. I’ve been following this since the beginning and am amazed at how well it’s been developed, so big thanks to everyone.

  I’ve been testing this on a demo account (IG) while also forward-testing it at the same time. I’ve noticed that the .itf provided by Nicolas has the below code commented out. Was there a reason why it was commented out? Anyways, I realise the code is also used to initiate long trades so I’ve uncommented it and results seem quite good in back-testing.

  //first trade whatever condition //if NOT ONMARKET AND close>close[1] AND STRATEGYPROFIT=0 then //BUY amount LOT AT MARKET //endif

  1 2 3 4

  //first trade whatever condition //if NOT ONMARKET AND close>close[1] AND STRATEGYPROFIT=0 then //BUY amount LOT AT MARKET //endif

  However, I am encountering an issue when running it as a system. Somehow the system does not initiate a new trade when the first one either TP or SL. Therefore, if the system goes SHORT to start, then commences building up the grid and suddenly gets SL, the system will then just idle without creating a new trade to go LONG. Are others also experiencing this?

  I’ll paste my code below in case anyone wants to see it. I’ve added in 2 extra lines of code to; 1) Close all trades after a specific time, and 2) Only allow the system to open trades during a specified time (with start and end time).

  I’m also running this system on the 1second timeframe.

  defparam preloadbars = 2000 DEFPARAM FLATAFTER = 232959 //NOTE: Added in to close all trades after this time once RRreached = 0 //parameters accountbalance = 12000 //account balance in money at strategy start riskpercent = 1 //whole account risk in percent% amount = 2 //lot amount to open each trade rr = 2 //risk reward ratio (set to 0 disable this function) //dynamic step grid minSTEP = 5 //minimal step of the grid maxSTEP = 20 //maximal step of the grid ATRcurrentPeriod = 5 //recent volatility 'instant' period ATRhistoPeriod = 100 //historical volatility period ATR = averagetruerange[ATRcurrentPeriod] histoATR= highest[ATRhistoPeriod](ATR) resultMAX = MAX(minSTEP*pipsize,histoATR - ATR) resultMIN = MIN(resultMAX,maxSTEP*pipsize) gridstep = ROUND(resultMIN) IF OPENTIME >= 150000 AND OPENTIME <= 232959 THEN //NOTE: Added to only allow the system to trade during this time period //first trade whatever condition if NOT ONMARKET AND close>close[1] then //AND STRATEGYPROFIT=0 then BUY amount LOT AT MARKET endif if NOT ONMARKET AND close<close[1] then //AND STRATEGYPROFIT=0 then SELLSHORT amount LOT AT MARKET endif // case BUY - add orders on the same trend if longonmarket and close-tradeprice(1)>=gridstep*pipsize then BUY amount LOT AT MARKET endif // case SELL - add orders on the same trend if shortonmarket and tradeprice(1)-close>=gridstep*pipsize then SELLSHORT amount LOT AT MARKET endif //money management liveaccountbalance = accountbalance+strategyprofit moneyrisk = (liveaccountbalance*(riskpercent/100)) if onmarket then onepointvaluebasket = pointvalue*countofposition mindistancetoclose =(moneyrisk/onepointvaluebasket)*pipsize endif //floating profit floatingprofit = (((close-positionprice)*pointvalue)*countofposition)/pipsize //actual trade gains MAfloatingprofit = average[20](floatingprofit) BBfloatingprofit = MAfloatingprofit - std[20](MAfloatingprofit)*2 //floating profit risk reward check if rr>0 and floatingprofit>moneyrisk*rr then RRreached=1 endif //GRAPH floatingprofit as "float" //GRAPH RRreached as "rr" //GRAPH floatingprofit as "floating profit" //GRAPH BBfloatingprofit as "deviation of floating profit" //GRAPH positionprice-mindistancetoclose //GRAPH moneyrisk //GRAPH onepointvaluebasket //GRAPH gridstep //stoploss trigger when risk reward ratio is not met already if onmarket and RRreached=0 then SELL AT positionprice-mindistancetoclose STOP EXITSHORT AT positionprice-mindistancetoclose STOP endif //stoploss trigger when risj reward ratio has been reached if onmarket and RRreached=1 then if floatingprofit crosses under BBfloatingprofit then SELL AT MARKET EXITSHORT AT MARKET endif SELL AT positionprice-mindistancetoclose STOP EXITSHORT AT positionprice-mindistancetoclose STOP endif //resetting the risk reward reached variable if not onmarket then RRreached = 0 endif endif

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93

  defparam preloadbars = 2000 DEFPARAM FLATAFTER = 232959 //NOTE: Added in to close all trades after this time once RRreached = 0   //parameters accountbalance = 12000 //account balance in money at strategy start riskpercent = 1 //whole account risk in percent% amount = 2 //lot amount to open each trade rr = 2 //risk reward ratio (set to 0 disable this function)   //dynamic step grid minSTEP = 5 //minimal step of the grid maxSTEP = 20 //maximal step of the grid ATRcurrentPeriod = 5 //recent volatility 'instant' period ATRhistoPeriod = 100 //historical volatility period   ATR = averagetruerange[ATRcurrentPeriod] histoATR= highest[ATRhistoPeriod](ATR)   resultMAX = MAX(minSTEP*pipsize,histoATR - ATR) resultMIN = MIN(resultMAX,maxSTEP*pipsize)   gridstep = ROUND(resultMIN)   IF OPENTIME >= 150000 AND OPENTIME <= 232959 THEN //NOTE: Added to only allow the system to trade during this time period   //first trade whatever condition if NOT ONMARKET AND close>close[1] then //AND STRATEGYPROFIT=0 then BUY amount LOT AT MARKET endif   if NOT ONMARKET AND close<close[1] then //AND STRATEGYPROFIT=0 then SELLSHORT amount LOT AT MARKET endif   // case BUY - add orders on the same trend if longonmarket and close-tradeprice(1)>=gridstep*pipsize then BUY amount LOT AT MARKET endif   // case SELL - add orders on the same trend if shortonmarket and tradeprice(1)-close>=gridstep*pipsize then SELLSHORT amount LOT AT MARKET endif   //money management liveaccountbalance = accountbalance+strategyprofit moneyrisk = (liveaccountbalance*(riskpercent/100)) if onmarket then onepointvaluebasket = pointvalue*countofposition mindistancetoclose =(moneyrisk/onepointvaluebasket)*pipsize endif //floating profit floatingprofit = (((close-positionprice)*pointvalue)*countofposition)/pipsize //actual trade gains MAfloatingprofit = average[20](floatingprofit) BBfloatingprofit = MAfloatingprofit - std[20](MAfloatingprofit)*2   //floating profit risk reward check if rr>0 and floatingprofit>moneyrisk*rr then RRreached=1 endif   //GRAPH floatingprofit as "float" //GRAPH RRreached as "rr" //GRAPH floatingprofit as "floating profit" //GRAPH BBfloatingprofit as "deviation of floating profit" //GRAPH positionprice-mindistancetoclose //GRAPH moneyrisk //GRAPH onepointvaluebasket //GRAPH gridstep   //stoploss trigger when risk reward ratio is not met already if onmarket and RRreached=0 then SELL AT positionprice-mindistancetoclose STOP EXITSHORT AT positionprice-mindistancetoclose STOP endif   //stoploss trigger when risj reward ratio has been reached if onmarket and RRreached=1 then if floatingprofit crosses under BBfloatingprofit then SELL AT MARKET EXITSHORT AT MARKET endif SELL AT positionprice-mindistancetoclose STOP EXITSHORT AT positionprice-mindistancetoclose STOP endif   //resetting the risk reward reached variable if not onmarket then RRreached = 0 endif   endif



  siaoman

  Participant

  Topics: 1

  Replies: 8

  Been thanked: 1 time
