"Genesis-Matrix" .Convertir de MQ4 a PRT

This topic has 8 replies, 3 voices, and was last updated 5 years ago by Nicolas.

Viewing 9 posts - 1 through 9 (of 9 total)

09/08/2018 at 3:52 PM #79992

Fr7

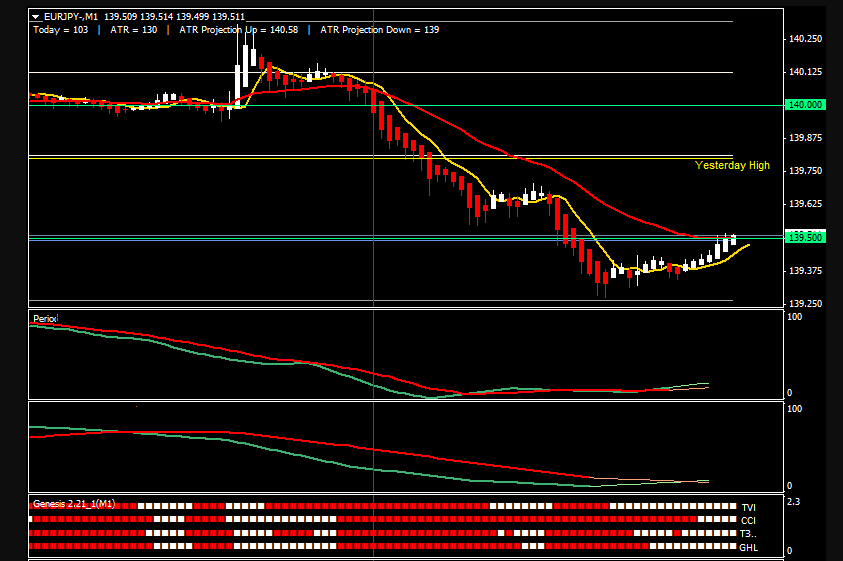

Hola Nicolás,a ver si puede pasar este indicador a PRT. Creo que es un indicador muy interesante que ojalá tengamos en PRT. Gracias.

DESCRIPCIÓN:

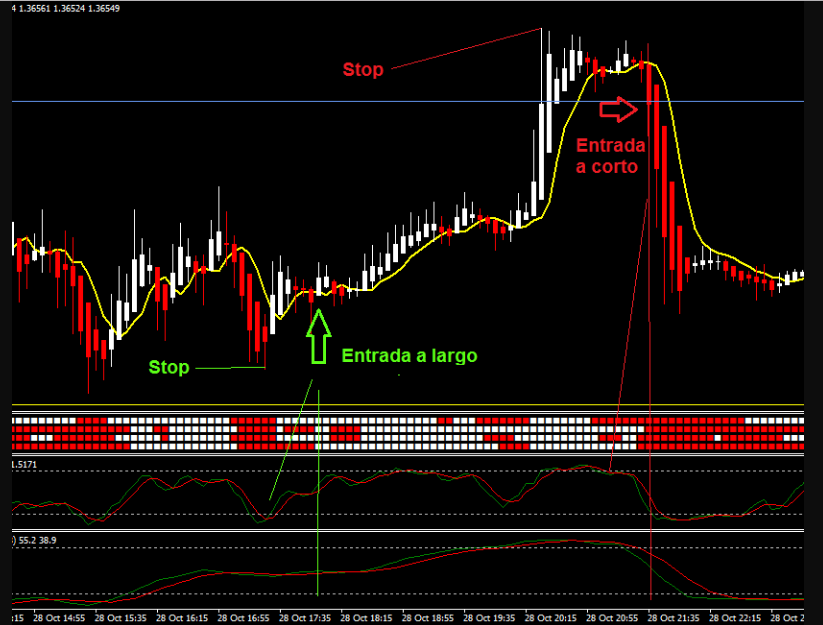

Génesis está compuesto por cuatro indicadores (TVI, CCI, T3,GHL ) – Puede encontrar genesis debajo del cuadro principal (puntos blancos y rojos), este indicador es la suma de los indicadores. Cuando los 4 indicadores confirman la tendencia bajista (todos los indicadores son de color rojo) o la tendencia alcista (todos los indicadores son blancos) .

-------------------------------------------------------------------------------------*/
// Indicator properties
//#property copyright
//#property link

#property indicator_separate_window
#property indicator_buffers 8
#property indicator_color1 C'0,90,255'
#property indicator_color2 Red
#property indicator_color3 C'0,90,255'
#property indicator_color4 Red
#property indicator_color5 C'0,90,255'
#property indicator_color6 Red
#property indicator_color7 C'0,90,255'
#property indicator_color8 Red
#property indicator_minimum 0
#property indicator_maximum 2.3

//#include <xPrint.mqh>

// Win32 API
#import "user32.dll"
   bool     GetWindowRect(int hWnd, int& lpRect[]);
#import
#import "Kernel32.dll"
  int CreateFileA(string lpFileName,int dwDesiredAccess, int dwShareMode, int lpSecurityAttributes, int dwCreationDisposition,int dwFlagsAndAttributes, int hTemplateFile);
  int CloseHandle(int hObject);
#import

#define OPEN_EXISTING 3
#define FILE_SHARE_READ 1
#define GENERIC_READ 0x80000000
#define FILE_ATTRIBUTE_NORMAL 128
#define INVALID_HANDLE_VALUE 0xFFFFFFFF

// Constant definitions
#define INDICATOR_NAME "Genesis"
#define INDICATOR_VERSION "2.21_1"
#define BAR_CHAR 110

#define IND_TVI        "TVI"
#define IND_GANNHILO   "GannHiLo-Histo"
#define IND_T3_8       "T3_2ColorHisto"

#define IDX_TVI       0
#define IDX_CCI       1
#define IDX_T3_8      2
#define IDX_GHL       3

// Indicator parameters
extern string    Indi.Version=INDICATOR_VERSION;
//extern int       MaxBars=500;
extern string    TimeFrame.Settings="——————————————————————————————";
extern int       TimeFrame.Period=0;        // Timeframe: 0,1,5,15,30,60,240,1440 etc. Current Timeframe=0.
extern int       TimeFrame.Auto=0;          // Automatically select higher TF. M15 and M30 -> H1. Off=0, 1st HTF=1, 2nd HTF=2
extern string    TVI.Settings="——————————————————————————————";
extern int       TVI.r=12;
extern int       TVI.s=12;
extern int       TVI.u=5;
extern string    TVI.Label="TVI";
extern string    CCI.Settings="——————————————————————————————";
extern int       CCI.Period=20;
extern double    CCI.Threshold=60;
extern string    CCI.Label="CCI";
extern string    T3_8.Settings="——————————————————————————————";
extern int       T3_8.Period=8;
extern int       T3_8.BarCount=1500;
extern string    T3_8.Label="T3..";
extern string    GannHiLo.Settings="——————————————————————————————";
extern int       GannHiLo.Period=10;
extern string    GannHiLo.Label="GHL";
extern string    Alert.Settings="——————————————————————————————";
extern bool      Alert.OnBarClose=True;     // Alert only when an open bar closes
extern bool      Alert.Popup=False;         // Enable popup window & sound on alert
extern bool      Alert.Email=False;         // Enable send email on alert
extern string    Alert.Subject="";          // Email Subject. Null string ("") will result in a preconfigured subject.
extern string    Display.Settings="——————————————————————————————";
extern color     Display.LabelColor=White;  // Color of Histogram Id labels

// Global module varables
// Histogram
double gadTVIUp[];
double gadTVIDn[];
double gadCCIUp[];
double gadCCIDn[];
double gadT3Up[];
double gadT3Dn[];
double gadGHLUp[];
double gadGHLDn[];

// Labels
double gadGap[4];

// Globals
int giRepaintBars;
string gsIndicatorName;
bool gbInit;

//-----------------------------------------------------------------------------
// function: init()
// Description: Custom indicator initialization function.
//-----------------------------------------------------------------------------
int init() {
  string sTFList;
  int iMaxTF;

  // Init indicator buffers
  IndicatorBuffers(8);
  SetIndexStyle(0,DRAW_ARROW);
  SetIndexBuffer(0,gadTVIUp);
  SetIndexStyle(1,DRAW_ARROW);
  SetIndexBuffer(1,gadTVIDn);
  SetIndexStyle(2,DRAW_ARROW);
  SetIndexBuffer(2,gadCCIUp);
  SetIndexStyle(3,DRAW_ARROW);
  SetIndexBuffer(3,gadCCIDn);
  SetIndexStyle(4,DRAW_ARROW);
  SetIndexBuffer(4,gadT3Up);
  SetIndexStyle(5,DRAW_ARROW);
  SetIndexBuffer(5,gadT3Dn);
  SetIndexStyle(6,DRAW_ARROW);
  SetIndexBuffer(6,gadGHLUp);
  SetIndexStyle(7,DRAW_ARROW);
  SetIndexBuffer(7,gadGHLDn);
  for (int i = 0; i < indicator_buffers; i++) {
    SetIndexLabel(i,NULL);
    SetIndexEmptyValue(i,0.0);
    SetIndexArrow(i,BAR_CHAR);
  }

  // Set Timeframe
  switch(TimeFrame.Auto) {
    case 1:
      TimeFrame.Period=NextHigherTF(TimeFrame.Period);
      giRepaintBars=TimeFrame.Period/Period()+2;
    break;
    case 2:
      TimeFrame.Period=NextHigherTF(NextHigherTF(TimeFrame.Period));
      giRepaintBars=TimeFrame.Period/Period()+2;
    break;
    default:
      if (TimeFrame.Period<1 || TimeFrame.Period==Period()) {
        TimeFrame.Period=Period();
        giRepaintBars=0;
      }
      else {
        giRepaintBars=TimeFrame.Period/Period()+2;
      }
    break;
  }

  // Set histogram positions
  gadGap[IDX_TVI]=1.9;
  gadGap[IDX_CCI]=1.4;
  gadGap[IDX_T3_8]=0.9;
  gadGap[IDX_GHL]=0.4;

  // Check that required indicators are installed
  if (!IndicatorExists(IND_TVI+".ex4"))
    Alert(Symbol()+", "+TF2Str(Period())+", "+INDICATOR_NAME+": Error! "+TerminalPath()+"\\experts\\indicators\\"+IND_TVI+".ex4 cannot be found.");
  if (!IndicatorExists(IND_GANNHILO+".ex4"))
    Alert(Symbol()+", "+TF2Str(Period())+", "+INDICATOR_NAME+": Error! "+TerminalPath()+"\\experts\\indicators\\"+IND_GANNHILO+".ex4 cannot be found.");
  if (!IndicatorExists(IND_T3_8+".ex4"))
    Alert(Symbol()+", "+TF2Str(Period())+", "+INDICATOR_NAME+": Error! "+TerminalPath()+"\\experts\\indicators\\"+IND_T3_8+".ex4 cannot be found.");

  // Misc
  gsIndicatorName=INDICATOR_NAME+" "+INDICATOR_VERSION+"("+TF2Str(TimeFrame.Period)+")";
  IndicatorShortName(gsIndicatorName);
  gbInit=True;
  return(0);
}


//-----------------------------------------------------------------------------
// function: deinit()
// Description: Custom indicator deinitialization function.
//-----------------------------------------------------------------------------
int deinit() {
  // Clear text objects
  for(int i=ObjectsTotal()-1; i>-1; i--)
    if (StringFind(ObjectName(i),gsIndicatorName)>=0)  ObjectDelete(ObjectName(i));
  return (0);
}


//-----------------------------------------------------------------------------
// function: start()
// Description: Custom indicator iteration function.
//-----------------------------------------------------------------------------
int start() {
  int iNewBars;
  int iCountedBars;
  static datetime tCurBar;

  // Get unprocessed bars
  iCountedBars=IndicatorCounted();
  if(iCountedBars < 0) return (-1);
  if(iCountedBars>0) iCountedBars--;

  // Set bars to redraw
  if (NewBars(TimeFrame.Period)>3)
    iNewBars=Bars-1;
    //iNewBars=MaxBars-1;
  else
    iNewBars=Bars-iCountedBars;
    //iNewBars=MaxBars-iCountedBars;
  if (iNewBars<giRepaintBars)
    iNewBars=giRepaintBars;

  // Calc indicator data and update matrix
  ProcessTVI(iNewBars, TVI.r, TVI.s, TVI.u, gadTVIUp, gadTVIDn);
  ProcessCCI(iNewBars,CCI.Period, CCI.Threshold, gadCCIUp, gadCCIDn);
  ProcessT3_8(iNewBars,T3_8.Period, gadT3Up, gadT3Dn);
  ProcessGannHiLo(iNewBars,GannHiLo.Period, gadGHLUp, gadGHLDn);

  // Alerts
  CheckAlert();

  // Tasks to execute on bar close
  if (tCurBar<Time[0]) {
    tCurBar=Time[0];

    // Write/Update bar labels
    Writelabel(TVI.Label,gadGap[IDX_TVI]+0.2);
    Writelabel(CCI.Label,gadGap[IDX_CCI]+0.2);
    Writelabel(T3_8.Label,gadGap[IDX_T3_8]+0.2);
    Writelabel(GannHiLo.Label,gadGap[IDX_GHL]+0.2);

    // Clear the init flag
    if (gbInit)
      gbInit=False;
  }

  return(0);
}


//-----------------------------------------------------------------------------
// function: NewBars()
// Description: Return nr of new bars on a TF
//-----------------------------------------------------------------------------
int NewBars(int iPeriod) {
  static int iPrevSize=0;
  int iNewSize;
  int iNewBars;
  datetime tTimeArray[];

  ArrayCopySeries(tTimeArray,MODE_TIME,Symbol(),iPeriod);
  iNewSize=ArraySize(tTimeArray);
  iNewBars=iNewSize-iPrevSize;
  iPrevSize=iNewSize;
  return(iNewBars);
}


//-----------------------------------------------------------------------------
// function: ProcessTVI()
// Description: Calc TVI data and update matrix
//-----------------------------------------------------------------------------
int ProcessTVI(int iNewBars, int r, int s, int u, double& vdUp[], double& vdDn[]) {
  int i,j;
  double dTVI0, dTVI1;
  int iHTFBar=-1;

  for (i=iNewBars;i>=0;i--) {
    // Get index for higher timeframe bar
    if (TimeFrame.Period>Period())
      j=iBarShift(Symbol(), TimeFrame.Period, Time[i]);
    else
      j=i;
    // Calc TVI
    if (iHTFBar!=j) {
      iHTFBar=j;
      dTVI1=iCustom(Symbol(),TimeFrame.Period,IND_TVI,r,s,u,0,j+1);
      dTVI0=iCustom(Symbol(),TimeFrame.Period,IND_TVI,r,s,u,0,j);
    }
    // No data
    if (dTVI0==EMPTY_VALUE) {
      vdUp[i]=0;
      vdDn[i]=0;
    }
    // Bull signal
    if (dTVI0>=dTVI1) {
      vdUp[i]=gadGap[IDX_TVI];
      vdDn[i]=0;
    }
    // Bear signal
    else {
      vdDn[i]=gadGap[IDX_TVI];
      vdUp[i]=0;
    }
  }
  return(0);
}


//-----------------------------------------------------------------------------
// function: ProcessCCI()
// Description: Calc CCI data and update matrix
//-----------------------------------------------------------------------------
int ProcessCCI(int iNewBars, int iPeriod, double iThreshold, double& vdUp[], double& vdDn[]) {
  int i,j;
  double dSig;
  int iHTFBar=-1;

  for(i=iNewBars; i>=0; i--) {
    // Shift index for higher time-frame
    if (TimeFrame.Period>Period() )
      j=iBarShift(Symbol(), TimeFrame.Period, Time[i]);
    else
      j=i;
    // Calc CCI
    if (iHTFBar!=j) {
      iHTFBar=j;
      dSig=iCCI(NULL, TimeFrame.Period, iPeriod, PRICE_TYPICAL, j);
    }
    // No Data
    if (iClose(NULL,TimeFrame.Period,j)==0) {
      vdUp[i]=EMPTY_VALUE;
      vdDn[i]=EMPTY_VALUE;
    }
    // Bull signal
    //else if (dSig>0 && dSig > iThreshold ) {
    else if (dSig>0 ) {
      vdUp[i]=gadGap[IDX_CCI];
      vdDn[i] = 0;
    }
    // Bwar signal
    //else if (dSig < 0  && dSig < -iThreshold ){
    else if (dSig < 0 ){
      vdDn[i]=gadGap[IDX_CCI];
      vdUp[i] = 0;
    }
  }
  return(0);
}


//-----------------------------------------------------------------------------
// function: ProcessT3_8()
// Description: Calc T3_8 data and update matrix
//-----------------------------------------------------------------------------
int ProcessT3_8(int iNewBars, int iPeriod, double& vdUp[], double& vdDn[]) {
  int i,j,iUp;
  double dSig;
  int iHTFBar=-1;

  // Draw tape chart
  for(i=iNewBars+TimeFrame.Period/Period(); i>=0; i--) {
    // Shift index for higher time-frame
    if (TimeFrame.Period>Period())
      j=iBarShift(Symbol(), TimeFrame.Period, Time[i]);
    else
      j=i;
    // Calc T3_8 data
    if (iHTFBar!=j) {
      iHTFBar=j;
      iUp = iCustom(NULL,TimeFrame.Period,IND_T3_8,T3_8.Period,PRICE_CLOSE, T3_8.BarCount, 1,j);
      //iUp = iCustom(NULL,TimeFrame.Period,IND_T3_8,T3_8.Period,1,j);
    }
    // Bear signal
    if (iUp==1) {
      vdDn[i]=gadGap[IDX_T3_8];
      vdUp[i]=0;
    }
    // Bull signal
    else {
      vdUp[i]=gadGap[IDX_T3_8];
      vdDn[i]=0;
    }
  }
}

//-----------------------------------------------------------------------------
// function: ProcessGannHiLo()
// Description: Calc GannHiLo data and update matrix
//-----------------------------------------------------------------------------
int ProcessGannHiLo(int iNewBars, int iPeriod, double& vdUp[], double& vdDn[]) {
  int i,j,iUp;
  double dSig;
  int iHTFBar=-1;

  // Draw tape chart
  for(i=iNewBars+TimeFrame.Period/Period(); i>=0; i--) {
    // Shift index for higher time-frame
    if (TimeFrame.Period>Period())
      j=iBarShift(Symbol(), TimeFrame.Period, Time[i]);
    else
      j=i;
    // Calc GannHiLo data
    if (iHTFBar!=j) {
      iHTFBar=j;
      iUp = iCustom(NULL,TimeFrame.Period,IND_GANNHILO,GannHiLo.Period,0,j);
    }
    // No Data
    if (iUp==EMPTY_VALUE) {
      vdUp[i]=0;
      vdDn[i]=0;
    }
    // Bull signal
    else if (iUp==1) {
      vdUp[i]=gadGap[IDX_GHL];
      vdDn[i]=0;
    }
    // Bear signal
    else {
      vdDn[i]=gadGap[IDX_GHL];
      vdUp[i]=0;
    }
  }
}


//-----------------------------------------------------------------------------
// function: CheckAlert()
// Description: Check for new alerts
//-----------------------------------------------------------------------------
void CheckAlert() {
  static datetime tAlertBar;
  static int iPrevAlert=0;

  if (Alert.Popup || Alert.Email) {

    // Alert on the close of the current bar
    if (Alert.OnBarClose && tAlertBar<Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])] && !gbInit) {

      tAlertBar=Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])];
      // Clear alert flag
      if (iPrevAlert==1 && !UpSignal(1))
         iPrevAlert=0;
      else if (iPrevAlert==-1 && !DnSignal(1))
         iPrevAlert=0;
      // Alert and set alert flag
      if (UpSignal(1) && iPrevAlert!=1) {
         AlertNow(Symbol()+", "+TF2Str(Period())+": STS Buy Signal.");
         iPrevAlert=1;
      }
      else if (DnSignal(1) && iPrevAlert!=-1) {
         AlertNow(Symbol()+", "+TF2Str(Period())+": STS Sell Signal.");
         iPrevAlert=-1;
      }
    }

    // Alert while the current bar is open
    if (!Alert.OnBarClose && tAlertBar<Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])] && !gbInit) {
      // Clear alert flag
      if (iPrevAlert==1 && !UpSignal(0))
         iPrevAlert=0;
      else if (iPrevAlert==-1 && !DnSignal(0))
         iPrevAlert=0;
      // Alert and set alert flag
      if (UpSignal(0) && iPrevAlert!=1) {
         AlertNow(Symbol()+", "+TF2Str(Period())+": STS Buy Signal.");
         iPrevAlert=1;
         tAlertBar=Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])];
      }
      else if (DnSignal(0) && iPrevAlert!=-1) {
         AlertNow(Symbol()+", "+TF2Str(Period())+": STS Sell Signal.");
         iPrevAlert=-1;
         tAlertBar=Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])];
      }
    }
  }
}


//-----------------------------------------------------------------------------
// function: AlertNow()
// Description: Signal the popup and email alerts
//-----------------------------------------------------------------------------
void AlertNow(string sAlertMsg) {
  //Popup Alert
  if (Alert.Popup)
    Alert(INDICATOR_NAME, ", ", sAlertMsg);
  //Email Alert
  if (Alert.Email) {
    if (Alert.Subject=="")
      SendMail( sAlertMsg, "MT4 Alert!\n"+INDICATOR_NAME+"\n" + TimeToStr(Time[0],TIME_DATE|TIME_SECONDS )+"\n"+sAlertMsg);
    else
      SendMail( Alert.Subject, "MT4 Alert!\n"+INDICATOR_NAME+"\n" + TimeToStr(Time[0],TIME_DATE|TIME_SECONDS )+"\n"+sAlertMsg);
  }
}


//-----------------------------------------------------------------------------
// function: UpSignal()
// Description: Return true if there is an up signal
//-----------------------------------------------------------------------------
bool UpSignal(int i) {
  if (gadTVIUp[i]>0 && gadCCIUp[i]>0 && gadGHLUp[i]>0 && gadT3Up[i]>0)
    return(True);
  else
    return(False);
}


//-----------------------------------------------------------------------------
// function: DnSignal()
// Description: eturn true if there is a down signal
//-----------------------------------------------------------------------------
bool DnSignal(int i) {
  if (gadTVIDn[i]>0 && gadCCIDn[i]>0 && gadGHLDn[i]>0 && gadT3Dn[i]>0)
    return(True);
  else
    return(False);
}


//-----------------------------------------------------------------------------
// function: Writelabel()
// Description: Write a label for a bar
//-----------------------------------------------------------------------------
int Writelabel(string sLabel,double dPrice) {
  string sObjId;
  sObjId=gsIndicatorName+"_"+sLabel;
  if(ObjectFind(sObjId) < 0)
    ObjectCreate(sObjId, OBJ_TEXT, WindowFind(gsIndicatorName), Time[0]+Period()*60*2, dPrice);
  ObjectSetText(sObjId, sLabel, 8, "Calibri", Display.LabelColor); //Lucida Console
  ObjectMove(sObjId,0,Time[0]+Period()*60*2, dPrice);
  return(0);
}


//-----------------------------------------------------------------------------
// function: IndicatorExists()
// Description: Check if an indicator exists
//-----------------------------------------------------------------------------
bool IndicatorExists(string sIndicatorName) {
  int hFile;
  string sFile;

  // Exit if dlls are disabled
  if (!IsDllsAllowed())
    return(True);

  // Try to open indicator
  sFile=TerminalPath()+"\\experts\\indicators\\"+sIndicatorName;
  hFile=CreateFileA(sFile,0,FILE_SHARE_READ,0,OPEN_EXISTING,FILE_ATTRIBUTE_NORMAL,0);
  if (hFile==INVALID_HANDLE_VALUE) {
    return(False);
  }
  else {
    CloseHandle(hFile);
    return(True);
  }
  return(False);
}


//-----------------------------------------------------------------------------
// function: TF2Str()
// Description: Convert time-frame to a string
//-----------------------------------------------------------------------------
string TF2Str(int iPeriod) {
  switch(iPeriod) {
    case PERIOD_M1: return("M1");
    case PERIOD_M5: return("M5");
    case PERIOD_M15: return("M15");
    case PERIOD_M30: return("M30");
    case PERIOD_H1: return("H1");
    case PERIOD_H4: return("H4");
    case PERIOD_D1: return("D1");
    case PERIOD_W1: return("W1");
    case PERIOD_MN1: return("MN1");
    default: return("M"+iPeriod);
  }
  return(0);
}


//-----------------------------------------------------------------------------
// function: NextHigherTF()
// Description: Select the next higher time-frame.
//              Note: M15 and M30 both select H1 as next higher TF.
//-----------------------------------------------------------------------------
int NextHigherTF(int iPeriod) {
  if (iPeriod==0) iPeriod=Period();
  switch(iPeriod) {
    case PERIOD_M1: return(PERIOD_M5);
    case PERIOD_M5: return(PERIOD_M15);
    case PERIOD_M15: return(PERIOD_H1);
    case PERIOD_M30: return(PERIOD_H1);
    case PERIOD_H1: return(PERIOD_H4);
    case PERIOD_H4: return(PERIOD_D1);
    case PERIOD_D1: return(PERIOD_W1);
    case PERIOD_W1: return(PERIOD_MN1);
    case PERIOD_MN1: return(PERIOD_MN1);
    default: return(Period());
  }
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

-------------------------------------------------------------------------------------*/

// Indicator properties

//#property copyright

//#property link

#property indicator_separate_window

#property indicator_buffers 8

#property indicator_color1 C'0,90,255'

#property indicator_color2 Red

#property indicator_color3 C'0,90,255'

#property indicator_color4 Red

#property indicator_color5 C'0,90,255'

#property indicator_color6 Red

#property indicator_color7 C'0,90,255'

#property indicator_color8 Red

#property indicator_minimum 0

#property indicator_maximum 2.3

//#include <xPrint.mqh>

// Win32 API

#import "user32.dll"

bool GetWindowRect(int hWnd, int& lpRect[]);

#import

#import "Kernel32.dll"

int CreateFileA(string lpFileName,int dwDesiredAccess, int dwShareMode, int lpSecurityAttributes, int dwCreationDisposition,int dwFlagsAndAttributes, int hTemplateFile);

int CloseHandle(int hObject);

#import

#define OPEN_EXISTING 3

#define FILE_SHARE_READ 1

#define GENERIC_READ 0x80000000

#define FILE_ATTRIBUTE_NORMAL 128

#define INVALID_HANDLE_VALUE 0xFFFFFFFF

// Constant definitions

#define INDICATOR_NAME "Genesis"

#define INDICATOR_VERSION "2.21_1"

#define BAR_CHAR 110

#define IND_TVI "TVI"

#define IND_GANNHILO "GannHiLo-Histo"

#define IND_T3_8 "T3_2ColorHisto"

#define IDX_TVI 0

#define IDX_CCI 1

#define IDX_T3_8 2

#define IDX_GHL 3

// Indicator parameters

extern string Indi.Version=INDICATOR_VERSION;

//extern int MaxBars=500;

extern string TimeFrame.Settings="——————————————————————————————";

extern int TimeFrame.Period=0; // Timeframe: 0,1,5,15,30,60,240,1440 etc. Current Timeframe=0.

extern int TimeFrame.Auto=0; // Automatically select higher TF. M15 and M30 -> H1. Off=0, 1st HTF=1, 2nd HTF=2

extern string TVI.Settings="——————————————————————————————";

extern int TVI.r=12;

extern int TVI.s=12;

extern int TVI.u=5;

extern string TVI.Label="TVI";

extern string CCI.Settings="——————————————————————————————";

extern int CCI.Period=20;

extern double CCI.Threshold=60;

extern string CCI.Label="CCI";

extern string T3_8.Settings="——————————————————————————————";

extern int T3_8.Period=8;

extern int T3_8.BarCount=1500;

extern string T3_8.Label="T3..";

extern string GannHiLo.Settings="——————————————————————————————";

extern int GannHiLo.Period=10;

extern string GannHiLo.Label="GHL";

extern string Alert.Settings="——————————————————————————————";

extern bool Alert.OnBarClose=True; // Alert only when an open bar closes

extern bool Alert.Popup=False; // Enable popup window & sound on alert

extern bool Alert.Email=False; // Enable send email on alert

extern string Alert.Subject=""; // Email Subject. Null string ("") will result in a preconfigured subject.

extern string Display.Settings="——————————————————————————————";

extern color Display.LabelColor=White; // Color of Histogram Id labels

// Global module varables

// Histogram

double gadTVIUp[];

double gadTVIDn[];

double gadCCIUp[];

double gadCCIDn[];

double gadT3Up[];

double gadT3Dn[];

double gadGHLUp[];

double gadGHLDn[];

// Labels

double gadGap[4];

// Globals

int giRepaintBars;

string gsIndicatorName;

bool gbInit;

//-----------------------------------------------------------------------------

// function: init()

// Description: Custom indicator initialization function.

//-----------------------------------------------------------------------------

int init() {

string sTFList;

int iMaxTF;

// Init indicator buffers

IndicatorBuffers(8);

SetIndexStyle(0,DRAW_ARROW);

SetIndexBuffer(0,gadTVIUp);

SetIndexStyle(1,DRAW_ARROW);

SetIndexBuffer(1,gadTVIDn);

SetIndexStyle(2,DRAW_ARROW);

SetIndexBuffer(2,gadCCIUp);

SetIndexStyle(3,DRAW_ARROW);

SetIndexBuffer(3,gadCCIDn);

SetIndexStyle(4,DRAW_ARROW);

SetIndexBuffer(4,gadT3Up);

SetIndexStyle(5,DRAW_ARROW);

SetIndexBuffer(5,gadT3Dn);

SetIndexStyle(6,DRAW_ARROW);

SetIndexBuffer(6,gadGHLUp);

SetIndexStyle(7,DRAW_ARROW);

SetIndexBuffer(7,gadGHLDn);

for (int i = 0; i < indicator_buffers; i++) {

SetIndexLabel(i,NULL);

SetIndexEmptyValue(i,0.0);

SetIndexArrow(i,BAR_CHAR);

}

// Set Timeframe

switch(TimeFrame.Auto) {

case 1:

TimeFrame.Period=NextHigherTF(TimeFrame.Period);

giRepaintBars=TimeFrame.Period/Period()+2;

break;

case 2:

TimeFrame.Period=NextHigherTF(NextHigherTF(TimeFrame.Period));

giRepaintBars=TimeFrame.Period/Period()+2;

break;

default:

if (TimeFrame.Period<1 || TimeFrame.Period==Period()) {

TimeFrame.Period=Period();

giRepaintBars=0;

}

else {

giRepaintBars=TimeFrame.Period/Period()+2;

}

break;

}

// Set histogram positions

gadGap[IDX_TVI]=1.9;

gadGap[IDX_CCI]=1.4;

gadGap[IDX_T3_8]=0.9;

gadGap[IDX_GHL]=0.4;

// Check that required indicators are installed

if (!IndicatorExists(IND_TVI+".ex4"))

Alert(Symbol()+", "+TF2Str(Period())+", "+INDICATOR_NAME+": Error! "+TerminalPath()+"\\experts\\indicators\\"+IND_TVI+".ex4 cannot be found.");

if (!IndicatorExists(IND_GANNHILO+".ex4"))

Alert(Symbol()+", "+TF2Str(Period())+", "+INDICATOR_NAME+": Error! "+TerminalPath()+"\\experts\\indicators\\"+IND_GANNHILO+".ex4 cannot be found.");

if (!IndicatorExists(IND_T3_8+".ex4"))

Alert(Symbol()+", "+TF2Str(Period())+", "+INDICATOR_NAME+": Error! "+TerminalPath()+"\\experts\\indicators\\"+IND_T3_8+".ex4 cannot be found.");

// Misc

gsIndicatorName=INDICATOR_NAME+" "+INDICATOR_VERSION+"("+TF2Str(TimeFrame.Period)+")";

IndicatorShortName(gsIndicatorName);

gbInit=True;

return(0);

}

//-----------------------------------------------------------------------------

// function: deinit()

// Description: Custom indicator deinitialization function.

//-----------------------------------------------------------------------------

int deinit() {

// Clear text objects

for(int i=ObjectsTotal()-1; i>-1; i--)

if (StringFind(ObjectName(i),gsIndicatorName)>=0) ObjectDelete(ObjectName(i));

return (0);

}

//-----------------------------------------------------------------------------

// function: start()

// Description: Custom indicator iteration function.

//-----------------------------------------------------------------------------

int start() {

int iNewBars;

int iCountedBars;

static datetime tCurBar;

// Get unprocessed bars

iCountedBars=IndicatorCounted();

if(iCountedBars < 0) return (-1);

if(iCountedBars>0) iCountedBars--;

// Set bars to redraw

if (NewBars(TimeFrame.Period)>3)

iNewBars=Bars-1;

//iNewBars=MaxBars-1;

else

iNewBars=Bars-iCountedBars;

//iNewBars=MaxBars-iCountedBars;

if (iNewBars<giRepaintBars)

iNewBars=giRepaintBars;

// Calc indicator data and update matrix

ProcessTVI(iNewBars, TVI.r, TVI.s, TVI.u, gadTVIUp, gadTVIDn);

ProcessCCI(iNewBars,CCI.Period, CCI.Threshold, gadCCIUp, gadCCIDn);

ProcessT3_8(iNewBars,T3_8.Period, gadT3Up, gadT3Dn);

ProcessGannHiLo(iNewBars,GannHiLo.Period, gadGHLUp, gadGHLDn);

// Alerts

CheckAlert();

// Tasks to execute on bar close

if (tCurBar<Time[0]) {

tCurBar=Time[0];

// Write/Update bar labels

Writelabel(TVI.Label,gadGap[IDX_TVI]+0.2);

Writelabel(CCI.Label,gadGap[IDX_CCI]+0.2);

Writelabel(T3_8.Label,gadGap[IDX_T3_8]+0.2);

Writelabel(GannHiLo.Label,gadGap[IDX_GHL]+0.2);

// Clear the init flag

if (gbInit)

gbInit=False;

}

return(0);

}

//-----------------------------------------------------------------------------

// function: NewBars()

// Description: Return nr of new bars on a TF

//-----------------------------------------------------------------------------

int NewBars(int iPeriod) {

static int iPrevSize=0;

int iNewSize;

int iNewBars;

datetime tTimeArray[];

ArrayCopySeries(tTimeArray,MODE_TIME,Symbol(),iPeriod);

iNewSize=ArraySize(tTimeArray);

iNewBars=iNewSize-iPrevSize;

iPrevSize=iNewSize;

return(iNewBars);

}

//-----------------------------------------------------------------------------

// function: ProcessTVI()

// Description: Calc TVI data and update matrix

//-----------------------------------------------------------------------------

int ProcessTVI(int iNewBars, int r, int s, int u, double& vdUp[], double& vdDn[]) {

int i,j;

double dTVI0, dTVI1;

int iHTFBar=-1;

for (i=iNewBars;i>=0;i--) {

// Get index for higher timeframe bar

if (TimeFrame.Period>Period())

j=iBarShift(Symbol(), TimeFrame.Period, Time[i]);

else

j=i;

// Calc TVI

if (iHTFBar!=j) {

iHTFBar=j;

dTVI1=iCustom(Symbol(),TimeFrame.Period,IND_TVI,r,s,u,0,j+1);

dTVI0=iCustom(Symbol(),TimeFrame.Period,IND_TVI,r,s,u,0,j);

}

// No data

if (dTVI0==EMPTY_VALUE) {

vdUp[i]=0;

vdDn[i]=0;

}

// Bull signal

if (dTVI0>=dTVI1) {

vdUp[i]=gadGap[IDX_TVI];

vdDn[i]=0;

}

// Bear signal

else {

vdDn[i]=gadGap[IDX_TVI];

vdUp[i]=0;

}

return(0);

}

//-----------------------------------------------------------------------------

// function: ProcessCCI()

// Description: Calc CCI data and update matrix

//-----------------------------------------------------------------------------

int ProcessCCI(int iNewBars, int iPeriod, double iThreshold, double& vdUp[], double& vdDn[]) {

int i,j;

double dSig;

int iHTFBar=-1;

for(i=iNewBars; i>=0; i--) {

// Shift index for higher time-frame

if (TimeFrame.Period>Period() )

j=iBarShift(Symbol(), TimeFrame.Period, Time[i]);

else

j=i;

// Calc CCI

if (iHTFBar!=j) {

iHTFBar=j;

dSig=iCCI(NULL, TimeFrame.Period, iPeriod, PRICE_TYPICAL, j);

}

// No Data

if (iClose(NULL,TimeFrame.Period,j)==0) {

vdUp[i]=EMPTY_VALUE;

vdDn[i]=EMPTY_VALUE;

}

// Bull signal

//else if (dSig>0 && dSig > iThreshold ) {

else if (dSig>0 ) {

vdUp[i]=gadGap[IDX_CCI];

vdDn[i] = 0;

}

// Bwar signal

//else if (dSig < 0 && dSig < -iThreshold ){

else if (dSig < 0 ){

vdDn[i]=gadGap[IDX_CCI];

vdUp[i] = 0;

}

return(0);

}

//-----------------------------------------------------------------------------

// function: ProcessT3_8()

// Description: Calc T3_8 data and update matrix

//-----------------------------------------------------------------------------

int ProcessT3_8(int iNewBars, int iPeriod, double& vdUp[], double& vdDn[]) {

int i,j,iUp;

double dSig;

int iHTFBar=-1;

// Draw tape chart

for(i=iNewBars+TimeFrame.Period/Period(); i>=0; i--) {

// Shift index for higher time-frame

if (TimeFrame.Period>Period())

j=iBarShift(Symbol(), TimeFrame.Period, Time[i]);

else

j=i;

// Calc T3_8 data

if (iHTFBar!=j) {

iHTFBar=j;

iUp = iCustom(NULL,TimeFrame.Period,IND_T3_8,T3_8.Period,PRICE_CLOSE, T3_8.BarCount, 1,j);

//iUp = iCustom(NULL,TimeFrame.Period,IND_T3_8,T3_8.Period,1,j);

}

// Bear signal

if (iUp==1) {

vdDn[i]=gadGap[IDX_T3_8];

vdUp[i]=0;

}

// Bull signal

else {

vdUp[i]=gadGap[IDX_T3_8];

vdDn[i]=0;

}

//-----------------------------------------------------------------------------

// function: ProcessGannHiLo()

// Description: Calc GannHiLo data and update matrix

//-----------------------------------------------------------------------------

int ProcessGannHiLo(int iNewBars, int iPeriod, double& vdUp[], double& vdDn[]) {

int i,j,iUp;

double dSig;

int iHTFBar=-1;

// Draw tape chart

for(i=iNewBars+TimeFrame.Period/Period(); i>=0; i--) {

// Shift index for higher time-frame

if (TimeFrame.Period>Period())

j=iBarShift(Symbol(), TimeFrame.Period, Time[i]);

else

j=i;

// Calc GannHiLo data

if (iHTFBar!=j) {

iHTFBar=j;

iUp = iCustom(NULL,TimeFrame.Period,IND_GANNHILO,GannHiLo.Period,0,j);

}

// No Data

if (iUp==EMPTY_VALUE) {

vdUp[i]=0;

vdDn[i]=0;

}

// Bull signal

else if (iUp==1) {

vdUp[i]=gadGap[IDX_GHL];

vdDn[i]=0;

}

// Bear signal

else {

vdDn[i]=gadGap[IDX_GHL];

vdUp[i]=0;

}

//-----------------------------------------------------------------------------

// function: CheckAlert()

// Description: Check for new alerts

//-----------------------------------------------------------------------------

void CheckAlert() {

static datetime tAlertBar;

static int iPrevAlert=0;

if (Alert.Popup || Alert.Email) {

// Alert on the close of the current bar

if (Alert.OnBarClose && tAlertBar<Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])] && !gbInit) {

tAlertBar=Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])];

// Clear alert flag

if (iPrevAlert==1 && !UpSignal(1))

iPrevAlert=0;

else if (iPrevAlert==-1 && !DnSignal(1))

iPrevAlert=0;

// Alert and set alert flag

if (UpSignal(1) && iPrevAlert!=1) {

AlertNow(Symbol()+", "+TF2Str(Period())+": STS Buy Signal.");

iPrevAlert=1;

}

else if (DnSignal(1) && iPrevAlert!=-1) {

AlertNow(Symbol()+", "+TF2Str(Period())+": STS Sell Signal.");

iPrevAlert=-1;

}

// Alert while the current bar is open

if (!Alert.OnBarClose && tAlertBar<Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])] && !gbInit) {

// Clear alert flag

if (iPrevAlert==1 && !UpSignal(0))

iPrevAlert=0;

else if (iPrevAlert==-1 && !DnSignal(0))

iPrevAlert=0;

// Alert and set alert flag

if (UpSignal(0) && iPrevAlert!=1) {

AlertNow(Symbol()+", "+TF2Str(Period())+": STS Buy Signal.");

iPrevAlert=1;

tAlertBar=Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])];

}

else if (DnSignal(0) && iPrevAlert!=-1) {

AlertNow(Symbol()+", "+TF2Str(Period())+": STS Sell Signal.");

iPrevAlert=-1;

tAlertBar=Time[iBarShift(Symbol(), TimeFrame.Period, Time[0])];

}

//-----------------------------------------------------------------------------

// function: AlertNow()

// Description: Signal the popup and email alerts

//-----------------------------------------------------------------------------

void AlertNow(string sAlertMsg) {

//Popup Alert

if (Alert.Popup)

Alert(INDICATOR_NAME, ", ", sAlertMsg);

//Email Alert

if (Alert.Email) {

if (Alert.Subject=="")

SendMail( sAlertMsg, "MT4 Alert!\n"+INDICATOR_NAME+"\n" + TimeToStr(Time[0],TIME_DATE|TIME_SECONDS )+"\n"+sAlertMsg);

else

SendMail( Alert.Subject, "MT4 Alert!\n"+INDICATOR_NAME+"\n" + TimeToStr(Time[0],TIME_DATE|TIME_SECONDS )+"\n"+sAlertMsg);

}

//-----------------------------------------------------------------------------

// function: UpSignal()

// Description: Return true if there is an up signal

//-----------------------------------------------------------------------------

bool UpSignal(int i) {

if (gadTVIUp[i]>0 && gadCCIUp[i]>0 && gadGHLUp[i]>0 && gadT3Up[i]>0)

return(True);

else

return(False);

}

//-----------------------------------------------------------------------------

// function: DnSignal()

// Description: eturn true if there is a down signal

//-----------------------------------------------------------------------------

bool DnSignal(int i) {

if (gadTVIDn[i]>0 && gadCCIDn[i]>0 && gadGHLDn[i]>0 && gadT3Dn[i]>0)

return(True);

else

return(False);

}

//-----------------------------------------------------------------------------

// function: Writelabel()

// Description: Write a label for a bar

//-----------------------------------------------------------------------------

int Writelabel(string sLabel,double dPrice) {

string sObjId;

sObjId=gsIndicatorName+"_"+sLabel;

if(ObjectFind(sObjId) < 0)

ObjectCreate(sObjId, OBJ_TEXT, WindowFind(gsIndicatorName), Time[0]+Period()*60*2, dPrice);

ObjectSetText(sObjId, sLabel, 8, "Calibri", Display.LabelColor); //Lucida Console

ObjectMove(sObjId,0,Time[0]+Period()*60*2, dPrice);

return(0);

}

//-----------------------------------------------------------------------------

// function: IndicatorExists()

// Description: Check if an indicator exists

//-----------------------------------------------------------------------------

bool IndicatorExists(string sIndicatorName) {

int hFile;

string sFile;

// Exit if dlls are disabled

if (!IsDllsAllowed())

return(True);

// Try to open indicator

sFile=TerminalPath()+"\\experts\\indicators\\"+sIndicatorName;

hFile=CreateFileA(sFile,0,FILE_SHARE_READ,0,OPEN_EXISTING,FILE_ATTRIBUTE_NORMAL,0);

if (hFile==INVALID_HANDLE_VALUE) {

return(False);

}

else {

CloseHandle(hFile);

return(True);

}

return(False);

}

//-----------------------------------------------------------------------------

// function: TF2Str()

// Description: Convert time-frame to a string

//-----------------------------------------------------------------------------

string TF2Str(int iPeriod) {

switch(iPeriod) {

case PERIOD_M1: return("M1");

case PERIOD_M5: return("M5");

case PERIOD_M15: return("M15");

case PERIOD_M30: return("M30");

case PERIOD_H1: return("H1");

case PERIOD_H4: return("H4");

case PERIOD_D1: return("D1");

case PERIOD_W1: return("W1");

case PERIOD_MN1: return("MN1");

default: return("M"+iPeriod);

}

return(0);

}

//-----------------------------------------------------------------------------

// function: NextHigherTF()

// Description: Select the next higher time-frame.

// Note: M15 and M30 both select H1 as next higher TF.

//-----------------------------------------------------------------------------

int NextHigherTF(int iPeriod) {

if (iPeriod==0) iPeriod=Period();

switch(iPeriod) {

case PERIOD_M1: return(PERIOD_M5);

case PERIOD_M5: return(PERIOD_M15);

case PERIOD_M15: return(PERIOD_H1);

case PERIOD_M30: return(PERIOD_H1);

case PERIOD_H1: return(PERIOD_H4);

case PERIOD_H4: return(PERIOD_D1);

case PERIOD_D1: return(PERIOD_W1);

case PERIOD_W1: return(PERIOD_MN1);

case PERIOD_MN1: return(PERIOD_MN1);

default: return(Period());

}

Fr7

Participant

Topics: 39

Replies: 142

Been thanked: 17 times

09/08/2018 at 4:03 PM #79995

Fr7

Le adjunto otra versión …

Fr7

Participant

Topics: 39

Replies: 142

Been thanked: 17 times

09/10/2018 at 10:53 AM #80072

Nicolas

Este panel implica la conversión de 5 indicadores diferentes. Por favor sea paciente..

Nicolas

Keymaster

Topics: 81

Replies: 20828

Been thanked: 4738 times

09/10/2018 at 1:48 PM #80095

Nicolas

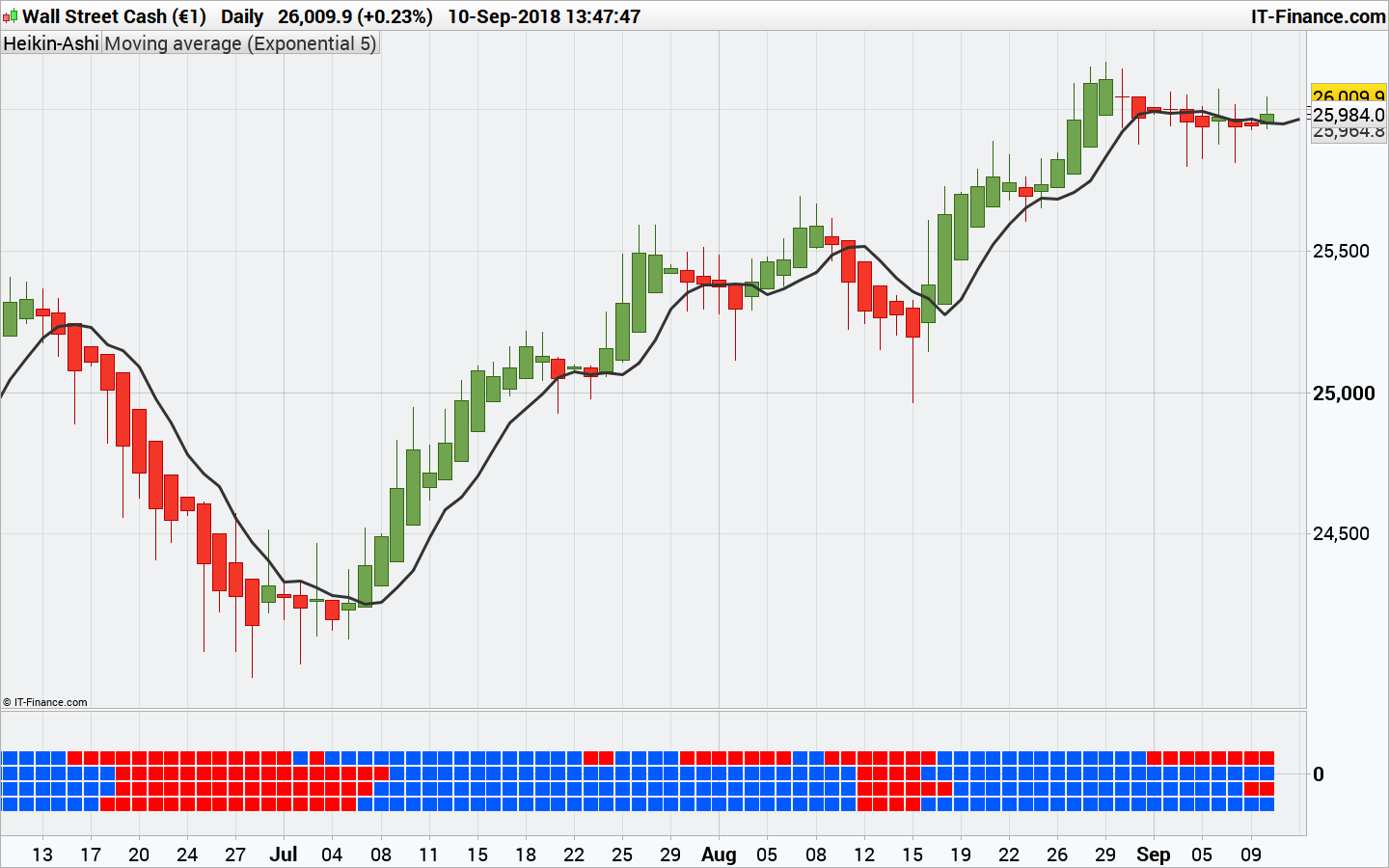

El indicador se ha convertido para ProRealTime. Descárguelo desde aquí: Genesis Matrix Trading

Nicolas

Keymaster

Topics: 81

Replies: 20828

Been thanked: 4738 times

09/10/2018 at 3:22 PM #80119

Fr7

Una ves más lo ha conseguido Nicolás.!!!Muchas gracias por su tiempo y profesionalidad.Lo probarè el indicador,a ver que tal

Fr7

Participant

Topics: 39

Replies: 142

Been thanked: 17 times

10/09/2018 at 11:25 AM #82350

JJ Tec

Hola¡¡

El indicador serviria para acciones??

JJ Tec

Participant

Topics: 8

Replies: 26

Been thanked: 0 times

10/09/2018 at 11:54 AM #82354

Fr7

Por supuesto Juanjo.Sirve para cualquier activo siempre que le aparezca volumen……..

Fr7

Participant

Topics: 39

Replies: 142

Been thanked: 17 times

10/09/2018 at 12:13 PM #82356

Fr7

El sistema de trading “Genesis Matrix Trading“, se usa en gráficos de 5 Minutos.

Reglas de entrada a Mercado

* El indicador “Genesis Matrix Trading” debe tener los 4 cuadrados del mismo color al cierre de la vela actual

* Los inidicadores “Stochasticos” tanto el stochastico de 5minutos y el stochastico de 15minutos deben venir del área de 20 – 80

* El indicador Heiken hashi debe cerrar la actual vela por encima o por debajo de la media amarilla 5

Sobre Stop Loss y Take Profit buscaremos áreas de S/R, el sistema nos proporciona un indicador que nos marca las zonas importantes, podemos establecer en esos puntos nuestro TP.

Arriba está explicado el sitema completo.Pero después también pueden utilizar sólo el indicador “Genesis Matrix Trading” en culaquier TIMEFRAME.

Fr7

Participant

Topics: 39

Replies: 142

Been thanked: 17 times

10/09/2018 at 1:18 PM #82361

Nicolas

Creo que el indicador sigue siendo válido para cualquier período de tiempo o instrumento. Las condiciones son bastante simples y se basan en indicadores simples, por lo que deben ser consistentes para cualquier instrumento.

Nicolas

Keymaster

Topics: 81

Replies: 20828

Been thanked: 4738 times

Author

Posts

Viewing 9 posts - 1 through 9 (of 9 total)

Find exclusive trading pro-tools on
