ZigZag with cumulative volume

• 02/10/2017 at 12:31 PM #24650
  RomanPL

  Hi,



  Below is the AFL Code (Amibroker) which I would like to adopt for PRT Charts

  The indicator simply calculate and histogram the cumulative volume of each zig-zag turn.



  I would greatly appreciate the help here.

  I am a long-time client of IG Markets





  function SumSince2( condition, array )

  {

  CumA = Cum( array );

  return CumA – ValueWhen( condition, CumA ) + ValueWhen( condition, array ) ;

  }





  //Plot( Close, “Close”, colorDefault );

  Plot( Zig(Close,9), “Zig”, colorBlue, styleThick);



  // count bars since last peak or trough

  pkb = PeakBars( Close, 9 );

  trb = TroughBars( Close, 9 );



  // identify peaks

  pk = pkb == 1;

  tr = trb == 1;



  // define Plot color

  color = IIf( Ref(pkb < trb,-1), colorRed, colorGreen );



  // calculate cumulated volume

  cumVolume = SumSince2( pk OR tr, Volume);

  Plot( cumVolume, “cumulated Volume”, color, styleHistogram | styleOwnScale, 2 );



  dist = ATR(10);

  for( i = 0; i < BarCount-1; i++ )

  {

  if( tr[ i+1 ] ) PlotText( NumToStr(CumVolume[ i ]/1000,1,1) +”k”, i, L[ i ] – dist[i], colorRed );

  if( pk[ i+1 ] ) PlotText( NumToStr(CumVolume[ i ]/1000,1,1) +”k”, i, L[ i ] + dist[i], colorgreen );

  }



  RomanPL

  Participant

  Topics: 1

  Replies: 12

  Been thanked: 1 time
  02/10/2017 at 3:47 PM #24696
  Nicolas

  Do you have any screenshots of how it should be displayed please? Amibroker and prorealtime don’t share the same graphical capabilities, so I’d like to know how you want it to give you the desired information (cumulative volume) before coding it. Thanks in advance!



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/11/2017 at 2:25 AM #24771
  RomanPL

  Hi Nicolas,

  Thanks for your quick replay.

  Attached file with the screen shot



  RomanPL

  Participant

  Topics: 1

  Replies: 12

  Been thanked: 1 time
  02/16/2017 at 1:31 PM #25286
  Nicolas

  Here is a simple code to make the same thing than MetaStock. The code you submitted use built-in instructions of MetaStock, so I think I have correctly recode it, please make your own tests and give feedbacks!

  zz = ZigZag[9](close) peak = zz<zz[1] and zz[1]>zz[2] tough = zz>zz[1] and zz[1]<zz[2] cumV = cumV[1]+volume if peak then text = cumV/1000 drawtext("#text#K",barindex,cumV+(cumV/20),Dialog,Bold,12) coloured(0,200,0) cumV = 0 color = -1 elsif tough then text = cumV/1000 drawtext("#text#K",barindex,cumV+(cumV/20),Dialog,Bold,12) coloured(200,0,0) cumV = 0 color = 1 endif return cumV coloured by color

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

  zz = ZigZag[9](close)   peak = zz<zz[1] and zz[1]>zz[2] tough = zz>zz[1] and zz[1]<zz[2]   cumV = cumV[1]+volume   if peak then text = cumV/1000 drawtext("#text#K",barindex,cumV+(cumV/20),Dialog,Bold,12) coloured(0,200,0) cumV = 0 color = -1 elsif tough then text = cumV/1000 drawtext("#text#K",barindex,cumV+(cumV/20),Dialog,Bold,12) coloured(200,0,0) cumV = 0 color = 1 endif   return cumV coloured by color

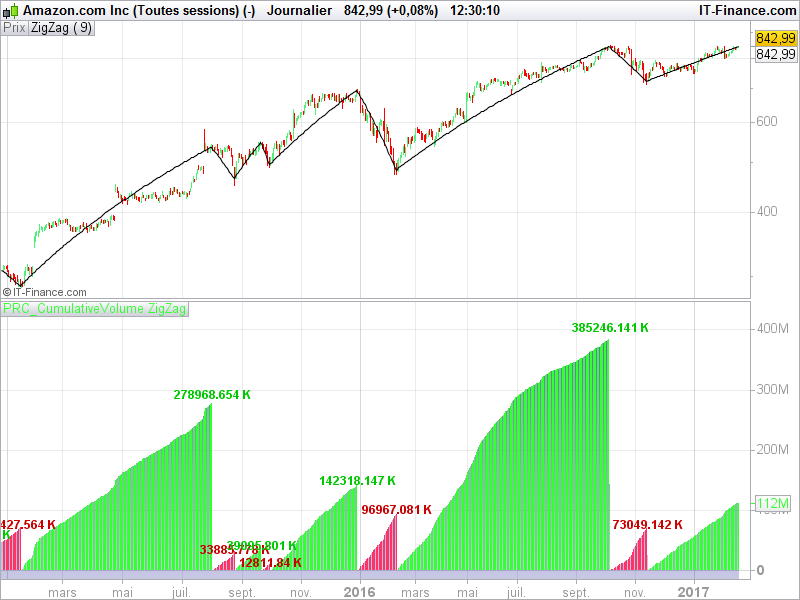

  You’ll find attached a sample screenshot of what we get on chart. I did not add the ZigZag lines on the Volumes, is it necessary? or do you want it too? If it’s ok, I certainly add this in the prorealtime code library.



  1 user thanked author for this post.

  mamio



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/16/2017 at 3:30 PM #25294
  mamio

  You are always of great help Nicolas, Thank you!

  The indicator work only on daily charts. Do you think it is possible to have it for lower timeframes, too?



  mamio

  Participant

  Topics: 2

  Replies: 35

  Been thanked: 1 time
  02/16/2017 at 4:42 PM #25310
  Nicolas

  It should work on any timeframe. Of course you need instruments with Volumes. The [9] in the first line of code is 9% percent of variation to draw a new zigzag point, so it should be modified for intraday timeframe.

  2 users thanked author for this post.

  boro76, mamio



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/17/2017 at 12:51 PM #25390
  boro76

  I’ve been looking for this – thanks for your time & effort



  boro76

  Participant

  Topics: 0

  Replies: 1

  Been thanked: 0 times
  02/17/2017 at 1:25 PM #25395
  Nicolas

  This indicator seems of interest of many people! How do you use it exactly? Many thanks.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/17/2017 at 1:35 PM #25400
  RomanPL

  Hi Nicolas,

  Thanks for your quick respond.

  I’m trying to set up this indicator but it comes up with

  error on lines: 10, 15, 20

  I’m using PRT version   v10.2-1.8.0_45

  Best regards



  RomanPL

  Participant

  Topics: 1

  Replies: 12

  Been thanked: 1 time
  02/17/2017 at 2:38 PM #25407
  Nicolas

  Because you’re still with 10.2 and drawing text on charts were not possible with this version.

  Just remove lines 9,10,14 and 15 and it should be OK. Please confirm.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/17/2017 at 2:49 PM #25408
  RomanPL

  If you believe that volume is important than this indicator is very helpful.

  The theory is based on R Wyckoff  works and refined by D Weis.

  In the nutshell cumulative volume helps to asses the strength of the ZigZag section which

  is difficult to measure if you looking at the individual volume bars only.

  Your Amazon chart shows exactly the power of this indicator!



  RomanPL

  Participant

  Topics: 1

  Replies: 12

  Been thanked: 1 time
  02/17/2017 at 2:53 PM #25409
  RomanPL

  Yes it works thanks.

  It does not change colour on UP/Down moves but this not a problem

  I’ve add Variable to zz function so it is easy to adjust sensitivity of ZigZag



  RomanPL

  Participant

  Topics: 1

  Replies: 12

  Been thanked: 1 time
  02/17/2017 at 3:22 PM #25410
  RomanPL

  One more question,

  the cumulative volume count is missing first volume after the top turn

  and first volume after the trough



  RomanPL

  Participant

  Topics: 1

  Replies: 12

  Been thanked: 1 time
  02/17/2017 at 4:28 PM #25422
  Sofitech

  Just a question abuot this indicator. Is it possible to create different value for red cumulative volume and green cumulative volume ?



  Sofitech

  Participant

  Topics: 50

  Replies: 140

  Been thanked: 10 times
  02/17/2017 at 4:46 PM #25424
  Nicolas

  RomanPL wrote:

  It does not change colour on UP/Down moves but this not a problem

  You have to modify yourself the Up/Down (Positive/Negative) colors of the histogram in the indicator window.

  RomanPL wrote:

  the cumulative volume count is missing first volume after the top turn

  Right, it’s fixed in this new version of the code:

  zz = ZigZag[9](close) peak = zz<zz[1] and zz[1]>zz[2] tough = zz>zz[1] and zz[1]<zz[2] cumV = cumV+volume if peak then text = cumV/1000 drawtext("#text#K",barindex,cumV+(cumV/20),Dialog,Bold,12) coloured(0,200,0) cumV = Volume color = -1 elsif tough then text = cumV/1000 drawtext("#text#K",barindex,cumV+(cumV/20),Dialog,Bold,12) coloured(200,0,0) cumV = Volume color = 1 endif return cumV coloured by color

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

  zz = ZigZag[9](close)   peak = zz<zz[1] and zz[1]>zz[2] tough = zz>zz[1] and zz[1]<zz[2]   cumV = cumV+volume   if peak then text = cumV/1000 drawtext("#text#K",barindex,cumV+(cumV/20),Dialog,Bold,12) coloured(0,200,0) cumV = Volume color = -1 elsif tough then text = cumV/1000 drawtext("#text#K",barindex,cumV+(cumV/20),Dialog,Bold,12) coloured(200,0,0) cumV = Volume color = 1 endif   return cumV coloured by color





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
