    Buongiorno,

    chiedo cortese traduzione codice in oggetto che vorrei testare.

    Grazie per l’aiuto.

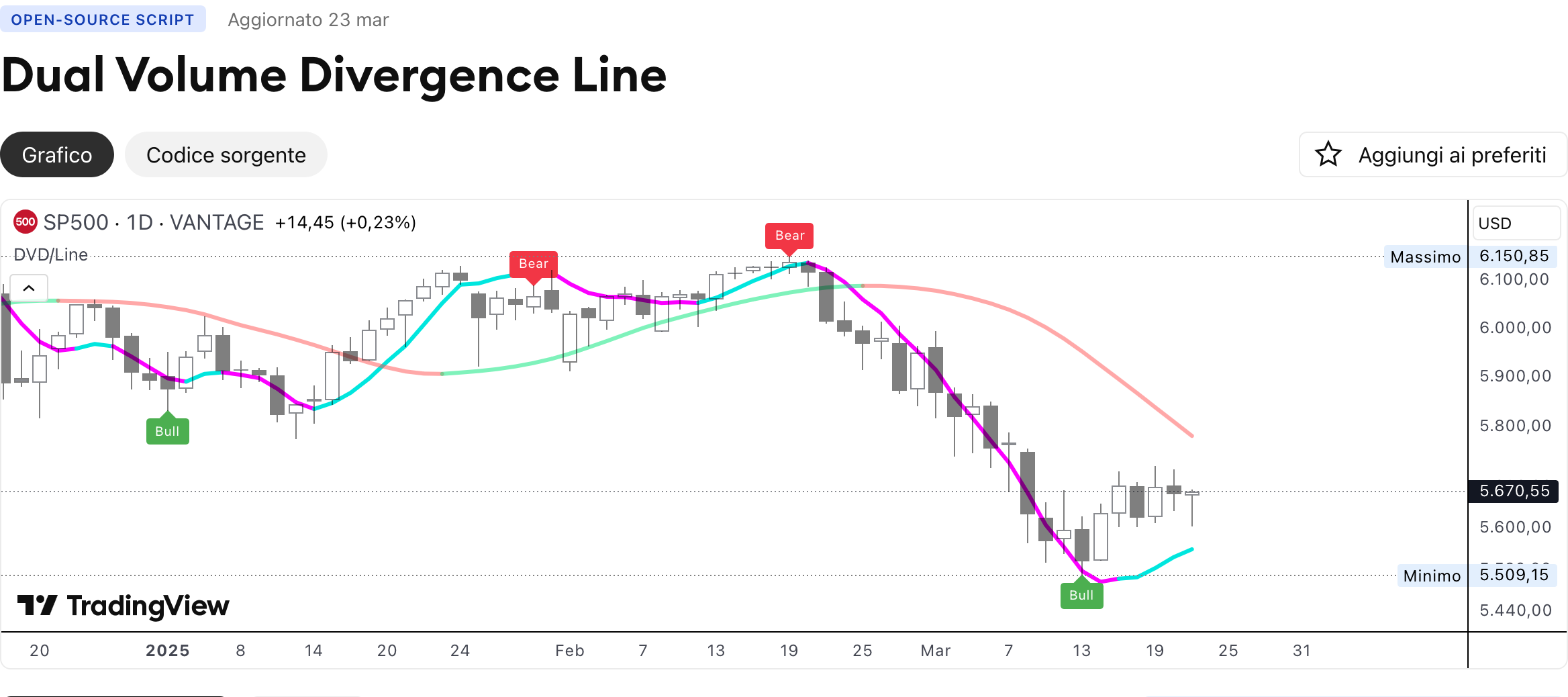

    https://it.tradingview.com/script/2e7GfTx8-Dual-Volume-Divergence-Line/

    // This Pine Script™ code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
    // Dual Volume Divergence Index [DW] oscillator is utilized and get inspired by.
    // Original concept by DonovanWall
    // Modified by © keremertem
    //@version=6
    indicator(‘Dual Volume Divergence Line’, shorttitle = ‘DVD/Line’, overlay = true)
    import TradingView/ta/9

    //—————————————————————————–\\
    // — Ayarlar
    //—————————————————————————–//
    zaman = input.int(17, ‘Dvd Sampling Period’, 2, 100)
    genislik = input.int(12, ‘Band Width’, 2, 50)
    takip = input.int(3, ‘Trailing Length’, 2, 20)
    kaynak = input.source(hlc3, ‘Source’)
    carpan = input.float(1, ‘Multiplier’, 0.5, 10, 0.5)
    //— SON —

    //—————————————————————————–\\
    // — DVD Gostergesi
    //—————————————————————————–//
    hacim = volume

    // Pozitif Hacim Endeksi (PVI) Hesaplama
    var float pvi = 0.0
    pvi := kaynak > kaynak[1] ? pvi + (kaynak – kaynak[1]) : pvi

    // PVI Sinyali ve Iraksama
    pvi_sinyal = ta.wma(pvi, zaman) // EMA fonksiyonu yerine WMA geldi
    pvi_iraksama = (pvi – pvi_sinyal)

    // Negatif Hacim Endeksi (NVI) Hesaplama
    var float nvi = 0.0
    nvi := kaynak < kaynak[1] ? nvi – (kaynak – kaynak[1]) : nvi

    // NVI Sinyali ve Iraksama
    nvi_sinyal = ta.wma(nvi, zaman) // EMA fonksiyonu yerine WMA geldi
    nvi_iraksama = (nvi – nvi_sinyal)

    // DVD Hesaplama
    Dvdi = (pvi_iraksama – nvi_iraksama) * carpan
    Dvd = ta.wma(Dvdi + kaynak, genislik) // EMA fonksiyonu yerine WMA geldi
    Dvd2 = ta.linreg(Dvd, takip, 1) // Takip cizgisi
    Max = ta.highest(Dvd, genislik)
    Min = ta.lowest(Dvd, genislik)
    Ust = ta.rms(Max, genislik)
    Alt = ta.rms(Min, genislik)
    Orta = (Alt + Ust)/2
    Ust := 2 * Ust – Orta
    Alt := 2 * Alt – Orta

    // Cizim
    rnk = Dvd > Dvd2 ? #00e6de : #fb00ff
    ciz1 = plot(Dvd, ‘DVD Line’, rnk, 3)
    gosterBand = input.bool(false, ‘Show Bands’)
    ciz2 = plot(Ust, ‘Upper Band’, #ff525280, 2, plot.style_cross, display = gosterBand ? display.all : display.none)
    ciz3 = plot(Alt, ‘Lower Band’, #00e67780, 2, plot.style_cross, display = gosterBand ? display.all : display.none)
    ornk = Orta > Orta[1] ? #00e67780 : #ff525280
    ciz4 = plot(Orta, ‘Middle Band’, ornk, 3)
    //— SON —

    //—————————————————————————–\\
    // — Iraksama Gostergesi Secimi
    //—————————————————————————–//
    string N_type = input.string(‘DVDI’, title = ‘Divergence Selection’, options=[‘DVDI’, ‘DVD Line’], group = ‘Divergence’)

    Ir_Go(type) =>
    switch type
    ‘DVDI’ => Dvdi
    ‘DVD Line’ => Dvd
    //— SON —

    //—————————————————————————–\\
    // — Iraksama Saptama
    //—————————————————————————–//
    IrGo = Ir_Go(N_type)

    // Pivot Noktalari Saptama
    Ir = input.int(1, ‘Divergence Range’)
    py = na(ta.pivothigh(IrGo, Ir, Ir)) ? false : true
    pd = na(ta.pivotlow(IrGo, Ir, Ir)) ? false : true
    pyFiyat = ta.valuewhen(py, high[Ir], 1)
    pdFiyat = ta.valuewhen(pd, low[Ir], 1)
    pyIrGo = ta.valuewhen(py, IrGo[Ir], 1)
    pdIrGo = ta.valuewhen(pd, IrGo[Ir], 1)

    // Boga Iraksama (Normal & Gizli)
    bogaNormal = pd and IrGo[Ir] > pdIrGo and low[Ir] < pdFiyat
    bogaGizli = pd and IrGo[Ir] < pdIrGo and low[Ir] > pdFiyat

    // Ayı Iraksama (Normal & Gizli)
    ayiNormal = py and IrGo[Ir] < pyIrGo and high[Ir] > pyFiyat
    ayiGizli = py and IrGo[Ir] > pyIrGo and high[Ir] < pyFiyat

    // Etiketleme
    gosterNormal = input.bool(true, ‘Show Normal Divergences’)
    gosterGizli = input.bool(false, ‘Show Hidden Divergences’)
    if gosterNormal and bogaNormal
    label.new(x=bar_index – Ir, y=low[Ir], text=’Bull’, color=color.green, style=label.style_label_up, textcolor=color.white, size=size.small)
    if gosterGizli and bogaGizli
    label.new(x=bar_index – Ir, y=low[Ir], text=’hid.’, color=color.lime, style=label.style_label_up, textcolor=color.white, size=size.small)
    if gosterNormal and ayiNormal
    label.new(x=bar_index – Ir, y=high[Ir], text=’Bear’, color=color.red, style=label.style_label_down, textcolor=color.white, size=size.small)
    if gosterGizli and ayiGizli
    label.new(x=bar_index – Ir, y=high[Ir], text=’hid.’, color=color.orange, style=label.style_label_down, textcolor=color.white, size=size.small)
    //— SON —

    #248723 quote
    Iván González
    Moderator
    Master

    Ecco:

    // ------------------------------------------
    // PRC_Dual Volume Divergence Line (DVD/Line)
    //version = 0
    //08.07.25
    //Iván González @ www.prorealcode.com
    //Sharing ProRealTime knowledge
    // ------------------------------------------
    // --- Configuración de Parámetros
    // ------------------------------------------
    zaman = 17 // Dvd Sampling Period
    genislik = 12 // Band Width
    takip = 3 // Trailing Length
    carpan = 1.0 // Multiplier
    gosterBand = 0 // 'Show Bands'
    gosterNormal = 1 // 'Show Normal Divergences'
    gosterGizli = 1 // 'Show Hidden Divergences'
    Ir = 1 // 'Divergence Range'
    Ntype = 1 // Divergence Selection
    // ------------------------------------------
    // -- Cálculo del Indicador DVD
    // ------------------------------------------
    // --- Origen de datos ---
    kaynak = (high + low + close) / 3
    // --- Cálculo del Índice de Volumen Positivo (PVI)
    IF barindex > 0 THEN
       IF kaynak > kaynak[1] THEN
          pvi = pvi[1] + (kaynak - kaynak[1])
       ELSE
          pvi = pvi[1]
       ENDIF
    ELSE
       pvi = 0
    ENDIF

    // --- Señal y Divergencia PVI ---
    pviSinyal = WeightedAverage[zaman](pvi)
    pviIraksama = pvi - pviSinyal

    // --- Cálculo del Índice de Volumen Negativo (NVI) ---
    IF barindex > 0 THEN
       IF kaynak < kaynak[1] THEN
          nvi = nvi[1] - (kaynak - kaynak[1])
       ELSE
          nvi = nvi[1]
       ENDIF
    ELSE
       nvi = 0
    ENDIF

    // --- Señal y Divergencia NVI ---
    nviSinyal = WeightedAverage[zaman](nvi)
    nviIraksama = nvi - nviSinyal

    // --- Cálculo del DVD ---
    Dvdi = (pviIraksama - nviIraksama) * carpan
    Dvd = WeightedAverage[genislik](Dvdi + kaynak)
    Dvd2 = LinearRegression[takip](Dvd)-LinearRegressionSlope[takip](Dvd) // ta.linreg(Dvd, takip, 1)

    // --- Cálculo de Bandas ---
    MaxDVD = Highest[genislik](Dvd)
    MinDVD = Lowest[genislik](Dvd)

    // Implementación de la función RMS (Root Mean Square)
    rmsMax = SQRT(Average[genislik](SQUARE(MaxDVD)))
    rmsMin = SQRT(Average[genislik](SQUARE(MinDVD)))

    Ust = rmsMax
    Alt = rmsMin
    Orta = (Alt + Ust) / 2

    // Proyección de las bandas
    Ust = 2 * Ust - Orta
    Alt = 2 * Alt - Orta

    // --- Variables para colorear las líneas ---
    // Línea DVD principal
    IF Dvd > Dvd2 THEN
       Rdvd = 0
       Gdvd = 230
       Bdvd = 222
    ELSE
       Rdvd = 251
       Gdvd = 0
       Bdvd = 255
    ENDIF

    // Línea Media
    IF Orta > Orta[1] THEN
       Rorta = 0
       Gorta = 230
       Borta = 119
    ELSE
       Rorta = 282
       Gorta = 82
       Borta = 82
    ENDIF

    // -----------------------------------------------------------------------------\\
    // -- Detección de Divergencias
    // -----------------------------------------------------------------------------//

    // --- Selección del Oscilador para Divergencia ---
    IF Ntype = 1 THEN
       IrGo = Dvdi
    ELSE
       IrGo = Dvd
    ENDIF

    // --- Detección de Puntos Pivote (con retraso necesario en ProBuilder) ---
    pivotHighDetected = (IrGo[Ir] = HIGHEST[2 * Ir + 1](IrGo))
    pivotLowDetected = (IrGo[Ir] = LOWEST[2 * Ir + 1](IrGo))

    // --- Almacenamiento de valores de pivotes anteriores ---
    ONCE lastPHprice = 0
    ONCE lastPLprice = 0
    ONCE lastPHosc = 0
    ONCE lastPLosc = 0
    once lastPHindex=-1
    once lastPLindex=-1

    ayiNormal=0
    ayiGizli=0
    bogaNormal=0
    bogaGizli=0
    // Actualizar valores del último Pivote ALTO
    IF pivotHighDetected and lastPHindex <> barindex[ir] THEN
       if lastPHindex<> -1 then
          if high[Ir]>LastPHprice and IrGo[Ir]<lastPHosc then
             ayiNormal = 1
          endif
          if high[Ir]<lastPHprice and IrGo[Ir]>lastPHosc then
             ayiGizli = 1
          endif
       endif
       lastPHprice = high[Ir]
       lastPHosc = IrGo[Ir]
       lastPHIndex=barindex[Ir]
    ENDIF

    // Actualizar valores del último Pivote BAJO
    IF pivotLowDetected and lastPLindex<>barindex[Ir] THEN
       if lastPLindex<>-1 then
          if low[Ir]<lastPLprice and IrGo[Ir]>lastPLosc then
             bogaNormal=1
          endif
          if low[Ir]<lastPLprice and IrGo[Ir]<lastPLosc then
             bogaGizli=1
          endif
       endif
       lastPLprice = low[Ir]
       lastPLosc = IrGo[Ir]
       lastPLindex = barindex[Ir]
    ENDIF

    // --- Dibujo de Etiquetas de Divergencia ---
    atr=averagetruerange[14](close)
    // Normal Alcista
    IF gosterNormal AND bogaNormal THEN
       DRAWTEXT("Bull", barindex[Ir], low[Ir] - 0.15*atr ) COLOURED("green")
    ENDIF

    // Oculta Alcista
    IF gosterGizli AND bogaGizli THEN
       DRAWTEXT("hid.Bull", barindex[Ir], low[Ir] - 0.15*atr) COLOURED("lime")
    ENDIF

    // Normal Bajista
    IF gosterNormal AND ayiNormal THEN
       DRAWTEXT("Bear", barindex[Ir], high[Ir] +  0.15*atr) COLOURED("red")
    ENDIF

    // Oculta Bajista
    IF gosterGizli AND ayiGizli THEN
       DRAWTEXT("hid.Bear", barindex[Ir], high[Ir] +  0.15*atr) COLOURED("orange")
    ENDIF

    // -----------------------------------------------------------------------------\\
    // --- Salida de Datos (Plot)
    // -----------------------------------------------------------------------------//
    RETURN Ust COLOURED(255, 82, 82, gosterBand*128) STYLE(POINT, 2) AS "Upper Band", Alt COLOURED(0, 230, 119, gosterBand*128) STYLE(POINT, 2) AS "Lower Band", Dvd as "Dvd Line" coloured(Rdvd,Gdvd,Bdvd)style(line,3), orta as "Middle band"coloured(Rorta,Gorta,Borta,80)style(line,3)

    Msport71 thanked this post
