Simple 3-test breakout

Viewing 5 posts - 1 through 5 (of 5 total)

Author

Posts
02/20/2020 at 10:11 AM #120006 quote

adam felsman
Participant

New

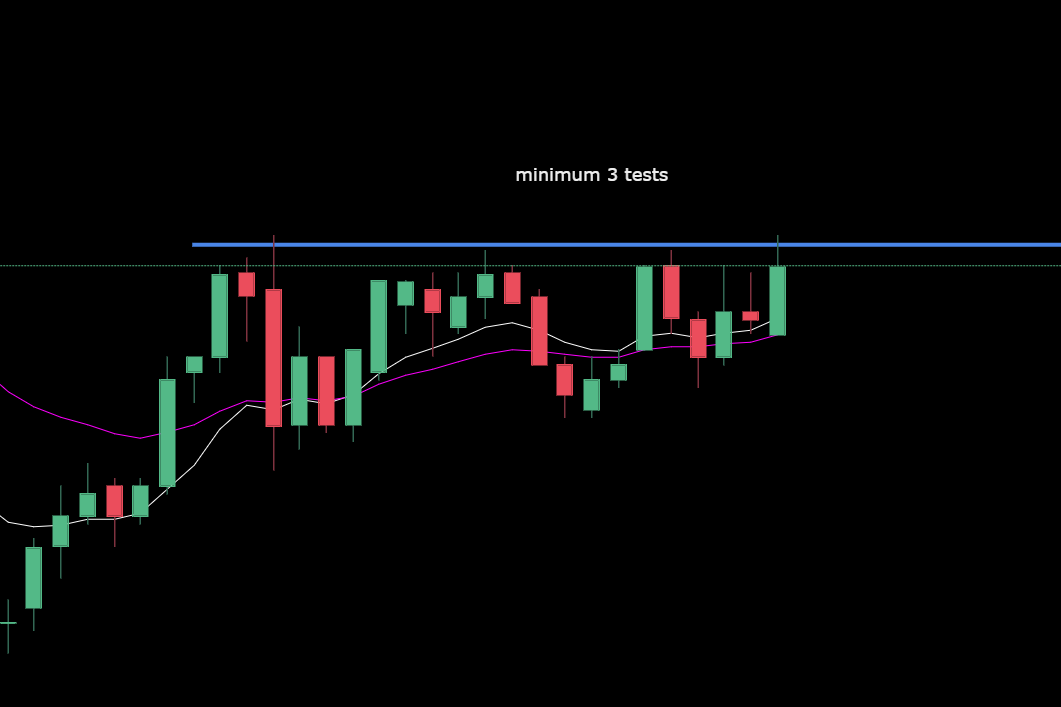

Hello Everyone, my coding level is terrible but I’ve manage to get my main strategy working for proscreener. I am wondering if anyone has successfully coded a 3-test of a horizontal line (support/resistance) scanner , part of my second strategy?? I can’t see anything in the library and would love some assistance.

thanks,

adam


02/20/2020 at 10:55 AM #120019 quote

robertogozzi
Moderator

Legend

First you have to determine the resistance (support is just the other way round).

To do this you must choose a preferred period, say 100 bars:

[scode]

Resistance = highest[100](close)

[/scode]

now you count the number of times price (high) has hit that resistance:

[scode]

x = summation[100](high >= Resistance) >= 3

[/scode]
x will be true when Resistance has been hit at least 3 times or more.

(not tested)

02/20/2020 at 11:26 AM #120022 quote

adam felsman
Participant

New

Thank you, I’ll give it a try tomorrow night.

02/20/2020 at 2:13 PM #120063 quote
robertogozzi
Moderator

Legend

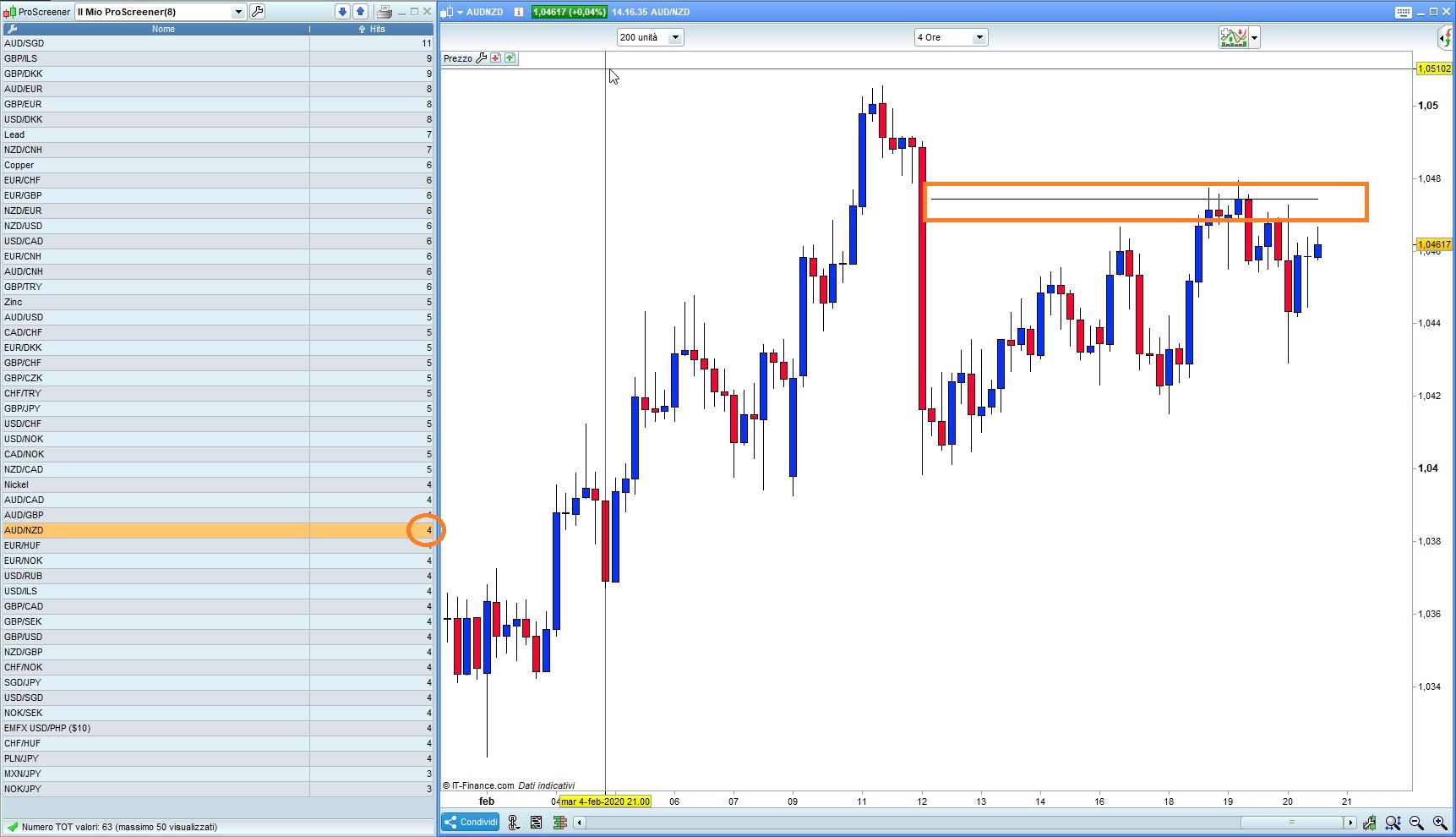

I tested it and it seems not to work correctly. This should do, instead:
```
p          = 100
Resistance = highest[p](close)
Count      = 0
FOR i = (p - 1) DOWNTO 0
   IF high[i] >= Resistance THEN
      Count = Count + 1
   ENDIF
NEXT
SCREENER[Count >= 3](Count AS "Hits")
```
and this is the indicator:
```
DEFPARAM DrawOnLastBarOnly = true
p          = 100
Resistance = highest[p](close)
Count      = 0
FOR i = (p - 1) DOWNTO 0
   IF high[i] >= Resistance THEN
      Count = Count + 1
   ENDIF
NEXT
IF Count >= 3 THEN
   DRAWSEGMENT(BarIndex - (p - 1),Resistance,BarIndex,Resistance)
ENDIF
RETURN
```
02/20/2020 at 3:06 PM #120071 quote
Vonasi
Moderator

Master

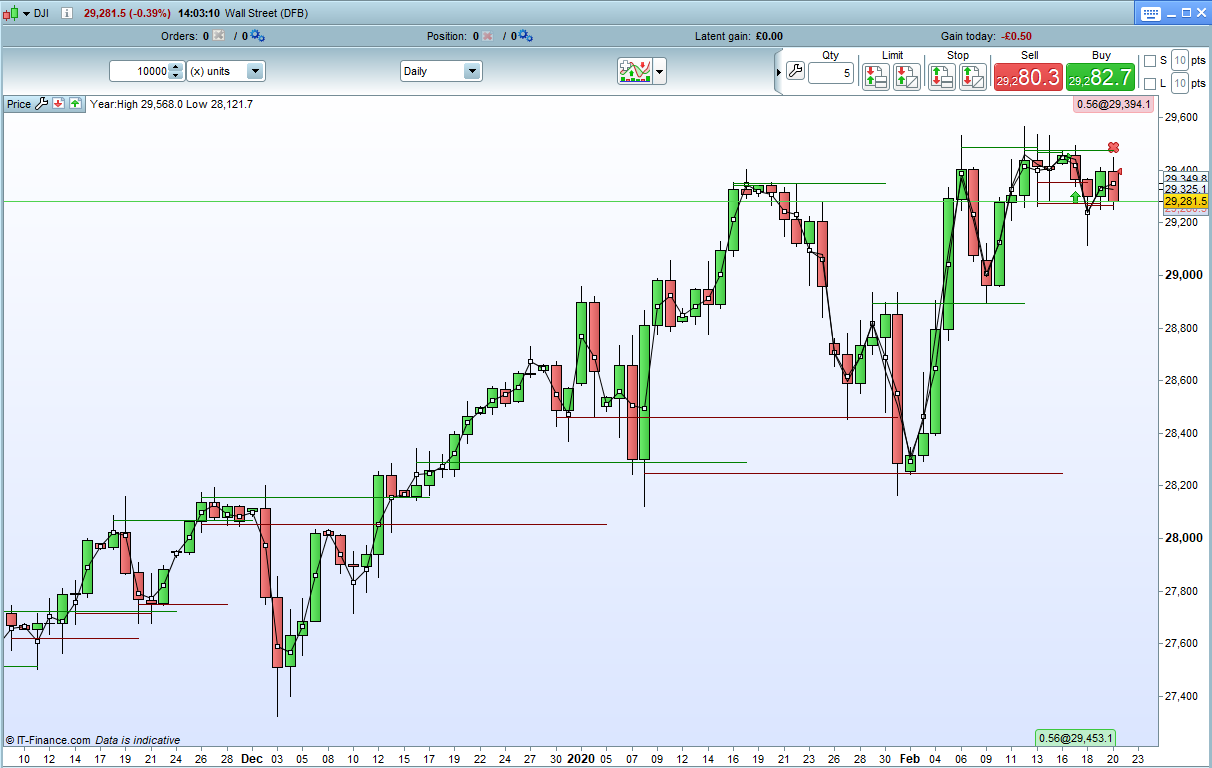

I have this indicator that I wrote a while back that might be of interest. It calculates a level mid way through the upper and lower shadow and then checks back through p bars to see how many other shadows crossed the same level. It draws extending lines at these levels if ‘tests’ quantity of shadow crosses are detected until a new level is found to have been tested.

I might submit it to the library as I’d forgotten that I’d coded it!
```
defparam calculateonlastbars = 1000

p = 200
tests = 3

if barindex >=tests then

level = (high + max(open,close))/2

count = 1
draw = 0
for a = 1 to p
if close[a] > level then
break
endif
if high[a] >= level and max(close[a],open[a]) <= level then
count = count + 1
if count = tests then
startindex = barindex-a
draw = 1
break
endif
endif
next

if draw = 1 then
drawsegment(startindex,level,barindex,level) coloured(0,128,0)
lastlevel = level
else
drawsegment(barindex-1,lastlevel,barindex,lastlevel) coloured(0,128,0)
endif

level2 = (low + min(open,close))/2

count = 1
draw2 = 0
for a = 1 to p
if close[a] < level2 then
break
endif
if low[a] <= level2 and min(close[a],open[a]) >= level2 then
count = count + 1
if count = tests then
startindex2 = barindex-a
draw2 = 1
break
endif
endif
next

if draw2 = 1 then
drawsegment(startindex2,level2,barindex,level2) coloured(128,0,0)
lastlevel2 = level2
else
drawsegment(barindex-1,lastlevel2,barindex,lastlevel2) coloured(128,0,0)
endif
endif

return
```
