Monthly range and january/july range

• 01/13/2020 at 10:58 AM #116610
  FabiusMor

  Good morning,

  i’d like to code an indicator which shows two different ranges:

  • the first draws two parallel dotted lines corresponding to the high and the low of the first candle of each month, so the lines are one month long.
  • the second draws two parallel dotted lines corresponding to the high and the low of the first ten days of january and july, so the lines are one year long.

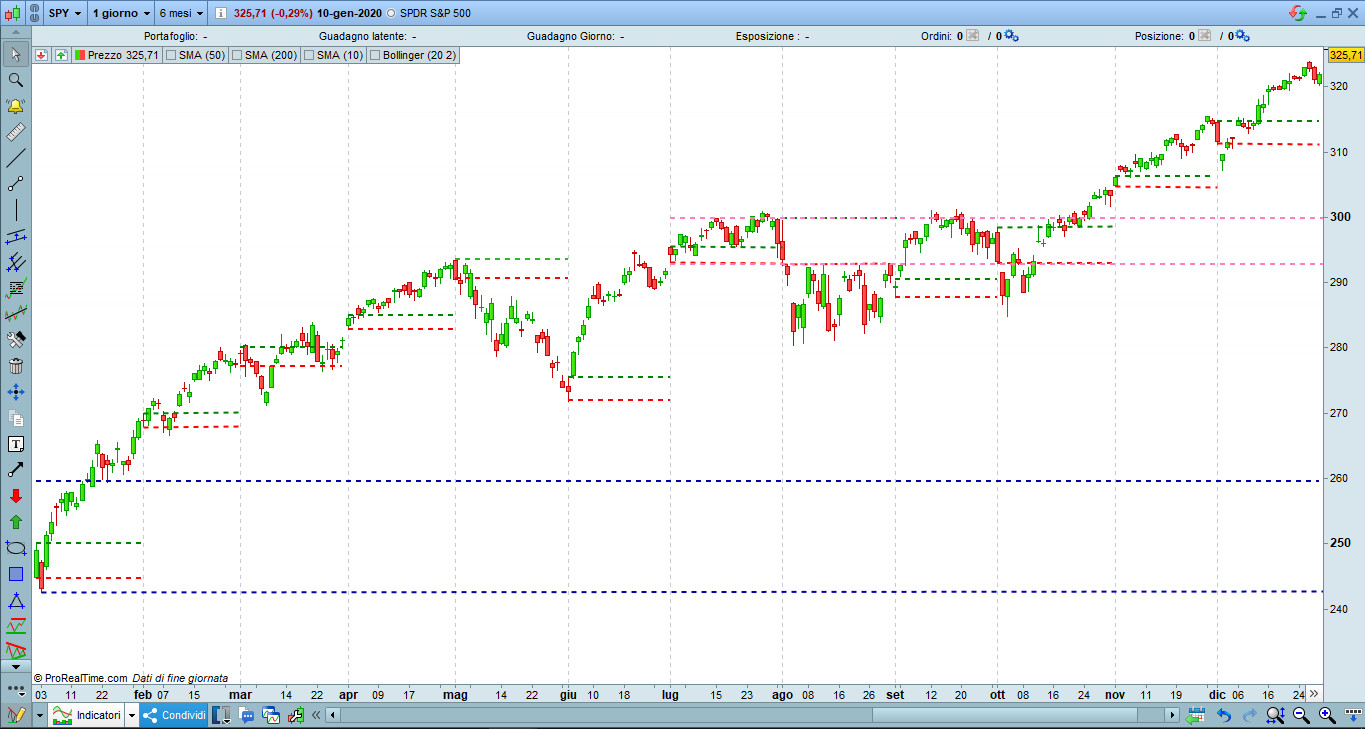

  Please, see the attached picture for a better understanding.



  Is this possible to code??

  Thank you and have a nice day.



  FabiusMor

  Participant

  Topics: 6

  Replies: 18

  Been thanked: 0 times
  01/13/2020 at 12:48 PM #116624
  robertogozzi

  There you go.

  This is for v10.3 (no dotted lines):

  DEFPARAM DrawOnLastBarOnly = true ONCE MonthLO = low ONCE MonthHI = high ONCE JanLO = low ONCE JanHI = high ONCE JulLO = low ONCE JulHI = high ONCE MonthStart = 0 ONCE JanStart = 0 ONCE JulStart = 0 // IF OpenMonth <> OpenMonth[1] THEN MonthLO = low MonthHI = high MonthStart = barindex ENDIF // IF OpenMonth = 1 THEN IF OpenDay >= 1 AND OpenDay <= 10 THEN IF OpenMonth <> OpenMonth[1] THEN JanStart = barindex JanLO = low JanHI = high ENDIF JanLO = min(low,JanLO) JanHI = max(high,JanHI) ENDIF ENDIF // IF OpenMonth = 7 THEN IF OpenDay >= 1 AND OpenDay <= 10 THEN IF OpenMonth <> OpenMonth[1] THEN JulStart = barindex JulLO = low JulHI = high ENDIF JulLO = min(low,JulLO) JulHI = max(high,JulHI) ENDIF ENDIF // DRAWSEGMENT(MonthStart,MonthHI,barindex,MonthHI) COLOURED(0,255,0,255) //GREEN DRAWSEGMENT(MonthStart,MonthLO,barindex,MonthLO) COLOURED(255,0,0,255) //RED // DRAWSEGMENT(JanStart,JanHI,barindex,JanHI) COLOURED(0,0,255,255) //BLUE DRAWSEGMENT(JanStart,JanLO,barindex,JanLO) COLOURED(148,0,211,255) //DARKVIOLET // DRAWSEGMENT(JulStart,JulHI,barindex,JulHI) COLOURED(255,215,0,255) //GOLD DRAWSEGMENT(JulStart,JulLO,barindex,JulLO) COLOURED(169,169,169,255) //DARKGREY RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

  DEFPARAM DrawOnLastBarOnly = true ONCE MonthLO    = low ONCE MonthHI    = high ONCE JanLO      = low ONCE JanHI      = high ONCE JulLO      = low ONCE JulHI      = high ONCE MonthStart = 0 ONCE JanStart   = 0 ONCE JulStart   = 0 // IF OpenMonth <> OpenMonth[1] THEN    MonthLO    = low    MonthHI    = high    MonthStart = barindex ENDIF // IF OpenMonth = 1 THEN    IF OpenDay >= 1 AND OpenDay <= 10 THEN       IF OpenMonth <> OpenMonth[1] THEN          JanStart = barindex          JanLO    = low          JanHI    = high       ENDIF       JanLO  = min(low,JanLO)       JanHI  = max(high,JanHI)    ENDIF ENDIF // IF OpenMonth = 7 THEN    IF OpenDay >= 1 AND OpenDay <= 10 THEN       IF OpenMonth <> OpenMonth[1] THEN          JulStart = barindex          JulLO  = low          JulHI  = high       ENDIF       JulLO  = min(low,JulLO)       JulHI  = max(high,JulHI)    ENDIF ENDIF // DRAWSEGMENT(MonthStart,MonthHI,barindex,MonthHI) COLOURED(0,255,0,255)       //GREEN DRAWSEGMENT(MonthStart,MonthLO,barindex,MonthLO) COLOURED(255,0,0,255)       //RED // DRAWSEGMENT(JanStart,JanHI,barindex,JanHI)       COLOURED(0,0,255,255)       //BLUE DRAWSEGMENT(JanStart,JanLO,barindex,JanLO)       COLOURED(148,0,211,255)     //DARKVIOLET // DRAWSEGMENT(JulStart,JulHI,barindex,JulHI)       COLOURED(255,215,0,255)     //GOLD DRAWSEGMENT(JulStart,JulLO,barindex,JulLO)       COLOURED(169,169,169,255)   //DARKGREY RETURN

  If you have version 11 and want to plot dotted lines, then replace the DRAWSEGMENT lines with:

  DRAWSEGMENT(MonthStart,MonthHI,barindex,MonthHI) COLOURED(0,255,0,255) STYLE(dottedline,2) //GREEN DRAWSEGMENT(MonthStart,MonthLO,barindex,MonthLO) COLOURED(255,0,0,255) STYLE(dottedline,2) //RED // DRAWSEGMENT(JanStart,JanHI,barindex,JanHI) COLOURED(0,0,255,255) STYLE(dottedline,2) //BLUE DRAWSEGMENT(JanStart,JanLO,barindex,JanLO) COLOURED(148,0,211,255) STYLE(dottedline,2) //DARKVIOLET // DRAWSEGMENT(JulStart,JulHI,barindex,JulHI) COLOURED(255,215,0,255) STYLE(dottedline,2) //GOLD DRAWSEGMENT(JulStart,JulLO,barindex,JulLO) COLOURED(169,169,169,255) STYLE(dottedline,2) //DARKGREY

  1 2 3 4 5 6 7 8

  DRAWSEGMENT(MonthStart,MonthHI,barindex,MonthHI) COLOURED(0,255,0,255)     STYLE(dottedline,2)  //GREEN DRAWSEGMENT(MonthStart,MonthLO,barindex,MonthLO) COLOURED(255,0,0,255)     STYLE(dottedline,2)  //RED // DRAWSEGMENT(JanStart,JanHI,barindex,JanHI)       COLOURED(0,0,255,255)     STYLE(dottedline,2)  //BLUE DRAWSEGMENT(JanStart,JanLO,barindex,JanLO)       COLOURED(148,0,211,255)   STYLE(dottedline,2)  //DARKVIOLET // DRAWSEGMENT(JulStart,JulHI,barindex,JulHI)       COLOURED(255,215,0,255)   STYLE(dottedline,2)  //GOLD DRAWSEGMENT(JulStart,JulLO,barindex,JulLO)       COLOURED(169,169,169,255) STYLE(dottedline,2)  //DARKGREY





  1 user thanked author for this post.

  FabiusMor



  robertogozzi

  Moderator

  Topics: 69

  Replies: 16469

  Been thanked: 3643 times
  01/13/2020 at 1:33 PM #116637
  FabiusMor

  Awesome! Thank you very much Roberto!

  Just one little thing: it looks like that for the january/july range it takes into consideration just the first six candles ( instead of ten) to estabilish the high and the low.



  I gave a look at the code but can’t find anything that could lead to that.



  FabiusMor

  Participant

  Topics: 6

  Replies: 18

  Been thanked: 0 times
  01/13/2020 at 1:44 PM #116638
  robertogozzi

  You wrote the first 10 days, not the first 10 trading days.

  I’ll add a counter to achieve that, asap.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 16469

  Been thanked: 3643 times
  01/13/2020 at 1:45 PM #116640
  FabiusMor

  Oops, sorry for the imprecision!



  FabiusMor

  Participant

  Topics: 6

  Replies: 18

  Been thanked: 0 times
  01/13/2020 at 2:37 PM #116653
  robertogozzi

  This is the version for the first 10 trading days:

  DEFPARAM DrawOnLastBarOnly = true ONCE MonthLO = low ONCE MonthHI = high ONCE JanLO = low ONCE JanHI = high ONCE JulLO = low ONCE JulHI = high ONCE MonthStart = 0 ONCE JanStart = 0 ONCE JulStart = 0 // IF OpenMonth <> OpenMonth[1] THEN MonthLO = low MonthHI = high MonthStart = barindex ENDIF // IF OpenMonth = 1 THEN IF OpenDay >= 1 AND OpenDay <= 30 THEN IF OpenMonth <> OpenMonth[1] THEN JanStart = barindex JanLO = low JanHI = high Count = 1 ENDIF IF Count <= 10 THEN JanLO = min(low,JanLO) JanHI = max(high,JanHI) ENDIF IF OpenDay <> OpenDay[1] THEN Count = Count + 1 ENDIF ENDIF ENDIF // IF OpenMonth = 7 THEN IF OpenDay >= 1 AND OpenDay <= 30 THEN IF OpenMonth <> OpenMonth[1] THEN JulStart = barindex JulLO = low JulHI = high Count = 1 ENDIF IF Count <= 10 THEN JulLO = min(low,JulLO) JulHI = max(high,JulHI) ENDIF IF OpenDay <> OpenDay[1] THEN Count = Count + 1 ENDIF ENDIF ENDIF // DRAWSEGMENT(MonthStart,MonthHI,barindex,MonthHI) COLOURED(0,255,0,255) //GREEN DRAWSEGMENT(MonthStart,MonthLO,barindex,MonthLO) COLOURED(255,0,0,255) //RED // DRAWSEGMENT(JanStart,JanHI,barindex,JanHI) COLOURED(0,0,255,255) //BLUE DRAWSEGMENT(JanStart,JanLO,barindex,JanLO) COLOURED(148,0,211,255) //DARKVIOLET // DRAWSEGMENT(JulStart,JulHI,barindex,JulHI) COLOURED(255,215,0,255) //GOLD DRAWSEGMENT(JulStart,JulLO,barindex,JulLO) COLOURED(169,169,169,255) //DARKGREY RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62

  DEFPARAM DrawOnLastBarOnly = true ONCE MonthLO    = low ONCE MonthHI    = high ONCE JanLO      = low ONCE JanHI      = high ONCE JulLO      = low ONCE JulHI      = high ONCE MonthStart = 0 ONCE JanStart   = 0 ONCE JulStart   = 0 // IF OpenMonth <> OpenMonth[1] THEN MonthLO    = low MonthHI    = high MonthStart = barindex ENDIF // IF OpenMonth = 1 THEN IF OpenDay >= 1 AND OpenDay <= 30 THEN IF OpenMonth <> OpenMonth[1] THEN JanStart = barindex JanLO    = low JanHI    = high Count    = 1 ENDIF IF Count <= 10 THEN JanLO  = min(low,JanLO) JanHI  = max(high,JanHI) ENDIF IF OpenDay <> OpenDay[1] THEN Count = Count + 1 ENDIF ENDIF ENDIF // IF OpenMonth = 7 THEN IF OpenDay >= 1 AND OpenDay <= 30 THEN IF OpenMonth <> OpenMonth[1] THEN JulStart = barindex JulLO  = low JulHI  = high Count    = 1 ENDIF IF Count <= 10 THEN JulLO  = min(low,JulLO) JulHI  = max(high,JulHI) ENDIF IF OpenDay <> OpenDay[1] THEN Count = Count + 1 ENDIF ENDIF ENDIF // DRAWSEGMENT(MonthStart,MonthHI,barindex,MonthHI) COLOURED(0,255,0,255)       //GREEN DRAWSEGMENT(MonthStart,MonthLO,barindex,MonthLO) COLOURED(255,0,0,255)       //RED // DRAWSEGMENT(JanStart,JanHI,barindex,JanHI)       COLOURED(0,0,255,255)       //BLUE DRAWSEGMENT(JanStart,JanLO,barindex,JanLO)       COLOURED(148,0,211,255)     //DARKVIOLET // DRAWSEGMENT(JulStart,JulHI,barindex,JulHI)       COLOURED(255,215,0,255)     //GOLD DRAWSEGMENT(JulStart,JulLO,barindex,JulLO)       COLOURED(169,169,169,255)   //DARKGREY RETURN

  for v11 you need to replace the same lines as before (they are not affected by modifications).



  1 user thanked author for this post.

  FabiusMor



  robertogozzi

  Moderator

  Topics: 69

  Replies: 16469

  Been thanked: 3643 times
  01/13/2020 at 2:52 PM #116655
  FabiusMor

  Works perfectly, thank you so much Roberto!



  Have a nice day!



  FabiusMor

  Participant

  Topics: 6

  Replies: 18

  Been thanked: 0 times
