How do you Optimise ATR Stops Around Price

• 08/16/2018 at 2:42 PM #78385
  Bard

  I posted this: https://www.prorealcode.com/topic/how-do-you-optimise-bands-based-on-price/#post-77380

  a month ago and would still like to know how this achieved using the PRT platform.

  Cheers in advance.



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  08/16/2018 at 3:27 PM #78396
  Nicolas

  Was 2 weeks ago. Please don’t double post! You can “up” your topic if you think people are not answering as fast as you want.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20830

  Been thanked: 4744 times
  08/16/2018 at 6:14 PM #78410
  Bard

  Sorry! Wrong link above. The request was actually posted a month ago: https://www.prorealcode.com/topic/optimisation-of-atr-dev-stops/

  How do I “up” my own post?

  (Have a few tech issues using Safari here on PRC – hence comment about not seeing the post when I first posted as it wasn’t in my Topics list and so I reposted it later that day.
  I won’t double post again… Frankly I have no idea how you keep up with the myriad of single posts/comment threads here but appreciate that you do)



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  08/17/2018 at 12:11 PM #78453
  Nicolas

  Ok, so that is a triple posts! First time for me! 😆

  To “up” your topic (being freshness), just reply to it.

  When posting a new topic, be sure to have sufficient words in your title (at least 2 words).

  I replied yesterday to the second one, link in the first post of this topic! (so confusing…).

  1 user thanked author for this post.

  Bard



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20830

  Been thanked: 4744 times
  08/17/2018 at 6:13 PM #78489
  Bard

  “First time for me!” You and me!
  My original post disappeared, so I thought better makes sure… then it reappeared later on a new log in.. ooops.
  Then I reposted the same question 2 wks later.. ooops.

  Should I hand myself in to ‘Forum Etiquette’ jail?

  Thank you for the optimisation tip @nicolas.
  I was trying to do it from the Variable Optimisation spanner and also didn’t have the indicator code in the strategy.

  Now, when I add my (Stop and Reverse) Kase Dev Stop code posted here:
  to the System code (Kase Peak Oscillator entry and Dev Stop exit) I am still not sure how to proceed?

  A lot of the indicator code needed to be removed with: “//” as “it’s not found” when I click on the backtest button.

  If I try and “optimise” the Dev Stop 3.6 by adding the line with something like: p3=optimiseddevstop

  I’m getting the same profit result when I know that using Dev 1.0 or Dev 2.2 makes a difference in the profit when running backtests.

  Why do I get the feeling I’m going to be saying “D’oh!” when you explain what I’m doing wrong?



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  08/17/2018 at 6:15 PM #78491
  Bard

  The

  // Definition of code parameters DEFPARAM CumulateOrders = False // Cumulating positions deactivated // Conditions to enter long positions ignored, ignored, ignored, ignored, indicator2 = CALL "Kase Peak Oscillator" c1 = (indicator2 < 0) IF c1 THEN BUY 10 PERPOINT AT MARKET ENDIF // Conditions to exit long positions ignored,ignored,indicator3,ignored,ignored, ignored = CALL "Kase Dev Stop Lisse +SAR+4.5/6" c2 = (close CROSSES UNDER indicator3) IF c2 THEN SELL AT MARKET ENDIF // Conditions to enter short positions ignored, ignored, ignored, ignored, indicator5 = CALL "Kase Peak Oscillator" c3 = (indicator5 > 0) IF c3 THEN SELLSHORT 10 PERPOINT AT MARKET ENDIF // Conditions to exit short positions ignored,ignored,indicator6,ignored, ignored, ignored = CALL "Kase Dev Stop Lisse +SAR+4.5/6" c4 = (close CROSSES OVER indicator6) IF c4 THEN EXITSHORT AT MARKET ENDIF // Stops and targets //SET STOP pTrailing 500 //OPTIMISED = 430 //250 and anything over 300 to 500 tics) //Settings n=30 p1=1.0 p2=2.2 p3=optimiseddev p4=4.5 p5=6.0 difference=0 Hg=highest[2](high) Lw=lowest[2](low) DTR=max(max(Hg-Lw,abs(Hg-close[2])),abs(Lw-close[2])) aDTR=average[n](DTR) for i=0 to n-1 do difference=difference+square(DTR[i]-aDTR) next difference=difference/n sdev=sqrt(difference) dev0=close-aDTR dev1=close-aDTR-p1*sdev dev2=close-aDTR-p2*sdev dev3=close-aDTR-p3*sdev dev4=close-aDTR-p4*sdev dev5=close-aDTR-p5*sdev if dev0<dev0[1] and close>dev5[1] then dev0=dev0[1] endif if dev1<dev1[1] and close>dev5[1] then dev1=dev1[1] endif if dev2<dev2[1] and close>dev5[1] then dev2=dev2[1] endif if dev3<dev3[1] and close>dev5[1] then dev3=dev3[1] endif if dev4<dev4[1] and close>dev5[1] then dev4=dev4[1] endif if dev5<dev5[1] and close>dev5[1] then dev5=dev5[1] endif dev6=close+aDTR dev7=close+aDTR+p1*sdev dev8=close+aDTR+p2*sdev dev9=close+aDTR+p3*sdev dev10=close+aDTR+p4*sdev dev11=close+aDTR+p5*sdev if dev6>dev6[1] and close<dev11[1] then dev6=dev6[1] endif if dev7>dev7[1] and close<dev11[1] then dev7=dev7[1] endif if dev8>dev8[1] and close<dev11[1] then dev8=dev8[1] endif if dev9>dev9[1] and close<dev11[1] then dev9=dev9[1] endif if dev10>dev10[1] and close<dev11[1] then dev10=dev10[1] endif if dev11>dev11[1] and close<dev11[1] then dev11=dev11[1] endif if close>dev11[1] then //flag=-1 else if close<dev5[1] then //flag=1 endif endif //if flag=-1 then //ind0=dev0 //ind1=dev1 //ind2=dev2 //ind3=dev3 //ind4=dev4 //ind5=dev5 //k=1 //r=0 //g=191 //b=255 //else //ind0=dev6 //ind1=dev7 //ind2=dev8 //ind3=dev9 //ind4=dev10 //ind5=dev11 //k=-1 //r=255 //g=128 //b=0 //endif //ORANGE AND LIGHT BLUE //return ind0 coloured(r,g,b) style(dottedline,2) as "Warning Line", ind1 coloured(r,g,b) style(dottedline,2) as "Dev Stop 1.0", ind2 coloured(r,g,b) style(dottedline,2) as "Dev Stop 2.2", ind3 coloured(r,g,b) style(line,2) as "Dev Stop 3.6", ind4 coloured(r,g,b) style(dottedline,2) as "Dev Stop 4.5", ind5 coloured(r,g,b) style(line,2) as "Dev Stop 6.0"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146

  // Definition of code parameters DEFPARAM CumulateOrders = False // Cumulating positions deactivated   // Conditions to enter long positions ignored, ignored, ignored, ignored, indicator2 = CALL "Kase Peak Oscillator" c1 = (indicator2 < 0)   IF c1 THEN BUY 10 PERPOINT AT MARKET ENDIF   // Conditions to exit long positions ignored,ignored,indicator3,ignored,ignored, ignored = CALL "Kase Dev Stop Lisse +SAR+4.5/6" c2 = (close CROSSES UNDER indicator3)   IF c2 THEN SELL AT MARKET ENDIF   // Conditions to enter short positions ignored, ignored, ignored, ignored, indicator5 = CALL "Kase Peak Oscillator" c3 = (indicator5 > 0)   IF c3 THEN SELLSHORT 10 PERPOINT AT MARKET ENDIF   // Conditions to exit short positions ignored,ignored,indicator6,ignored, ignored, ignored = CALL "Kase Dev Stop Lisse +SAR+4.5/6" c4 = (close CROSSES OVER indicator6)   IF c4 THEN EXITSHORT AT MARKET ENDIF   // Stops and targets //SET STOP pTrailing 500 //OPTIMISED = 430 //250 and anything over 300 to 500 tics)     //Settings n=30   p1=1.0 p2=2.2 p3=optimiseddev p4=4.5 p5=6.0   difference=0 Hg=highest[2](high) Lw=lowest[2](low) DTR=max(max(Hg-Lw,abs(Hg-close[2])),abs(Lw-close[2])) aDTR=average[n](DTR) for i=0 to n-1 do difference=difference+square(DTR[i]-aDTR) next difference=difference/n sdev=sqrt(difference)   dev0=close-aDTR dev1=close-aDTR-p1*sdev dev2=close-aDTR-p2*sdev dev3=close-aDTR-p3*sdev dev4=close-aDTR-p4*sdev dev5=close-aDTR-p5*sdev   if dev0<dev0[1] and close>dev5[1] then dev0=dev0[1] endif if dev1<dev1[1] and close>dev5[1] then dev1=dev1[1] endif if dev2<dev2[1] and close>dev5[1] then dev2=dev2[1] endif if dev3<dev3[1] and close>dev5[1] then dev3=dev3[1] endif if dev4<dev4[1] and close>dev5[1] then dev4=dev4[1] endif if dev5<dev5[1] and close>dev5[1] then dev5=dev5[1] endif   dev6=close+aDTR dev7=close+aDTR+p1*sdev dev8=close+aDTR+p2*sdev dev9=close+aDTR+p3*sdev dev10=close+aDTR+p4*sdev dev11=close+aDTR+p5*sdev   if dev6>dev6[1] and close<dev11[1] then dev6=dev6[1] endif if dev7>dev7[1] and close<dev11[1] then dev7=dev7[1] endif if dev8>dev8[1] and close<dev11[1] then dev8=dev8[1] endif if dev9>dev9[1] and close<dev11[1] then dev9=dev9[1] endif if dev10>dev10[1] and close<dev11[1] then dev10=dev10[1] endif if dev11>dev11[1] and close<dev11[1] then dev11=dev11[1] endif   if close>dev11[1] then //flag=-1 else if close<dev5[1] then //flag=1 endif endif   //if flag=-1 then //ind0=dev0 //ind1=dev1 //ind2=dev2 //ind3=dev3 //ind4=dev4 //ind5=dev5 //k=1 //r=0 //g=191 //b=255 //else //ind0=dev6 //ind1=dev7 //ind2=dev8 //ind3=dev9 //ind4=dev10 //ind5=dev11 //k=-1 //r=255 //g=128 //b=0 //endif   //ORANGE AND LIGHT BLUE //return ind0 coloured(r,g,b) style(dottedline,2) as "Warning Line", ind1 coloured(r,g,b) style(dottedline,2) as "Dev Stop 1.0", ind2 coloured(r,g,b) style(dottedline,2) as "Dev Stop 2.2", ind3 coloured(r,g,b) style(line,2) as "Dev Stop 3.6", ind4 coloured(r,g,b) style(dottedline,2) as "Dev Stop 4.5", ind5 coloured(r,g,b) style(line,2) as "Dev Stop 6.0"





  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  08/17/2018 at 6:37 PM #78492
  Vonasi

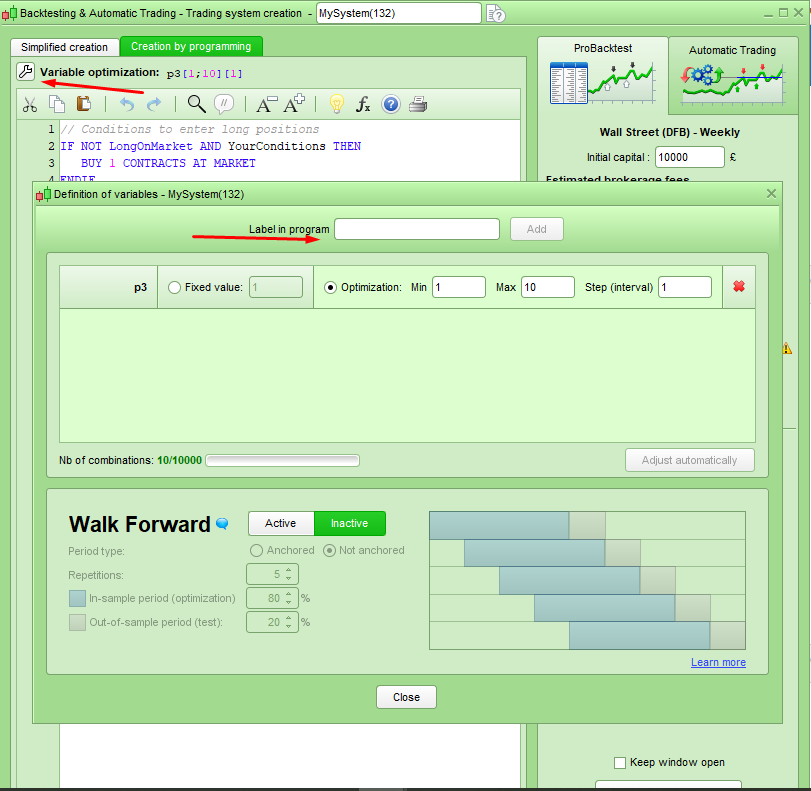

  To optimise variables in a strategy REM them out by typing // in front of them where their value is set and then click the spanner shown in my image and then enter the variable name and assign the start and finish quantities and steps you want to optimize over. Add multiple variables to do several at the same time – up to a limit.



  1 user thanked author for this post.

  Bard



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  08/17/2018 at 9:34 PM #78504
  Bard

  Thanks @Vonassi I didnt know about the REM strikeouts.

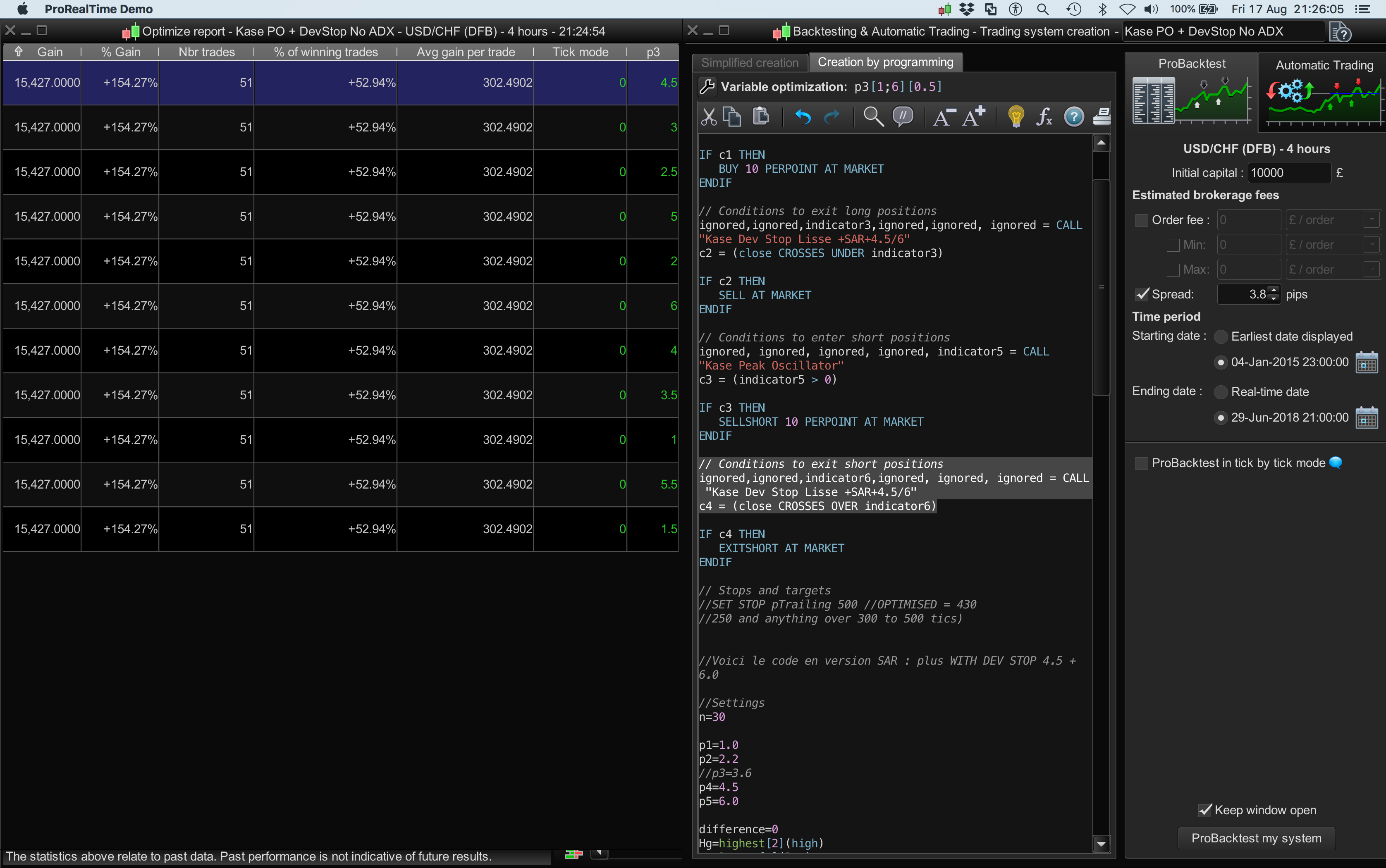

  However I get the same profit result of 15.427k (please see screenshot) which is wrong because I’ve seen different profits results by using different Dev Stops. i.e. I’ve individually tested which Dev Stop to use to produce the most profit for this system by manually moving the Dev Stop by changing Dev 2.2 (standard deviations) to Dev 3.6, by moving “indicator 6” code over to the right from:

  // Conditions to exit short positions ignored,ignored,<strong>indicator6</strong>,ignored, ignored, ignored = CALL "Kase Dev Stop Lisse +SAR+4.5/6" c4 = (close CROSSES OVER indicator6)

  1 2 3

  // Conditions to exit short positions ignored,ignored,<strong>indicator6</strong>,ignored, ignored, ignored = CALL "Kase Dev Stop Lisse +SAR+4.5/6" c4 = (close CROSSES OVER indicator6)

  to:

  // Conditions to exit short positions ignored,ignored,ignored,<strong>indicator6</strong>,ignored, ignored = CALL "Kase Dev Stop Lisse +SAR+4.5/6" c4 = (close CROSSES OVER indicator6)

  1 2 3

  // Conditions to exit short positions ignored,ignored,ignored,<strong>indicator6</strong>,ignored, ignored = CALL "Kase Dev Stop Lisse +SAR+4.5/6" c4 = (close CROSSES OVER indicator6)

  Yet these screens show 15.427k profit for ALL the Dev Stops ranging from 1.0 to 6.0?
  (I did try using “//” for all the Dev Stops for P1 to P5 – it just produces the same 15.427k profit figure).

  Cheers
  Bard



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  08/17/2018 at 9:52 PM #78507
  Vonasi

  I’ve not been following the thread closely enough to understand all the ins and outs of it but if you see all the same results in your optimization then it is usually the fact that the different value has no effect on the result or you have the optimized variable still fixed at a value somewhere in the code.

  1 user thanked author for this post.

  Bard



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1811 times
  08/17/2018 at 9:56 PM #78508
  Bard

  Then it must be this: “you have the optimized variable still fixed at a value somewhere in the code” although I’m not sure where?
  The Dev Stops are basically just like an ATR band being used as a Stop, so it’s like asking: how far away is the optimal distance from price so I know where to put my ATR band to maximise returns.



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  08/19/2018 at 9:07 AM #78588
  GraHal

  Bard wrote:

  “you have the optimized variable still fixed at a value somewhere in the code” although I’m not sure where?

  Use Find (right click within the coding window) to search for the variable name … sounds like you have used the same name twice??

  1 user thanked author for this post.

  Bard



  GraHal

  Participant

  Topics: 204

  Replies: 8440

  Been thanked: 2049 times
  08/19/2018 at 8:33 PM #78609
  Bard

  I can see another reference for the p1, p2 etc starting from line 87. Is that what is causing this Dev Stop not to be able to be optimised? Yet it is supposed to be possible?

  Here is the full code a few posts further up this page @GraHal

  https://www.prorealcode.com/topic/how-do-you-optimise-atr-stops-around-price/#post-78491

  Cheers



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  08/20/2018 at 7:48 AM #78616
  Nicolas

  Your ProOrder program don’t have sufficient information to know what to optimize. All the indicators declared at lines 5,13,21,29 don’t have settings. These indicators must have their settings set as external ones and not in their codes to be CALLed and optimized with ProBacktest.

  For example, the settings for the “Kase Dev Stop Lisse +SAR+4.5/6” indicator should be REM or // like Vonasi said:

  //n=30 //p1=1.0 //p2=2.2 //p3=3.6 //p4=4.5 //p5=6.0

  1 2 3 4 5 6

  //n=30 //p1=1.0 //p2=2.2 //p3=3.6 //p4=4.5 //p5=6.0

  and these settings added as external variables like explained in this video:

  2 users thanked author for this post.

  Bard, GraHal



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20830

  Been thanked: 4744 times
  08/20/2018 at 3:19 PM #78657
  Bard

  Cheers @nicolas, right, that makes sense why it wouldn’t work using “//” on all the variables as per Vonasi’s tip.

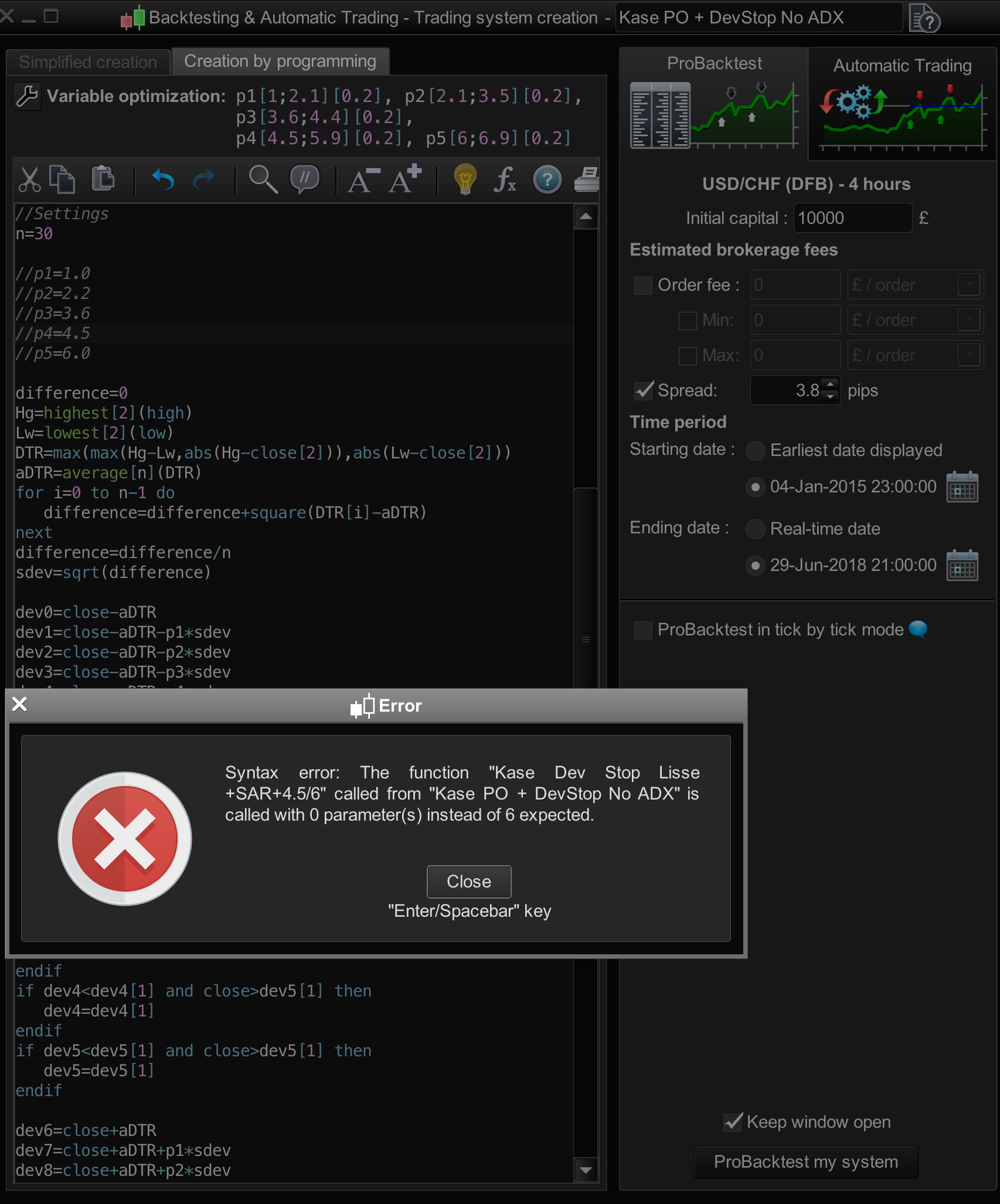

  Now that I have an improved indicator with adjustable settings (as per the video above) and an optimised parameter set in the auto system (made in steps of 0.2 because 0.1 is too much to calculate/optimise), I get this warning when running an optimised backtest, please see screenshot ?

  Ideally I’d want to just use one variable “devstopoptimised” or “p1” (with values ranging from 1 to 7) to test the whole range of values, from dev stop 1.0 (standard deviations) all the way up to dev stop 7.5 which is the widest stop used by Cynthia Kase… but that would alter the whole way that the Stop and Reverse SAR works in this indicator.



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  08/20/2018 at 3:39 PM #78660
  Nicolas

  That’s normal since your CALL function is no longer valid. Now, if you want to call your indicator, you must embed the variables when you declare it:

  CALL "Kase Dev Stop Lisse +SAR+4.5/6"[p1,p2,p3,p4,p5]

  1	CALL "Kase Dev Stop Lisse +SAR+4.5/6"[p1,p2,p3,p4,p5]

  See CALL instruction in the documentation: https://www.prorealcode.com/documentation/call/
