Convert indicator SuperTrend from the TradingView platform

ZAZI · 2024-03-04T11:41:00+00:00

hello guys, Would it be possible to help me with converting the SuperTrend indicator from TradingViiew to ProRealTime code? It would be greatly appreciated. study("Supertrend", overlay = true, format=format.price, precision=2, resolution="") Periods = input(title="ATR Period", type=input.integer, defval=10) Multiplier = input(title="ATR Multiplier", type=input.float, step=0.1, defval=3.0) changeATR= input(title="Change ATR Calculation Method ?", type=input.bool, defval=true) showsignals = input(title="Show Buy/Sell Signals ?", type=input.bool, defval=true) highlighting = input(title="Highlighter On/Off ?", type=input.bool, defval=true) atr= atr(Periods) up=high-(Multiplier*atr) up1 = nz(up[1],up) up := close[1] > up1 ? max(up,up1) : up dn=low+(Multiplier*atr) dn1 = nz(dn[1], dn) dn := close[1] dn1 ? 1 : trend == 1 and close < up1 ? -1 : trend upPlot = plot(trend == 1 ? up : na, title="Up Trend", style=plot.style_linebr, linewidth=2, color=color.green) buySignal = trend == 1 and trend[1] == -1 plotshape(buySignal ? up : na, title="UpTrend Begins", location=location.absolute, style=shape.circle, size=size.tiny, color=color.green, transp=0) plotshape(buySignal and showsignals ? up : na, title="Buy", text="Buy", location=location.absolute, style=shape.labelup, size=size.tiny, color=color.green, textcolor=color.white, transp=0) dnPlot = plot(trend == 1 ? na : dn, title="Down Trend", style=plot.style_linebr, linewidth=2, color=color.red) sellSignal = trend == -1 and trend[1] == 1 plotshape(sellSignal ? dn : na, title="DownTrend Begins", location=location.absolute, style=shape.circle, size=size.tiny, color=color.red, transp=0) plotshape(sellSignal and showsignals ? dn : na, title="Sell", text="Sell", location=location.absolute, style=shape.labeldown, size=size.tiny, color=color.red, textcolor=color.white, transp=0) mPlot = plot(ohlc4, title="", style=plot.style_circles, linewidth=0) longFillColor = highlighting ? (trend == 1 ? color.green : color.white) : color.white shortFillColor = highlighting ? (trend == -1 ? color.red : color.white) : color.white fill(mPlot, upPlot, title="UpTrend Highligter", color=longFillColor) fill(mPlot, dnPlot, title="DownTrend Highligter", color=shortFillColor) alertcondition(buySignal, title="SuperTrend Buy", message="SuperTrend Buy!") alertcondition(sellSignal, title="SuperTrend Sell", message="SuperTrend Sell!") changeCond = trend != trend[1] alertcondition(changeCond, title="SuperTrend Direction Change", message="SuperTrend has changed direction!")

Viewing 8 posts - 16 through 23 (of 23 total)

← 1 2

Author

Posts
03/10/2024 at 4:39 PM #229552 quote

ZAZI
Participant

New

definition of variables periods and multiplie instead of 10 and 3 //inputs periods = 10 //ATR period multiplier = 3 //ATR multiplier changeATR = 1 //Change ATR Calculation Method ? Showsignals = 1 //Show Buy/Sell Signals ? highlighting = 1 //Highlighter On/Off /////////////////// atr = averagetruerange[periods](close) up = high – multiplier*atr up1 = up[1] if close[1] > up1 then up = max(up,up1) else up = up endif dn = low + multiplier*atr dn1 = dn[1] if close[1] < dn1 then dn = min(dn,dn1) else dn = dn endif once trend = 1 if trend = -1 and close > dn1 then trend = 1 elsif trend = 1 and close < up1 then trend = -1 else trend = trend endif if trend = 1 then mysupertrend = up r=0 g=255 b=0 else mysupertrend = dn r=255 g=0 b=0 endif buysignal = trend=1 and trend[1]=-1 sellsignal = trend=-1 and trend[1]=1 if buysignal then drawtext(“▲”,barindex,mysupertrend)coloured(“green”) drawtext(“Buy”,barindex,mysupertrend-0.3*tr)coloured(“green”) elsif sellsignal then drawtext(“▼”,barindex,mysupertrend)coloured(“red”) drawtext(“Sell”,barindex,mysupertrend+0.3*tr)coloured(“red”) endif mplot = (open+close+high+low)/4 colorbetween(mplot,mysupertrend,r,g,b,40) return mysupertrend coloured(r,g,b)style(line,2)

03/10/2024 at 4:49 PM #229553 quote

JS
Participant

Master

Hi,

You can change all input values yourself:

For example:

Periods=10 //ATR period

Just change the number 10 to a value of your choice:

Example: Periods=20 //ATR period

Of course, this also applies to the other input values…

03/10/2024 at 5:09 PM #229554 quote

ZAZI
Participant

New

That’s i know, i want to change that with out to axit at code

03/10/2024 at 5:29 PM #229555 quote
JS
Participant

Master

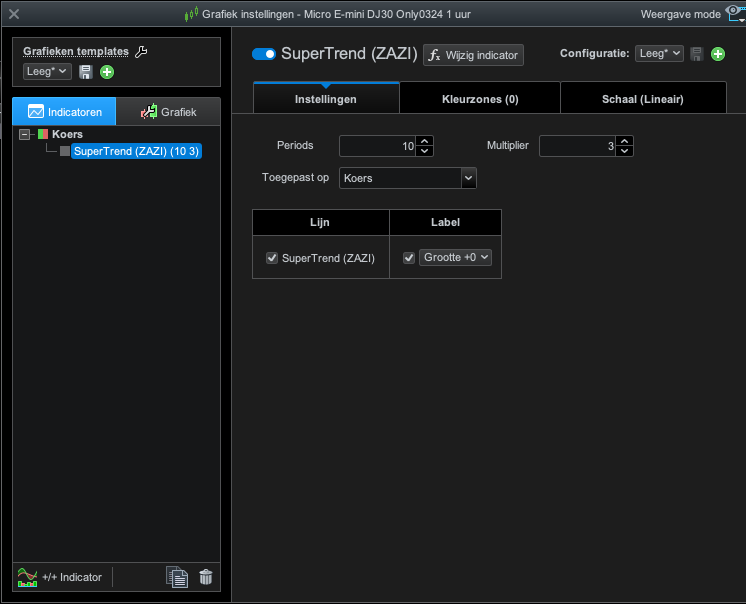

1. Import the attached “itf-file” into the “Indicators” tab
2. Add the indicator “on the Price”
3. An extra window will now appear in which you can change the inputs…
SuperTrend-ZAZI.itf Schermafbeelding-2024-03-10-om-17.29.30.png
03/11/2024 at 10:27 AM #229592 quote

ZAZI
Participant

New

@js It doesn’t work , the changes are not made at settings , only when i change inside the code

03/11/2024 at 3:04 PM #229610 quote

JS
Participant

Master

In the code comment out the following lines:

// periods = 10

// multiply = 3

It’s hard to help when you don’t know the basic operations of the program…

03/11/2024 at 3:14 PM #229611 quote

ZAZI
Participant

New

Ok, I’ll try it tonight, after work, thanks.

03/12/2024 at 2:58 PM #229657 quote

ZAZI
Participant

New

Now it works, thank you all
