Code to use ProScreener to search based on Ichimoku criteria

• 06/17/2020 at 6:01 PM #136291
  Jon Lane

  Code to use ProScreener to search based on Ichimoku criteria

  Hi, I have just started to use PRT via my IG a/c. I am impressed with it but I have a Q please. I want to set up a ProScreener to search for instruments where the Ichimoko Tenkan (turning) line has crossed the Kijun (base) line plus ideally when it has done that above the Senkou span A (top of bullish cloud) or below the Senkou span B (below the bearish cloud). Can anyone in the forum advise has this been done before in the community, if so how can I get a copy of the code or could someone advise how I can set it up please. ProScreener does not seem to give me the option for Ichimoku in the same way as i could do that for e.g.Bollinger bands.  I don’t understand why i can’t do it. Any  help in setting up would be very much appreciated. Many thanks. I also want to add RSI and volume criteria but both of these seem straight forward. Thanks in advance. Best wishes, Jon lane



  Jon Lane

  Participant

  Topics: 1

  Replies: 0

  Been thanked: 0 times
  09/29/2020 at 10:52 AM #145820
  robertogozzi

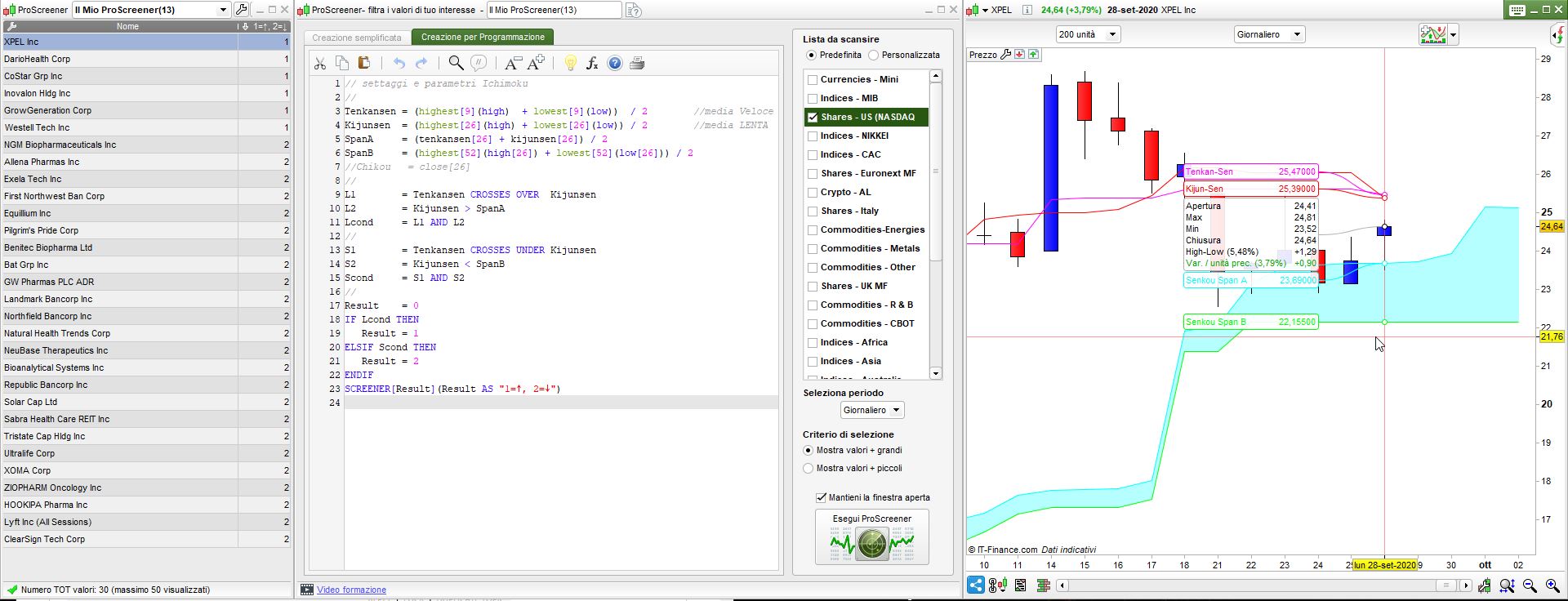

  There you go:

  // Ichimoku settings // TenkansenX = (highest[9](high) + lowest[9](low)) / 2 KijunsenX = (highest[26](high) + lowest[26](low)) / 2 SpanAx = (TenkansenX[26] + KijunsenX[26]) / 2 SpanBx = (highest[52](high[26]) + lowest[52](low[26])) / 2 //ChikouX = close[26] // L1 = TenkansenX CROSSES OVER KijunsenX L2 = KijunsenX > SpanAx Lcond = L1 AND L2 // S1 = TenkansenX CROSSES UNDER KijunsenX S2 = KijunsenX < SpanBx Scond = S1 AND S2 // Result = 0 IF Lcond THEN Result = 1 ELSIF Scond THEN Result = 2 ENDIF SCREENER[Result](Result AS "1=↑, 2=↓")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

  // Ichimoku settings // TenkansenX = (highest[9](high)  + lowest[9](low))  / 2 KijunsenX  = (highest[26](high) + lowest[26](low)) / 2 SpanAx     = (TenkansenX[26] + KijunsenX[26]) / 2 SpanBx     = (highest[52](high[26]) + lowest[52](low[26])) / 2 //ChikouX  = close[26] // L1         = TenkansenX CROSSES OVER  KijunsenX L2         = KijunsenX > SpanAx Lcond      = L1 AND L2 // S1        = TenkansenX CROSSES UNDER KijunsenX S2        = KijunsenX < SpanBx Scond     = S1 AND S2 // Result    = 0 IF Lcond THEN    Result = 1 ELSIF Scond THEN    Result = 2 ENDIF SCREENER[Result](Result AS "1=↑, 2=↓")

  I had to add a final “X” to Ichimoku names because v11 has those names built-in and can’t be used as variable names. This will work in v10.3, as well.



  robertogozzi

  Moderator

  Topics: 69

  Replies: 16465

  Been thanked: 3641 times
