Breakout Volume Delta for ProRealTime

Introduction

A breakout of a swing level is only half of the story: the other half is who pushed the price through it. Breakout Volume Delta draws the most recent swing highs and lows as levels, detects when they are broken and, on every breakout candle, splits the body into its buying and selling volume, with a label that gives both figures and their share.

An optional volume filter keeps only the breakouts where the side that broke the level controlled most of the volume of the candle. Breakouts that fail the filter do not count: the level is simply removed.

Theory Behind the Indicator

Swing levels

A swing high is a period whose high is strictly above the highs of the swLenL periods before it and the swLenR periods after it; a swing low is the mirror case. The periods are the candles of the chart or, optionally, the candles of a higher timeframe (in minutes, up to daily). The level starts on the candle where the extreme was made and is drawn a few bars beyond the last candle while it is intact. Only the maxLvls most recent levels of each side are kept.

Breakouts

A swing high is broken when a candle closes above it (or, if you choose, when its wick goes above it); a swing low, when a candle closes below it. The broken level is cut at the breakout candle and changes from dotted to solid.

Buy and sell volume of the breakout candle

The volume of the candle is split according to where the close sits inside its range: buy volume is volume * (close - low) / (high - low) and sell volume is the rest. A close on the high gives 100 % buying, a close on the low 100 % selling. This estimate uses only the data of the candle, so it is the same on every timeframe and in the whole history.

On the breakout candle, the wick is drawn in the colour of the breakout and the body is split into two parts: green for the buy share, red for the sell share, with the share of the breakout side starting from the side the price came from.

Key Features at a Glance

Swing highs and lows with configurable left and right bars, on the chart timeframe or on a higher one
Breakouts by close or by wick, with unmitigated and broken levels styled separately
Breakout candle body split into buy and sell volume
Label with buy and sell volume and their share on every breakout
Optional volume filter that discards breakouts without volume dominance
Only the most recent levels of each side are kept, so the chart stays clean

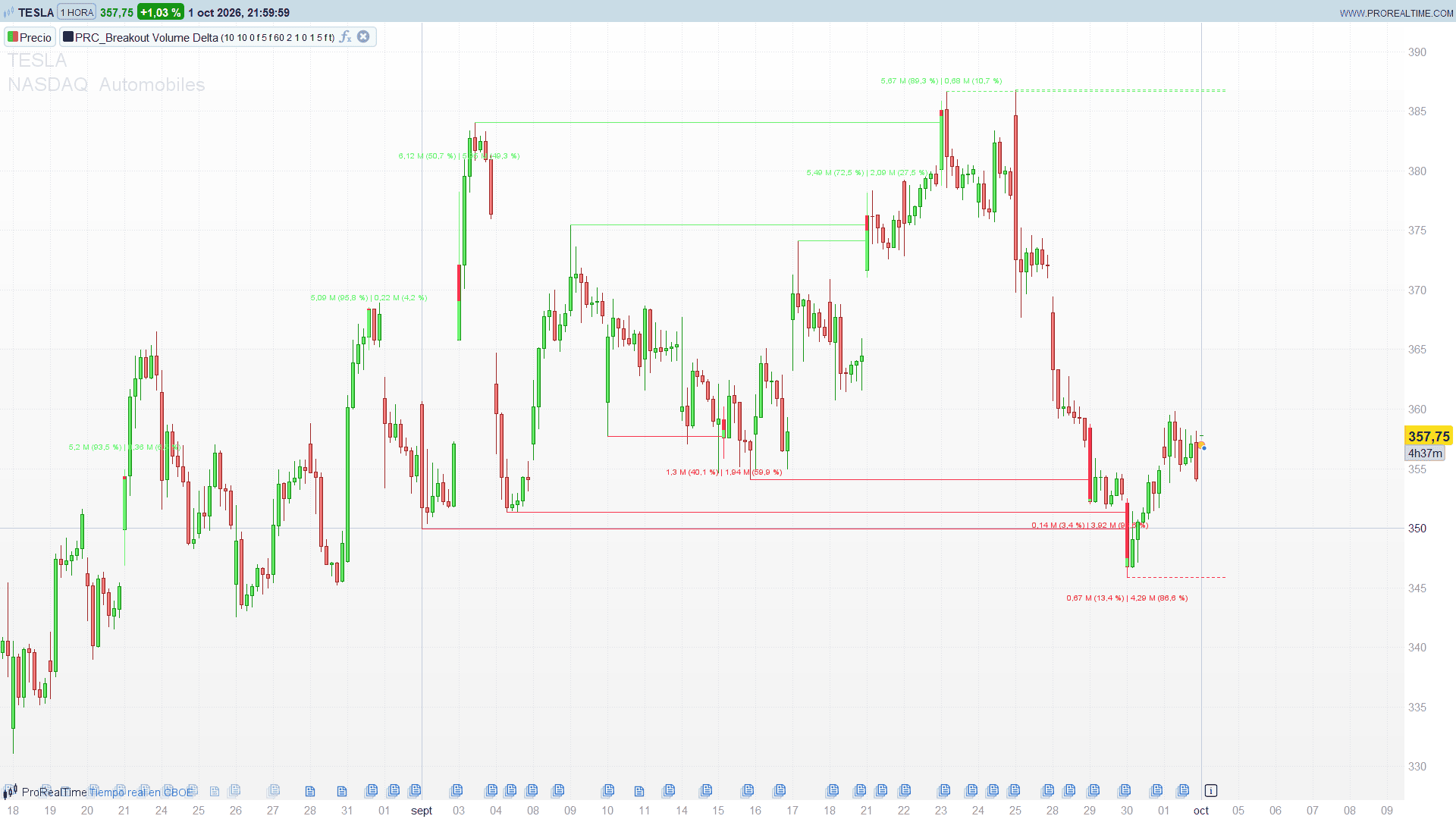

How to Read the Indicator

Dotted levels are swing highs (lime) and swing lows (red) that are still intact.
A solid level has been broken; it ends on the breakout candle.
The body of the breakout candle shows how the volume was split. A bullish breakout with a long green part was driven by buyers; a breakout with a small share on its own side is a weak one.
The label gives the exact figures: buy volume (share) | sell volume (share).

Practical Applications

Filtering breakouts. With the volume filter at 60 %, only breakouts where the breakout side had at least that share of the candle’s volume are kept, which removes many breakouts made against the flow.
Reading failed breakouts. A level broken with a weak share, followed by a return of the price, is a typical trap. The label helps to spot it.
Higher timeframe structure. Swing levels taken from a higher timeframe (for example, swTfMin = 240 on a 15-minute chart) show the major levels, while the breakouts are still read candle by candle.

Indicator Configuration

swLenL (default: 10): bars (or higher timeframe periods) to the left of a swing.
swLenR (default: 10): bars to the right of a swing. A swing is confirmed after these periods.
swTfMin (default: 0): timeframe of the swings in minutes. 0 = chart timeframe, 1440 = daily.
useWick (default: 0): 0 = breakout by close, 1 = breakout by wick.
maxLvls (default: 5): most recent swing levels kept on each side.
volFilt (default: 0): 1 = enable the breakout volume filter.
volFiltPct (default: 60): minimum share, in %, of the breakout side in the volume of the candle.
unmitStyle (default: 2) and unmitW (default: 1): style (0 = solid, 1 = dashed, 2 = dotted) and width (1 to 4) of intact levels.
brkStyle (default: 0) and brkW (default: 1): style and width of broken levels.
extendBars (default: 5): bars an intact level is drawn past the last candle.
extendRight (default: 0): 1 = intact levels extended to the right without limit.
showLabels (default: 1): volume labels on the breakout candles.
Colours: shR/G/B (swing highs), slR/G/B (swing lows), buR/G/B (buy volume), beR/G/B (sell volume).

Code

//---------------------------------------------------------------
// PRC_Breakout Volume Delta
// version = 0
// 02.10.2026
// Iván González @ www.prorealcode.com
// Author: Flux Charts
// Sharing ProRealTime knowledge
//--------------------------------------------------------------------//
DEFPARAM DRAWONLASTBARONLY = true
//---------------------------------------------------------------
// INPUTS
//---------------------------------------------------------------
swLenL = 10            // swing left bars
swLenR = 10            // swing right bars
swTfMin = 0            // swing timeframe in minutes: 0 = chart timeframe, 1440 = daily
useWick = 0            // breakout by: 0 = close, 1 = wick
maxLvls = 5            // most recent swing levels kept on each side
volFilt = 0            // 1 = breakout volume filter
volFiltPct = 60        // minimum buy (or sell) share of the breakout candle, in %
unmitStyle = 2         // unmitigated levels: 0 = solid, 1 = dashed, 2 = dotted
unmitW = 1             // unmitigated levels width (1 to 4)
brkStyle = 0           // broken levels: 0 = solid, 1 = dashed, 2 = dotted
brkW = 1               // broken levels width (1 to 4)
extendBars = 5         // bars an unmitigated level is drawn past the last candle
extendRight = 0        // 1 = unmitigated levels extended to the right without limit
showLabels = 1         // 1 = volume delta labels on the breakout candles
// swing high levels (lime)
shR = 0
shG = 230
shB = 118
// swing low levels (red)
slR = 242
slG = 54
slB = 69
// buy volume (green) and sell volume (red) of the breakout candle
buR = 0
buG = 255
buB = 106
beR = 255
beG = 45
beB = 85
//---------------------------------------------------------------
// PER-BAR SERIES
//---------------------------------------------------------------
swLenL = max(1, swLenL)
swLenR = max(1, swLenR)
maxLvls = max(1, maxLvls)
volThr = max(0, min(1, volFiltPct / 100))

// buy / sell volume of the candle, split by where the close sits in the range
IF high > low THEN
   bullV = volume * (close - low) / (high - low)
ELSE
   bullV = volume / 2
ENDIF
bearV = volume - bullV

// first bar of each swing-timeframe period
mNow = floor(opentime / 10000) * 60 + floor(opentime / 100) - floor(opentime / 10000) * 100
newPer = 1
IF swTfMin > 0 AND barindex > 0 THEN
   newPer = 0
   IF date <> date[1] THEN
      newPer = 1
   ELSIF swTfMin < 1440 THEN
      IF floor(mNow / swTfMin) <> floor(mNow[1] / swTfMin) THEN
         newPer = 1
      ENDIF
   ENDIF
ENDIF
//---------------------------------------------------------------
// ENGINE
// Closed candles are processed once and committed to the $c arrays (pass 1: the
// previous candle if it was the live one, pass 2: a historical candle). The live
// candle is processed on a working copy that is rebuilt on every tick (pass 3),
// so a breakout that disappears before the close leaves no trace.
// State cells: 0 last processed bar, 1 swing history count, 2-5 current swing
// period high / its bar / low / its bar, 6 period started, 7-8 bar of the last
// swing high / low level, 9-10 number of high / low levels, 11 number of breakouts
//---------------------------------------------------------------
IF barindex = 0 THEN
   FOR k = 0 TO 11 DO
      $cS[k] = 0
   NEXT
   $cS[0] = -1
   $cS[7] = -1
   $cS[8] = -1
ENDIF

FOR ps = 1 TO 3 DO
   ofs = 0
   runIt = 0
   commitIt = 0
   IF ps = 1 AND barindex >= 1 AND $cS[0] < barindex - 1 THEN
      ofs = 1
      runIt = 1
      commitIt = 1
   ELSIF ps = 2 AND NOT islastbarupdate AND $cS[0] < barindex THEN
      runIt = 1
      commitIt = 1
   ELSIF ps = 3 AND islastbarupdate THEN
      runIt = 1
   ENDIF

   IF runIt = 1 THEN
      // load the committed state
      nH = $cS[1]
      curH = $cS[2]
      curHx = $cS[3]
      curL = $cS[4]
      curLx = $cS[5]
      inited = $cS[6]
      lastPhX = $cS[7]
      lastPlX = $cS[8]
      nHi = $cS[9]
      nLo = $cS[10]
      nEv = $cS[11]
      IF nHi > 0 THEN
         FOR i = 0 TO nHi - 1 DO
            $wHp[i] = $cHp[i]
            $wHx[i] = $cHx[i]
            $wHm[i] = $cHm[i]
            $wHe[i] = $cHe[i]
         NEXT
      ENDIF
      IF nLo > 0 THEN
         FOR i = 0 TO nLo - 1 DO
            $wLp[i] = $cLp[i]
            $wLx[i] = $cLx[i]
            $wLm[i] = $cLm[i]
            $wLe[i] = $cLe[i]
         NEXT
      ENDIF

      bH = high[ofs]
      bL = low[ofs]
      bO = open[ofs]
      bC = close[ofs]
      bX = barindex - ofs
      bNew = newPer[ofs]
      bBullV = bullV[ofs]
      bBearV = bearV[ofs]

      // swing timeframe candle: close the previous one and track high / low of the new one
      IF bNew = 1 AND inited = 1 THEN
         $hsH[nH] = curH
         $hsHx[nH] = curHx
         $hsL[nH] = curL
         $hsLx[nH] = curLx
         nH = nH + 1
         inited = 0
      ENDIF
      IF inited = 0 THEN
         curH = bH
         curHx = bX
         curL = bL
         curLx = bX
         inited = 1
      ELSE
         IF bH > curH THEN
            curH = bH
            curHx = bX
         ENDIF
         IF bL < curL THEN
            curL = bL
            curLx = bX
         ENDIF
      ENDIF

      // pivot: candidate swLenR periods back, strictly above (below) swLenR periods
      // on its right and swLenL periods on its left
      IF bNew = 1 AND nH >= swLenL + swLenR + 1 THEN
         cI = nH - 1 - swLenR
         candH = $hsH[cI]
         candL = $hsL[cI]
         isPh = 1
         isPl = 1
         FOR j = 0 TO swLenR + swLenL DO
            IF j <> swLenR THEN
               hI = nH - 1 - j
               IF candH <= $hsH[hI] THEN
                  isPh = 0
               ENDIF
               IF candL >= $hsL[hI] THEN
                  isPl = 0
               ENDIF
            ENDIF
         NEXT
         IF isPh = 1 AND $hsHx[cI] <> lastPhX THEN
            $wHp[nHi] = candH
            $wHx[nHi] = $hsHx[cI]
            $wHm[nHi] = 0
            $wHe[nHi] = 0
            nHi = nHi + 1
            WHILE nHi > maxLvls DO
               FOR i = 0 TO nHi - 2 DO
                  $wHp[i] = $wHp[i + 1]
                  $wHx[i] = $wHx[i + 1]
                  $wHm[i] = $wHm[i + 1]
                  $wHe[i] = $wHe[i + 1]
               NEXT
               nHi = nHi - 1
            WEND
            lastPhX = $hsHx[cI]
         ENDIF
         IF isPl = 1 AND $hsLx[cI] <> lastPlX THEN
            $wLp[nLo] = candL
            $wLx[nLo] = $hsLx[cI]
            $wLm[nLo] = 0
            $wLe[nLo] = 0
            nLo = nLo + 1
            WHILE nLo > maxLvls DO
               FOR i = 0 TO nLo - 2 DO
                  $wLp[i] = $wLp[i + 1]
                  $wLx[i] = $wLx[i + 1]
                  $wLm[i] = $wLm[i + 1]
                  $wLe[i] = $wLe[i + 1]
               NEXT
               nLo = nLo - 1
            WEND
            lastPlX = $hsLx[cI]
         ENDIF
      ENDIF

      // buy / sell share of the candle
      totV = bBullV + bBearV
      bullPct = 0.5
      IF totV > 0 THEN
         bullPct = max(0, min(1, bBullV / totV))
      ENDIF
      bearPct = 1 - bullPct

      // breakouts: a level that fails the volume filter is removed, otherwise it is broken
      didHi = 0
      didLo = 0
      IF nHi > 0 THEN
         FOR i = nHi - 1 DOWNTO 0 DO
            IF $wHm[i] = 0 THEN
               lvl = $wHp[i]
               brOk = 0
               IF useWick = 1 THEN
                  IF bH > lvl THEN
                     brOk = 1
                  ENDIF
               ELSIF bC > lvl THEN
                  brOk = 1
               ENDIF
               IF brOk = 1 THEN
                  IF volFilt = 1 AND bullPct <= volThr THEN
                     IF i < nHi - 1 THEN
                        FOR m = i TO nHi - 2 DO
                           $wHp[m] = $wHp[m + 1]
                           $wHx[m] = $wHx[m + 1]
                           $wHm[m] = $wHm[m + 1]
                           $wHe[m] = $wHe[m + 1]
                        NEXT
                     ENDIF
                     nHi = nHi - 1
                  ELSE
                     $wHm[i] = 1
                     $wHe[i] = bX
                     didHi = 1
                  ENDIF
               ENDIF
            ENDIF
         NEXT
      ENDIF
      IF nLo > 0 THEN
         FOR i = nLo - 1 DOWNTO 0 DO
            IF $wLm[i] = 0 THEN
               lvl = $wLp[i]
               brOk = 0
               IF useWick = 1 THEN
                  IF bL < lvl THEN
                     brOk = 1
                  ENDIF
               ELSIF bC < lvl THEN
                  brOk = 1
               ENDIF
               IF brOk = 1 THEN
                  IF volFilt = 1 AND bearPct <= volThr THEN
                     IF i < nLo - 1 THEN
                        FOR m = i TO nLo - 2 DO
                           $wLp[m] = $wLp[m + 1]
                           $wLx[m] = $wLx[m + 1]
                           $wLm[m] = $wLm[m + 1]
                           $wLe[m] = $wLe[m + 1]
                        NEXT
                     ENDIF
                     nLo = nLo - 1
                  ELSE
                     $wLm[i] = 1
                     $wLe[i] = bX
                     didLo = 1
                  ENDIF
               ENDIF
            ENDIF
         NEXT
      ENDIF

      // breakout candle: body split into the buy and the sell share
      IF didHi = 1 OR didLo = 1 THEN
         bodyTop = max(bO, bC)
         bodyBtm = min(bO, bC)
         bodyRng = bodyTop - bodyBtm
         IF bodyRng <= 0 THEN
            pad0 = max(bH - bL, pipsize) * 0.35
            bodyTop = bC + pad0
            bodyBtm = bC - pad0
            bodyRng = bodyTop - bodyBtm
         ENDIF
         pad = max(bH - bL, pipsize) * 0.25
         IF didHi = 1 THEN
            cut = bodyBtm + bodyRng * bullPct
            $evBu[nEv] = 1
            $evBuLo[nEv] = bodyBtm
            $evBuHi[nEv] = cut
            $evBeLo[nEv] = cut
            $evBeHi[nEv] = bodyTop
            $evLy[nEv] = bH + pad
         ELSE
            cut = bodyTop - bodyRng * bearPct
            $evBu[nEv] = 0
            $evBuLo[nEv] = bodyBtm
            $evBuHi[nEv] = cut
            $evBeLo[nEv] = cut
            $evBeHi[nEv] = bodyTop
            $evLy[nEv] = bL - pad
         ENDIF
         $evX[nEv] = bX
         $evH[nEv] = bH
         $evL[nEv] = bL
         $evBv[nEv] = bBullV
         $evSv[nEv] = bBearV
         $evBp[nEv] = bullPct
         nEv = nEv + 1
      ENDIF

      // commit a closed candle
      IF commitIt = 1 THEN
         $cS[0] = bX
         $cS[1] = nH
         $cS[2] = curH
         $cS[3] = curHx
         $cS[4] = curL
         $cS[5] = curLx
         $cS[6] = inited
         $cS[7] = lastPhX
         $cS[8] = lastPlX
         $cS[9] = nHi
         $cS[10] = nLo
         $cS[11] = nEv
         IF nHi > 0 THEN
            FOR i = 0 TO nHi - 1 DO
               $cHp[i] = $wHp[i]
               $cHx[i] = $wHx[i]
               $cHm[i] = $wHm[i]
               $cHe[i] = $wHe[i]
            NEXT
         ENDIF
         IF nLo > 0 THEN
            FOR i = 0 TO nLo - 1 DO
               $cLp[i] = $wLp[i]
               $cLx[i] = $wLx[i]
               $cLm[i] = $wLm[i]
               $cLe[i] = $wLe[i]
            NEXT
         ENDIF
      ENDIF
   ENDIF
NEXT
//---------------------------------------------------------------
// DRAWING (from the working state of the live candle)
//---------------------------------------------------------------
IF islastbarupdate THEN
   // swing levels
   IF nHi + nLo > 0 THEN
      FOR lv = 0 TO nHi + nLo - 1 DO
         IF lv < nHi THEN
            yv = $wHp[lv]
            x1 = $wHx[lv]
            isMit = $wHm[lv]
            x2 = $wHe[lv]
            rr = shR
            gg = shG
            bb = shB
         ELSE
            yv = $wLp[lv - nHi]
            x1 = $wLx[lv - nHi]
            isMit = $wLm[lv - nHi]
            x2 = $wLe[lv - nHi]
            rr = slR
            gg = slG
            bb = slB
         ENDIF
         IF isMit = 1 THEN
            sC = brkStyle
            wC = brkW
            isRay = 0
         ELSE
            sC = unmitStyle
            wC = unmitW
            isRay = extendRight
            x2 = barindex + extendBars
         ENDIF
         IF isRay = 0 THEN
            IF sC = 0 THEN
               IF wC <= 1 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(line, 1)
               ELSIF wC = 2 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(line, 2)
               ELSIF wC = 3 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(line, 3)
               ELSE
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(line, 4)
               ENDIF
            ELSIF sC = 1 THEN
               IF wC <= 1 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(dottedline2, 1)
               ELSIF wC = 2 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(dottedline2, 2)
               ELSIF wC = 3 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(dottedline2, 3)
               ELSE
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(dottedline2, 4)
               ENDIF
            ELSE
               IF wC <= 1 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(dottedline, 1)
               ELSIF wC = 2 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(dottedline, 2)
               ELSIF wC = 3 THEN
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(dottedline, 3)
               ELSE
                  DRAWSEGMENT(x1, yv, x2, yv) COLOURED(rr, gg, bb) STYLE(dottedline, 4)
               ENDIF
            ENDIF
         ELSE
            IF sC = 0 THEN
               IF wC <= 1 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(line, 1)
               ELSIF wC = 2 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(line, 2)
               ELSIF wC = 3 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(line, 3)
               ELSE
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(line, 4)
               ENDIF
            ELSIF sC = 1 THEN
               IF wC <= 1 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(dottedline2, 1)
               ELSIF wC = 2 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(dottedline2, 2)
               ELSIF wC = 3 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(dottedline2, 3)
               ELSE
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(dottedline2, 4)
               ENDIF
            ELSE
               IF wC <= 1 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(dottedline, 1)
               ELSIF wC = 2 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(dottedline, 2)
               ELSIF wC = 3 THEN
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(dottedline, 3)
               ELSE
                  DRAWRAY(x1, yv, barindex, yv) COLOURED(rr, gg, bb) STYLE(dottedline, 4)
               ENDIF
            ENDIF
         ENDIF
      NEXT
   ENDIF

   // breakout candles: wick in the colour of the breakout, body split buy / sell
   IF nEv > 0 THEN
      FOR e = 0 TO nEv - 1 DO
         ex = $evX[e]
         IF $evBu[e] = 1 THEN
            evR = buR
            evG = buG
            evB = buB
         ELSE
            evR = beR
            evG = beG
            evB = beB
         ENDIF
         DRAWSEGMENT(ex, $evL[e], ex, $evH[e]) COLOURED(evR, evG, evB) STYLE(line, 1)
         DRAWSEGMENT(ex, $evBuLo[e], ex, $evBuHi[e]) COLOURED(buR, buG, buB) STYLE(line, 4)
         DRAWSEGMENT(ex, $evBeLo[e], ex, $evBeHi[e]) COLOURED(beR, beG, beB) STYLE(line, 4)

         // label: buy volume (share) | sell volume (share), both in the unit of the larger one
         IF showLabels = 1 AND e >= nEv - 500 THEN
            vBig = max(abs($evBv[e]), abs($evSv[e]))
            pBu = round($evBp[e] * 1000) / 10
            pBe = round((1 - $evBp[e]) * 1000) / 10
            lbY = $evLy[e]
            IF vBig >= 1000000000 THEN
               vBu = round($evBv[e] / 10000000) / 100
               vBe = round($evSv[e] / 10000000) / 100
               DRAWTEXT("#vBu#B (#pBu#%) | #vBe#B (#pBe#%)", ex, lbY, SansSerif, Standard, 10) COLOURED(evR, evG, evB)
            ELSIF vBig >= 1000000 THEN
               vBu = round($evBv[e] / 10000) / 100
               vBe = round($evSv[e] / 10000) / 100
               DRAWTEXT("#vBu#M (#pBu#%) | #vBe#M (#pBe#%)", ex, lbY, SansSerif, Standard, 10) COLOURED(evR, evG, evB)
            ELSIF vBig >= 1000 THEN
               vBu = round($evBv[e] / 10) / 100
               vBe = round($evSv[e] / 10) / 100
               DRAWTEXT("#vBu#K (#pBu#%) | #vBe#K (#pBe#%)", ex, lbY, SansSerif, Standard, 10) COLOURED(evR, evG, evB)
            ELSE
               vBu = round($evBv[e])
               vBe = round($evSv[e])
               DRAWTEXT("#vBu# (#pBu#%) | #vBe# (#pBe#%)", ex, lbY, SansSerif, Standard, 10) COLOURED(evR, evG, evB)
            ENDIF
         ENDIF
      NEXT
   ENDIF
ENDIF
RETURN

Conclusion

Breakout Volume Delta adds one question to every breakout: how much of the candle’s volume was on the side of the move. With the split body and the label, each breakout can be judged at a glance, and the optional filter keeps only those with real volume behind them.

Breakout Volume Delta
