    Buongiorno,

    chiedo cortese traduzione codice in oggetto, che mi piacerebbe testare   e che trovo piuttosto interessante.

    Grazie per il consueto aiuto.



    https://www.tradingview.com/script/PbJeJTH4-The-Stocashi-Stochastic-RSI-Heikin-Ashi/

    // This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
    //This is just a fun script to give a different representation to the ever popular Stochastic RSI
    //Even for me over the years the stochastic has been a difficult one to use in trading mearly beause of its choppy look.
    //Since Heikin-Ashi Candles do such a powerful job in smoothing out the look of choppy markets,
    //I decided to test it out on the look of the Stochastic RSI.
    //From an initial visual standpoint it worked out WAY better than I thought but it seemed to need something more.
    //I decided to use the PineScript “Color.From_Gradient” feature to give the Stochastic a more 3 dimentional look, which really brought the “old-school” indicator to life.

    // © CoffeeshopCrypto

    //@version=5

    indicator(“Stochastic RSI + Heikin-Ashi”, shorttitle=”Stocashi”, overlay=false)

    // Calculate the Stochastic RSI
    src = input(close, title=”Source”)
    smoothK = input.int(8, minval=1, title=”Stochastic %K Smoothing”, group = “Stocashi Inputs”)
    smoothD = input.int(3, minval=1, title=”Stochastic %D Smoothing”, group = “Stocashi Inputs”)
    lengthRSI = input.int(14, minval=1, title=”RSI Length”, group = “Stocashi Inputs”)
    rsi1 = ta.rsi(src, lengthRSI)
    lengthStoch = input.int(14, minval=1, title=”Stochastic Length”, group = “Stocashi Inputs”)
    k = ta.sma(ta.stoch(rsi1, rsi1, rsi1, lengthStoch), smoothK) – 50
    d = ta.sma(k, smoothD)

    // Calculate the Stochastic Heikin-Ashi candles
    ha_open = (k[1] + d[1]) / 2
    ha_close = (k + d + d + k) / 4
    ha_high = math.max(k, math.max(ha_open, ha_close))
    ha_low = math.min(k, math.min(ha_close, ha_open))

    // Plot the Heikin-Ashi Stochastic RSI
    down_colorbottom = input.color(#086e05, title=”Bullish Move Start”, inline = “Bullish / Bearish Momentum”, group = “Bullish / Bearish Movement”)
    down_colortop = input.color(#8dc474, title=”Bullish Move End”, inline = “Bullish / Bearish Momentum”, group = “Bullish / Bearish Movement”)
    up_color_top = input.color(#af0505, title=”Bearish Move Start”, inline = “Bullish / Bearish Momentum”, group = “Bullish / Bearish Movement”)
    up_color_bottom = input.color(#e08e8e, title=”Bearish Move End”, inline = “Bullish / Bearish Momentum”, group = “Bullish / Bearish Movement”)
    up_color_ob = input.color(color.rgb(255, 82, 82, 95), title=”Overbough Level”, inline = “OB/OS Levels”, group = “Overbough / Oversould levels”)
    up_color_os = input.color(color.rgb(122, 255, 82, 95), title=”Oversold Level”, inline = “OB/OS Levels”, group = “Overbough / Oversould levels”)

    gradientColourup = color.from_gradient(k, -50, 50, up_color_bottom, up_color_top)
    //gradientColouruptop = color.from_gradient(k, -50, 30, up_color, down_color)
    gradientColourdn = color.from_gradient(k, -50, 50, down_colorbottom, down_colortop)
    //gradientColourdntop = color.from_gradient(k, -30, 50, up_color, down_color)
    bar_color = ha_close >= ha_open ? gradientColourdn : gradientColourup

    // Use the up and down colors in your script
    //////////////////////////////////////////////
    plotcandle(ha_open, ha_high, ha_low, ha_close,title= “Stochatic Heiken Ashi Gradient”, color=bar_color, wickcolor = bar_color)
    mindline = hline(0, color=#d47305a1)
    line80 = hline(40, color=color.rgb(247, 143, 143, 66), linestyle = hline.style_dotted, editable = false)
    overbought = hline(50, color=color.rgb(247, 143, 143, 66), linestyle = hline.style_dotted, editable = false)
    linem10 = hline(-40, color=color.rgb(122, 255, 82, 66), linestyle = hline.style_dotted, editable = false)
    oversold = hline(-50, color=color.rgb(122, 255, 82, 66), linestyle = hline.style_dotted, editable = false)
    fill(line80, overbought, color = color.rgb(255, 82, 82, 95), title = “OB”)
    fill(linem10, oversold, color = color.rgb(122, 255, 82, 95), title = “OS”)

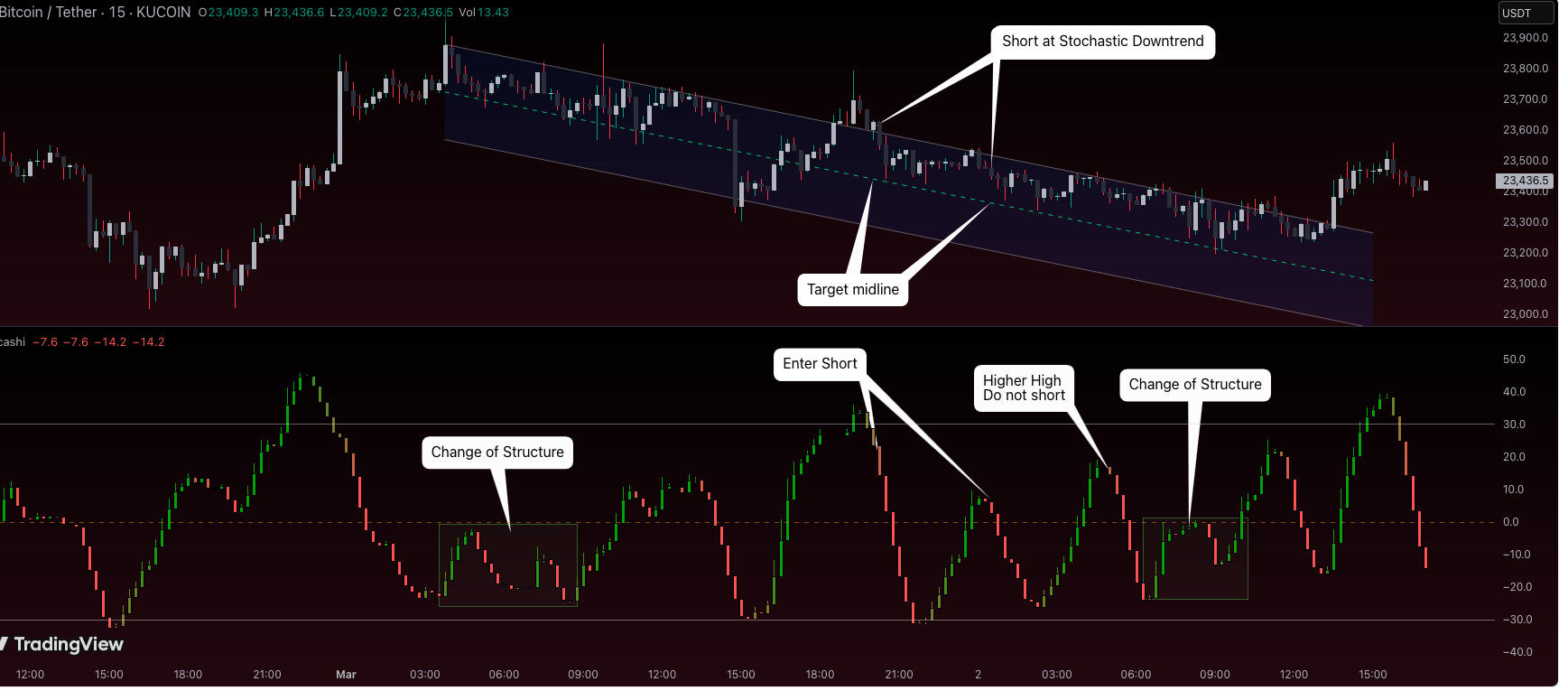

    Screenshot-2025-05-02-at-09-42-12-The-Stocashi-Stochastic-RSI-Heikin-Ashi-—-Indicator-by-CoffeeshopCrypto-—-TradingView.png Screenshot-2025-05-02-at-09-42-12-The-Stocashi-Stochastic-RSI-Heikin-Ashi-—-Indicator-by-CoffeeshopCrypto-—-TradingView.png
    #246691 quote
    Iván GonzálezIván González
    Moderator
    Legend

    ecco:

    //------------------------------------------------//
    //PRC_Stochastic RSI
    //version = 0
    //28.06.24
    //Iván González @ www.prorealcode.com
    //Sharing ProRealTime knowledge
    //------------------------------------------------//
    //-----Inputs
    //------------------------------------------------//
    src=close
    //---Stochastic RSI inputs
    lengthRSI=14 //RSI length
    lengthStoch=14 //Stochastic Length
    smoothK=8 //K
    smoothD=3 //D
    //------------------------------------------------//
    //-----Stochastic RSI Calculation
    //------------------------------------------------//
    rsi1=rsi[lengthRSI](src)
    maxrsi=highest[lengthStoch](rsi1)
    minrsi=lowest[lengthStoch](rsi1)
    osc=(rsi1-minrsi)/(maxrsi-minrsi)*100
    k=average[smoothK](osc)-50
    d=average[smoothD](k)
    //------------------------------------------------//
    //-----Stochastic Heikin-ashi
    //------------------------------------------------//
    haopen=(k[1]+d[1])/2
    haclose=(k+d+d+k)/4
    hahigh=max(k,max(haopen,haclose))
    halow=min(k,min(haopen,haclose))
    //------------------------------------------------//
    //-----Candles and Colors
    //------------------------------------------------//
    if haclose>=haopen then
    r=0
    g=255
    b=0
    else
    r=255
    g=0
    b=0
    endif

    drawcandle(haopen,hahigh,halow,haclose)coloured(r,g,b)

    ob1=50
    ob2=40
    os1=-50
    os2=-40

    colorbetween(ob1,ob2,255,82,82,50)
    colorbetween(os1,os2,122,255,82,50)
    //------------------------------------------------//
    return 0 as "zero" style(dottedline)
    robertogozzi thanked this post
    #246697 quote
    Msport71Msport71
    Participant
    Senior

    Grazie e mille!!!
