Indicator value on chart

IG_CFD_Trader · 2021-05-05T12:05:54+00:00

Hello Gents, I am relatively new here. I have a fairly simple and general question. If my Indicator returns a value (for example 100), is it possible to show that value directly on the chart (above or below the last bar)? If possible, what is the syntax that I can use to achieve this? Thank you in advance. Regards

Viewing 6 posts - 16 through 21 (of 21 total)

← 1 2

Author

Posts
05/06/2021 at 5:22 PM #168963 quote
robertogozzi
Moderator

Legend
You can access CLOSED candles. When you see a new price on the chart it’s because it’s CLOSE, which may change until the candle is closed, but you cannot access the previous value retained on the same forming candle.

Each candle is a single unit, be it 1 Day, 1 hour or 1 second. You cannot access its multiple values whenever you see it changing on the chart.

The solution is to use MTF (Multi Time Frame) support that allows to use several TF’s.

You could use, say 1h TF as your setup TF, then use a lower TF to access the 1h candle while it’s being built:
```
Timeframe(1h,UpdateOnClose)
CloseA = close
Timeframe(default)
CloseB = close
Return CloseA AS "Closed",CloseB AS "Forming Now",CloseB[1] AS "Forming Now previous"
```
Zigo thanked this post
05/07/2021 at 3:19 AM #168993 quote

IG_CFD_Trader
Participant

Average

Hi Zigo,

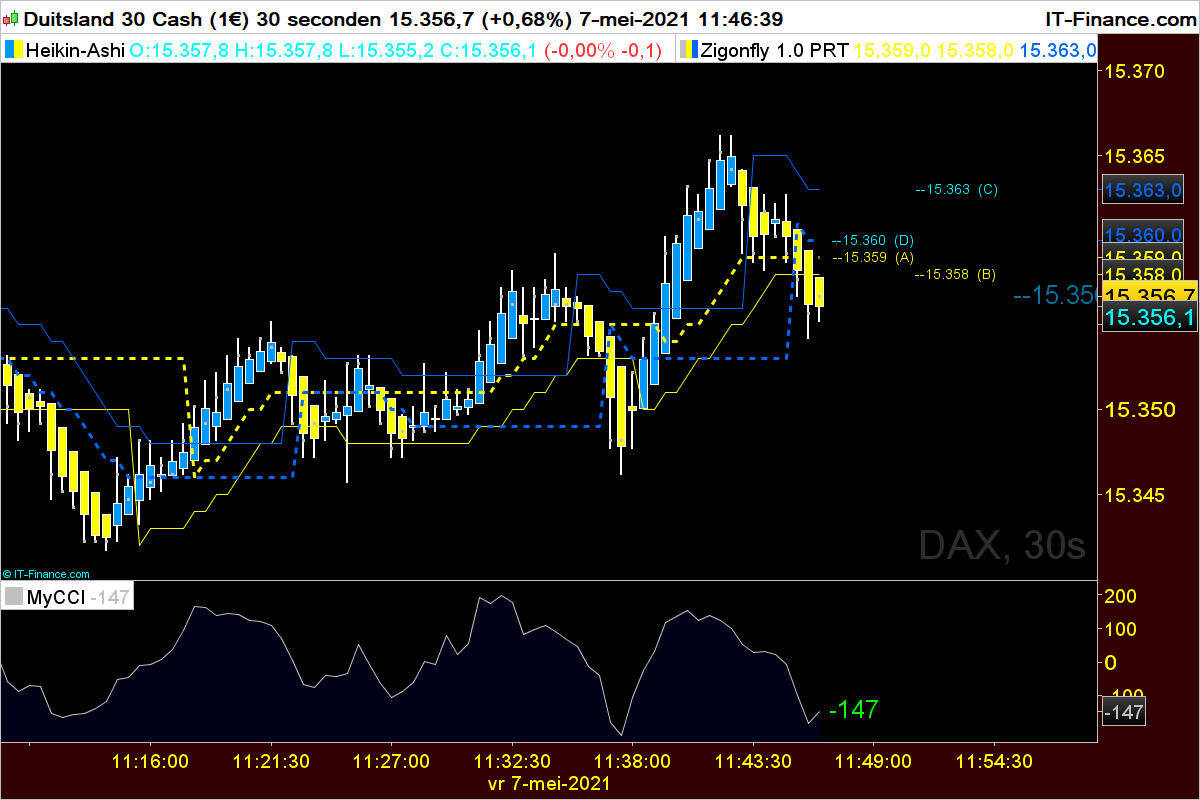

What if the next value on your chart is -137 (i.e. CCI increased 1 up but is still <0). How do I colour the number in green to indicate that it increased up?

05/07/2021 at 4:38 AM #168995 quote

IG_CFD_Trader
Participant

Average

Tnx Zigo,

But what if the next value on your chart is -137 (i.e. CCI increased 1 up but is still <0). How do I colour the number in green to indicate that it increased up?

05/07/2021 at 10:27 AM #169020 quote

Zigo
Participant

Master

Change line 4 and line 8

4 if mycci mycci[1] then

05/07/2021 at 10:49 AM #169023 quote
Zigo
Participant

Master
“Aanpassing”
```
//Zigo 6/05/2021
Defparam DRAWONLASTBARONLY =true

Timeframe(1h,UpdateOnClose)
CloseA = mycci
Timeframe(default)
CloseB = mycci

mycci=round(CCI[14](typicalPrice))
if mycci <mycci[1] then
r=255
g=0
bl=0
elsif mycci > mycci[1] then
r=0
g=255
bl=0
endif
DRAWTEXT(” #mycci#”, barindex, mycci, dialog,standard, 25)coloured(r,g,bl,255)

Return mycci
```
05/07/2021 at 11:00 AM #169025 quote

robertogozzi
Moderator

Legend

@Zigo

Always use the ‘Insert PRT Code’ button when putting code in your posts to make it easier for others to read.

Thank you 🙂
