IF IntradayBarIndex

• 07/11/2017 at 11:05 AM #40335
  AVT

  Maybe I have a problem understanding the IntradayBarIndex. This is what I don’t understand:

  1. I create a one-time ranger and all is perfect.
  2. I create a two-time ranger and IntradayBarIndex “does not obey”

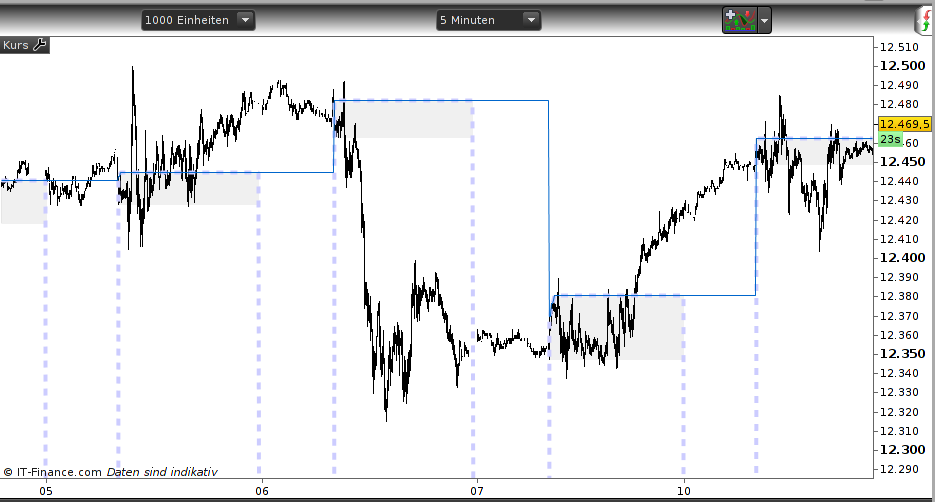

  In the picture you see

  • (the boxes just mark the whole time range)
  • the High lines of the Pre market (same time range in both versions).
  • The one-time ranger in bold dashes which does start with the IntradayBarIndex value for highestPrice at zero
  • the two-time ranger as smaller line which does not start with the IntradayBarIndex value zero.

  I thought that setting the IntradayBarIndex once in the beginning would do the job for the whole indicator, means when the first time range (in this case 8:00-9:00) is activated by setting it TRUE we begin calculating with zero.

  Am I making a thinking mistake here?

  Thanks.

  one-time ranger

  IF IntradayBarIndex = 0 THEN highestPrice = 0 lowestPrice = close * 100 ENDIF TimeRange = ( Time > 080000 AND Time < 085959 ) IF TimeRange THEN highestPrice = max(highestPrice,high) lowestPrice = min(lowestPrice,low) ENDIF RETURN highestPrice as "Buytrigger", lowestPrice as "Selltrigger"

  1 2 3 4 5 6 7 8 9 10 11

  IF IntradayBarIndex = 0 THEN   highestPrice = 0   lowestPrice = close * 100 ENDIF   TimeRange = ( Time > 080000 AND Time < 085959 ) IF TimeRange THEN   highestPrice = max(highestPrice,high)   lowestPrice = min(lowestPrice,low) ENDIF RETURN highestPrice as "Buytrigger", lowestPrice as "Selltrigger"

  two-time ranger

  IF IntradayBarIndex = 0 THEN highestPrice = 0 lowestPrice = close * 100 ENDIF // --- extern: PreMarket (bool), NormMaket (bool) PrTimeRange = ( time > 080000 AND time < 085959 ) NoTimeRange = ( time > 090000 AND time < 095959 ) // --- 1st ranger IF PreMarket THEN IF PrTimeRange THEN highestPrice = max(highestPrice,high) lowestPrice = min(lowestPrice,low) PrHigh = highestPrice PrLow = lowestPrice ENDIF ENDIF // --- 2nd ranger IF NormMarket THEN IF NoTimeRange THEN highestPrice = max(highestPrice,high) lowestPrice = min(lowestPrice,low) NoHigh = highestPrice NoLow = lowestPrice ENDIF ENDIF RETURN PrHigh as "PreMarketRange High", PrLow as "PreMarketRange Low", NoHigh as "MarketRange High", NoLow as "MarketRange Low"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

  IF IntradayBarIndex = 0 THEN   highestPrice = 0   lowestPrice = close * 100 ENDIF // --- extern: PreMarket (bool), NormMaket (bool) PrTimeRange = ( time > 080000 AND time < 085959 ) NoTimeRange = ( time > 090000 AND time < 095959 ) // --- 1st ranger IF PreMarket THEN   IF PrTimeRange THEN     highestPrice = max(highestPrice,high)     lowestPrice = min(lowestPrice,low)     PrHigh = highestPrice     PrLow = lowestPrice   ENDIF ENDIF // --- 2nd ranger IF NormMarket THEN   IF NoTimeRange THEN     highestPrice = max(highestPrice,high)     lowestPrice = min(lowestPrice,low)     NoHigh = highestPrice     NoLow = lowestPrice   ENDIF ENDIF RETURN PrHigh as "PreMarketRange High", PrLow as "PreMarketRange Low", NoHigh as "MarketRange High", NoLow as "MarketRange Low"



  AVT

  Participant

  Topics: 17

  Replies: 186

  Been thanked: 58 times
  07/13/2017 at 10:40 AM #40534
  Nicolas

  You are using 2 times the same variables names (highestprice and lowestprice) and for 2 different time settings, that could cause the difference?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  07/13/2017 at 8:46 PM #40589
  AVT

  Thanks Nicolas for the idea. But – there is always a but 🙁

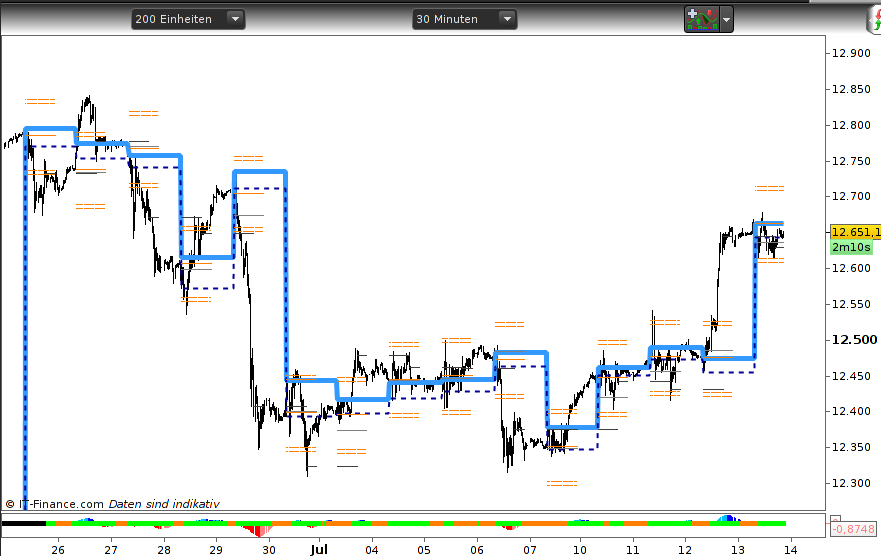

  I change the code to use two different starting limits and calculate with them. I just show the PreMarket=true in the picture because NormMarket does the same.

  • thick blue line is High Line starting only at the beginning of the chart with zero
  • dark blue dashes is the Low Line, also starting only at the beginning and not as it should at close*100

  The orignal idea of having only one defintion of highest and lowest in the IntradayBarIndex was: as soon as one Ranger is started, it should look up the IntradayBarIndex values and then do its job. If now the second Ranger is started (this one would start later than the first one, so) there is actually no real need for the IntradayBarIndex values as we know already know highs and lows.

  Here is the modified code that goes with the picture:

  2-range marker 1.01

  IF IntradayBarIndex = 0 THEN PRhighestPrice = 0 PRlowestPrice = close * 100 NOhighestPrice = 0 NOlowestPrice = close * 100 ENDIF // --- extern: PreMarket (bool), NormMarket (bool) //PreMarket=1 //NormMarket=0 PrTimeRange = ( time > 080000 AND time < 085959 ) NoTimeRange = ( time > 090000 AND time < 095959 ) // --- 1st ranger IF PreMarket THEN IF PrTimeRange THEN PRhighestPrice = max(PRhighestPrice,high) PRlowestPrice = min(PRlowestPrice,low) PrHigh = PRhighestPrice PrLow = PRlowestPrice ENDIF ENDIF // --- 2nd ranger IF NormMarket THEN IF NoTimeRange THEN NOhighestPrice = max(NOhighestPrice,high) NOlowestPrice = min(NOlowestPrice,low) NoHigh = NOhighestPrice NoLow = NOlowestPrice ENDIF ENDIF RETURN PrHigh as "PreMarketRange High", PrLow as "PreMarketRange Low", NoHigh as "MarketRange High", NoLow as "MarketRange Low"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

  IF IntradayBarIndex = 0 THEN PRhighestPrice = 0 PRlowestPrice = close * 100 NOhighestPrice = 0 NOlowestPrice = close * 100 ENDIF // --- extern: PreMarket (bool), NormMarket (bool) //PreMarket=1 //NormMarket=0 PrTimeRange = ( time > 080000 AND time < 085959 ) NoTimeRange = ( time > 090000 AND time < 095959 ) // --- 1st ranger IF PreMarket THEN IF PrTimeRange THEN PRhighestPrice = max(PRhighestPrice,high) PRlowestPrice = min(PRlowestPrice,low) PrHigh = PRhighestPrice PrLow = PRlowestPrice ENDIF ENDIF // --- 2nd ranger IF NormMarket THEN IF NoTimeRange THEN NOhighestPrice = max(NOhighestPrice,high) NOlowestPrice = min(NOlowestPrice,low) NoHigh = NOhighestPrice NoLow = NOlowestPrice ENDIF ENDIF RETURN PrHigh as "PreMarketRange High", PrLow as "PreMarketRange Low", NoHigh as "MarketRange High", NoLow as "MarketRange Low"



  Thanks for your attention.



  AVT

  Participant

  Topics: 17

  Replies: 186

  Been thanked: 58 times
  07/18/2017 at 12:17 PM #40952
  gabri

  I am giving you my two cents on this. You are using a TF 30 mins. If Intradaybarindex=0 goes from 0800 till 0830, you will not have any data available for this intradyabarindex until 0830 (close time of the first intraday bar). This means that only after 0830 you will have a good computation of values. I cannot really see the scale on the bottom. If you want to troubleshoot the problem try to add the return line return intradaybarindex



  gabri

  Participant

  Topics: 6

  Replies: 116

  Been thanked: 39 times
