Heiken Ashi Smoothed Code

• 08/07/2017 at 9:03 AM #42631
  Attienel

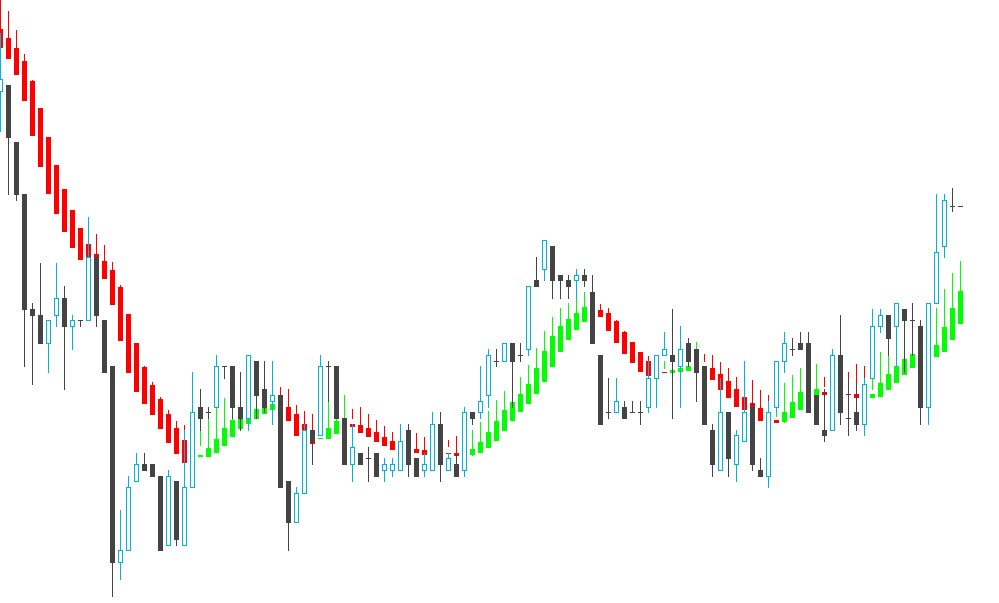

  Hi there. Thank you for the code that was posted on this website on 25 Apr 2017 to plot the Heiken Ashi Smoothed indicator. I however noticed that down candles don’t display wicks at the bottom of the candle bodies, for all time frames, for all the stocks that I trade.  Is this normal? Please see attached. Thank you, Attie



  Attienel

  Participant

  Topics: 5

  Replies: 12

  Been thanked: 1 time
  08/16/2017 at 8:02 AM #43238
  Attienel

  Hi there,

  I neglected to add the programming code to the output example so here it is. Any help will be very welcome. Thank you, Attie



  Attienel

  Participant

  Topics: 5

  Replies: 12

  Been thanked: 1 time
  08/16/2017 at 10:37 AM #43243
  Nicolas

  You can find another version of the Heikin Ashi Smoothed candlesticks in this Italian topic: https://www.prorealcode.com/topic/heikin-ashi-smoothed-candle/

  and there are also many other topics that deal with this kind of price representation in the forums, you’ll find them easily by using the website search engine (sometimes people wrote “heiken” instead of “heikin”).





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  08/16/2017 at 12:49 PM #43266
  Attienel

  Hi Nicolas, thank you for your response.

  I could not find any references on the site to double-smoothed Heiken indicators. The double smoothed indicator which you created for PRT is an amazing indicator as it really reduces a lot of noise. I have asked the programming team to investigate and give me a quote to see why the downtrend doesn’t form any wicks to the bottom. If I get a solution, I will share it with the forum. Thanks



  Attienel

  Participant

  Topics: 5

  Replies: 12

  Been thanked: 1 time
  08/16/2017 at 1:09 PM #43267
  Nicolas

  This indicator is translated from another platform code. I just checked and the lows are also not drawn in the original one.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20863

  Been thanked: 4773 times
  08/16/2017 at 1:16 PM #43271
  Attienel

  Thanks Nicolas. I will have another look in the code to see if I can spot the problem…limited skills at the moment 🙂

  Thanks for taking time to assist



  Attienel

  Participant

  Topics: 5

  Replies: 12

  Been thanked: 1 time
  08/16/2017 at 2:10 PM #43278
  JC_Bywan

  >> Please use the “insert code PRT” button to add code in a PRT formatted and line-numbered style rather than .doc attachment, thank you! <<

  The “if (haOpen<haClose)” statement assigning colors to smoothed HA candles seem also to switch highs and lows in extmapbuffer7 and extmapbuffer8, don’t see why they should be switched… switching high and low for red candle compared with blue/green candle give trouble drawing the red candles…

  Both ExtMapBuffer7 lines should be = HALow , and both ExtMapBuffer8 lines should be = HAHigh (…and so could be taken out of the if-endif statement and be written just once rather than twice)



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2643

  Been thanked: 907 times
  08/16/2017 at 2:29 PM #43280
  JC_Bywan

  Had to try it, drawing correctly highs and lows has knock on effect of messing with long and short signal at the very end. Don’t know what the original code was before translation or if there was any explanation going with it, but it seems either there’s further debugging to do in long/short signals, or the swap of HAhigh and HAlow was intentional by the author at the expense of candle drawing accuracy, and shouldn’t be fixed in the first place in order to generate the long/short signals via these intermediate extmapbuffer7 and 8 variables



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2643

  Been thanked: 907 times
  08/17/2017 at 8:37 AM #43322
  Attienel

  Hi Noobywan, I amended the code in line with your suggestion and it works perfectly for my purpose. Thank you very much for coming to my rescue. Attached is the revised code.

  Happy trading

  Attie

  Heiken Ashi Double Smoothed

  //PRC_HPT Heikin Ashi Smoothed | indicator //25.04.2017 //Nicolas @ www.prorealcode.com //Sharing ProRealTime knowledge //translated from MT4 indicator code //---settings MaPeriod=6 MaPeriod2=2 //---end of settings once maOpen=Open once maClose=Close once maLow=Low once maHigh=High if barindex>0 then maOpen=(maOpen[1]*(MAperiod-1)+Open)/MAPeriod maClose=(maClose[1]*(MAperiod-1)+Close)/MAPeriod maLow=(maLow[1]*(MAperiod-1)+Low)/MAPeriod maHigh=(maHigh[1]*(MAperiod-1)+High)/MAPeriod haOpen=(ExtMapBuffer5[1]+ExtMapBuffer6[1])/2 haClose=(maOpen+maHigh+maLow+maClose)/4 haHigh=Max(maHigh, Max(haOpen, haClose)) haLow=Min(maLow, Min(haOpen, haClose)) if (haOpen<haClose) then r=0 g=191 b=255 ExtMapBuffer7=haLow ExtMapBuffer8=haHigh else r=255 g=10 b=0 ExtMapBuffer7=haLow ExtMapBuffer8=haHigh endif ExtMapBuffer5=haOpen ExtMapBuffer6=haClose ExtMapBuffer1=weightedaverage[MAperiod2](ExtMapBuffer7) ExtMapBuffer2=weightedaverage[MAperiod2](ExtMapBuffer8) ExtMapBuffer3=weightedaverage[MAperiod2](ExtMapBuffer5) ExtMapBuffer4=weightedaverage[MAperiod2](ExtMapBuffer6) endif DRAWCANDLE(ExtMapBuffer3,ExtMapBuffer2,ExtMapBuffer1,ExtMapBuffer4) coloured(r,g,b) short = ExtMapBuffer7[1]>ExtMapBuffer8[1] and ExtMapBuffer7[2]<ExtMapBuffer8[2] and ExtMapBuffer7[0]>ExtMapBuffer8[0] long = ExtMapBuffer7[1]<ExtMapBuffer8[1] and ExtMapBuffer7[2]>ExtMapBuffer8[2] and ExtMapBuffer7[0]<ExtMapBuffer8[0] RETURN long as "long signal", short as "short signal"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53

  //PRC_HPT Heikin Ashi Smoothed | indicator //25.04.2017 //Nicolas @ www.prorealcode.com //Sharing ProRealTime knowledge //translated from MT4 indicator code //---settings MaPeriod=6 MaPeriod2=2 //---end of settings once maOpen=Open once maClose=Close once maLow=Low once maHigh=High if barindex>0 then maOpen=(maOpen[1]*(MAperiod-1)+Open)/MAPeriod maClose=(maClose[1]*(MAperiod-1)+Close)/MAPeriod maLow=(maLow[1]*(MAperiod-1)+Low)/MAPeriod maHigh=(maHigh[1]*(MAperiod-1)+High)/MAPeriod haOpen=(ExtMapBuffer5[1]+ExtMapBuffer6[1])/2 haClose=(maOpen+maHigh+maLow+maClose)/4 haHigh=Max(maHigh, Max(haOpen, haClose)) haLow=Min(maLow, Min(haOpen, haClose)) if (haOpen<haClose) then r=0 g=191 b=255 ExtMapBuffer7=haLow ExtMapBuffer8=haHigh else r=255 g=10 b=0 ExtMapBuffer7=haLow ExtMapBuffer8=haHigh endif ExtMapBuffer5=haOpen ExtMapBuffer6=haClose ExtMapBuffer1=weightedaverage[MAperiod2](ExtMapBuffer7) ExtMapBuffer2=weightedaverage[MAperiod2](ExtMapBuffer8) ExtMapBuffer3=weightedaverage[MAperiod2](ExtMapBuffer5) ExtMapBuffer4=weightedaverage[MAperiod2](ExtMapBuffer6) endif DRAWCANDLE(ExtMapBuffer3,ExtMapBuffer2,ExtMapBuffer1,ExtMapBuffer4) coloured(r,g,b) short = ExtMapBuffer7[1]>ExtMapBuffer8[1] and ExtMapBuffer7[2]<ExtMapBuffer8[2] and ExtMapBuffer7[0]>ExtMapBuffer8[0] long = ExtMapBuffer7[1]<ExtMapBuffer8[1] and ExtMapBuffer7[2]>ExtMapBuffer8[2] and ExtMapBuffer7[0]<ExtMapBuffer8[0] RETURN long as "long signal", short as "short signal"
