draw vertical segment for reversal bar ?

• 01/21/2023 at 11:15 AM #207814
  sharteel

  Hello,

  timeframe: 1 tick

  i start a new challenge and for that i m looking if someone has a code for drawing a vertical segment in tick timeframe where the high or low is moving with tick value (price) only. dont care about the time.

  ex:

  • tick reversal: +10ticks
  • the price start at 11000, the price up, the green segments drawing up until the price down to value = to 10 tick and it is the start for drawginf the new bar, red here as the price move down. if the price move up again to +10 tick, the draw a new green bar.

  it is reversal bar.

  thanks.

  S.T



  sharteel

  Participant

  Topics: 8

  Replies: 40

  Been thanked: 4 times
  01/24/2023 at 11:47 AM #208082
  Nicolas

  Sorry I don’t get it. Can you reformulate the query?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/24/2023 at 7:50 PM #208153
  sharteel

  Hello Nicolas,

  the goal is to draw a bar (vertical segment) until the retracement. it is same thing of renko but with reversal mecanism.

  ex:

  a bar is created in tick chart at time 090000 and move up until price down to 10 ticks. if not, the segment is drawing by following the price.  if the price move down for 10 ticks, a new segment is drawing and continue to draw until the price move up agin and reach last price +10 ticks. etc.

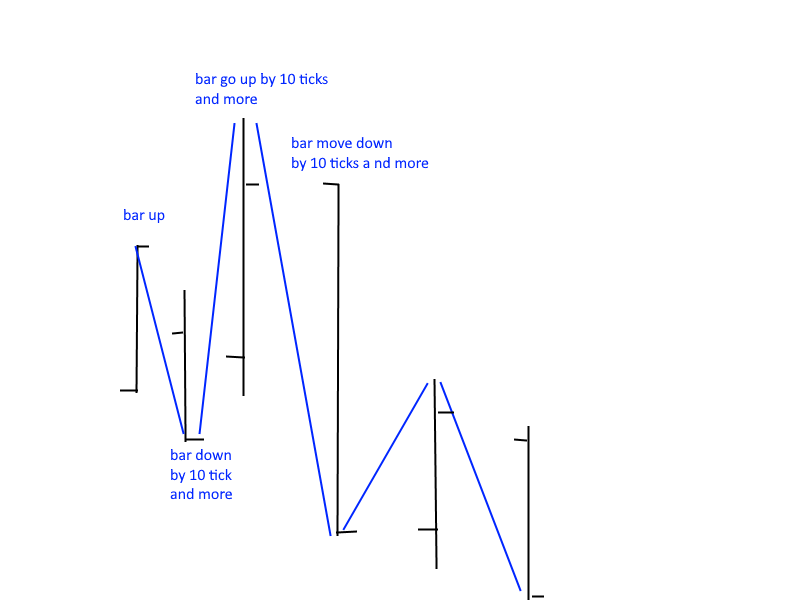

  in attachment with mecanism.

  cheers.





  sharteel

  Participant

  Topics: 8

  Replies: 40

  Been thanked: 4 times
  01/25/2023 at 10:52 AM #208183
  Nicolas

  Ok but the bars should look like regular candlesticks or barchart right?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/25/2023 at 11:11 AM #208190
  Nicolas

  Quickly, I coded this:

  size = 10 once s=size*pointsize once iprice = close while close>iprice+s do iprice=close wend while close<iprice-s do iprice=close wend return iprice

  1 2 3 4 5 6 7 8 9 10 11 12 13 14

  size = 10   once s=size*pointsize once iprice = close   while close>iprice+s do iprice=close wend   while close<iprice-s do iprice=close wend   return iprice

  But I have a doubt, I go back there.. I believe that the line must continue in the same direction until a reversal of X (10) points, is not it?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/25/2023 at 11:20 AM #208197
  Nicolas

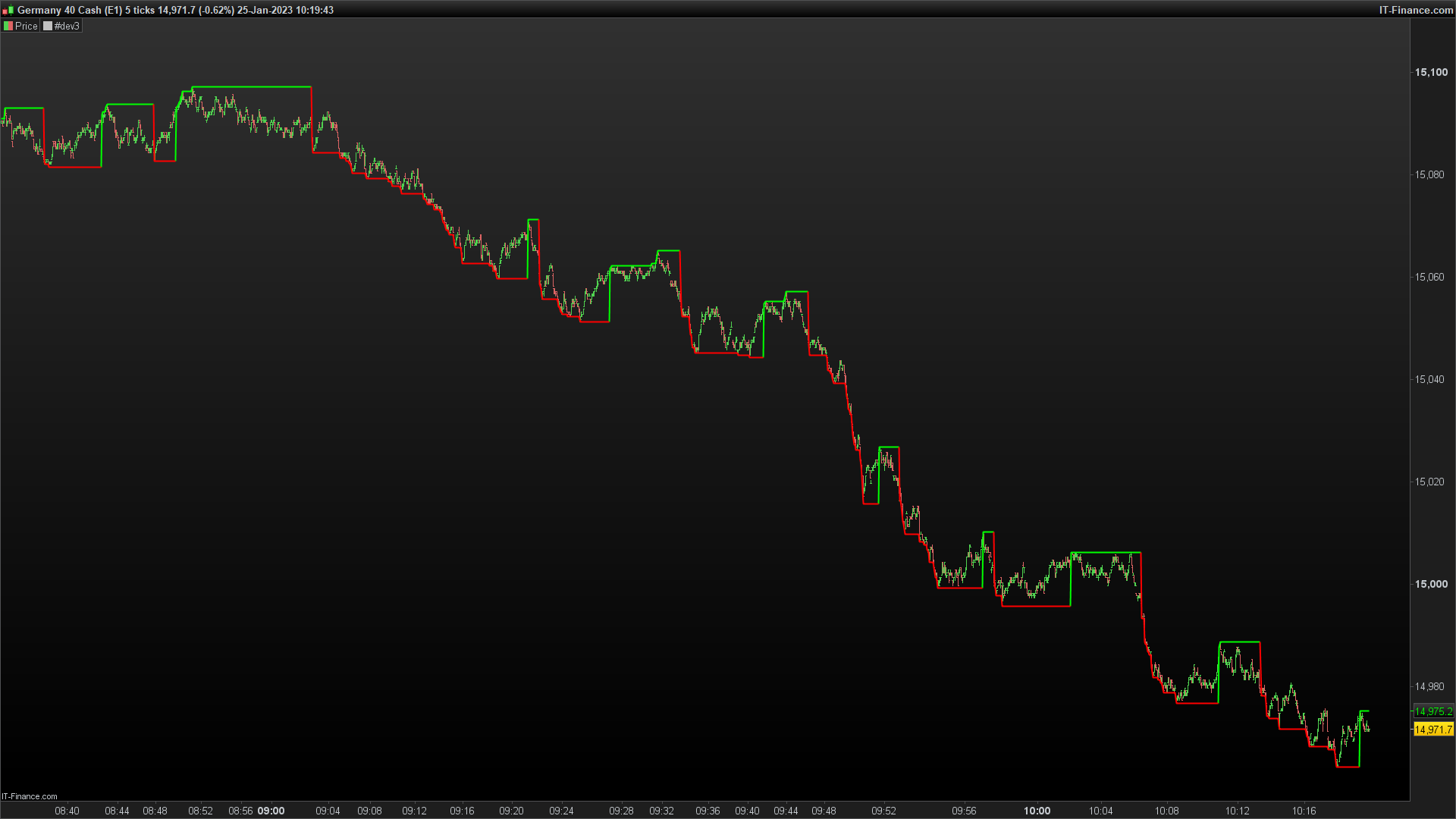

  New version, I think it’s the closest to your query.

  size = 10 once s=size*pointsize once iprice = close while high>iprice+s do iprice=close dir = 1 r=0 g=255 wend while low<iprice-s do iprice=close dir = -1 r=255 g=0 wend if dir=1 then iprice=max(iprice,high) elsif dir=-1 then iprice=min(iprice,low) endif return iprice coloured(r,g,0) style(line,2)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

  size = 10   once s=size*pointsize once iprice = close   while high>iprice+s do iprice=close dir = 1 r=0 g=255 wend   while low<iprice-s do iprice=close dir = -1 r=255 g=0 wend   if dir=1 then iprice=max(iprice,high) elsif dir=-1 then iprice=min(iprice,low) endif   return iprice coloured(r,g,0) style(line,2)





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/25/2023 at 2:48 PM #208224
  sharteel

  Hello Nicolas,

  i m looking. i have infinite loop currently.

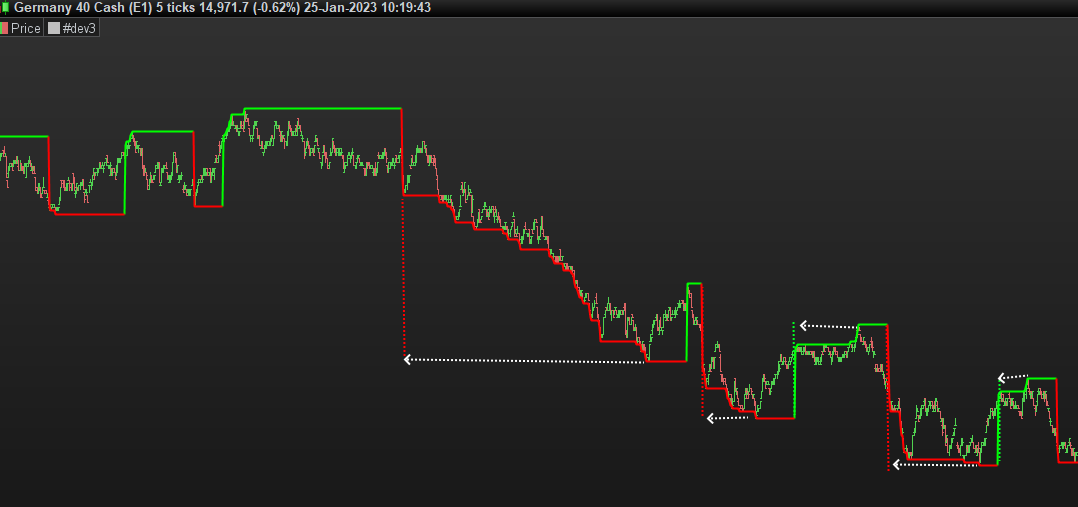

  below the screen updated with white line and thevergacal bar must be  go.

  appreciate your help.

  Cheers.



  sharteel

  Participant

  Topics: 8

  Replies: 40

  Been thanked: 4 times
  01/25/2023 at 3:03 PM #208230
  Nicolas

  ok, but since we can’t modify the time line of the platform (X-axis), I have to build arrays of candlesticks and plot them back in the past, more tricky but will do. So you will not be able to compare the price chart with the new candlesticks the code will plot, they will be both out of sync.

  If you encounter infinite loop, I think it’s because you are using a timeframe too high to get a 10 points retracement in the same bar, please try with DAX / 5 ticks for example. What instrument are you trying?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/25/2023 at 3:33 PM #208233
  Nicolas

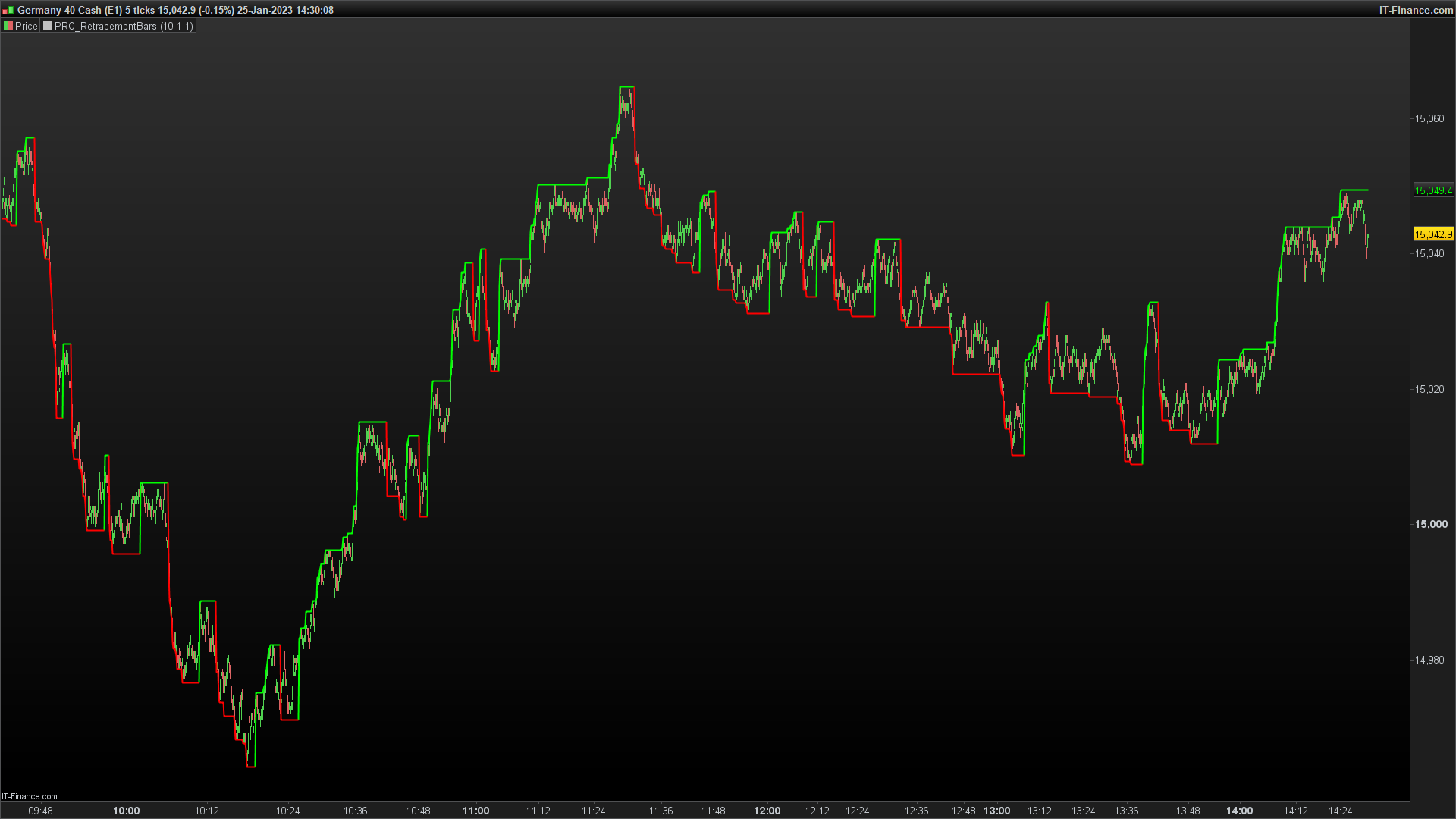

  Here is a more complete version where you can select the display of the bars in 2 different modes: line mode (like previous code) or bars mode.

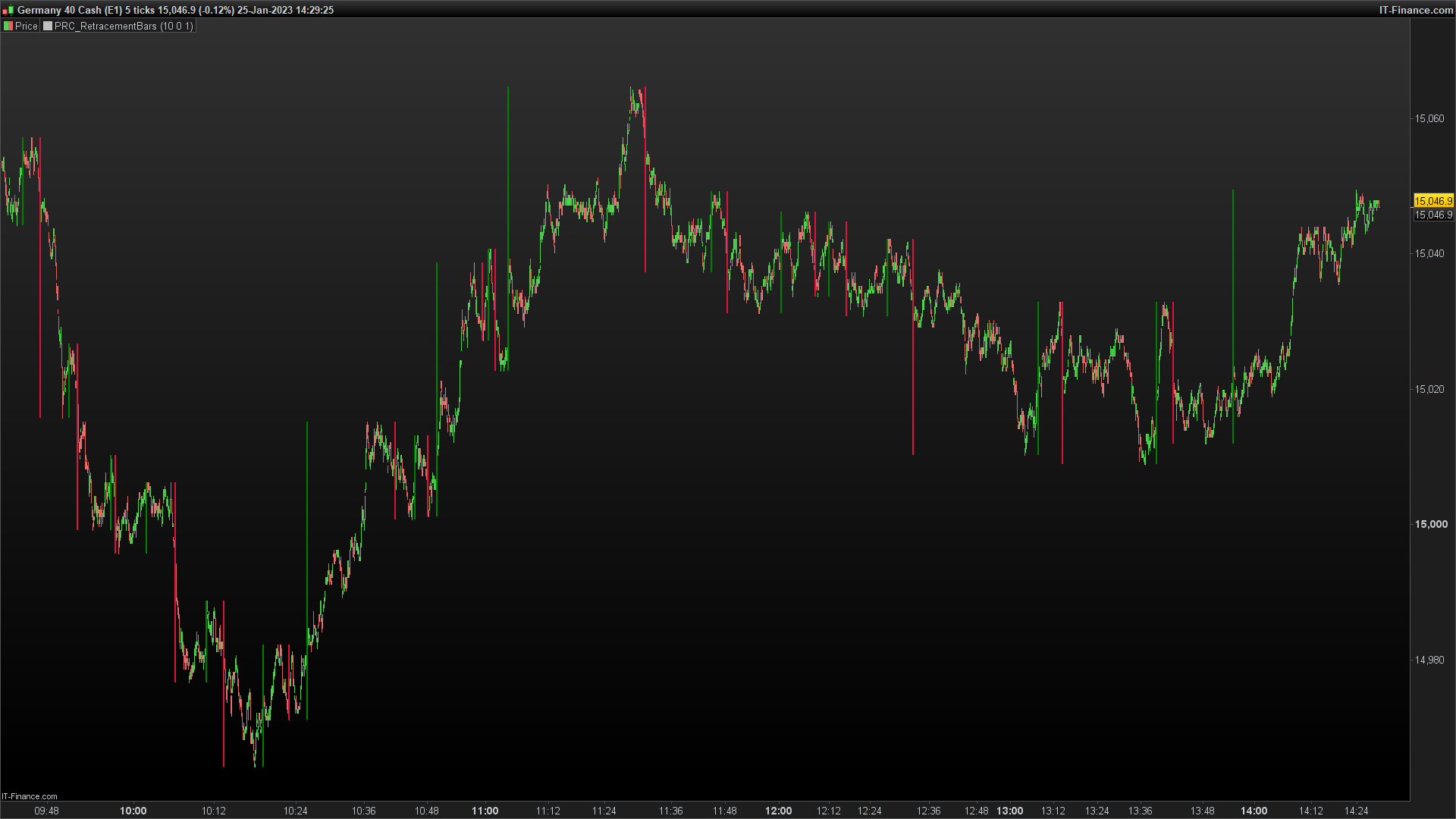

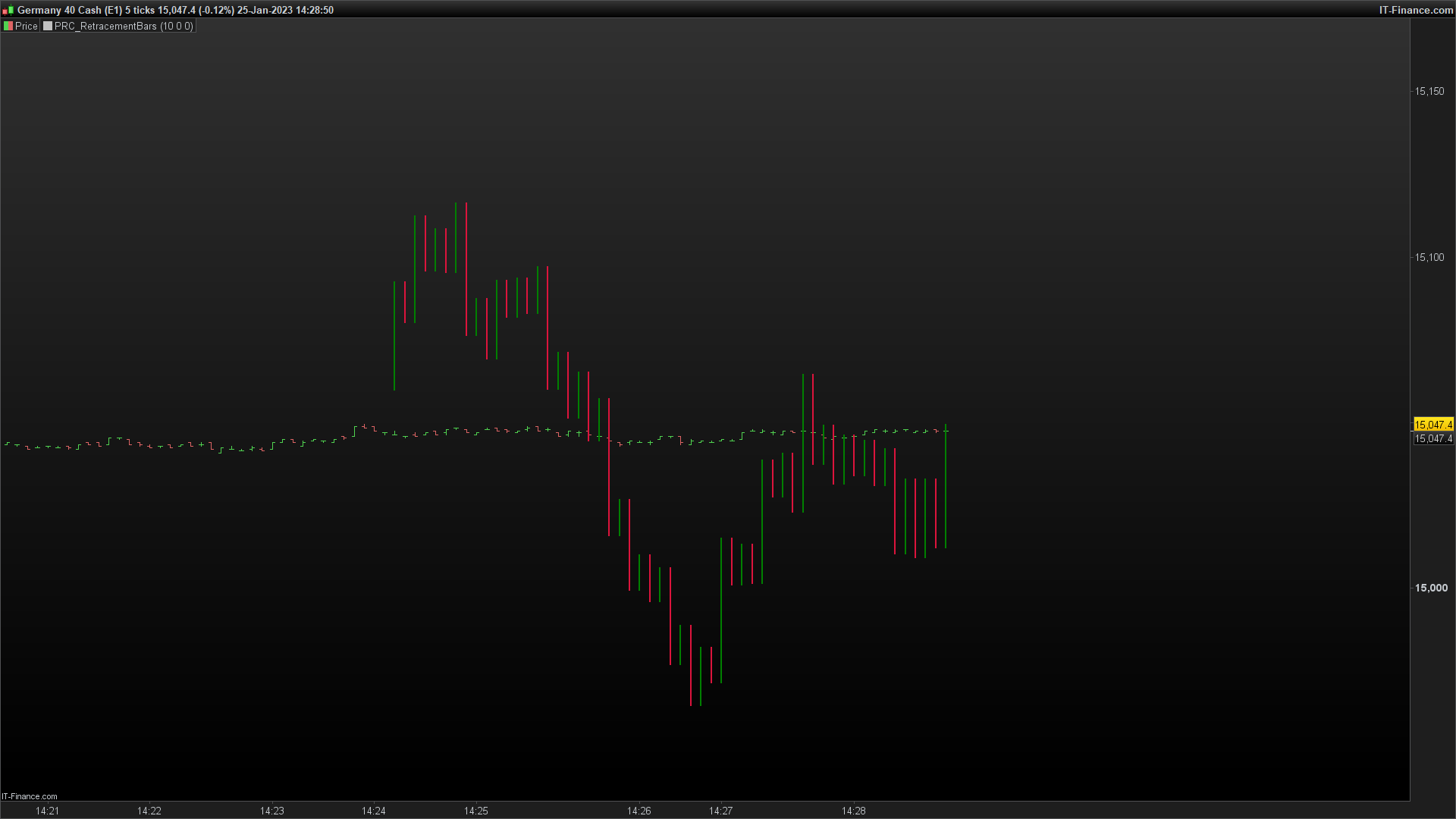

  In bars mode (mode = 1), you can select if the bars are anchored on the time of their creation or like a classic chart (one bar per time period). See pictures attached for a better understanding.



  1 user thanked author for this post.

  sharteel



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/25/2023 at 8:31 PM #208282
  sharteel

  Hello Nicolas,

  the scale mode is very useful !!!

  do u think u can add an option for drawing a line from low to high and high to low when we are in scale mode ( true reversal mecanism) ?

  Cheers.



  sharteel

  Participant

  Topics: 8

  Replies: 40

  Been thanked: 4 times
  01/26/2023 at 4:35 PM #208385
  Nicolas

  Could you explain with a drawing? It worked well last time 😉



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/31/2023 at 2:27 PM #208862
  Nicolas

  Please find attached a modified version, that get rid of the infinite loop issue. Please do your own test in live to make sure all is ok.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  02/16/2023 at 9:22 AM #209801
  sharteel

  Hello Nicolas,

  thanks for delivery. i m looking.



  have a nice day.



  cheers.



  S.T



  sharteel

  Participant

  Topics: 8

  Replies: 40

  Been thanked: 4 times
