Conversion of “Bar Count by GYH9” from the TradingView software

• 12/15/2022 at 8:59 PM #205841
  gadetrading

  Hello! Thank you for taking time to read this. I have found a code on TradingView that assigns a number to every other bar in the session. This allows me to reference bars, for example “bar 24 made a higher high” etc. I am wondering if this code can be converted to the ProRealTime software. All it should do is put a tiny number below every other bar in the session (I use regular trading hours).
  If this is possible to convert, I will be forever thankful! Regards, Andreas Faurholdt.

  This is the TradingView code: (it is also attached)



  //@version=4

  study(“Bar Count”, overlay=true, max_labels_count=500)

  sizeOption = input(title=”Label Size”, type=input.string,

       options=[“Auto”, “Huge”, “Large”, “Normal”, “Small”, “Tiny”],

       defval=”Normal”)

  labelSize = (sizeOption == “Huge”) ? size.huge :

       (sizeOption == “Large”) ? size.large :

       (sizeOption == “Small”) ? size.small :

       (sizeOption == “Tiny”) ? size.tiny :

       (sizeOption == “Auto”) ? size.auto :

           size.normal

  color c_labelColor = input(color.orange, “Text Color”, input.color)

  c_contador = input(title=”Display at every X bars”, type=input.integer, defval=2)

  is_new_day()=>

      d=dayofweek

      na(d[1]) or d != d[1]

  var count = 1

  if is_new_day()

      count := 1

  else

      count := count + 1

  if count % c_contador == 0

      label1 = label.new(bar_index, 0, style=label.style_none, text=tostring(count))

      label.set_textcolor(label1, c_labelColor)

      label.set_yloc(label1, yloc.belowbar)

      label.set_size(label1, labelSize)



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  12/15/2022 at 11:48 PM #205849
  JS

  Hi @gadetrading

  Here is the indicator…

  You can adjust the session times…



  Even Bar Count

  Once Count = 0 StartSession=153000 EndSession=220000 If OpenTime >= StartSession and OpenTime <= EndSession then Count=Count+1 xEven=Count/2 - Round(Count/2) If Count > 0 and xEven=0 then DrawText( "#Count#", BarIndex,Low-10*pipsize) EndIf If OpenTime = EndSession then Count=0 EndIf EndIf Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

  Once Count = 0   StartSession=153000 EndSession=220000   If OpenTime >= StartSession and OpenTime <= EndSession then Count=Count+1 xEven=Count/2 - Round(Count/2)   If Count > 0 and xEven=0 then DrawText( "#Count#", BarIndex,Low-10*pipsize) EndIf   If OpenTime = EndSession then Count=0 EndIf EndIf Return

  2 users thanked author for this post.

  gadetrading, Nicolas



  JS

  Participant

  Topics: 22

  Replies: 1423

  Been thanked: 557 times
  12/16/2022 at 11:31 AM #205875
  gadetrading

  Hello JS.

  Thank you. It is greatly appreciated.

  If possible I have an additional request:
  Can you make the bar count reset at the start of every session? I have set custom trading hours to show data from 09:00 to 17:30 for the German DAX index and ideally I want the counting to begin from 09:00 and end at 17:30 and then the count will reset the next day and start over at 09:00. I have multiple days shown on my chart and the numbers get very big right now.



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  12/16/2022 at 11:45 AM #205881
  gadetrading

  @JS



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  12/16/2022 at 1:06 PM #205886
  Nicolas

  Just change the “endsession” setting with the desired time. Peter has set it with 220000 (10pm).

  1 user thanked author for this post.

  gadetrading



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  12/16/2022 at 1:35 PM #205891
  JS

  Hi @gadetrading

  You just need to adjust the session times…

  For the DAX:

  StartSession=090000

  EndSession=173000

  1 user thanked author for this post.

  gadetrading



  JS

  Participant

  Topics: 22

  Replies: 1423

  Been thanked: 557 times
  12/16/2022 at 1:36 PM #205892
  gadetrading

  @Nicolas @JS

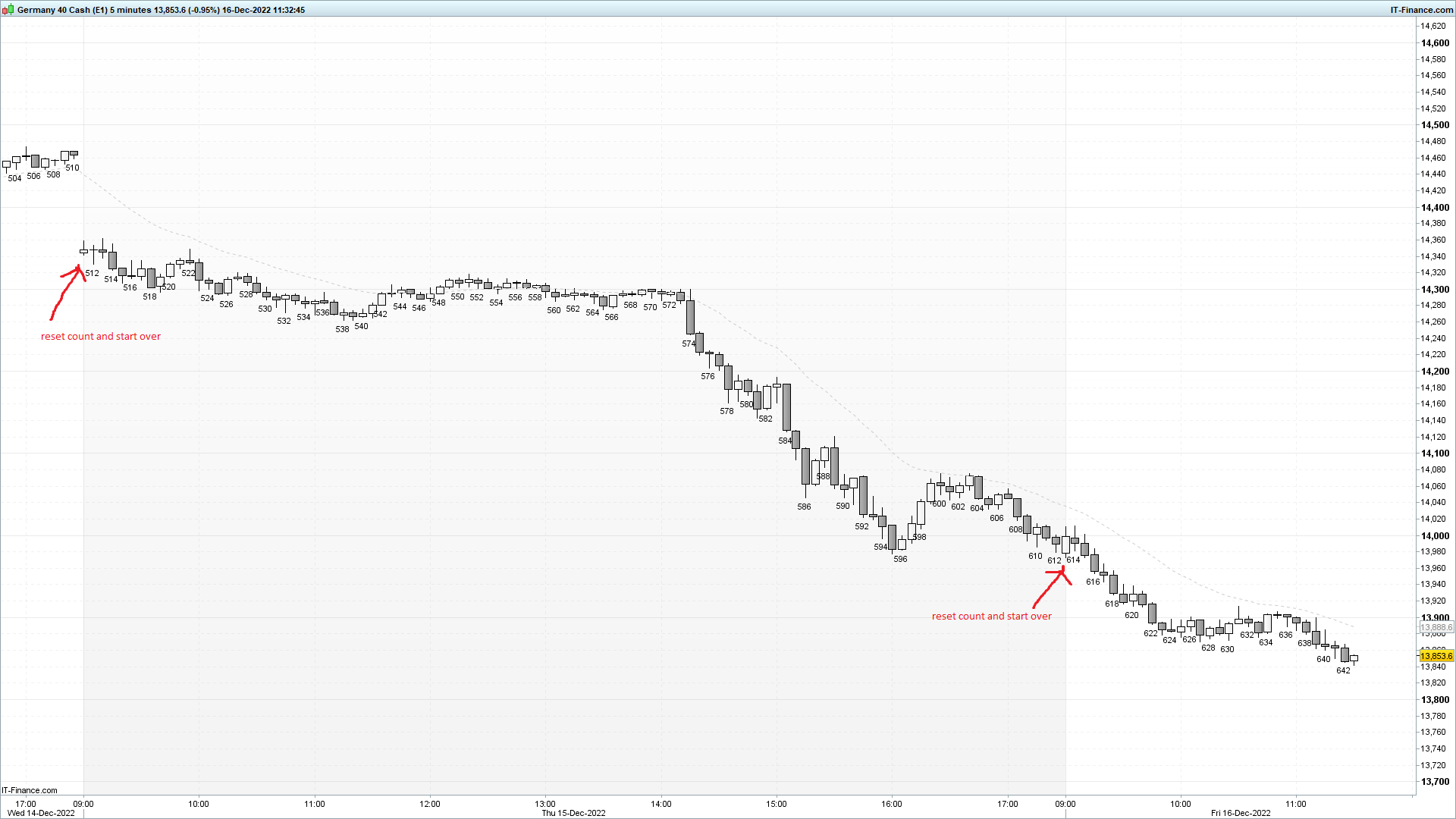

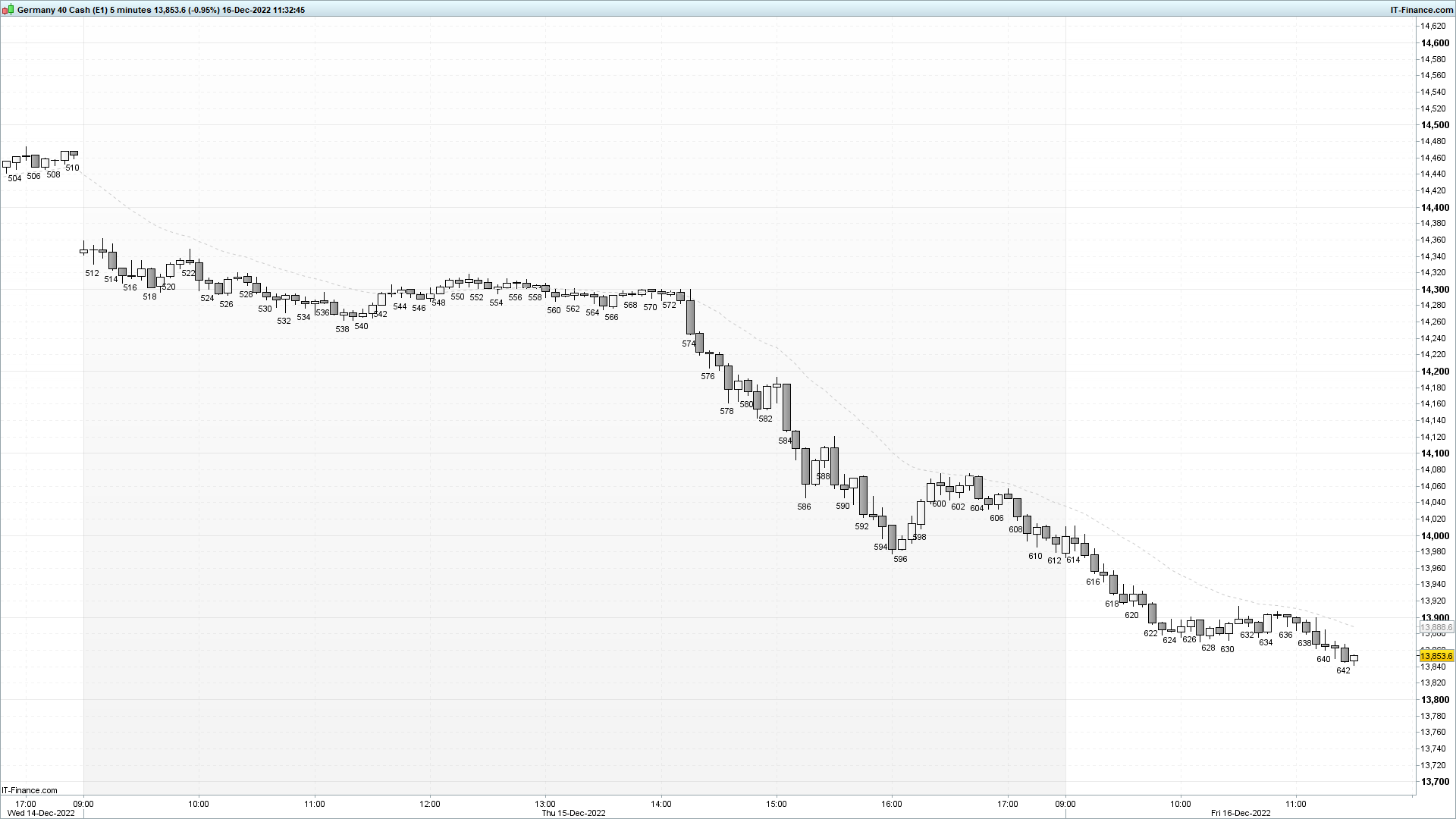

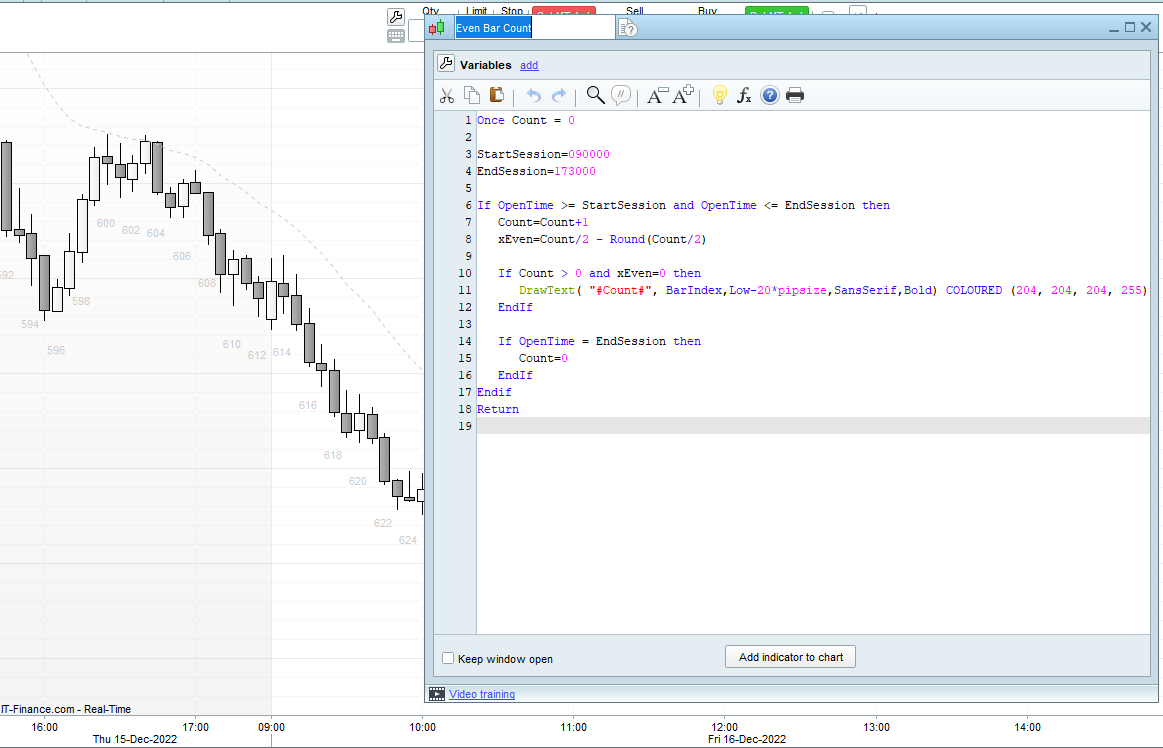

  I have set the desired time, however, it does not start over (reset the bar count) every time the clock is 9 AM. I have shown it in the screenshot, for example, bar 614 should be bar 2 since it is the second bar after 9 AM.



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  12/16/2022 at 1:49 PM #205895
  JS

  Hi @gadetrading

  I think you’ve set the trading hours separately in “Time Zones & Trading Hours”…

  Maybe it helps if you set it to 08:55 to 17:35

  Time frame 5 minutes.



  JS

  Participant

  Topics: 22

  Replies: 1423

  Been thanked: 557 times
  12/16/2022 at 1:55 PM #205896
  Nicolas

  Please don’t embed pictures in content, it is not necessary.

  I think end session should use Time instead of OpenTime, what do you think @JS ?

  1 user thanked author for this post.

  gadetrading



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  12/16/2022 at 2:17 PM #205897
  JS

  Hi @Nicolas

  The indicator does what it is supposed to do here, also on the DAX…

  I think it’s the settings in the “Time Zones & Trading Hours”



  JS

  Participant

  Topics: 22

  Replies: 1423

  Been thanked: 557 times
  12/16/2022 at 2:28 PM #205907
  gadetrading

  Hello @JS
  Thank you.
  I have set the settings in “Time Zones & Trading Hours” to show only regular trading hours for the DAX CFD. I have also tested the bar count indicator as you requested with 08:55 and 17:35 which fixes the problem and the counting resets at 09:00 every day. However, I do not wish to show those two extra bars on my 5 minute chart. I only wish to show price action from 09:00 to 17:30 for the CFD and still have the count reset at 09:00 every day.



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  12/16/2022 at 2:43 PM #205908
  JS

  Hi @gadetrading

  Try Nicolas’ solution:

  Change “OpenTme = EndSession ” to  “Time = EndSession”

  Even Bar Count V2

  Once Count = 0 StartSession=090000 EndSession=173000 If OpenTime >= StartSession and OpenTime <= EndSession then Count=Count+1 xEven=Count/2 - Round(Count/2) If Count > 0 and xEven=0 then DrawText( "#Count#", BarIndex,Low-10*pipsize) EndIf If Time = EndSession then Count=0 EndIf EndIf Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

  Once Count = 0   StartSession=090000 EndSession=173000   If OpenTime >= StartSession and OpenTime <= EndSession then Count=Count+1 xEven=Count/2 - Round(Count/2)   If Count > 0 and xEven=0 then DrawText( "#Count#", BarIndex,Low-10*pipsize) EndIf   If Time = EndSession then Count=0 EndIf EndIf Return

  1 user thanked author for this post.

  gadetrading



  JS

  Participant

  Topics: 22

  Replies: 1423

  Been thanked: 557 times
  12/16/2022 at 2:48 PM #205909
  gadetrading

  @JS @Nicolas
  Now I understand. Nicolas’ solution works. It is now functioning like I want it to with “Time = EndSession”.
  Thank you both for taking the time to help. It is appreciated.

  1 user thanked author for this post.

  JS



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  02/21/2023 at 7:13 PM #210090
  gadetrading

  Hello @JS
  Is it possible to make sure the bar counter resets every day?

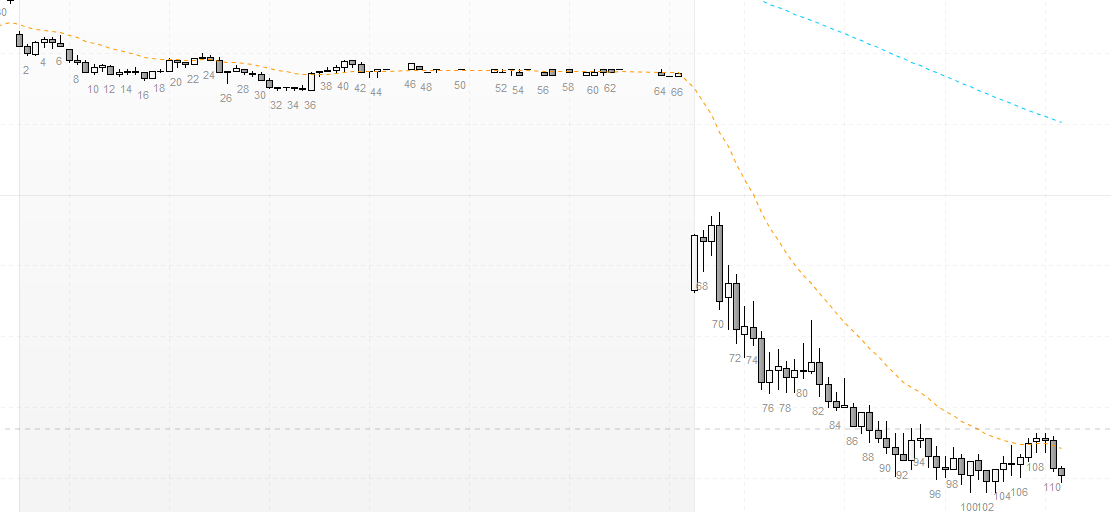

  I have attached a screenshot. This is a problem because some days have less bars than others in the same timespan.
  In the screenshot you can see that the first bar of the day is actually bar 67, when it should be bar 1. It is because yesterday had fewer bars than other days in the same timespan.

  Once Count = 0 StartSession=093000 EndSession=161500 If OpenTime >= StartSession and OpenTime <= EndSession then Count=Count+1 xEven=Count/2 - Round(Count/2) If Count > 0 and xEven=0 then DrawText( "#Count#", BarIndex,Low-2*pipsize,SansSerif) COLOURED (153, 153, 153, 255) EndIf If Time = EndSession then Count=0 EndIf Endif Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

  Once Count = 0 StartSession=093000 EndSession=161500 If OpenTime >= StartSession and OpenTime <= EndSession then Count=Count+1 xEven=Count/2 - Round(Count/2) If Count > 0 and xEven=0 then DrawText( "#Count#", BarIndex,Low-2*pipsize,SansSerif) COLOURED (153, 153, 153, 255) EndIf If Time = EndSession then Count=0 EndIf Endif Return



  gadetrading

  Participant

  Topics: 6

  Replies: 24

  Been thanked: 4 times
  02/21/2023 at 8:18 PM #210095
  JS

  Hi gadetrading,

  You can try/add this…

  If IntraDayBarIndex = 0 then

  Count = 0

  EndIf

  1 user thanked author for this post.

  gadetrading



  JS

  Participant

  Topics: 22

  Replies: 1423

  Been thanked: 557 times
