BYP Supervisor

Hello,

Here is an algorithm that generalizes the “Open Price Range” (OPR) strategy, allowing you to monitor price direction over a specific time interval.

It operates on a 1-minute timeframe, enabling simultaneous (or independent) monitoring of the four major markets: Euronext, London, NYSE/Nasdaq, and Tokyo.

A “custom hours” option is available, which is also useful for 24/7 markets.

The standard OPR observation period is 15 minutes, but you can adjust this parameter to suit your specific goals.

A green or red tag indicates whether your entered times correspond to market opening hours and validates the monitoring process.

The system handles standard weekdays (Monday through Friday) only; this restriction does not apply to the custom hours option.

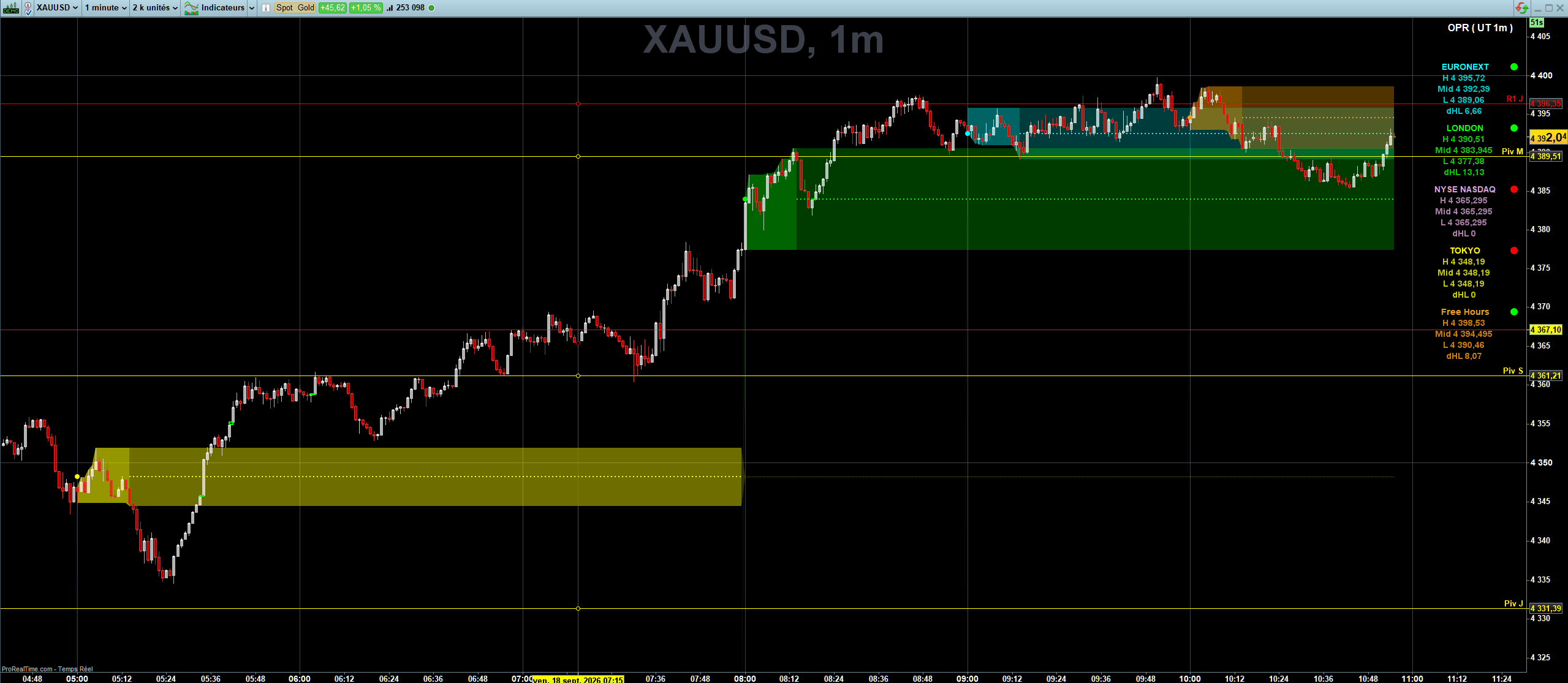

A light-colored band appears when monitoring begins and darkens as the market approaches closing time; it also displays the midpoint of the monitored range.

Happy trading to everyone.

//==========================================================================================================================
// #I BYP Supervisor (Open Price Range)
//==========================================================================================================================
DEFPARAM DrawOnlastBarOnly= True // Force the graph to the right
//DEFPARAM CalculateOnLastBars= 10000
StartEU = 90000
EndEU = 173000
StartLSE = 80000
EndLSE = 160000
StartUS = 153000
EndUS = 220000
StartJP = 50000
EndJP = 80000
StartFree = 100000
EndFree = 120000
Euronext = 0
TimeControl = 1
LSE = 0
DurationOPR = 1500
NyseNasdaq = 0
OpacityBand = 60
Japan = 0
aLg = 200
FreeHours = 0

//==========================================================================================================================
// ProRealTime V12 / Partage des connaissances ProRealTime. / Sharing ProRealTime knowledge.
// 2026 09 18 12:30 . 2026 09 03 00:15 . 2026 04 13 00:13 . 2025 10 13 18:05 . 2025 10 05 11:40 . 2024 05 01 23:17
// by Bernard13 "BYP"



X= BarIndex // X-axis

//==========================================================================================================================
IF NOT TimeControl THEN // Reminder regarding market hours.
DrawText("Warning: Check the summer/winter hours and market opening/closing times !", 0, 0, Dialog, Bold, 40) Coloured("Red") Anchor(Middle)
ENDIF

//==========================================================================================================================
// 1. Market times, flags permissions, colors
//==========================================================================================================================
//NOTE: Public holidays not managed
IF DayOfWeek >= 1 AND DayOfWeek <= 5 THEN
DayMarket= 1 // Monday Friday
ELSE
DayMarket= 0 // No Saturday Sunday.
ENDIF

//--------------------------------------------------------------------------------------------------------------------------
//----- Standard OPR: 15mn by default HHmmss = 001500
EndOPR= DurationOPR

//----- 1 Euronext (Cyan)
$StartMarket[1]= StartEU // 090000
$EndMarket[1]= EndEU // 173000
$Market[1]= EURONEXT
$r[1]= 0
$g[1]= 255
$b[1]= 255

//----- 2 London (Lime)
$StartMarket[2]= StartLSE // 080000
$EndMarket[2]= EndLSE // 160000
$Market[2]= LSE
$r[2]= 0
$g[2]= 255
$b[2]= 0

//------ 3 United States (Plum)
$StartMarket[3]= StartUS // 153000
$EndMarket[3]= EndUS // 220000
$Market[3]= NYSENASDAQ
$r[3]= 220
$g[3]= 160
$b[3]= 220

//------ 4 Japan (Yellow)
$StartMarket[4]= StartJP // 010000
$EndMarket[4]= EndJP //070000
$Market[4]= JAPAN
$r[4]= 255
$g[4]= 255
$b[4]= 0

//----- 5 Free Hours (Orange)
$StartMarket[5]= StartFree // 100000
$EndMarket[5]= EndFree // 120000
$Market[5]= FreeHours
$r[5]= 255
$g[5]= 160
$b[5]= 0

//=======================================================================================================================
// 2. CALCULATIONS
//=======================================================================================================================
m= 000100 // First candle until closing
FOR i= 1 TO 5 DO // 5 Markets

//----- OPR Start
IF Time = $StartMarket[i] + m THEN
$X0[i]= X
$H[i]= High
$L[i]= Low
ENDIF

//----- OPR in progress
IF Time > $StartMarket[i] AND Time <= $StartMarket[i] + EndOPR THEN
$X[i]= X
$H[i]= MAX($H[i], High)
$L[i]= MIN($L[i], Low)
$Mid[i]= ($H[i] + $L[i]) / 2
$XstartMid[i]= X
a= OpacityBand + 40 // OPR on
$OprMarket[i]= 1 // Market on
DrawPoint($X0[i], $Mid[i], 2) Coloured($r[i],$g[i],$b[i])
DrawSegment($X0[i], $Mid[i], $X[i], $Mid[i]) Coloured($r[i],$g[i],$b[i]) Style(DottedLine4,2)

//----- OPR fixed
ELSIF Time >= $StartMarket[i] + EndOPR AND Time <= $EndMarket[i] THEN
a= OpacityBand // OPR off
$OprMarket[i]= 1 // Market on
$XendMid[i]= X

ELSE //----- Stopping band
$H[i]= $Mid[i]
$L[i]= $Mid[i]
a= 0 // No band. OPR off
$OprMarket[i]= 0 // Market off

ENDIF

//====================================================================================================================
// 3. DISPLAY
//====================================================================================================================
//----- Layout
margin= -80 // X-axis
X0= -100 // X-axis for right margin
Ls= 18 // Y-axis for Lines spacing
Bs= 100 // Y-axis for Blocks spacing

//----- Titles
DrawText("OPR ( UT 1m )", X0 + 25, -Ls, Dialog, Bold, 16) Coloured("White") Anchor(TopRight)
IF i= 1 THEN
DrawText("EURONEXT", X0, Ls - i * Bs, Dialog, Bold, 14) Coloured("Cyan") Anchor(TopRight)
ELSIF i= 2 THEN
DrawText("LONDON", X0, Ls - i * Bs, Dialog, Bold, 14) Coloured("Lime") Anchor(TopRight)
ELSIF i= 3 THEN
DrawText("NYSE NASDAQ",X0, Ls - i * Bs, Dialog, Bold, 14) Coloured("Plum") Anchor(TopRight)
ELSIF i= 4 THEN
DrawText("TOKYO", X0, Ls - i * Bs, Dialog, Bold, 14) Coloured("Yellow") Anchor(TopRight)
ELSIF i= 5 THEN
DrawText("Free Hours", X0, Ls - i * Bs, Dialog, Bold, 14) Coloured("Orange") Anchor(TopRight)
ENDIF

//----- Levels. (PRT V12: No array with DrawText(...) Variables in numeric-mode only !)
Hi= $H[i]
Li= $L[i]
Mi= (Hi + Li) / 2
dHL= Hi - Li
DrawText("H #Hi#", X0, 0 * Ls - i * Bs, Dialog, Bold, 14) Coloured($r[i],$g[i],$b[i],aLg) Anchor(TopRight)
DrawText("Mid #Mi#", X0, -1 * Ls - i * Bs, Dialog, Bold, 14) Coloured($r[i],$g[i],$b[i],aLg) Anchor(TopRight)
DrawText("L #Li#", X0, -2 * Ls - i * Bs, Dialog, Bold, 14) Coloured($r[i],$g[i],$b[i],aLg) Anchor(TopRight)
DrawText("dHL #dHL#", X0, -3 * Ls - i * Bs, Dialog, Bold, 14) Coloured($r[i],$g[i],$b[i],aLg) Anchor(TopRight)

//----- Tag points: Off-market, Open market, Closed market
IF i <> 5 AND DayMarket= 0 THEN
DrawPoint(X0-Margin, Ls - i * Bs, 3) Coloured("Gray") Anchor(TopRight)
ELSE
IF $OprMarket[i]= 1 THEN
DrawPoint(X0-Margin, Ls - i * Bs, 3) Coloured("Lime") Anchor(TopRight)
ELSE
DrawPoint(X0-Margin, Ls - i * Bs, 3) Coloured("Red") Anchor(TopRight)
ENDIF
ENDIF

//----- Bands
IF i= 1 AND Euronext THEN
ColorBetween($H[i], $L[i], "Cyan", a)
DrawPoint($X0[i], $Mid[i], 2) Coloured("Cyan")
DrawSegment($X[i], $Mid[i], $XEndMid[i], $Mid[i]) Coloured("Cyan") Style(DottedLine4,2)
ELSIF i= 2 AND LSE THEN
ColorBetween($H[i], $L[i], "Lime", a)
DrawPoint($X0[i], $Mid[i], 2) Coloured("Lime")
DrawSegment($X[i], $Mid[i], $XEndMid[i], $Mid[i]) Coloured("Lime") Style(DottedLine4,2)
ELSIF i= 3 AND NYSENASDAQ THEN
ColorBetween($H[i], $L[i], "Plum", a)
DrawPoint($X0[i], $Mid[i], 2) Coloured("Plum")
DrawSegment($X[i], $Mid[i], $XEndMid[i], $Mid[i]) Coloured("Plum") Style(DottedLine4,2)
ELSIF i= 4 AND JAPAN THEN
ColorBetween($H[i], $L[i], "Yellow", a+50)
DrawPoint($X0[i], $Mid[i], 2) Coloured("Yellow")
DrawSegment($X[i], $Mid[i], $XEndMid[i], $Mid[i]) Coloured("Yellow") Style(DottedLine4,2)
ELSIF i= 5 AND FreeHours THEN
ColorBetween($H[i], $L[i], "Orange", a+20)
DrawPoint($X0[i], $Mid[i], 2) Coloured("Orange")
DrawSegment($X[i], $Mid[i], $XEndMid[i], $Mid[i]) Coloured("Orange") Style(DottedLine4,2)
ENDIF

NEXT //... 5 Markets

//==========================================================================================================================
RETURN
//==========================================================================================================================
