Hi Ivan, thanks a lot for your help, I try to use very useful new indicator posted by you, “PRC_Range-Filtered-Trend-Signal” in timeframe 1 minute using as confirmation result of same indicator in timeframe 3 minutes.

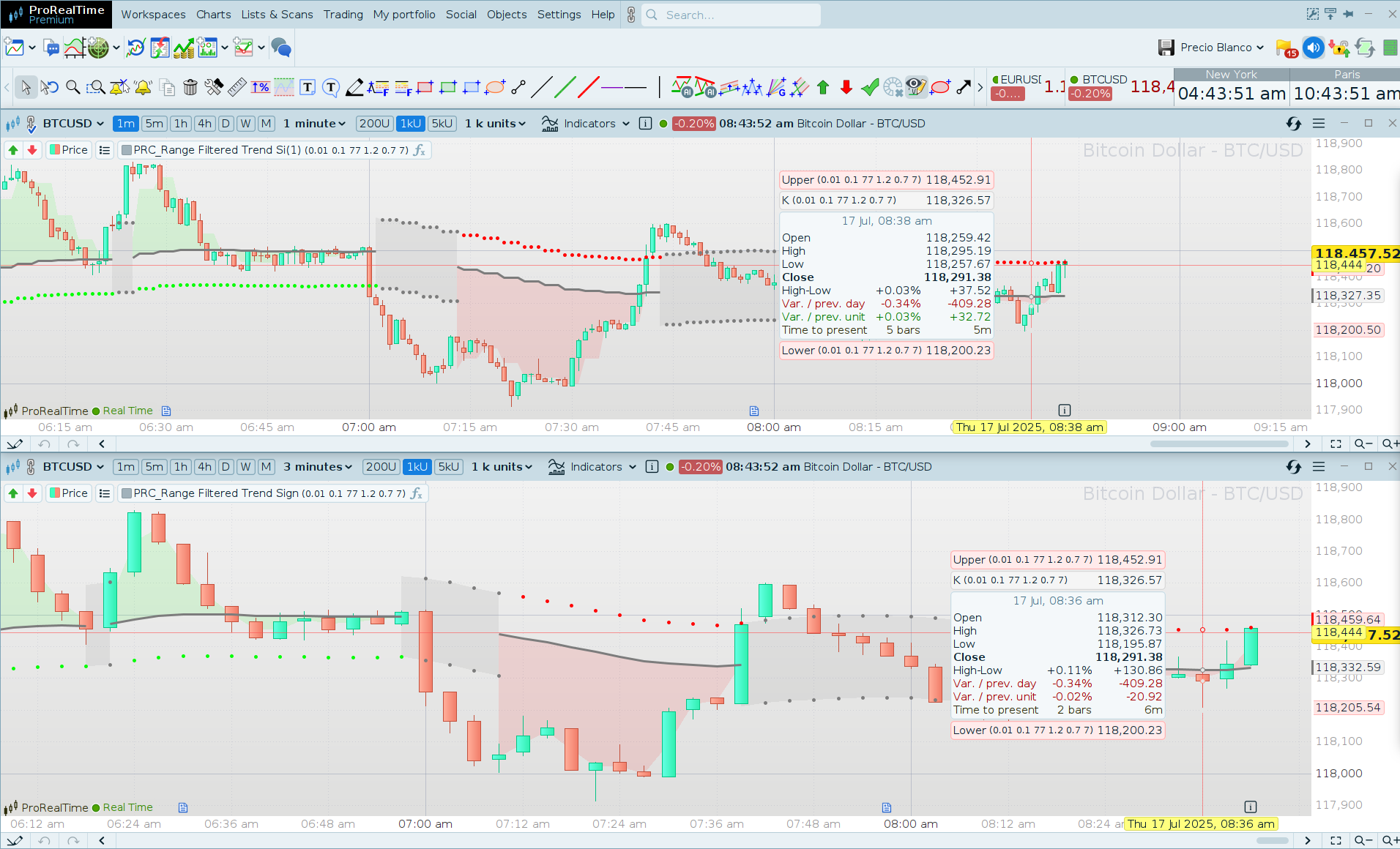

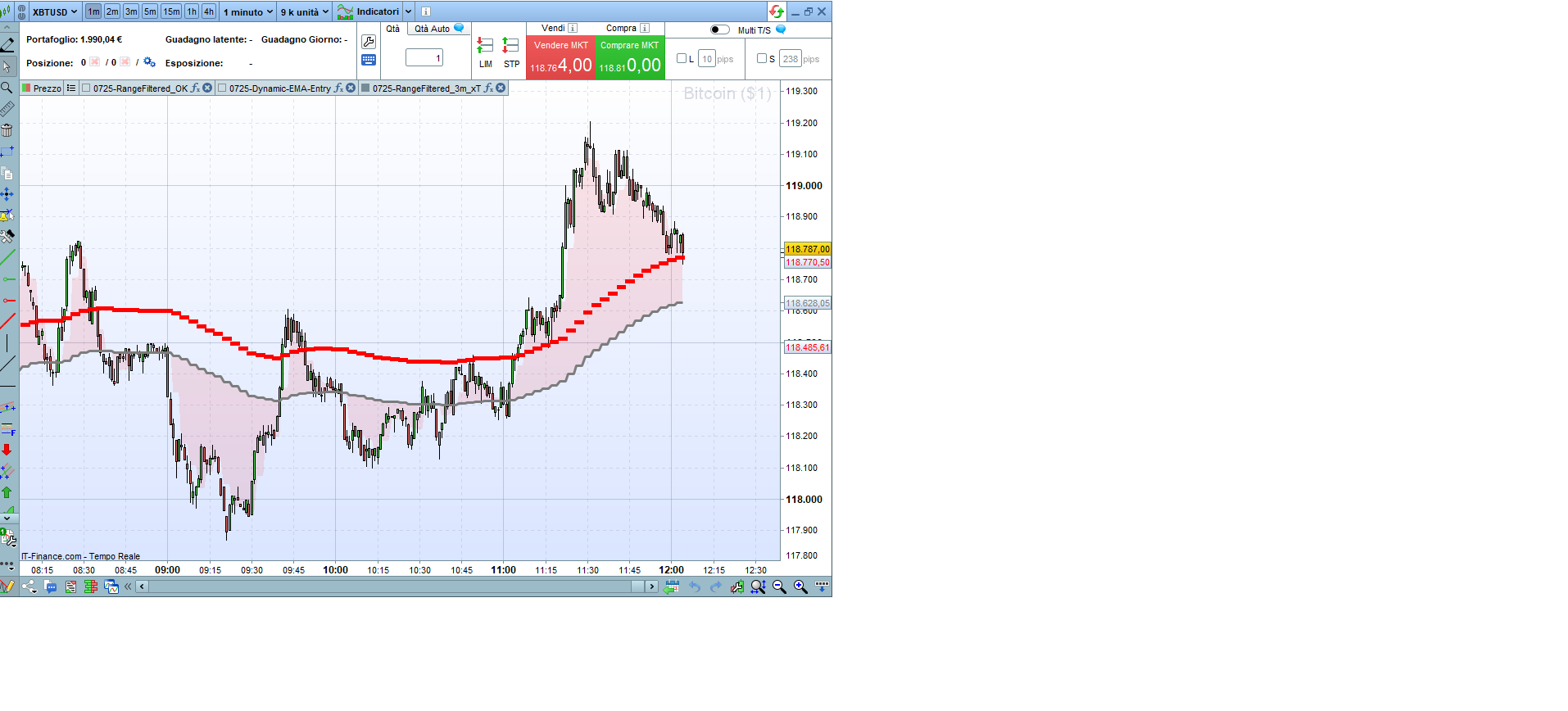

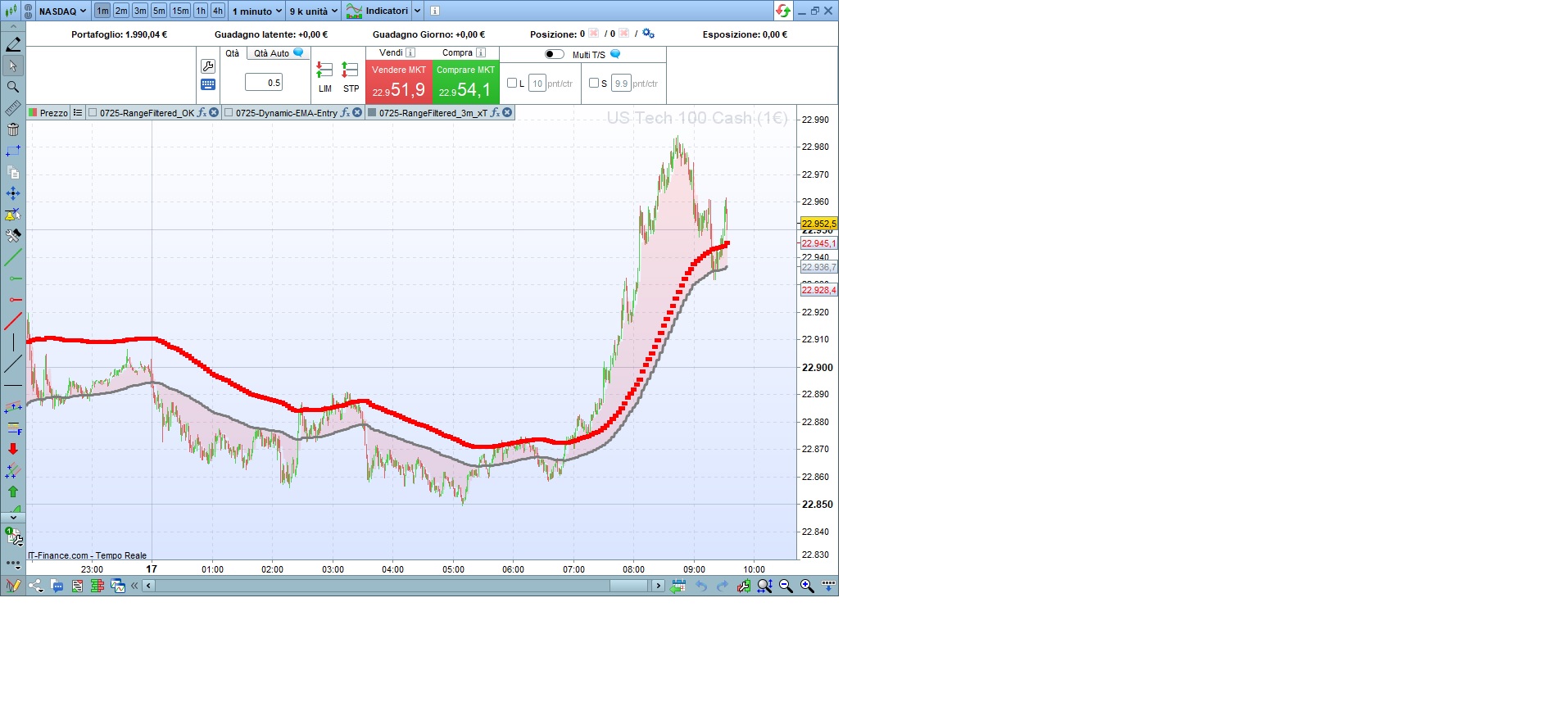

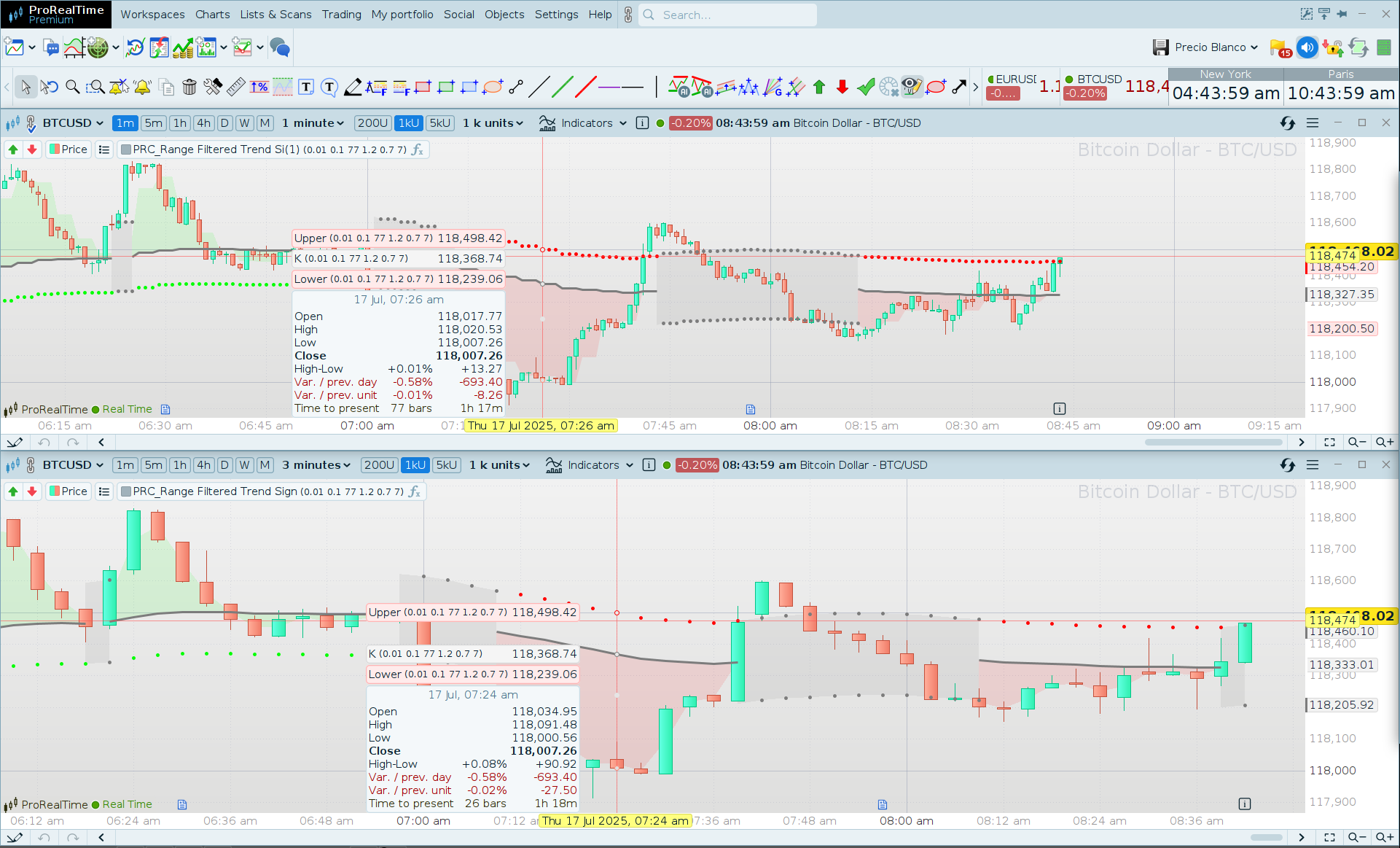

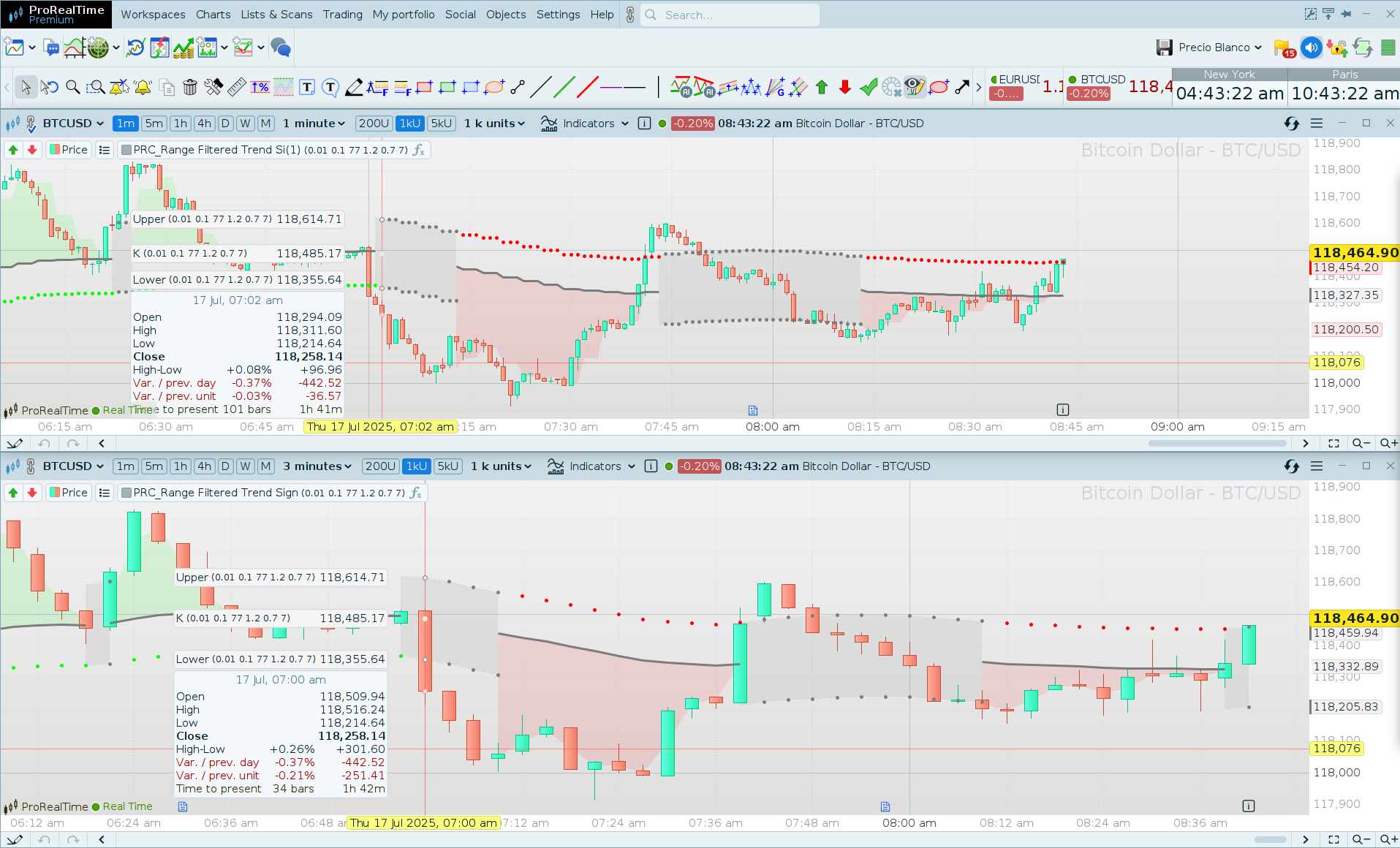

Unfortunatelly the result in attach is not ok, I see just red trend.
Please could you check it? I post my code below ( just adding the timeframe 3 minutes in line 3 and default timeframe in line 133. Moreover Ivan suggested me to change line 22 with Barindex <= 2 instead <=1
Thank you in advance!
Franco
//0725-RangeFiltered_3m_xT | indicator
//16.06.2025
//Iván González @ http://www.prorealcode.com
//Sharing ProRealTime knowledge
//translated from tradingview code
//—————————————————–//
// — Parámetros de Entrada —
//—————————————————–//
timeframe(3 minutes, updateonclose)
// Grupo Filtro Kalman
kalmanAlpha = 0.01
kalmanBeta = 0.1
kalmanPeriod = 77
dev = 1.2
// Grupo Supertrend
supertrendFactor = 0.7
supertrendAtrPeriod = 7
//—————————————————–//
// — Lógica del Filtro Kalman —
//—————————————————–//
ONCE v2 = 1.0
IF BarIndex <= 2 THEN
v1 = close[1]
else
v3 = kalmanAlpha * kalmanPeriod
v5 = v1
v4 = v2 / (v2 + v3)
v1 = v5 + v4 * (close – v5)
v2 = (1 – v4) * v2 + kalmanBeta / kalmanPeriod
ENDIF
k = v1 // Línea del Filtro Kalman
//—————————————————–//
// — Lógica del Supertrend —
//—————————————————–//
src=k
atr=averagetruerange[supertrendAtrPeriod]
upperband=src+supertrendFactor*atr
lowerband=src-supertrendFactor*atr
if barindex<=supertrendAtrPeriod then
upperband=src
lowerband=src
direction=1
isupertrend=src
else
if lowerband>lowerband[1] or k[1]<lowerband[1] then
lowerband=lowerband
else
lowerband=lowerband[1]
endif
if upperband<upperband[1] or k[1]>upperband[1] then
upperband=upperband
else
upperband=upperband[1]
endif
if isupertrend[1]=upperband[1] then
if k>upperband then
direction=-1
else
direction=1
endif
else
if k<lowerband then
direction=1
else
direction=-1
endif
endif
if direction=-1 then
isupertrend=lowerband
else
isupertrend=upperband
endif
endif
//—————————————————–//
// — Lógica Principal del Indicador —
//—————————————————–//
vola = WeightedAverage[200](high – low)
// Bandas del Filtro de Rango
upper = k + vola * dev
lower = k – vola * dev
midbody = (close + open) / 2
//—————————————————–//
// — Visualización y Dibujo —
//—————————————————–//
rk=124
gk=124
bk=124
ak=255
if close crosses over upper and isupertrend=isupertrend[1] then
r=124
g=124
b=124
a1=255
a2=255
inrange=1
elsif close crosses under lower and isupertrend=isupertrend[1] then
r=124
g=124
b=124
a1=255
a2=255
inrange=1
elsif isupertrend<>isupertrend[1] and k<isupertrend then
r=255
g=0
b=0
a1=255
a2=0
inrange=0
elsif isupertrend<>isupertrend[1] and k>isupertrend then
r=0
g=255
b=0
a1=0
a2=255
inrange=0
endif
if inrange=1 then
ak=0
endif
timeframe(DEFAULT , updateonclose)
//—————————————————–//
colorbetween(k,midbody,r,g,b,ak*0.1)
colorbetween(lower,upper,124,124,124,30*inrange)
//—————————————————–//
return k as “K 3m” style(line,3)coloured(rk,gk,bk,ak), upper as “Upper 3m” coloured(r,g,b,a1)style(point,5), lower as “Lower 3m” coloured(r,g,b,a2)style(point,2)
.
