Solar Wind Indicator

• 06/02/2025 at 11:45 AM #247798
  efahmy

  Solar wind

  // Solar Wind Indicator for ProRealTime // --- Parameter --- period = 50 // --- Persistent state --- once VL1 = 0 once fish1 = 0 for i = 0 to BarIndex do hh = highest[period](high)[i] ll = lowest[period](low)[i] denom = hh - ll PC = (high[i] + low[i]) / 2 if denom <> 0 then tempVal = ((PC - ll) / denom) - 0.5 VL = 0.33 * 2 * tempVal + 0.67 * VL1 else VL = VL1 endif VL = min(max(VL, -0.999), 0.999) fish = 0.5 * log((1 + VL) / (1 - VL)) + 0.5 * fish1 VL1 = VL fish1 = fish if i > 0 then prev = fish[1] if (fish < 0 and prev > 0) or fish < 0 then up = 0 elsif (fish > 0 and prev < 0) or fish > 0 then up = 1 endif else up = 1 endif if up then histoGreen = fish histoRed = 0 else histoGreen = 0 histoRed = fish endif next // --- Draw colored histograms --- HISTOGRAM(histoGreen) COLOURED(0,255,0) // Green bars HISTOGRAM(histoRed) COLOURED(255,0,0) // Red bars return close

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54

  // Solar Wind Indicator for ProRealTime   // --- Parameter --- period = 50   // --- Persistent state --- once VL1 = 0 once fish1 = 0   for i = 0 to BarIndex do hh = highest[period](high)[i] ll = lowest[period](low)[i] denom = hh - ll   PC = (high[i] + low[i]) / 2   if denom <> 0 then tempVal = ((PC - ll) / denom) - 0.5 VL = 0.33 * 2 * tempVal + 0.67 * VL1 else VL = VL1 endif   VL = min(max(VL, -0.999), 0.999) fish = 0.5 * log((1 + VL) / (1 - VL)) + 0.5 * fish1   VL1 = VL fish1 = fish   if i > 0 then prev = fish[1] if (fish < 0 and prev > 0) or fish < 0 then up = 0 elsif (fish > 0 and prev < 0) or fish > 0 then up = 1 endif else up = 1 endif   if up then histoGreen = fish histoRed = 0 else histoGreen = 0 histoRed = fish endif next   // --- Draw colored histograms --- HISTOGRAM(histoGreen) COLOURED(0,255,0) // Green bars HISTOGRAM(histoRed) COLOURED(255,0,0)   // Red bars   return close

  there are errors in line 51 and 52, could anyone help in fixing that



  efahmy

  Participant

  Topics: 31

  Replies: 59

  Been thanked: 3 times
  06/02/2025 at 12:04 PM #247799
  JS

  Try this:

  Return Close, HistoGreen as “HistoGreen” Coloured(“Green”) Style(Histogram), HistoRed as “HistoRed” Coloured(“Red”) Style(Histogram)

  1 user thanked author for this post.

  robertogozzi



  JS

  Participant

  Topics: 27

  Replies: 2085

  Been thanked: 1148 times
  06/02/2025 at 12:09 PM #247800
  efahmy

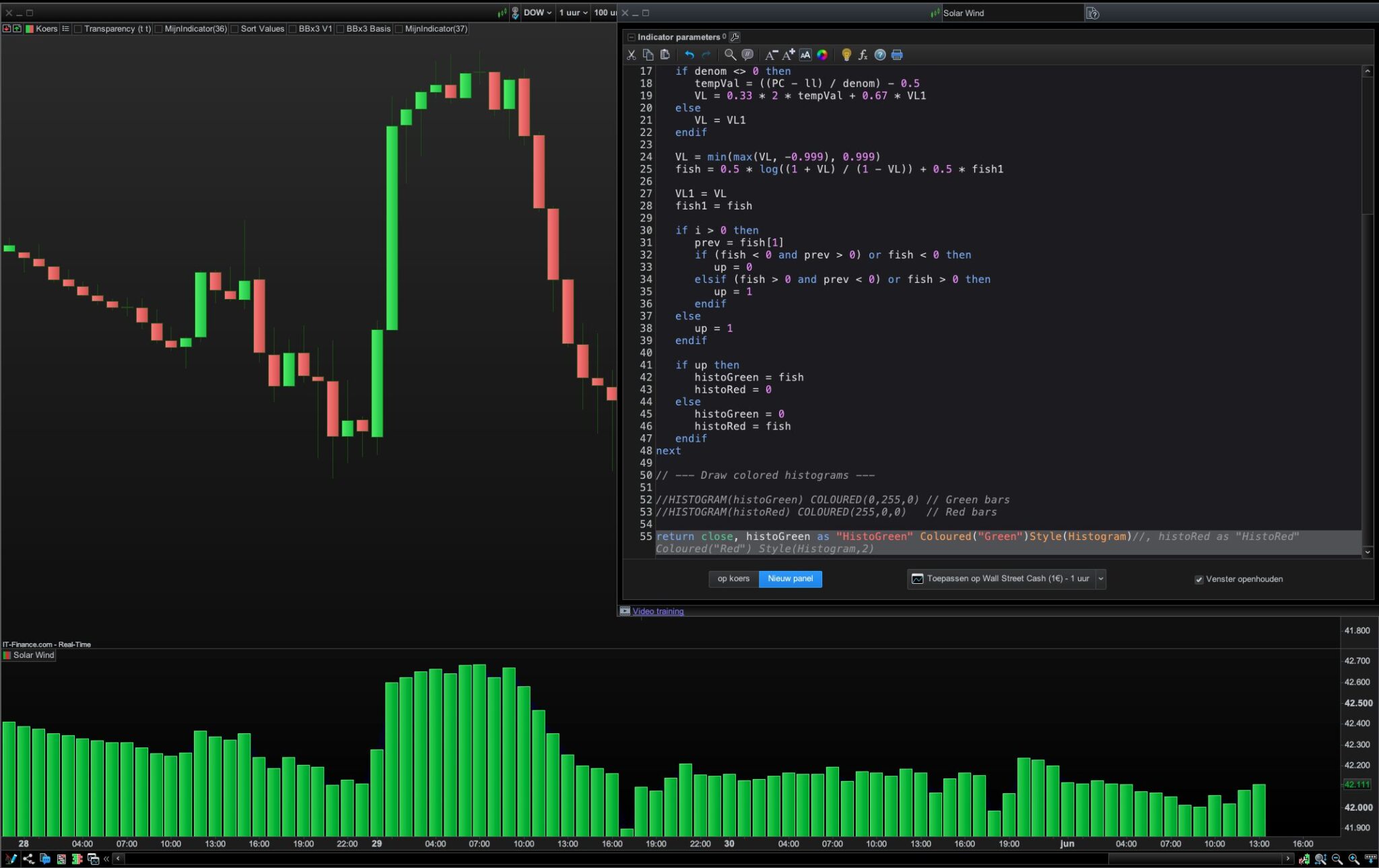

  I tried, it seems your line is correct, but still the histogram does not appear, could you please check the whole code



  efahmy

  Participant

  Topics: 31

  Replies: 59

  Been thanked: 3 times
  06/02/2025 at 12:19 PM #247801
  JS

  It seems that “HistoRed” is always equal to zero…





  JS

  Participant

  Topics: 27

  Replies: 2085

  Been thanked: 1148 times
  06/02/2025 at 12:22 PM #247803
  JS

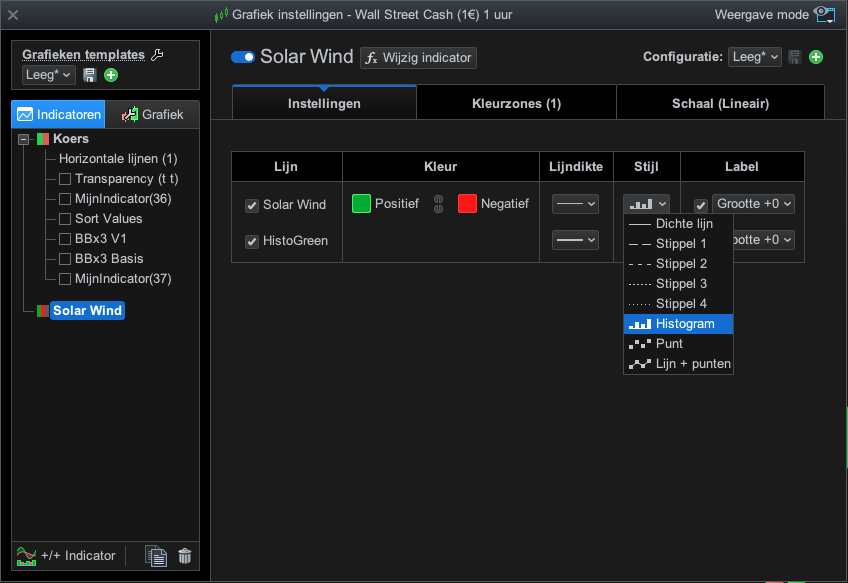

  Also check the settings of the indicator (style=Histogram)… (see screenshot)



  1 user thanked author for this post.

  Iván



  JS

  Participant

  Topics: 27

  Replies: 2085

  Been thanked: 1148 times
