Ripster EMA Clouds

Viewing 7 posts - 1 through 7 (of 7 total)

Author

Posts

12/02/2023 at 10:59 PM #224738 quote

jprt

Participant

New

Bonjour,

est-il possible de convertir ce script pour le rendre compatible avec PRT 11 ?

Merci

Source : https://www.tradingview.com/script/7LPOiiMN-Ripster-EMA-Clouds/

// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © ripster47

//@version=4
study("Ripster EMA Clouds","Ripster EMA Clouds", overlay=true)
matype = input(title="MA Type", type=input.string, defval="EMA", options=["EMA", "SMA"])

ma_len1 = input(title="Short EMA1 Length", type=input.integer, defval=8)
ma_len2 = input(title="Long EMA1 Length", type=input.integer, defval=9)
ma_len3 = input(title="Short EMA2 Length", type=input.integer, defval=5)
ma_len4 = input(title="Long EMA2 Length", type=input.integer, defval=12)
ma_len5 = input(title="Short EMA3 Length", type=input.integer, defval=34)
ma_len6 = input(title="Long EMA3 Length", type=input.integer, defval=50)
ma_len7 = input(title="Short EMA4 Length", type=input.integer, defval=72)
ma_len8 = input(title="Long EMA4 Length", type=input.integer, defval=89)
ma_len9 = input(title="Short EMA5 Length", type=input.integer, defval=180)
ma_len10 = input(title="Long EMA5 Length", type=input.integer, defval=200)

src = input(title="Source", type=input.source, defval=hl2)
ma_offset = input(title="Offset", type=input.integer, defval=0)
//res = input(title="Resolution", type=resolution, defval="240")

f_ma(malen) =>
    float result = 0
    if (matype == "EMA")
        result := ema(src, malen)
    if (matype == "SMA")
        result := sma(src, malen)
    result

htf_ma1 = f_ma(ma_len1)
htf_ma2 = f_ma(ma_len2)
htf_ma3 = f_ma(ma_len3)
htf_ma4 = f_ma(ma_len4)
htf_ma5 = f_ma(ma_len5)
htf_ma6 = f_ma(ma_len6)
htf_ma7 = f_ma(ma_len7)
htf_ma8 = f_ma(ma_len8)
htf_ma9 = f_ma(ma_len9)
htf_ma10 = f_ma(ma_len10)

//plot(out1, color=green, offset=ma_offset)
//plot(out2, color=red, offset=ma_offset)

//lengthshort = input(8, minval = 1, title = "Short EMA Length")
//lengthlong = input(200, minval = 2, title = "Long EMA Length")
//emacloudleading = input(50, minval = 0, title = "Leading Period For EMA Cloud")
//src = input(hl2, title = "Source")
showlong = input(false, title="Show Long Alerts")
showshort = input(false, title="Show Short Alerts")
showLine = input(false, title="Display EMA Line")
ema1 = input(true, title="Show EMA Cloud-1")
ema2 = input(true, title="Show EMA Cloud-2")
ema3 = input(true, title="Show EMA Cloud-3")
ema4 = input(false, title="Show EMA Cloud-4")
ema5 = input(false, title="Show EMA Cloud-5")

emacloudleading = input(0, minval=0, title="Leading Period For EMA Cloud")
mashort1 = htf_ma1
malong1 = htf_ma2
mashort2 = htf_ma3
malong2 = htf_ma4
mashort3 = htf_ma5
malong3 = htf_ma6
mashort4 = htf_ma7
malong4 = htf_ma8
mashort5 = htf_ma9
malong5 = htf_ma10

cloudcolour1 = mashort1 >= malong1 ? #036103 : #880e4f
cloudcolour2 = mashort2 >= malong2 ? #4caf50 : #f44336
cloudcolour3 = mashort3 >= malong3 ? #2196f3 : #ffb74d
cloudcolour4 = mashort4 >= malong4 ? #009688 : #f06292
cloudcolour5 = mashort5 >= malong5 ? #05bed5 : #e65100
//03abc1

mashortcolor1 = mashort1 >= mashort1[1] ? color.olive : color.maroon
mashortcolor2 = mashort2 >= mashort2[1] ? color.olive : color.maroon
mashortcolor3 = mashort3 >= mashort3[1] ? color.olive : color.maroon
mashortcolor4 = mashort4 >= mashort4[1] ? color.olive : color.maroon
mashortcolor5 = mashort5 >= mashort5[1] ? color.olive : color.maroon


mashortline1 = plot(ema1 ? mashort1 : na, color=showLine ? mashortcolor1 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA1")
mashortline2 = plot(ema2 ? mashort2 : na, color=showLine ? mashortcolor2 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA2")
mashortline3 = plot(ema3 ?mashort3 : na, color=showLine ? mashortcolor3 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA3")
mashortline4 = plot(ema4 ? mashort4 :na , color=showLine ? mashortcolor4 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA4")
mashortline5 = plot(ema5 ? mashort5 : na, color=showLine ? mashortcolor5 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA5")

malongcolor1 = malong1 >= malong1[1] ? color.green : color.red
malongcolor2 = malong2 >= malong2[1] ? color.green : color.red
malongcolor3 = malong3 >= malong3[1] ? color.green : color.red
malongcolor4 = malong4 >= malong4[1] ? color.green : color.red
malongcolor5 = malong5 >= malong5[1] ? color.green : color.red

malongline1 = plot(ema1 ? malong1 : na, color=showLine ? malongcolor1 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA1")
malongline2 = plot(ema2 ? malong2 : na, color=showLine ? malongcolor2 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA2")
malongline3 = plot(ema3 ? malong3 : na, color=showLine ? malongcolor3 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA3")
malongline4 = plot(ema4 ? malong4 : na, color=showLine ? malongcolor4 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA4")
malongline5 = plot(ema5 ? malong5 : na, color=showLine ? malongcolor5 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA5")


// Updated fill function calls using color.new() for transparency
fill(mashortline1, malongline1, color=color.new(cloudcolour1, 45), title="MA Cloud1")
fill(mashortline2, malongline2, color=color.new(cloudcolour2, 65), title="MA Cloud2")
fill(mashortline3, malongline3, color=color.new(cloudcolour3, 70), title="MA Cloud3")
fill(mashortline4, malongline4, color=color.new(cloudcolour4, 65), title="MA Cloud4")
fill(mashortline5, malongline5, color=color.new(cloudcolour5, 65), title="MA Cloud5")

12/04/2023 at 8:49 AM #224790 quote

JC_Bywan

Moderator

Master

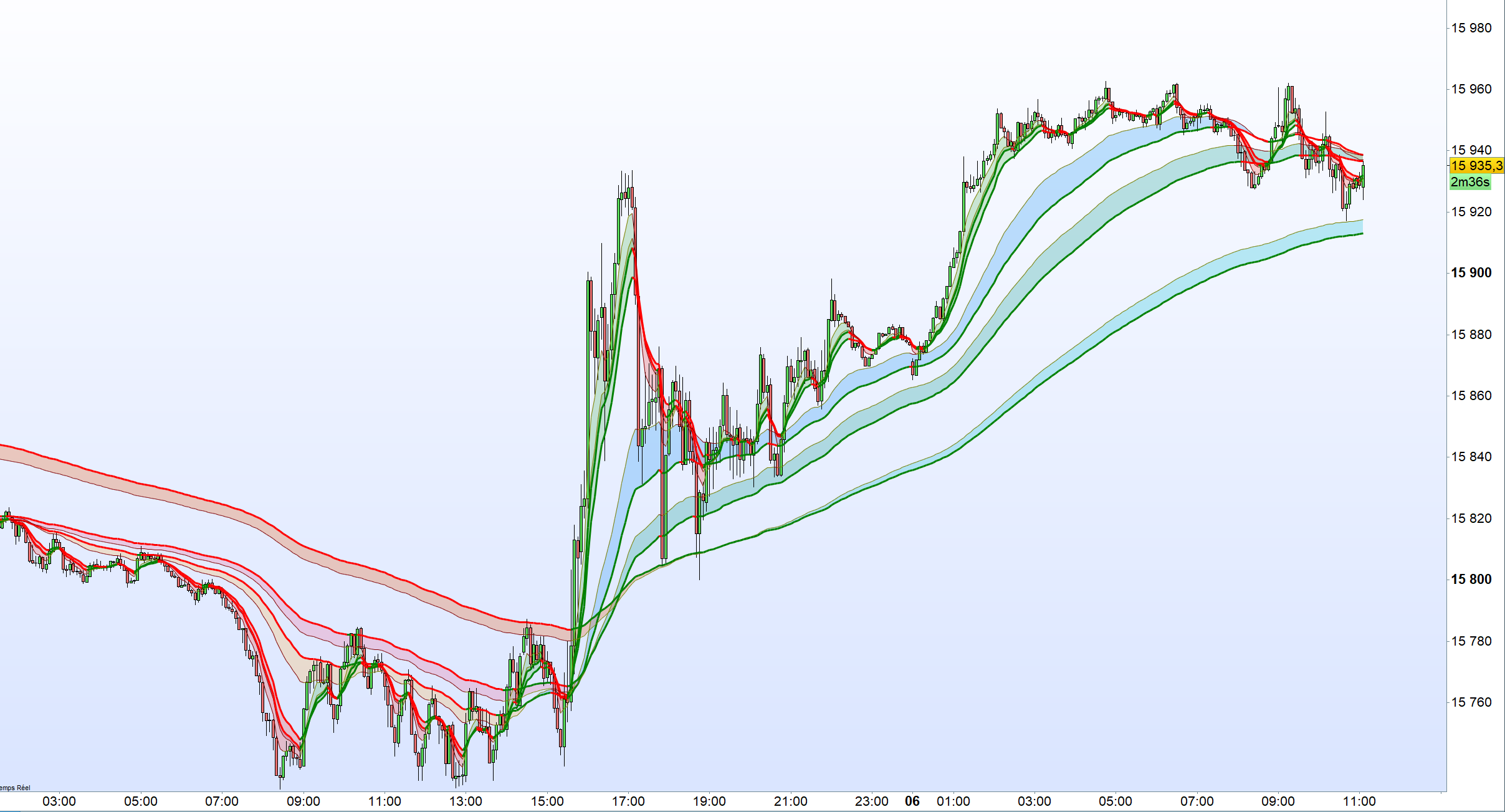

Bonjour,

Voici pour afficher les 5 nuages de 10 moyennes 2 à 2, avec paramètre matype =1 pour les rendre exponentielles, ou =0 pour les rendre simples

Pour éventuellement ne pas garder les lignes en noir, elles peuvent être colorées ou rendues invisibles dans la fenêtre de propriétés, ou bien dans la ligne return en se servant du mot-clé coloured.

Si tu choisis de rajouter coloured, tu peux aussi y inclure un paramètre de transparence optionnel qui permettrait de sélectionner ou pas l’affichage des lignes.

COLOURED

Matype=1 // =0 pour ma simple ou =1 pour ma exponentielle// ou mettre en param externe booléen 0 ou 1

ma1=average[8,Matype](close)
ma2=average[9,Matype](close)
ma3=average[5,Matype](close)
ma4=average[12,Matype](close)
ma5=average[34,Matype](close)
ma6=average[50,Matype](close)
ma7=average[72,Matype](close)
ma8=average[89,Matype](close)
ma9=average[180,Matype](close)
ma10=average[200,Matype](close)

red1=150
g1=0
b1=0
if ma1>ma2 then
red1=0
g=150
endif
colorbetween(ma1,ma2,red1,g1,b1,50)
//
red2=250
g2=0
b2=0
if ma3>ma4 then
red2=0
g2=250
endif
colorbetween(ma3,ma4,red2,g2,b2,50)
//
red3=100
g3=149
b3=237
if ma5>ma6 then
red3=255
g3=215
b3=0
endif
colorbetween(ma5,ma6,red3,g3,b3,50)
//
red4=100
g4=149
b4=237
if ma7>ma8 then
red4=255
g4=215
b4=0
endif
colorbetween(ma7,ma8,red4,g4,b4,50)
//
red5=100
g5=149
b5=237
if ma9>ma10 then
red5=255
g5=215
b5=0
endif
colorbetween(ma9,ma10,red5,g5,b5,50)
//

return ma1 as "Short EMA cloud1", ma2 as "Long EMA cloud1", ma3 as "Short EMA cloud2", ma4 as "Long EMA cloud2", ma5 as "Short EMA cloud3", ma6 as "Long EMA cloud3", ma7 as "Short EMA cloud4", ma8 as "Long EMA cloud4", ma9 as "Short EMA cloud5", ma10 as "Long EMA cloud5"

12/04/2023 at 12:22 PM #224805 quote

LucasBest

Participant

Average

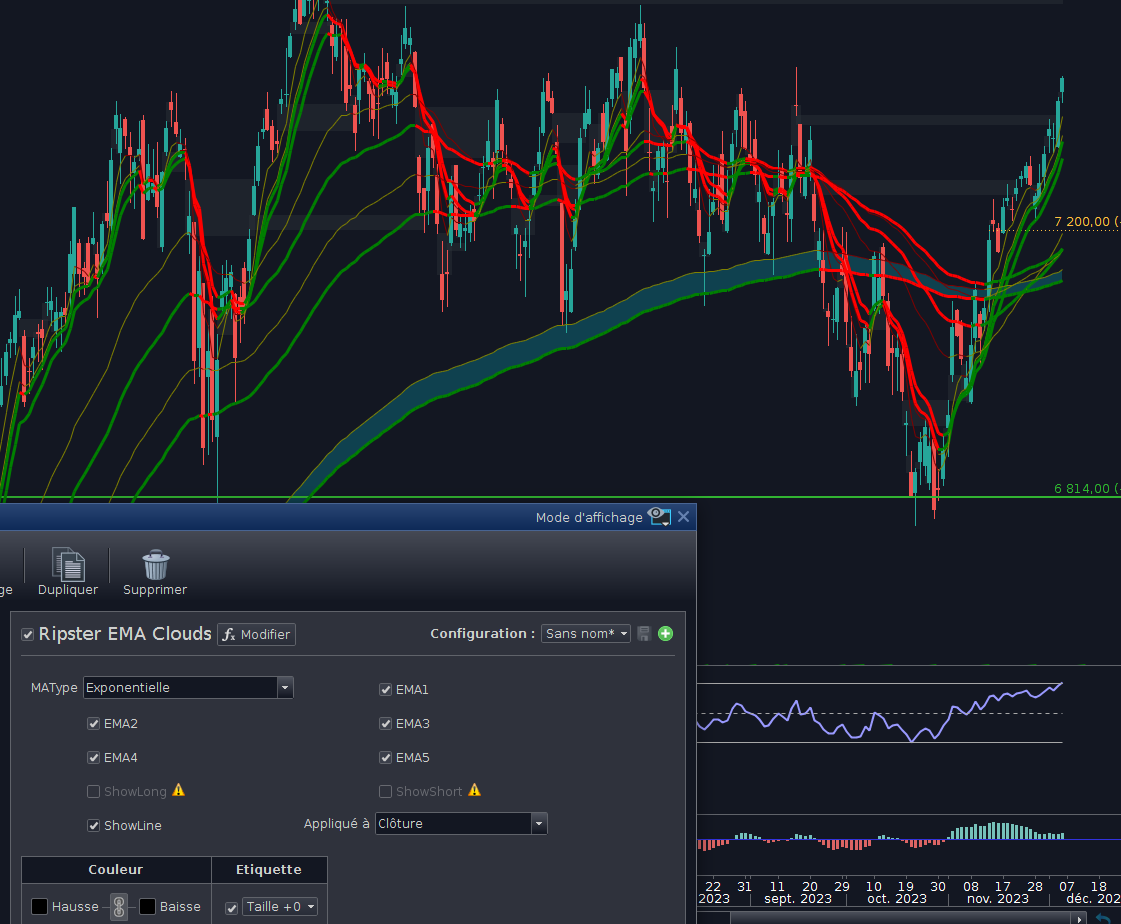

Je l’avais déjà converti il y a quelques semaines/mois… Je post aussi l’itf au cas où

// Ripster EMA Clouds

once OLIVER = 128
once OLIVEG = 128
once OLIVEB = 0

once MAROONR = 128
once MAROONG = 0
once MAROONB = 0

once GREENR = 0
once GREENG = 128
once GREENB = 0

once REDR = 255
once REDG = 0
once REDB = 0

// Input Parameters

MAShort1Length = 8
MAlong1Length = 9
MAShort2Length = 5
MAlong2Length = 12
MAShort3Length = 34
MAlong3Length = 50
MAShort4Length = 72
MAlong4Length = 89
MAShort5Length = 180
MAlong5Length = 200

EmaCloudLeading = 0

Src = customclose

MAOffset = 0

// Calculate moving averages
MASHORT1 = Average[MAShort1Length, MAType](Src)
MASHORT2 = Average[MAShort2Length, MAType](Src)
MASHORT3 = Average[MAShort3Length, MAType](Src)
MASHORT4 = Average[MAShort4Length, MAType](Src)
MASHORT5 = Average[MAShort5Length, MAType](Src)

MALONG1 = Average[MAlong1Length, MAType](Src)
MALONG2 = Average[MAlong2Length, MAType](Src)
MALONG3 = Average[MAlong3Length, MAType](Src)
MALONG4 = Average[MAlong4Length, MAType](Src)
MALONG5 = Average[MAlong5Length, MAType](Src)

// Cloud Colors (broken down into individual RGB components)
IF MASHORT1 >= MALONG1 THEN
CloudColour1R = 3
CloudColour1G = 97
CloudColour1B = 3
ELSE
CloudColour1R = 136
CloudColour1G = 14
CloudColour1B = 79
ENDIF

IF MASHORT2 >= MALONG2 THEN
CloudColour2R = 76
CloudColour2G = 175
CloudColour2B = 80
ELSE
CloudColour2R = 244
CloudColour2G = 67
CloudColour2B = 54
ENDIF

IF MASHORT3 >= MALONG3 THEN
CloudColour3R = 33
CloudColour3G = 150
CloudColour3B = 243
ELSE
CloudColour3R = 255
CloudColour3G = 183
CloudColour3B = 77
ENDIF

IF MASHORT4 >= MALONG4 THEN
CloudColour4R = 0
CloudColour4G = 150
CloudColour4B = 136
ELSE
CloudColour4R = 240
CloudColour4G = 98
CloudColour4B = 146
ENDIF

IF MASHORT5 >= MALONG5 THEN
CloudColour5R = 5
CloudColour5G = 190
CloudColour5B = 213
ELSE
CloudColour5R = 230
CloudColour5G = 81
CloudColour5B = 0
ENDIF

IF MASHORT1 >= MASHORT1[1] THEN
MASHORTCOLOR1R = OLIVER  // Olive Red value
MASHORTCOLOR1G = OLIVEG  // Olive Green value
MASHORTCOLOR1B = OLIVEB  // Olive Blue value
ELSE
MASHORTCOLOR1R = MAROONR // Maroon Red value
MASHORTCOLOR1G = MAROONG // Maroon Green value
MASHORTCOLOR1B = MAROONB // Maroon Blue value
ENDIF

IF MASHORT2 >= MASHORT2[1] THEN
MASHORTCOLOR2R = OLIVER  // Olive Red value
MASHORTCOLOR2G = OLIVEG  // Olive Green value
MASHORTCOLOR2B = OLIVEB  // Olive Blue value
ELSE
MASHORTCOLOR2R = MAROONR // Maroon Red value
MASHORTCOLOR2G = MAROONG // Maroon Green value
MASHORTCOLOR2B = MAROONB// Maroon Blue value
ENDIF

IF MASHORT3 >= MASHORT3[1] THEN
MASHORTCOLOR3R = OLIVER  // Olive Red value
MASHORTCOLOR3G = OLIVEG  // Olive Green value
MASHORTCOLOR3B = OLIVEB  // Olive Blue value
ELSE
MASHORTCOLOR3R = MAROONR // Maroon Red value
MASHORTCOLOR3G = MAROONG // Maroon Green value
MASHORTCOLOR3B = MAROONB// Maroon Blue value
ENDIF

IF MASHORT4 >= MASHORT4[1] THEN
MASHORTCOLOR4R = OLIVER  // Olive Red value
MASHORTCOLOR4G = OLIVEG  // Olive Green value
MASHORTCOLOR4B = OLIVEB  // Olive Blue value
ELSE
MASHORTCOLOR4R = MAROONR // Maroon Red value
MASHORTCOLOR4G = MAROONG // Maroon Green value
MASHORTCOLOR4B = MAROONB// Maroon Blue value
ENDIF

IF MASHORT5 >= MASHORT5[1] THEN
MASHORTCOLOR5R = OLIVER  // Olive Red value
MASHORTCOLOR5G = OLIVEG  // Olive Green value
MASHORTCOLOR5B = OLIVEB  // Olive Blue value
ELSE
MASHORTCOLOR5R = MAROONR // Maroon Red value
MASHORTCOLOR5G = MAROONG // Maroon Green value
MASHORTCOLOR5B = MAROONB// Maroon Blue value
ENDIF

IF MALONG1 >= MALONG1[1] THEN
MALONGCOLOR1R = GREENR
MALONGCOLOR1G = GREENG
MALONGCOLOR1B = GREENB
ELSE
MALONGCOLOR1R = REDR
MALONGCOLOR1G = REDG
MALONGCOLOR1B = REDB
ENDIF

IF MALONG2 >= MALONG2[1] THEN
MALONGCOLOR2R = GREENR
MALONGCOLOR2G = GREENG
MALONGCOLOR2B = GREENB
ELSE
MALONGCOLOR2R = REDR
MALONGCOLOR2G = REDG
MALONGCOLOR2B = REDB
ENDIF

IF MALONG3 >= MALONG3[1] THEN
MALONGCOLOR3R = GREENR
MALONGCOLOR3G = GREENG
MALONGCOLOR3B = GREENB
ELSE
MALONGCOLOR3R = REDR
MALONGCOLOR3G = REDG
MALONGCOLOR3B = REDB
ENDIF

IF MALONG4 >= MALONG4[1] THEN
MALONGCOLOR4R = GREENR
MALONGCOLOR4G = GREENG
MALONGCOLOR4B = GREENB
ELSE
MALONGCOLOR4R = REDR
MALONGCOLOR4G = REDG
MALONGCOLOR4B = REDB
ENDIF

IF MALONG5 >= MALONG5[1] THEN
MALONGCOLOR5R = GREENR
MALONGCOLOR5G = GREENG
MALONGCOLOR5B = GREENB
ELSE
MALONGCOLOR5R = REDR
MALONGCOLOR5G = REDG
MALONGCOLOR5B = REDB
ENDIF

// Plotting mashortline1
IF ema1 AND ShowLine THEN
DRAWSEGMENT(barindex-1, mashort1[1], barindex, mashort1) STYLE(LINE, 1) COLOURED(MASHORTCOLOR1R, MASHORTCOLOR1G, MASHORTCOLOR1B, 255)
DRAWSEGMENT(barindex-1, MALONG1[1], barindex, MALONG1) STYLE(LINE, 3) COLOURED(MALONGCOLOR1R, MALONGCOLOR1G, MALONGCOLOR1B, 255)
ENDIF

// Plotting mashortline2
IF ema2 AND ShowLine THEN
DRAWSEGMENT(barindex-1, mashort2[1], barindex, mashort2) STYLE(LINE, 1) COLOURED(MASHORTCOLOR2R, MASHORTCOLOR2G, MASHORTCOLOR2B, 255)
DRAWSEGMENT(barindex-1, MALONG2[1], barindex, MALONG2) STYLE(LINE, 3) COLOURED(MALONGCOLOR2R, MALONGCOLOR2G, MALONGCOLOR2B, 255)
ENDIF

// Plotting mashortline3
IF ema3 AND ShowLine THEN
DRAWSEGMENT(barindex-1, mashort3[1], barindex, mashort3) STYLE(LINE, 1) COLOURED(MASHORTCOLOR3R, MASHORTCOLOR3G, MASHORTCOLOR3B, 255)
DRAWSEGMENT(barindex-1, MALONG3[1], barindex, MALONG3) STYLE(LINE, 3) COLOURED(MALONGCOLOR3R, MALONGCOLOR3G, MALONGCOLOR3B, 255)
ENDIF

// Plotting mashortline4
IF ema4 AND ShowLine THEN
DRAWSEGMENT(barindex-1, mashort4[1], barindex, mashort4) STYLE(LINE, 1) COLOURED(MASHORTCOLOR4R, MASHORTCOLOR4G, MASHORTCOLOR4B, 255)
DRAWSEGMENT(barindex-1, MALONG4[1], barindex, MALONG4) STYLE(LINE, 3) COLOURED(MALONGCOLOR4R, MALONGCOLOR4G, MALONGCOLOR4B, 255)
ENDIF

// Plotting mashortline5
IF ema5 AND ShowLine THEN
DRAWSEGMENT(barindex-1, mashort5[1], barindex, mashort5) STYLE(LINE, 1) COLOURED(MASHORTCOLOR5R, MASHORTCOLOR5G, MASHORTCOLOR5B, 255)
DRAWSEGMENT(barindex-1, MALONG5[1], barindex, MALONG5) STYLE(LINE, 3) COLOURED(MALONGCOLOR5R, MALONGCOLOR5G, MALONGCOLOR5B, 255)
ENDIF

IF EMA1 THEN
Colorbetween(mashort1,MALONG1,CloudColour1R,CloudColour1G,CloudColour1B,45)
ENDIF
IF EMA2 THEN
Colorbetween(mashort2,MALONG2,CloudColour2R,CloudColour2G,CloudColour2B,65)
ENDIF
IF EMA3 THEN
Colorbetween(mashort3,MALONG3,CloudColour3R,CloudColour3G,CloudColour3B,70)
ENDIF
IF EMA4 THEN
Colorbetween(mashort4,MALONG4,CloudColour4R,CloudColour4G,CloudColour4B,65)
ENDIF
IF EMA5 THEN
Colorbetween(mashort5,MALONG5,CloudColour5R,CloudColour5G,CloudColour5B,65)
ENDIF

Return

Ripster-EMA-Clouds.itf

12/06/2023 at 10:57 AM #224918 quote

jprt

Participant

New

Bonjour,

merci pour vos retours.

C’est bizarre LucasBest ton code n’affiche pas tout en meme temps. Si je décoche des EMA dans les propriétés, là des nuages s’affichent mais je peux pas tout afficher en meme temps.

Pour le 1er code je ne vois quasiment aucun nuage. Par defaut j’ai plein de lignes uniquement.

12/06/2023 at 11:01 AM #224920 quote

LucasBest

Participant

Average

Il faut qu’il y ait suffisamment de bougies affichées pour que les calcules puissent se faire…

12/06/2023 at 11:09 AM #224922 quote

LucasBest

Participant

Average

Voilà ce que ça donne chez moi (prt v11)


12/06/2023 at 1:01 PM #224938 quote

jprt

Participant

New

j’ai importé ton ITF

j’ajoute l’indicateur sur les prix, graphique jour.

je v ai dans les paramètres et décoche tout. Je coche juste EMA2 par exemple. Elle apparait bien. Si je coche aussi EMA3 par exemple et bien le nuage EMA2 disparait et EMA3 s’affiche.

Je peux avoir qu’un nuage a la fois on dirait


Author

Posts

Viewing 7 posts - 1 through 7 (of 7 total)

You must be logged in to reply to this topic.

Ripster EMA Clouds

ProBuilder : Indicateurs & Outils Personnalisés

New Reply

Author

jprt @jprt Participant

Summary

This topic contains 6 replies,
has 3 voices, and was last updated by jprt
2 years, 3 months ago.

Topic Details

Forum:	ProBuilder : Indicateurs & Outils Personnalisés
Language:	French
Started:	12/02/2023
Status:	Active
Attachments:	3 files

Expert Services

No recent search

Ripster EMA Clouds

Ripster EMA Clouds ProBuilder : Indicateurs & Outils Personnalisés

Author

Summary

Topic Details

About personal data collected

Get Assistance

Assistance Type

Your Need

Proposed Solutions

Choose Assistance Type

Your Need

Programming Help

Download Codes

Trading Help

ProRealTime Information

Account Assistance

Paid Programming Help

Ripster EMA Clouds

ProBuilder : Indicateurs & Outils Personnalisés
