Ripster EMA Clouds

• 12/02/2023 at 10:59 PM #224738
  jprt

  Bonjour,

  est-il possible de convertir ce script pour le rendre compatible avec PRT 11 ?

  Merci

  Source : https://www.tradingview.com/script/7LPOiiMN-Ripster-EMA-Clouds/

  // This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/ // © ripster47 //@version=4 study("Ripster EMA Clouds","Ripster EMA Clouds", overlay=true) matype = input(title="MA Type", type=input.string, defval="EMA", options=["EMA", "SMA"]) ma_len1 = input(title="Short EMA1 Length", type=input.integer, defval=8) ma_len2 = input(title="Long EMA1 Length", type=input.integer, defval=9) ma_len3 = input(title="Short EMA2 Length", type=input.integer, defval=5) ma_len4 = input(title="Long EMA2 Length", type=input.integer, defval=12) ma_len5 = input(title="Short EMA3 Length", type=input.integer, defval=34) ma_len6 = input(title="Long EMA3 Length", type=input.integer, defval=50) ma_len7 = input(title="Short EMA4 Length", type=input.integer, defval=72) ma_len8 = input(title="Long EMA4 Length", type=input.integer, defval=89) ma_len9 = input(title="Short EMA5 Length", type=input.integer, defval=180) ma_len10 = input(title="Long EMA5 Length", type=input.integer, defval=200) src = input(title="Source", type=input.source, defval=hl2) ma_offset = input(title="Offset", type=input.integer, defval=0) //res = input(title="Resolution", type=resolution, defval="240") f_ma(malen) => float result = 0 if (matype == "EMA") result := ema(src, malen) if (matype == "SMA") result := sma(src, malen) result htf_ma1 = f_ma(ma_len1) htf_ma2 = f_ma(ma_len2) htf_ma3 = f_ma(ma_len3) htf_ma4 = f_ma(ma_len4) htf_ma5 = f_ma(ma_len5) htf_ma6 = f_ma(ma_len6) htf_ma7 = f_ma(ma_len7) htf_ma8 = f_ma(ma_len8) htf_ma9 = f_ma(ma_len9) htf_ma10 = f_ma(ma_len10) //plot(out1, color=green, offset=ma_offset) //plot(out2, color=red, offset=ma_offset) //lengthshort = input(8, minval = 1, title = "Short EMA Length") //lengthlong = input(200, minval = 2, title = "Long EMA Length") //emacloudleading = input(50, minval = 0, title = "Leading Period For EMA Cloud") //src = input(hl2, title = "Source") showlong = input(false, title="Show Long Alerts") showshort = input(false, title="Show Short Alerts") showLine = input(false, title="Display EMA Line") ema1 = input(true, title="Show EMA Cloud-1") ema2 = input(true, title="Show EMA Cloud-2") ema3 = input(true, title="Show EMA Cloud-3") ema4 = input(false, title="Show EMA Cloud-4") ema5 = input(false, title="Show EMA Cloud-5") emacloudleading = input(0, minval=0, title="Leading Period For EMA Cloud") mashort1 = htf_ma1 malong1 = htf_ma2 mashort2 = htf_ma3 malong2 = htf_ma4 mashort3 = htf_ma5 malong3 = htf_ma6 mashort4 = htf_ma7 malong4 = htf_ma8 mashort5 = htf_ma9 malong5 = htf_ma10 cloudcolour1 = mashort1 >= malong1 ? #036103 : #880e4f cloudcolour2 = mashort2 >= malong2 ? #4caf50 : #f44336 cloudcolour3 = mashort3 >= malong3 ? #2196f3 : #ffb74d cloudcolour4 = mashort4 >= malong4 ? #009688 : #f06292 cloudcolour5 = mashort5 >= malong5 ? #05bed5 : #e65100 //03abc1 mashortcolor1 = mashort1 >= mashort1[1] ? color.olive : color.maroon mashortcolor2 = mashort2 >= mashort2[1] ? color.olive : color.maroon mashortcolor3 = mashort3 >= mashort3[1] ? color.olive : color.maroon mashortcolor4 = mashort4 >= mashort4[1] ? color.olive : color.maroon mashortcolor5 = mashort5 >= mashort5[1] ? color.olive : color.maroon mashortline1 = plot(ema1 ? mashort1 : na, color=showLine ? mashortcolor1 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA1") mashortline2 = plot(ema2 ? mashort2 : na, color=showLine ? mashortcolor2 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA2") mashortline3 = plot(ema3 ?mashort3 : na, color=showLine ? mashortcolor3 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA3") mashortline4 = plot(ema4 ? mashort4 :na , color=showLine ? mashortcolor4 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA4") mashortline5 = plot(ema5 ? mashort5 : na, color=showLine ? mashortcolor5 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA5") malongcolor1 = malong1 >= malong1[1] ? color.green : color.red malongcolor2 = malong2 >= malong2[1] ? color.green : color.red malongcolor3 = malong3 >= malong3[1] ? color.green : color.red malongcolor4 = malong4 >= malong4[1] ? color.green : color.red malongcolor5 = malong5 >= malong5[1] ? color.green : color.red malongline1 = plot(ema1 ? malong1 : na, color=showLine ? malongcolor1 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA1") malongline2 = plot(ema2 ? malong2 : na, color=showLine ? malongcolor2 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA2") malongline3 = plot(ema3 ? malong3 : na, color=showLine ? malongcolor3 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA3") malongline4 = plot(ema4 ? malong4 : na, color=showLine ? malongcolor4 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA4") malongline5 = plot(ema5 ? malong5 : na, color=showLine ? malongcolor5 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA5") // Updated fill function calls using color.new() for transparency fill(mashortline1, malongline1, color=color.new(cloudcolour1, 45), title="MA Cloud1") fill(mashortline2, malongline2, color=color.new(cloudcolour2, 65), title="MA Cloud2") fill(mashortline3, malongline3, color=color.new(cloudcolour3, 70), title="MA Cloud3") fill(mashortline4, malongline4, color=color.new(cloudcolour4, 65), title="MA Cloud4") fill(mashortline5, malongline5, color=color.new(cloudcolour5, 65), title="MA Cloud5")

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108

  // This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/ // © ripster47   //@version=4 study("Ripster EMA Clouds","Ripster EMA Clouds", overlay=true) matype = input(title="MA Type", type=input.string, defval="EMA", options=["EMA", "SMA"])   ma_len1 = input(title="Short EMA1 Length", type=input.integer, defval=8) ma_len2 = input(title="Long EMA1 Length", type=input.integer, defval=9) ma_len3 = input(title="Short EMA2 Length", type=input.integer, defval=5) ma_len4 = input(title="Long EMA2 Length", type=input.integer, defval=12) ma_len5 = input(title="Short EMA3 Length", type=input.integer, defval=34) ma_len6 = input(title="Long EMA3 Length", type=input.integer, defval=50) ma_len7 = input(title="Short EMA4 Length", type=input.integer, defval=72) ma_len8 = input(title="Long EMA4 Length", type=input.integer, defval=89) ma_len9 = input(title="Short EMA5 Length", type=input.integer, defval=180) ma_len10 = input(title="Long EMA5 Length", type=input.integer, defval=200)   src = input(title="Source", type=input.source, defval=hl2) ma_offset = input(title="Offset", type=input.integer, defval=0) //res = input(title="Resolution", type=resolution, defval="240")   f_ma(malen) =>     float result = 0     if (matype == "EMA")         result := ema(src, malen)     if (matype == "SMA")         result := sma(src, malen)     result      htf_ma1 = f_ma(ma_len1) htf_ma2 = f_ma(ma_len2) htf_ma3 = f_ma(ma_len3) htf_ma4 = f_ma(ma_len4) htf_ma5 = f_ma(ma_len5) htf_ma6 = f_ma(ma_len6) htf_ma7 = f_ma(ma_len7) htf_ma8 = f_ma(ma_len8) htf_ma9 = f_ma(ma_len9) htf_ma10 = f_ma(ma_len10)   //plot(out1, color=green, offset=ma_offset) //plot(out2, color=red, offset=ma_offset)   //lengthshort = input(8, minval = 1, title = "Short EMA Length") //lengthlong = input(200, minval = 2, title = "Long EMA Length") //emacloudleading = input(50, minval = 0, title = "Leading Period For EMA Cloud") //src = input(hl2, title = "Source") showlong = input(false, title="Show Long Alerts") showshort = input(false, title="Show Short Alerts") showLine = input(false, title="Display EMA Line") ema1 = input(true, title="Show EMA Cloud-1") ema2 = input(true, title="Show EMA Cloud-2") ema3 = input(true, title="Show EMA Cloud-3") ema4 = input(false, title="Show EMA Cloud-4") ema5 = input(false, title="Show EMA Cloud-5")   emacloudleading = input(0, minval=0, title="Leading Period For EMA Cloud") mashort1 = htf_ma1 malong1 = htf_ma2 mashort2 = htf_ma3 malong2 = htf_ma4 mashort3 = htf_ma5 malong3 = htf_ma6 mashort4 = htf_ma7 malong4 = htf_ma8 mashort5 = htf_ma9 malong5 = htf_ma10   cloudcolour1 = mashort1 >= malong1 ? #036103 : #880e4f cloudcolour2 = mashort2 >= malong2 ? #4caf50 : #f44336 cloudcolour3 = mashort3 >= malong3 ? #2196f3 : #ffb74d cloudcolour4 = mashort4 >= malong4 ? #009688 : #f06292 cloudcolour5 = mashort5 >= malong5 ? #05bed5 : #e65100 //03abc1   mashortcolor1 = mashort1 >= mashort1[1] ? color.olive : color.maroon mashortcolor2 = mashort2 >= mashort2[1] ? color.olive : color.maroon mashortcolor3 = mashort3 >= mashort3[1] ? color.olive : color.maroon mashortcolor4 = mashort4 >= mashort4[1] ? color.olive : color.maroon mashortcolor5 = mashort5 >= mashort5[1] ? color.olive : color.maroon     mashortline1 = plot(ema1 ? mashort1 : na, color=showLine ? mashortcolor1 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA1") mashortline2 = plot(ema2 ? mashort2 : na, color=showLine ? mashortcolor2 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA2") mashortline3 = plot(ema3 ?mashort3 : na, color=showLine ? mashortcolor3 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA3") mashortline4 = plot(ema4 ? mashort4 :na , color=showLine ? mashortcolor4 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA4") mashortline5 = plot(ema5 ? mashort5 : na, color=showLine ? mashortcolor5 : na, linewidth=1, offset=emacloudleading, title="Short Leading EMA5")   malongcolor1 = malong1 >= malong1[1] ? color.green : color.red malongcolor2 = malong2 >= malong2[1] ? color.green : color.red malongcolor3 = malong3 >= malong3[1] ? color.green : color.red malongcolor4 = malong4 >= malong4[1] ? color.green : color.red malongcolor5 = malong5 >= malong5[1] ? color.green : color.red   malongline1 = plot(ema1 ? malong1 : na, color=showLine ? malongcolor1 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA1") malongline2 = plot(ema2 ? malong2 : na, color=showLine ? malongcolor2 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA2") malongline3 = plot(ema3 ? malong3 : na, color=showLine ? malongcolor3 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA3") malongline4 = plot(ema4 ? malong4 : na, color=showLine ? malongcolor4 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA4") malongline5 = plot(ema5 ? malong5 : na, color=showLine ? malongcolor5 : na, linewidth=3, offset=emacloudleading, title="Long Leading EMA5")     // Updated fill function calls using color.new() for transparency fill(mashortline1, malongline1, color=color.new(cloudcolour1, 45), title="MA Cloud1") fill(mashortline2, malongline2, color=color.new(cloudcolour2, 65), title="MA Cloud2") fill(mashortline3, malongline3, color=color.new(cloudcolour3, 70), title="MA Cloud3") fill(mashortline4, malongline4, color=color.new(cloudcolour4, 65), title="MA Cloud4") fill(mashortline5, malongline5, color=color.new(cloudcolour5, 65), title="MA Cloud5")





  jprt

  Participant

  Topics: 6

  Replies: 18

  Been thanked: 0 times
  12/04/2023 at 8:49 AM #224790
  JC_Bywan

  Bonjour,

  Voici pour afficher les 5 nuages de 10 moyennes 2 à 2, avec paramètre matype =1 pour les rendre exponentielles, ou =0 pour les rendre simples

  Pour éventuellement ne pas garder les lignes en noir, elles peuvent être colorées ou rendues invisibles dans la fenêtre de propriétés, ou bien dans la ligne return en se servant du mot-clé coloured.

  Si tu choisis de rajouter coloured, tu peux aussi y inclure un paramètre de transparence optionnel qui permettrait de sélectionner ou pas l’affichage des lignes.

  https://www.prorealcode.com/documentation/coloured/

  Matype=1 // =0 pour ma simple ou =1 pour ma exponentielle// ou mettre en param externe booléen 0 ou 1 ma1=average[8,Matype](close) ma2=average[9,Matype](close) ma3=average[5,Matype](close) ma4=average[12,Matype](close) ma5=average[34,Matype](close) ma6=average[50,Matype](close) ma7=average[72,Matype](close) ma8=average[89,Matype](close) ma9=average[180,Matype](close) ma10=average[200,Matype](close) red1=150 g1=0 b1=0 if ma1>ma2 then red1=0 g=150 endif colorbetween(ma1,ma2,red1,g1,b1,50) // red2=250 g2=0 b2=0 if ma3>ma4 then red2=0 g2=250 endif colorbetween(ma3,ma4,red2,g2,b2,50) // red3=100 g3=149 b3=237 if ma5>ma6 then red3=255 g3=215 b3=0 endif colorbetween(ma5,ma6,red3,g3,b3,50) // red4=100 g4=149 b4=237 if ma7>ma8 then red4=255 g4=215 b4=0 endif colorbetween(ma7,ma8,red4,g4,b4,50) // red5=100 g5=149 b5=237 if ma9>ma10 then red5=255 g5=215 b5=0 endif colorbetween(ma9,ma10,red5,g5,b5,50) // return ma1 as "Short EMA cloud1", ma2 as "Long EMA cloud1", ma3 as "Short EMA cloud2", ma4 as "Long EMA cloud2", ma5 as "Short EMA cloud3", ma6 as "Long EMA cloud3", ma7 as "Short EMA cloud4", ma8 as "Long EMA cloud4", ma9 as "Short EMA cloud5", ma10 as "Long EMA cloud5"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63

  Matype=1 // =0 pour ma simple ou =1 pour ma exponentielle// ou mettre en param externe booléen 0 ou 1   ma1=average[8,Matype](close) ma2=average[9,Matype](close) ma3=average[5,Matype](close) ma4=average[12,Matype](close) ma5=average[34,Matype](close) ma6=average[50,Matype](close) ma7=average[72,Matype](close) ma8=average[89,Matype](close) ma9=average[180,Matype](close) ma10=average[200,Matype](close)   red1=150 g1=0 b1=0 if ma1>ma2 then red1=0 g=150 endif colorbetween(ma1,ma2,red1,g1,b1,50) // red2=250 g2=0 b2=0 if ma3>ma4 then red2=0 g2=250 endif colorbetween(ma3,ma4,red2,g2,b2,50) // red3=100 g3=149 b3=237 if ma5>ma6 then red3=255 g3=215 b3=0 endif colorbetween(ma5,ma6,red3,g3,b3,50) // red4=100 g4=149 b4=237 if ma7>ma8 then red4=255 g4=215 b4=0 endif colorbetween(ma7,ma8,red4,g4,b4,50) // red5=100 g5=149 b5=237 if ma9>ma10 then red5=255 g5=215 b5=0 endif colorbetween(ma9,ma10,red5,g5,b5,50) //   return ma1 as "Short EMA cloud1", ma2 as "Long EMA cloud1", ma3 as "Short EMA cloud2", ma4 as "Long EMA cloud2", ma5 as "Short EMA cloud3", ma6 as "Long EMA cloud3", ma7 as "Short EMA cloud4", ma8 as "Long EMA cloud4", ma9 as "Short EMA cloud5", ma10 as "Long EMA cloud5"







  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2549

  Been thanked: 839 times
  12/04/2023 at 12:22 PM #224805
  LucasBest

  Je l’avais déjà converti il y a quelques semaines/mois… Je post aussi l’itf au cas où

  Ripster EMA Clouds

  // Ripster EMA Clouds once OLIVER = 128 once OLIVEG = 128 once OLIVEB = 0 once MAROONR = 128 once MAROONG = 0 once MAROONB = 0 once GREENR = 0 once GREENG = 128 once GREENB = 0 once REDR = 255 once REDG = 0 once REDB = 0 // Input Parameters MAShort1Length = 8 MAlong1Length = 9 MAShort2Length = 5 MAlong2Length = 12 MAShort3Length = 34 MAlong3Length = 50 MAShort4Length = 72 MAlong4Length = 89 MAShort5Length = 180 MAlong5Length = 200 EmaCloudLeading = 0 Src = customclose MAOffset = 0 // Calculate moving averages MASHORT1 = Average[MAShort1Length, MAType](Src) MASHORT2 = Average[MAShort2Length, MAType](Src) MASHORT3 = Average[MAShort3Length, MAType](Src) MASHORT4 = Average[MAShort4Length, MAType](Src) MASHORT5 = Average[MAShort5Length, MAType](Src) MALONG1 = Average[MAlong1Length, MAType](Src) MALONG2 = Average[MAlong2Length, MAType](Src) MALONG3 = Average[MAlong3Length, MAType](Src) MALONG4 = Average[MAlong4Length, MAType](Src) MALONG5 = Average[MAlong5Length, MAType](Src) // Cloud Colors (broken down into individual RGB components) IF MASHORT1 >= MALONG1 THEN CloudColour1R = 3 CloudColour1G = 97 CloudColour1B = 3 ELSE CloudColour1R = 136 CloudColour1G = 14 CloudColour1B = 79 ENDIF IF MASHORT2 >= MALONG2 THEN CloudColour2R = 76 CloudColour2G = 175 CloudColour2B = 80 ELSE CloudColour2R = 244 CloudColour2G = 67 CloudColour2B = 54 ENDIF IF MASHORT3 >= MALONG3 THEN CloudColour3R = 33 CloudColour3G = 150 CloudColour3B = 243 ELSE CloudColour3R = 255 CloudColour3G = 183 CloudColour3B = 77 ENDIF IF MASHORT4 >= MALONG4 THEN CloudColour4R = 0 CloudColour4G = 150 CloudColour4B = 136 ELSE CloudColour4R = 240 CloudColour4G = 98 CloudColour4B = 146 ENDIF IF MASHORT5 >= MALONG5 THEN CloudColour5R = 5 CloudColour5G = 190 CloudColour5B = 213 ELSE CloudColour5R = 230 CloudColour5G = 81 CloudColour5B = 0 ENDIF IF MASHORT1 >= MASHORT1[1] THEN MASHORTCOLOR1R = OLIVER // Olive Red value MASHORTCOLOR1G = OLIVEG // Olive Green value MASHORTCOLOR1B = OLIVEB // Olive Blue value ELSE MASHORTCOLOR1R = MAROONR // Maroon Red value MASHORTCOLOR1G = MAROONG // Maroon Green value MASHORTCOLOR1B = MAROONB // Maroon Blue value ENDIF IF MASHORT2 >= MASHORT2[1] THEN MASHORTCOLOR2R = OLIVER // Olive Red value MASHORTCOLOR2G = OLIVEG // Olive Green value MASHORTCOLOR2B = OLIVEB // Olive Blue value ELSE MASHORTCOLOR2R = MAROONR // Maroon Red value MASHORTCOLOR2G = MAROONG // Maroon Green value MASHORTCOLOR2B = MAROONB// Maroon Blue value ENDIF IF MASHORT3 >= MASHORT3[1] THEN MASHORTCOLOR3R = OLIVER // Olive Red value MASHORTCOLOR3G = OLIVEG // Olive Green value MASHORTCOLOR3B = OLIVEB // Olive Blue value ELSE MASHORTCOLOR3R = MAROONR // Maroon Red value MASHORTCOLOR3G = MAROONG // Maroon Green value MASHORTCOLOR3B = MAROONB// Maroon Blue value ENDIF IF MASHORT4 >= MASHORT4[1] THEN MASHORTCOLOR4R = OLIVER // Olive Red value MASHORTCOLOR4G = OLIVEG // Olive Green value MASHORTCOLOR4B = OLIVEB // Olive Blue value ELSE MASHORTCOLOR4R = MAROONR // Maroon Red value MASHORTCOLOR4G = MAROONG // Maroon Green value MASHORTCOLOR4B = MAROONB// Maroon Blue value ENDIF IF MASHORT5 >= MASHORT5[1] THEN MASHORTCOLOR5R = OLIVER // Olive Red value MASHORTCOLOR5G = OLIVEG // Olive Green value MASHORTCOLOR5B = OLIVEB // Olive Blue value ELSE MASHORTCOLOR5R = MAROONR // Maroon Red value MASHORTCOLOR5G = MAROONG // Maroon Green value MASHORTCOLOR5B = MAROONB// Maroon Blue value ENDIF IF MALONG1 >= MALONG1[1] THEN MALONGCOLOR1R = GREENR MALONGCOLOR1G = GREENG MALONGCOLOR1B = GREENB ELSE MALONGCOLOR1R = REDR MALONGCOLOR1G = REDG MALONGCOLOR1B = REDB ENDIF IF MALONG2 >= MALONG2[1] THEN MALONGCOLOR2R = GREENR MALONGCOLOR2G = GREENG MALONGCOLOR2B = GREENB ELSE MALONGCOLOR2R = REDR MALONGCOLOR2G = REDG MALONGCOLOR2B = REDB ENDIF IF MALONG3 >= MALONG3[1] THEN MALONGCOLOR3R = GREENR MALONGCOLOR3G = GREENG MALONGCOLOR3B = GREENB ELSE MALONGCOLOR3R = REDR MALONGCOLOR3G = REDG MALONGCOLOR3B = REDB ENDIF IF MALONG4 >= MALONG4[1] THEN MALONGCOLOR4R = GREENR MALONGCOLOR4G = GREENG MALONGCOLOR4B = GREENB ELSE MALONGCOLOR4R = REDR MALONGCOLOR4G = REDG MALONGCOLOR4B = REDB ENDIF IF MALONG5 >= MALONG5[1] THEN MALONGCOLOR5R = GREENR MALONGCOLOR5G = GREENG MALONGCOLOR5B = GREENB ELSE MALONGCOLOR5R = REDR MALONGCOLOR5G = REDG MALONGCOLOR5B = REDB ENDIF // Plotting mashortline1 IF ema1 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort1[1], barindex, mashort1) STYLE(LINE, 1) COLOURED(MASHORTCOLOR1R, MASHORTCOLOR1G, MASHORTCOLOR1B, 255) DRAWSEGMENT(barindex-1, MALONG1[1], barindex, MALONG1) STYLE(LINE, 3) COLOURED(MALONGCOLOR1R, MALONGCOLOR1G, MALONGCOLOR1B, 255) ENDIF // Plotting mashortline2 IF ema2 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort2[1], barindex, mashort2) STYLE(LINE, 1) COLOURED(MASHORTCOLOR2R, MASHORTCOLOR2G, MASHORTCOLOR2B, 255) DRAWSEGMENT(barindex-1, MALONG2[1], barindex, MALONG2) STYLE(LINE, 3) COLOURED(MALONGCOLOR2R, MALONGCOLOR2G, MALONGCOLOR2B, 255) ENDIF // Plotting mashortline3 IF ema3 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort3[1], barindex, mashort3) STYLE(LINE, 1) COLOURED(MASHORTCOLOR3R, MASHORTCOLOR3G, MASHORTCOLOR3B, 255) DRAWSEGMENT(barindex-1, MALONG3[1], barindex, MALONG3) STYLE(LINE, 3) COLOURED(MALONGCOLOR3R, MALONGCOLOR3G, MALONGCOLOR3B, 255) ENDIF // Plotting mashortline4 IF ema4 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort4[1], barindex, mashort4) STYLE(LINE, 1) COLOURED(MASHORTCOLOR4R, MASHORTCOLOR4G, MASHORTCOLOR4B, 255) DRAWSEGMENT(barindex-1, MALONG4[1], barindex, MALONG4) STYLE(LINE, 3) COLOURED(MALONGCOLOR4R, MALONGCOLOR4G, MALONGCOLOR4B, 255) ENDIF // Plotting mashortline5 IF ema5 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort5[1], barindex, mashort5) STYLE(LINE, 1) COLOURED(MASHORTCOLOR5R, MASHORTCOLOR5G, MASHORTCOLOR5B, 255) DRAWSEGMENT(barindex-1, MALONG5[1], barindex, MALONG5) STYLE(LINE, 3) COLOURED(MALONGCOLOR5R, MALONGCOLOR5G, MALONGCOLOR5B, 255) ENDIF IF EMA1 THEN Colorbetween(mashort1,MALONG1,CloudColour1R,CloudColour1G,CloudColour1B,45) ENDIF IF EMA2 THEN Colorbetween(mashort2,MALONG2,CloudColour2R,CloudColour2G,CloudColour2B,65) ENDIF IF EMA3 THEN Colorbetween(mashort3,MALONG3,CloudColour3R,CloudColour3G,CloudColour3B,70) ENDIF IF EMA4 THEN Colorbetween(mashort4,MALONG4,CloudColour4R,CloudColour4G,CloudColour4B,65) ENDIF IF EMA5 THEN Colorbetween(mashort5,MALONG5,CloudColour5R,CloudColour5G,CloudColour5B,65) ENDIF Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248

  // Ripster EMA Clouds   once OLIVER = 128 once OLIVEG = 128 once OLIVEB = 0   once MAROONR = 128 once MAROONG = 0 once MAROONB = 0   once GREENR = 0 once GREENG = 128 once GREENB = 0   once REDR = 255 once REDG = 0 once REDB = 0   // Input Parameters   MAShort1Length = 8 MAlong1Length = 9 MAShort2Length = 5 MAlong2Length = 12 MAShort3Length = 34 MAlong3Length = 50 MAShort4Length = 72 MAlong4Length = 89 MAShort5Length = 180 MAlong5Length = 200   EmaCloudLeading = 0   Src = customclose   MAOffset = 0   // Calculate moving averages MASHORT1 = Average[MAShort1Length, MAType](Src) MASHORT2 = Average[MAShort2Length, MAType](Src) MASHORT3 = Average[MAShort3Length, MAType](Src) MASHORT4 = Average[MAShort4Length, MAType](Src) MASHORT5 = Average[MAShort5Length, MAType](Src)   MALONG1 = Average[MAlong1Length, MAType](Src) MALONG2 = Average[MAlong2Length, MAType](Src) MALONG3 = Average[MAlong3Length, MAType](Src) MALONG4 = Average[MAlong4Length, MAType](Src) MALONG5 = Average[MAlong5Length, MAType](Src)   // Cloud Colors (broken down into individual RGB components) IF MASHORT1 >= MALONG1 THEN CloudColour1R = 3 CloudColour1G = 97 CloudColour1B = 3 ELSE CloudColour1R = 136 CloudColour1G = 14 CloudColour1B = 79 ENDIF   IF MASHORT2 >= MALONG2 THEN CloudColour2R = 76 CloudColour2G = 175 CloudColour2B = 80 ELSE CloudColour2R = 244 CloudColour2G = 67 CloudColour2B = 54 ENDIF   IF MASHORT3 >= MALONG3 THEN CloudColour3R = 33 CloudColour3G = 150 CloudColour3B = 243 ELSE CloudColour3R = 255 CloudColour3G = 183 CloudColour3B = 77 ENDIF   IF MASHORT4 >= MALONG4 THEN CloudColour4R = 0 CloudColour4G = 150 CloudColour4B = 136 ELSE CloudColour4R = 240 CloudColour4G = 98 CloudColour4B = 146 ENDIF   IF MASHORT5 >= MALONG5 THEN CloudColour5R = 5 CloudColour5G = 190 CloudColour5B = 213 ELSE CloudColour5R = 230 CloudColour5G = 81 CloudColour5B = 0 ENDIF   IF MASHORT1 >= MASHORT1[1] THEN MASHORTCOLOR1R = OLIVER  // Olive Red value MASHORTCOLOR1G = OLIVEG  // Olive Green value MASHORTCOLOR1B = OLIVEB  // Olive Blue value ELSE MASHORTCOLOR1R = MAROONR // Maroon Red value MASHORTCOLOR1G = MAROONG // Maroon Green value MASHORTCOLOR1B = MAROONB // Maroon Blue value ENDIF   IF MASHORT2 >= MASHORT2[1] THEN MASHORTCOLOR2R = OLIVER  // Olive Red value MASHORTCOLOR2G = OLIVEG  // Olive Green value MASHORTCOLOR2B = OLIVEB  // Olive Blue value ELSE MASHORTCOLOR2R = MAROONR // Maroon Red value MASHORTCOLOR2G = MAROONG // Maroon Green value MASHORTCOLOR2B = MAROONB// Maroon Blue value ENDIF   IF MASHORT3 >= MASHORT3[1] THEN MASHORTCOLOR3R = OLIVER  // Olive Red value MASHORTCOLOR3G = OLIVEG  // Olive Green value MASHORTCOLOR3B = OLIVEB  // Olive Blue value ELSE MASHORTCOLOR3R = MAROONR // Maroon Red value MASHORTCOLOR3G = MAROONG // Maroon Green value MASHORTCOLOR3B = MAROONB// Maroon Blue value ENDIF   IF MASHORT4 >= MASHORT4[1] THEN MASHORTCOLOR4R = OLIVER  // Olive Red value MASHORTCOLOR4G = OLIVEG  // Olive Green value MASHORTCOLOR4B = OLIVEB  // Olive Blue value ELSE MASHORTCOLOR4R = MAROONR // Maroon Red value MASHORTCOLOR4G = MAROONG // Maroon Green value MASHORTCOLOR4B = MAROONB// Maroon Blue value ENDIF   IF MASHORT5 >= MASHORT5[1] THEN MASHORTCOLOR5R = OLIVER  // Olive Red value MASHORTCOLOR5G = OLIVEG  // Olive Green value MASHORTCOLOR5B = OLIVEB  // Olive Blue value ELSE MASHORTCOLOR5R = MAROONR // Maroon Red value MASHORTCOLOR5G = MAROONG // Maroon Green value MASHORTCOLOR5B = MAROONB// Maroon Blue value ENDIF   IF MALONG1 >= MALONG1[1] THEN MALONGCOLOR1R = GREENR MALONGCOLOR1G = GREENG MALONGCOLOR1B = GREENB ELSE MALONGCOLOR1R = REDR MALONGCOLOR1G = REDG MALONGCOLOR1B = REDB ENDIF   IF MALONG2 >= MALONG2[1] THEN MALONGCOLOR2R = GREENR MALONGCOLOR2G = GREENG MALONGCOLOR2B = GREENB ELSE MALONGCOLOR2R = REDR MALONGCOLOR2G = REDG MALONGCOLOR2B = REDB ENDIF   IF MALONG3 >= MALONG3[1] THEN MALONGCOLOR3R = GREENR MALONGCOLOR3G = GREENG MALONGCOLOR3B = GREENB ELSE MALONGCOLOR3R = REDR MALONGCOLOR3G = REDG MALONGCOLOR3B = REDB ENDIF   IF MALONG4 >= MALONG4[1] THEN MALONGCOLOR4R = GREENR MALONGCOLOR4G = GREENG MALONGCOLOR4B = GREENB ELSE MALONGCOLOR4R = REDR MALONGCOLOR4G = REDG MALONGCOLOR4B = REDB ENDIF   IF MALONG5 >= MALONG5[1] THEN MALONGCOLOR5R = GREENR MALONGCOLOR5G = GREENG MALONGCOLOR5B = GREENB ELSE MALONGCOLOR5R = REDR MALONGCOLOR5G = REDG MALONGCOLOR5B = REDB ENDIF   // Plotting mashortline1 IF ema1 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort1[1], barindex, mashort1) STYLE(LINE, 1) COLOURED(MASHORTCOLOR1R, MASHORTCOLOR1G, MASHORTCOLOR1B, 255) DRAWSEGMENT(barindex-1, MALONG1[1], barindex, MALONG1) STYLE(LINE, 3) COLOURED(MALONGCOLOR1R, MALONGCOLOR1G, MALONGCOLOR1B, 255) ENDIF   // Plotting mashortline2 IF ema2 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort2[1], barindex, mashort2) STYLE(LINE, 1) COLOURED(MASHORTCOLOR2R, MASHORTCOLOR2G, MASHORTCOLOR2B, 255) DRAWSEGMENT(barindex-1, MALONG2[1], barindex, MALONG2) STYLE(LINE, 3) COLOURED(MALONGCOLOR2R, MALONGCOLOR2G, MALONGCOLOR2B, 255) ENDIF   // Plotting mashortline3 IF ema3 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort3[1], barindex, mashort3) STYLE(LINE, 1) COLOURED(MASHORTCOLOR3R, MASHORTCOLOR3G, MASHORTCOLOR3B, 255) DRAWSEGMENT(barindex-1, MALONG3[1], barindex, MALONG3) STYLE(LINE, 3) COLOURED(MALONGCOLOR3R, MALONGCOLOR3G, MALONGCOLOR3B, 255) ENDIF   // Plotting mashortline4 IF ema4 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort4[1], barindex, mashort4) STYLE(LINE, 1) COLOURED(MASHORTCOLOR4R, MASHORTCOLOR4G, MASHORTCOLOR4B, 255) DRAWSEGMENT(barindex-1, MALONG4[1], barindex, MALONG4) STYLE(LINE, 3) COLOURED(MALONGCOLOR4R, MALONGCOLOR4G, MALONGCOLOR4B, 255) ENDIF   // Plotting mashortline5 IF ema5 AND ShowLine THEN DRAWSEGMENT(barindex-1, mashort5[1], barindex, mashort5) STYLE(LINE, 1) COLOURED(MASHORTCOLOR5R, MASHORTCOLOR5G, MASHORTCOLOR5B, 255) DRAWSEGMENT(barindex-1, MALONG5[1], barindex, MALONG5) STYLE(LINE, 3) COLOURED(MALONGCOLOR5R, MALONGCOLOR5G, MALONGCOLOR5B, 255) ENDIF   IF EMA1 THEN Colorbetween(mashort1,MALONG1,CloudColour1R,CloudColour1G,CloudColour1B,45) ENDIF IF EMA2 THEN Colorbetween(mashort2,MALONG2,CloudColour2R,CloudColour2G,CloudColour2B,65) ENDIF IF EMA3 THEN Colorbetween(mashort3,MALONG3,CloudColour3R,CloudColour3G,CloudColour3B,70) ENDIF IF EMA4 THEN Colorbetween(mashort4,MALONG4,CloudColour4R,CloudColour4G,CloudColour4B,65) ENDIF IF EMA5 THEN Colorbetween(mashort5,MALONG5,CloudColour5R,CloudColour5G,CloudColour5B,65) ENDIF   Return



  LucasBest

  Participant

  Topics: 16

  Replies: 207

  Been thanked: 71 times
  12/06/2023 at 10:57 AM #224918
  jprt

  Bonjour,

  merci pour vos retours.

  C’est bizarre LucasBest ton code n’affiche pas tout en meme temps. Si je décoche des EMA dans les propriétés, là des nuages s’affichent mais je peux pas tout afficher en meme temps.

  Pour le 1er code je ne vois quasiment aucun nuage. Par defaut j’ai plein de lignes uniquement.



  jprt

  Participant

  Topics: 6

  Replies: 18

  Been thanked: 0 times
  12/06/2023 at 11:01 AM #224920
  LucasBest

  Il faut qu’il y ait suffisamment de bougies affichées pour que les calcules puissent se faire…



  LucasBest

  Participant

  Topics: 16

  Replies: 207

  Been thanked: 71 times
  12/06/2023 at 11:09 AM #224922
  LucasBest

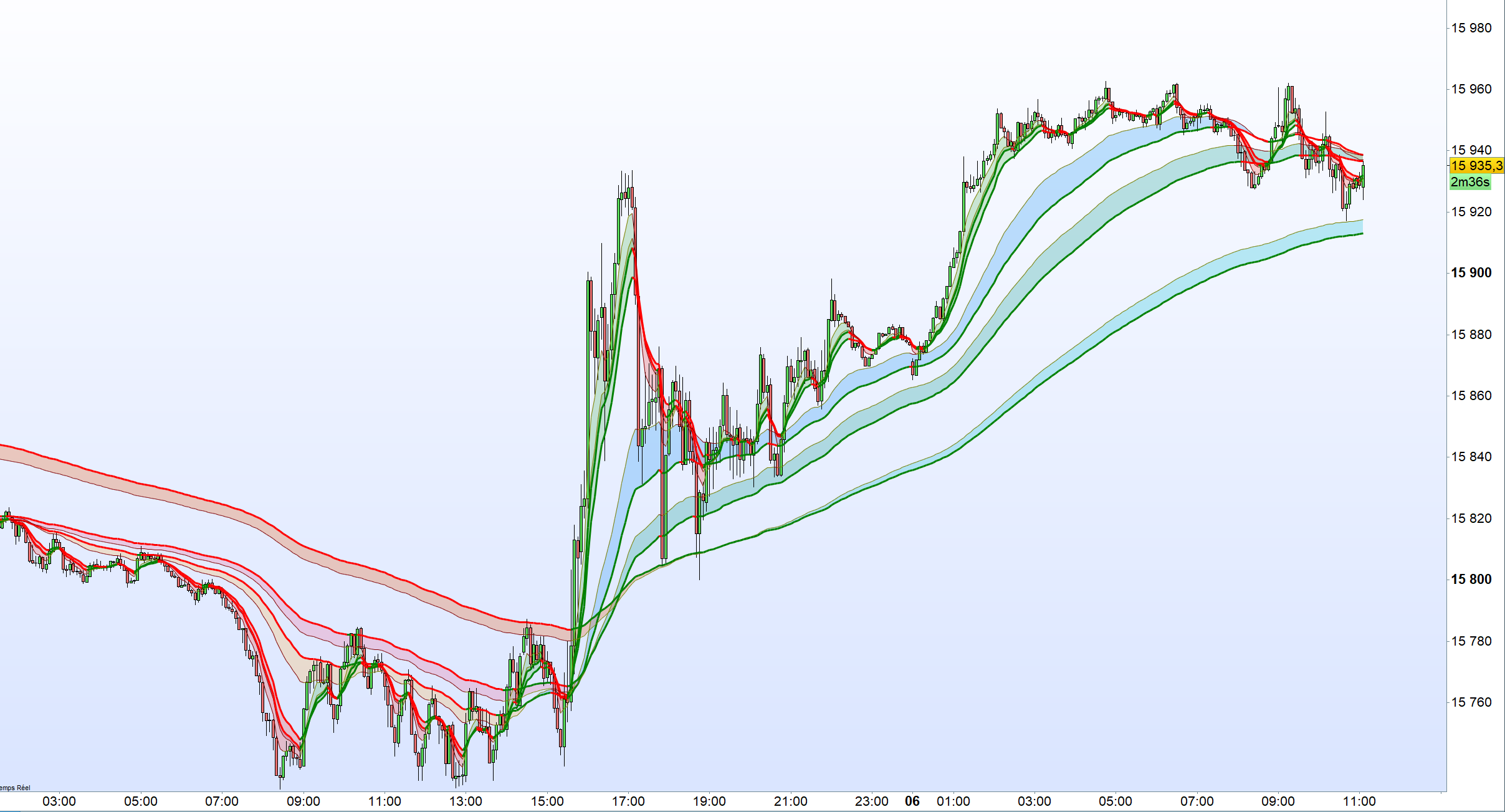

  Voilà ce que ça donne chez moi (prt v11)



  LucasBest

  Participant

  Topics: 16

  Replies: 207

  Been thanked: 71 times
  12/06/2023 at 1:01 PM #224938

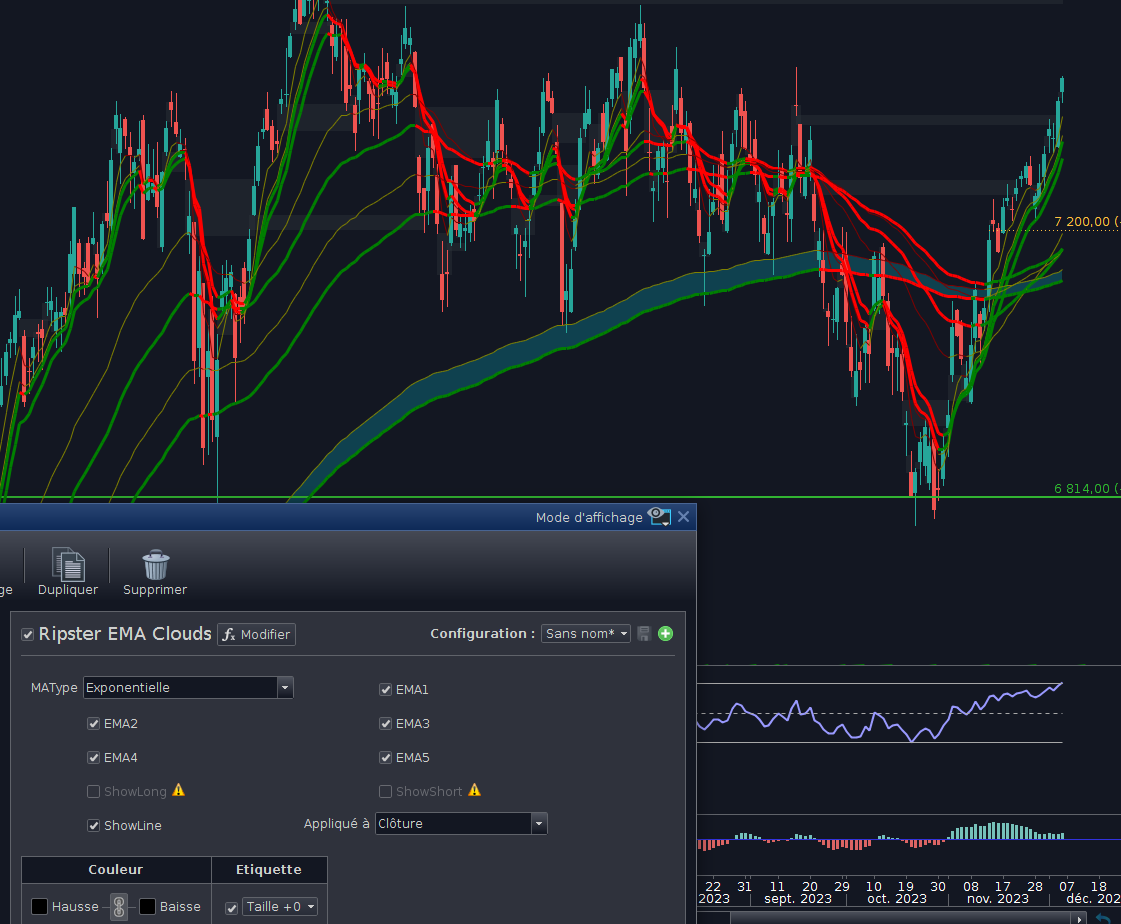

  jprt

  j’ai importé ton ITF

  j’ajoute l’indicateur sur les prix, graphique jour.

  je v ai dans les paramètres et décoche tout. Je coche juste EMA2 par exemple. Elle apparait bien. Si je coche aussi EMA3 par exemple et bien le nuage EMA2 disparait et EMA3 s’affiche.

  Je peux avoir qu’un nuage a la fois on dirait



  jprt

  Participant

  Topics: 6

  Replies: 18

  Been thanked: 0 times
