Recurring comparison of histogram bars

• 10/27/2025 at 1:55 PM #253084
  Carburo

  I take my cue from the “ATR percentile rank” indicator created by Nicolas and published at
  https://www.prorealcode.com/prorealtime-indicators/atr-percentile-rank/

  In indicators represented graphically with a histogram, in which the value of a bar is compared with the data for the same bar from previous days, reading would be easier and more immediate if the bars useful for this comparison were highlighted compared to the other bars in the histogram.
  One possibility is to apply a different level of transparency to these bars than to all the others.
  An alternative could be to connect the upper ends of the relevant bars with a segment.

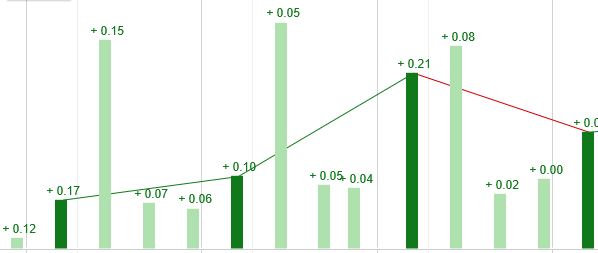

  The image, taken from another situation, shows both possibilities (ignoring the numerical data).
  https://i.postimg.cc/bJHnmknV/Istogramma.jpg

  Since some of my attempts to achieve this goal have not been successful, I would appreciate any suggestions or guidance on how to achieve this result.

  Thank you very much.



  Carburo

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 0 times
  10/27/2025 at 3:44 PM #253087
  robertogozzi

  What are the conditions to link any specific bar to another one?





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17940

  Been thanked: 4541 times
  10/27/2025 at 4:21 PM #253088
  Carburo

  Assuming that the current bar (day 0) is the one at 4:15 p.m., the value of that bar must be compared with the bar at 4:15 p.m. yesterday (day 1), the bar at 4:15 p.m. the day before yesterday (day 2), and so on, up to the lookback period if possible.
  The comparison should work with any timeframe, ideally from one minute to one hour. On too short timeframes, the comparison makes sense when using an average. For example, with a 3-minute timeframe, the 5-period average would allow rolling calculations on bars that combined make up a 15-minute band, thus avoiding the problem of losing the meaning of a comparison of a single 3-minute bar with its counterparts from previous days.



  Carburo

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 0 times
  10/27/2025 at 5:01 PM #253093
  robertogozzi

  You have to set the number of bars in a day and compare the current close:

  ONCE N = 24*1 //24*1=1-hour TF, 24*60=1-min TF, 24*4=15-min TF, etc... Yester = close[N] Curr = close RETURN Yester AS "Close Yesterday", Curr AS "Current Close"

  1 2 3 4

  ONCE N = 24*1     //24*1=1-hour TF,   24*60=1-min TF,   24*4=15-min TF, etc... Yester = close[N] Curr   = close RETURN Yester AS "Close Yesterday", Curr AS "Current Close"

  2 users thanked author for this post.

  Carburo, Iván



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17940

  Been thanked: 4541 times
  10/28/2025 at 3:04 AM #253104
  robertogozzi

  There will be issues on Monday, because on Friday there were less bars than usual due to the weekly closing of the markets.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 17940

  Been thanked: 4541 times
  10/28/2025 at 5:33 PM #253116
  Carburo

  Is there a way to use the OpenMinute and OpenHour commands with reference to previous days? Something that produces a “synthetic” effect like OpenMinute[1] and OpenHour[1].
  This would allow for a consistent comparison (for Friday’s discussion and similar cases, the code could made such to call up the previous bar).
  I tried it, but got an error message. Maybe, however, with a trick… or could it be an interesting addition to the list of ProBuilder commands?
  Thank you very much for your support.



  Carburo

  Participant

  Topics: 3

  Replies: 4

  Been thanked: 0 times
  10/28/2025 at 10:25 PM #253121
  robertogozzi

  Yes, in the example above replace CLOSE with other data you need:

  Yester = OpenMinute[N] Curr = OpenMinute

  1 2	Yester = OpenMinute[N] Curr   = OpenMinute

  1 user thanked author for this post.

  Carburo



  robertogozzi

  Moderator

  Topics: 69

  Replies: 17940

  Been thanked: 4541 times
  10/29/2025 at 6:54 AM #253122
  JS

  Hi,

  Maybe this can help…?

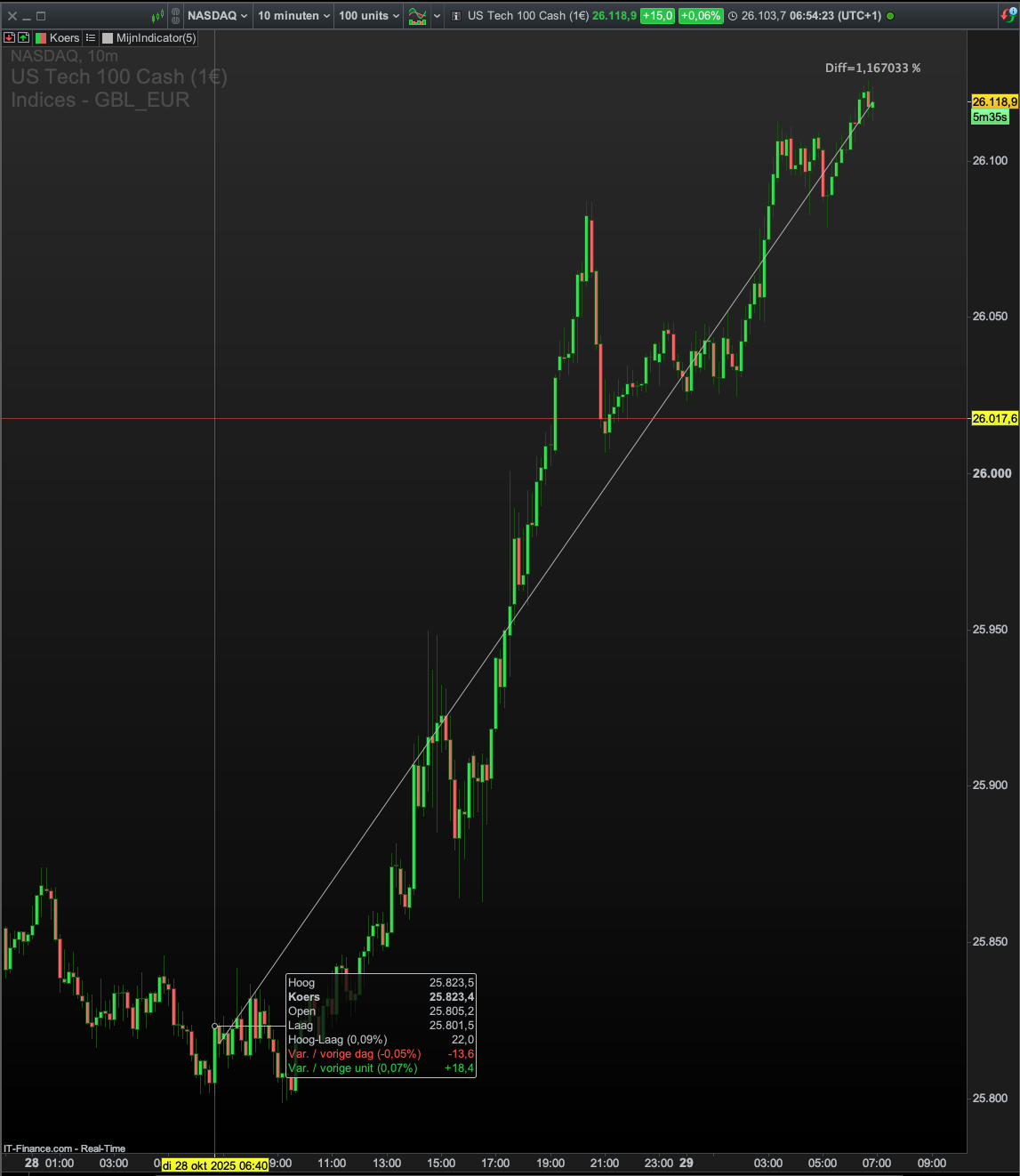

  Comparison data

  DefParam DrawOnLastBarOnly=True GTF=GetTimeFrame n=86400/GTF CurrentClose=Close PrevClose=Close[n] Diff=(CurrentClose/PrevClose-1)*100 DrawSegment(BarIndex,Close,BarIndex-n,Close[n]) DrawText("Diff=#Diff#%",BarIndex,Close+Range) Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14

  DefParam DrawOnLastBarOnly=True   GTF=GetTimeFrame n=86400/GTF   CurrentClose=Close PrevClose=Close[n]   Diff=(CurrentClose/PrevClose-1)*100   DrawSegment(BarIndex,Close,BarIndex-n,Close[n]) DrawText("Diff=#Diff#%",BarIndex,Close+Range)   Return



  1 user thanked author for this post.

  robertogozzi



  JS

  Participant

  Topics: 29

  Replies: 2372

  Been thanked: 1416 times
