Please Help – Tops and Bottoms

• 09/02/2023 at 11:15 AM #220208
  Khaled

  Hello everyone,

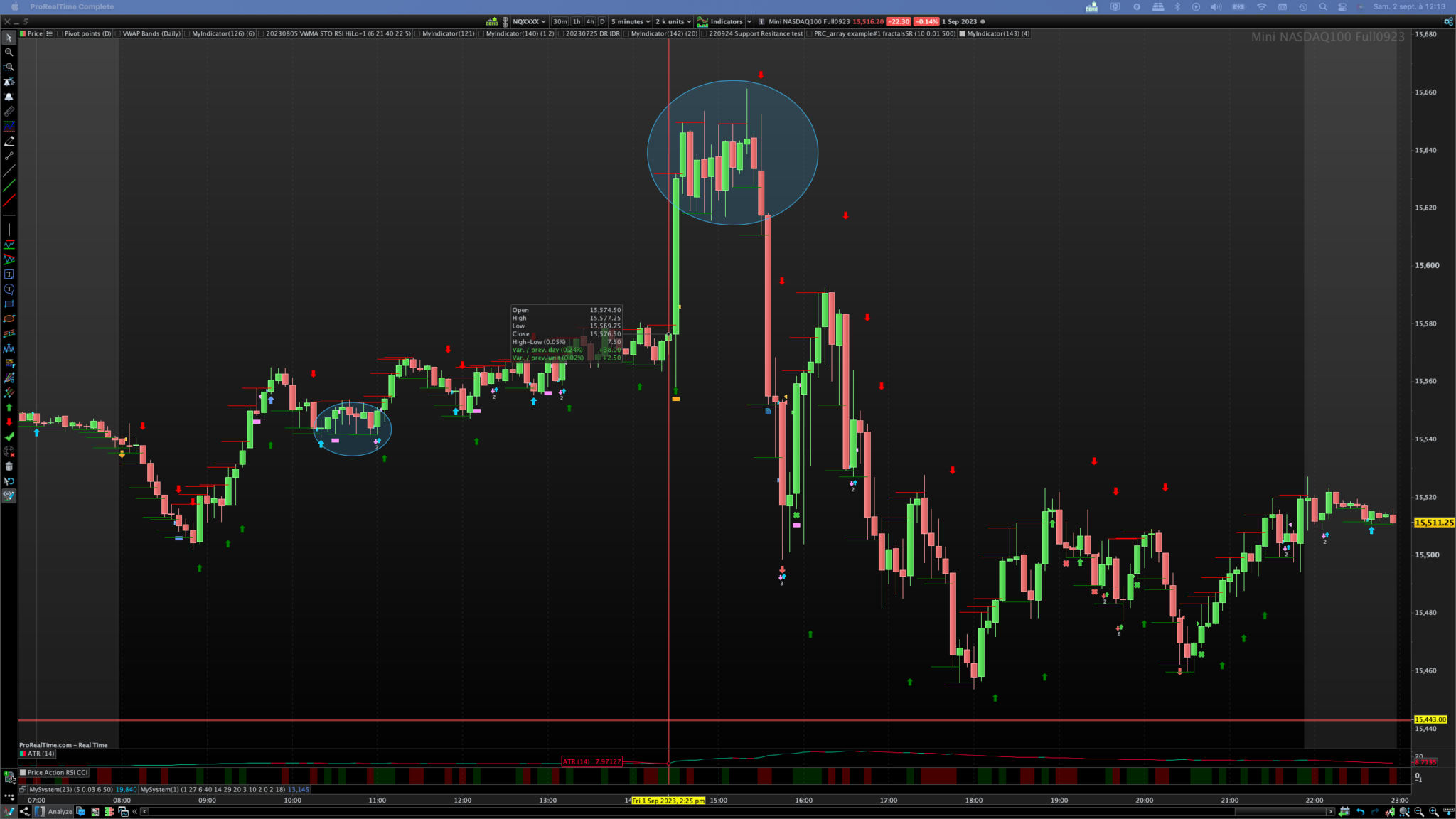

  I would like to have Lows and Highs of a Range detected and mark the breakout/down with a row. One of the issues is the Lookback period can be variable. Would there be a way to improve the following code (for example by having the lookback period as a “variable” with a loop)? examples highlighted on the attached graph.

  Thank you

  Detecting Tops and Bottoms

  DEFPARAM CALCULATEONLASTBARS = 1000 i = Lookback Hipast = highest[i] (high[1]) Lopast = lowest[i] (low[1]) ATR = AverageTrueRange[14](close) if high[1] <=Hipast and high >=Hipast then DRAWSEGMENT(barindex, Hipast, barindex[i], Hipast) coloured("red") elsif low[1] >=Lopast and low <=lopast then DRAWSEGMENT(barindex, Lopast, barindex[i], Lopast) coloured("green") endif if time>=080000 and time<220000 then if close crosses under lopast then DRAWARROWDOWN(barindex, high[1]+atr) coloured("red") elsif close crosses over hipast then DRAWARROWUP(barindex, low[1]-ATR) coloured("green") endif endif if time>=000000 and time<=080000 then BACKGROUNDCOLOR (128,128,128,50) elsif time>=220000 and time<=240000 then BACKGROUNDCOLOR (128,128,128,50) ENDIF RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

  DEFPARAM CALCULATEONLASTBARS = 1000   i = Lookback Hipast = highest[i] (high[1]) Lopast = lowest[i] (low[1])     ATR = AverageTrueRange[14](close)     if high[1] <=Hipast and high >=Hipast then DRAWSEGMENT(barindex, Hipast, barindex[i], Hipast) coloured("red") elsif low[1] >=Lopast  and low <=lopast then DRAWSEGMENT(barindex, Lopast, barindex[i], Lopast) coloured("green") endif     if time>=080000 and time<220000 then if close crosses under lopast then DRAWARROWDOWN(barindex, high[1]+atr) coloured("red") elsif close crosses over hipast then DRAWARROWUP(barindex, low[1]-ATR) coloured("green") endif endif   if time>=000000 and time<=080000 then BACKGROUNDCOLOR (128,128,128,50) elsif time>=220000 and time<=240000 then BACKGROUNDCOLOR (128,128,128,50) ENDIF     RETURN





  Khaled

  Participant

  Topics: 59

  Replies: 314

  Been thanked: 65 times
  09/02/2023 at 1:48 PM #220214
  JS

  Hi,

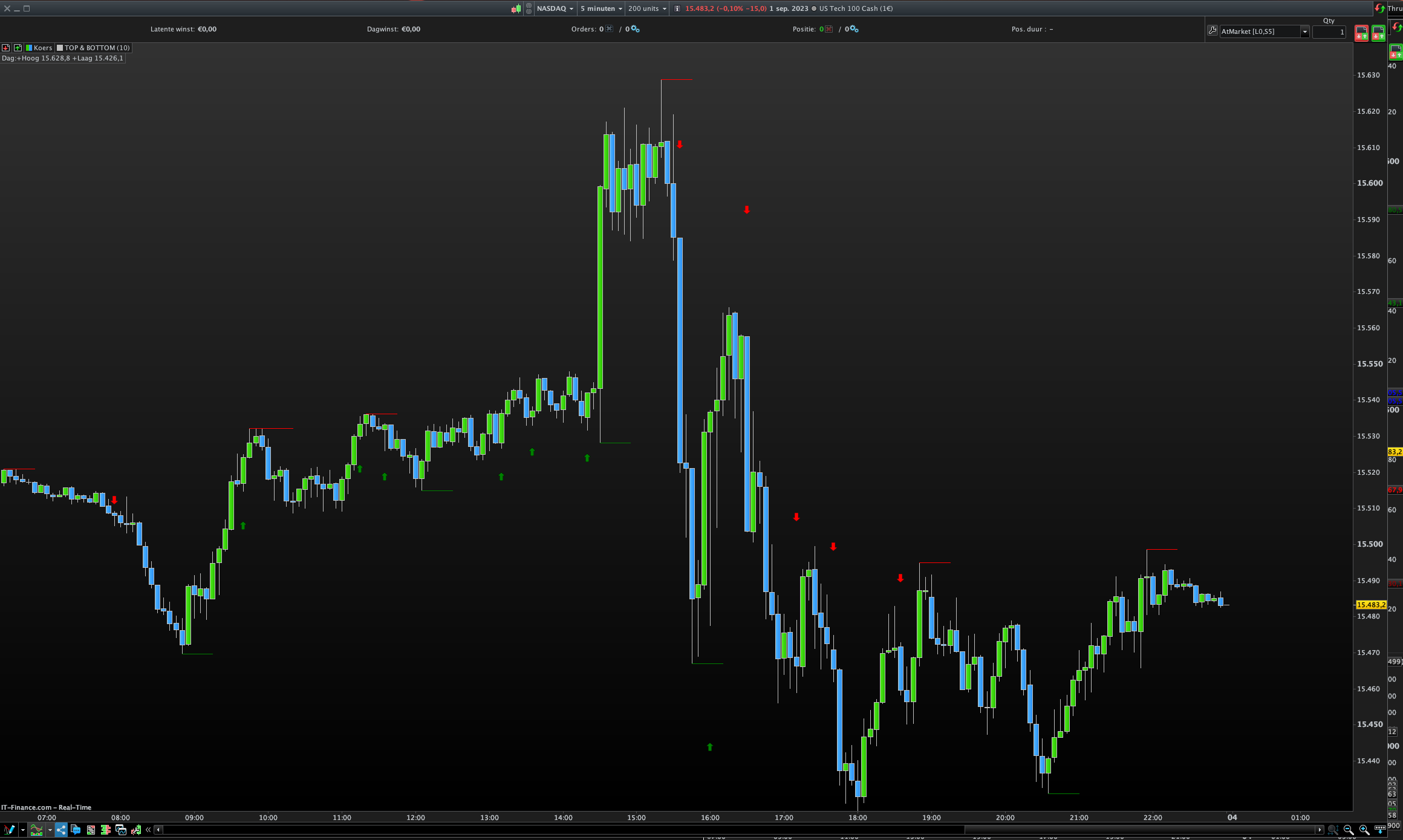

  Do you mean more like this…?

  1 user thanked author for this post.

  Khaled



  JS

  Participant

  Topics: 22

  Replies: 1439

  Been thanked: 561 times
  09/02/2023 at 1:56 PM #220216
  Khaled

  @JS Yes, Thank you! your code seems to generate much cleaner results than mine. Any chance you can share your revised code? Thanks



  Khaled

  Participant

  Topics: 59

  Replies: 314

  Been thanked: 65 times
  09/02/2023 at 2:16 PM #220221
  JS

  Hi Khaled,

  This works well for finding tops and bottoms…

  If High[i] = Highest[i * 2 +1](High) then

  If Low[i] = Lowest[i * 2 + 1](Low) then

  You can make a profitable system out of this… (where i can be optimized)

  Top & Bottom

  DefParam DrawOnLastBarOnly=False ATR=AverageTrueRange[i](Close) If High[i]=Highest[i*2+1](High) then xTop=High[i] DrawSegment(BarIndex[i],xTop, BarIndex[i-i/2],xTop)Coloured("Red") ElsIf Low[i]=Lowest[i*2+1](Low) then xBottom=Low[i] DrawSegment(BarIndex[i],xBottom, BarIndex[i-i/2],xBottom)Coloured("Green") EndIf If Close Crosses Under xBottom[1] then DrawArrowDown(BarIndex,High+ATR)Coloured("Red") ElsIf Close Crosses Over xTop[1] then DrawArrowUp(BarIndex,Low-ATR)Coloured("Green") EndIf Return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

  DefParam DrawOnLastBarOnly=False   ATR=AverageTrueRange[i](Close)   If High[i]=Highest[i*2+1](High) then xTop=High[i] DrawSegment(BarIndex[i],xTop, BarIndex[i-i/2],xTop)Coloured("Red") ElsIf Low[i]=Lowest[i*2+1](Low) then xBottom=Low[i] DrawSegment(BarIndex[i],xBottom, BarIndex[i-i/2],xBottom)Coloured("Green") EndIf   If Close Crosses Under xBottom[1] then DrawArrowDown(BarIndex,High+ATR)Coloured("Red") ElsIf Close Crosses Over xTop[1] then DrawArrowUp(BarIndex,Low-ATR)Coloured("Green") EndIf   Return

  1 user thanked author for this post.

  Khaled



  JS

  Participant

  Topics: 22

  Replies: 1439

  Been thanked: 561 times
  09/02/2023 at 2:32 PM #220222
  Khaled

  Thanks a million JS! Much appreciated.

  1 user thanked author for this post.

  JS



  Khaled

  Participant

  Topics: 59

  Replies: 314

  Been thanked: 65 times
  09/02/2023 at 2:46 PM #220223
  Khaled

  I don’t want to abuse of your kindness, but I’d be most grateful if you have the time to look at this too https://www.prorealcode.com/topic/please-help-take-only-the-first-cross/#post-220212
