Multi timeframe scalp code question

• 11/28/2018 at 6:29 PM #85933
  paulon

  Hi. I want to create a simple program for automatic trading that creates small scalping trades using 15 minute and 5 minute charts (5 minute is the default).

  I am experimenting with different conditions to open the trade but as an example lets say this is a long trade and the opening condition is that MACDline (12,26,9) crosses over 50 on the 5 minute chart. And the RSI(14) must be below 50 on the 15 minute chart

  On the 15 minute chart I have created 2 bands using the ATR. The upper band is the close + the ATR(14) and the lower band is the close – the ATR(14).

  When the trade is opened on the close of the 5 minute bar I want the profit target to be the upper ATR band on the 15 minute chart at the time the trade is opened, and the stop loss to be the lower ATR band on the 15 minute chart at the time the trade is opened.

  Can you help me to code this please?



  paulon

  Participant

  Topics: 6

  Replies: 8

  Been thanked: 0 times
  11/28/2018 at 7:04 PM #85934
  Vonasi

  Your question is ProOrder related and not a platform support issue so I have moved your post. Posting in the correct forum will have the best chance of getting a solution and will save us moderators a lot of time moving posts around all day!

  Please try to post in the correct forum with future posts. 🙂



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1810 times
  11/28/2018 at 8:35 PM #85943
  robertogozzi

  You mean MACDline (12,26,9) crosses over 0 ?



  robertogozzi

  Moderator

  Topics: 69

  Replies: 16465

  Been thanked: 3641 times
  11/29/2018 at 10:38 AM #85982
  paulon

  Sorry yes you are right!



  paulon

  Participant

  Topics: 6

  Replies: 8

  Been thanked: 0 times
  11/29/2018 at 7:38 PM #86036
  robertogozzi

  This the code:

  TIMEFRAME(15 minutes, updateonclose) MyRsi = Rsi[14](close) MyAtr = AverageTrueRange[14](close) UpperATR = close + MyAtr LowerATR = close - MyAtr TIMEFRAME(default) //5 minutes MyMacd = MACDline[12,26,9](close) MyConditions = (MyMacd CROSSES OVER 0) AND (MyRsi < 50) IF MyConditions AND Not OnMarket THEN BUY 1 CONTRACT AT MARKET Tp = ABS(UpperATR - close) Sl = ABS(close - LowerATR) SET TARGET PROFIT Tp SET STOP LOSS Sl ENDIF

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

  TIMEFRAME(15 minutes, updateonclose) MyRsi    = Rsi[14](close) MyAtr    = AverageTrueRange[14](close) UpperATR = close + MyAtr LowerATR = close - MyAtr   TIMEFRAME(default)                     //5 minutes MyMacd   = MACDline[12,26,9](close)   MyConditions = (MyMacd CROSSES OVER 0) AND (MyRsi < 50) IF MyConditions AND Not OnMarket THEN    BUY 1 CONTRACT AT MARKET    Tp = ABS(UpperATR - close)    Sl = ABS(close - LowerATR)    SET TARGET PROFIT Tp    SET STOP   LOSS   Sl ENDIF

  When computing SL and TP I used ABS(()  to make sure it’s not a negative number, because UPDATEONCLOSE at line 1 makes TF15 values older than TF5 so a sudden surge on the default TF might cause, even temporarily, a closing price higher/lower than it was when TF15 closed.

  If you remove UPDATEONCLOSE then you can also remove ABS() but values on TF15 will be the current ones when the TF5 closes, not when TF15 closed last time.

  If you want to try you can even launch the strategy from a 3-minute or 1-minute TF, since 15 is a multiple of 5, 3 and 1 (not 2).

  2 users thanked author for this post.

  paulon, Nicolas



  robertogozzi

  Moderator

  Topics: 69

  Replies: 16465

  Been thanked: 3641 times
  11/30/2018 at 11:53 AM #86076
  GraHal

  Even I can understand this one! 🙂  Thank you Paulon and Roberto.

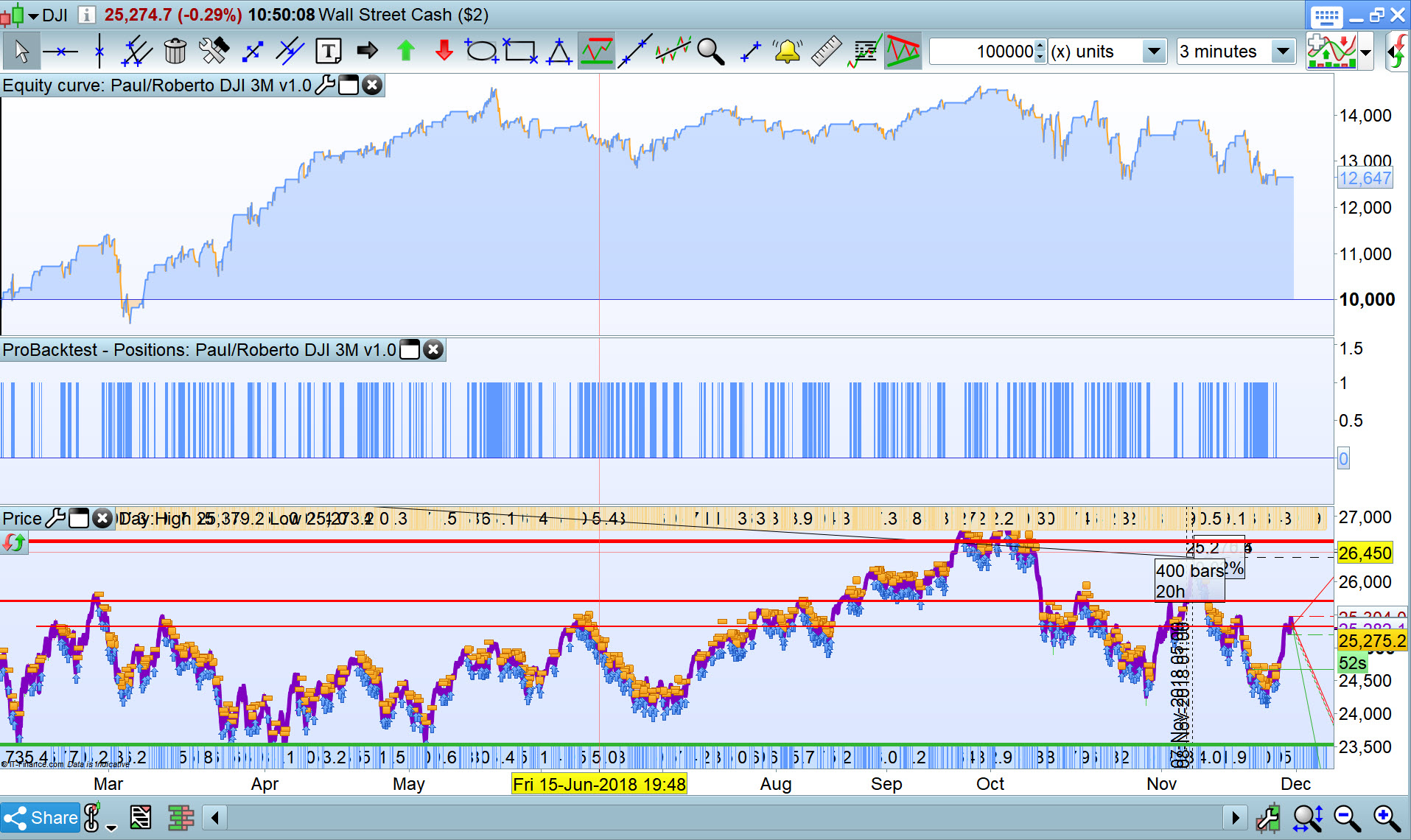

  Results attached for 1 Hour and 3 mins default otherwise unchanged from Roberto code above.



  GraHal

  Participant

  Topics: 204

  Replies: 8399

  Been thanked: 2041 times
  12/01/2018 at 1:53 PM #86144
  GraHal

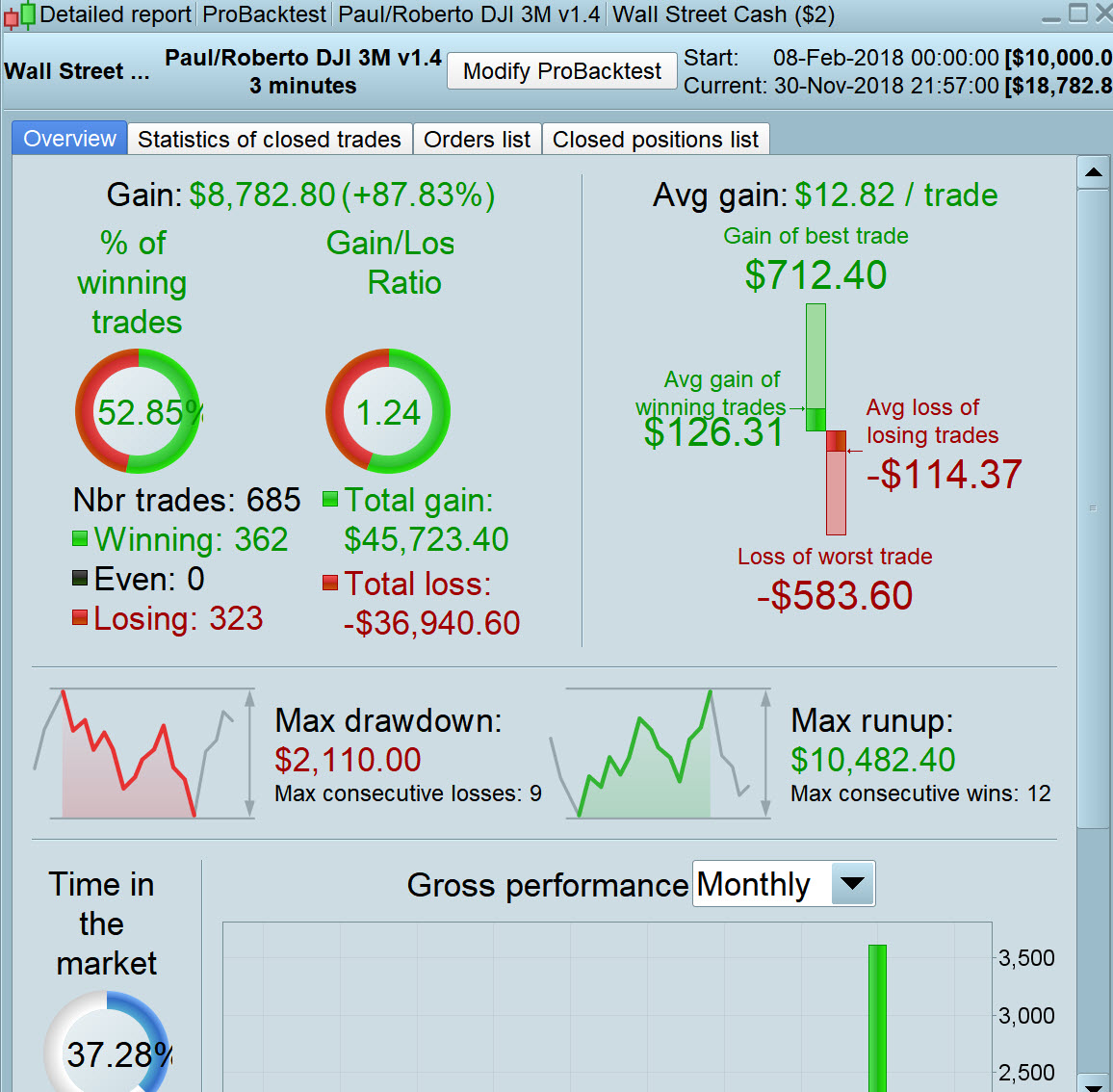

  Version 1.4 with Shorts.

  If you improve then please post on here so we can all share.

  //https://www.prorealcode.com/topic/multi-timeframe-scalp-code-question/ DEFPARAM CUMULATEORDERS = False Trade = Time > 060000 and Time < 205500 TIMEFRAME(1 Hour) MyRsi = Rsi[8](close) MyAtr = AverageTrueRange[2](close) UpperATR = close + MyAtr LowerATR = close - MyAtr TIMEFRAME(default) //3 minutes MyMacd = MACDline[12,26,9](close) MyConditionL = (MyMacd CROSSES OVER 0) AND (MyRsi < 50) and Trade //50 IF MyConditionL and not onmarket THEN BUY 1 CONTRACT AT MARKET TpL = (UpperATR - close) SlL = (close - LowerATR) SET TARGET PPROFIT TpL SET STOP PLOSS SlL ENDIF MyConditionS = (MyMacd CROSSES UNDER 0) AND (MyRsi > 50) and Trade //50 IF MyConditionS and not onmarket THEN SellShort 1 CONTRACT AT MARKET SLS = (UpperATR - close) TPS = (close - LowerATR) SET TARGET PPROFIT TpS SET STOP PLOSS SlS ENDIF //GRAPH UpperATR - close //GRAPH close - LowerATR //GRAPH TPL //GRAPH TPS //

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35

  //https://www.prorealcode.com/topic/multi-timeframe-scalp-code-question/ DEFPARAM CUMULATEORDERS = False Trade = Time > 060000 and Time < 205500   TIMEFRAME(1 Hour) MyRsi    = Rsi[8](close) MyAtr    = AverageTrueRange[2](close) UpperATR = close + MyAtr LowerATR = close - MyAtr TIMEFRAME(default)                     //3 minutes MyMacd   = MACDline[12,26,9](close) MyConditionL = (MyMacd CROSSES OVER 0) AND (MyRsi < 50) and Trade //50 IF MyConditionL and not onmarket THEN BUY 1 CONTRACT AT MARKET TpL = (UpperATR - close) SlL = (close - LowerATR) SET TARGET PPROFIT TpL SET STOP   PLOSS   SlL ENDIF   MyConditionS = (MyMacd CROSSES UNDER 0) AND (MyRsi > 50) and Trade //50 IF MyConditionS and not onmarket THEN SellShort 1 CONTRACT AT MARKET SLS = (UpperATR - close) TPS = (close - LowerATR) SET TARGET PPROFIT TpS SET STOP   PLOSS   SlS ENDIF //GRAPH UpperATR - close //GRAPH close - LowerATR //GRAPH TPL //GRAPH TPS //





  GraHal

  Participant

  Topics: 204

  Replies: 8399

  Been thanked: 2041 times
