MAX e MIN vari TF

Viewing 7 posts - 1 through 7 (of 7 total)

Author

Posts

12/04/2023 at 11:11 AM #224799 quote

Edisone

Participant

Average

Salve avrei bisogno di un aiuto per una modifica al codice.

Ho necessità di avere solo nel TF Daily anche il Min e Max della scorsa settimana

Grazie mille

DEFPARAM DrawOnLastBarOnly = True
// MAX e MIN

ONCE Futuro = 10      //stampa per 2 barre future
ONCE PrevHH = 0
ONCE PrevLL = 0
ONCE HH     = 0
ONCE LL     = 0
TF = GetTimeFrame
IF TF >= 86400 THEN
PrevHH = HH
PrevLL = LL
HH     = high
LL     = low
Barra  = BarIndex
ELSIF IntraDayBarIndex = 0 THEN
PrevHH = HH
PrevLL = LL
HH     = high
LL     = low
Barra  = BarIndex
ENDIF

HH = max(HH,high)
LL = min(LL,low)
DrawSegment(Barra-1,PrevHH,BarIndex + Futuro,PrevHH) coloured(0,0,0,255) style(line,3)//(0,0,255,255)
DrawSegment(Barra-1,PrevLL,BarIndex + Futuro,PrevLL) coloured(0,0,0,255) style(line,3)//(255,0,0,255)

// SOLO SCRITTA SUL RISPETTIVO T.F.
IF TF = 180 THEN
DRAWTEXT("MAX D", BarIndex + Futuro+3,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+3,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 1800 THEN
DRAWTEXT("MAX D", BarIndex + Futuro+3,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+3,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 86400 THEN //DAY
DRAWTEXT("MAX D", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 604800 THEN
DRAWTEXT("MAX W", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN W", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 2592000 THEN
DRAWTEXT("MAX M", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN M", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = (2592000*3) THEN
DRAWTEXT("MAX 3M", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN 3M", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF

RETURN

12/04/2023 at 7:19 PM #224851 quote

robertogozzi

Moderator

Master

Eccolo:

DEFPARAM DrawOnLastBarOnly = True
// MAX e MIN

ONCE Futuro = 10      //stampa per 2 barre future
ONCE PrevHH = 0
ONCE PrevLL = 0
ONCE HH     = 0
ONCE LL     = 0
ONCE HHw    = 0
ONCE LLw    = 0
ONCE PrevHHw= 0
ONCE PrevLLw= 0
IF (OpenDayOfWeek = 1) AND (TF = 86400) THEN
PrevHHw = HHw
PrevLLw = LLw
HHw     = high
LLw     = low
ENDIF
TF = GetTimeFrame
IF TF >= 86400 THEN
PrevHH = HH
PrevLL = LL
HH     = high
LL     = low
Barra  = BarIndex
ELSIF IntraDayBarIndex = 0 THEN
PrevHH = HH
PrevLL = LL
HH     = high
LL     = low
Barra  = BarIndex
ENDIF

HH  = max(HH,high)
LL  = min(LL,low)

DrawSegment(Barra-1,PrevHH,BarIndex + Futuro,PrevHH) coloured(0,0,0,255) style(line,3)//(0,0,255,255)
DrawSegment(Barra-1,PrevLL,BarIndex + Futuro,PrevLL) coloured(0,0,0,255) style(line,3)//(255,0,0,255)

// SOLO SCRITTA SUL RISPETTIVO T.F.
IF TF = 180 THEN
DRAWTEXT("MAX D", BarIndex + Futuro+3,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+3,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 1800 THEN
DRAWTEXT("MAX D", BarIndex + Futuro+3,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+3,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 86400 THEN //DAY
HHw = max(HHw,high)
LLw = min(LLw,low)
DRAWTEXT("MAX D", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
//
DrawSegment(Barra-1,PrevHHw,BarIndex + Futuro,PrevHHw) coloured(255,0,0,255) style(line,3)//(0,0,255,255)
DrawSegment(Barra-1,PrevLLw,BarIndex + Futuro,PrevLLw) coloured(0,0,255,255) style(line,3)//(255,0,0,255)
DRAWTEXT("         MAX W  prec", BarIndex + Futuro+2,PrevHHw,SansSerif,Standard,12) coloured(255,0,0,255)
DRAWTEXT("         MIN W prec" , BarIndex + Futuro+2,PrevLLw,SansSerif,Standard,12) coloured(0,0,255,255)
ENDIF
IF TF = 604800 THEN
DRAWTEXT("MAX W", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN W", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 2592000 THEN
DRAWTEXT("MAX M", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN M", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = (2592000*3) THEN
DRAWTEXT("MAX 3M", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN 3M", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF

RETURN

12/04/2023 at 9:52 PM #224855 quote

Edisone

Participant

Average

Grazie grazie mille, è possibile avere anche il max e min weekly nel t.f. 30 minuti ?

Grazie ancora

12/05/2023 at 5:18 PM #224898 quote

robertogozzi

Moderator

Master

Mi sono accorto che nell’ultimo c’è un errore sul 30 minuti, ecco quello corretto:

DEFPARAM DrawOnLastBarOnly = True
// MAX e MIN

ONCE Futuro = 10      //stampa per 2 barre future
ONCE PrevHH = 0
ONCE PrevLL = 0
ONCE HH     = 0
ONCE LL     = 0
ONCE HHw    = 0
ONCE LLw    = 0
ONCE PrevHHw= 0
ONCE PrevLLw= 0
ONCE Wflag  = 0
IF (OpenDayOfWeek = 1) AND ((TF = 86400) OR ((TF = 1800) AND (Wflag = 0))) THEN
PrevHHw = HHw
PrevLLw = LLw
HHw     = high
LLw     = low
Wflag   = 1
ENDIF
IF OpenDayOfWeek > 1 THEN
Wflag = 0
ENDIF
TF = GetTimeFrame
IF TF >= 86400 THEN
PrevHH = HH
PrevLL = LL
HH     = high
LL     = low
Barra  = BarIndex
ELSIF IntraDayBarIndex = 0 THEN
PrevHH = HH
PrevLL = LL
HH     = high
LL     = low
Barra  = BarIndex
ENDIF

HH  = max(HH,high)
LL  = min(LL,low)
HHw = max(HHw,high)
LLw = min(LLw,low)

DrawSegment(Barra-1,PrevHH,BarIndex + Futuro,PrevHH) coloured(0,0,0,255) style(line,3)//(0,0,255,255)
DrawSegment(Barra-1,PrevLL,BarIndex + Futuro,PrevLL) coloured(0,0,0,255) style(line,3)//(255,0,0,255)

// SOLO SCRITTA SUL RISPETTIVO T.F.
IF TF = 180 THEN
DRAWTEXT("MAX D", BarIndex + Futuro+3,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+3,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 1800 THEN
DRAWTEXT("MAX D", BarIndex + Futuro+3,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+3,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
//
DrawSegment(Barra-1,PrevHHw,BarIndex + Futuro,PrevHHw) coloured(255,0,0,255) style(line,3)//(0,0,255,255)
DrawSegment(Barra-1,PrevLLw,BarIndex + Futuro,PrevLLw) coloured(0,0,255,255) style(line,3)//(255,0,0,255)
DRAWTEXT("         MAX W  prec", BarIndex + Futuro+2,PrevHHw,SansSerif,Standard,12) coloured(255,0,0,255)
DRAWTEXT("         MIN W prec" , BarIndex + Futuro+2,PrevLLw,SansSerif,Standard,12) coloured(0,0,255,255)
ENDIF
IF TF = 86400 THEN //DAY
HHw = max(HHw,high)
LLw = min(LLw,low)
DRAWTEXT("MAX D", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN D", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
//
DrawSegment(Barra-1,PrevHHw,BarIndex + Futuro,PrevHHw) coloured(255,0,0,255) style(line,3)//(0,0,255,255)
DrawSegment(Barra-1,PrevLLw,BarIndex + Futuro,PrevLLw) coloured(0,0,255,255) style(line,3)//(255,0,0,255)
DRAWTEXT("         MAX W  prec", BarIndex + Futuro+2,PrevHHw,SansSerif,Standard,12) coloured(255,0,0,255)
DRAWTEXT("         MIN W prec" , BarIndex + Futuro+2,PrevLLw,SansSerif,Standard,12) coloured(0,0,255,255)
ENDIF
IF TF = 604800 THEN
DRAWTEXT("MAX W", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN W", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = 2592000 THEN
DRAWTEXT("MAX M", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN M", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF
IF TF = (2592000*3) THEN
DRAWTEXT("MAX 3M", BarIndex + Futuro+2,PrevHH,SansSerif,Standard,12) coloured(0,0,0,255)
DRAWTEXT("MIN 3M", BarIndex + Futuro+2,PrevLL,SansSerif,Standard,12) coloured(0,0,0,255)
ENDIF

RETURN

12/05/2023 at 5:37 PM #224899 quote

Edisone

Participant

Average

Grazie ma nel 30 minuti il max e min weekly non sono corretti.

12/08/2023 at 10:56 AM #225045 quote

robertogozzi

Moderator

Master

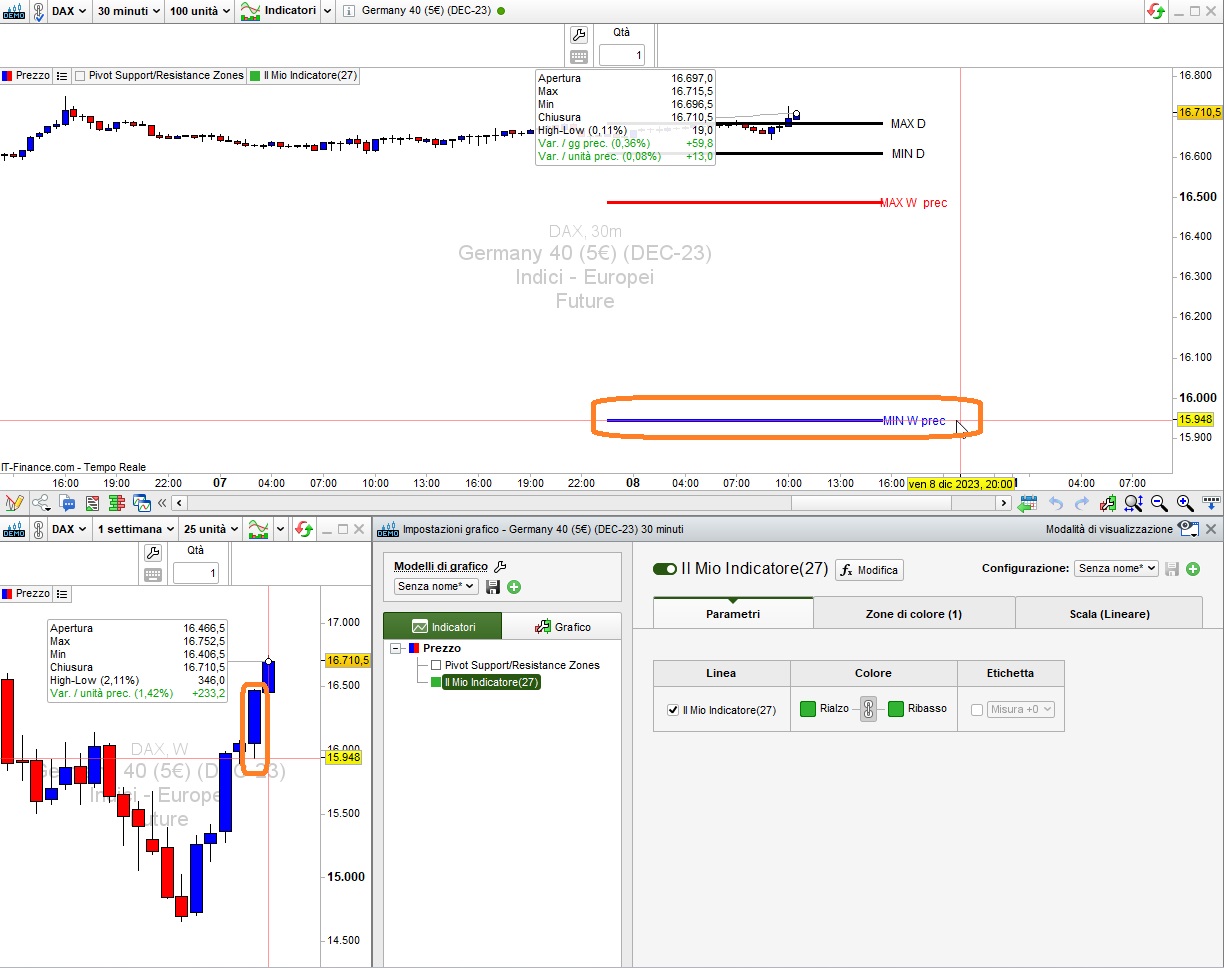

Per me va bene, come puoi vedere dalle foto allegate, una con evidenziato il Massimo precedente ed una con il Minimo precedente, sul Dax 30 minuti, i dati visualizzati combaciano con i dati della settimana precedente.

Se riscontri ancora degli errori fammi sapere su quale strumento, così faccio una verifica.
