jurik smoothed kijun sen

• 11/17/2020 at 6:22 PM #150809
  Patrick K Templar

  jurik smoothed kijun sen

  Hello and thank you for Conversion

  It is what it says it is a kijun sen with Jurick moving average applied to it i’ve got an mq4 file with something very similar to it so I will link that

  (This is a jurik smoothed kijun sen  if you want a regular kijun sen just set the smooth length to 1.)

  Thank you very much and kind regards

  Patrick



  Patrick K Templar

  Participant

  Topics: 14

  Replies: 61

  Been thanked: 1 time
  11/17/2020 at 8:21 PM #150824
  Patrick K Templar

  the mq4 file of the jurik kijuns bands is wrong  dont use that i belive you did a jurik macd So I believe the coding wouldn’t be too far different from that for what I would like I can’t seem to find a mq4 file of the code yet there might be a tradingview





  Patrick K Templar

  Participant

  Topics: 14

  Replies: 61

  Been thanked: 1 time
  11/17/2020 at 8:58 PM #150826
  Patrick K Templar

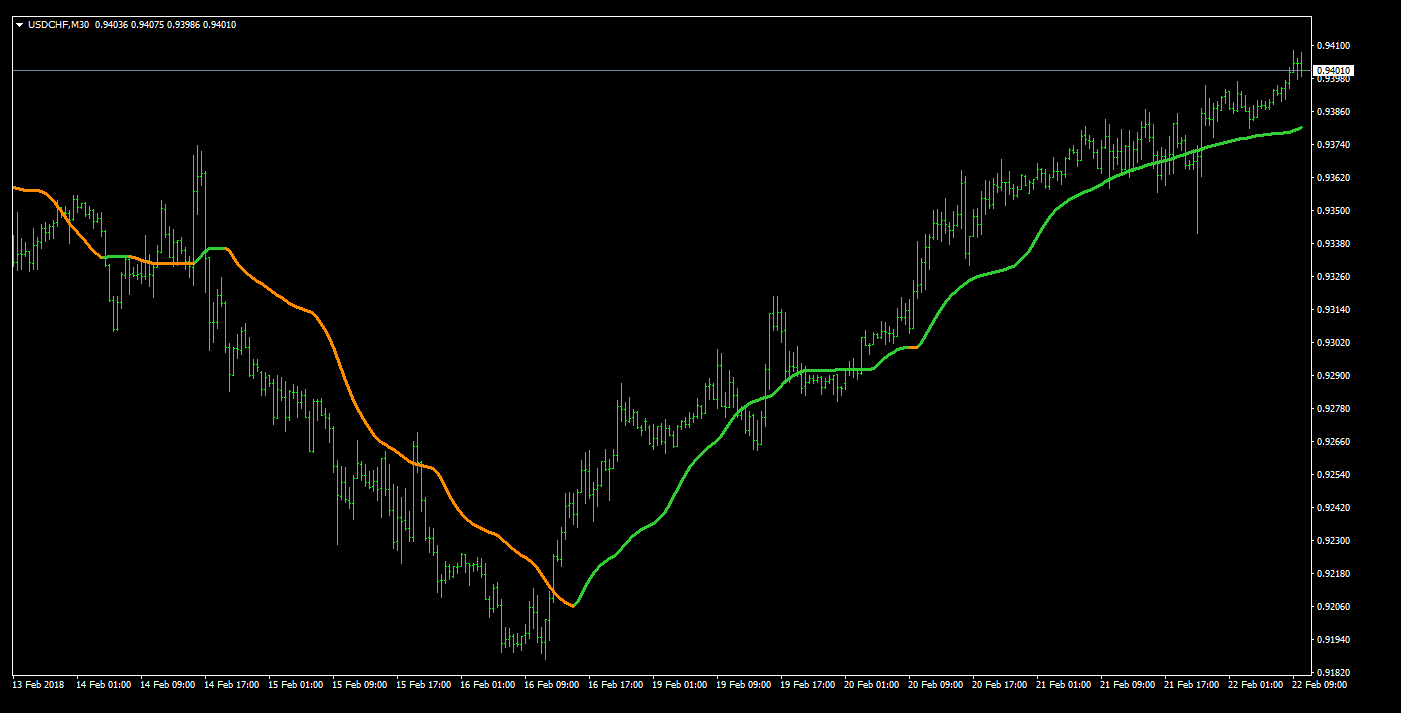

  this is jurik ma file in mq4  it shold help with the codeing



  Patrick K Templar

  Participant

  Topics: 14

  Replies: 61

  Been thanked: 1 time
  11/25/2020 at 3:09 PM #151563
  Patrick K Templar

  iv got the code for both just need help add them together





  Patrick K Templar

  Participant

  Topics: 14

  Replies: 61

  Been thanked: 1 time
  11/25/2020 at 3:13 PM #151564
  Patrick K Templar

  Series = CustomClose //----------------------------// // JMA - Jurik Moving Average // //----------------------------// IF MAType = 1 THEN Period = MAX(Period, b) // Pow = 5 ({ 1..10 }) // R = 1.5 ({0.5..2.5}) Pow = 4 R = 1 beta = 0.45 * (Period - 1) / (0.45 * (Period - 1) + 2) IF Pow = 1 THEN alpha = beta ELSIF Pow = 2 THEN alpha = beta * beta ELSIF Pow = 3 THEN alpha = beta * beta * beta ELSIF Pow = 4 THEN alpha = beta * beta * beta * beta ELSIF Pow = 5 THEN alpha = beta * beta * beta * beta * beta ELSIF Pow = 6 THEN alpha = beta * beta * beta * beta * beta * beta ELSIF Pow = 7 THEN alpha = beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 8 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 9 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 10 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta * beta * beta ENDIF IF BarIndex = 0 THEN Filt0 = Series Filt1 = Series AFR = Series ELSE Filt0 = (1 - alpha) * Series + alpha * Filt0[1] Det0 = (Series - Filt0[0]) * (1 - beta) + beta * Det0[1] Filt1 = Filt0[0] + R * Det0[0] Det1 = (Filt1[0] - AFR[1]) * ((1 - alpha) * (1 - alpha)) + (alpha * alpha) * Det1[1] AFR = AFR[1] + Det1[0] ENDIF ENDIF // RETURN // RETURN AFR as "AFRjmc"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

  Series = CustomClose   //----------------------------// // JMA - Jurik Moving Average // //----------------------------//   IF MAType = 1 THEN   Period = MAX(Period, b)   // Pow = 5 ({ 1..10 }) // R = 1.5 ({0.5..2.5}) Pow = 4 R = 1   beta = 0.45 * (Period - 1) / (0.45 * (Period - 1) + 2)   IF Pow = 1 THEN alpha = beta ELSIF Pow = 2 THEN alpha = beta * beta ELSIF Pow = 3 THEN alpha = beta * beta * beta ELSIF Pow = 4 THEN alpha = beta * beta * beta * beta ELSIF Pow = 5 THEN alpha = beta * beta * beta * beta * beta ELSIF Pow = 6 THEN alpha = beta * beta * beta * beta * beta * beta ELSIF Pow = 7 THEN alpha = beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 8 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 9 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 10 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta * beta * beta ENDIF   IF BarIndex = 0 THEN Filt0 = Series Filt1 = Series AFR = Series ELSE Filt0 = (1 - alpha) * Series + alpha * Filt0[1] Det0 = (Series - Filt0[0]) * (1 - beta) + beta * Det0[1] Filt1 = Filt0[0] + R * Det0[0] Det1 = (Filt1[0] - AFR[1]) * ((1 - alpha) * (1 - alpha)) + (alpha * alpha) * Det1[1] AFR = AFR[1] + Det1[0] ENDIF   ENDIF   // RETURN //   RETURN AFR as  "AFRjmc"

  Kijunsen = (highest[a](high)+lowest[b](low))/2 RETURN Kijunsen

  1 2 3 4

  Kijunsen  = (highest[a](high)+lowest[b](low))/2     RETURN Kijunsen





  Patrick K Templar

  Participant

  Topics: 14

  Replies: 61

  Been thanked: 1 time
  11/25/2020 at 4:25 PM #151579
  Nicolas

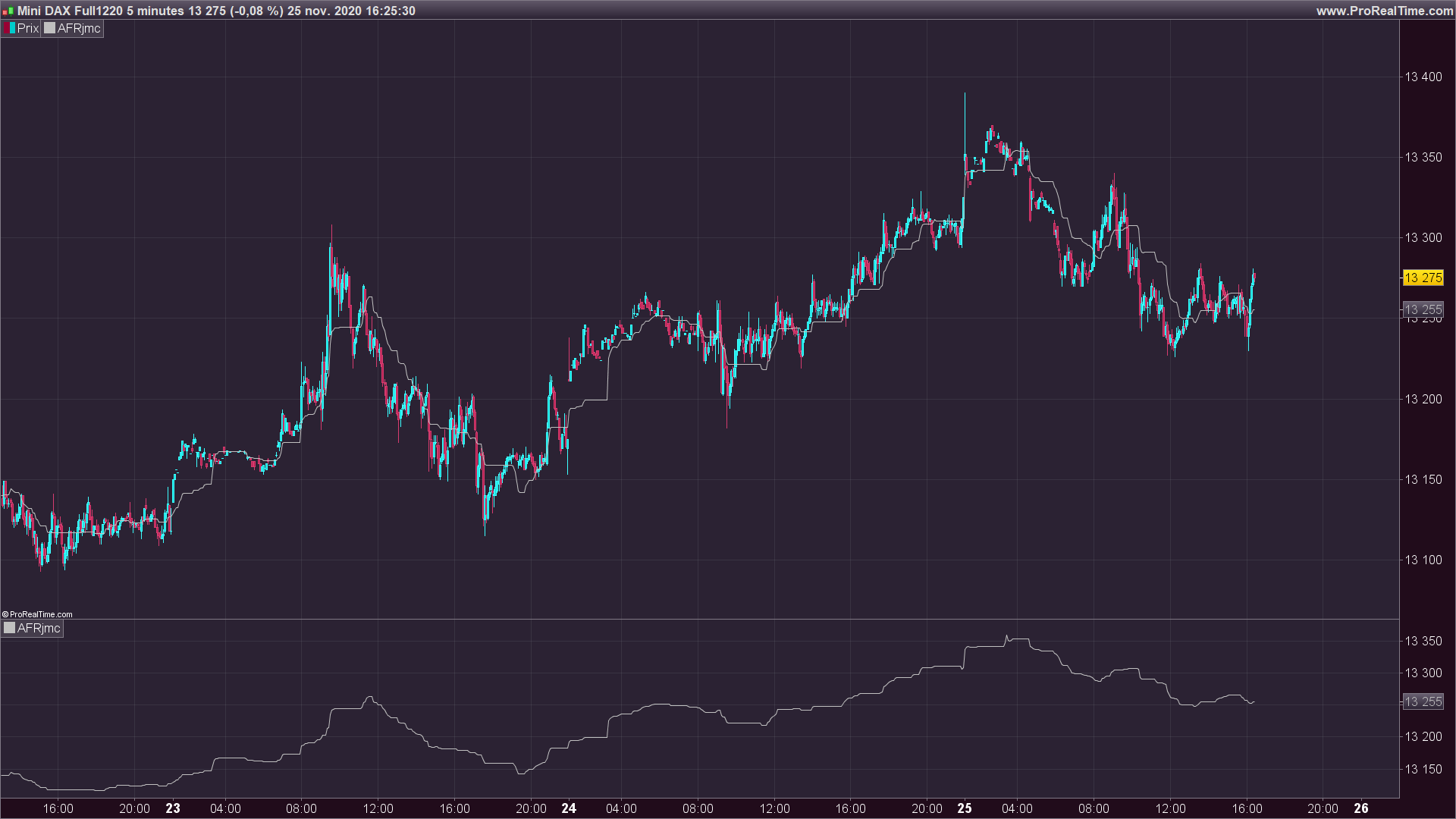

  Here is the code of the KijunSen smooth with a Jurik Filter:

  p2 = 26 //period of Kijun Period = 5 //period of smoothing if barindex>p2+Period then Series = (highest[p2](high)+lowest[p2](low))/2 //----------------------------// // JMA - Jurik Moving Average // //----------------------------// //Period = MAX(Period, b) // Pow = 5 ({ 1..10 }) // R = 1.5 ({0.5..2.5}) Pow = 4 R = 1 beta = 0.45 * (Period - 1) / (0.45 * (Period - 1) + 2) IF Pow = 1 THEN alpha = beta ELSIF Pow = 2 THEN alpha = beta * beta ELSIF Pow = 3 THEN alpha = beta * beta * beta ELSIF Pow = 4 THEN alpha = beta * beta * beta * beta ELSIF Pow = 5 THEN alpha = beta * beta * beta * beta * beta ELSIF Pow = 6 THEN alpha = beta * beta * beta * beta * beta * beta ELSIF Pow = 7 THEN alpha = beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 8 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 9 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 10 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta * beta * beta ENDIF IF BarIndex = 0 THEN Filt0 = Series Filt1 = Series AFR = Series ELSE Filt0 = (1 - alpha) * Series + alpha * Filt0[1] Det0 = (Series - Filt0[0]) * (1 - beta) + beta * Det0[1] Filt1 = Filt0[0] + R * Det0[0] Det1 = (Filt1[0] - AFR[1]) * ((1 - alpha) * (1 - alpha)) + (alpha * alpha) * Det1[1] AFR = AFR[1] + Det1[0] ENDIF endif // RETURN // RETURN AFR as "AFRjmc"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

  p2 = 26 //period of Kijun Period = 5 //period of smoothing   if barindex>p2+Period then Series = (highest[p2](high)+lowest[p2](low))/2   //----------------------------// // JMA - Jurik Moving Average // //----------------------------//       //Period = MAX(Period, b)   // Pow = 5 ({ 1..10 }) // R = 1.5 ({0.5..2.5}) Pow = 4 R = 1   beta = 0.45 * (Period - 1) / (0.45 * (Period - 1) + 2)   IF Pow = 1 THEN alpha = beta ELSIF Pow = 2 THEN alpha = beta * beta ELSIF Pow = 3 THEN alpha = beta * beta * beta ELSIF Pow = 4 THEN alpha = beta * beta * beta * beta ELSIF Pow = 5 THEN alpha = beta * beta * beta * beta * beta ELSIF Pow = 6 THEN alpha = beta * beta * beta * beta * beta * beta ELSIF Pow = 7 THEN alpha = beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 8 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 9 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta * beta ELSIF Pow = 10 THEN alpha = beta * beta * beta * beta * beta * beta * beta * beta * beta * beta ENDIF   IF BarIndex = 0 THEN Filt0 = Series Filt1 = Series AFR = Series ELSE Filt0 = (1 - alpha) * Series + alpha * Filt0[1] Det0 = (Series - Filt0[0]) * (1 - beta) + beta * Det0[1] Filt1 = Filt0[0] + R * Det0[0] Det1 = (Filt1[0] - AFR[1]) * ((1 - alpha) * (1 - alpha)) + (alpha * alpha) * Det1[1] AFR = AFR[1] + Det1[0] ENDIF endif     // RETURN //   RETURN AFR as  "AFRjmc"



  1 user thanked author for this post.

  Patrick K Templar



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4738 times
  11/25/2020 at 5:27 PM #151586
  Patrick K Templar

  Thank you very much appreciate a lot
