Indicator to Optimizer

Viewing 13 posts - 1 through 13 (of 13 total)
  • Author
    Posts
  • #237912 quote
    SnorreDK
    Participant
    Junior

    Hi.

    This looks intressting

    Candlestick pattern indicator 2.0



    How do I use the optimizer to backtest and find the best entry with this indicator.

    #237937 quote
    Iván González
    Moderator
    Master

    Hi!

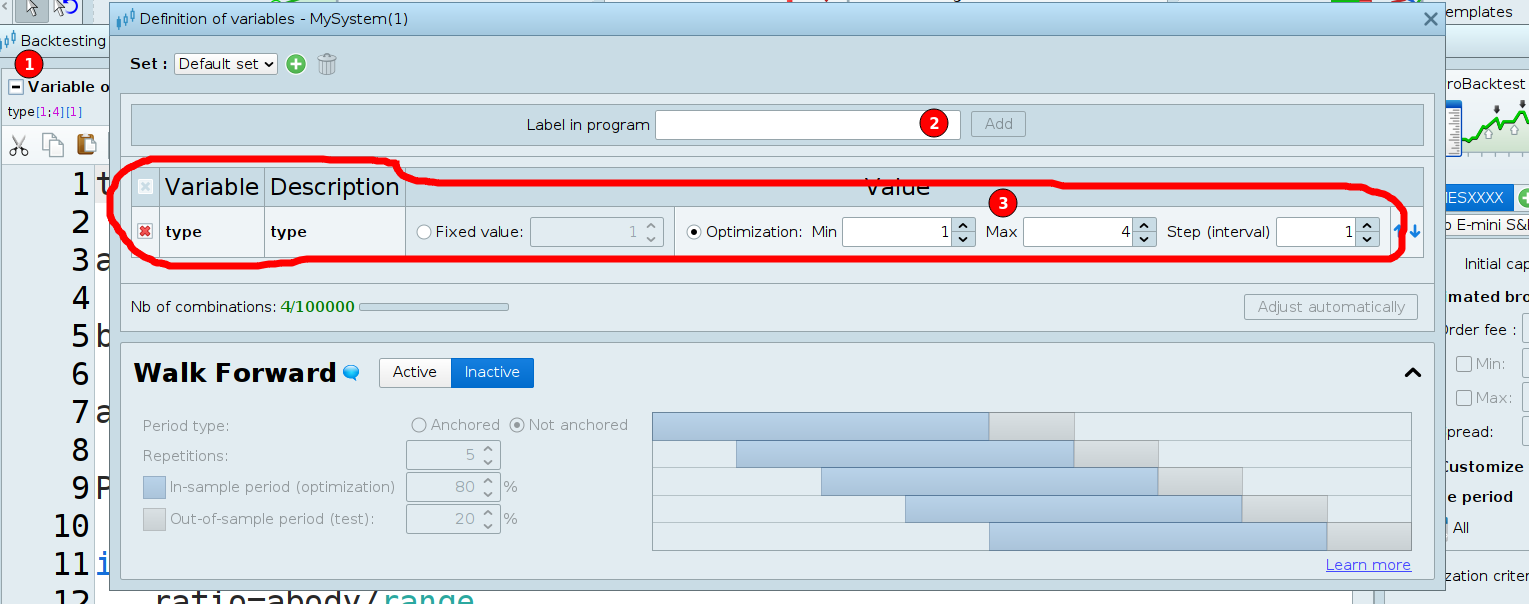

    You could create a new variable called “type” (for example) and introduce in conditions to take a long position:
    Here you have an example with 4 variations. Your code has a lot of types…

    //---Doji: type1
    DojiSize = 0.05
    data=(abs(open - close) <= (high - low) * DojiSize)
    if  type=1 and data then
    buy 1 contract at market
    endif
    //---MorningStar: type 2
    MorningStar=(body[2]<0 and body>0 and longcandle[2] and open[1]<close[2] and open>close[1] and ratio[1]<0.3 and abody[1]<abody[2] and abody[1]<abody and low[1]<low and low[1]<low[2] and high[1]<open[2] and high[1]<close)
    if type=2 and TrendDown[3] AND MorningStar then
    buy 1 contract at market
    endif
    //---PiercingLine: type 3
    PiercingLine=(body[1]<0 and body>0 and longcandle[1] and longcandle and open<low[1] and close>Pmiddle[1] and close<open[1])
    if type=3 and TrendDown[2] AND PiercingLine then
    buy 1 contract at market
    endif
    //---AbandonedBabyBottom: type 4
    AbandonedBabyBottom=(body[2]<0 and body>0 and longcandle[2] and ratio[1]<0.3 and high[1]<low[2] and high[1]<low)
    if type=4 and TrendDown[3] AND AbandonedBabyBottom then
    buy 1 contract at market
    endif
    SnorreDK and robertogozzi thanked this post
    2024-09-23_13-45.png 2024-09-23_13-45.png
    #237941 quote
    SnorreDK
    Participant
    Junior

    Thank you Ivan. That helped alot!

    #237944 quote
    robertogozzi
    Moderator
    Master

    I added the variable Signal to tell which pattern is returned and the variable Opt to be used with the optimizer.

    The optimizer will pliot the best performing patterns for LONG trades.

    Then you will have to uncomment line 487 and comment out line 486 to repeat the optimization for the best performing patterns for SHORT trades.

    Here is the code:

    // Trend direction identification
    //(choose 0=No Trend check, 1=MACD, 2=SAR, 3=Directional Movement, 4=Moving Averages crossing [default], 5=Stochastic)
    TDS=4

    //text color
    // white = 255,255,255 ; black = 0,0,0
    r = 0
    g = 0
    b = 0

    atr = averagetruerange[10](close)*0.5

    body=close-open

    abody=abs(body)

    if range>0 then
    ratio=abody/range
    else
    ratio=0
    endif

    myMiddle=(open+close)/2

    if body>0 then
    bodytop=close
    bodybottom=open
    else
    bodytop=open
    bodybottom=close
    endif

    //bodytop=max(open, close)

    //bodybottom=min(open, close)

    shadowtop=high-bodytop

    shadowbottom=bodybottom-low

    longcandle= (ratio>0.6)

    DojiSize = 0.05
    data=(abs(open - close) <= (high - low) * DojiSize)
    if data then
    //DrawText("Doji", barindex, high+atr*0.75, Dialog, Standard, 12) COLOURED(R,G,B)
    endif

    //Trend Detection
    if TDS=0 then
    TrendUp=1
    TrendDown=1
    else
    if TDS=1 then
    TrendUp=(MACDline[12,26,9](close)>0 AND MACD[12,26,9](close)>0)
    TrendDown=(MACDline[12,26,9](close)<0 AND MACD[12,26,9](close)<0)
    else
    if TDS=2 then
    TrendUp=(SAR[0.02,0.02,0.2]<low)
    TrendDown=(SAR[0.02,0.02,0.2]>high)
    else
    if TDS=3 then
    TrendUp=(ADX[14]>23 AND DI[14](close)>0)
    TrendDown=(ADX[14]>23 AND DI[14](close)<0)
    else
    if TDS=4 then
    TrendUp=(ExponentialAverage[2](close)>ExponentialAverage[4](close))
    TrendDown=(ExponentialAverage[2](close)<ExponentialAverage[4](close))
    else
    if TDS=5 then
    TrendUp=(Stochastic[14,3](close)>Average[5](Stochastic[14,3](close)))
    TrendDown=(Stochastic[14,3](close)<Average[5](Stochastic[14,3](close)))
    endif
    endif
    endif
    endif
    endif
    endif

    Signal = 0

    //Bullish Signal

    MorningStar=(body[2]<0 and body>0 and longcandle[2] and open[1]<close[2] and open>close[1] and ratio[1]<0.3 and abody[1]<abody[2] and abody[1]<abody and low[1]<low and low[1]<low[2] and high[1]<open[2] and high[1]<close)
    if TrendDown[3] AND MorningStar then
    Signal = 1
    //DrawText("Morning Star", barindex, low[1]-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex-1,low[1]) COLOURED(0,155,10)
    endif

    PiercingLine=(body[1]<0 and body>0 and longcandle[1] and longcandle and open<low[1] and close>myMiddle[1] and close<open[1])
    if TrendDown[2] AND PiercingLine then
    Signal = 2
    //DrawText("Piercing Line", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    AbandonedBabyBottom=(body[2]<0 and body>0 and longcandle[2] and ratio[1]<0.3 and high[1]<low[2] and high[1]<low)
    if TrendDown[3] AND AbandonedBabyBottom then
    Signal = 2
    //DrawText("Abandoned Baby Bottom", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    ThreeInsideUp=(body[2]<0 and body[1]>0 and body>0 and BullishHarami[1] and close>close[1])
    if TrendDown[3] AND ThreeInsideUp then
    Signal = 3
    //DrawText("Three Inside Up", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    ThreeOutsideUp=(body[2]<0 and body[1]>0 and body>0 and BullishEngulfing[1] and close>close[1])
    if TrendDown[3] AND ThreeOutsideUp then
    Signal = 4
    //DrawText("Three Outside Up", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    ThreeWhiteSoldiers=(body[2]>0 and body[1]>0 and body>0 and high[1]>high[2] and high>high[1] and close[1]>close[2] and close>close[1] and open[1]>open[2] and open[1]<close[2] and open>open[1] and open<close[1])
    if TrendDown[3] AND ThreeWhiteSoldiers then
    Signal = 5
    //DrawText("Three White Soldiers", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    ConcealingBabySwallow=(body[3]<0 and body[2]<0 and body[1]<0 and body<0 and ratio[3]>0.8 and ratio[2]>0.8 and ratio>0.8 and open[1]<close[2] and high[1]>close[2] and shadowtop[1]>0.6*(abody[1]+shadowbottom[1]) and bodybottom<bodybottom[1] and bodytop>high[1])
    if TrendDown[4] AND ConcealingBabySwallow then
    Signal = 6
    //DrawText("Concealing Baby Swallow", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BullishHarami=(body[1]<0 and body>0 and longcandle[1] and bodybottom>bodybottom[1] and bodytop<bodytop[1])
    if TrendDown[2] AND BullishHarami then
    Signal = 7
    //DrawText("Bullish Harami", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    HomingPigeon=(body[1]<0 and body<0 and longcandle[1] and bodybottom>bodybottom[1] and bodytop<bodytop[1])
    if TrendDown[2] AND HomingPigeon then
    Signal = 8
    //DrawText("Homing Pigeon", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BullishEngulfing=(body[1]<0 and body>0 and bodybottom<bodybottom[1] and bodytop>bodytop[1] and longcandle)
    if TrendDown[2] AND BullishEngulfing then
    Signal = 9
    //DrawText("Bullish Engulfing", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    LastEngulfingBottom=(body[1]>0 and body<0 and bodybottom<bodybottom[1] and bodytop>bodytop[1] and longcandle)
    if TrendDown[2] AND LastEngulfingBottom then
    Signal = 10
    //DrawText("Last Engulfing Bottom", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    DragonflyDojiBottom=(body[1]<0 and longcandle[1] and low<low[1] and shadowbottom>3*abody and shadowtop<shadowbottom/3)
    if TrendDown[2] AND DragonflyDojiBottom then
    Signal = 11
    //DrawText("Dragonfly Doji", barindex, low-atr, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    GravestoneDojiBottom=(body[1]<0 and longcandle[1] and low<low[1] and shadowtop>3*abody and shadowbottom<shadowtop/3)
    if TrendDown[2] AND GravestoneDojiBottom then
    Signal = 12
    //DrawText("Gravestone Doji", barindex, low-atr, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    DojiStarBottom=(body[1]<0 AND longcandle[1] AND low<low[1] AND open<close[1] AND ratio<0.3 AND range<0.3*range[1])
    if TrendDown[2] AND DojiStarBottom then
    Signal = 13
    //DrawText("Doji", barindex, low-atr*0.75, Dialog, Standard, 12) COLOURED(R,G,B)
    endif

    BullishHaramiCross=(body[1]<0 and longcandle[1] and bodybottom>bodybottom[1] and bodytop<bodytop[1] and ratio<0.3 and range<0.3*range[1])
    if TrendDown[2] AND BullishHaramiCross then
    Signal = 14
    //DrawText("Bullish Harami Cross", barindex, low-atr*1.20, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    ThreeStarsInTheSouth=(body[2]<0 and body[1]<0 and body<0 and shadowtop[2]<range[2]/4 and shadowbottom[2]>abody[2]/2 and low[1]>low[2] and high[1]<high[2] and abody[1]<abody[2]  and shadowtop[1]<range[1]/4 and shadowbottom[1]>abody[1]/2 and low>low[1] and high<high[1] and abody<abody[1] and shadowtop<range/4 and shadowbottom<range/4)
    if TrendDown[3] AND ThreeStarsInTheSouth then
    Signal = 15
    //DrawText("Three Stars In The South", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BullishBreakaway=(body[4]<0 and body[3]<0 and body>0 and open[3]<close[4] and close[2]<close[3] and close[1]<close[2] and longcandle and close<close[4] and close>open[3])
    if TrendDown[5] AND BullishBreakaway then
    Signal = 16
    //DrawText("Bullish Breakaway", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    Hammer=(body[1]<0 and longcandle[1] and low<low[1] and shadowbottom>2*abody and shadowtop<0.3*abody)
    if TrendDown[2] AND Hammer then
    Signal = 17
    //DrawText("Hammer", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    InvertedHammer=(body[1]<0 and longcandle[1] and low<low[1] and shadowtop>2*abody and shadowbottom<0.3*abody)
    if TrendDown[2] AND InvertedHammer then
    Signal = 18
    //DrawText("Inverted Hammer", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    RisingThreeMethods=(body[4]>0 and body[3]<0 and body[1]<0 and body>0 and longcandle[4] and longcandle and close[2]<close[3] and close[1]<close[2] and high[2]<high[3] and high[1]<high[2] and low[1]>low[4] and open>close[1] and close>high[4] and close>high[3] and close>high[2] and close>high[1])
    if TrendUp[5] AND RisingThreeMethods then
    Signal = 19
    //DrawText("Rising Three Methods", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BullishThreeLineStrike=(body[3]>0 and body[2]>0 and body[1]>0 and body<0 and longcandle[3] and longcandle[2] and longcandle[1] and close[2]>close[3] and close[1]>close[2] and open>close[1] and close<open[3])
    if TrendUp[4] AND BullishThreeLineStrike then
    Signal = 20
    //DrawText("Bullish Three Line Strike", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BullishMatHold=(body[4]>0 and body[3]<0 and body[1]<0 and body>0 and longcandle[4] and close[3]>close[4] and close[2]<close[3] and close[1]<close[2] and high[2]<high[3] and high[1]<high[2] and low[1]>low[4] and open>close[1] and close>high[4] and  close>high[3] and close>high[2] and close>high[1])
    if TrendUp[5] AND BullishMatHold then
    Signal = 21
    //DrawText("Bullish Mat Hold", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif


    //Bearish Signal

    EveningStar=(body[2]>0 AND body<0 and longcandle[2] and open[1]>close[2] and open<close[1] and ratio[1]<0.3 and abody[1]<abody[2] and abody[1]<abody and high[1]>high and high[1]>high[2] and low[1]>open[2] and low[1]>close)
    if TrendUp[3] AND EveningStar then
    Signal = 22
    //DrawText("Evening Star", barindex, high[1]+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex-1,high[1]) COLOURED(255,0,10)
    endif

    DarkCloudCover=(body[1]>0 and body<0 and longcandle[1] and longcandle and open>high[1] and close<myMiddle[1] and close>open[1])
    if TrendUp[2] AND DarkCloudCover then
    Signal = 23
    //DrawText("Dark Cloud Cover", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    AbandonedBabyTop=(body[2]>0 and body<0 and longcandle[2] and ratio[1]<0.3 and low[1]>high[2] and low[1]>high)
    if TrendUp[3] AND AbandonedBabyTop then
    Signal = 24
    //DrawText("Abandoned Baby Top", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    ThreeInsideDown=(body[2]>0 and body[1]<0 and body<0 and bearishharami[1] and close<close[1])
    if TrendUp[3] AND ThreeInsideDown then
    Signal = 25
    //DrawText("Three Inside Down", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    ThreeOutsideDown=(body[2]>0 and body[1]<0 and body<0 and bearishengulfing[1] and close<close[1])
    if TrendUp[3] AND ThreeOutsideDown then
    Signal = 26
    //DrawText("Three Outside Down", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    ThreeBlackCrows=(body[2]<0 and body[1]<0 and body<0 and longcandle[2] and longcandle[1] and longcandle and low[1]<low[2] and low<low[1] and close[1]<close[2] and close<close[1] and open[1]<open[2] and open[1]>close[2] and open<open[1] and open>close[1])
    if TrendUp[3] AND ThreeBlackCrows then
    Signal = 27
    //DrawText("Three Black Crows", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    UpsideGapTwoCrows=(body[2]>0 and body[1]<0 and body<0 and longcandle[2] and open[1]>close[2] and bodytop>bodytop[1] and bodybottom<bodybottom[1] and close>close[2])
    if TrendUp[3] AND UpsideGapTwoCrows then
    Signal = 28
    //DrawText("Upside Gap Two Crows", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    BearishHarami=(body[1]>0 and body<0 and longcandle[1] and bodybottom>bodybottom[1] and bodytop<bodytop[1])
    if TrendUp[2] AND BearishHarami then
    Signal = 29
    //DrawText("Bearish Harami", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    DescendingHawk=(body[1]>0 and body>0 and longcandle[1] and bodybottom>bodybottom[1] and bodytop<bodytop[1])
    if TrendUp[2] AND DescendingHawk then
    Signal = 30
    //DrawText("Descending Hawk", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    BearishEngulfing=(body[1]>0 and body<0 and bodybottom<bodybottom[1] and bodytop>bodytop[1] and longcandle)
    if TrendUp[2] AND BearishEngulfing then
    Signal = 31
    //DrawText("Bearish Engulfing", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,20)
    endif

    LastEngulfingTop=(body[1]<0 and body>0 and bodybottom<bodybottom[1] and bodytop>bodytop[1] and longcandle)
    if TrendUp[2] AND LastEngulfingTop then
    Signal = 32
    //DrawText("Last Engulfing Top", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,20)
    endif

    DragonflyDojiTop=(body[1]>0 and longcandle[1] and high>high[1] and shadowbottom>3*abody and shadowtop<shadowbottom/3)
    if TrendUp[2] AND DragonflyDojiTop then
    Signal = 33
    //DrawText("Dragonfly Doji", barindex, high+atr, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    GravestoneDojiTop=(body[1]>0 and longcandle[1] and high>high[1] and shadowtop>3*abody and shadowbottom<shadowtop/3)
    if TrendUp[2] AND GravestoneDojiTop then
    Signal = 34
    //DrawText("Gravestone Doji", barindex, high+atr, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    DojiStarTop=(body[1]>0 AND longcandle[1] AND high>high[1] AND open>close[1] AND ratio<0.3 AND range<0.3*range[1])
    if TrendUp[2] AND DojiStarTop then
    Signal = 35
    //DrawText("Doji", barindex, high+atr*0.75, Dialog, Standard, 12) COLOURED(R,G,B)
    endif

    BearishHaramiCross=(body[1]>0 and longcandle[1] and bodybottom>bodybottom[1] and bodytop<bodytop[1] and ratio<0.3 and range<0.3*range[1])
    if TrendUp[2] AND BearishHaramiCross then
    Signal = 36
    //DrawText("Bearish Harami Cross", barindex, high+atr*1.20, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    AdvanceBlock=(body[2]>0 and body[1]>0 and body>0 and high[2]<high[1] and high[1]<high and open[1]>bodybottom[2] and open[1]<bodytop[2] and open>bodybottom[1] and open<bodytop[1] and abody[1]<abody[2] and abody<abody[1])
    if TrendUp[3] AND AdvanceBlock then
    Signal = 37
    //DrawText("Advance Block", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    TwoCrows=(body[2]>0 and body[1]<0 and body<0 and longcandle[2] and open[1]>close[2] and close[1]>close[2] and open<bodytop[1] and open>bodybottom[1] and close<bodytop[2] and close>bodybottom[2])
    if TrendUp[3] AND TwoCrows then
    Signal = 38
    //DrawText("Two Crows", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    BearishBreakaway=(body[4]>0 and body[3]>0 and body<0 and open[3]>close[4] and close[2]>close[3] and close[1]>close[2] and longcandle and close>close[4] and close<open[3])
    if TrendUp[5] AND BearishBreakaway then
    Signal = 39
    //DrawText("Bearish Breakaway", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    ShootingStar=(body[1]>0 and longcandle[1] and high>high[1] and shadowtop>2*abody and shadowbottom<0.3*abody)
    if TrendUp[2] AND ShootingStar then
    Signal = 40
    //DrawText("Shooting Star", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    HangingMan=(body[1]>0 and longcandle[1] and high>high[1] and shadowbottom>2*abody and shadowtop<0.3*abody)
    if TrendUp[2] AND HangingMan then
    Signal = 41
    //DrawText("Hanging Man", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    FallingThreeMethods=(body[4]<0 and body[3]>0 and body[1]>0 and body<0 and longcandle[4] and longcandle and close[2]>close[3] and close[1]>close[2] and low[2]>low[3] and low[1]>low[2] and high[1]<high[4] and open<close[1] and close<low[4] and close<low[3] and close<low[2] and close<low[1])
    if TrendDown[5] AND FallingThreeMethods then
    Signal = 42
    //DrawText("Falling Three Methods", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    BearishThreeLineStrike=(body[3]<0 and body[2]<0 and body[1]<0 and body>0 and longcandle[3] and longcandle[2] and longcandle[1] and close[2]<close[3] and close[1]<close[2] and open<close[1] and close>open[3])
    if TrendDown[4] AND BearishThreeLineStrike then
    Signal = 43
    //DrawText("Bearish Three Line Strike", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    BearishMatHold=(body[4]<0 and body[3]>0 and body[1]>0 and body<0 and longcandle[4] and close[3]<close[4] and close[2]>close[3] and close[1]>close[2] and low[2]>low[3] and low[1]>low[2] and high[1]<high[4] and open<close[1] and close<low[4] and close<low[3] and close<low[2] and close<low[1])
    if TrendDown[5] AND BearishMatHold then
    Signal = 44
    //DrawText("Bearish Mat Hold", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    //Gaps
    GapUp=(low>high[1])
    GapDown=(high<low[1])
    if GapUp then
    Signal = 45
    //DrawText("w", barindex, (high[1]+low)/2, Dialog, Bold, 12) COLOURED(0,0,255)
    else
    if GapDown then
    Signal = 46
    //DrawText("w", barindex, (high+low[1])/2, Dialog, Bold, 12) COLOURED(255,0,255)
    endif
    endif

    //Steve Nison Candles
    BullSash=(body[1]<0 AND longcandle[1] AND body>0 AND longcandle AND open>close[1] AND open<open[1] AND close>open[1] AND shadowtop<0.1*abody)
    if BullSash then
    Signal = 47
    //DrawText("Bull Sash", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BullSeparatingLine=(body[1]<0 AND longcandle[1] AND body>0 AND longcandle AND open>=open[1] AND shadowtop<0.1*abody)
    if BullSeparatingLine then
    Signal = 48
    //DrawText("Bull Separating Line", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BullishCounterAttack=(body[1]<0 AND longcandle[1] AND body>0 AND longcandle AND close<=close[1])
    if TrendDown[2] AND BullishCounterAttack then
    Signal = 49
    //DrawText("Bullish Counter Attack", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BearSash=(body[1]>0 AND longcandle[1] AND body<0 AND longcandle AND open>open[1] AND open<close[1] AND close<open[1] AND shadowbottom<0.1*abody)
    if BearSash then
    Signal = 50
    //DrawText("Bear Sash", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    BearSeparatingLine=(body[1]>0 AND longcandle[1] AND body<0 AND longcandle AND open<=open[1] AND shadowbottom<0.1*abody)
    if BearSeparatingLine then
    Signal = 51
    //DrawText("Bear Separating Line", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    BearishCounterAttack=(body[1]>0 AND longcandle[1] AND body<0 AND longcandle AND close>=close[1])
    if TrendUp[2] AND BearishCounterAttack then
    Signal = 52
    //DrawText("Bearish Counter Attack", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    //Tweezers Top and Bottom
    TweezersTop=(body[1]>0 AND longcandle[1] AND body<=0 AND high=high[1])
    if TrendUp[2] AND TweezersTop then
    Signal = 53
    //DrawText("Tweezers Top", barindex, high+atr*1.20, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif

    TweezersBottom=(body[1]<0 AND longcandle[1] AND body>=0 AND low=low[1])
    if TrendDown[2] AND TweezersBottom then
    Signal = 54
    //DrawText("Tweezers Bottom", barindex, low-atr*1.20, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    //kicker candlestick patterns
    BullishKicking=(body[1]<0 AND longcandle[1] AND body>0 AND longcandle AND open>=open[1] AND shadowtop=0 AND shadowbottom=0)
    if BullishKicking then
    Signal = 55
    //DrawText("Bullish Kicking", barindex, low-atr*1.5, Dialog, Standard, 12) COLOURED(0,155,10)
    //DrawArrOWUP(barindex,low-atr) COLOURED(0,155,10)
    endif

    BearishKicking=(body[1]>0 AND longcandle[1] AND body<0 AND longcandle AND open<=open[1] AND shadowtop=0 AND shadowbottom=0)
    if BearishKicking then
    Signal = 56
    //DrawText("Bearish Kicking", barindex, high+atr*1.5, Dialog, Standard, 12) COLOURED(255,0,10)
    //DrawArrOWDOWN(barindex,high+atr) COLOURED(255,0,10)
    endif
    IF Signal = Opt THEN
    BUY       1 CONTRACT AT MARKET
    //SELLSHORT 1 CONTRACT AT MARKET
    SET STOP   %LOSS   1
    SET TARGET %PROFIT 2
    ENDIF
    Optimize-Patterns.itf
    #237946 quote
    robertogozzi
    Moderator
    Master

    I din’t read Ivan’s reply 🙂

    Iván González thanked this post
    #237949 quote
    MaoRai54
    Participant
    Master

    @ROBERTO

    there should be missing some lines related to OPT.

    please kindly check it.

    many thanks

    #237951 quote
    robertogozzi
    Moderator
    Master

    The ITF file is working like a charm.

    #237952 quote
    MaoRai54
    Participant
    Master

    @roberto

    sorry, i just copied it without downloading the itf

    robertogozzi thanked this post
    #237964 quote
    GraHal
    Participant
    Master

    Several of the ‘Signals’ show body < 0 (example below).

    How can a body be less than 0?

    Or is it that PRT uses one calc only for body – Close – Open (instead of abs(Close-Open) – and so with a red candle, Close – Open gives a negative number and so this is interpreted by PRT as < 0?

    Or do I need more coffee!? 😉

    BearSash=(body[1]>0 AND longcandle[1] AND body<0 AND longcandle AND open>open[1] AND open<close[1] AND close<open[1] AND shadowbottom<0.1*abody)
    if BearSash then Signal = 50

    EDIT / PS
    Signal 50 does get selected by the optimser so PRT does interpret body < 0 somehow?

    #237967 quote
    druby
    Participant
    New

    Only had a quick glance at code…

    On line 13, if body is bear, close-open will result in a negative value, as you noted, Therefore, is  body<0,  just a way of knowing its a bear candle by the fact, bear will be negative and bull will be positive.

    The BearSash statement is  a logic equation, if  body<0 was negative, this part results to true ‘1’. If it was positive it results in false ‘0’.

    All part of the statement need to be true for Bearish to be true, if body was bull, the statement would fail false.

    In this case the value of body appears not needed here just if its + or -.

    Maybe the variable names may be a bit misleading, body = candleDirection,  abody = candleSize,

    additionally line 15,  abody = abs(body) is just the size of the body if that info is required in a condition.

    GraHal thanked this post
    #237968 quote
    pableitor
    Participant
    Master

    I think there is a little bug: the AbandonedBabyBottom signal should be 3 , not 2. From there you have to add 1 to all the signal values. Otherwise, superjob from @lighthouse and @roberto !

    robertogozzi thanked this post
    #237969 quote
    GraHal
    Participant
    Master

    Well spotted!
    Easier to renumber the first 4 as 0,1,2,3 and enter 0 – 56 -1 in the optimiser?

    #237970 quote
    pableitor
    Participant
    Master



    Well spotted! Easier to renumber the first 4 as 0,1,2,3 and enter 0 – 56 -1 in the optimiser?

    even easier, just renumber AbandonedBabyBottom signal from 2 to 57




    robertogozzi thanked this post
Viewing 13 posts - 1 through 13 (of 13 total)
  • You must be logged in to reply to this topic.

Indicator to Optimizer


ProOrder: Automated Strategies & Backtesting

New Reply
Author
author-avatar
SnorreDK @snorredk Participant
Summary

This topic contains 12 replies,
has 7 voices, and was last updated by pableitor
1 year, 4 months ago.

Topic Details
Forum: ProOrder: Automated Strategies & Backtesting
Language: English
Started: 09/21/2024
Status: Active
Attachments: 2 files
Logo Logo
Loading...
