Help porting Donchian Trend Ribbon

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • 05/12/2023 at 11:10 AM #214596 quote
    Lavallette
    Participant
    Average

    Hello All,

    I’m interested in Donchian Trend Ribbon available in TradingView https://www.tradingview.com/script/PxLqmP8o-Donchian-Trend-Ribbon/ .

    I started porting it to ProRealTime but I’m struggling. This is my code so far. It could be improved with loops etc. but I wanted to keep it simple until I have something working.

    Len = 30

hh = Highest[Len]
ll = Lowest[Len]

maintrend = 0
IF close > hh[1] THEN
maintrend = 1
ELSIF close < ll[1] THEN
maintrend = -1
ENDIF

trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a = 1
ELSE
a = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a = -1
ELSE
a = -1
endif
endif
////////////////////
hh = Highest[Len-1]
ll = Lowest[Len-1]
trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a1=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a1 = 1
ELSE
a1 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a1 = -1
ELSE
a1 = -1
endif
endif
////////////////////
hh = Highest[Len-2]
ll = Lowest[Len-2]

trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a2=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a2 = 1
ELSE
a2 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a2 = -1
ELSE
a2 = -1
endif
endif
////////////////////
hh = Highest[Len-3]
ll = Lowest[Len-3]

trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a3=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a3 = 1
ELSE
a3 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a3 = -1
ELSE
a3 = -1
endif
endif
////////////////////
hh = Highest[Len-4]
ll = Lowest[Len-4]

trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a4=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a4 = 1
ELSE
a4 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a4 = -1
ELSE
a4 = -1
endif
endif
////////////////////
hh = Highest[Len-5]
ll = Lowest[Len-5]

trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a5=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a5 = 1
ELSE
a5 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a5 = -1
ELSE
a5 = -1
endif
endif
////////////////////
hh = Highest[Len-6]
ll = Lowest[Len-6]

trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a6=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a6 = 1
ELSE
a6 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a6 = -1
ELSE
a6 = -1
endif
endif
////////////////////
hh = Highest[Len-7]
ll = Lowest[Len-7]

trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a7=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a7 = 1
ELSE
a7 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a7 = -1
ELSE
a7 = -1
endif
endif
////////////////////
hh = Highest[Len-8]
ll = Lowest[Len-8]

//trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a8=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a8 = 1
ELSE
a8 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a8 = -1
ELSE
a8 = -1
endif
endif
////////////////////
hh = Highest[Len-9]
ll = Lowest[Len-9]

//trend = 0
IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
ENDIF

//a9=0
IF maintrend = 1 THEN
IF trend = 1 THEN
a9 = 1
ELSE
a9 = 1
endif
endif
IF maintrend = -1 THEN
IF trend = -1 THEN
a9 = -1
ELSE
a9 = -1
endif
endif

return a + a1 + a2 + a3 + a4 + a5 + a6 + a7 + a8 + a9
    As I’m not sure it is possible to achieve the same kind in graphical display (with all the plots) I wanted to replace it with a value, i.e. summing the different results. Any advice/help would be more than welcomed. Thanks. This is the TradinvView code
    // This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © LonesomeTheBlue

//@version=4
study("Donchian Trend Ribbon", precision = 0)
dlen = input(defval = 20, title = "Donchian Channel Period", minval = 10)

dchannel(len)=>
    float hh = highest(len)
    float ll = lowest(len)

    int trend = 0
    trend := close > hh[1] ? 1 : close < ll[1] ? -1 : nz(trend[1])

dchannelalt(len, maintrend)=>
    float hh = highest(len)
    float ll = lowest(len)

    int trend = 0
    trend := close > hh[1] ? 1 : close < ll[1] ? -1 : nz(trend[1])
    maintrend == 1  ? trend == 1  ? #00FF00ff :  #00FF009f :
     maintrend == -1 ? trend == -1 ? #FF0000ff :  #FF00009f :
     na

maintrend = dchannel(dlen)

plot( 5, color = dchannelalt(dlen - 0, maintrend), style = plot.style_columns, histbase= 0)
plot(10, color = dchannelalt(dlen - 1, maintrend), style = plot.style_columns, histbase= 5)
plot(15, color = dchannelalt(dlen - 2, maintrend), style = plot.style_columns, histbase=10)
plot(20, color = dchannelalt(dlen - 3, maintrend), style = plot.style_columns, histbase=15)
plot(25, color = dchannelalt(dlen - 4, maintrend), style = plot.style_columns, histbase=20)
plot(30, color = dchannelalt(dlen - 5, maintrend), style = plot.style_columns, histbase=25)
plot(35, color = dchannelalt(dlen - 6, maintrend), style = plot.style_columns, histbase=30)
plot(40, color = dchannelalt(dlen - 7, maintrend), style = plot.style_columns, histbase=35)
plot(45, color = dchannelalt(dlen - 8, maintrend), style = plot.style_columns, histbase=40)
plot(50, color = dchannelalt(dlen - 9, maintrend), style = plot.style_columns, histbase=45)

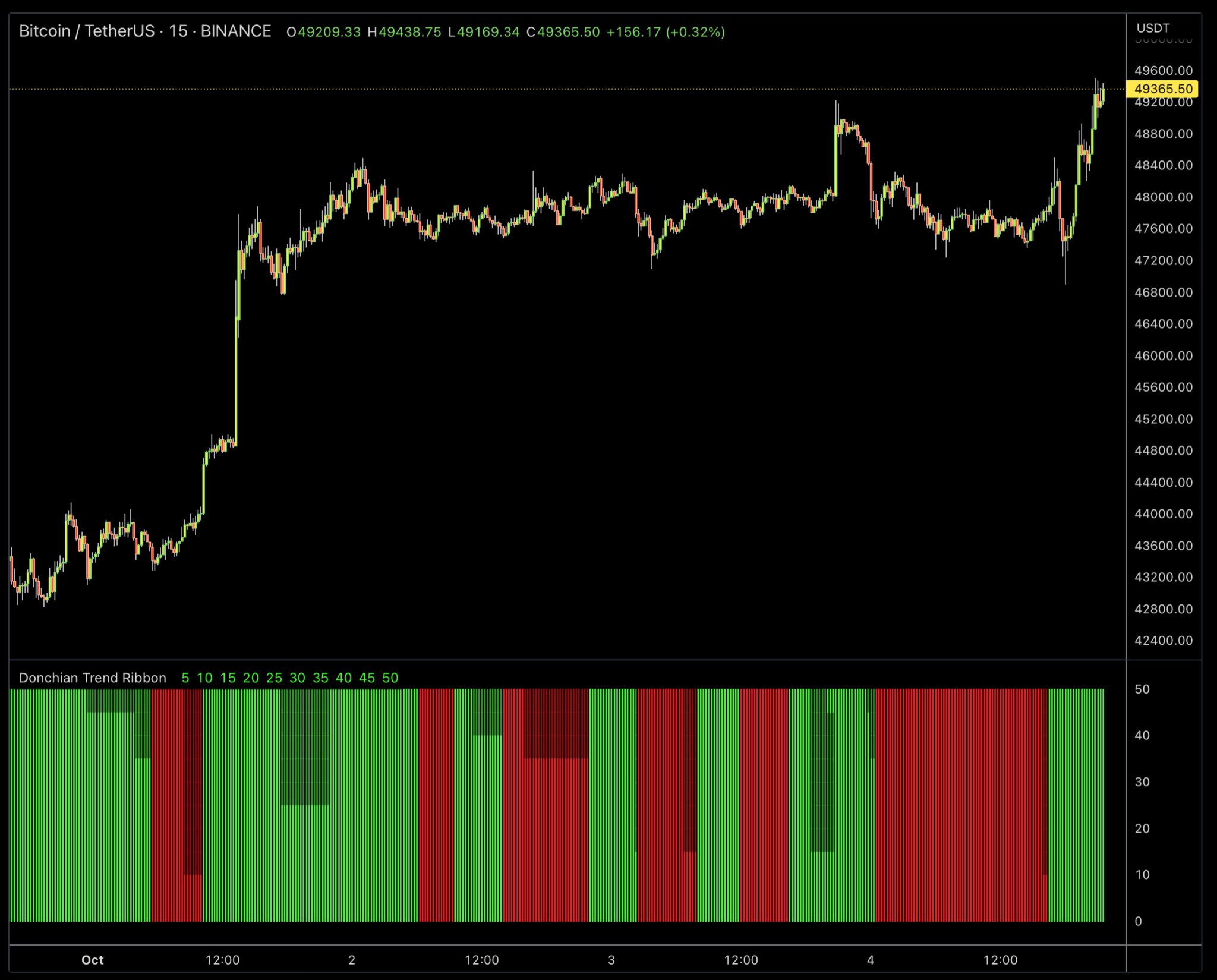

    Screenshot-2023-05-12-at-11.57.39.png Screenshot-2023-05-12-at-11.57.39.png
    05/13/2023 at 7:32 PM #214652 quote
    JS
    Participant
    Veteran

    Hi,

    Perhaps for inspiration…

    Once Len = 20

hh = Highest[Len](High)
ll = Lowest[Len](Low)

For i=0 to 9
IF close > hh[Len-i] THEN
DrawRectangle(BarIndex,i,BarIndex+1,i+1)Coloured(0,255,0) //BorderColor(0,255,0)
ElsIf close < ll[Len-i] then
DrawRectangle(BarIndex,i,BarIndex+1,i+1)Coloured(255,0,0) //BorderColor(255,0,0)
EndIf
Next
a=0
b=10
Return a Coloured(0,0,0), b Coloured(0,0,0)
    Lavallette thanked this post

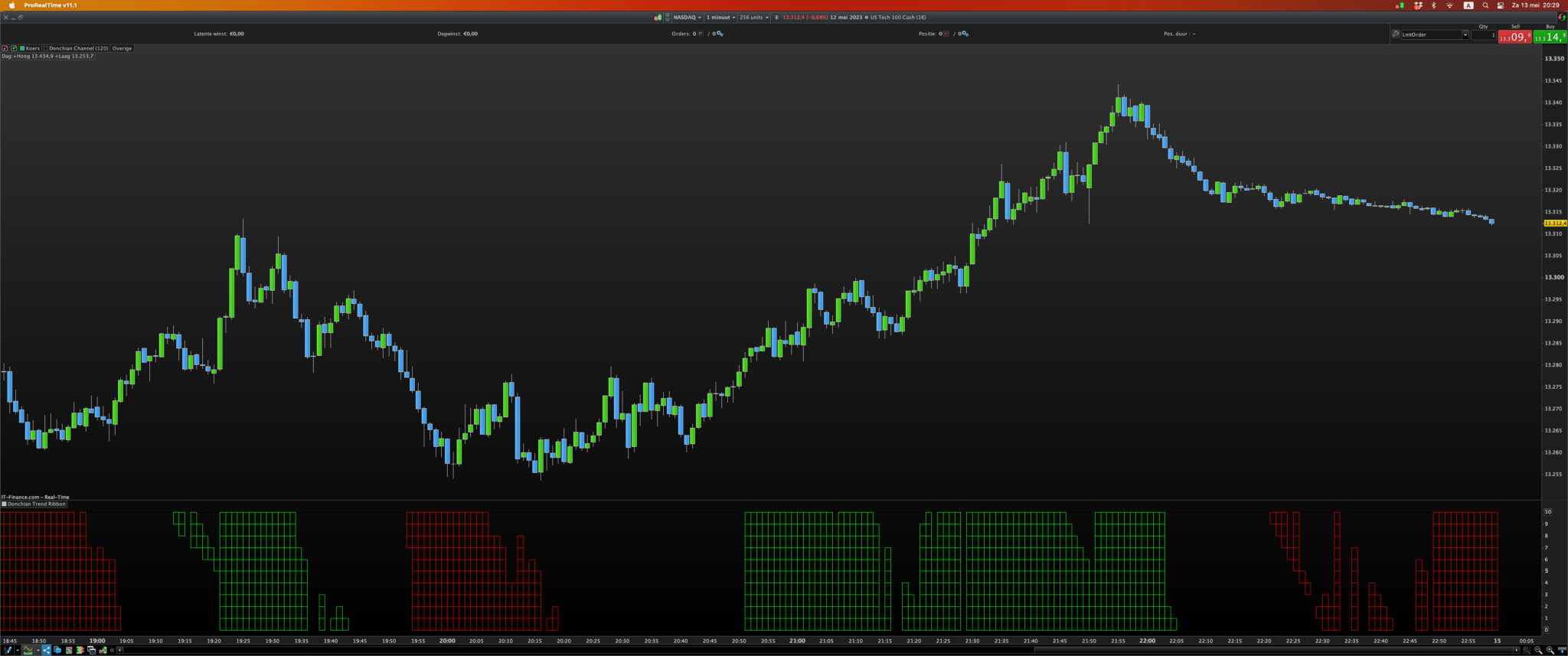

    Scherm­afbeelding-2023-05-13-om-20.29.47.png Scherm­afbeelding-2023-05-13-om-20.29.47.png
    05/17/2023 at 7:53 PM #214861 quote
    Lavallette
    Participant
    Average
    JS, Thanks a lot for your inspiration which helped a lot. I came up with the below code which is almost correct I believe.
    Len = 20

hh = Highest[Len](High)
ll = Lowest[Len](Low)

IF close > hh[1] THEN
trend = 1
ELSIF close < ll[1] THEN
trend = -1
else
trend = trend[1]
ENDIF

maintrend = trend


For i = 0 to 9
hh = Highest[Len-i](High)
ll = Lowest[Len-i](Low)

IF close > hh[Len-i] THEN
trend = 1
ElsIf close < ll[Len-i] then
trend = -1
else
trend = trend[1]
EndIf

if maintrend = 1 then
if trend = 1 then
DrawRectangle(BarIndex,i,BarIndex+1,i+1) Coloured("GREEN") BorderColor("GREEN")
else
DrawRectangle(BarIndex,i,BarIndex+1,i+1) Coloured("DARKGREEN") BorderColor("DARKGREEN")
endif
endif
if maintrend = -1 then
if trend = -1 then
DrawRectangle(BarIndex,i,BarIndex+1,i+1) Coloured("RED") BorderColor("RED")
else
DrawRectangle(BarIndex,i,BarIndex+1,i+1) Coloured("DARKRED") BorderColor("DARKRED")
endif
endif
Next

Return 0 Coloured(0,0,0,0), 10 Coloured(0,0,0,0)
    I’m however still very surprised with the differences between PRT and TV. See screen capture as an example but I get more or less the same kind of discrepancies with all the instruments. Does anybody have an idea what could be the reason? Thanks. PS: If somebody confirm the code is 100% correct I could publish it to the Library but I don’t want to do it if it contains errors.

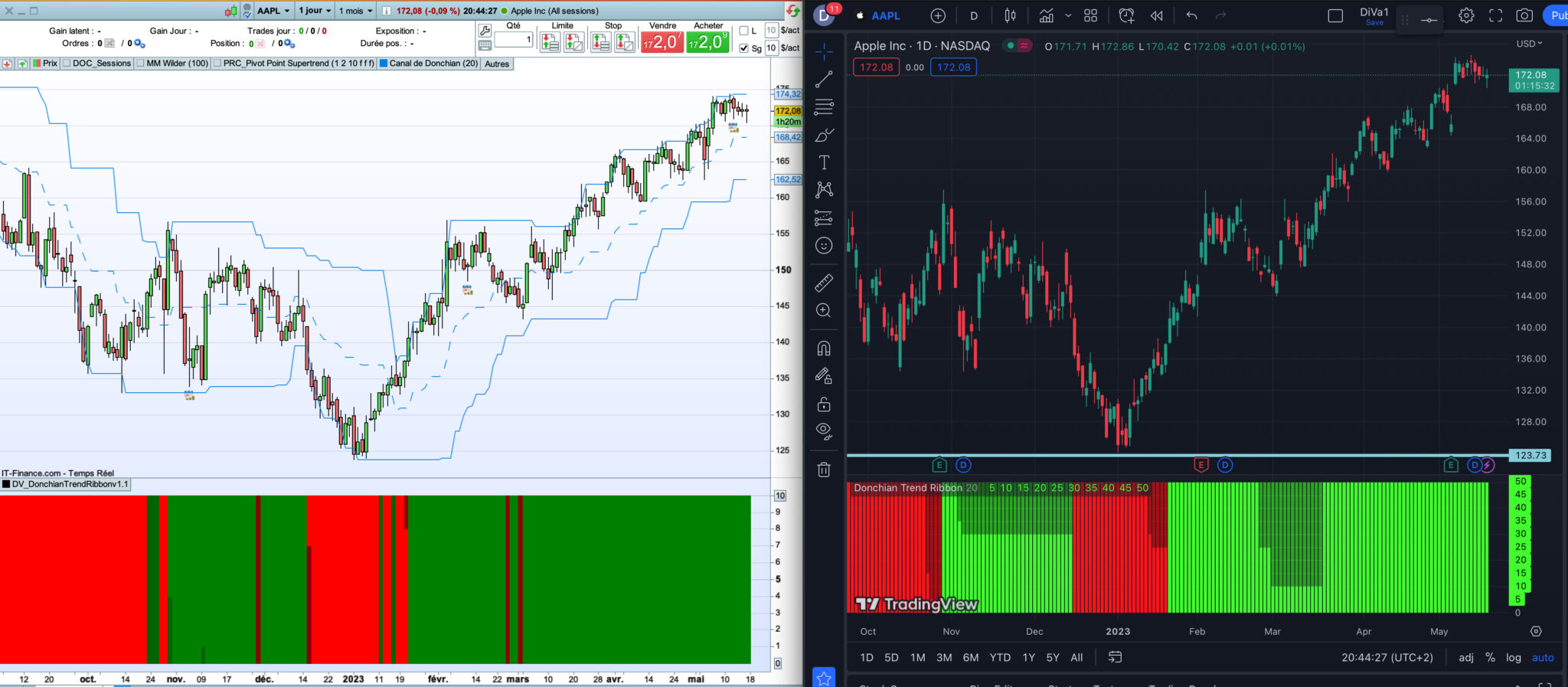

    Screenshot-2023-05-17-at-20.44.28.jpg Screenshot-2023-05-17-at-20.44.28.jpg
    05/20/2023 at 2:34 PM #214935 quote
    Lavallette
    Participant
    Average
    I believe I’m almost there with the latest version below but there is still a problem as for the same bar index the colors never change!!! Could anybody spot where the problem is? See image for a comparaison between the below code and TV. Thanks
    Len = 20

if barindex > Len then
hh = HIGHEST[Len](HIGH)
ll = LOWEST[Len] (LOW)

maintrend = 0
if close > hh[1] then
maintrend = 1
elsif close < ll[1] then
maintrend = -1
else
maintrend = maintrend[1]
endif

yaxis = 0
for i = 20 downto 11 do
hhh = HIGHEST[i](HIGH)
lll = LOWEST[i] (LOW)

trend = 0
if close > hhh[1] then
trend = 1
elsif close < lll[1] then
trend = -1
else
trend = trend[1]
endIf

if maintrend = 1 then
if trend = 1 then
DrawRectangle(BarIndex,yaxis,BarIndex+1,yaxis+1) Coloured("GREEN") BorderColor("GREEN")
elsif trend = -1 then
DrawRectangle(BarIndex,yaxis,BarIndex+1,yaxis+1) Coloured("DARKGREEN") BorderColor("DARKGREEN")
endif
elsif maintrend = -1 then
if trend = -1 then
DrawRectangle(BarIndex,yaxis,BarIndex+1,yaxis+1) Coloured("RED") BorderColor("RED")
elsif trend = 1 then
DrawRectangle(BarIndex,yaxis,BarIndex+1,yaxis+1) Coloured("DARKRED") BorderColor("DARKRED")
endif
endif
yaxis = yaxis + 1
next
endif

Return 0 Coloured(0,0,0,0), 10 Coloured(0,0,0,0)
    Screenshot-2023-05-20-at-15.30.49.jpg Screenshot-2023-05-20-at-15.30.49.jpg
    05/20/2023 at 3:59 PM #214941 quote
    JS
    Participant
    Veteran

    Hi @Lavallette

    In the TV code, each bar is divided into 10 pieces:

    plot( 5, color = dchannelalt(dlen – 0, maintrend), style = plot.style_columns, histbase= 0)

    plot(10, color = dchannelalt(dlen – 1, maintrend), style = plot.style_columns, histbase= 5)

    plot(15, color = dchannelalt(dlen – 2, maintrend), style = plot.style_columns, histbase=10)

    plot(20, color = dchannelalt(dlen – 3, maintrend), style = plot.style_columns, histbase=15)

    plot(25, color = dchannelalt(dlen – 4, maintrend), style = plot.style_columns, histbase=20)

    plot(30, color = dchannelalt(dlen – 5, maintrend), style = plot.style_columns, histbase=25)

    plot(35, color = dchannelalt(dlen – 6, maintrend), style = plot.style_columns, histbase=30)

    plot(40, color = dchannelalt(dlen – 7, maintrend), style = plot.style_columns, histbase=35)

    plot(45, color = dchannelalt(dlen – 8, maintrend), style = plot.style_columns, histbase=40)

    plot(50, color = dchannelalt(dlen – 9, maintrend), style = plot.style_columns, histbase=45)

    Thus, each column (Bar) in the indicator consists of 10 pieces of 5 high (total 50 high). These pieces also have a different color so that you can see a difference per column (Bar)…

    In the PRT code, 1 rectangle is drawn per bar with 1 color and therefore you see no difference in color in the same bar index…

    What you can do is also make a subdivision (10 pieces) and draw a rectangle with a certain color ten times per bar…

    (Total height column is 50 divided into 10 pieces of 5)
    Lavallette thanked this post
    05/20/2023 at 5:20 PM #214947 quote
    Lavallette
    Participant
    Average
    Thanks. Is this not what my code does? 10 rectangles are drawn per bar of size 1 by 1. Vertical y-axis goes from 0 to 10. 4 Colors are possible, Green , DarkGreen, Red or DarkRed. This is visible on the capture below. But why are some rectangles on the same x-axis not of 2 different colours?!?! Something is obviously wrong but I cannot find what! Still scratching my head.

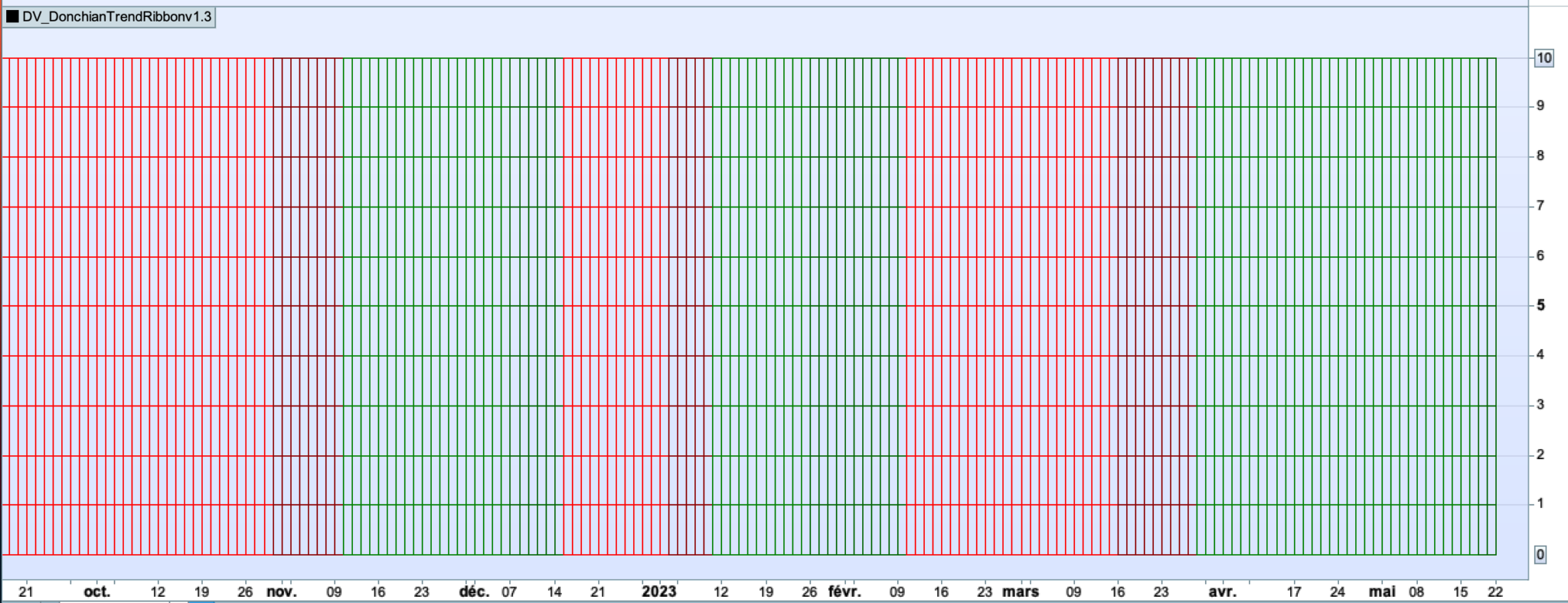

    Screenshot-2023-05-20-at-18.15.58.png Screenshot-2023-05-20-at-18.15.58.png
    05/20/2023 at 8:14 PM #214950 quote
    JS
    Participant
    Veteran

    Hi @Lavallette

    It’s starting to look more and more like it… 😉

    Len = 20

if barindex > Len then
hh = (HIGHEST[Len](HIGH))[1]
ll = (LOWEST[Len] (LOW))[1]

maintrend = 0
if close > hh then
maintrend = 1
elsif close < ll then
maintrend = -1
else
maintrend = maintrend[1]
endif

yaxis = 0
for i = 20 downto 11 do
hhh = (HIGHEST[i](HIGH))[1]
lll = (LOWEST[i] (LOW))[1]

trend = 0
if close > hhh then
trend = 1
elsif close < lll then
trend = -1
else
trend = trend[1]
endIf

if maintrend = 1 then
if trend = 1 then
DrawRectangle(BarIndex,yaxis,BarIndex+1,yaxis+1) Coloured("GREEN") BorderColor("GREEN")
elsif trend = -1 then
DrawRectangle(BarIndex,yaxis,BarIndex+1,yaxis+1) Coloured("DARKGREEN") BorderColor("DARKGREEN")
endif
elsif maintrend = -1 then
if trend = -1 then
DrawRectangle(BarIndex,yaxis,BarIndex+1,yaxis+1) Coloured("RED") BorderColor("RED")
elsif trend = 1 then
DrawRectangle(BarIndex,yaxis,BarIndex+1,yaxis+1) Coloured("DARKRED") BorderColor("DARKRED")
endif
endif
yaxis = yaxis + 1
next
endif

Return 0 Coloured(0,0,0,0), 10 Coloured(0,0,0,0)

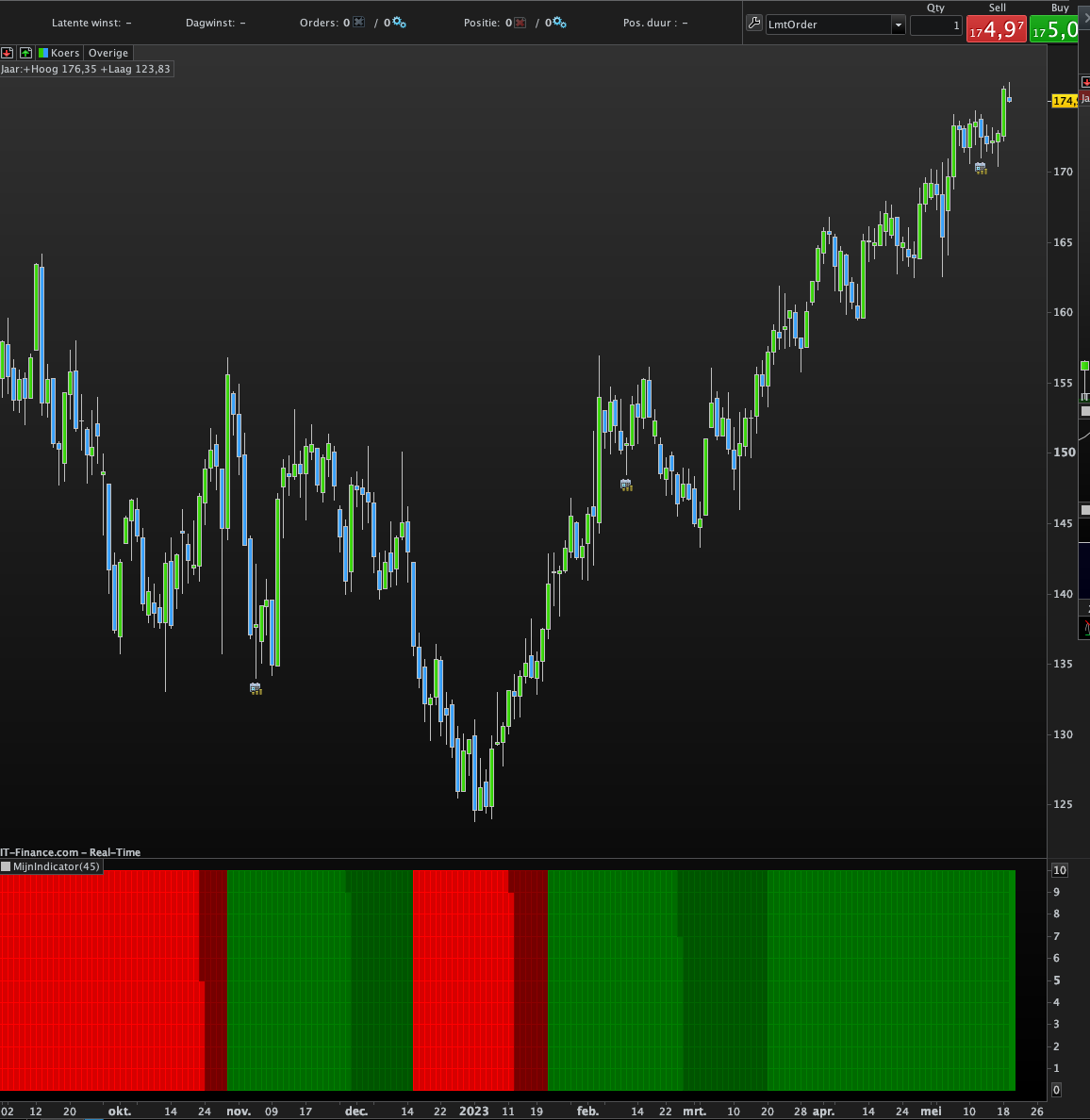

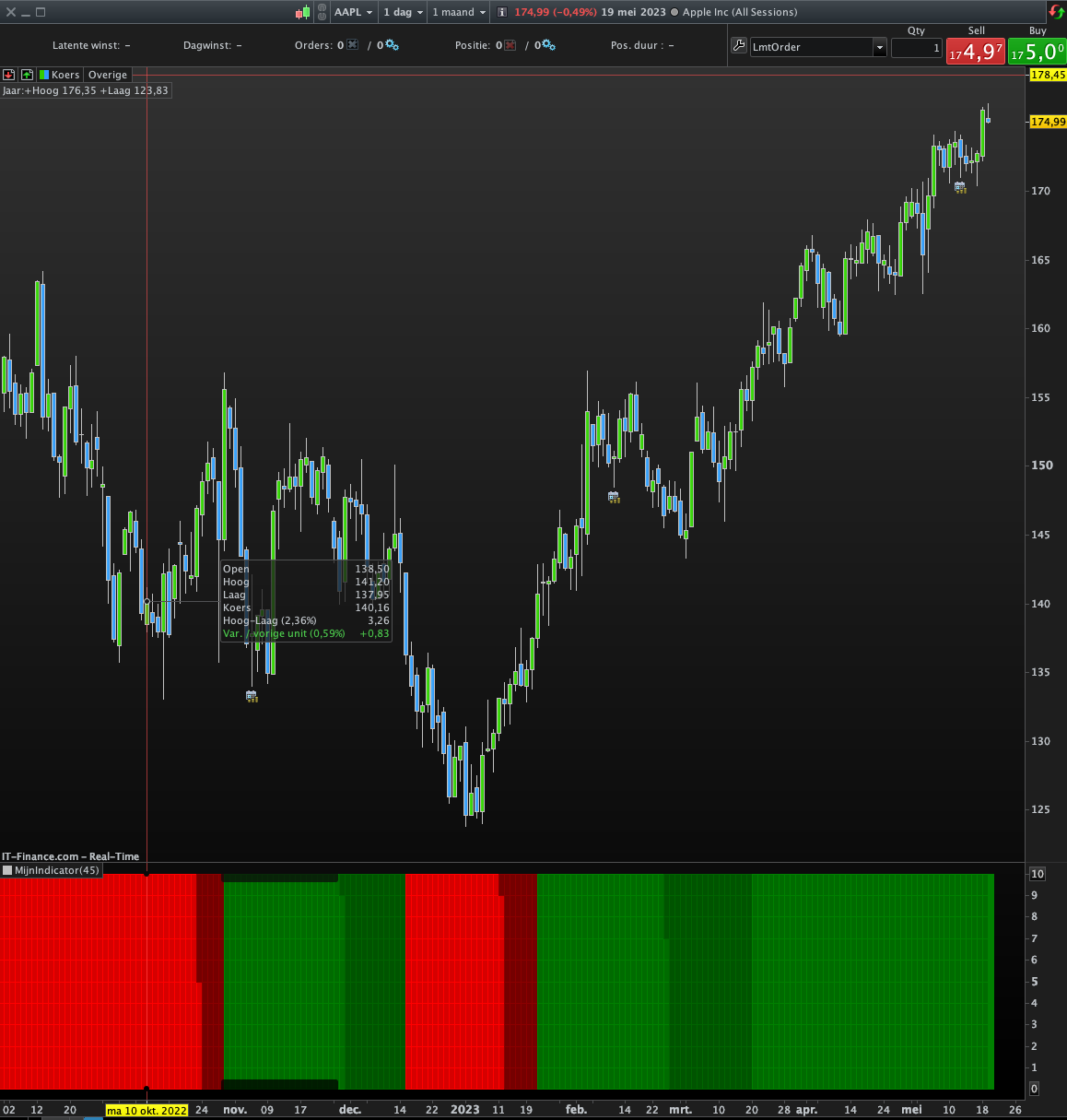

    Scherm­afbeelding-2023-05-20-om-21.06.06.png Scherm­afbeelding-2023-05-20-om-21.06.06.png Scherm­afbeelding-2023-05-20-om-21.15.55.png Scherm­afbeelding-2023-05-20-om-21.15.55.png
    05/21/2023 at 10:22 AM #214972 quote
    Lavallette
    Participant
    Average
    @SJ Thanks again for your time. I don’t understand why
    hhh = (HIGHEST[i](HIGH))[1]
    is different from
    hhh = HIGHEST[i](HIGH)
    and then referencing it with
    hhh[1]
    I would have thought it would be the same. Could this be a bug? Your latest version gives better result but still as you can see not completely correct.https://www.tradingview.com/script/PxLqmP8o-Donchian-Trend-Ribbon/ Could it be that way the “for loop” manages the hhh and lll series? In case you still want to spend some time on this thread you can test it as well from https://www.tradingview.com/script/PxLqmP8o-Donchian-Trend-Ribbon/ .   Anyway thanks a lot.

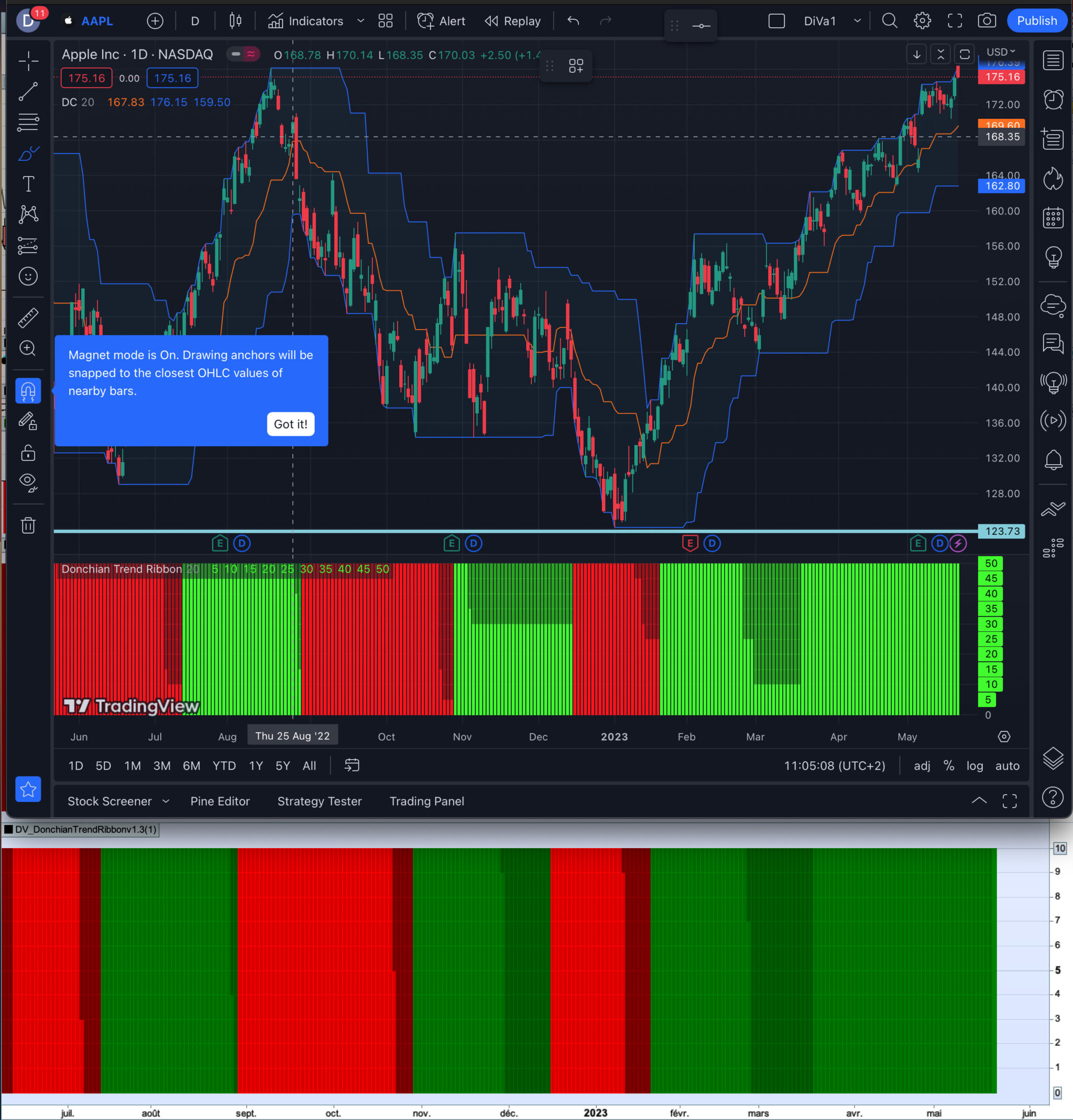

    Screenshot-2023-05-21-at-11.05.09.jpg Screenshot-2023-05-21-at-11.05.09.jpg
  • Author
    Posts
Viewing 8 posts - 1 through 8 (of 8 total)
  • You must be logged in to reply to this topic.

Help porting Donchian Trend Ribbon


ProBuilder: Indicators & Custom Tools

New Reply
Author
author-avatar
Lavallette @lavallette Participant
Summary

This topic contains 7 replies,
has 2 voices, and was last updated by Lavallette
2 years, 10 months ago.

Topic Details
Forum: ProBuilder: Indicators & Custom Tools
Language: English
Started: 05/12/2023
Status: Active
Attachments: 8 files
Logo Logo
Loading...
Do you like cookies? 🍪 We use cookies to ensure you get the best experience on our website. (Learn more)
©2026 ProRealCode - Trading & Coding with ProRealTime™
