Future Kumo Cloud Readings

deletedaccount14122020 · 2017-03-17T19:20:07+00:00

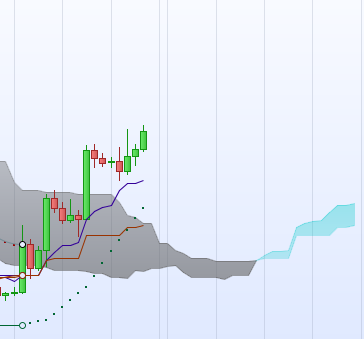

Hello, I would be grateful if anyone knows if the following is possible: When you incorporate the standard Ichimoku Kinko Hyo indicator which ProRealTime supply onto a chart the two elements of the Kumo cloud (Senkou Span A and Senkou Span B) are shown projected 26 periods forward. Are the projected values of the two lines available at all. Many thanks

Viewing 3 posts - 1 through 3 (of 3 total)

Author

Posts
03/17/2017 at 8:20 PM #28981 quote

deletedaccount14122020
Participant

New

Hello,

I would be grateful if anyone knows if the following is possible:

When you incorporate the standard Ichimoku Kinko Hyo indicator which ProRealTime supply onto a chart the two elements of the Kumo cloud (Senkou Span A and Senkou Span B) are shown projected 26 periods forward. Are the projected values of the two lines available at all.

Many thanks


03/20/2017 at 8:20 AM #29110 quote
Nicolas
Keymaster

Legend
You can get these values with the Ichimoku code iself:
```
p1 = 9
p2 = 26
p3 = 52

REM Tenkan-Sen = (Highest High + Lowest Low) / 2, for the past 9 days
Upper1 = HIGHEST[p1](HIGH[1])
Lower1 = LOWEST[p1](LOW[1])
Tenkan = (Upper1 + Lower1) / 2

REM Kijun-Sen = (Highest High + Lowest Low) / 2, for the past 26 days
Upper2 = HIGHEST[p2](HIGH[1])
Lower2 = LOWEST[p2](LOW[1])
Kijun = (Upper2 + Lower2) / 2

REM Senkou Span A = (Tenkan + Kijun) / 2, plotted 26 days ahead of today
SpanA = (Tenkan + Kijun) / 2

REM Senkou Span B = (Highest High + Lowest Low) / 2, for the past 52 days, plotted 26 days ahead of today
SpanB = ((HIGHEST[p3](HIGH)) + LOWEST[p3](LOW)) / 2

Return Kijun AS "Kijun Line", Tenkan AS "Tenkan Line", SpanA AS"Span A", SpanB AS"Span B"
```
These lines are the ones calculated now, but plotted 26 periods ahead from now.
03/20/2017 at 10:17 AM #29128 quote

deletedaccount14122020
Participant

New

Thanks very much Nicolas. Really appreciate your help.
