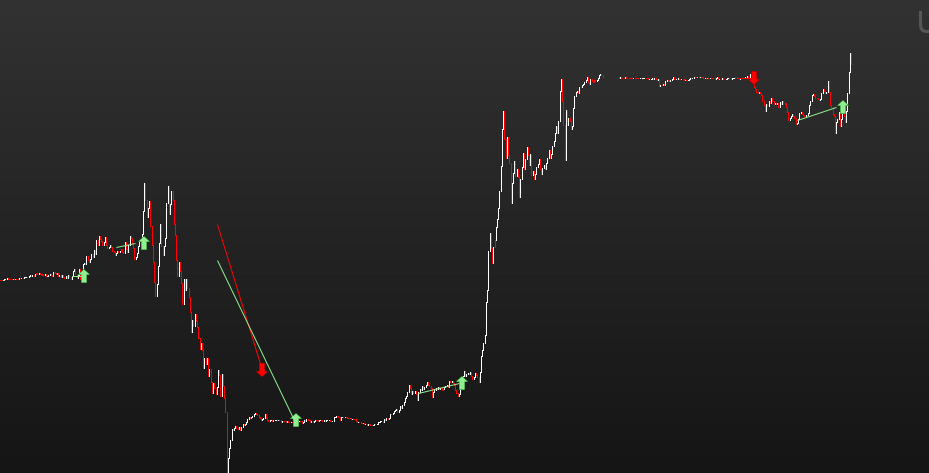

Vous avez raison, ils manquaient des coordonnées ! Désormais les segments et les flèches s’affichent de nouveaux, mais un autre problème survient… Ils s’affichent n’importe comment…!!!
//"Absorption-Epuisement PriceCumDelta" Cycle via MACD
//////////////////////////////////////////////////////////////////////////////////////////////////////
//--------------------------------------------------------//
//"Cumulative Delta-CVD" (by Nicolas/ProRealcode)
//--------------------------------------------------------//
//U1
if(close>=open and (close-open+2*(high-close)+2*(open-low)))>0 then
U1= volume*(high-low)/(close-open+2*(high-close)+2*(open-low))
else
U1=0.0
endif
//D1
if(close<open and (open-close+2*(high-open)+2*(close-low)))>0 then
D1 = volume*(high-low)/(open-close+2*(high-open)+2*(close-low))
else
D1=0.0
endif
//--------------------------------------------------------//
//Delta
if(close>=open) then
Delta= U1
else
Delta= -D1
endif
//--------------------------------------------------------//
if barindex>1 then
cumDelta=(cumDelta[1])+Delta
if close>=open then
hi= cumDelta
r=255
g=255
b=255
else
hi =cumDelta[1]
endif
if close<=open then
lo= cumDelta
r=255
g=0
b=0
else
lo=cumDelta[1]
endif
drawcandle(cumDelta[1], hi, lo, cumDelta) coloured(r,g,b)
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
//-----MACD-----------------------------------------------//
fastema=average[12,1](close)
slowema=average[26,1](close)
mymacd=fastema-slowema
signal=average[9,1](mymacd)
histo=mymacd-signal
//////////////////////////////////////////////////////////////////////////////////////////////////////
//Signal = 0
//////////////////////////////////////////////////////////////////////////////////////////////////////
//Epuisemnts vi Cycle Macd
//////////////////////////////////////////////////////////////////////////////////////////////////////
if histo crosses under 0 then //Bloc CVD Epuisement Up via Macd
$priceClose[n+1]=close
$histoClose[n+1]=histo
$cumdeltaClose[n+1]=cumdelta
$cumdeltaLow[n+1]=cumdelta
$barprice[n+1]=barindex
$barhisto[n+1]=barindex
$bardelta[n+1]=barindex
n=n+1
elsif histo < 0 then
if close < $priceClose[n] then
$priceClose[n]=close
$barprice[n]=barindex
endif
if histo < $histoClose[n] then
$histoClose[n]=histo
$barhisto[n]=barindex
endif
if cumdelta < $cumdeltaClose[n] then
$cumdeltaClose[n]=cumdelta
$bardelta[n]=barindex
endif
endif
//--------------------------------------------------------//
if n>1 then
//----- Epuisement Up-------------------------------------------------//
EpuisementCumdeltaUp = $cumdeltaClose[n]>$cumdeltaClose[n-1] and $priceClose[n]<$priceClose[n-1]
//-----Divergence CumDelta & Price------------------------------------//
if histo crosses over 0 and EpuisementCumdeltaUp then
drawarrowup(barindex,$cumdeltalow[n])coloured("lightgreen")
drawsegment($bardelta[n-1],$cumdeltaLow[n-1],$bardelta[n],$cumdeltaLow[n])coloured("lightgreen")
//Signal = 1
//-----Divergence Histogram-Price---------------------------------//
elsif histo crosses over 0 and EpuisementCumdeltaUp then
drawarrowup(barindex,$cumdeltalow[n])coloured("yellow")
drawsegment($bardelta[n-1],$cumdeltaLow[n-1],$bardelta[n],$cumdeltaLow[n])coloured("yellow")
endif
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
if histo crosses over 0 then //Bloc CVD Epuisement Down via Macd
$priceClose[m+1]=close
$histoClose[m+1]=histo
$cumdeltaClose[m+1]=cumdelta
$cumdeltaHigh[m+1]=cumdelta
$barprice[m+1]=barindex
$barhisto[m+1]=barindex
$bardelta[m+1]=barindex
m=m+1
elsif histo > 0 then
if close > $priceClose[m] then
$priceClose[m]=close
$barprice[m]=barindex
endif
if histo > $histoClose[m] then
$histoClose[m]=histo
$barhisto[m]=barindex
endif
if cumdelta > $cumdeltaClose[m] then
$cumdeltaClose[m]=cumdelta
$bardelta[m]=barindex
endif
endif
//--------------------------------------------------------//
if m>1 then
//----- Epuisement Down------------------------------------------------//
EpuisementCumdeltaDown = $cumdeltaClose[m]<$cumdeltaClose[m-1] and $priceClose[m]>$priceClose[m-1]
//-----Divergence CumDelta & Price------------------------------------//
if histo crosses under 0 and EpuisementCumdeltaDown then
drawarrowdown(barindex,$cumdeltahigh[m])coloured("red")
drawsegment($bardelta[m-1],$cumdeltahigh[m-1],$bardelta[m],$cumdeltahigh[m])coloured("red")
//Signal = -1
//-----Divergence Histogram-Price---------------------------------//
elsif histo crosses under 0 and EpuisementCumdeltaDown then
drawarrowdown(barindex,$cumdeltahigh[m])coloured("yellow")
drawsegment($bardelta[m-1],$cumdeltahigh[m-1],$bardelta[m],$cumdeltahigh[m])coloured("yellow")
endif
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
if histo crosses under histo[1] then //Bloc CVD Epuisement Up via Macd[12,26,9](close)(Macd Ligne moins Signal)
$priceClose[p+1]=close
$histoClose[p+1]=histo
$cumdeltaClose[p+1]=cumdelta
$cumdeltaLow[p+1]=cumdelta
$barprice[p+1]=barindex
$barhisto[p+1]=barindex
$bardelta[p+1]=barindex
p=p+1
elsif histo < histo[1] then
if close < $priceClose[p] then
$priceClose[p]=close
$barprice[p]=barindex
endif
if histo < $histoClose[p] then
$histoClose[p]=histo
$barhisto[p]=barindex
endif
if cumdelta < $cumdeltaClose[p] then
$cumdeltaClose[p]=cumdelta
$bardelta[p]=barindex
endif
endif
//--------------------------------------------------------//
if p>1 then
//----- Epuisement Up-------------------------------------------------//
EpuisementCumdeltaUpM = $cumdeltaClose[p]>$cumdeltaClose[p-1] and $priceClose[p]<$priceClose[p-1]
//-----Divergence CumDelta & Price------------------------------------//
if histo crosses over histo[1] and EpuisementCumdeltaUpM then
drawarrowup(barindex,$cumdeltalow[p])coloured("lightgreen")
drawsegment($bardelta[p-1],$cumdeltaLow[p-1],$bardelta[p],$cumdeltaLow[p])coloured("lightgreen")
//Signal = 1
//-----Divergence Histogram-Price---------------------------------//
elsif histo crosses over histo[1] and EpuisementCumdeltaUpM then
drawarrowup(barindex,$cumdeltalow[p])coloured("yellow")
drawsegment($bardelta[p-1],$cumdeltaLow[p-1],$bardelta[p],$cumdeltaLow[p])coloured("yellow")
endif
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
if histo crosses over histo[1] then //Bloc CVD Epuisement Down via Macd[12,26,9](close)(Macd Ligne moins Signal)
$priceClose[q+1]=close
$histoClose[q+1]=histo
$cumdeltaClose[q+1]=cumdelta
$cumdeltaHigh[q+1]=cumdelta
$barprice[q+1]=barindex
$barhisto[q+1]=barindex
$bardelta[q+1]=barindex
q=q+1
elsif histo > histo[1] then
if close > $priceClose[q] then
$priceClose[q]=close
$barprice[q]=barindex
endif
if histo > $histoClose[q] then
$histoClose[q]=histo
$barhisto[q]=barindex
endif
if cumdelta > $cumdeltaClose[q] then
$cumdeltaClose[q]=cumdelta
$bardelta[q]=barindex
endif
endif
//--------------------------------------------------------//
if q>1 then
//----- Epuisement Down------------------------------------------------//
EpuisementCumdeltaDownM = $cumdeltaClose[q]<$cumdeltaClose[q-1] and $priceClose[q]>$priceClose[q-1]
//-----Divergence CumDelta & Price------------------------------------//
if histo crosses under histo[1] and EpuisementCumdeltaDownM then
drawarrowdown(barindex,$cumdeltahigh[q])coloured("red")
drawsegment($bardelta[q-1],$cumdeltahigh[q-1],$bardelta[q],$cumdeltahigh[q])coloured("red")
//Signal = -1
//-----Divergence Histogram-Price---------------------------------//
elsif histo crosses under histo[1] and EpuisementCumdeltaDownM then
drawarrowdown(barindex,$cumdeltahigh[q])coloured("yellow")
drawsegment($bardelta[q-1],$cumdeltahigh[q-1],$bardelta[q],$cumdeltahigh[q])coloured("yellow")
endif
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
//Absorptions via Cycle Macd
//////////////////////////////////////////////////////////////////////////////////////////////////////
if histo crosses under 0 then //Bloc CVD Absorption Up via Macd
$priceClose[a+1]=close
$histoClose[a+1]=histo
$cumdeltaClose[a+1]=cumdelta
$cumdeltaLow[a+1]=cumdelta
$barprice[a+1]=barindex
$barhisto[a+1]=barindex
$bardelta[a+1]=barindex
a=a+1
elsif histo < 0 then
if close < $priceClose[a] then
$priceClose[a]=close
$barprice[a]=barindex
endif
if histo < $histoClose[a] then
$histoClose[a]=histo
$barhisto[a]=barindex
endif
if cumdelta < $cumdeltaClose[a] then
$cumdeltaClose[a]=cumdelta
$bardelta[a]=barindex
endif
endif
//--------------------------------------------------------//
if a>1 then
//----- Absorption Up-------------------------------------------------//
AbsorptionCumdeltaUp = $cumdeltaClose[a]<$cumdeltaClose[a-1] and $priceClose[a]>$priceClose[a-1]
//-----Divergence CumDelta & Price------------------------------------//
if histo crosses over 0 and AbsorptionCumdeltaUp then
drawarrowup(barindex,$cumdeltalow[a])coloured("lightgreen")
drawsegment($bardelta[a-1],$cumdeltaLow[a-1],$bardelta[a],$cumdeltaLow[a])coloured("lightgreen")
//Signal = 1
//-----Divergence Histogram-Price---------------------------------//
elsif histo crosses over 0 and AbsorptionCumdeltaUp then
drawarrowup(barindex,$cumdeltalow[a])coloured("yellow")
drawsegment($bardelta[a-1],$cumdeltaLow[a-1],$bardelta[a],$cumdeltaLow[a])coloured("yellow")
endif
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
if histo crosses over 0 then //Bloc CVD Absorption Down via Macd
$priceClose[b+1]=close
$histoClose[b+1]=histo
$cumdeltaClose[b+1]=cumdelta
$cumdeltaHigh[b+1]=cumdelta
$barprice[b+1]=barindex
$barhisto[b+1]=barindex
$bardelta[b+1]=barindex
b=b+1
elsif histo > 0 then
if close > $priceClose[b] then
$priceClose[b]=close
$barprice[b]=barindex
endif
if histo > $histoClose[b] then
$histoClose[b]=histo
$barhisto[b]=barindex
endif
if cumdelta > $cumdeltaClose[b] then
$cumdeltaClose[b]=cumdelta
$bardelta[b]=barindex
endif
endif
//--------------------------------------------------------//
if b>1 then
//----- Absorption Down------------------------------------------------//
AbsorptionCumdeltaDown = $cumdeltaClose[b]>$cumdeltaClose[b-1] and $priceClose[b]<$priceClose[b-1]
//-----Divergence CumDelta & Price------------------------------------//
if histo crosses under 0 and AbsorptionCumdeltaDown then
drawarrowdown(barindex,$cumdeltahigh[b])coloured("red")
drawsegment($bardelta[b-1],$cumdeltahigh[b-1],$bardelta[b],$cumdeltahigh[b])coloured("red")
//Signal = -1
//-----Divergence Histogram-Price---------------------------------//
elsif histo crosses under 0 and AbsorptionCumdeltaDown then
drawarrowdown(barindex,$cumdeltahigh[b])coloured("yellow")
drawsegment($bardelta[b-1],$cumdeltahigh[b-1],$bardelta[b],$cumdeltahigh[b])coloured("yellow")
endif
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
if histo crosses under histo[1] then //Bloc CVD Absorption Up via Macd[12,26,9](close)(Macd Ligne moins Signal)
$priceClose[c+1]=close
$histoClose[c+1]=histo
$cumdeltaClose[c+1]=cumdelta
$cumdeltaLow[c+1]=cumdelta
$barprice[c+1]=barindex
$barhisto[c+1]=barindex
$bardelta[c+1]=barindex
c=c+1
elsif histo < histo[1] then
if close < $priceClose[c] then
$priceClose[c]=close
$barprice[c]=barindex
endif
if histo < $histoClose[c] then
$histoClose[c]=histo
$barhisto[c]=barindex
endif
if cumdelta < $cumdeltaClose[c] then
$cumdeltaClose[c]=cumdelta
$bardelta[c]=barindex
endif
endif
//--------------------------------------------------------//
if c>1 then
//----- Absorption Up-------------------------------------------------//
AbsorptionCumdeltaUpM = $cumdeltaClose[c]<$cumdeltaClose[c-1] and $priceClose[c]>$priceClose[c-1]
//-----Divergence CumDelta & Price------------------------------------//
if histo crosses over histo[1] and AbsorptionCumdeltaUpM then
drawarrowup(barindex,$cumdeltalow[c])coloured("lightgreen")
drawsegment($bardelta[c-1],$cumdeltaLow[c-1],$bardelta[c],$cumdeltaLow[c])coloured("lightgreen")
//Signal = 1
//-----Divergence Histogram-Price---------------------------------//
elsif histo crosses over histo[1] and AbsorptionCumdeltaUpM then
drawarrowup(barindex,$cumdeltalow[c])coloured("yellow")
drawsegment($bardelta[c-1],$cumdeltaLow[c-1],$bardelta[c],$cumdeltaLow[c])coloured("yellow")
endif
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
if histo crosses over histo[1] then //Bloc CVD Absorption Down via Macd[12,26,9](close)(Macd Ligne moins Signal)
$priceClose[d+1]=close
$histoClose[d+1]=histo
$cumdeltaClose[d+1]=cumdelta
$cumdeltaHigh[d+1]=cumdelta
$barprice[d+1]=barindex
$barhisto[d+1]=barindex
$bardelta[d+1]=barindex
d=d+1
elsif histo > histo[1] then
if close > $priceClose[d] then
$priceClose[d]=close
$barprice[d]=barindex
endif
if histo > $histoClose[d] then
$histoClose[d]=histo
$barhisto[d]=barindex
endif
if cumdelta > $cumdeltaClose[d] then
$cumdeltaClose[d]=cumdelta
$bardelta[d]=barindex
endif
endif
//--------------------------------------------------------//
if d>1 then
//----- Absorption Down------------------------------------------------//
AbsorptionCumdeltaDownM = $cumdeltaClose[d]>$cumdeltaClose[d-1] and $priceClose[d]<$priceClose[d-1]
//-----Divergence CumDelta & Price------------------------------------//
if histo crosses under histo[1] and AbsorptionCumdeltaDownM then
drawarrowdown(barindex,$cumdeltahigh[d])coloured("red")
drawsegment($bardelta[d-1],$cumdeltahigh[d-1],$bardelta[d],$cumdeltahigh[d])coloured("red")
//Signal = -1
//-----Divergence Histogram-Price---------------------------------//
elsif histo crosses under histo[1] and AbsorptionCumdeltaDownM then
drawarrowdown(barindex,$cumdeltahigh[d])coloured("yellow")
drawsegment($bardelta[d-1],$cumdeltahigh[d-1],$bardelta[d],$cumdeltahigh[d])coloured("yellow")
endif
endif
//////////////////////////////////////////////////////////////////////////////////////////////////////
Return
//////////////////////////////////////////////////////////////////////////////////////////////////////
