Classification of evenets in Time (Arrow?)

• 11/24/2022 at 9:51 AM #204751
  Zigo

  Is it possible to arrange the values of different events in aan arrow of time?



  Zigo

  Participant

  Topics: 23

  Replies: 335

  Been thanked: 60 times
  11/25/2022 at 1:46 PM #204822
  Zigo

  Yes it can.



  Zigo

  Participant

  Topics: 23

  Replies: 335

  Been thanked: 60 times
  11/25/2022 at 2:38 PM #204825
  GraHal

  Is your screenshot above using the PRT Platform ONLY?



  GraHal

  Participant

  Topics: 204

  Replies: 8399

  Been thanked: 2041 times
  11/25/2022 at 4:35 PM #204830
  Zigo

  Yes



  Zigo

  Participant

  Topics: 23

  Replies: 335

  Been thanked: 60 times
  11/25/2022 at 9:31 PM #204840
  GraHal

  What Version PRT Platform are you using to provide the information you show in your screenshot above, for example the Dyn Close Line?



  GraHal

  Participant

  Topics: 204

  Replies: 8399

  Been thanked: 2041 times
  11/25/2022 at 9:53 PM #204841
  Zigo

  I use PRT V11.

  Defparam DRAWONLASTBARONLY=true cl=close if cl>cl[1] then DRAWSEGMENT(barindex+2, cl, barindex+7, cl)coloured(0,105,255,255) DRAWTEXT(" #cl#(Dyn.Close)", barindex+10, close)coloured(0,105,255,255) elsif cl <cl[1]then DRAWSEGMENT(barindex+2, cl, barindex+7, cl)coloured(255,55,0,255) DRAWTEXT(" #cl#(Dyn.Close)", barindex+8, close)coloured(255,55,0,255) else DRAWSEGMENT(barindex+2, cl, barindex+5, cl)coloured(255,255,255) DRAWTEXT(" #cl#(Dyn.Close)", barindex+10, close)coloured(255,255,255,255) endif return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14

  Defparam DRAWONLASTBARONLY=true   cl=close if cl>cl[1] then DRAWSEGMENT(barindex+2, cl, barindex+7, cl)coloured(0,105,255,255) DRAWTEXT(" #cl#(Dyn.Close)", barindex+10, close)coloured(0,105,255,255) elsif cl <cl[1]then DRAWSEGMENT(barindex+2, cl, barindex+7, cl)coloured(255,55,0,255) DRAWTEXT(" #cl#(Dyn.Close)", barindex+8, close)coloured(255,55,0,255) else DRAWSEGMENT(barindex+2, cl, barindex+5, cl)coloured(255,255,255) DRAWTEXT(" #cl#(Dyn.Close)", barindex+10, close)coloured(255,255,255,255) endif return



  1 user thanked author for this post.

  GraHal



  Zigo

  Participant

  Topics: 23

  Replies: 335

  Been thanked: 60 times
  11/27/2022 at 10:20 PM #204920
  Zigo

  Anyone?

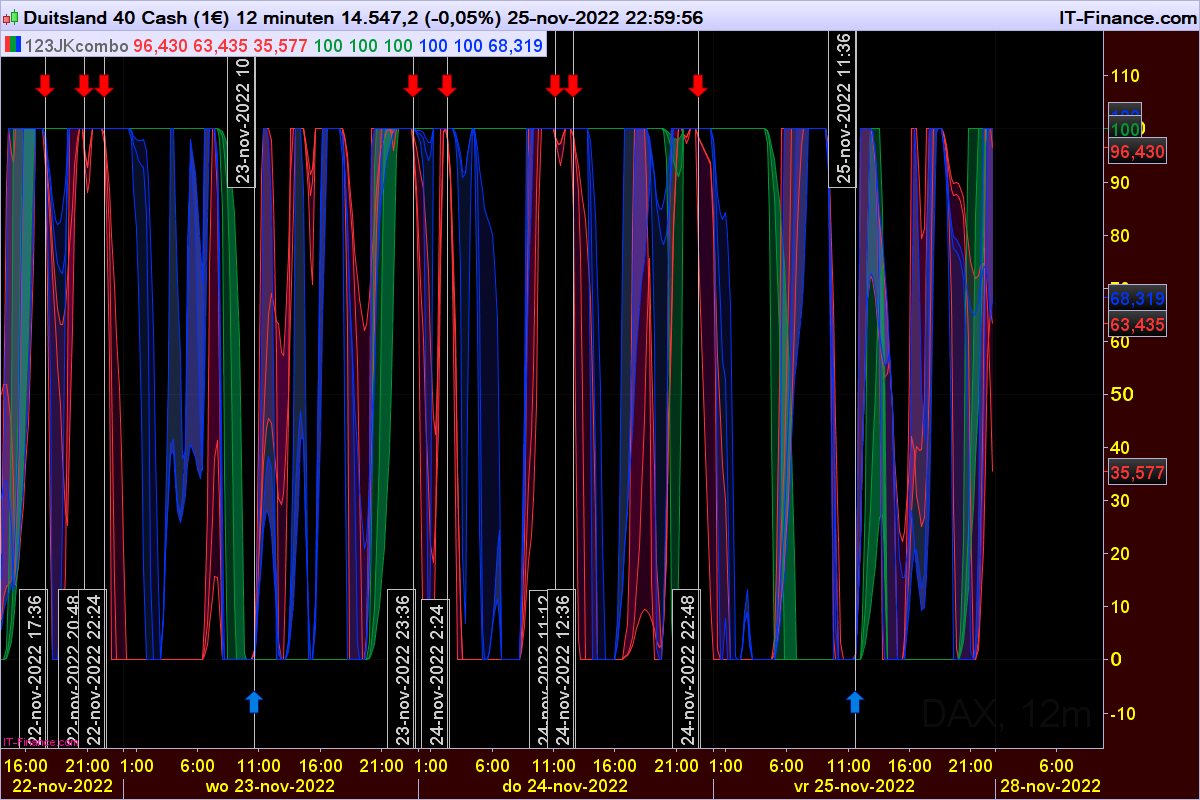

  The JK indicator gives signals down and up. (red and blue)

  How can you program and record the last ten times of these signals in PRT language.

  Oldest = e.g. T1 then T2…… T10 in the attached example 8 signals down and 2 signals up.



  Zigo

  Participant

  Topics: 23

  Replies: 335

  Been thanked: 60 times
  11/28/2022 at 4:14 AM #204925
  robertogozzi

  To record the last N signals you need to use an N-element array for each datum you are interested in.

  If you want to save the BarIndex of the signal you may use $SignalBAR[N].

  If you also need to save the type (Long, Short), then you may also use $SignalTYPE[N], and so on…

  I recommend that you initialize to 0 all N elements on barindex 0, the very first bar.
  Whenever s new signal is returned, shift all elements from 1 to N-1 one place, then store the new signal as element 1 (your former element 10 will be dropped).

  You will always have the last N signals in the correct order.

  Any N-element stored with 0 is a void signal, not yet filled.

  Since the first element in the array is element 0, which may slightly complicate maths on element indexing, I recommend initializing N+1 elements (elements 0 to 10 for 10 elements, instead of 0-9, then using only elements 1 to 10).



  1 user thanked author for this post.

  Zigo



  robertogozzi

  Moderator

  Topics: 69

  Replies: 16465

  Been thanked: 3641 times
  04/12/2024 at 11:53 AM #231445
  Zigo



  Hello

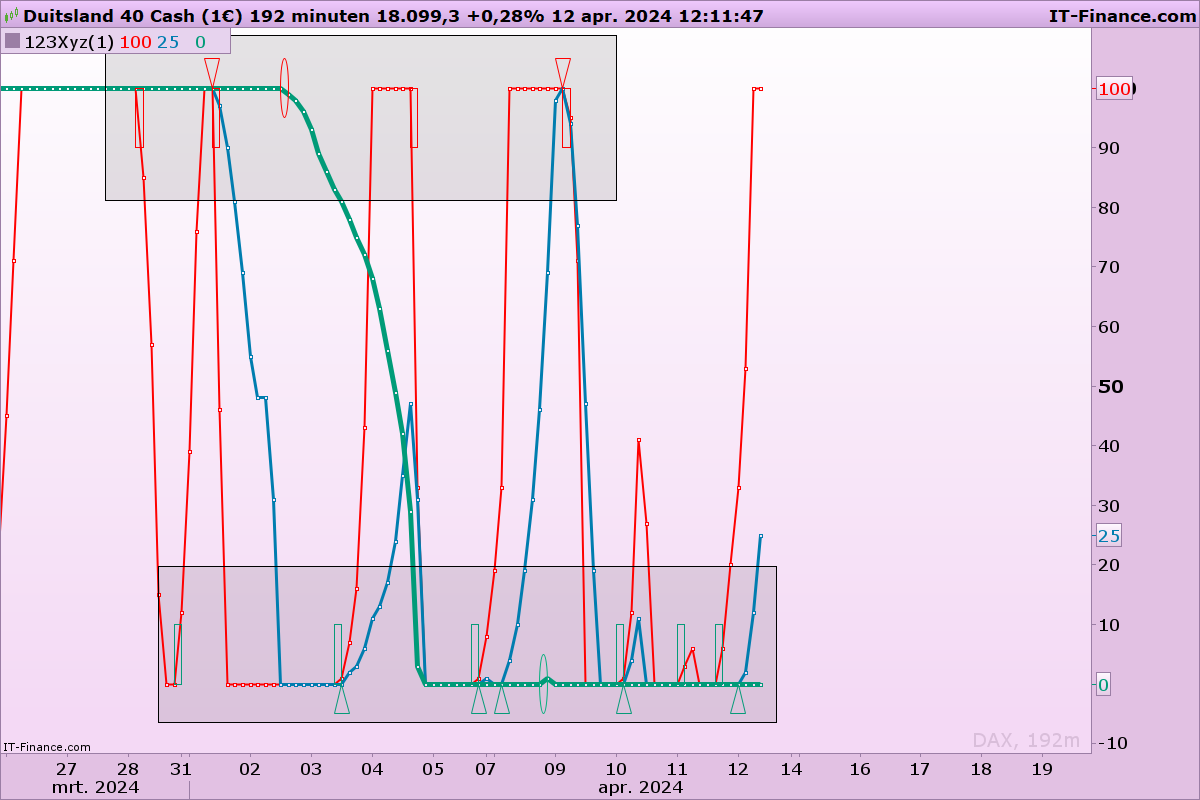

  I have been looking into Eliott wave indicator for years and found that the workable cycles for traders can be reduced to three levels and have incorporated them into an indicator. (123xyz). The fastest cycle starts at a red (short) or green (long), rectangle, the middle cycle starts at a red (short) or green (long) triangle and the main cycle starts at a red (short) or a green (long) ellipse.
  123XYZ is an empirical approach to wave theory. An example of this can be seen in the attached image.
  In the large rectangles you can see the three symbols short and also the three symbols long. The symbols are also programmed.
  One question remains how should I program the colour of the symbols, if I use coloured(r,g,b) the edges are coloured, but how can I fill the symbols with e.g. the same colour.
  Thank you





  Zigo

  Participant

  Topics: 23

  Replies: 335

  Been thanked: 60 times
  04/12/2024 at 12:32 PM #231449
  JS

  If the “symbols” are based on the “Draw” command, you can use “FillColor”…

  DRAWRECTANGLE(barindex, close, barindex[5], close[5])FILLCOLOR(255,0,0)

  DRAWELLIPSE(barindex[5], close, barindex[10], close[5])FILLCOLOR(0,255,0)

  1 user thanked author for this post.

  Zigo



  JS

  Participant

  Topics: 22

  Replies: 1423

  Been thanked: 557 times
  04/12/2024 at 12:58 PM #231452
  druby

  hi.

  With draw (rectangle,triangle,ellipse,candle) you can add  the ‘BORDERCOLOR(r,g,b,a) statement in the line.

  Adding this, changes object from a border to fill’ed object.

  Coloured(r,g,b,a)  controls the fill’ed part when bordercolor used.

  When BORDERCOLOR(r,g,b,0) used, object is fill’ed only, no border if transparency is zero.

  Using these allows combinations of  border/fill’ed as well as colour combinations.

  druby

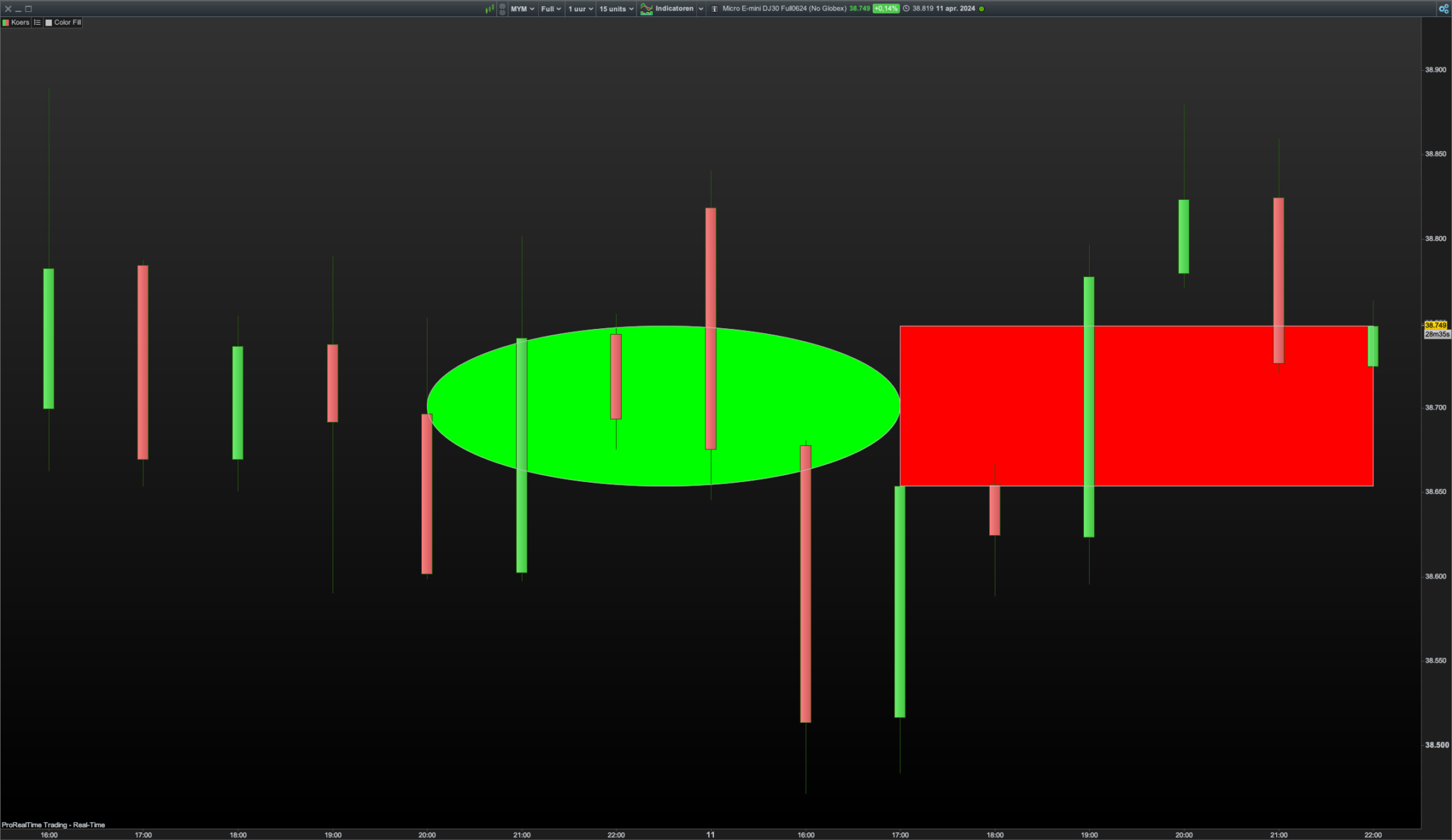

  // run as independant indicator // add as new 'Panel' defparam drawonlastbaronly = true drawrectangle(barindex+2,high,barindex+10,low)coloured(0,0,255,255)bordercolor(0,0,0,0) drawtriangle(barindex+10,high,barindex+10,low,barindex+20,close)coloured(0,255,0,255)bordercolor(0,0,0,0) drawellipse(barindex+20,high,barindex+30,low)coloured(225,255,0,255)bordercolor(0,0,0,0) if open = max(open,close) then r =255 g=0 else r = 0 g = 255 endif drawcandle(open,high,low,close)coloured(r,g,0,255)bordercolor(r,g,0,255) return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

  // run as independant indicator // add as new 'Panel'   defparam drawonlastbaronly = true   drawrectangle(barindex+2,high,barindex+10,low)coloured(0,0,255,255)bordercolor(0,0,0,0)   drawtriangle(barindex+10,high,barindex+10,low,barindex+20,close)coloured(0,255,0,255)bordercolor(0,0,0,0)   drawellipse(barindex+20,high,barindex+30,low)coloured(225,255,0,255)bordercolor(0,0,0,0)     if open = max(open,close) then r =255 g=0 else r = 0 g = 255 endif drawcandle(open,high,low,close)coloured(r,g,0,255)bordercolor(r,g,0,255)   return







  1 user thanked author for this post.

  Zigo



  druby

  Participant

  Topics: 0

  Replies: 129

  Been thanked: 72 times
  04/12/2024 at 1:42 PM #231453
  Zigo

  @ JS thanks a lot. This technic I knew.


  @Druby thats exacly what I menth, thank you very much.



  Zigo

  Participant

  Topics: 23

  Replies: 335

  Been thanked: 60 times
