ayuda con colocacion de precio por encima de ema20

This topic has 16 replies, 3 voices, and was last updated 9 months ago by Patrickgarridoo.

Viewing 15 posts - 1 through 15 (of 17 total)

1 2 →

06/15/2023 at 7:34 AM #216249

Patrickgarridoo

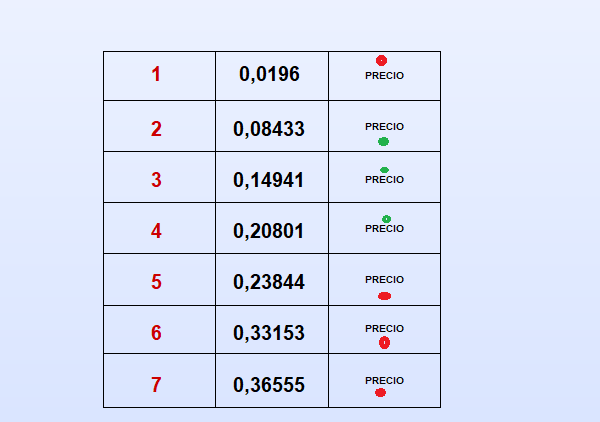

Buena en este indicador me falta añadir en el ultimo cuadro que cuando el precio este por encima o por debajo de ema20 se señalice en el cuadro de precio que he creado y me lo marque con una bola arriba si esta por encima o abajo si esta debajo ema20 del precio, pero correlativo a la temporalidad que indica el cuadro. tendria que ser como indico en la imagen. Ya que yo lo intento pero no me sale correlativo a las temporalidades si se menan de sitio si no siempre me salen ordenadas y no correlativas. Un saludo

defparam drawonlastbaronly = true
TIMEFRAME(1mn)
ema201 = ExponentialAverage[20](close)
precio1 = close
distancia1 = abs((ema201/precio1)-1)*100
c1=close > close[1]
TIMEFRAME(2mn)
ema202 = ExponentialAverage[20](close)
precio2 = close
distancia2 = abs((ema202/precio2)-1)*100
c2=close > close[1]
TIMEFRAME(3mn)
ema203 = ExponentialAverage[20](close)
precio3 = close
distancia3 = abs((ema203/precio3)-1)*100
c3=close > close[1]
TIMEFRAME(4mn)
ema204 = ExponentialAverage[20](close)
precio4 = close
distancia4 = abs((ema204/precio4)-1)*100
c4=close > close[1]
TIMEFRAME(5mn)
ema205 = ExponentialAverage[20](close)
precio5 = close
distancia5 = abs((ema205/precio5)-1)*100
c5=close > close[1]
TIMEFRAME(6mn)
ema206 = ExponentialAverage[20](close)
precio6 = close
distancia6 = abs((ema206/precio6)-1)*100
c6=close > close[1]
TIMEFRAME(7mn)
ema207 = ExponentialAverage[20](close)
precio7 = close
distancia7 = abs((ema207/precio7)-1)*100
c7=close > close[1]

TIMEFRAME(default)

menordistancia = min(distancia1,min(distancia2,min(distancia3,min(distancia4,min(distancia5,min(distancia6,distancia7))))))

TF1 = 0
TF2 = 0
TF3 = 0
TF4 = 0
TF5 = 0
TF6 = 0
TF7 = 0
//
D1 = distancia1
D2 = distancia2
D3 = distancia3
D4 = distancia4
D5 = distancia5
D6 = distancia6
D7 = distancia7

r=204
g=0
b=0

r1=204
g1=0
b1=0

r3=204
g3=0
b3=0

r4=204
g4=0
b4=0

r5=204
g5=0
b5=0

r6=204
g6=0
b6=0

r7=204
g7=0
b7=0

//
menordistancia1 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia1 = D1 and c1 THEN
TF1 = 1 //1-minute TF
D1 = 9999999
r=0
g=180
b=0
ELSIF menordistancia1 = D1 THEN
TF1 = 1 //1-minute TF
D1 = 9999999
//———————————————————————

ELSIF menordistancia1 = D2 and c1 THEN
TF1 = 2 //2-minute TF
D2 = 9999999
r=0
g=180
b=0
ELSIF menordistancia1 = D2 THEN
TF1 = 2 //2-minute TF
D2 = 9999999
//———————————————————————

ELSIF menordistancia1 = D3 and c1 THEN
TF1 = 3 //3-minute TF
D3 = 9999999
r=0
g=180
b=0
ELSIF menordistancia1 = D3 THEN
TF1 = 3 //3-minute TF
D3 = 9999999
//———————————————————————

ELSIF menordistancia1 = D4 and c1 THEN
TF1 = 4 //4-minute TF
D4 = 9999999
r=0
g=180
b=0
ELSIF menordistancia1 = D4 THEN
TF1 = 4 //4-minute TF
D4 = 9999999
//———————————————————————

ELSIF menordistancia1 = D5 and c1 THEN
TF1 = 5 //5-minute TF
D5 = 9999999
r=0
g=180
b=0
ELSIF menordistancia1 = D5 THEN
TF1 = 5 //5-minute TF
D5 = 9999999

//———————————————————————

ELSIF menordistancia1 = D6 and c1 THEN
TF1 = 6 //6-minute TF
D6 = 9999999
r=0
g=180
b=0
ELSIF menordistancia1 = D6 THEN
TF1 = 6 //6-minute TF
D6 = 9999999
//———————————————————————

ELSIF menordistancia1 = D7 and c1 THEN
TF1 = 7 //7-minute TF
D7 = 9999999
r=0
g=180
b=0
ELSIF menordistancia1 = D7 THEN
TF1 = 7 //7-minute TF
D7 = 9999999
//———————————————————————

ENDIF
//
menordistancia2 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia2 = D1 and c2 THEN
TF2 = 1 //1-minute TF
D1 = 9999999
r1=0
g1=180
b1=0

ELSIF menordistancia2 = D1 THEN
TF2 = 1 //1-minute TF
D1 = 9999999
//———————————————————————

ELSIF menordistancia2 = D2 and c2 THEN
TF2 = 2 //2-minute TF
D2 = 9999999
r1=0
g1=180
b1=0
ELSIF menordistancia2 = D2 THEN
TF2 = 2 //2-minute TF
D2 = 9999999
//———————————————————————

ELSIF menordistancia2 = D3 and c2 THEN
TF2 = 3 //3-minute TF
D3 = 9999999
r1=0
g1=180
b1=0
ELSIF menordistancia2 = D3 THEN
TF2 = 3 //3-minute TF
D3 = 9999999
//———————————————————————

ELSIF menordistancia2 = D4 and c2 THEN
TF2 = 4 //4-minute TF
D4 = 9999999
r1=0
g1=180
b1=0
ELSIF menordistancia2 = D4 THEN
TF2 = 4 //4-minute TF
D4 = 9999999
//———————————————————————

ELSIF menordistancia2 = D5 and c2 THEN
TF2 = 5 //5-minute TF
D5 = 9999999
r1=0
g1=180
b1=0
ELSIF menordistancia2 = D5 THEN
TF2 = 5 //5-minute TF
D5 = 9999999

//———————————————————————

ELSIF menordistancia2 = D6 and c2 THEN
TF2 = 6 //6-minute TF
D6 = 9999999
r1=0
g1=180
b1=0
ELSIF menordistancia2 = D6 THEN
TF2 = 6 //6-minute TF
D6 = 9999999
//———————————————————————

ELSIF menordistancia2 = D7 and c2 THEN
TF2 = 7 //7-minute TF
D7 = 9999999
r1=0
g1=180
b1=0
ELSIF menordistancia2 = D7 THEN
TF2 = 7 //7-minute TF
D7 = 9999999
//———————————————————————

ENDIF
//
menordistancia3 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia3 = D1 and c3 THEN
TF3 = 1 //1-minute TF
D1 = 9999999
r3=0
g3=180
b3=0
ELSIF menordistancia3 = D1 THEN
TF3 = 1 //1-minute TF
D1 = 9999999
//———————————————————————
ELSIF menordistancia3 = D2 and c3 THEN
TF3 = 2 //2-minute TF
D2 = 9999999
r3=0
g3=180
b3=0
ELSIF menordistancia3 = D2 THEN
TF3 = 2 //2-minute TF
D2 = 9999999
//———————————————————————
ELSIF menordistancia3 = D3 and c3 THEN
TF3 = 3 //3-minute TF
D3 = 9999999
r3=0
g3=180
b3=0
ELSIF menordistancia3 = D3 THEN
TF3 = 3 //3-minute TF
D3 = 9999999
//———————————————————————
ELSIF menordistancia3 = D4 and c3 THEN
TF3 = 4 //4-minute TF
D4 = 9999999
r3=0
g3=180
b3=0
ELSIF menordistancia3 = D4 THEN
TF3 = 4 //4-minute TF
D4 = 9999999
//———————————————————————
ELSIF menordistancia3 = D5 and c3 THEN
TF3 = 5 //5-minute TF
D5 = 9999999
r3=0
g3=180
b3=0
ELSIF menordistancia3 = D5 THEN
TF3 = 5 //5-minute TF
D5 = 9999999
//———————————————————————
ELSIF menordistancia3 = D6 and c3 THEN
TF3 = 6 //6-minute TF
D6 = 9999999
r3=0
g3=180
b3=0
ELSIF menordistancia3 = D6 THEN
TF3 = 6 //6-minute TF
D6 = 9999999
//———————————————————————
ELSIF menordistancia3 = D7 and c3 THEN
TF3 = 7 //7-minute TF
D7 = 9999999
r3=0
g3=180
b3=0
ELSIF menordistancia3 = D7 THEN
TF3 = 7 //7-minute TF
D7 = 9999999
//———————————————————————
ENDIF
//
menordistancia4 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia4 = D1 and c4 THEN
TF4 = 1 //1-minute TF
D1 = 9999999
r4=0
g4=180
b4=0
ELSIF menordistancia4 = D1 THEN
TF4 = 1 //1-minute TF
D1 = 9999999
//———————————————————————
ELSIF menordistancia4 = D2 and c4 THEN
TF4 = 2 //2-minute TF
D2 = 9999999
r4=0
g4=180
b4=0
ELSIF menordistancia4 = D2 THEN
TF4 = 2 //2-minute TF
D2 = 9999999
//———————————————————————
ELSIF menordistancia4 = D3 and c4 THEN
TF4 = 3 //3-minute TF
D3 = 9999999
r4=0
g4=180
b4=0
ELSIF menordistancia4 = D3 THEN
TF4 = 3 //3-minute TF
D3 = 9999999
//———————————————————————
ELSIF menordistancia4 = D4 and c4 THEN
TF4 = 4 //4-minute TF
D4 = 9999999
r4=0
g4=180
b4=0
ELSIF menordistancia4 = D4 THEN
TF4 = 4 //4-minute TF
D4 = 9999999
//———————————————————————
ELSIF menordistancia4 = D5 and c4 THEN
TF4 = 5 //5-minute TF
D5 = 9999999
r4=0
g4=180
b4=0
ELSIF menordistancia4 = D5 THEN
TF4 = 5 //5-minute TF
D5 = 9999999
//———————————————————————

ELSIF menordistancia4 = D6 and c4 THEN
TF4 = 6 //6-minute TF
D6 = 9999999
r4=0
g4=180
b4=0
ELSIF menordistancia4 = D6 THEN
TF4 = 6 //6-minute TF
D6 = 9999999
//———————————————————————
ELSIF menordistancia4 = D7 and c4 THEN
TF4 = 7 //7-minute TF
D7 = 9999999
r4=0
g4=180
b4=0
ELSIF menordistancia4 = D7 THEN
TF4 = 7 //7-minute TF
D7 = 9999999
//———————————————————————
ENDIF
//
menordistancia5 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia5 = D1 and c5 THEN
TF5 = 1 //1-minute TF
D1 = 9999999
r5=0
g5=180
b5=0
ELSIF menordistancia5 = D1 THEN
TF5 = 1 //1-minute TF
D1 = 9999999
//———————————————————————
ELSIF menordistancia5 = D2 and c5 THEN
TF5 = 2 //2-minute TF
D2 = 9999999
r5=0
g5=180
b5=0
ELSIF menordistancia5 = D2 THEN
TF5 = 2 //2-minute TF
D2 = 9999999
//———————————————————————
ELSIF menordistancia5 = D3 and c5 THEN
TF5 = 3 //3-minute TF
D3 = 9999999
r5=0
g5=180
b5=0
ELSIF menordistancia5 = D3 THEN
TF5 = 3 //3-minute TF
D3 = 9999999
//———————————————————————
ELSIF menordistancia5 = D4 and c5 THEN
TF5 = 4 //4-minute TF
D4 = 9999999
r5=0
g5=180
b5=0
ELSIF menordistancia5 = D4 THEN
TF5 = 4 //4-minute TF
D4 = 9999999
//———————————————————————
ELSIF menordistancia5 = D5 and c5 THEN
TF5 = 5 //5-minute TF
D5 = 9999999
r5=0
g5=180
b5=0
ELSIF menordistancia5 = D5 THEN
TF5 = 5 //5-minute TF
D5 = 9999999
//———————————————————————
ELSIF menordistancia5 = D6 and c5 THEN
TF5 = 6 //6-minute TF
D6 = 9999999
r5=0
g5=180
b5=0
ELSIF menordistancia5 = D6 THEN
TF5 = 6 //6-minute TF
D6 = 9999999
//———————————————————————
ELSIF menordistancia5 = D7 and c5 THEN
TF5 = 7 //7-minute TF
D7 = 9999999
r5=0
g5=180
b5=0
ELSIF menordistancia5 = D7 THEN
TF5 = 7 //7-minute TF
D7 = 9999999
//———————————————————————
ENDIF
//
menordistancia6 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia6 = D1 and c6 THEN
TF6 = 1 //1-minute TF
D1 = 9999999
r6=0
g6=180
b6=0
ELSIF menordistancia6 = D1 THEN
TF6 = 1 //1-minute TF
D1 = 9999999
//———————————————————————
ELSIF menordistancia6 = D2 and c6 THEN
TF6 = 2 //2-minute TF
D2 = 9999999
r6=0
g6=180
b6=0
ELSIF menordistancia6 = D2 THEN
TF6 = 2 //2-minute TF
D2 = 9999999
//———————————————————————
ELSIF menordistancia6 = D3 and c6 THEN
TF6 = 3 //3-minute TF
D3 = 9999999
r6=0
g6=180
b6=0
ELSIF menordistancia6 = D3 THEN
TF6 = 3 //3-minute TF
D3 = 9999999
//———————————————————————
ELSIF menordistancia6 = D4 and c6 THEN
TF6 = 4 //4-minute TF
D4 = 9999999
r6=0
g6=180
b6=0
ELSIF menordistancia6 = D4 THEN
TF6 = 4 //4-minute TF
D4 = 9999999
//———————————————————————
ELSIF menordistancia6 = D5 and c6 THEN
TF6 = 5 //5-minute TF
D5 = 9999999
r6=0
g6=180
b6=0
ELSIF menordistancia6 = D5 THEN
TF6 = 5 //5-minute TF
D5 = 9999999
//———————————————————————
ELSIF menordistancia6 = D6 and c6 THEN
TF6 = 6 //6-minute TF
D6 = 9999999
r6=0
g6=180
b6=0
ELSIF menordistancia6 = D6 THEN
TF6 = 6 //6-minute TF
D6 = 9999999
//———————————————————————
ELSIF menordistancia6 = D7 and c6 THEN
TF6 = 7 //7-minute TF
D7 = 9999999
r6=0
g6=180
b6=0
ELSIF menordistancia6 = D7 THEN
TF6 = 7 //7-minute TF
D7 = 9999999
//———————————————————————
ENDIF
//

menordistancia7 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia7 = D1 and c7 THEN
TF7 = 1 //1-minute TF
D1 = 9999999
r7=0
g7=180
b7=0
ELSIF menordistancia7 = D1 THEN
TF7 = 1 //1-minute TF
D1 = 9999999
//———————————————————————
ELSIF menordistancia7 = D2 and c7 THEN
TF7 = 2 //2-minute TF
D2 = 9999999
r7=0
g7=180
b7=0
ELSIF menordistancia7 = D2 THEN
TF7 = 2 //2-minute TF
D2 = 9999999
//———————————————————————
ELSIF menordistancia7 = D3 and c7 THEN
TF7 = 3 //3-minute TF
D3 = 9999999
r7=0
g7=180
b7=0
ELSIF menordistancia7 = D3 THEN
TF7 = 3 //3-minute TF
D3 = 9999999
//———————————————————————
ELSIF menordistancia7 = D4 and c7 THEN
TF7 = 4 //4-minute TF
D4 = 9999999
r7=0
g7=180
b7=0
ELSIF menordistancia7 = D4 THEN
TF7 = 4 //4-minute TF
D4 = 9999999
//———————————————————————
ELSIF menordistancia7 = D5 and c7 THEN
TF7 = 5 //5-minute TF
D5 = 9999999
r7=0
g7=180
b7=0
ELSIF menordistancia7 = D5 THEN
TF7 = 5 //5-minute TF
D5 = 9999999
//———————————————————————
ELSIF menordistancia7 = D6 and c7 THEN
TF7 = 6 //6-minute TF
D6 = 9999999
r7=0
g7=180
b7=0
ELSIF menordistancia7 = D6 THEN
TF7 = 6 //6-minute TF
D6 = 9999999
//———————————————————————
ELSIF menordistancia7 = D7 and c7 THEN
TF7 = 7 //7-minute TF
D7 = 9999999
r7=0
g7=180
b7=0
ELSIF menordistancia7 = D7 THEN
TF7 = 7 //7-minute TF
D7 = 9999999
//———————————————————————
ENDIF

DrawText(“#menordistancia1#”,BarIndex+ 2,7.0,Dialog,Bold,20)
DrawText(“#menordistancia2#”,BarIndex+ 2,5.75,Dialog,Bold,20)
DrawText(“#menordistancia3#”,BarIndex+ 2,4.60,Dialog,Bold,20)
DrawText(“#menordistancia4#”,BarIndex+ 2,3.45,Dialog,Bold,20)
DrawText(“#menordistancia5#”,BarIndex+ 2,2.30,Dialog,Bold,20)
DrawText(“#menordistancia6#”,BarIndex+ 2,1.15,Dialog,Bold,20)
DrawText(“#menordistancia7#”,BarIndex+ 2,0.0,Dialog,Bold,20)

DRAWSEGMENT(barindex-1, 6.4, barindex+5,6.4) //linea hotizontal 1
DRAWSEGMENT(barindex-1, 5.25, barindex+5,5.25) //linea hotizontal 2
DRAWSEGMENT(barindex-1, 4.10, barindex+5,4.10) //linea hotizontal 3
DRAWSEGMENT(barindex-1, 2.95, barindex+5,2.95) //linea hotizontal 4
DRAWSEGMENT(barindex-1, 1.80, barindex+5,1.80) //linea hotizontal 5
DRAWSEGMENT(barindex-1, 0.71, barindex+5,0.71) //linea hotizontal 6

DRAWSEGMENT(barindex+1, -0.5, barindex+1, 7.5) //primera linea vertical
DRAWSEGMENT(barindex+3, -0.5, barindex+3, 7.5) // segunda linea vertical

DRAWRECTANGLE(barindex-1, 7.5, barindex+5,-0.5)//rectangulo

DrawText(“PRECIO”,BarIndex+4,7.0,Dialog,Bold,10)COLOURED(0,0,0)
DrawText(“PRECIO”,BarIndex+4,5.85,Dialog,Bold,10)COLOURED(0,0,0)
DrawText(“PRECIO”,BarIndex+4,4.66,Dialog,Bold,10)COLOURED(0,0,0)
DrawText(“PRECIO”,BarIndex+4,3.55,Dialog,Bold,10)COLOURED(0,0,0)
DrawText(“PRECIO”,BarIndex+4,2.39,Dialog,Bold,10)COLOURED(0,0,0)
DrawText(“PRECIO”,BarIndex+4,1.29,Dialog,Bold,10)COLOURED(0,0,0)
DrawText(“PRECIO”,BarIndex+4,0.12,Dialog,Bold,10)COLOURED(0,0,0)

DrawText(“#TF1#”,BarIndex,7.0,Dialog,Bold,20)COLOURED(r,g,b)
DrawText(“#TF2#”,BarIndex,5.75,Dialog,Bold,20)COLOURED(r1,g1,b1)
DrawText(“#TF3#”,BarIndex,4.60,Dialog,Bold,20)COLOURED(r3,g3,b3)
DrawText(“#TF4#”,BarIndex,3.45,Dialog,Bold,20)COLOURED(r4,g4,b4)
DrawText(“#TF5#”,BarIndex,2.30,Dialog,Bold,20)COLOURED(r5,g5,b5)
DrawText(“#TF6#”,BarIndex,1.15,Dialog,Bold,20)COLOURED(r6,g6,b6)
DrawText(“#TF7#”,BarIndex,0.0,Dialog,Bold,20)COLOURED(r7,g7,b7)

RETURN

Patrickgarridoo

Participant

Topics: 20

Replies: 48

Been thanked: 1 time

06/15/2023 at 11:54 AM #216276

Nicolas

Me gustaría ayudar, pero lo siento, debo estar perdido en la traducción porque no entiendo qué hacer para ayudar. 🙂 ¿Podría por favor reformular?

Nicolas

Keymaster

Topics: 81

Replies: 20828

Been thanked: 4742 times

06/15/2023 at 6:07 PM #216302

robertogozzi

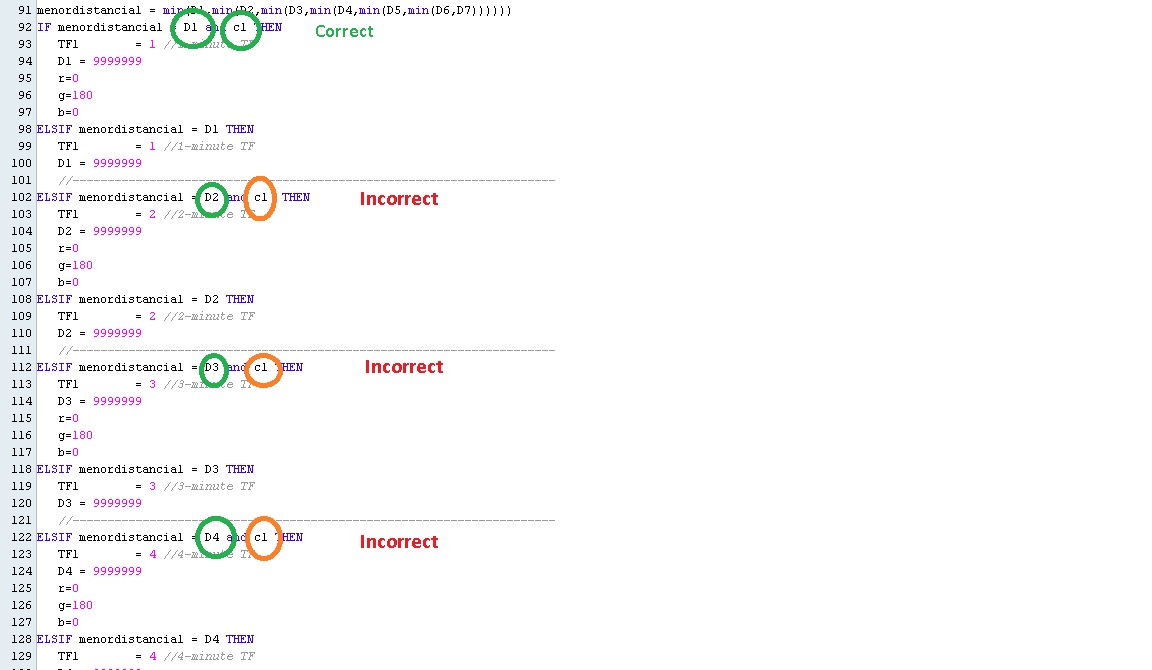

Como resalté en la foto adjunta, D1 y C1 están bien, pero las siguientes líneas están mal, ya que D2 debe coincidir con C2, D3 con C3, etc.

Creo que el problema es este.

robertogozzi

Moderator

Topics: 69

Replies: 16469

Been thanked: 3643 times

06/21/2023 at 12:22 PM #216537

Patrickgarridoo

defparam drawonlastbaronly = true
TIMEFRAME(1mn)
ema201 = ExponentialAverage[20](close)
precio1 = close
distancia1 = abs((ema201/precio1)-1)*100
c1= ExponentialAverage[20](close) > close
TIMEFRAME(2mn)
ema202 = ExponentialAverage[20](close)
precio2 = close
distancia2 = abs((ema202/precio2)-1)*100
c2= ExponentialAverage[20](close) > close
TIMEFRAME(3mn)
ema203 = ExponentialAverage[20](close)
precio3 = close
distancia3 = abs((ema203/precio3)-1)*100
c3= ExponentialAverage[20](close) > close
TIMEFRAME(4mn)
ema204 = ExponentialAverage[20](close)
precio4 = close
distancia4 = abs((ema204/precio4)-1)*100
c4= ExponentialAverage[20](close) > close
TIMEFRAME(5mn)
ema205 = ExponentialAverage[20](close)
precio5 = close
distancia5 = abs((ema205/precio5)-1)*100
c5= ExponentialAverage[20](close) > close
TIMEFRAME(6mn)
ema206 = ExponentialAverage[20](close)
precio6 = close
distancia6 = abs((ema206/precio6)-1)*100
c6= ExponentialAverage[20](close) > close
TIMEFRAME(7mn)
ema207 = ExponentialAverage[20](close)
precio7 = close
distancia7 = abs((ema207/precio7)-1)*100
c7= ExponentialAverage[20](close) > close

TIMEFRAME(default)

menordistancia = min(distancia1,min(distancia2,min(distancia3,min(distancia4,min(distancia5,min(distancia6,distancia7))))))

TF1 = 0
TF2 = 0
TF3 = 0
TF4 = 0
TF5 = 0
TF6 = 0
TF7 = 0
//
D1 = distancia1
D2 = distancia2
D3 = distancia3
D4 = distancia4
D5 = distancia5
D6 = distancia6
D7 = distancia7

//
menordistancia1 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia1 = D1 and c1 THEN
TF1 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSIF menordistancia1 = D1 THEN
TF1 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 6.68, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia1 = D2 and c2 THEN
TF1 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 6.18, 2) COLOURED(204,0,0)
ELSIF menordistancia1 = D2 THEN
TF1 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 5.52, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia1 = D3 and c3 THEN
TF1 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSIF menordistancia1 = D3 THEN
TF1 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia1 = D4 and c4 THEN
TF1 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSIF menordistancia1 = D4 THEN
TF1 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia1 = D5 and c5 THEN
TF1 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSIF menordistancia1 = D5 THEN
TF1 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia1 = D6 and c6 THEN
TF1 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSIF menordistancia1 = D6 THEN
TF1 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia1 = D7 and c7 THEN
TF1 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSIF menordistancia1 = D7 THEN
TF1 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
//———————————————————————

ENDIF
//
menordistancia2 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia2 = D1 and c1 THEN
TF2 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSIF menordistancia2 = D1 THEN
TF2 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 6.68, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia2 = D2 and c2 THEN
TF2 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 6.18, 2) COLOURED(204,0,0)
ELSIF menordistancia2 = D2 THEN
TF2 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 5.52, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia2 = D3 and c3 THEN
TF2 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSIF menordistancia2 = D3 THEN
TF2 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia2 = D4 and c4 THEN
TF2 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSIF menordistancia2 = D4 THEN
TF2 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia2 = D5 and c5 THEN
TF2 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSIF menordistancia2 = D5 THEN
TF2 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia2 = D6 and c6 THEN
TF2 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSIF menordistancia2 = D6 THEN
TF2 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
//———————————————————————

ELSIF menordistancia2 = D7 and c7 THEN
TF2 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSIF menordistancia2 = D7 THEN
TF2 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
//———————————————————————

ENDIF
//
menordistancia3 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia3 = D1 and c1 THEN
TF3 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSIF menordistancia3 = D1 THEN
TF3 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 6.68, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia3 = D2 and c2 THEN
TF3 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 6.18, 2) COLOURED(204,0,0)
ELSIF menordistancia3 = D2 THEN
TF3 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 5.52, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia3 = D3 and c3 THEN
TF3 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSIF menordistancia3 = D3 THEN
TF3 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia3 = D4 and c4 THEN
TF3 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSIF menordistancia3 = D4 THEN
TF3 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia3 = D5 and c5 THEN
TF3 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSIF menordistancia3 = D5 THEN
TF3 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia3 = D6 and c6 THEN
TF3 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSIF menordistancia3 = D6 THEN
TF3 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia3 = D7 and c7 THEN
TF3 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSIF menordistancia3 = D7 THEN
TF3 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
//———————————————————————
ENDIF
//
menordistancia4 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia4 = D1 and c1 THEN
TF4 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSIF menordistancia4 = D1 THEN
TF4 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 6.68, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia4 = D2 and c2 THEN
TF4 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 6.18, 2) COLOURED(204,0,0)
ELSIF menordistancia4 = D2 THEN
TF4 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 5.52, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia4 = D3 and c3 THEN
TF4 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSIF menordistancia4 = D3 THEN
TF4 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia4 = D4 and c4 THEN
TF4 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSIF menordistancia4 = D4 THEN
TF4 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia4 = D5 and c5 THEN
TF4 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSIF menordistancia4 = D5 THEN
TF4 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia4 = D6 and c6 THEN
TF4 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSIF menordistancia4 = D6 THEN
TF4 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia4 = D7 and c7 THEN
TF4 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSIF menordistancia4 = D7 THEN
TF4 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
//———————————————————————
ENDIF
//
menordistancia5 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia5 = D1 and c1 THEN
TF5 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSIF menordistancia5 = D1 THEN
TF5 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 6.68, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia5 = D2 and c2 THEN
TF5 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 6.18, 2) COLOURED(204,0,0)
ELSIF menordistancia5 = D2 THEN
TF5 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 5.52, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia5 = D3 and c3 THEN
TF5 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSIF menordistancia5 = D3 THEN
TF5 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia5 = D4 and c4 THEN
TF5 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSIF menordistancia5 = D4 THEN
TF5 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia5 = D5 and c5 THEN
TF5 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSIF menordistancia5 = D5 THEN
TF5 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia5 = D6 and c6 THEN
TF5 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSIF menordistancia5 = D6 THEN
TF5 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia5 = D7 and c7 THEN
TF5 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSIF menordistancia5 = D7 THEN
TF5 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
//———————————————————————
ENDIF
//
menordistancia6 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia6 = D1 and c1 THEN
TF6 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSIF menordistancia6 = D1 THEN
TF6 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 6.68, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia6 = D2 and c2 THEN
TF6 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 6.18, 2) COLOURED(204,0,0)
ELSIF menordistancia6 = D2 THEN
TF6 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 5.52, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia6 = D3 and c3 THEN
TF6 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSIF menordistancia6 = D3 THEN
TF6 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia6 = D4 and c4 THEN
TF6 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSIF menordistancia6 = D4 THEN
TF6 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia6 = D5 and c5 THEN
TF6 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSIF menordistancia6 = D5 THEN
TF6 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia6 = D6 and c6 THEN
TF6 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSIF menordistancia6 = D6 THEN
TF6 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia6 = D7 and c7 THEN
TF6 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSIF menordistancia6 = D7 THEN
TF6 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
//———————————————————————
ENDIF
//
menordistancia7 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia7 = D1 and c1 THEN
TF7 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSIF menordistancia7 = D1 THEN
TF7 = 1 //1-minute TF
D1 = 9999999
DRAWPOINT(barindex+4, 6.68, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia7 = D2 and c2 THEN
TF7 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 6.18, 2) COLOURED(204,0,0)
ELSIF menordistancia7 = D2 THEN
TF7 = 2 //2-minute TF
D2 = 9999999
DRAWPOINT(barindex+4, 5.52, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia7 = D3 and c3 THEN
TF7 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSIF menordistancia7 = D3 THEN
TF7 = 3 //3-minute TF
D3 = 9999999
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia7 = D4 and c4 THEN
TF7 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSIF menordistancia7 = D4 THEN
TF7 = 4 //4-minute TF
D4 = 9999999
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia7 = D5 and c5 THEN
TF7 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSIF menordistancia7 = D5 THEN
TF7 = 5 //5-minute TF
D5 = 9999999
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia7 = D6 and c6 THEN
TF7 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSIF menordistancia7 = D6 THEN
TF7 = 6 //6-minute TF
D6 = 9999999
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
//———————————————————————
ELSIF menordistancia7 = D7 and c7 THEN
TF7 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSIF menordistancia3 = D7 THEN
TF7 = 7 //7-minute TF
D7 = 9999999
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
//———————————————————————
ENDIF

DrawText(“#TF1#”,BarIndex,7.0,Dialog,Bold,20)
DrawText(“#TF2#”,BarIndex,5.75,Dialog,Bold,20)
DrawText(“#TF3#”,BarIndex,4.60,Dialog,Bold,20)
DrawText(“#TF4#”,BarIndex,3.45,Dialog,Bold,20)
DrawText(“#TF5#”,BarIndex,2.30,Dialog,Bold,20)
DrawText(“#TF6#”,BarIndex,1.15,Dialog,Bold,20)
DrawText(“#TF7#”,BarIndex,0.0,Dialog,Bold,20)

//——
DRAWSEGMENT(barindex-1, 6.4, barindex+5,6.4) //linea hotizontal 1
DRAWSEGMENT(barindex-1, 5.25, barindex+5,5.25) //linea hotizontal 2
DRAWSEGMENT(barindex-1, 4.10, barindex+5,4.10) //linea hotizontal 3
DRAWSEGMENT(barindex-1, 2.95, barindex+5,2.95) //linea hotizontal 4
DRAWSEGMENT(barindex-1, 1.80, barindex+5,1.80) //linea hotizontal 5
DRAWSEGMENT(barindex-1, 0.71, barindex+5,0.71) //linea hotizontal 6

DRAWSEGMENT(barindex+1, -0.5, barindex+1, 7.5) //primera linea vertical
DRAWSEGMENT(barindex+3, -0.5, barindex+3, 7.5) // segunda linea vertical

DRAWRECTANGLE(barindex-1, 7.5, barindex+5,-0.5)//rectangulo

return

Buenas ya he modificado esa parte, las distancias en porcentajes y la ordenacion me sale bien pero cuando añado las condiciones c1,c2,c3,c4,c5,c6 o c7 me hacen el drawpoint pero no me lo hace correcto ya que yo quiero que si por ejemplo esta la temporalidad de 4 la primera ya que es el porcentaje menor y ema20 esta debajo del precio me señalize con drawpoint por debajo de la palabra “precio” y asi correlativamente en las 7 temporalidades. Lo que pasa es que la colocacion del drawpoin y la condicion no me sale correctamente no se si es por un fallo del codigo mio o por que. Un saludo

Patrickgarridoo

Participant

Topics: 20

Replies: 48

Been thanked: 1 time

06/21/2023 at 11:34 PM #216581

robertogozzi

¿Dónde quieres que se impriman los puntos rojos?

robertogozzi

Moderator

Topics: 69

Replies: 16469

Been thanked: 3643 times

06/23/2023 at 7:33 AM #216644

Patrickgarridoo

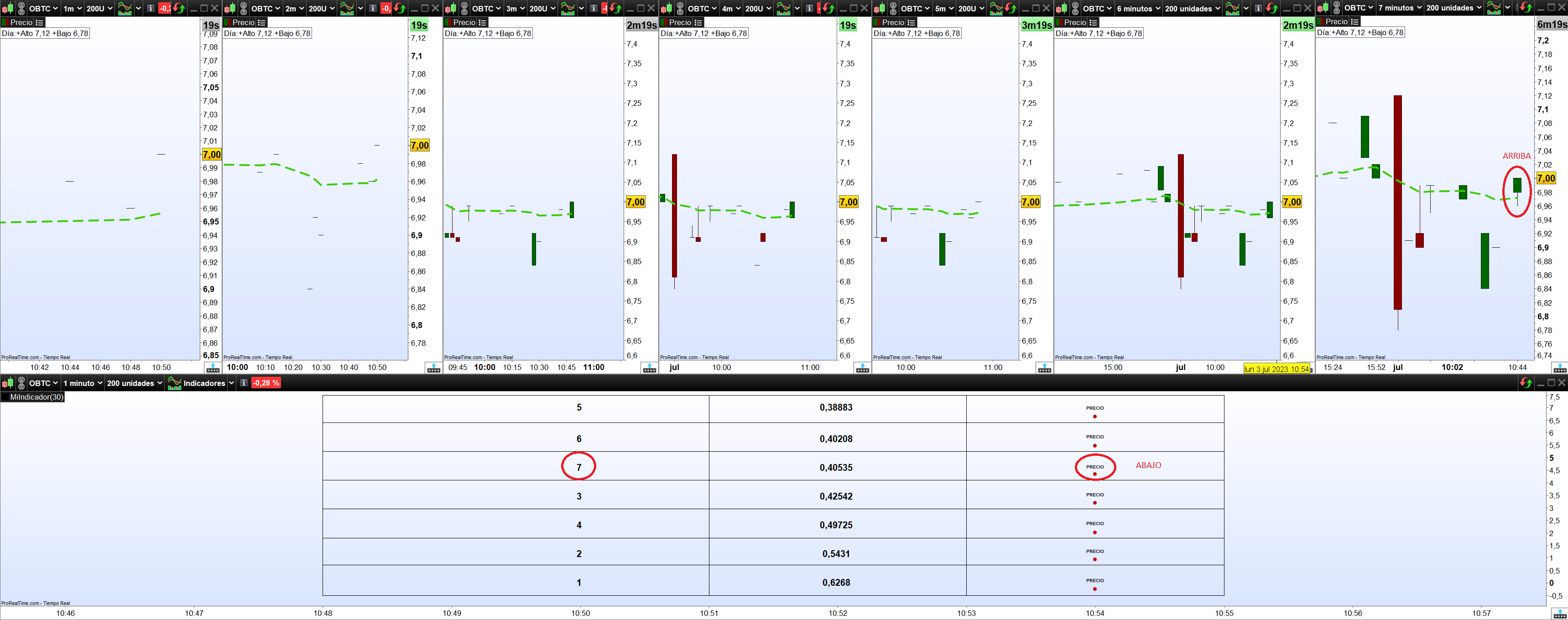

Buenos dias te adjunto la foto para que me entiendas dependiendo de cada temporalidad y donde este situado ema20 se colorea un punto encima o debajo de la palabra “precio” en la temporalidad que le corresponda, en la imagen esta 1mn la primera y ema20 por debajo del precio en el grafico de 1mn pues un punto rojo debajo de la palabra “precio”, la segunda temporalidad sale 7m y esta el precio por encima de ema20 pues el punto debajo de la palabra “precio” y asi correlativamente y que vayan con las temporalidades. Un saludo espero que lo entiendas ahora

Patrickgarridoo

Participant

Topics: 20

Replies: 48

Been thanked: 1 time

06/29/2023 at 10:15 AM #216971

Patrickgarridoo

Buenos días no se si alguien podría ayudarme con ente problema ya que no consigo solucionarlo. Un saludo

Patrickgarridoo

Participant

Topics: 20

Replies: 48

Been thanked: 1 time

06/30/2023 at 1:00 AM #217018

robertogozzi

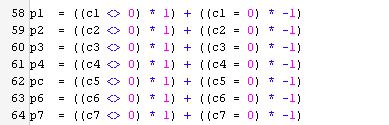

Agregue estas líneas después de la línea 56 (ver foto Pic1):

p1  = ((c1 <> 0) * 1) + ((c1 = 0) * -1)
p2  = ((c2 <> 0) * 1) + ((c2 = 0) * -1)
p3  = ((c3 <> 0) * 1) + ((c3 = 0) * -1)
p4  = ((c4 <> 0) * 1) + ((c4 = 0) * -1)
pc  = ((c5 <> 0) * 1) + ((c5 = 0) * -1)
p6  = ((c6 <> 0) * 1) + ((c6 = 0) * -1)
p7  = ((c7 <> 0) * 1) + ((c7 = 0) * -1)

p1 = ((c1 <> 0) * 1) + ((c1 = 0) * -1)

p2 = ((c2 <> 0) * 1) + ((c2 = 0) * -1)

p3 = ((c3 <> 0) * 1) + ((c3 = 0) * -1)

p4 = ((c4 <> 0) * 1) + ((c4 = 0) * -1)

pc = ((c5 <> 0) * 1) + ((c5 = 0) * -1)

p6 = ((c6 <> 0) * 1) + ((c6 = 0) * -1)

p7 = ((c7 <> 0) * 1) + ((c7 = 0) * -1)

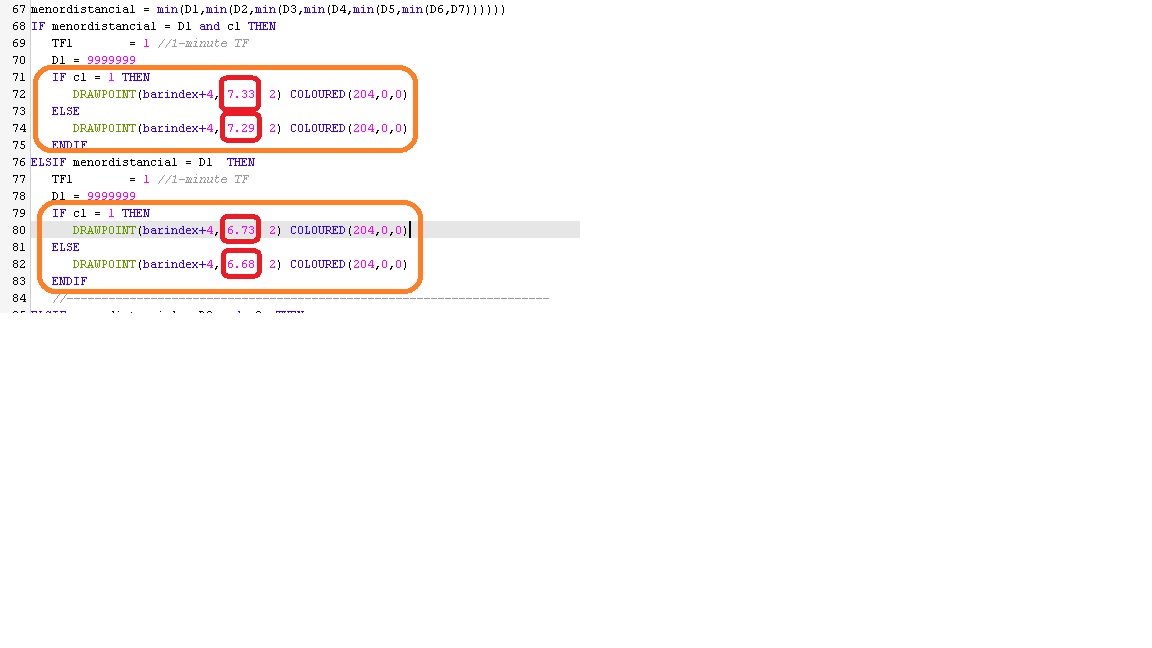

Luego hay que modificar todas las lineas donde hay DRAWPOINT, como hice yo (ver foto Pic2). Deberá experimentar para encontrar los valores correctos por encima o por debajo del PRECIO.

robertogozzi

Moderator

Topics: 69

Replies: 16469

Been thanked: 3643 times

06/30/2023 at 4:01 PM #217088

Patrickgarridoo

Buenas Roberto lo he probado y no hace la función correcta ya que no se organiza con las temporalidades te adjunto foto para que puedas comprobarlo. Un saludo

Patrickgarridoo

Participant

Topics: 20

Replies: 48

Been thanked: 1 time

06/30/2023 at 4:59 PM #217091

Patrickgarridoo

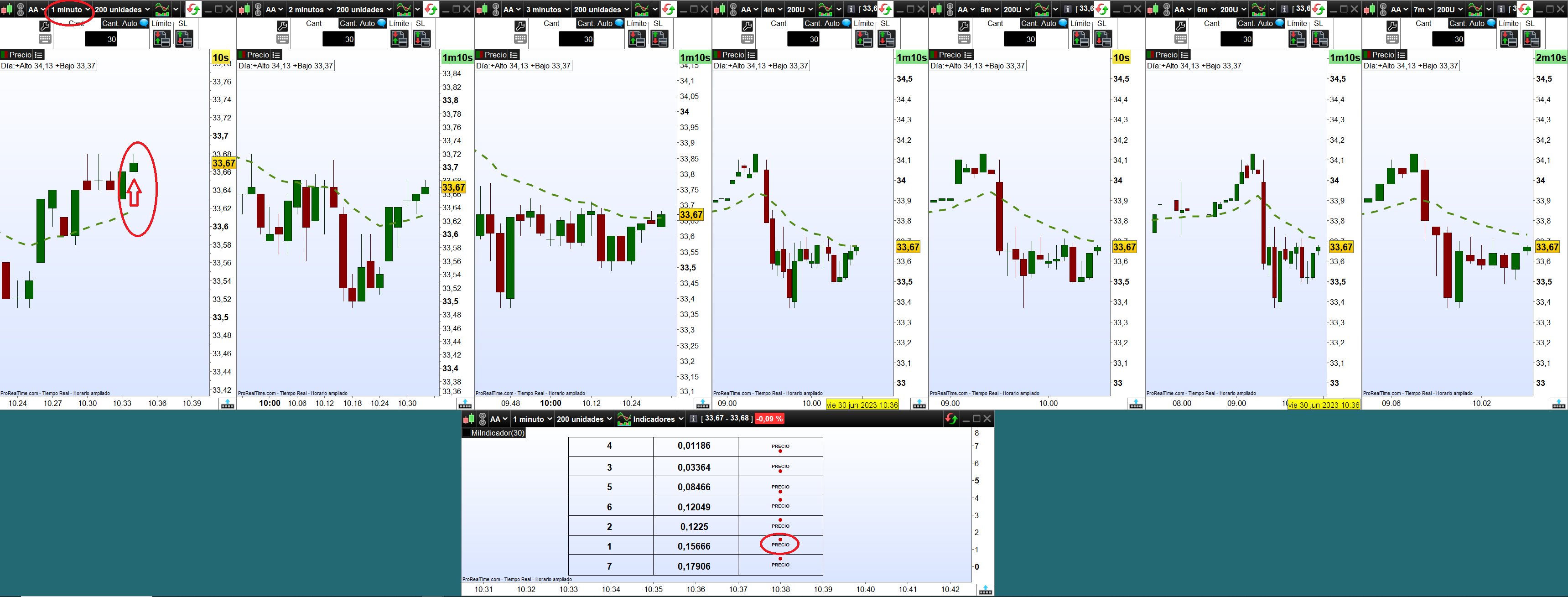

foto

Patrickgarridoo

Participant

Topics: 20

Replies: 48

Been thanked: 1 time

07/01/2023 at 6:27 PM #217135

robertogozzi

Publica el código que modificaste.

robertogozzi

Moderator

Topics: 69

Replies: 16469

Been thanked: 3643 times

07/03/2023 at 9:02 AM #217163

Patrickgarridoo

Buenos días Roberto, te agrego el código a ver si esta correcto con lo que me enviaste, ya que yo no logro encontrar el fallo ni la solución. Un saludo

defparam drawonlastbaronly = true
TIMEFRAME(1mn)
ema201 = ExponentialAverage[20](close)
precio1 = close
distancia1 = abs((ema202/precio2)-1)*100
c1= ExponentialAverage[20](close) > close
TIMEFRAME(2mn)
ema202 = ExponentialAverage[20](close)
precio2 = close
distancia2 = abs((ema202/precio2)-1)*100
c2= ExponentialAverage[20](close) > close
TIMEFRAME(3mn)
ema203 = ExponentialAverage[20](close)
precio3 = close
distancia3 = abs((ema203/precio3)-1)*100
c3= ExponentialAverage[20](close) > close
TIMEFRAME(4mn)
ema204 = ExponentialAverage[20](close)
precio4 = close
distancia4 = abs((ema204/precio4)-1)*100
c4= ExponentialAverage[20](close) > close
TIMEFRAME(5mn)
ema205 = ExponentialAverage[20](close)
precio5 = close
distancia5 = abs((ema205/precio5)-1)*100
c5= ExponentialAverage[20](close) > close
TIMEFRAME(6mn)
ema206 = ExponentialAverage[20](close)
precio6 = close
distancia6 = abs((ema206/precio6)-1)*100
c6= ExponentialAverage[20](close) > close
TIMEFRAME(7mn)
ema207 = ExponentialAverage[20](close)
precio7 = close
distancia7 = abs((ema207/precio7)-1)*100
c7= ExponentialAverage[20](close) > close

TIMEFRAME(default)

menordistancia = min(distancia1,min(distancia2,min(distancia3,min(distancia4,min(distancia5,min(distancia6,distancia7))))))

TF1 = 0
TF2 = 0
TF3 = 0
TF4 = 0
TF5 = 0
TF6 = 0
TF7 = 0
//
D1  = distancia1
D2  = distancia2
D3  = distancia3
D4  = distancia4
D5  = distancia5
D6  = distancia6
D7  = distancia7

p1  = ((c1 <> 0) * 1) + ((c1 = 0) * -1)
p2  = ((c2 <> 0) * 1) + ((c2 = 0) * -1)
p3  = ((c3 <> 0) * 1) + ((c3 = 0) * -1)
p4  = ((c4 <> 0) * 1) + ((c4 = 0) * -1)
pc  = ((c5 <> 0) * 1) + ((c5 = 0) * -1)
p6  = ((c6 <> 0) * 1) + ((c6 = 0) * -1)
p7  = ((c7 <> 0) * 1) + ((c7 = 0) * -1)

//
menordistancia1 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia1 = D1 and c1 THEN
TF1        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D1  THEN
TF1        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------

ELSIF menordistancia1 = D2 and c2  THEN
TF1        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D2 THEN
TF1        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D3 and c3 THEN
TF1        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D3 THEN
TF1        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D4 and c4 THEN
TF1        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D4 THEN
TF1        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D5 and c5 THEN
TF1        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D5 THEN
TF1        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D6 and c6 THEN
TF1        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D6 THEN
TF1        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D7 and c7 THEN
TF1        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF

ELSIF menordistancia1 = D7 THEN
TF1        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ENDIF
//
//
menordistancia2 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia2 = D1 and c1 THEN
TF2        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia2 = D1  THEN
TF2        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------

ELSIF menordistancia2 = D2 and c2  THEN
TF2        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia2 = D2 THEN
TF2        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia2 = D3 and c3 THEN
TF2        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia2 = D3 THEN
TF2        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia2 = D4 and c4 THEN
TF2        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia2 = D4 THEN
TF2        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia2 = D5 and c5 THEN
TF2        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia2 = D5 THEN
TF2        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia2 = D6 and c6 THEN
TF2        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia2 = D6 THEN
TF2        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia2 = D7 and c7 THEN
TF2        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF

ELSIF menordistancia2 = D7 THEN
TF2        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ENDIF
//
//
menordistancia3 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia3 = D1 and c1 THEN
TF3        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia3 = D1  THEN
TF3        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------

ELSIF menordistancia3 = D2 and c2  THEN
TF3        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia3 = D2 THEN
TF3        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia3 = D3 and c3 THEN
TF3        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia3 = D3 THEN
TF3        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia3 = D4 and c4 THEN
TF3        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia3 = D4 THEN
TF3        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia3 = D5 and c5 THEN
TF3        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia3 = D5 THEN
TF3        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia3 = D6 and c6 THEN
TF3        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia3 = D6 THEN
TF3        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia3 = D7 and c7 THEN
TF3        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF

ELSIF menordistancia3 = D7 THEN
TF3        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF
//-----------------------------------------------------------------------------FIN


ENDIF
//----------------------------------------------------------------------------
//
menordistancia4 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia4 = D1 and c1 THEN
TF4        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia4 = D1  THEN
TF4        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------

ELSIF menordistancia4 = D2 and c2  THEN
TF4        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia4 = D2 THEN
TF4        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia4 = D3 and c3 THEN
TF4        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia4 = D3 THEN
TF4        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia4 = D4 and c4 THEN
TF4        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia4 = D4 THEN
TF4        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia4 = D5 and c5 THEN
TF4        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia4 = D5 THEN
TF4        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia4 = D6 and c6 THEN
TF4        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia4 = D6 THEN
TF4        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia4 = D7 and c7 THEN
TF4        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF

ELSIF menordistancia4 = D7 THEN
TF1        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ENDIF
//------------------------------------------------------------------------------FIN
//
menordistancia5 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia5 = D1 and c1 THEN
TF5        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia5 = D1  THEN
TF5        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------

ELSIF menordistancia5 = D2 and c2  THEN
TF5        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia5 = D2 THEN
TF5        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia5 = D3 and c3 THEN
TF5        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia5 = D3 THEN
TF5        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia5 = D4 and c4 THEN
TF5        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia5 = D4 THEN
TF5        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia5 = D5 and c5 THEN
TF5        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia5 = D5 THEN
TF5        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia5 = D6 and c6 THEN
TF5        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia5 = D6 THEN
TF5        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia5 = D7 and c7 THEN
TF5        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF

ELSIF menordistancia5 = D7 THEN
TF5        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ENDIF
//------------------------------------------------------------------------------FIN
//
menordistancia6 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia6 = D1 and c1 THEN
TF6        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia6 = D1  THEN
TF6        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------

ELSIF menordistancia6 = D2 and c2  THEN
TF6        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia6 = D2 THEN
TF6        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia6 = D3 and c3 THEN
TF6        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia6 = D3 THEN
TF6        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia6 = D4 and c4 THEN
TF6        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia6 = D4 THEN
TF6        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia6 = D5 and c5 THEN
TF6        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia6 = D5 THEN
TF6        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia6 = D6 and c6 THEN
TF6        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia6 = D6 THEN
TF6        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia6 = D7 and c7 THEN
TF6        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF

ELSIF menordistancia6 = D7 THEN
TF6        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ENDIF
//------------------------------------------------------------------------------FIN
//
menordistancia1 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia1 = D1 and c1 THEN
TF1        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D1  THEN
TF1        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------

ELSIF menordistancia1 = D2 and c2  THEN
TF1        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D2 THEN
TF1        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D3 and c3 THEN
TF1        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D3 THEN
TF1        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D4 and c4 THEN
TF1        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D4 THEN
TF1        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D5 and c5 THEN
TF1        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D5 THEN
TF1        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D6 and c6 THEN
TF1        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D6 THEN
TF1        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia1 = D7 and c7 THEN
TF1        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF

ELSIF menordistancia1 = D7 THEN
TF1        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------
//
menordistancia7 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))
IF menordistancia7 = D1 and c1 THEN
TF7        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia7 = D1  THEN
TF7        = 1 //1-minute TF
D1 = 9999999
IF c1 = 1 then
DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------

ELSIF menordistancia7 = D2 and c2  THEN
TF7        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia7 = D2 THEN
TF7        = 2 //2-minute TF
D2 = 9999999
IF c2 = 1 THEN
DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia7 = D3 and c3 THEN
TF7        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia7 = D3 THEN
TF7        = 3 //3-minute TF
D3 = 9999999
IF c3 = 1 THEN
DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia7 = D4 and c4 THEN
TF7        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia7 = D4 THEN
TF7        = 4 //4-minute TF
D4 = 9999999
IF c4 = 1 THEN
DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia7 = D5 and c5 THEN
TF7        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia7 = D5 THEN
TF7        = 5 //5-minute TF
D5 = 9999999
IF c5 = 1 THEN
DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia7 = D6 and c6 THEN
TF7        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
ELSIF menordistancia1 = D6 THEN
TF7        = 6 //6-minute TF
D6 = 9999999
IF c6 = 1 THEN
DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ELSIF menordistancia7 = D7 and c7 THEN
TF7        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF

ELSIF menordistancia7 = D7 THEN
TF7        = 7 //7-minute TF
D7 = 9999999
IF c7 = 1 THEN
DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)
ELSE
DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)
ENDIF
//---------------------------------------------------------------------


ENDIF

ENDIF
//----------------------------------------------------------------------FIN

DrawText("#TF1#",BarIndex,7.0,Dialog,Bold,20)
DrawText("#TF2#",BarIndex,5.75,Dialog,Bold,20)
DrawText("#TF3#",BarIndex,4.60,Dialog,Bold,20)
DrawText("#TF4#",BarIndex,3.45,Dialog,Bold,20)
DrawText("#TF5#",BarIndex,2.30,Dialog,Bold,20)
DrawText("#TF6#",BarIndex,1.15,Dialog,Bold,20)
DrawText("#TF7#",BarIndex,0.0,Dialog,Bold,20)

DrawText("#menordistancia1#",BarIndex+ 2,7.0,Dialog,Bold,20)
DrawText("#menordistancia2#",BarIndex+ 2,5.75,Dialog,Bold,20)
DrawText("#menordistancia3#",BarIndex+ 2,4.60,Dialog,Bold,20)
DrawText("#menordistancia4#",BarIndex+ 2,3.45,Dialog,Bold,20)
DrawText("#menordistancia5#",BarIndex+ 2,2.30,Dialog,Bold,20)
DrawText("#menordistancia6#",BarIndex+ 2,1.15,Dialog,Bold,20)
DrawText("#menordistancia7#",BarIndex+ 2,0.0,Dialog,Bold,20)

//------
DRAWSEGMENT(barindex-1, 6.4, barindex+5,6.4) //linea hotizontal 1
DRAWSEGMENT(barindex-1, 5.25, barindex+5,5.25) //linea hotizontal 2
DRAWSEGMENT(barindex-1, 4.10, barindex+5,4.10) //linea hotizontal 3
DRAWSEGMENT(barindex-1, 2.95, barindex+5,2.95) //linea hotizontal 4
DRAWSEGMENT(barindex-1, 1.80, barindex+5,1.80) //linea hotizontal 5
DRAWSEGMENT(barindex-1, 0.71, barindex+5,0.71) //linea hotizontal 6

DRAWSEGMENT(barindex+1, -0.5, barindex+1, 7.5) //primera linea vertical
DRAWSEGMENT(barindex+3, -0.5, barindex+3, 7.5) // segunda linea vertical

DRAWRECTANGLE(barindex-1, 7.5, barindex+5,-0.5)//rectangulo

DrawText("PRECIO",BarIndex+4,7.0,Dialog,Bold,10)COLOURED(0,0,0)
DrawText("PRECIO",BarIndex+4,5.85,Dialog,Bold,10)COLOURED(0,0,0)
DrawText("PRECIO",BarIndex+4,4.66,Dialog,Bold,10)COLOURED(0,0,0)
DrawText("PRECIO",BarIndex+4,3.55,Dialog,Bold,10)COLOURED(0,0,0)
DrawText("PRECIO",BarIndex+4,2.39,Dialog,Bold,10)COLOURED(0,0,0)
DrawText("PRECIO",BarIndex+4,1.29,Dialog,Bold,10)COLOURED(0,0,0)
DrawText("PRECIO",BarIndex+4,0.12,Dialog,Bold,10)COLOURED(0,0,0)






return

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

678

679

680

681

682

683

684

685

686

687

688

689

690

691

692

693

694

695

696

697

698

699

700

701

702

703

704

705

706

707

708

709

710

711

712

713

714

715

716

717

718

719

720

721

722

723

724

725

726

727

728

729

730

731

732

733

734

735

736

737

738

739

740

741

742

743

744

745

746

747

748

749

750

751

752

753

754

755

756

757

758

759

760

761

762

763

764

765

766

767

768

769

770

771

772

773

774

775

776

777

778

779

780

781

782

783

784

785

786

787

788

789

790

791

792

793

794

795

796

797

798

799

800

801

802

803

804

805

806

807

808

809

810

811

812

813

814

815

816

817

818

819

820

821

822

823

824

825

826

827

828

829

830

831

832

833

834

835

836

837

838

839

840

841

842

843

844

845

846

847

848

849

850

851

852

853

854

855

856

857

858

859

860

861

862

863

864

865

866

867

868

869

870

871

872

873

874

875

876

877

878

879

880

881

882

883

884

885

886

887

888

889

890

891

892

893

894

895

896

897

898

899

900

901

902

903

904

905

906

907

908

909

910

911

912

913

914

915

916

917

918

919

920

921

922

923

924

925

926

927

928

929

930

931

932

933

934

935

936

937

938

939

940

941

942

943

944

945

946

947

948

949

950

951

952

953

954

955

956

957

958

959

960

961

962

963

964

965

966

967

968

969

970

971

972

973

974

975

976

977

978

979

980

981

982

983

984

985

986

987

988

989

990

991

992

993

994

995

996

997

998

999

1000

1001

1002

1003

1004

1005

1006

1007

1008

1009

1010

1011

1012

1013

1014

1015

1016

1017

1018

1019

1020

1021

1022

1023

1024

1025

1026

1027

1028

1029

1030

1031

1032

1033

1034

1035

1036

1037

1038

1039

1040

1041

1042

1043

1044

1045

1046

1047

1048

1049

1050

1051

1052

1053

1054

1055

1056

1057

1058

1059

1060

1061

1062

1063

1064

1065

1066

1067

1068

1069

1070

1071

1072

1073

1074

1075

1076

1077

1078

1079

1080

1081

1082

1083

1084

1085

1086

1087

1088

1089

1090

1091

1092

1093

1094

1095

1096

1097

1098

1099

1100

1101

1102

1103

1104

1105

1106

1107

1108

1109

1110

1111

1112

1113

1114

1115

1116

1117

1118

1119

1120

1121

1122

1123

1124

1125

1126

1127

1128

1129

1130

1131

1132

1133

1134

1135

1136

1137

1138

1139

1140

1141

1142

1143

1144

1145

1146

1147

1148

1149

1150

1151

1152

1153

1154

1155

1156

1157

1158

1159

1160

1161

1162

1163

1164

1165

1166

1167

1168

1169

1170

1171

1172

1173

1174

1175

1176

1177

1178

1179

1180

1181

1182

1183

1184

1185

1186

1187

1188

1189

1190

1191

1192

1193

1194

1195

1196

1197

1198

1199

1200

1201

1202

1203

defparam drawonlastbaronly = true

TIMEFRAME(1mn)

ema201 = ExponentialAverage[20](close)

precio1 = close

distancia1 = abs((ema202/precio2)-1)*100

c1= ExponentialAverage[20](close) > close

TIMEFRAME(2mn)

ema202 = ExponentialAverage[20](close)

precio2 = close

distancia2 = abs((ema202/precio2)-1)*100

c2= ExponentialAverage[20](close) > close

TIMEFRAME(3mn)

ema203 = ExponentialAverage[20](close)

precio3 = close

distancia3 = abs((ema203/precio3)-1)*100

c3= ExponentialAverage[20](close) > close

TIMEFRAME(4mn)

ema204 = ExponentialAverage[20](close)

precio4 = close

distancia4 = abs((ema204/precio4)-1)*100

c4= ExponentialAverage[20](close) > close

TIMEFRAME(5mn)

ema205 = ExponentialAverage[20](close)

precio5 = close

distancia5 = abs((ema205/precio5)-1)*100

c5= ExponentialAverage[20](close) > close

TIMEFRAME(6mn)

ema206 = ExponentialAverage[20](close)

precio6 = close

distancia6 = abs((ema206/precio6)-1)*100

c6= ExponentialAverage[20](close) > close

TIMEFRAME(7mn)

ema207 = ExponentialAverage[20](close)

precio7 = close

distancia7 = abs((ema207/precio7)-1)*100

c7= ExponentialAverage[20](close) > close

TIMEFRAME(default)

menordistancia = min(distancia1,min(distancia2,min(distancia3,min(distancia4,min(distancia5,min(distancia6,distancia7))))))

TF1 = 0

TF2 = 0

TF3 = 0

TF4 = 0

TF5 = 0

TF6 = 0

TF7 = 0

D1 = distancia1

D2 = distancia2

D3 = distancia3

D4 = distancia4

D5 = distancia5

D6 = distancia6

D7 = distancia7

p1 = ((c1 <> 0) * 1) + ((c1 = 0) * -1)

p2 = ((c2 <> 0) * 1) + ((c2 = 0) * -1)

p3 = ((c3 <> 0) * 1) + ((c3 = 0) * -1)

p4 = ((c4 <> 0) * 1) + ((c4 = 0) * -1)

pc = ((c5 <> 0) * 1) + ((c5 = 0) * -1)

p6 = ((c6 <> 0) * 1) + ((c6 = 0) * -1)

p7 = ((c7 <> 0) * 1) + ((c7 = 0) * -1)

menordistancia1 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))

IF menordistancia1 = D1 and c1 THEN

TF1 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D1 THEN

TF1 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D2 and c2 THEN

TF1 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D2 THEN

TF1 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D3 and c3 THEN

TF1 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D3 THEN

TF1 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D4 and c4 THEN

TF1 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D4 THEN

TF1 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D5 and c5 THEN

TF1 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D5 THEN

TF1 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D6 and c6 THEN

TF1 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D6 THEN

TF1 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D7 and c7 THEN

TF1 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D7 THEN

TF1 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ENDIF

menordistancia2 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))

IF menordistancia2 = D1 and c1 THEN

TF2 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia2 = D1 THEN

TF2 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia2 = D2 and c2 THEN

TF2 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia2 = D2 THEN

TF2 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia2 = D3 and c3 THEN

TF2 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia2 = D3 THEN

TF2 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia2 = D4 and c4 THEN

TF2 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia2 = D4 THEN

TF2 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia2 = D5 and c5 THEN

TF2 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia2 = D5 THEN

TF2 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia2 = D6 and c6 THEN

TF2 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia2 = D6 THEN

TF2 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia2 = D7 and c7 THEN

TF2 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia2 = D7 THEN

TF2 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ENDIF

menordistancia3 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))

IF menordistancia3 = D1 and c1 THEN

TF3 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia3 = D1 THEN

TF3 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia3 = D2 and c2 THEN

TF3 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia3 = D2 THEN

TF3 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia3 = D3 and c3 THEN

TF3 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia3 = D3 THEN

TF3 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia3 = D4 and c4 THEN

TF3 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia3 = D4 THEN

TF3 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia3 = D5 and c5 THEN

TF3 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia3 = D5 THEN

TF3 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia3 = D6 and c6 THEN

TF3 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia3 = D6 THEN

TF3 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia3 = D7 and c7 THEN

TF3 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia3 = D7 THEN

TF3 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

//-----------------------------------------------------------------------------FIN

ENDIF

//----------------------------------------------------------------------------

menordistancia4 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))

IF menordistancia4 = D1 and c1 THEN

TF4 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia4 = D1 THEN

TF4 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia4 = D2 and c2 THEN

TF4 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia4 = D2 THEN

TF4 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia4 = D3 and c3 THEN

TF4 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia4 = D3 THEN

TF4 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia4 = D4 and c4 THEN

TF4 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia4 = D4 THEN

TF4 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia4 = D5 and c5 THEN

TF4 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia4 = D5 THEN

TF4 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia4 = D6 and c6 THEN

TF4 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia4 = D6 THEN

TF4 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia4 = D7 and c7 THEN

TF4 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia4 = D7 THEN

TF1 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ENDIF

//------------------------------------------------------------------------------FIN

menordistancia5 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))

IF menordistancia5 = D1 and c1 THEN

TF5 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia5 = D1 THEN

TF5 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia5 = D2 and c2 THEN

TF5 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia5 = D2 THEN

TF5 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia5 = D3 and c3 THEN

TF5 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia5 = D3 THEN

TF5 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia5 = D4 and c4 THEN

TF5 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia5 = D4 THEN

TF5 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia5 = D5 and c5 THEN

TF5 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia5 = D5 THEN

TF5 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia5 = D6 and c6 THEN

TF5 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia5 = D6 THEN

TF5 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia5 = D7 and c7 THEN

TF5 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia5 = D7 THEN

TF5 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ENDIF

//------------------------------------------------------------------------------FIN

menordistancia6 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))

IF menordistancia6 = D1 and c1 THEN

TF6 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia6 = D1 THEN

TF6 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia6 = D2 and c2 THEN

TF6 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia6 = D2 THEN

TF6 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia6 = D3 and c3 THEN

TF6 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia6 = D3 THEN

TF6 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia6 = D4 and c4 THEN

TF6 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia6 = D4 THEN

TF6 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia6 = D5 and c5 THEN

TF6 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia6 = D5 THEN

TF6 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia6 = D6 and c6 THEN

TF6 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia6 = D6 THEN

TF6 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia6 = D7 and c7 THEN

TF6 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia6 = D7 THEN

TF6 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ENDIF

//------------------------------------------------------------------------------FIN

menordistancia1 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))

IF menordistancia1 = D1 and c1 THEN

TF1 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D1 THEN

TF1 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D2 and c2 THEN

TF1 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D2 THEN

TF1 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D3 and c3 THEN

TF1 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D3 THEN

TF1 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D4 and c4 THEN

TF1 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D4 THEN

TF1 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D5 and c5 THEN

TF1 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D5 THEN

TF1 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D6 and c6 THEN

TF1 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D6 THEN

TF1 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia1 = D7 and c7 THEN

TF1 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D7 THEN

TF1 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

menordistancia7 = min(D1,min(D2,min(D3,min(D4,min(D5,min(D6,D7))))))

IF menordistancia7 = D1 and c1 THEN

TF7 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia7 = D1 THEN

TF7 = 1 //1-minute TF

D1 = 9999999

IF c1 = 1 then

DRAWPOINT(barindex+4, 7.29, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 6.64, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia7 = D2 and c2 THEN

TF7 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia7 = D2 THEN

TF7 = 2 //2-minute TF

D2 = 9999999

IF c2 = 1 THEN

DRAWPOINT(barindex+4, 6.14, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 5.47, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia7 = D3 and c3 THEN

TF7 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia7 = D3 THEN

TF7 = 3 //3-minute TF

D3 = 9999999

IF c3 = 1 THEN

DRAWPOINT(barindex+4, 4.94, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 4.35, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia7 = D4 and c4 THEN

TF7 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia7 = D4 THEN

TF7 = 4 //4-minute TF

D4 = 9999999

IF c4 = 1 THEN

DRAWPOINT(barindex+4, 3.85, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 3.20, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia7 = D5 and c5 THEN

TF7 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia7 = D5 THEN

TF7 = 5 //5-minute TF

D5 = 9999999

IF c5 = 1 THEN

DRAWPOINT(barindex+4, 2.70, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 2.02, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia7 = D6 and c6 THEN

TF7 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia1 = D6 THEN

TF7 = 6 //6-minute TF

D6 = 9999999

IF c6 = 1 THEN

DRAWPOINT(barindex+4, 1.56, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, 0.94, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ELSIF menordistancia7 = D7 and c7 THEN

TF7 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

ELSIF menordistancia7 = D7 THEN

TF7 = 7 //7-minute TF

D7 = 9999999

IF c7 = 1 THEN

DRAWPOINT(barindex+4, 0.45, 2) COLOURED(204,0,0)

ELSE

DRAWPOINT(barindex+4, -0.24, 2) COLOURED(204,0,0)

ENDIF

//---------------------------------------------------------------------

ENDIF

//----------------------------------------------------------------------FIN

DrawText("#TF1#",BarIndex,7.0,Dialog,Bold,20)

DrawText("#TF2#",BarIndex,5.75,Dialog,Bold,20)

DrawText("#TF3#",BarIndex,4.60,Dialog,Bold,20)

DrawText("#TF4#",BarIndex,3.45,Dialog,Bold,20)

DrawText("#TF5#",BarIndex,2.30,Dialog,Bold,20)

DrawText("#TF6#",BarIndex,1.15,Dialog,Bold,20)

DrawText("#TF7#",BarIndex,0.0,Dialog,Bold,20)

DrawText("#menordistancia1#",BarIndex+ 2,7.0,Dialog,Bold,20)

DrawText("#menordistancia2#",BarIndex+ 2,5.75,Dialog,Bold,20)

DrawText("#menordistancia3#",BarIndex+ 2,4.60,Dialog,Bold,20)

DrawText("#menordistancia4#",BarIndex+ 2,3.45,Dialog,Bold,20)

DrawText("#menordistancia5#",BarIndex+ 2,2.30,Dialog,Bold,20)

DrawText("#menordistancia6#",BarIndex+ 2,1.15,Dialog,Bold,20)

DrawText("#menordistancia7#",BarIndex+ 2,0.0,Dialog,Bold,20)

//------

DRAWSEGMENT(barindex-1, 6.4, barindex+5,6.4) //linea hotizontal 1

DRAWSEGMENT(barindex-1, 5.25, barindex+5,5.25) //linea hotizontal 2

DRAWSEGMENT(barindex-1, 4.10, barindex+5,4.10) //linea hotizontal 3

DRAWSEGMENT(barindex-1, 2.95, barindex+5,2.95) //linea hotizontal 4

DRAWSEGMENT(barindex-1, 1.80, barindex+5,1.80) //linea hotizontal 5

DRAWSEGMENT(barindex-1, 0.71, barindex+5,0.71) //linea hotizontal 6

DRAWSEGMENT(barindex+1, -0.5, barindex+1, 7.5) //primera linea vertical

DRAWSEGMENT(barindex+3, -0.5, barindex+3, 7.5) // segunda linea vertical

DRAWRECTANGLE(barindex-1, 7.5, barindex+5,-0.5)//rectangulo

DrawText("PRECIO",BarIndex+4,7.0,Dialog,Bold,10)COLOURED(0,0,0)

DrawText("PRECIO",BarIndex+4,5.85,Dialog,Bold,10)COLOURED(0,0,0)

DrawText("PRECIO",BarIndex+4,4.66,Dialog,Bold,10)COLOURED(0,0,0)

DrawText("PRECIO",BarIndex+4,3.55,Dialog,Bold,10)COLOURED(0,0,0)

DrawText("PRECIO",BarIndex+4,2.39,Dialog,Bold,10)COLOURED(0,0,0)

DrawText("PRECIO",BarIndex+4,1.29,Dialog,Bold,10)COLOURED(0,0,0)

DrawText("PRECIO",BarIndex+4,0.12,Dialog,Bold,10)COLOURED(0,0,0)

return

Patrickgarridoo

Participant

Topics: 20

Replies: 48

Been thanked: 1 time

07/03/2023 at 11:21 AM #217181

robertogozzi

Lo siento, en vez de C1, C2, etc… era necesario indicar P1, P2, etc…

Lo modifiqué y parece que funciona.

Publiqué el código solo como un archivo ITF; de lo contrario, ya no será posible cargar las páginas, ya que el texto es demasiado largo.

robertogozzi

Moderator

Topics: 69

Replies: 16469

Been thanked: 3643 times

07/03/2023 at 3:57 PM #217199

Patrickgarridoo

Buenas Roberto lo he modificado y probado pero no funciona es decir va el primer recuadro con la temporalidad 1, el segundo con la temporalidad 2… etc es decir van seguidas con las temporalidades no las siguen como el porcentaje que es lo que deberían hacer. Te mando captura y el código para que veas que no van correlativas con las temporalidades. Un saludo

Patrickgarridoo

Participant

Topics: 20

Replies: 48

Been thanked: 1 time

07/03/2023 at 4:18 PM #217205

robertogozzi

El código es demasiado largo para editarlo y corregirlo. Es mejor reescribirlo completamente. Por favor, dígame en detalle lo que quiere lograr.

robertogozzi

Moderator

Topics: 69

Replies: 16469

Been thanked: 3643 times

Author

Posts

Viewing 15 posts - 1 through 15 (of 17 total)

1 2 →

Find exclusive trading pro-tools on
