Andean Oscilator conversion

• 08/19/2022 at 2:04 PM #199240
  Sofitech

  Bonjour Nicolas, Bonjour à tous.
  J’ai découvert il y a quelques semaines un oscillateur que je trouve simple et utile sur tradingview. Le code ne semble pas compliqué mais je suis bien incapable de le convertir en language PRT.
  Peut-être que l’équivalent ou presque existe déjà.

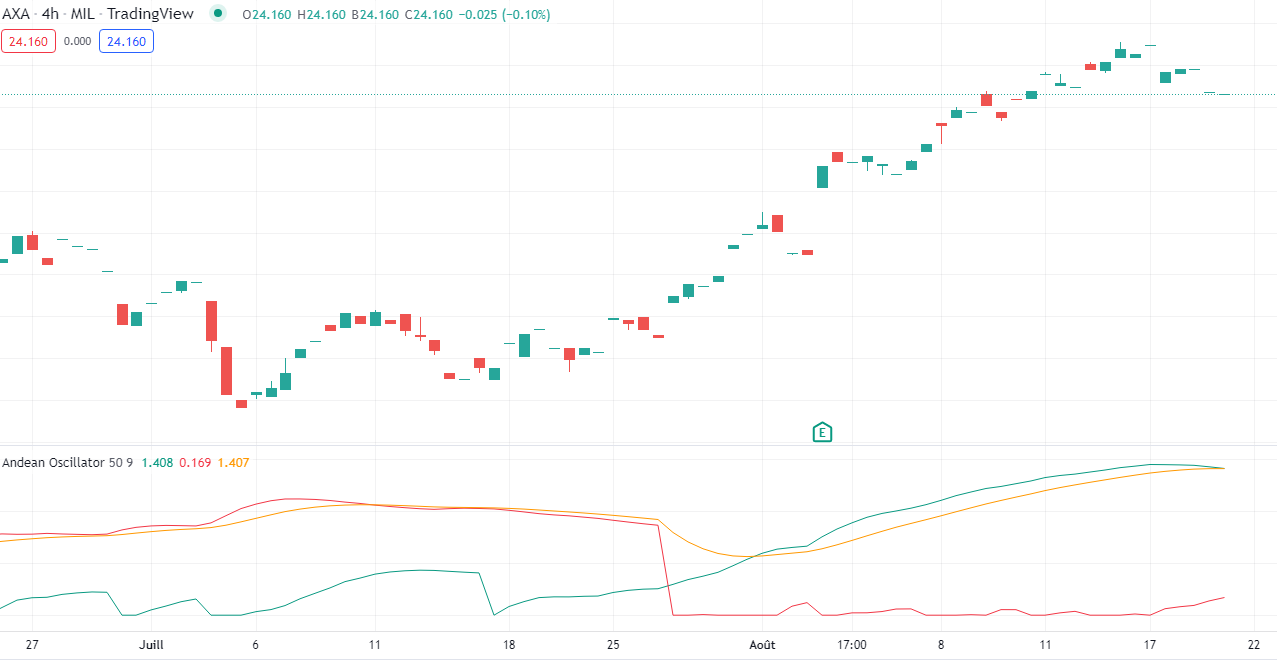

  Est-ce que quelqu’un serait en mesure de convertir ce code. Je fais figurer une image pour l’illustrer. La ligne verte peut être interprétée comme une force acheteuse, la rouge une force vendeuse, la jaune une ligne “signal”

  // This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/ // © alexgrover //Original post : Alpaca.markets/learn/andean-oscillator-a-new-technical-indicator-based-on-an-online-algorithm-for-trend-analysis/ //@version=5 indicator("Andean Oscillator") //------------------------------------------------------------------------------ //Settings //-----------------------------------------------------------------------------{ length = input(50) sig_length = input(9,'Signal Length') //-----------------------------------------------------------------------------} //Exponential Envelopes //-----------------------------------------------------------------------------{ var alpha = 2/(length+1) var up1 = 0.,var up2 = 0. var dn1 = 0.,var dn2 = 0. C = close O = open up1 := nz(math.max(C, O, up1[1] - (up1[1] - C) * alpha), C) up2 := nz(math.max(C * C, O * O, up2[1] - (up2[1] - C * C) * alpha), C * C) dn1 := nz(math.min(C, O, dn1[1] + (C - dn1[1]) * alpha), C) dn2 := nz(math.min(C * C, O * O, dn2[1] + (C * C - dn2[1]) * alpha), C * C) //Components bull = math.sqrt(dn2 - dn1 * dn1) bear = math.sqrt(up2 - up1 * up1) signal = ta.ema(math.max(bull, bear), sig_length) //-----------------------------------------------------------------------------} //Plots //-----------------------------------------------------------------------------{ plot(bull, 'Bullish Component', #089981) plot(bear, 'Bearish Component', #f23645) plot(signal, 'Signal', #ff9800) //-----------------------------------------------------------------------------}

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47

  // This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/ // © alexgrover   //Original post : Alpaca.markets/learn/andean-oscillator-a-new-technical-indicator-based-on-an-online-algorithm-for-trend-analysis/   //@version=5 indicator("Andean Oscillator") //------------------------------------------------------------------------------ //Settings //-----------------------------------------------------------------------------{ length     = input(50)   sig_length = input(9,'Signal Length')   //-----------------------------------------------------------------------------} //Exponential Envelopes //-----------------------------------------------------------------------------{ var alpha = 2/(length+1)   var up1 = 0.,var up2 = 0. var dn1 = 0.,var dn2 = 0.   C = close O = open   up1 := nz(math.max(C, O, up1[1] - (up1[1] - C) * alpha), C) up2 := nz(math.max(C * C, O * O, up2[1] - (up2[1] - C * C) * alpha), C * C)   dn1 := nz(math.min(C, O, dn1[1] + (C - dn1[1]) * alpha), C) dn2 := nz(math.min(C * C, O * O, dn2[1] + (C * C - dn2[1]) * alpha), C * C)   //Components bull = math.sqrt(dn2 - dn1 * dn1) bear = math.sqrt(up2 - up1 * up1)   signal = ta.ema(math.max(bull, bear), sig_length)   //-----------------------------------------------------------------------------} //Plots //-----------------------------------------------------------------------------{ plot(bull, 'Bullish Component', #089981)   plot(bear, 'Bearish Component', #f23645)   plot(signal, 'Signal', #ff9800)   //-----------------------------------------------------------------------------}





  Sofitech

  Participant

  Topics: 56

  Replies: 150

  Been thanked: 10 times
  08/19/2022 at 2:59 PM #199247
  JC_Bywan

  Bonjour, tentative de conversion à tester, en attendant que Nicolas, bien plus habitué à faire les conversions, passe par ce post et valide ou corrige:

  // This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/ // © alexgrover //Original post : Alpaca.markets/learn/andean-oscillator-a-new-technical-indicator-based-on-an-online-algorithm-for-trend-analysis/ //@version=5 //indicator("Andean Oscillator") // Converted from pinescript for ProRealTime // 19.08.2022 // JC_Bywan @ www.ProRealCode.com // Sharing ProRealTime knowledge //------------------------------------------------------------------------------ //Settings //-----------------------------------------------------------------------------{ length=50 siglength = 9 //-----------------------------------------------------------------------------} //Exponential Envelopes //-----------------------------------------------------------------------------{ alpha = 2/(length+1) //up1 = 0 //up2 = 0 //dn1 = 0 //dn2 = 0 C = close O = open if barindex=0 then up1 = C up2 = C * C dn1 = C dn2 = C * C else up1 = max(max(C, O), up1[1] - (up1[1] - C) * alpha) up2 = max(max(C * C, O * O), up2[1] - (up2[1] - C * C) * alpha) dn1 = min(min(C, O), dn1[1] + (C - dn1[1]) * alpha) dn2 = min(min(C * C, O * O), dn2[1] + (C * C - dn2[1]) * alpha) endif //Components bull = sqrt(dn2 - dn1 * dn1) bear = sqrt(up2 - up1 * up1) maxi = max(bull, bear) signal = ExponentialAverage[siglength](maxi) return bull as "Bullish Component" coloured(8,153,129), bear as "Bearish Component" coloured(242,54,69), signal as "Signal" coloured(255,152,0)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

  // This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/ // © alexgrover //Original post : Alpaca.markets/learn/andean-oscillator-a-new-technical-indicator-based-on-an-online-algorithm-for-trend-analysis/ //@version=5 //indicator("Andean Oscillator")   // Converted from pinescript for ProRealTime // 19.08.2022 // JC_Bywan @ www.ProRealCode.com // Sharing ProRealTime knowledge   //------------------------------------------------------------------------------ //Settings //-----------------------------------------------------------------------------{ length=50 siglength = 9   //-----------------------------------------------------------------------------} //Exponential Envelopes //-----------------------------------------------------------------------------{ alpha = 2/(length+1)   //up1 = 0 //up2 = 0 //dn1 = 0 //dn2 = 0 C = close O = open   if barindex=0 then up1 = C up2 = C * C dn1 = C dn2 = C * C else up1 = max(max(C, O), up1[1] - (up1[1] - C) * alpha) up2 = max(max(C * C, O * O), up2[1] - (up2[1] - C * C) * alpha) dn1 = min(min(C, O), dn1[1] + (C - dn1[1]) * alpha) dn2 = min(min(C * C, O * O), dn2[1] + (C * C - dn2[1]) * alpha) endif //Components bull = sqrt(dn2 - dn1 * dn1) bear = sqrt(up2 - up1 * up1)   maxi = max(bull, bear) signal = ExponentialAverage[siglength](maxi)   return bull as "Bullish Component" coloured(8,153,129), bear as "Bearish Component" coloured(242,54,69), signal as "Signal" coloured(255,152,0)



  2 users thanked author for this post.

  Nicolas, Sofitech



  JC_Bywan

  Moderator

  Topics: 20

  Replies: 2742

  Been thanked: 1014 times
  08/19/2022 at 4:59 PM #199254
  Nicolas

  ça me semble correct à la lecture, merci noobywan.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20868

  Been thanked: 4787 times
