3D Candlesticks TOPIC

• 01/07/2020 at 11:09 AM #116114
  MajorBasse

  Is it possible to display the colours as a line instead to reduce the noise of the candlesticks? I´ve tried to simply change the “DRAWCANDLE” to “DRAWLINE” in the indicators code but it doesn´t seem to work.

  I would like to have a simple line that changes colour like the candles does.

  Thank you.



  MajorBasse

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 0 times
  01/07/2020 at 3:00 PM #116143
  Nicolas

  Where do you want that line to appear? on the price chart or below it?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/07/2020 at 3:25 PM #116145
  MajorBasse

  On the price chart



  MajorBasse

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 0 times
  01/07/2020 at 4:15 PM #116149
  Nicolas

  ok so we must anchor that line to something, to follow the price, any idea?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/07/2020 at 4:17 PM #116150
  MajorBasse

  What do you mean?  Is it not possible to simply anchor to a standard line chart?



  MajorBasse

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 0 times
  01/07/2020 at 4:46 PM #116152
  Nicolas

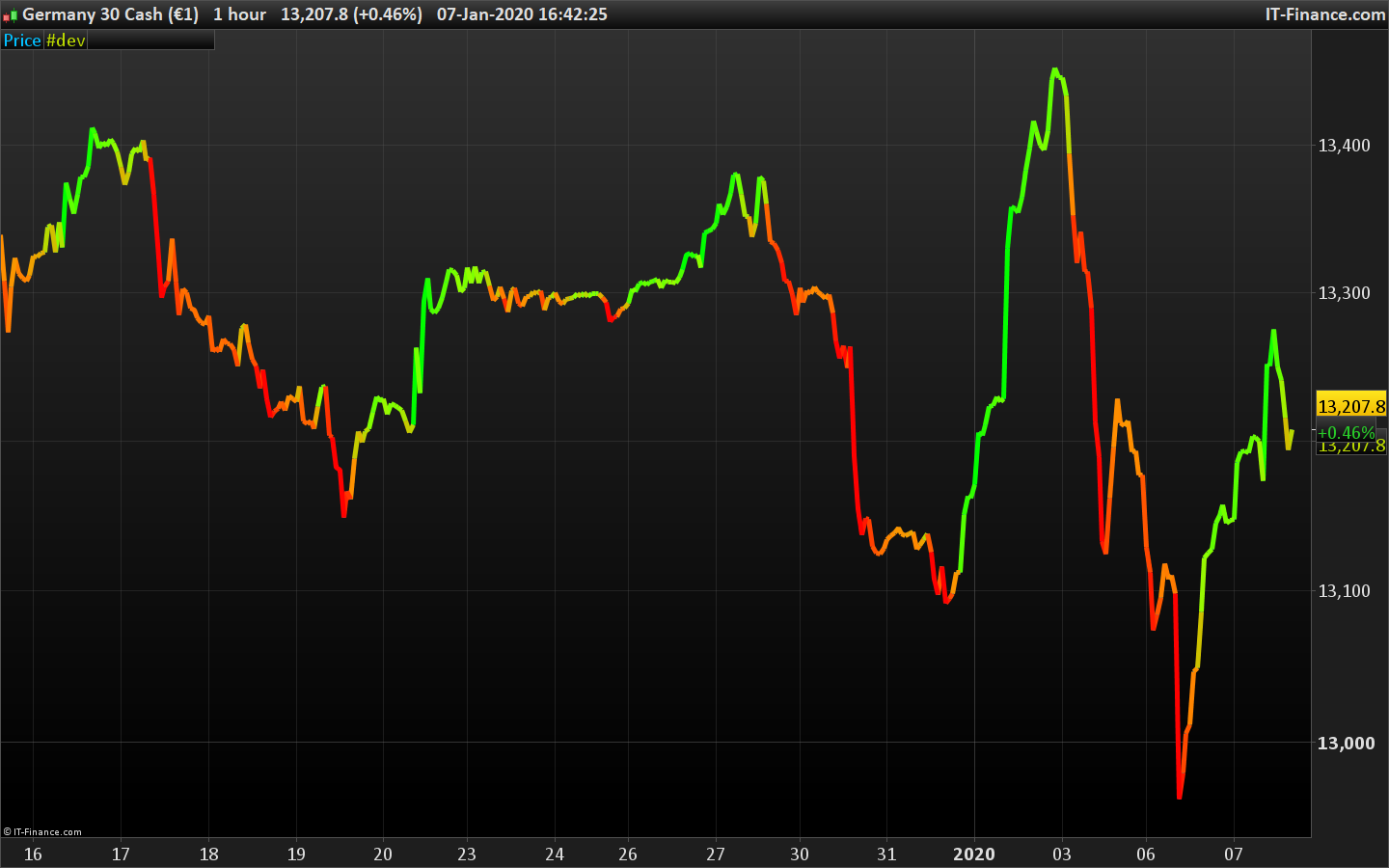

  oh I see now what you want. Use this version of the code:

  //05.07.2018 //ALE@PROREALCODE //https://www.automatictrading.it/ //////////////////////////////////////////////////////////// TranslateCandle =0 // To maintain both the candles on the graph without overlap TransRange =0.01 // To choose distance of the 3D caNdle Transparency =0 //////////////////////////////////////////////////////////// ONCE CandleCci =1 // CANDLE + COMMODITY CHANNEL INDEX COLOUR ONCE CandleRsi =0 // CANDLE + RSI COLOUR ONCE CandleStochastic =0 // CANDLE + STOCASTIC COLOUR ONCE CandleCycle =0 // CANDLE + CYCLE COLOUR ONCE CandleDI =0 // CANDLE + DIRECTIONAL INDEX COLOUR //////////////////////////////V////////////////////////////// ONCE CciPeriod =20 ONCE RsiPeriod =14 ONCE N =14 ONCE K =3 ONCE DiPeriod =14 //////////////////////////////V////////////////////////////// If CandleCci then // CANDLE + COMMODITY CHANNEL INDEX COLOUR MyCci = Cci[max(1,CciPeriod)](customclose) R = (200-MyCci) G =(200+MyCci) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,transparency*50) else DRAWCANDLE(open, high, low, close) Coloured (R,G,0,transparency*50) endif Elsif CandleRsi then // CANDLE + RSI COLOUR MyRsi = RSI[max(1,RsiPeriod)](customclose) R =50+(200-(MyRsi-50)*12) G =50+(200+(MyRsi-50)*12) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,transparency*50) else DRAWCANDLE(open, high, low, close) Coloured (R,G,0,transparency*50) endif Elsif CandleStochastic then // CANDLE + STOCHASTIC COLOUR MyStoch = Stochastic[max(1,N),max(1,K)](customclose) R =50+(200-(MyStoch-50)*6) G =50+(200+(MyStoch-50)*6) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,transparency*50) else DRAWCANDLE(open, high, low, close) Coloured (R,G,0,transparency*50) endif Elsif CandleCycle then // CANDLE + CYCLE COLOUR MyCycle = Cycle(customclose) R = (200-MyCycle*10) G =(200+MyCycle*10) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,transparency*50) else DRAWCANDLE(open, high, low, close) Coloured (R,G,0,transparency*50) endif Elsif CandleDI then // CANDLE + DIRECTIONAL INDEX MyDi = DI[max(1,DiPeriod)](customclose) R = 50+(200-MyDi*10) G =50+(200+MyDi*10) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,(transparency)*50) else DRAWCANDLE(open, high, low, close)Coloured (R,G,0,transparency*50) endif endif Return close coloured(r,g,0)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

  //05.07.2018 //ALE@PROREALCODE //https://www.automatictrading.it/ //////////////////////////////////////////////////////////// TranslateCandle            =0       //  To maintain both the candles on the graph without overlap TransRange                 =0.01    //  To choose distance of the 3D caNdle Transparency               =0 //////////////////////////////////////////////////////////// ONCE CandleCci             =1       // CANDLE + COMMODITY CHANNEL INDEX COLOUR ONCE CandleRsi             =0       // CANDLE + RSI COLOUR ONCE CandleStochastic      =0       // CANDLE + STOCASTIC COLOUR ONCE CandleCycle           =0       // CANDLE + CYCLE COLOUR ONCE CandleDI              =0       // CANDLE + DIRECTIONAL INDEX COLOUR //////////////////////////////V////////////////////////////// ONCE CciPeriod             =20 ONCE RsiPeriod             =14 ONCE N                     =14 ONCE K                     =3 ONCE DiPeriod              =14 //////////////////////////////V////////////////////////////// If CandleCci then                                 // CANDLE + COMMODITY CHANNEL INDEX COLOUR MyCci  = Cci[max(1,CciPeriod)](customclose) R = (200-MyCci) G =(200+MyCci) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,transparency*50) else DRAWCANDLE(open, high, low, close) Coloured (R,G,0,transparency*50) endif Elsif CandleRsi then                           // CANDLE + RSI COLOUR MyRsi    = RSI[max(1,RsiPeriod)](customclose) R =50+(200-(MyRsi-50)*12) G =50+(200+(MyRsi-50)*12) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,transparency*50) else DRAWCANDLE(open, high, low, close) Coloured (R,G,0,transparency*50) endif Elsif CandleStochastic then                           // CANDLE + STOCHASTIC COLOUR MyStoch    = Stochastic[max(1,N),max(1,K)](customclose) R =50+(200-(MyStoch-50)*6) G =50+(200+(MyStoch-50)*6) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,transparency*50) else DRAWCANDLE(open, high, low, close) Coloured (R,G,0,transparency*50) endif Elsif CandleCycle then                           // CANDLE + CYCLE COLOUR MyCycle    = Cycle(customclose) R = (200-MyCycle*10) G =(200+MyCycle*10) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,transparency*50) else DRAWCANDLE(open, high, low, close) Coloured (R,G,0,transparency*50) endif Elsif CandleDI then                              // CANDLE + DIRECTIONAL INDEX MyDi = DI[max(1,DiPeriod)](customclose) R = 50+(200-MyDi*10) G =50+(200+MyDi*10) if TranslateCandle then DRAWCANDLE(open-(open*TransRange*pointsize), high-(high*TransRange*pointsize), low-(low*TransRange*pointsize), close-(close*TransRange*pointsize)) Coloured (R,G,0,(transparency)*50) else DRAWCANDLE(open, high, low, close)Coloured (R,G,0,transparency*50) endif endif Return close coloured(r,g,0)

  and set your price setting to a line (otherwise you will still see the normal candlestick of the price chart).



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  01/07/2020 at 4:54 PM #116154
  MajorBasse

  This is exactly what I was looking for, thank you for the quick help Nicolas!



  MajorBasse

  Participant

  Topics: 11

  Replies: 27

  Been thanked: 0 times
  02/04/2020 at 9:56 PM #118683
  Bard

  Hi there,

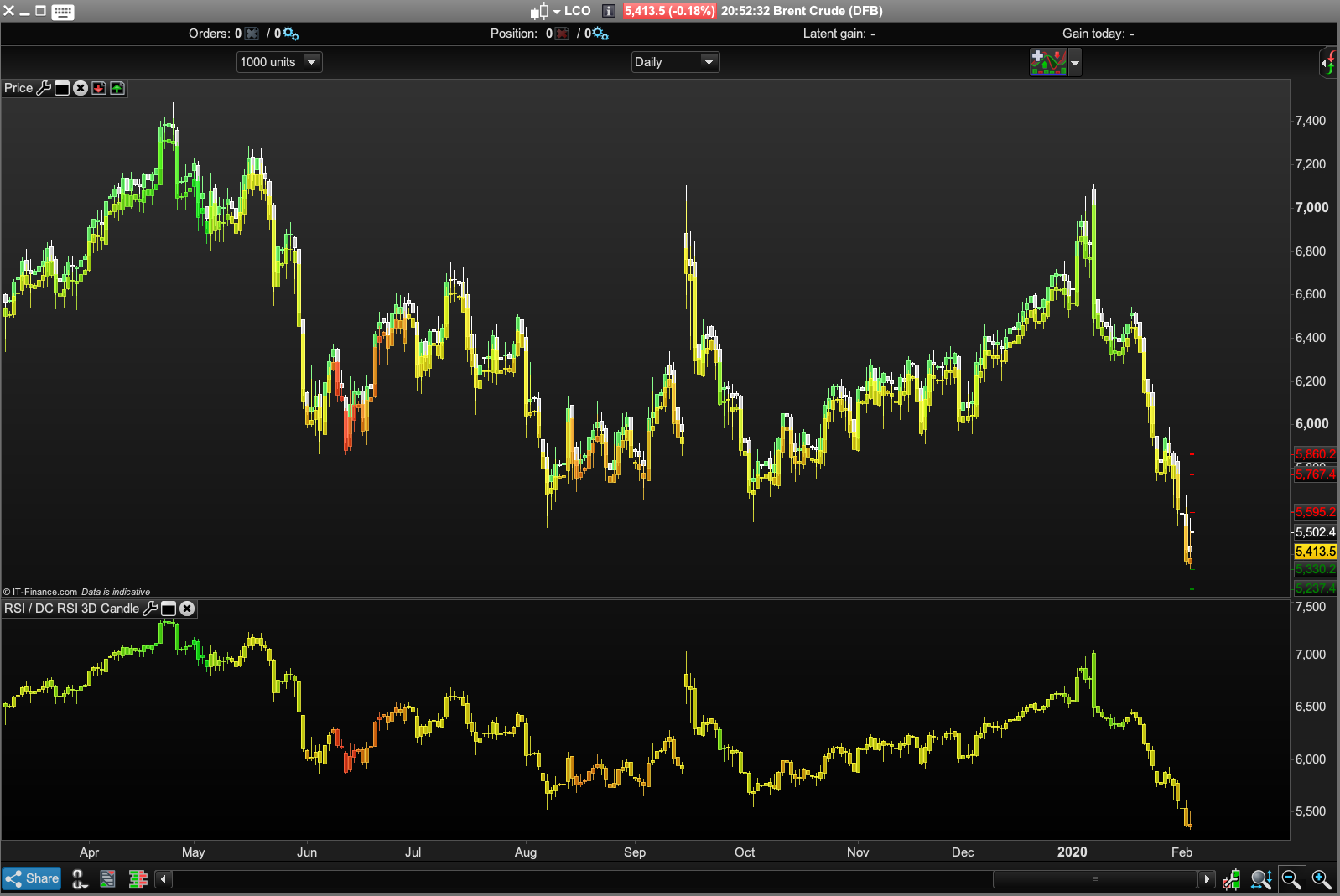

  I used a customised RSI Dominant Cycle and standard RSI but although the code looks okay (?), when I launched it on the price chart it now sits just below the current prices/candlesticks?
  So I have two price series candlesticks, one green/white and the other the 3D candles! Any ideas? For those without the code it’s on this forum somewhere but here it is:

  DC RSI

  Period = CALL "Ehler's Dominant Cycle Modify" DC = MAX(8, MIN(Round(Period),48) ) myRSI = RSI[DC](close) Return myRSI coloured(0,255,255) as "RSIdc"

  1 2 3 4

  Period = CALL "Ehler's Dominant Cycle Modify" DC = MAX(8, MIN(Round(Period),48) ) myRSI = RSI[DC](close) Return myRSI coloured(0,255,255) as "RSIdc"

  Ehler's Dominant Cycle Modify

  //PeriodDC= 20 // original by John Ehlers PeriodDC= MAX(8, MIN(DC, 48)) IF barindex = 1 THEN BP= 0.01 DC= 20 ELSIF Barindex >= 2 THEN REM --------------------------------------------- REM Highpass Filter and BP or SuperSmoother Filter together form a Roofing Filter REM --------------------------------------------- HPPrice= close HPPeriod= PeriodDC HPBandwidth= 0.3 // 0.7 original Dominant Cycle Measured, 0.3 (0.10-0.50) from Roofing Filter HPalpha= (COS(0.25*HPBandwidth*360/HPPeriod) + SIN(0.25*HPBandwidth*360/HPPeriod)-1) / COS(0.25*HPBandwidth*360/HPPeriod) HP= (1+HPalpha/2)*(HPPrice-HPPrice[1]) + (1-HPalpha)*HP[1] BPPrice= HP BPPeriod= PeriodDC BPBandwidth= HPBandwidth beta= COS(360/BPPeriod) gamma= 1/COS(360*BPBandwidth/BPPeriod) BPalpha= gamma - SQRT(gamma*gamma-1) BP= 0.5*(1-BPalpha)*(BPPrice-BPPrice[2]) + beta*(1+BPalpha)*BP[1] - BPalpha*BP[2] REM --------------------------------------------- REM Calculation of Dominant Cycle by counting Zero crossing of BP REM --------------------------------------------- CountPrice= BP DC= DC[1] DC= MAX(6, DC) counter= counter + 1 IF CountPrice CROSSES OVER 0 OR CountPrice CROSSES UNDER 0 THEN DC= 2*counter ThrashH= 1.11 // original 1.25 IF 2*counter > ThrashH*DC[1] THEN DC= ThrashH*DC[1] ENDIF ThrashL= 0.90 // original 0.8 IF 2*counter < ThrashL*DC[1] THEN DC= ThrashL*DC[1] ENDIF counter= 0 ENDIF ENDIF DC= MAX(8, MIN(DC, 48)) RETURN DC coloured(0,255,255) as "DomCyclePeriod" //, BP coloured(0,255,0,255) as "BandPass"

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

  //PeriodDC= 20  //   original by John Ehlers PeriodDC= MAX(8, MIN(DC, 48)) IF barindex = 1 THEN BP= 0.01 DC= 20 ELSIF Barindex >= 2 THEN REM --------------------------------------------- REM Highpass Filter and BP or SuperSmoother Filter together form a Roofing Filter REM --------------------------------------------- HPPrice= close HPPeriod= PeriodDC HPBandwidth= 0.3    // 0.7 original Dominant Cycle Measured, 0.3 (0.10-0.50) from Roofing Filter HPalpha= (COS(0.25*HPBandwidth*360/HPPeriod) + SIN(0.25*HPBandwidth*360/HPPeriod)-1) / COS(0.25*HPBandwidth*360/HPPeriod) HP= (1+HPalpha/2)*(HPPrice-HPPrice[1]) + (1-HPalpha)*HP[1] BPPrice= HP BPPeriod= PeriodDC BPBandwidth= HPBandwidth beta= COS(360/BPPeriod) gamma= 1/COS(360*BPBandwidth/BPPeriod) BPalpha= gamma - SQRT(gamma*gamma-1) BP= 0.5*(1-BPalpha)*(BPPrice-BPPrice[2]) + beta*(1+BPalpha)*BP[1] - BPalpha*BP[2] REM --------------------------------------------- REM Calculation of Dominant Cycle by counting Zero crossing of BP REM --------------------------------------------- CountPrice= BP DC= DC[1] DC= MAX(6, DC) counter= counter + 1 IF CountPrice CROSSES OVER 0 OR CountPrice CROSSES UNDER 0 THEN DC= 2*counter ThrashH= 1.11   // original 1.25 IF 2*counter > ThrashH*DC[1] THEN DC= ThrashH*DC[1] ENDIF ThrashL= 0.90   // original 0.8 IF 2*counter < ThrashL*DC[1] THEN DC= ThrashL*DC[1] ENDIF counter= 0 ENDIF ENDIF DC= MAX(8, MIN(DC, 48)) RETURN DC coloured(0,255,255) as "DomCyclePeriod" //, BP coloured(0,255,0,255) as "BandPass"

  Cheers,

  Bard



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  02/05/2020 at 10:04 AM #118706
  Nicolas

  All indicators sit below the price chart if you don’t apply them ON THE PRICE CHART 😉



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  02/05/2020 at 11:36 AM #118716
  Nicolas

  Oh I see now what you mean.. sorry. The candlesticks must have Open/High/Low/Close as reference to perfectly match the ones from the platform. So there must be something that explain this offset in the 3D candlesticks code you are using!

  1 user thanked author for this post.

  Bard



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4742 times
  02/05/2020 at 1:47 PM #118740
  Bard

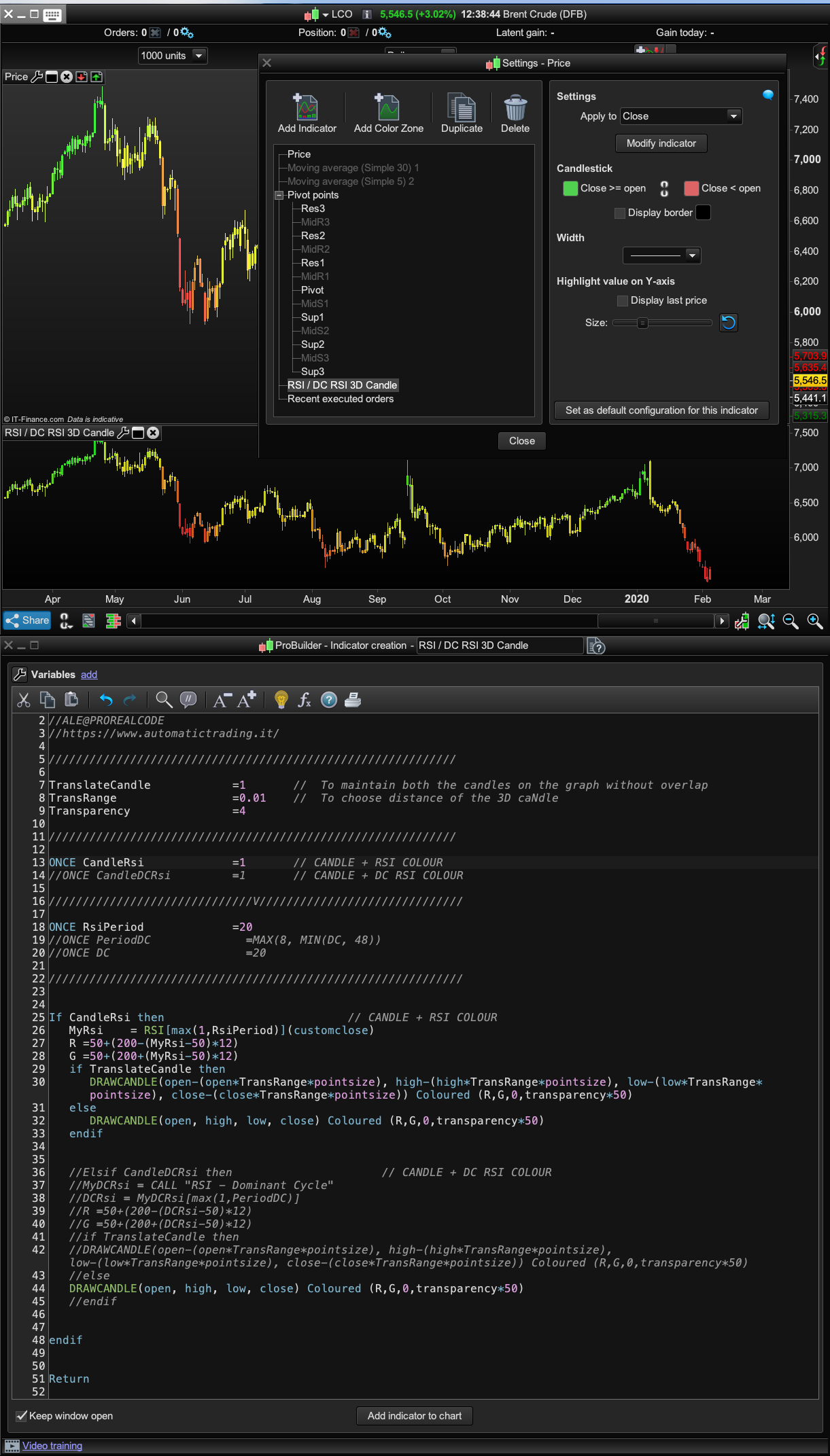

  I know I’m a veteran “newbie” coder but even I figured out the 3D needs to be applied to the Price chart! 😀 I commented out the “Dominant Cycle RSI” code just now and left the generic RSI code and it looks great! (pls see screenshot – this image shows the generic RSI working okay)

  Problem is my DC RSI is applied to the Close but still sits below the price series? Can you see anything in my DC RSI code that looks like it could be causing this problem? When I try Settings: Apply to Low or any other combination like (H+L+C)/3 the extra price series of candles doesn’t respond and stays in exactly the same position?

  Cheers Nicolas.



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  02/06/2020 at 4:57 PM #118853
  Bard

  If I need to reference the O/C/H/L when I’m using myRSI = RSI [DC] (close) and HPPrice= close which also refernces the closing price (from Ehler’s Dominant Cycle indicator), I’m still not sure how to go about this to get it to work? I mean, “close” is already referenced, so what’s the problem?


  Elsif CandleDCRsi then // CANDLE + DC RSI COLOUR MyDCRsi = CALL "RSI - Dominant Cycle" DCRsi = MyDCRsi[max(1,PeriodDC)]

  1 2 3

  Elsif CandleDCRsi then                      // CANDLE + DC RSI COLOUR MyDCRsi = CALL "RSI - Dominant Cycle" DCRsi = MyDCRsi[max(1,PeriodDC)]

  HPPrice= close HPPeriod= PeriodDC

  1 2	HPPrice= close HPPeriod= PeriodDC





  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  02/14/2020 at 2:00 PM #119633
  Bard

  This setting fixes overlapping On Price candles: TransRange =0.0001 (instead of default setting = 0.01)

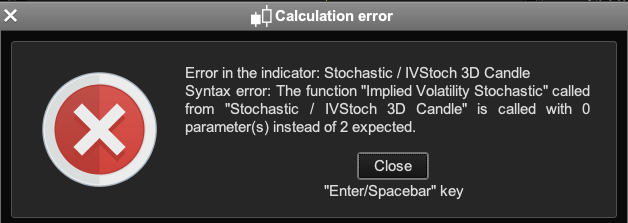

  Hi @Nicolas, can you figure out why this warning comes up (pls see screnshot) when I add an implied volatility indicator to the 3D, code even though I have added the parameters [22,60] into that 3D candle code?

  MyIVStoch = CALL "Implied Volatility Stochastic" MyIVStoch = CALL "Implied Volatility Stochastic"[22,60] IVStoch = MyIVStoch // Two external vars [22,60], Short IV + Long IV Period R =50+(200-(IVStoch-50)*6) etc etc...

  1 2 3 4 5 6

  MyIVStoch = CALL "Implied Volatility Stochastic"   MyIVStoch = CALL "Implied Volatility Stochastic"[22,60] IVStoch   = MyIVStoch  // Two external vars [22,60], Short IV + Long IV Period R =50+(200-(IVStoch-50)*6) etc etc...

  Much appreciated,

  Cheers Bard



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
  02/14/2020 at 2:31 PM #119636
  Vonasi

  Why are you calling it twice? Once with no parameters which would give an error and then with the correct parameters. Delete line 1.



  Vonasi

  Moderator

  Topics: 192

  Replies: 5088

  Been thanked: 1810 times
  02/15/2020 at 4:49 PM #119693
  Bard

  Thanks Vonasi, Line 1 was actually buried far higher up in my indicator code but I should have spotted this in my posting above. Line 1 has been removed.

  Now my indicator “Implied Volatility Stochastic” actually in fact has 7 values returned (at the end of it’s code) but I only made two of them actual variables, [22, 60]. However now the warning is now telling me that the “Implied Volatility Stochastic” returns 7 values but your code needs 1.

  One? Shouldn’t it be two, as in [22, 60]?

  And if it is one value which do I use, 22 or 60?

  Cheers.



  Bard

  Participant

  Topics: 131

  Replies: 809

  Been thanked: 99 times
