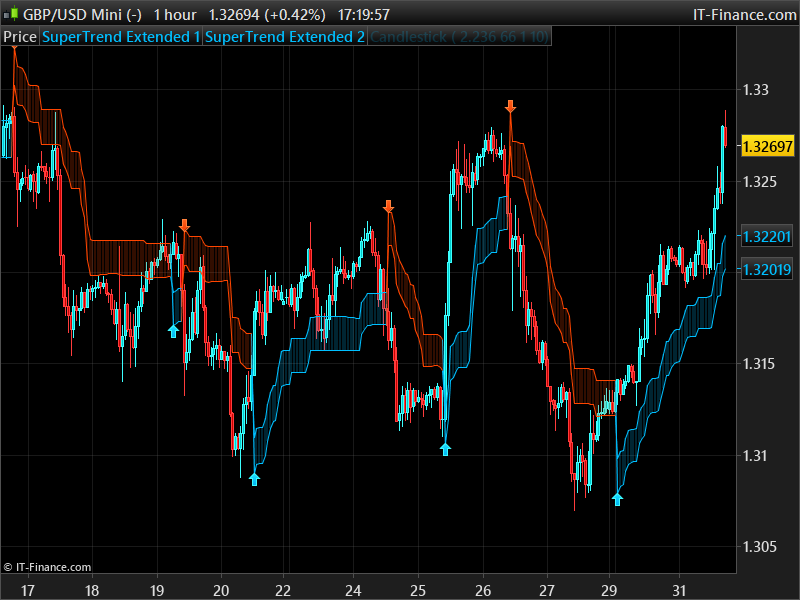

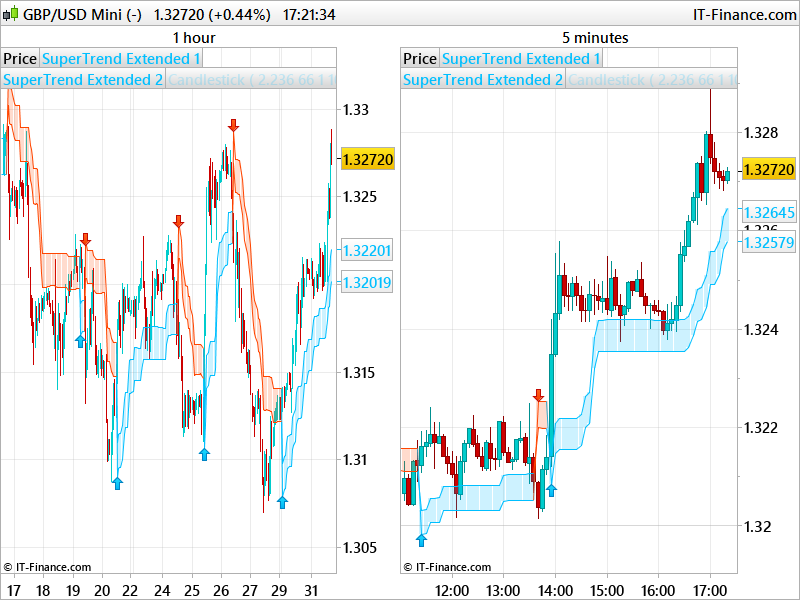

New “extended” version of the classic Supertrend indicator.

The Supertrend band is made from the supertrend itself (which can be calculated from 3 different manner) and from 1 Average True Range value above or below it, depending of the direction of the price.

There are 3 different type of the Supertrend Extendend calculation: (you can choose which one with the “type” parameter).

1. Using ATR like the classic Supertrend
2. Standard Deviation
3. Standard Error

All these values are multiplied by the “multiplier” settings to extend or narrow the band. These indicators share the same “period” setting.

The indicator also uses the mean of the price over the last “midperiod”, instead of the Close (middle of a Donchian channel or just like a Kijun from Ichimoku).

//PRC_SuperTrend Extended | indicator
//31.10.2017
//Nicolas @ www.prorealcode.com
//Sharing ProRealTime knowledge

// --- settings
//multiplier=2.236
//period=66
//type=1 //1 = use ATR , 2 = Use standard deviation , 3 = Use standard error
//midperiod=10
// --- end of settings

type=max(1,type)
if type=1 then
 moy=averagetruerange[period](close)
elsif type=2 then
 moy=std[period](close)
elsif type=3 then
 moy=ste[period](close)
endif

price=(highest[midperiod](high)+lowest[midperiod](low))/2
up=price+multiplier*moy
dn=price-multiplier*moy
once trend=1
if close>up[1] then
 trend=1
elsif close<dn[1] then
 trend=-1
endif
if trend<0 and trend[1]>0 then
 flag=1
else
 flag=0
endif
if trend>0 and trend[1]<0 then
 flagh=1
else
 flagh=0
endif
if trend>0 and dn<dn[1] then
 dn=dn[1]
endif
if trend<0 and up>up[1] then
 up=up[1]
endif
if flag=1 then
 up=price+multiplier*moy
endif
if flagh=1 then
 dn=price-multiplier*moy
endif
if trend=1 then
 mysupertrend=dn
 offset=moy
 color1=0
 color2=191
 color3=255
else
 mysupertrend=up
 offset=-moy
 color1=255
 color2=69
 color3=0
endif

drawcandle(mysupertrend,mysupertrend+offset,mysupertrend,mysupertrend+offset) coloured(color1,color2,color3,50)bordercolor(100,100,100,0)

if trend=1 and trend[1]<>1 then
 drawarrowup(barindex,mysupertrend) coloured(color1,color2,color3)
endif
if trend=-1 and trend[1]<>-1 then
 drawarrowdown(barindex,mysupertrend) coloured(color1,color2,color3)
endif

return mysupertrend coloured (color1,color2,color3) as "SuperTrend Extended 1", mysupertrend+offset coloured (color1,color2,color3) as "SuperTrend Extended 2"
