Introduction

Projecting where a move is likely to end is one of the most practical uses of Fibonacci analysis. This indicator, adapted to ProBuilder from the “SMC Liquidity Sweep & Fibonacci Extension [MarkitTick]” pinescript, isolates and rebuilds its Fibonacci engine: it detects the most recent A-B-C structure on the chart with an automatic ZigZag and projects the Fibonacci extension levels of the impulse, highlighting the Golden Zone target band.

Instead of dragging the Fibonacci tool by hand, the indicator finds the swing structure for you, freezes it, and plots the projected targets (1.0, 1.272, 1.618) plus a shaded 1.5–1.618 zone where reactions often occur. When price breaks the origin of the structure, the setup is marked as invalidated.

How It Works

The logic runs in three stages:

ZigZag structure detection. Swing pivots are found with a symmetric lookback (depth bars on each side). A new pivot only becomes a ZigZag point if it moves away from the previous one by more than an adaptive threshold — either an ATR multiple or a fixed percentage of price. The indicator keeps the last three alternating pivots as points A, B and C.

A-B-C validation. A bullish structure is A = low, B = high, C = higher low (with C between A and B). A bearish structure is the mirror: A = high, B = low, C = lower high. Once a valid A-B-C is found it is frozen, so it stays on the chart even as new pivots form, until a new valid structure replaces it or price invalidates it.

Fibonacci projection. From point C, the impulse B − A is projected forward:

Target(ratio) = C + (B − A) × ratio

with ratios 1.0, 1.272 and 1.618 (0.618 optional). The Golden Zone is the band between the 1.5 and 1.618 projections — a common reaction/target area. Elliott-style labels (Wave 3, Harmonic, C/3, Wave 5) annotate each level.

Invalidation. If price closes back beyond point A, the structure is either greyed out or hidden, depending on the setting.

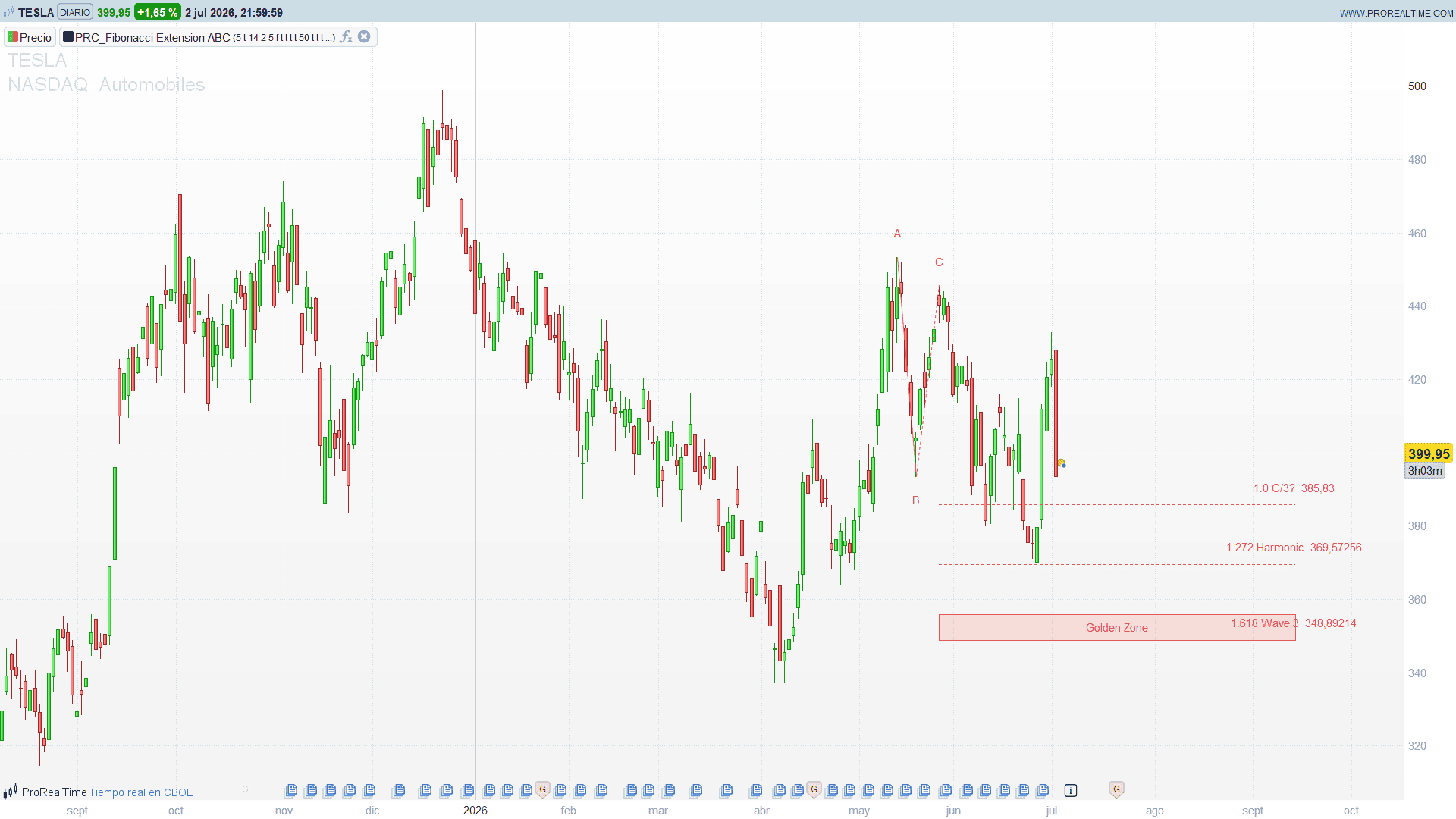

Reading the Indicator

• Solid A-B line and dotted B-C line: the detected impulse and its retracement leg.
• A / B / C labels: the three pivots of the structure (offset from the candles for readability).
• Dotted horizontal levels: the 1.0, 1.272 (and optional 0.618) extension targets.
• Solid 1.618 level: the main extension target.
• Shaded Golden Zone: the 1.5–1.618 band, the primary target/reaction area.
• Green structure = bullish projection, red = bearish, grey = invalidated.

The whole structure is drawn only on the last bar and refreshes cleanly on each update, so the chart never accumulates old drawings.

Trading Applications

• Profit targets: use 1.0 / 1.272 / 1.618 as staged take-profit levels for a move leaving point C.
• Golden Zone reactions: the 1.5–1.618 band is a natural area to trail stops, scale out, or watch for exhaustion.
• Confluence: combine the projected targets with support/resistance, order blocks or session levels for higher-probability exits.
• Invalidation discipline: a close beyond A cancels the idea — the indicator marks it for you instead of leaving a stale projection on the chart.

Parameters

• depth (default 5): pivot lookback on each side. Higher = fewer, larger structures.
• useATRthr (default 1): 1 = ATR-based ZigZag threshold, 0 = fixed percentage.
• atrPeriod / atrMult (14 / 2.0): ATR settings for the adaptive threshold.
• fixedDevPct (5.0): fixed percentage threshold when useATRthr = 0.
• showExt0618 / 100 / 1272 / 1618: toggle each extension level.
• extendRight / extBars (1 / 50): extend the projected levels to the right.
• showStructLines / showABClabels / showElliott: toggle structure lines, A-B-C labels and Elliott labels.
• invalidationOn / invalidAction (1 / 0): invalidate on break of A; 0 = grey out, 1 = hide.

Fibonacci Extension ABC Code

//-----------------------------------------------------------//
//PRC_Fibonacci Extension ABC (by MarkitTick)
//version = 0
//06.07.26
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//-----------------------------------------------------------//
// Detecta la ultima estructura ABC via ZigZag y proyecta las
// extensiones Fibonacci (1.0 / 1.272 / 1.618) + Golden Zone.
// APLICAR SOBRE EL GRAFICO DE PRECIO (overlay).
//-----------------------------------------------------------//
defparam drawonlastbaronly = true
//-----Inputs (parametros configurables)---------------------//
depth = 5             //Pivot Lookback Depth (barras a cada lado)
useATRthr = 1         //1 = umbral ATR, 0 = umbral % fijo
atrPeriod = 14        //Periodo ATR para el umbral
atrMult = 2.0         //Multiplicador ATR
fixedDevPct = 5.0     //% fijo (solo si useATRthr = 0)

showExt0618 = 0       //Mostrar nivel 0.618
showExt100 = 1        //Mostrar nivel 1.000
showExt1272 = 1       //Mostrar nivel 1.272
showExt1618 = 1       //Mostrar nivel 1.618
extendRight = 1       //1 = extender lineas a la derecha
extBars = 50          //Barras de extension a la derecha

showStructLines = 1   //Dibujar lineas A-B / B-C
showABClabels = 1     //Dibujar etiquetas A B C
showElliott = 1       //Etiquetas Elliott (Wave 3, Harmonic...)
invalidationOn = 1    //Invalidar si el precio rompe el punto A
invalidAction = 0     //0 = grisar estructura, 1 = ocultarla
//-----------------------------------------------------------//
//-----Colores (RGB)-----------------------------------------//
rBull = 0             //#00E676 alcista
gBull = 230
bBull = 118
rBear = 255           //#FF5252 bajista
gBear = 82
bBear = 82
rGray = 100           //invalidada
gGray = 100
bGray = 100
//-----------------------------------------------------------//
//-----Umbral adaptativo-------------------------------------//
atrv = averagetruerange[atrPeriod]
if useATRthr then
   zzThr = atrv * atrMult
else
   zzThr = close * fixedDevPct / 100
endif
//-----------------------------------------------------------//
//-----Deteccion de pivotes (simetricos, depth por lado)-----//
isPH = 0
isPL = 0
if barindex >= 2 * depth then
   okH = 1
   okL = 1
   for i = 1 to 2 * depth do
      if i <> depth then
         if high[i] >= high[depth] then
            okH = 0
         endif
         if low[i] <= low[depth] then
            okL = 0
         endif
      endif
   next
   isPH = okH
   isPL = okL
endif
pivBar = barindex - depth
//-----------------------------------------------------------//
//-----Estado ZigZag: ultimos 3 puntos (A, B, C)-------------//
once zzCount = 0
once barA = 0
once priceA = 0
once hiA = 0
once barB = 0
once priceB = 0
once hiB = 0
once barC = 0
once priceC = 0
once hiC = 0
//-----------------------------------------------------------//
//-----Procesar pivote HIGH----------------------------------//
if isPH then
   if zzCount = 0 then
      barC = pivBar
      priceC = high[depth]
      hiC = 1
      zzCount = 1
   elsif hiC = 1 then
      if high[depth] > priceC then
         barC = pivBar
         priceC = high[depth]
      endif
   else
      if abs(high[depth] - priceC) >= zzThr then
         barA = barB
         priceA = priceB
         hiA = hiB
         barB = barC
         priceB = priceC
         hiB = hiC
         barC = pivBar
         priceC = high[depth]
         hiC = 1
         if zzCount < 3 then
            zzCount = zzCount + 1
         endif
      endif
   endif
endif
//-----------------------------------------------------------//
//-----Procesar pivote LOW-----------------------------------//
if isPL then
   if zzCount = 0 then
      barC = pivBar
      priceC = low[depth]
      hiC = 0
      zzCount = 1
   elsif hiC = 0 then
      if low[depth] < priceC then
         barC = pivBar
         priceC = low[depth]
      endif
   else
      if abs(low[depth] - priceC) >= zzThr then
         barA = barB
         priceA = priceB
         hiA = hiB
         barB = barC
         priceB = priceC
         hiB = hiC
         barC = pivBar
         priceC = low[depth]
         hiC = 0
         if zzCount < 3 then
            zzCount = zzCount + 1
         endif
      endif
   endif
endif
//-----------------------------------------------------------//
//-----Deteccion de estructura ABC---------------------------//
bullABC = 0
bearABC = 0
if zzCount >= 3 then
   if hiA = 0 and hiB = 1 and hiC = 0 then
      if priceC > priceA and priceC < priceB then
         bullABC = 1
      endif
   endif
   if hiA = 1 and hiB = 0 and hiC = 1 then
      if priceC < priceA and priceC > priceB then
         bearABC = 1
      endif
   endif
endif
//-----------------------------------------------------------//
//-----Congelar la ultima estructura valida------------------//
once sExists = 0
once sIsBull = 0
once sInvalid = 0
once sBarA = 0
once sPriceA = 0
once sBarB = 0
once sPriceB = 0
once sBarC = 0
once sPriceC = 0

if bullABC or bearABC then
   isNew = 0
   if barC <> sBarC or barB <> sBarB or barA <> sBarA then
      isNew = 1
   endif
   if isNew then
      sBarA = barA
      sPriceA = priceA
      sBarB = barB
      sPriceB = priceB
      sBarC = barC
      sPriceC = priceC
      sIsBull = bullABC
      sExists = 1
      sInvalid = 0
   endif
endif
//-----------------------------------------------------------//
//-----Invalidacion (el precio rompe el punto A)-------------//
if invalidationOn and sExists = 1 and sInvalid = 0 then
   if sIsBull = 1 and close < sPriceA then
      sInvalid = 1
   endif
   if sIsBull = 0 and close > sPriceA then
      sInvalid = 1
   endif
endif
//-----------------------------------------------------------//
//-----Niveles de extension Fibonacci------------------------//
extDiff = sPriceB - sPriceA
lvl0618 = sPriceC + extDiff * 0.618
lvl100 = sPriceC + extDiff * 1.0
lvl1272 = sPriceC + extDiff * 1.272
lvl1500 = sPriceC + extDiff * 1.5
lvl1618 = sPriceC + extDiff * 1.618
d0618 = round(lvl0618 * 100000) / 100000
d100 = round(lvl100 * 100000) / 100000
d1272 = round(lvl1272 * 100000) / 100000
d1618 = round(lvl1618 * 100000) / 100000
//-----------------------------------------------------------//
//-----Dibujo (solo en la ultima barra)----------------------//
drawIt = 0
if islastbarupdate and sExists = 1 then
   if sInvalid = 1 then
      if invalidAction = 0 then
         rC = rGray
         gC = gGray
         bC = bGray
         drawIt = 1
      else
         drawIt = 0
      endif
   else
      drawIt = 1
      if sIsBull = 1 then
         rC = rBull
         gC = gBull
         bC = bBull
      else
         rC = rBear
         gC = gBear
         bC = bBear
      endif
   endif

   if drawIt = 1 then
      if extendRight then
         endBar = barindex + extBars
      else
         endBar = barindex
      endif

      //offset ATR para que el texto no pise la linea/vela
      offLvl = atrv * 0.25
      if sIsBull = 1 then
         offA = 0 - atrv * 0.35
         offB = atrv * 0.35
         offC = 0 - atrv * 0.35
      else
         offA = atrv * 0.35
         offB = 0 - atrv * 0.35
         offC = atrv * 0.35
      endif

      //--- Lineas de estructura A-B / B-C ---
      if showStructLines then
         drawsegment(sBarA, sPriceA, sBarB, sPriceB) coloured(rC, gC, bC)
         drawsegment(sBarB, sPriceB, sBarC, sPriceC) coloured(rC, gC, bC) style(dottedline)
      endif

      //--- Etiquetas A B C ---
      if showABClabels then
         drawtext("A", sBarA, sPriceA + offA) coloured(rC, gC, bC)
         drawtext("B", sBarB, sPriceB + offB) coloured(rC, gC, bC)
         drawtext("C", sBarC, sPriceC + offC) coloured(rC, gC, bC)
      endif

      //--- Nivel 0.618 ---
      if showExt0618 then
         drawsegment(sBarC, lvl0618, endBar, lvl0618) coloured(rC, gC, bC) style(dottedline)
         if showElliott then
            drawtext("0.618 Wave 5  #d0618#", endBar, lvl0618 + offLvl) coloured(rC, gC, bC)
         else
            drawtext("0.618  #d0618#", endBar, lvl0618 + offLvl) coloured(rC, gC, bC)
         endif
      endif

      //--- Nivel 1.0 ---
      if showExt100 then
         drawsegment(sBarC, lvl100, endBar, lvl100) coloured(rC, gC, bC) style(dottedline)
         if showElliott then
            drawtext("1.0 C/3?  #d100#", endBar, lvl100 + offLvl) coloured(rC, gC, bC)
         else
            drawtext("1.0  #d100#", endBar, lvl100 + offLvl) coloured(rC, gC, bC)
         endif
      endif

      //--- Nivel 1.272 ---
      if showExt1272 then
         drawsegment(sBarC, lvl1272, endBar, lvl1272) coloured(rC, gC, bC) style(dottedline)
         if showElliott then
            drawtext("1.272 Harmonic  #d1272#", endBar, lvl1272 + offLvl) coloured(rC, gC, bC)
         else
            drawtext("1.272  #d1272#", endBar, lvl1272 + offLvl) coloured(rC, gC, bC)
         endif
      endif

      //--- Nivel 1.618 ---
      if showExt1618 then
         drawsegment(sBarC, lvl1618, endBar, lvl1618) coloured(rC, gC, bC)
         if showElliott then
            drawtext("1.618 Wave 3  #d1618#", endBar, lvl1618 + offLvl) coloured(rC, gC, bC)
         else
            drawtext("1.618  #d1618#", endBar, lvl1618 + offLvl) coloured(rC, gC, bC)
         endif
      endif

      //--- Golden Zone (banda 1.5 - 1.618) ---
      if lvl1618 >= lvl1500 then
         gzBot = lvl1500
         gzTop = lvl1618
      else
         gzBot = lvl1618
         gzTop = lvl1500
      endif
      drawrectangle(sBarC, gzBot, endBar, gzTop) coloured(rC, gC, bC) fillcolor(rC, gC, bC, 40)
      drawtext("Golden Zone", (sBarC+endBar)*0.5, (gzBot + gzTop) / 2) coloured(rC, gC, bC)
   endif
endif
//-----------------------------------------------------------//
return
