VuManChu Cipher indicator conversion from Tradingview

• 07/01/2022 at 4:43 AM #196505
  Mary

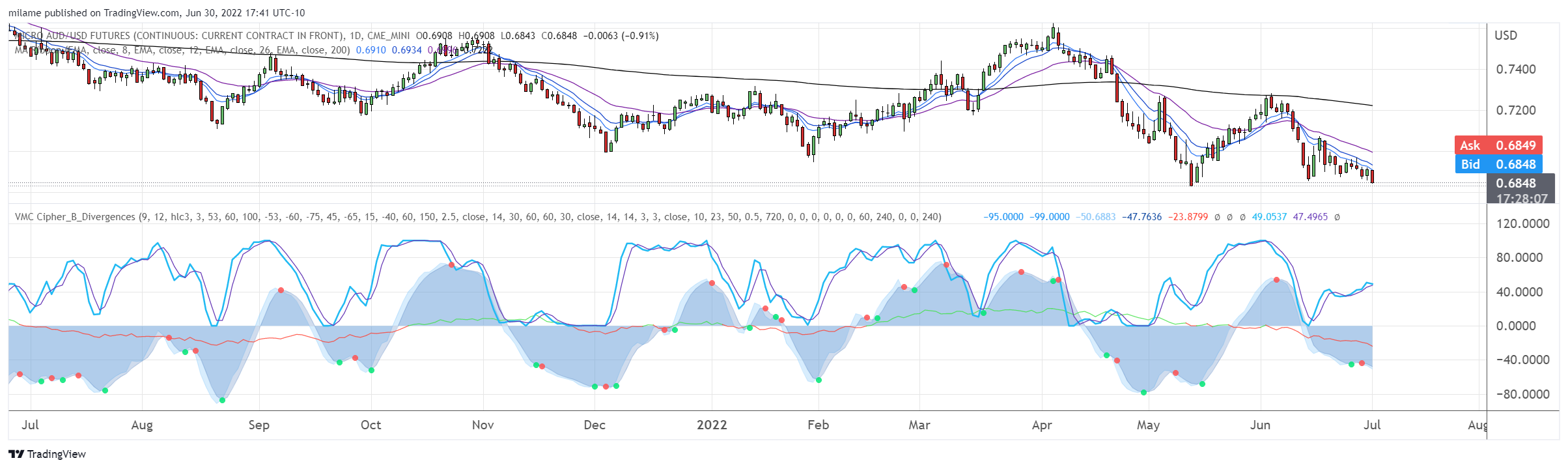

  Could someone please help convert VuManChu Cipher B + Divergences  Indicator from TradingView to Prorealtime:

  // © vumanchu

  //@version=4

  // CIRCLES & TRIANGLES:
  // – LITTLE CIRCLE: They appear at all WaveTrend wave crossings.
  // – GREEN CIRCLE: The wavetrend waves are at the oversold level and have crossed up (bullish).
  // – RED CIRCLE: The wavetrend waves are at the overbought level and have crossed down (bearish).
  // – GOLD/ORANGE CIRCLE: When RSI is below 20, WaveTrend waves are below or equal to -80 and have crossed up after good bullish divergence (DONT BUY WHEN GOLD CIRCLE APPEAR).
  // – None of these circles are certain signs to trade. It is only information that can help you.
  // – PURPLE TRIANGLE: Appear when a bullish or bearish divergence is formed and WaveTrend waves crosses at overbought and oversold points.
  //
  // NOTES:
  // – I am not an expert trader or know how to program pine script as such, in fact it is my first indicator only to study and all the code is copied and modified from other codes that are published in TradingView.
  // – I am very grateful to the entire TV community that publishes codes so that other newbies like me can learn and present their results. This is an attempt to imitate Market Cipher B.
  // – Settings by default are for 4h timeframe, divergences are more stronger and accurate. Haven’t tested in all timeframes, only 2h and 4h.
  // – If you get an interesting result in other timeframes I would be very grateful if you would comment your configuration to implement it or at least check it.
  //
  // CONTRIBUTIONS:
  // – Tip/Idea: Add higher timeframe analysis for bearish/bullish patterns at the current timeframe.
  // + Bearish/Bullish FLAG:
  // – MFI+RSI Area are RED (Below 0).
  // – Wavetrend waves are above 0 and crosses down.
  // – VWAP Area are below 0 on higher timeframe.
  // – This pattern reversed becomes bullish.
  // – Tip/Idea: Check the last heikinashi candle from 2 higher timeframe
  // + Bearish/Bullish DIAMOND:
  // – HT Candle is red
  // – WT > 0 and crossed down

  study(title = ‘VuManChu B Divergences’, shorttitle = ‘VMC Cipher_B_Divergences’)

  // PARAMETERS {

  // WaveTrend
  wtShow = input(true, title = ‘Show WaveTrend’, type = input.bool)
  wtBuyShow = input(true, title = ‘Show Buy dots’, type = input.bool)
  wtGoldShow = input(true, title = ‘Show Gold dots’, type = input.bool)
  wtSellShow = input(true, title = ‘Show Sell dots’, type = input.bool)
  wtDivShow = input(true, title = ‘Show Div. dots’, type = input.bool)
  vwapShow = input(true, title = ‘Show Fast WT’, type = input.bool)
  wtChannelLen = input(9, title = ‘WT Channel Length’, type = input.integer)
  wtAverageLen = input(12, title = ‘WT Average Length’, type = input.integer)
  wtMASource = input(hlc3, title = ‘WT MA Source’, type = input.source)
  wtMALen = input(3, title = ‘WT MA Length’, type = input.integer)

  // WaveTrend Overbought & Oversold lines
  obLevel = input(53, title = ‘WT Overbought Level 1’, type = input.integer)
  obLevel2 = input(60, title = ‘WT Overbought Level 2’, type = input.integer)
  obLevel3 = input(100, title = ‘WT Overbought Level 3’, type = input.integer)
  osLevel = input(-53, title = ‘WT Oversold Level 1’, type = input.integer)
  osLevel2 = input(-60, title = ‘WT Oversold Level 2’, type = input.integer)
  osLevel3 = input(-75, title = ‘WT Oversold Level 3’, type = input.integer)

  // Divergence WT
  wtShowDiv = input(true, title = ‘Show WT Regular Divergences’, type = input.bool)
  wtShowHiddenDiv = input(false, title = ‘Show WT Hidden Divergences’, type = input.bool)
  showHiddenDiv_nl = input(true, title = ‘Not apply OB/OS Limits on Hidden Divergences’, type = input.bool)
  wtDivOBLevel = input(45, title = ‘WT Bearish Divergence min’, type = input.integer)
  wtDivOSLevel = input(-65, title = ‘WT Bullish Divergence min’, type = input.integer)

  // Divergence extra range
  wtDivOBLevel_addshow = input(true, title = ‘Show 2nd WT Regular Divergences’, type = input.bool)
  wtDivOBLevel_add = input(15, title = ‘WT 2nd Bearish Divergence’, type = input.integer)
  wtDivOSLevel_add = input(-40, title = ‘WT 2nd Bullish Divergence 15 min’, type = input.integer)

  // RSI+MFI
  rsiMFIShow = input(true, title = ‘Show MFI’, type = input.bool)
  rsiMFIperiod = input(60,title = ‘MFI Period’, type = input.integer)
  rsiMFIMultiplier = input(150, title = ‘MFI Area multiplier’, type = input.float)
  rsiMFIPosY = input(2.5, title = ‘MFI Area Y Pos’, type = input.float)

  // RSI
  rsiShow = input(false, title = ‘Show RSI’, type = input.bool)
  rsiSRC = input(close, title = ‘RSI Source’, type = input.source)
  rsiLen = input(14, title = ‘RSI Length’, type = input.integer)
  rsiOversold = input(30, title = ‘RSI Oversold’, minval = 50, maxval = 100, type = input.integer)
  rsiOverbought = input(60, title = ‘RSI Overbought’, minval = 0, maxval = 50, type = input.integer)

  // Divergence RSI
  rsiShowDiv = input(false, title = ‘Show RSI Regular Divergences’, type = input.bool)
  rsiShowHiddenDiv = input(false, title = ‘Show RSI Hidden Divergences’, type = input.bool)
  rsiDivOBLevel = input(60, title = ‘RSI Bearish Divergence min’, type = input.integer)
  rsiDivOSLevel = input(30, title = ‘RSI Bullish Divergence min’, type = input.integer)

  // RSI Stochastic
  stochShow = input(true, title = ‘Show Stochastic RSI’, type = input.bool)
  stochUseLog = input(true, title=’ Use Log?’, type = input.bool)
  stochAvg = input(false, title=’Use Average of both K & D’, type = input.bool)
  stochSRC = input(close, title = ‘Stochastic RSI Source’, type = input.source)
  stochLen = input(14, title = ‘Stochastic RSI Length’, type = input.integer)
  stochRsiLen = input(14, title = ‘RSI Length ‘, type = input.integer)
  stochKSmooth = input(3, title = ‘Stochastic RSI K Smooth’, type = input.integer)
  stochDSmooth = input(3, title = ‘Stochastic RSI D Smooth’, type = input.integer)

  // Divergence stoch
  stochShowDiv = input(false, title = ‘Show Stoch Regular Divergences’, type = input.bool)
  stochShowHiddenDiv = input(false, title = ‘Show Stoch Hidden Divergences’, type = input.bool)

  // Schaff Trend Cycle
  tcLine = input(false, title=”Show Schaff TC line”, type=input.bool)
  tcSRC = input(close, title = ‘Schaff TC Source’, type = input.source)
  tclength = input(10, title=”Schaff TC”, type=input.integer)
  tcfastLength = input(23, title=”Schaff TC Fast Lenght”, type=input.integer)
  tcslowLength = input(50, title=”Schaff TC Slow Length”, type=input.integer)
  tcfactor = input(0.5, title=”Schaff TC Factor”, type=input.float)

  // Sommi Flag
  sommiFlagShow = input(false, title = ‘Show Sommi flag’, type = input.bool)
  sommiShowVwap = input(false, title = ‘Show Sommi F. Wave’, type = input.bool)
  sommiVwapTF = input(‘720’, title = ‘Sommi F. Wave timeframe’, type = input.string)
  sommiVwapBearLevel = input(0, title = ‘F. Wave Bear Level (less than)’, type = input.integer)
  sommiVwapBullLevel = input(0, title = ‘F. Wave Bull Level (more than)’, type = input.integer)
  soomiFlagWTBearLevel = input(0, title = ‘WT Bear Level (more than)’, type = input.integer)
  soomiFlagWTBullLevel = input(0, title = ‘WT Bull Level (less than)’, type = input.integer)
  soomiRSIMFIBearLevel = input(0, title = ‘Money flow Bear Level (less than)’, type = input.integer)
  soomiRSIMFIBullLevel = input(0, title = ‘Money flow Bull Level (more than)’, type = input.integer)

  // Sommi Diamond
  sommiDiamondShow = input(false, title = ‘Show Sommi diamond’, type = input.bool)
  sommiHTCRes = input(’60’, title = ‘HTF Candle Res. 1’, type = input.string)
  sommiHTCRes2 = input(‘240’, title = ‘HTF Candle Res. 2’, type = input.string)
  soomiDiamondWTBearLevel = input(0, title = ‘WT Bear Level (More than)’, type = input.integer)
  soomiDiamondWTBullLevel = input(0, title = ‘WT Bull Level (Less than)’, type = input.integer)

  // macd Colors
  macdWTColorsShow = input(false, title = ‘Show MACD Colors’, type = input.bool)
  macdWTColorsTF = input(‘240’, title = ‘MACD Colors MACD TF’, type = input.string)

  darkMode = input(false, title = ‘Dark mode’, type = input.bool)

  // Colors
  colorRed = #ff0000
  colorPurple = #e600e6
  colorGreen = #3fff00
  colorOrange = #e2a400
  colorYellow = #ffe500
  colorWhite = #ffffff
  colorPink = #ff00f0
  colorBluelight = #31c0ff

  colorWT1 = #90caf9
  colorWT2 = #0d47a1

  colorWT2_ = #131722

  colormacdWT1a = #4caf58
  colormacdWT1b = #af4c4c
  colormacdWT1c = #7ee57e
  colormacdWT1d = #ff3535

  colormacdWT2a = #305630
  colormacdWT2b = #310101
  colormacdWT2c = #132213
  colormacdWT2d = #770000

  // } PARAMETERS

  // FUNCTIONS {

  // Divergences
  f_top_fractal(src) => src[4] < src[2] and src[3] < src[2] and src[2] > src[1] and src[2] > src[0]
  f_bot_fractal(src) => src[4] > src[2] and src[3] > src[2] and src[2] < src[1] and src[2] < src[0]
  f_fractalize(src) => f_top_fractal(src) ? 1 : f_bot_fractal(src) ? -1 : 0

  f_findDivs(src, topLimit, botLimit, useLimits) =>
  fractalTop = f_fractalize(src) > 0 and (useLimits ? src[2] >= topLimit : true) ? src[2] : na
  fractalBot = f_fractalize(src) < 0 and (useLimits ? src[2] <= botLimit : true) ? src[2] : na
  highPrev = valuewhen(fractalTop, src[2], 0)[2]
  highPrice = valuewhen(fractalTop, high[2], 0)[2]
  lowPrev = valuewhen(fractalBot, src[2], 0)[2]
  lowPrice = valuewhen(fractalBot, low[2], 0)[2]
  bearSignal = fractalTop and high[2] > highPrice and src[2] < highPrev
  bullSignal = fractalBot and low[2] < lowPrice and src[2] > lowPrev
  bearDivHidden = fractalTop and high[2] < highPrice and src[2] > highPrev
  bullDivHidden = fractalBot and low[2] > lowPrice and src[2] < lowPrev
  [fractalTop, fractalBot, lowPrev, bearSignal, bullSignal, bearDivHidden, bullDivHidden]

  // RSI+MFI
  f_rsimfi(_period, _multiplier, _tf) => security(syminfo.tickerid, _tf, sma(((close – open) / (high – low)) * _multiplier, _period) – rsiMFIPosY)

  // WaveTrend
  f_wavetrend(src, chlen, avg, malen, tf) =>
  tfsrc = security(syminfo.tickerid, tf, src)
  esa = ema(tfsrc, chlen)
  de = ema(abs(tfsrc – esa), chlen)
  ci = (tfsrc – esa) / (0.015 * de)
  wt1 = security(syminfo.tickerid, tf, ema(ci, avg))
  wt2 = security(syminfo.tickerid, tf, sma(wt1, malen))
  wtVwap = wt1 – wt2
  wtOversold = wt2 <= osLevel
  wtOverbought = wt2 >= obLevel
  wtCross = cross(wt1, wt2)
  wtCrossUp = wt2 – wt1 <= 0
  wtCrossDown = wt2 – wt1 >= 0
  wtCrosslast = cross(wt1[2], wt2[2])
  wtCrossUplast = wt2[2] – wt1[2] <= 0
  wtCrossDownlast = wt2[2] – wt1[2] >= 0
  [wt1, wt2, wtOversold, wtOverbought, wtCross, wtCrossUp, wtCrossDown, wtCrosslast, wtCrossUplast, wtCrossDownlast, wtVwap]

  // Schaff Trend Cycle
  f_tc(src, length, fastLength, slowLength) =>
  ema1 = ema(src, fastLength)
  ema2 = ema(src, slowLength)
  macdVal = ema1 – ema2
  alpha = lowest(macdVal, length)
  beta = highest(macdVal, length) – alpha
  gamma = (macdVal – alpha) / beta * 100
  gamma := beta > 0 ? gamma : nz(gamma[1])
  delta = gamma
  delta := na(delta[1]) ? delta : delta[1] + tcfactor * (gamma – delta[1])
  epsilon = lowest(delta, length)
  zeta = highest(delta, length) – epsilon
  eta = (delta – epsilon) / zeta * 100
  eta := zeta > 0 ? eta : nz(eta[1])
  stcReturn = eta
  stcReturn := na(stcReturn[1]) ? stcReturn : stcReturn[1] + tcfactor * (eta – stcReturn[1])
  stcReturn

  // Stochastic RSI
  f_stochrsi(_src, _stochlen, _rsilen, _smoothk, _smoothd, _log, _avg) =>
  src = _log ? log(_src) : _src
  rsi = rsi(src, _rsilen)
  kk = sma(stoch(rsi, rsi, rsi, _stochlen), _smoothk)
  d1 = sma(kk, _smoothd)
  avg_1 = avg(kk, d1)
  k = _avg ? avg_1 : kk
  [k, d1]

  // MACD
  f_macd(src, fastlen, slowlen, sigsmooth, tf) =>
  fast_ma = security(syminfo.tickerid, tf, ema(src, fastlen))
  slow_ma = security(syminfo.tickerid, tf, ema(src, slowlen))
  macd = fast_ma – slow_ma,
  signal = security(syminfo.tickerid, tf, sma(macd, sigsmooth))
  hist = macd – signal
  [macd, signal, hist]

  // MACD Colors on WT
  f_macdWTColors(tf) =>
  hrsimfi = f_rsimfi(rsiMFIperiod, rsiMFIMultiplier, tf)
  [macd, signal, hist] = f_macd(close, 28, 42, 9, macdWTColorsTF)
  macdup = macd >= signal
  macddown = macd <= signal
  macdWT1Color = macdup ? hrsimfi > 0 ? colormacdWT1c : colormacdWT1a : macddown ? hrsimfi < 0 ? colormacdWT1d : colormacdWT1b : na
  macdWT2Color = macdup ? hrsimfi < 0 ? colormacdWT2c : colormacdWT2a : macddown ? hrsimfi < 0 ? colormacdWT2d : colormacdWT2b : na
  [macdWT1Color, macdWT2Color]

  // Get higher timeframe candle
  f_getTFCandle(_tf) =>
  _open = security(heikinashi(syminfo.tickerid), _tf, open, barmerge.gaps_off, barmerge.lookahead_on)
  _close = security(heikinashi(syminfo.tickerid), _tf, close, barmerge.gaps_off, barmerge.lookahead_on)
  _high = security(heikinashi(syminfo.tickerid), _tf, high, barmerge.gaps_off, barmerge.lookahead_on)
  _low = security(heikinashi(syminfo.tickerid), _tf, low, barmerge.gaps_off, barmerge.lookahead_on)
  hl2 = (_high + _low) / 2.0
  newBar = change(_open)
  candleBodyDir = _close > _open
  [candleBodyDir, newBar]

  // Sommi flag
  f_findSommiFlag(tf, wt1, wt2, rsimfi, wtCross, wtCrossUp, wtCrossDown) =>
  [hwt1, hwt2, hwtOversold, hwtOverbought, hwtCross, hwtCrossUp, hwtCrossDown, hwtCrosslast, hwtCrossUplast, hwtCrossDownlast, hwtVwap] = f_wavetrend(wtMASource, wtChannelLen, wtAverageLen, wtMALen, tf)

  bearPattern = rsimfi < soomiRSIMFIBearLevel and
  wt2 > soomiFlagWTBearLevel and
  wtCross and
  wtCrossDown and
  hwtVwap < sommiVwapBearLevel

  bullPattern = rsimfi > soomiRSIMFIBullLevel and
  wt2 < soomiFlagWTBullLevel and
  wtCross and
  wtCrossUp and
  hwtVwap > sommiVwapBullLevel

  [bearPattern, bullPattern, hwtVwap]

  f_findSommiDiamond(tf, tf2, wt1, wt2, wtCross, wtCrossUp, wtCrossDown) =>
  [candleBodyDir, newBar] = f_getTFCandle(tf)
  [candleBodyDir2, newBar2] = f_getTFCandle(tf2)
  bearPattern = wt2 >= soomiDiamondWTBearLevel and
  wtCross and
  wtCrossDown and
  not candleBodyDir and
  not candleBodyDir2
  bullPattern = wt2 <= soomiDiamondWTBullLevel and
  wtCross and
  wtCrossUp and
  candleBodyDir and
  candleBodyDir2
  [bearPattern, bullPattern]

  // } FUNCTIONS

  // CALCULATE INDICATORS {

  // RSI
  rsi = rsi(rsiSRC, rsiLen)
  rsiColor = rsi <= rsiOversold ? colorGreen : rsi >= rsiOverbought ? colorRed : colorPurple

  // RSI + MFI Area
  rsiMFI = f_rsimfi(rsiMFIperiod, rsiMFIMultiplier, timeframe.period)
  rsiMFIColor = rsiMFI > 0 ? #3ee145 : #ff3d2e

  // Calculates WaveTrend
  [wt1, wt2, wtOversold, wtOverbought, wtCross, wtCrossUp, wtCrossDown, wtCross_last, wtCrossUp_last, wtCrossDown_last, wtVwap] = f_wavetrend(wtMASource, wtChannelLen, wtAverageLen, wtMALen, timeframe.period)

  // Stochastic RSI
  [stochK, stochD] = f_stochrsi(stochSRC, stochLen, stochRsiLen, stochKSmooth, stochDSmooth, stochUseLog, stochAvg)

  // Schaff Trend Cycle
  tcVal = f_tc(tcSRC, tclength, tcfastLength, tcslowLength)

  // Sommi flag
  [sommiBearish, sommiBullish, hvwap] = f_findSommiFlag(sommiVwapTF, wt1, wt2, rsiMFI, wtCross, wtCrossUp, wtCrossDown)

  //Sommi diamond
  [sommiBearishDiamond, sommiBullishDiamond] = f_findSommiDiamond(sommiHTCRes, sommiHTCRes2, wt1, wt2, wtCross, wtCrossUp, wtCrossDown)

  // macd colors
  [macdWT1Color, macdWT2Color] = f_macdWTColors(macdWTColorsTF)

  // WT Divergences
  [wtFractalTop, wtFractalBot, wtLow_prev, wtBearDiv, wtBullDiv, wtBearDivHidden, wtBullDivHidden] = f_findDivs(wt2, wtDivOBLevel, wtDivOSLevel, true)

  [wtFractalTop_add, wtFractalBot_add, wtLow_prev_add, wtBearDiv_add, wtBullDiv_add, wtBearDivHidden_add, wtBullDivHidden_add] = f_findDivs(wt2, wtDivOBLevel_add, wtDivOSLevel_add, true)
  [wtFractalTop_nl, wtFractalBot_nl, wtLow_prev_nl, wtBearDiv_nl, wtBullDiv_nl, wtBearDivHidden_nl, wtBullDivHidden_nl] = f_findDivs(wt2, 0, 0, false)

  wtBearDivHidden_ = showHiddenDiv_nl ? wtBearDivHidden_nl : wtBearDivHidden
  wtBullDivHidden_ = showHiddenDiv_nl ? wtBullDivHidden_nl : wtBullDivHidden

  wtBearDivColor = (wtShowDiv and wtBearDiv) or (wtShowHiddenDiv and wtBearDivHidden_) ? colorRed : na
  wtBullDivColor = (wtShowDiv and wtBullDiv) or (wtShowHiddenDiv and wtBullDivHidden_) ? colorGreen : na

  wtBearDivColor_add = (wtShowDiv and (wtDivOBLevel_addshow and wtBearDiv_add)) or (wtShowHiddenDiv and (wtDivOBLevel_addshow and wtBearDivHidden_add)) ? #9a0202 : na
  wtBullDivColor_add = (wtShowDiv and (wtDivOBLevel_addshow and wtBullDiv_add)) or (wtShowHiddenDiv and (wtDivOBLevel_addshow and wtBullDivHidden_add)) ? #1b5e20 : na

  // RSI Divergences
  [rsiFractalTop, rsiFractalBot, rsiLow_prev, rsiBearDiv, rsiBullDiv, rsiBearDivHidden, rsiBullDivHidden] = f_findDivs(rsi, rsiDivOBLevel, rsiDivOSLevel, true)
  [rsiFractalTop_nl, rsiFractalBot_nl, rsiLow_prev_nl, rsiBearDiv_nl, rsiBullDiv_nl, rsiBearDivHidden_nl, rsiBullDivHidden_nl] = f_findDivs(rsi, 0, 0, false)

  rsiBearDivHidden_ = showHiddenDiv_nl ? rsiBearDivHidden_nl : rsiBearDivHidden
  rsiBullDivHidden_ = showHiddenDiv_nl ? rsiBullDivHidden_nl : rsiBullDivHidden

  rsiBearDivColor = (rsiShowDiv and rsiBearDiv) or (rsiShowHiddenDiv and rsiBearDivHidden_) ? colorRed : na
  rsiBullDivColor = (rsiShowDiv and rsiBullDiv) or (rsiShowHiddenDiv and rsiBullDivHidden_) ? colorGreen : na

  // Stoch Divergences
  [stochFractalTop, stochFractalBot, stochLow_prev, stochBearDiv, stochBullDiv, stochBearDivHidden, stochBullDivHidden] = f_findDivs(stochK, 0, 0, false)

  stochBearDivColor = (stochShowDiv and stochBearDiv) or (stochShowHiddenDiv and stochBearDivHidden) ? colorRed : na
  stochBullDivColor = (stochShowDiv and stochBullDiv) or (stochShowHiddenDiv and stochBullDivHidden) ? colorGreen : na

  // Small Circles WT Cross
  signalColor = wt2 – wt1 > 0 ? color.red : color.lime

  // Buy signal.
  buySignal = wtCross and wtCrossUp and wtOversold

  buySignalDiv = (wtShowDiv and wtBullDiv) or
  (wtShowDiv and wtBullDiv_add) or
  (stochShowDiv and stochBullDiv) or
  (rsiShowDiv and rsiBullDiv)

  buySignalDiv_color = wtBullDiv ? colorGreen :
  wtBullDiv_add ? color.new(colorGreen, 60) :
  rsiShowDiv ? colorGreen : na

  // Sell signal
  sellSignal = wtCross and wtCrossDown and wtOverbought

  sellSignalDiv = (wtShowDiv and wtBearDiv) or
  (wtShowDiv and wtBearDiv_add) or
  (stochShowDiv and stochBearDiv) or
  (rsiShowDiv and rsiBearDiv)

  sellSignalDiv_color = wtBearDiv ? colorRed :
  wtBearDiv_add ? color.new(colorRed, 60) :
  rsiBearDiv ? colorRed : na

  // Gold Buy
  lastRsi = valuewhen(wtFractalBot, rsi[2], 0)[2]
  wtGoldBuy = ((wtShowDiv and wtBullDiv) or (rsiShowDiv and rsiBullDiv)) and
  wtLow_prev <= osLevel3 and
  wt2 > osLevel3 and
  wtLow_prev – wt2 <= -5 and
  lastRsi < 30

  // } CALCULATE INDICATORS

  // DRAW {
  bgcolor(darkMode ? color.new(#000000, 80) : na)
  zLine = plot(0, color = color.new(colorWhite, 50))

  // MFI BAR
  rsiMfiBarTopLine = plot(rsiMFIShow ? -95 : na, title = ‘MFI Bar TOP Line’, transp = 100)
  rsiMfiBarBottomLine = plot(rsiMFIShow ? -99 : na, title = ‘MFI Bar BOTTOM Line’, transp = 100)
  fill(rsiMfiBarTopLine, rsiMfiBarBottomLine, title = ‘MFI Bar Colors’, color = rsiMFIColor, transp = 75)

  // WT Areas
  plot(wtShow ? wt1 : na, style = plot.style_area, title = ‘WT Wave 1’, color = macdWTColorsShow ? macdWT1Color : colorWT1, transp = 0)
  plot(wtShow ? wt2 : na, style = plot.style_area, title = ‘WT Wave 2’, color = macdWTColorsShow ? macdWT2Color : darkMode ? colorWT2_ : colorWT2 , transp = 20)

  // VWAP
  plot(vwapShow ? wtVwap : na, title = ‘VWAP’, color = colorYellow, style = plot.style_area, linewidth = 2, transp = 45)

  // MFI AREA
  rsiMFIplot = plot(rsiMFIShow ? rsiMFI: na, title = ‘RSI+MFI Area’, color = rsiMFIColor, transp = 20)
  fill(rsiMFIplot, zLine, rsiMFIColor, transp = 40)

  // WT Div

  plot(series = wtFractalTop ? wt2[2] : na, title = ‘WT Bearish Divergence’, color = wtBearDivColor, linewidth = 2, offset = -2)
  plot(series = wtFractalBot ? wt2[2] : na, title = ‘WT Bullish Divergence’, color = wtBullDivColor, linewidth = 2, offset = -2)

  // WT 2nd Div
  plot(series = wtFractalTop_add ? wt2[2] : na, title = ‘WT 2nd Bearish Divergence’, color = wtBearDivColor_add, linewidth = 2, offset = -2)
  plot(series = wtFractalBot_add ? wt2[2] : na, title = ‘WT 2nd Bullish Divergence’, color = wtBullDivColor_add, linewidth = 2, offset = -2)

  // RSI
  plot(rsiShow ? rsi : na, title = ‘RSI’, color = rsiColor, linewidth = 2, transp = 25)

  // RSI Div
  plot(series = rsiFractalTop ? rsi[2] : na, title=’RSI Bearish Divergence’, color = rsiBearDivColor, linewidth = 1, offset = -2)
  plot(series = rsiFractalBot ? rsi[2] : na, title=’RSI Bullish Divergence’, color = rsiBullDivColor, linewidth = 1, offset = -2)

  // Stochastic RSI
  stochKplot = plot(stochShow ? stochK : na, title = ‘Stoch K’, color = color.new(#21baf3, 0), linewidth = 2)
  stochDplot = plot(stochShow ? stochD : na, title = ‘Stoch D’, color = color.new(#673ab7, 60), linewidth = 1)
  stochFillColor = stochK >= stochD ? color.new(#21baf3, 75) : color.new(#673ab7, 60)
  fill(stochKplot, stochDplot, title=’KD Fill’, color=stochFillColor)

  // Stoch Div
  plot(series = stochFractalTop ? stochK[2] : na, title=’Stoch Bearish Divergence’, color = stochBearDivColor, linewidth = 1, offset = -2)
  plot(series = stochFractalBot ? stochK[2] : na, title=’Stoch Bullish Divergence’, color = stochBullDivColor, linewidth = 1, offset = -2)

  // Schaff Trend Cycle
  plot(tcLine ? tcVal : na, color = color.new(#673ab7, 25), linewidth = 2, title = “Schaff Trend Cycle 1”)
  plot(tcLine ? tcVal : na, color = color.new(colorWhite, 50), linewidth = 1, title = “Schaff Trend Cycle 2”)

  // Draw Overbought & Oversold lines
  //plot(obLevel, title = ‘Over Bought Level 1’, color = colorWhite, linewidth = 1, style = plot.style_circles, transp = 85)
  plot(obLevel2, title = ‘Over Bought Level 2’, color = colorWhite, linewidth = 1, style = plot.style_stepline, transp = 85)
  plot(obLevel3, title = ‘Over Bought Level 3’, color = colorWhite, linewidth = 1, style = plot.style_circles, transp = 95)

  //plot(osLevel, title = ‘Over Sold Level 1’, color = colorWhite, linewidth = 1, style = plot.style_circles, transp = 85)
  plot(osLevel2, title = ‘Over Sold Level 2’, color = colorWhite, linewidth = 1, style = plot.style_stepline, transp = 85)

  // Sommi flag
  plotchar(sommiFlagShow and sommiBearish ? 108 : na, title = ‘Sommi bearish flag’, char=’⚑’, color = colorPink, location = location.absolute, size = size.tiny, transp = 0)
  plotchar(sommiFlagShow and sommiBullish ? -108 : na, title = ‘Sommi bullish flag’, char=’⚑’, color = colorBluelight, location = location.absolute, size = size.tiny, transp = 0)
  plot(sommiShowVwap ? ema(hvwap, 3) : na, title = ‘Sommi higher VWAP’, color = colorYellow, linewidth = 2, style = plot.style_line, transp = 15)

  // Sommi diamond
  plotchar(sommiDiamondShow and sommiBearishDiamond ? 108 : na, title = ‘Sommi bearish diamond’, char=’◆’, color = colorPink, location = location.absolute, size = size.tiny, transp = 0)
  plotchar(sommiDiamondShow and sommiBullishDiamond ? -108 : na, title = ‘Sommi bullish diamond’, char=’◆’, color = colorBluelight, location = location.absolute, size = size.tiny, transp = 0)

  // Circles
  plot(wtCross ? wt2 : na, title = ‘Buy and sell circle’, color = signalColor, style = plot.style_circles, linewidth = 3, transp = 15)

  plotchar(wtBuyShow and buySignal ? -107 : na, title = ‘Buy circle’, char=’·’, color = colorGreen, location = location.absolute, size = size.small, transp = 50)
  plotchar(wtSellShow and sellSignal ? 105 : na , title = ‘Sell circle’, char=’·’, color = colorRed, location = location.absolute, size = size.small, transp = 50)

  plotchar(wtDivShow and buySignalDiv ? -106 : na, title = ‘Divergence buy circle’, char=’•’, color = buySignalDiv_color, location = location.absolute, size = size.small, offset = -2, transp = 15)
  plotchar(wtDivShow and sellSignalDiv ? 106 : na, title = ‘Divergence sell circle’, char=’•’, color = sellSignalDiv_color, location = location.absolute, size = size.small, offset = -2, transp = 15)

  plotchar(wtGoldBuy and wtGoldShow ? -106 : na, title = ‘Gold buy gold circle’, char=’•’, color = colorOrange, location = location.absolute, size = size.small, offset = -2, transp = 15)

  // } DRAW

  // ALERTS {

  // BUY
  alertcondition(buySignal, ‘Buy (Big green circle)’, ‘Green circle WaveTrend Oversold’)
  alertcondition(buySignalDiv, ‘Buy (Big green circle + Div)’, ‘Buy & WT Bullish Divergence & WT Overbought’)
  alertcondition(wtGoldBuy, ‘GOLD Buy (Big GOLDEN circle)’, ‘Green & GOLD circle WaveTrend Overbought’)
  alertcondition(sommiBullish or sommiBullishDiamond, ‘Sommi bullish flag/diamond’, ‘Blue flag/diamond’)
  alertcondition(wtCross and wtCrossUp, ‘Buy (Small green dot)’, ‘Buy small circle’)

  // SELL
  alertcondition(sommiBearish or sommiBearishDiamond, ‘Sommi bearish flag/diamond’, ‘Purple flag/diamond’)
  alertcondition(sellSignal, ‘Sell (Big red circle)’, ‘Red Circle WaveTrend Overbought’)
  alertcondition(sellSignalDiv, ‘Sell (Big red circle + Div)’, ‘Buy & WT Bearish Divergence & WT Overbought’)
  alertcondition(wtCross and wtCrossDown, ‘Sell (Small red dot)’, ‘Sell small circle’)

  // } ALERTS









  Mary

  Participant

  Topics: 35

  Replies: 40

  Been thanked: 4 times
• Author
  Posts
