TW code translation ( Order flow imbalance oscillator)

Viewing 2 posts - 1 through 2 (of 2 total)

Author

Posts

09/22/2026 at 11:36 AM #265261 quote

Msport71

Participant

Senior

Hi all,

could you please translate the following oscillator that seems quite interesting.

Thanks and regards.

https://www.tradingview.com/script/6dIWwfow-Order-Flow-Imbalance-Oscillator-StrikePriceLabs/

// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/

// © StrikePriceLabs

//@version=6

indicator(“Order Flow Imbalance Oscillator [StrikePriceLabs]”, overlay = false)

// ─── INPUTS ─────────────────────────────────────────────────────────────────────

col_supply = input.color(color.orange, “Supply”)

col_demand = input.color(#009fd4, “Demand”)

var vol = array.new<float>()

var BullDelta = array.new<float>()

var BearDelta = array.new<float>()

// Zone geometry arrays instead of boxes

var bearTop = array.new<float>() // supply zone upper price

var bearBot = array.new<float>() // supply zone lower price

var bullTop = array.new<float>() // demand zone upper price

var bullBot = array.new<float>() // demand zone lower price

var count_bear = 0

var count_bull = 0

// New series for historical totals

var float totalSupply = na

var float totalDemand = na

// ─── CALCULATIONS ──────────────────────────────────────────────────────────────

vol.push(volume)

if vol.size() > 1000

vol.shift()

extra_vol = volume > vol.avg()

atr = ta.atr(200) * 2

bear_candle = close < open

bull_candle = close > open

// ── Bearish zones (Supply) ─────────────────────────────────────────────────────

if bear_candle and bear_candle[1] and bear_candle[2] and (extra_vol or extra_vol[1] or extra_vol[2]) and count_bear == 0

delta = 0.0

for i = 0 to 5

if bull_candle[i]

count_bear := 1

array.push(bearTop, low[i] + atr)

array.push(bearBot, low[i])

array.push(BearDelta, delta)

break

delta += bear_candle[i] ? -volume[i] : volume[i]

if count_bear >= 1

count_bear += 1

if count_bear >= 15

count_bear := 0

// ── Bullish zones (Demand) ─────────────────────────────────────────────────────

if bull_candle and bull_candle[1] and bull_candle[2] and (extra_vol or extra_vol[1] or extra_vol[2]) and count_bull == 0

delta = 0.0

for i = 0 to 5

if bear_candle[i]

count_bull := 1

array.push(bullTop, high[i])

array.push(bullBot, high[i] – atr)

array.push(BullDelta, delta)

break

delta += bull_candle[i] ? volume[i] : -volume[i]

if count_bull >= 1

count_bull += 1

if count_bull >= 15

count_bull := 0

// ── Supply invalidation ───────────────────────────────────────────────────────

s = 0

while s < bearTop.size()

top = array.get(bearTop, s)

bot = array.get(bearBot, s)

if close > top

array.remove(bearTop, s)

array.remove(bearBot, s)

array.remove(BearDelta, s)

else

s += 1

// ── Demand invalidation ───────────────────────────────────────────────────────

d = 0

while d < array.size(bullTop)

top = array.get(bullTop, d)

bot = array.get(bullBot, d)

if close < bot

array.remove(bullTop, d)

array.remove(bullBot, d)

array.remove(BullDelta, d)

else

d += 1

// ── Manage overlapping Supply zones ───────────────────────────────────────────

if array.size(bearTop) > 0

i = 0

while i < array.size(bearTop)

top = array.get(bearTop, i)

bot = array.get(bearBot, i)

j = 0

removed = false

while j < array.size(bearTop)

if i != j

top1 = array.get(bearTop, j)

bot1 = array.get(bearBot, j)

if top1 < top and top1 > bot

array.remove(bearTop, i)

array.remove(bearBot, i)

array.remove(BearDelta, i)

removed := true

break

j += 1

if not removed

i += 1

// Cap Supply zones

while array.size(bearTop) > 5

array.shift(bearTop)

array.shift(bearBot)

array.shift(BearDelta)

// ── Manage overlapping Demand zones ───────────────────────────────────────────

if array.size(bullTop) > 0

i = 0

while i < array.size(bullTop)

top = array.get(bullTop, i)

bot = array.get(bullBot, i)

j = 0

removed = false

while j < array.size(bullTop)

if i != j

top1 = array.get(bullTop, j)

bot1 = array.get(bullBot, j)

if bot1 < top and bot1 > bot

array.remove(bullTop, i)

array.remove(bullBot, i)

array.remove(BullDelta, i)

removed := true

break

j += 1

if not removed

i += 1

// Cap Demand zones

while array.size(bullTop) > 5

array.shift(bullTop)

array.shift(bullBot)

array.shift(BullDelta)

// ─── Historical totals (EXPANDED with full zone details in PineLogs) ───────────────────────

float supplySum = 0.0

supplySize = array.size(BearDelta)

if supplySize > 0

log.info(“🔴 SUPPLY ZONES ({0} total):”, supplySize)

for idx = 0 to supplySize – 1

delta = array.get(BearDelta, idx)

top = array.get(bearTop, idx)

bot = array.get(bearBot, idx)

supplySum += math.abs(delta)

log.info(” #{0}: delta={1,number,#} top={2,number,#.####} bot={3,number,#.####}”, idx, delta, top, bot)

else

log.info(“🔴 SUPPLY ZONES: 0”)

float demandSum = 0.0

demandSize = array.size(BullDelta)

if demandSize > 0

log.info(“🟢 DEMAND ZONES ({0} total):”, demandSize)

for idx = 0 to demandSize – 1

delta = array.get(BullDelta, idx)

top = array.get(bullTop, idx)

bot = array.get(bullBot, idx)

demandSum += math.abs(delta)

log.info(” #{0}: delta={1,number,#} top={2,number,#.####} bot={3,number,#.####}”, idx, delta, top, bot)

else

log.info(“🟢 DEMAND ZONES: 0”)

log.info(“📊 FINAL TOTALS – Supply: {0,number,#} | Demand: {1,number,#} | Delta: {2,number,#}”, supplySum, demandSum, demandSum – supplySum)

totalSupply := supplySum

totalDemand := demandSum

// ─── NORMALIZED IMBALANCE OSCILLATOR (-100 to +100) ───────────────────────────

denom = totalDemand + totalSupply

imbalanceNorm = denom != 0 ? (totalDemand – totalSupply) / denom * 100 : 0

plot(

imbalanceNorm,

title = “Order Flow Imbalance (-100 to +100)”,

style = plot.style_area,

color = imbalanceNorm >= 0 ? col_demand : col_supply

)

hline(0, “Balance”, color = color.new(color.gray, 70))

hline(50, “+50 Strong Demand”, color = color.new(col_demand, 50))

hline(-50, “-50 Strong Supply”, color = color.new(col_supply, 50))

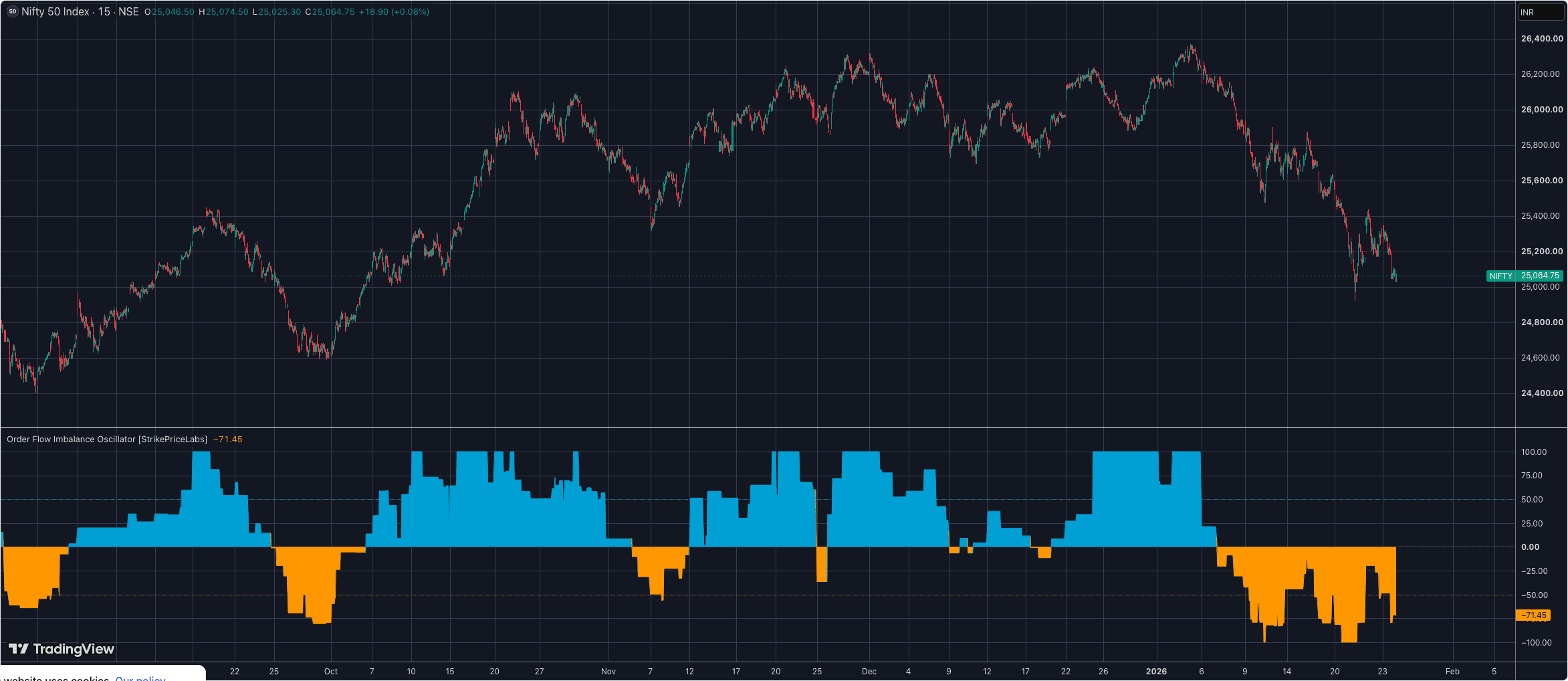

Screenshot-2026-09-22-at-11-36-12-Order-Flow-Imbalance-Oscillator-StrikePriceLabs-—-Indicator-by-StrikePriceLabs-—-TradingView.png

09/22/2026 at 5:13 PM #265266 quote

Iván González

Moderator

Legend

here you have:

//-------------------------------------//

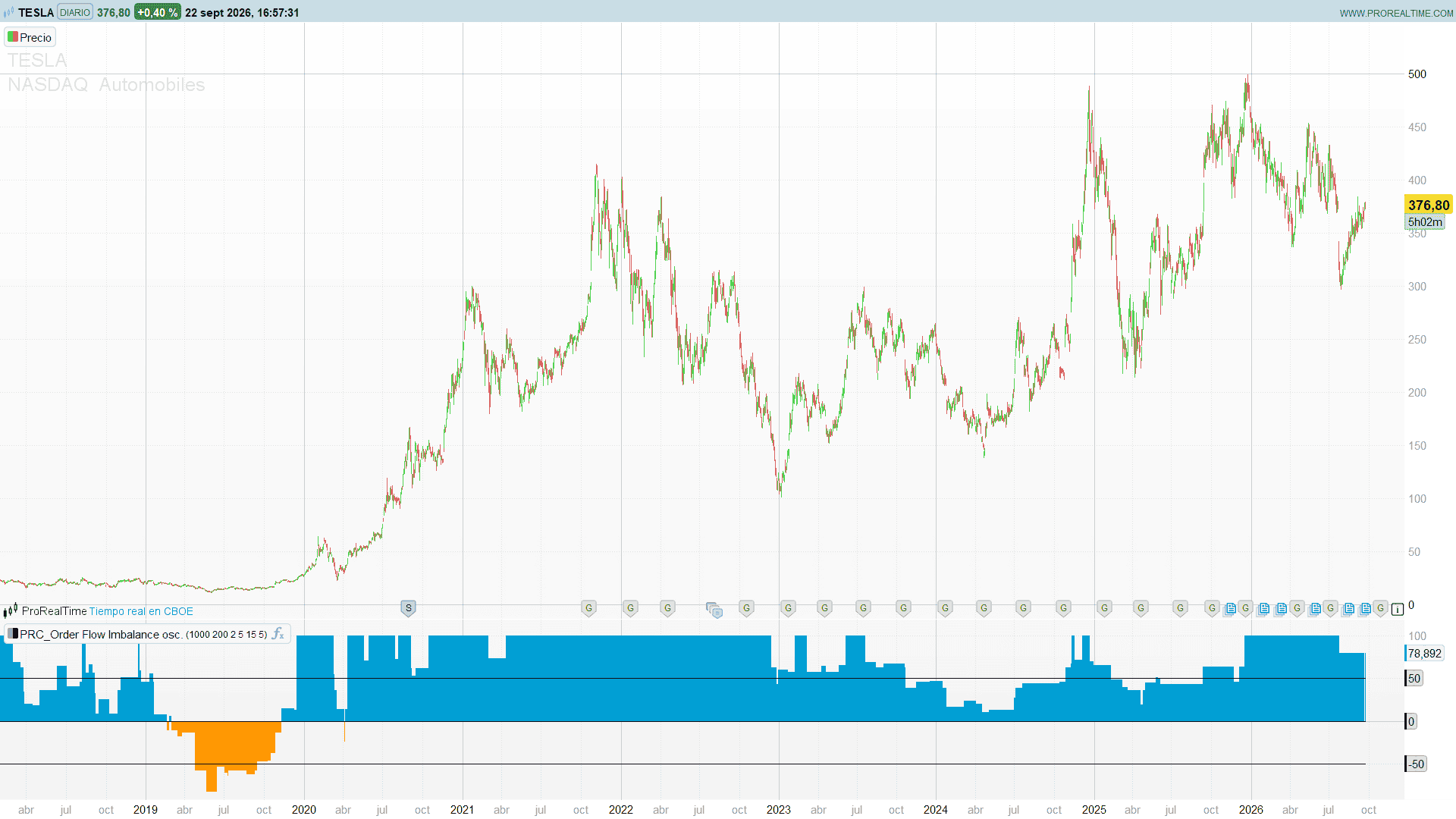

//PRC_Order Flow Imbalance Oscillator
//version = 0
//22.09.26
//Iván González @ www.prorealcode.com
//Author: StrikePriceLabs
//Sharing ProRealTime knowledge
//-------------------------------------//
// Inputs
//-------------------------------------//
volLen   = 1000   // Lookback of the average volume used to flag a high volume bar
atrLen   = 200    // ATR length that sets the height of a zone
atrMult  = 2      // Zone height, in ATR units
scanBack = 5      // How far back the impulse is scanned for its origin candle
coolBars = 15     // Counter value that releases the block on a new zone (same side)
zoneMax  = 5      // Live zones kept per side

// Supply (orange) and demand (blue) colours
supR = 255
supG = 152
supB = 0
demR = 0
demG = 159
demB = 212

//-------------------------------------//
// Persistent state
//-------------------------------------//
ONCE nSup    = 0   // live supply zones
ONCE nDem    = 0   // live demand zones
ONCE cntBear = 0   // supply cooldown counter
ONCE cntBull = 0   // demand cooldown counter
ONCE supSum  = 0
ONCE demSum  = 0

//-------------------------------------//
// Closed-bar inputs
//-------------------------------------//
avgVol = average[volLen](volume)
atrRaw = averagetruerange[atrLen](close)

atrV   = atrRaw[1] * atrMult
warmUp = max(volLen, atrLen) + scanBack + 2

IF barindex > warmUp THEN

   // Three consecutive candles of the same colour, at least one of them on
   // above average volume. On the closed-bar engine those are bars 1, 2 and 3.
   bearRun = 0
   IF close[1] < open[1] AND close[2] < open[2] AND close[3] < open[3] THEN
      bearRun = 1
   ENDIF

   bullRun = 0
   IF close[1] > open[1] AND close[2] > open[2] AND close[3] > open[3] THEN
      bullRun = 1
   ENDIF

   hotVol = 0
   IF volume[1] > avgVol[1] OR volume[2] > avgVol[2] OR volume[3] > avgVol[3] THEN
      hotVol = 1
   ENDIF

   //-------------------------------------//
   // Supply zone (bearish impulse)
   // The zone is anchored to the last bullish candle found within scanBack
   // bars: that candle is where the sellers took over. The delta adds up the
   // volume of every candle between the impulse and that origin.
   //-------------------------------------//
   IF bearRun = 1 AND hotVol = 1 AND cntBear = 0 THEN
      flowDelta = 0
      found     = 0
      origin    = 0

      FOR iSc = 0 TO scanBack DO
         IF found = 0 THEN
            IF close[iSc+1] > open[iSc+1] THEN
               found  = 1
               origin = iSc
            ELSIF close[iSc+1] < open[iSc+1] THEN
               flowDelta = flowDelta - volume[iSc+1]
            ELSE
               flowDelta = flowDelta + volume[iSc+1]
            ENDIF
         ENDIF
      NEXT

      // No bullish candle within the scan window means no origin, no zone.
      IF found = 1 THEN
         cntBear = 1
         nSup    = nSup + 1
         $spBot[nSup] = low[origin+1]
         $spTop[nSup] = low[origin+1] + atrV
         $spDlt[nSup] = flowDelta
      ENDIF
   ENDIF

   IF cntBear >= 1 THEN
      cntBear = cntBear + 1
   ENDIF
   IF cntBear >= coolBars THEN
      cntBear = 0
   ENDIF

   //-------------------------------------//
   // Demand zone (bullish impulse)
   //-------------------------------------//
   IF bullRun = 1 AND hotVol = 1 AND cntBull = 0 THEN
      flowDelta = 0
      found     = 0
      origin    = 0

      FOR iSc = 0 TO scanBack DO
         IF found = 0 THEN
            IF close[iSc+1] < open[iSc+1] THEN
               found  = 1
               origin = iSc
            ELSIF close[iSc+1] > open[iSc+1] THEN
               flowDelta = flowDelta + volume[iSc+1]
            ELSE
               flowDelta = flowDelta - volume[iSc+1]
            ENDIF
         ENDIF
      NEXT

      IF found = 1 THEN
         cntBull = 1
         nDem    = nDem + 1
         $dmTop[nDem] = high[origin+1]
         $dmBot[nDem] = high[origin+1] - atrV
         $dmDlt[nDem] = flowDelta
      ENDIF
   ENDIF

   IF cntBull >= 1 THEN
      cntBull = cntBull + 1
   ENDIF
   IF cntBull >= coolBars THEN
      cntBull = 0
   ENDIF

   //-------------------------------------//
   // Invalidation: a close above a supply top, or below a demand bottom,
   // removes the zone. Compacting in place is safe because the write index
   // never runs ahead of the read index.
   //-------------------------------------//
   kZ = 0
   FOR iZ = 1 TO nSup DO
      IF close[1] <= $spTop[iZ] THEN
         kZ = kZ + 1
         $spTop[kZ] = $spTop[iZ]
         $spBot[kZ] = $spBot[iZ]
         $spDlt[kZ] = $spDlt[iZ]
      ENDIF
   NEXT
   nSup = kZ

   kZ = 0
   FOR iZ = 1 TO nDem DO
      IF close[1] >= $dmBot[iZ] THEN
         kZ = kZ + 1
         $dmTop[kZ] = $dmTop[iZ]
         $dmBot[kZ] = $dmBot[iZ]
         $dmDlt[kZ] = $dmDlt[iZ]
      ENDIF
   NEXT
   nDem = kZ

   //-------------------------------------//
   // Overlapping supply zones: a zone is dropped when another zone has its
   // top inside it. The scan deletes in place and restarts the inner search
   // after every deletion. That order matters: a single marking pass over the
   // whole list is not the same thing, because it would also drop a zone whose
   // only witness has already been deleted. Keep the loop as it is.
   //-------------------------------------//
   iZ = 1
   WHILE iZ <= nSup DO
      gone = 0
      jZ   = 1
      WHILE jZ <= nSup AND gone = 0 DO
         IF jZ <> iZ AND $spTop[jZ] < $spTop[iZ] AND $spTop[jZ] > $spBot[iZ] THEN
            IF iZ < nSup THEN
               FOR qZ = iZ TO nSup - 1 DO
                  $spTop[qZ] = $spTop[qZ+1]
                  $spBot[qZ] = $spBot[qZ+1]
                  $spDlt[qZ] = $spDlt[qZ+1]
               NEXT
            ENDIF
            nSup = nSup - 1
            gone = 1
         ENDIF
         jZ = jZ + 1
      WEND
      IF gone = 0 THEN
         iZ = iZ + 1
      ENDIF
   WEND

   // Cap: the oldest zone is dropped first
   WHILE nSup > zoneMax DO
      FOR qZ = 1 TO nSup - 1 DO
         $spTop[qZ] = $spTop[qZ+1]
         $spBot[qZ] = $spBot[qZ+1]
         $spDlt[qZ] = $spDlt[qZ+1]
      NEXT
      nSup = nSup - 1
   WEND

   //-------------------------------------//
   // Overlapping demand zones: same idea, tested against the bottom edge
   //-------------------------------------//
   iZ = 1
   WHILE iZ <= nDem DO
      gone = 0
      jZ   = 1
      WHILE jZ <= nDem AND gone = 0 DO
         IF jZ <> iZ AND $dmBot[jZ] < $dmTop[iZ] AND $dmBot[jZ] > $dmBot[iZ] THEN
            IF iZ < nDem THEN
               FOR qZ = iZ TO nDem - 1 DO
                  $dmTop[qZ] = $dmTop[qZ+1]
                  $dmBot[qZ] = $dmBot[qZ+1]
                  $dmDlt[qZ] = $dmDlt[qZ+1]
               NEXT
            ENDIF
            nDem = nDem - 1
            gone = 1
         ENDIF
         jZ = jZ + 1
      WEND
      IF gone = 0 THEN
         iZ = iZ + 1
      ENDIF
   WEND

   WHILE nDem > zoneMax DO
      FOR qZ = 1 TO nDem - 1 DO
         $dmTop[qZ] = $dmTop[qZ+1]
         $dmBot[qZ] = $dmBot[qZ+1]
         $dmDlt[qZ] = $dmDlt[qZ+1]
      NEXT
      nDem = nDem - 1
   WEND

   //-------------------------------------//
   // Totals: the sign of the stored delta only records which side built the
   // zone, so the magnitudes are what is added up.
   //-------------------------------------//
   supSum = 0
   FOR iZ = 1 TO nSup DO
      supSum = supSum + abs($spDlt[iZ])
   NEXT

   demSum = 0
   FOR iZ = 1 TO nDem DO
      demSum = demSum + abs($dmDlt[iZ])
   NEXT

ENDIF

//-------------------------------------//
// Normalised imbalance, -100 to +100
//-------------------------------------//
denom = demSum + supSum
IF denom <> 0 THEN
   ofi = (demSum - supSum) / denom * 100
ELSE
   ofi = 0
ENDIF

IF ofi >= 0 THEN
   cr = demR
   cg = demG
   cb = demB
ELSE
   cr = supR
   cg = supG
   cb = supB
ENDIF

RETURN ofi COLOURED(cr, cg, cb) STYLE(histogram) AS "Order Flow Imbalance", 0 AS "Balance", 50 AS "+50 Strong Demand", -50 AS "-50 Strong Supply"
