ProOrder Trendsystem mit 4 höheren Hochs/Tiefs erweitern

Viewing 14 posts - 1 through 14 (of 14 total)
  • Author
    Posts
  • #255457 quote
    axmichi
    Participant
    Senior

    Hallo,



    ist es möglich dieses Trendsystem so zu ändern, das der Einstieg erst dann erfolgt, wenn es 4 aufeinander folgende höhere Hochs und höhere Tiefst gegeben hat.

    Der Entry soll erst an der Blauen Linie erfolgen wenn die HH und LL so angeordnet sind wie im Bild. Vielen Dank


    //defparam calculateonlastbars=30000
    ONCE HH     = 0
    ONCE HHprec = 0
    ONCE LL     = 0
    ONCE LLprec = 0

    if Not OnMarket Then
    UseST = 0
    ENDIF
    if NOT LongOnMarket then

    cp=3



    LLbar=BOTx

    EndIf


    IF TradePrice = 0 THEN
    PositionSize1 = 1

    ELSE
    PositionSize1 = 1000 / sp //Compute PositionSize

    ENDIF
    once lastpoint = 0

    if high[cp] >= highest[2*cp+1](high) then
    PEAK = 1
    else
    PEAK = 0
    endif

    if low[cp] <= lowest[2*cp+1](low) then
    TROUGH = -1
    else
    TROUGH = 0
    endif

    if PEAK = 1 then
    TOPy = high[cp]
    TOPx = barindex[cp]
    endif

    if TROUGH = -1 then
    BOTy = low[cp]
    BOTx = barindex[cp]
    endif

    if PEAK>0 and (lastpoint=-1 or lastpoint=0) then
    //DRAWSEGMENT(lastX,lastY,TOPx,TOPy) COLOURED(127,255,0,1000)
    //DRAWTEXT("■",TOPx,TOPy,Dialog,Bold,10) coloured(200,0,0,255)
    lastpoint = 1
    lastX = TOPx
    lastY = TOPy
    HHprec= HH
    HH    = TOPy
    HHbar = TOPx
    endif

    if TROUGH<0 and (lastpoint=1 or lastpoint=0) then
    //DRAWSEGMENT(lastX,lastY,BOTx,BOTy) COLOURED(255,0,0,255)
    //DRAWTEXT("■",BOTx,BOTy,Dialog,Bold,10) coloured(0,200,0,255)
    lastpoint = -1
    lastX = BOTx
    lastY = BOTy
    LLprec= LL
    LL    = BOTy
    LLbar = BOTx
    endif

    //TREND ATTEMPT
    atr=AverageTrueRange[14](close)
    if TOPy > TOPy[1] and topy<>lasttop then
    //drawarrowup(barindex,low-atr/2) coloured(0,200,0)
    lasttop=topy
    trendup = 1
    else
    trendup = 0
    endif

    //RETURN TOPy as "TOPy", BOTY as "BOTy", trendup as "trendup"
    sp = close - 0
    // Long
    IF not longonmarket and (close crosses over HH) AND (HH > 0) AND (LL > LLprec) AND (LLprec > 0)and (HH > HHprec) and (HH > LL) and (HHprec > LLprec)  THEN //
    BUY Positionsize1 Contract at Market
    //SL = abs(close - LL)
    SET TARGET %PROFIT 100
    set stop %loss 50

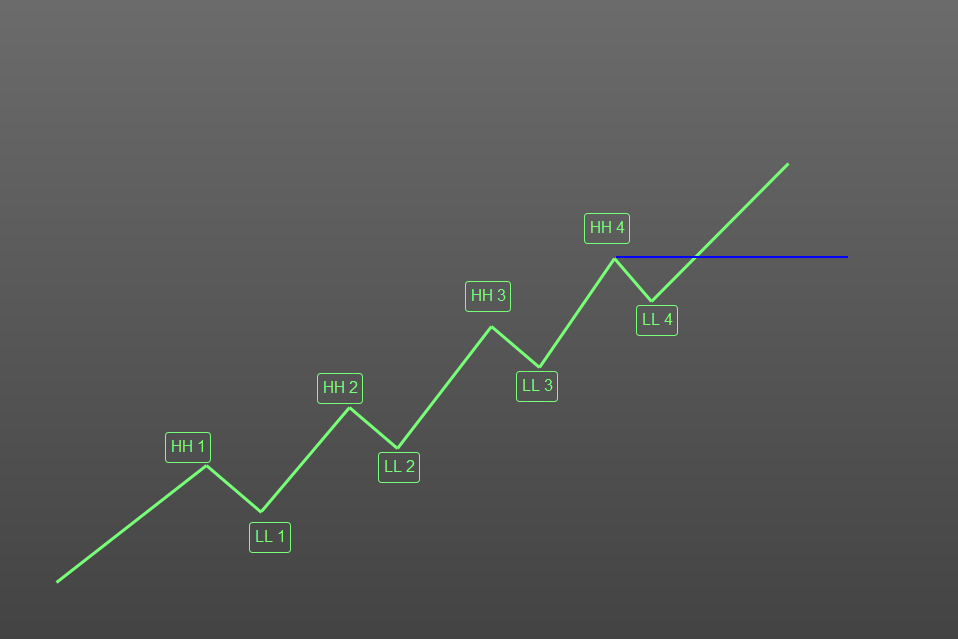

    Ausbruch-4.-HH.png Ausbruch-4.-HH.png
    #256534 quote
    Iván González
    Moderator
    Master

    Hallo. Sie können beliebig viele zusätzliche Pivotpunkte speichern. Ich habe die vier höchsten und niedrigsten Pivotpunkte in Ihren Code eingefügt. Sie werden sehen, dass dies redundant ist.

    //defparam calculateonlastbars=30000
    ONCE HH     = 0
    ONCE HHprec = 0
    ONCE LL     = 0
    ONCE LLprec = 0

    if Not OnMarket Then
    UseST = 0
    ENDIF

    if NOT LongOnMarket then
    cp=3
    LLbar=BOTx
    EndIf

    once lastpoint = 0

    if high[cp] >= highest[2*cp+1](high) then
    PEAK = 1
    else
    PEAK = 0
    endif

    if low[cp] <= lowest[2*cp+1](low) then
    TROUGH = -1
    else
    TROUGH = 0
    endif

    if PEAK = 1 then
    TOPy = high[cp]
    TOPx = barindex[cp]
    endif

    if TROUGH = -1 then
    BOTy = low[cp]
    BOTx = barindex[cp]
    endif

    if PEAK>0 and (lastpoint=-1 or lastpoint=0) then
    lastpoint = 1
    lastX = TOPx
    lastY = TOPy
    HHprec= HH
    HH    = TOPy
    HHbar = TOPx

    hh1=hh2
    hh1x=hh2x
    hh2=hh3
    hh2x=hh3x
    hh3=hh4
    hh3x=hh4x
    hh4=TOPy
    hh4x=TOPx
    endif

    if TROUGH<0 and (lastpoint=1 or lastpoint=0) then
    lastpoint = -1
    lastX = BOTx
    lastY = BOTy
    LLprec= LL
    LL    = BOTy
    LLbar = BOTx

    ll1=ll2
    ll1x=ll2x
    ll2=ll3
    ll2x=ll3x
    ll3=ll4
    ll3x=ll4x
    ll4=BOTy
    ll4x=BOTx
    endif

    //TREND ATTEMPT
    atr=AverageTrueRange[14](close)
    if TOPy > TOPy[1] and topy<>lasttop then
    lasttop=topy
    trendup = 1
    else
    trendup = 0
    endif

    // Long
    setupLong=hh4>hh3 and hh3>hh2 and hh2>hh1 and ll4>ll3 and ll3>ll2 and ll2>ll1

    IF not longonmarket and (close crosses over HH) AND setuplong  THEN //
    BUY 1 Contract at Market
    SL = abs(close - LL4)
    SET TARGET price close+SL
    set stop price ll4
    endif

    #256554 quote
    axmichi
    Participant
    Senior

    Hallo, vielen Dank!!!!

    das wäre schön, dann könnte ich mit verschiedenen Trends experimentieren.

    Können sie mir vielleicht in Ihrem Code markieren, was ich in welcher Zeile ändern muss, um zum Beispiel den Einstieg nach 5 aufeinander folgenden Hochs oder nur 3 aufeinander folgenden Hochs zu ändern??!!

    Das wäre toll.

    Vielen Dank


    #256562 quote
    Iván González
    Moderator
    Master

    Hallo. Ich habe den Code so angepasst, dass Sie dies durch einfaches Ändern einer einzigen Variable erreichen können.

    // --- SETTINGS ---
    // Change this number to 3, 4, 5, etc. to experiment with different trend lengths
    ONCE trendsRequired = 4

    // --- INITIALIZATION ---
    ONCE HH = 0
    ONCE HHprec = 0
    ONCE LL = 0
    ONCE LLprec = 0
    ONCE countHH = 0
    ONCE countLL = 0
    ONCE lastpoint = 0

    // Pivot period
    cp = 3

    // --- PEAK AND TROUGH DETECTION ---
    IF high[cp] >= highest[2 * cp + 1](high) THEN
       PEAK = 1
    ELSE
       PEAK = 0
    ENDIF

    IF low[cp] <= lowest[2 * cp + 1](low) THEN
       TROUGH = -1
    ELSE
       TROUGH = 0
    ENDIF

    IF PEAK = 1 THEN
       TOPy = high[cp]
       TOPx = barindex[cp]
    ENDIF

    IF TROUGH = -1 THEN
       BOTy = low[cp]
       BOTx = barindex[cp]
    ENDIF

    // --- LOGIC FOR HH (Picos) ---
    IF PEAK > 0 AND (lastpoint = -1 OR lastpoint = 0) THEN
       lastpoint = 1
       HHprec = HH
       HH = TOPy

       // Check if current peak is higher than previous
       IF HH > HHprec AND HHprec > 0 THEN
          countHH = countHH + 1
       ELSE
          countHH = 1 // Reset to 1 as current is a peak
       ENDIF
    ENDIF

    // --- LOGIC FOR LL (Valles) ---
    IF TROUGH < 0 AND (lastpoint = 1 OR lastpoint = 0) THEN
       lastpoint = -1
       LLprec = LL
       LL = BOTy

       // Check if current trough is higher than previous
       IF LL > LLprec AND LLprec > 0 THEN
          countLL = countLL + 1
       ELSE
          countLL = 1 // Reset to 1 as current is a trough
       ENDIF
    ENDIF

    // --- ENTRY LOGIC ---
    // Trend is confirmed if both counters reach the required number
    setupLong = countHH >= trendsRequired AND countLL >= trendsRequired

    IF NOT LONGONMARKET AND (close CROSSES OVER HH) AND setupLong THEN
       BUY 1 CONTRACT AT MARKET

       // Risk Management
       stopLossPrice = LL
       SET STOP PRICE stopLossPrice

       takeProfitPrice = close + (close - stopLossPrice)
       SET TARGET PRICE takeProfitPrice
    ENDIF


    Ändern Sie diese Variable (trendsRequired)

    #256586 quote
    axmichi
    Participant
    Senior

    Wow das ist toll…

    Nur eine Kleine Sache ist nicht richtig, das LL soll immer größer als dass HHprec sein, siehe Bild


    #257794 quote
    axmichi
    Participant
    Senior

    Hallo,


    ich möchte gern verstehen was ich im Code ändern muss, um ein weiteres HH und LL hinzu zufügen. Also ein 3. HH

    Können Sie bitte den Code so ändern und es im Code fett markieren, damit ich verstehe was ich ändern muss.

    Vielen Dank

    ONCE HH   = 0

    ONCE HHprec = 0

    ONCE LL   = 0

    ONCE LLprec = 0


    if Not OnMarket Then

    UseST = 0

    ENDIF


    cp = 3


    IF TradePrice = 0 THEN

    PositionSize1 = 1


    ELSE

    PositionSize1 = 1000 / sp //Compute PositionSize


    ENDIF

    once lastpoint = 0


    if high[cp] >= highest[2*cp+1](high) then

    PEAK = 1

    else

    PEAK = 0

    endif


    if low[cp] <= lowest[2*cp+1](low) then

    TROUGH = -1

    else

    TROUGH = 0

    endif


    if PEAK = 1 then

    TOPy = high[cp]

    TOPx = barindex[cp]

    endif


    if TROUGH = -1 then

    BOTy = low[cp]

    BOTx = barindex[cp]

    endif


    if PEAK>0 and (lastpoint=-1 or lastpoint=0) then

    //DRAWSEGMENT(lastX,lastY,TOPx,TOPy) COLOURED(127,255,0,1000)

    //DRAWTEXT(“■”,TOPx,TOPy,Dialog,Bold,10) coloured(200,0,0,255)

    lastpoint = 1

    lastX = TOPx

    lastY = TOPy

    HHprec= HH

    HH  = TOPy

    HHbar = TOPx

    endif


    if TROUGH<0 and (lastpoint=1 or lastpoint=0) then

    //DRAWSEGMENT(lastX,lastY,BOTx,BOTy) COLOURED(255,0,0,255)

    //DRAWTEXT(“■”,BOTx,BOTy,Dialog,Bold,10) coloured(0,200,0,255)

    lastpoint = -1

    lastX = BOTx

    lastY = BOTy

    LLprec= LL

    LL  = BOTy

    LLbar = BOTx

    endif


    //TREND ATTEMPT

    atr=AverageTrueRange[14](close)

    if TOPy > TOPy[1] and topy<>lasttop then

    //drawarrowup(barindex,low-atr/2) coloured(0,200,0)

    lasttop=topy

    trendup = 1

    else

    trendup = 0

    endif


    //RETURN TOPy as “TOPy”, BOTY as “BOTy”, trendup as “trendup”


    sp = close – 0

    // Long

    IF not longonmarket and close > LL and close < HH AND (HH > 0) AND (LL > LLprec) AND (LLprec > 0)and (HH > HHprec) and (HH > LL) and (HHprec > LLprec) THEN //

    #257795 quote
    Iván González
    Moderator
    Master

    Um eine dritte Ebene für Maxima (HH) und Minima (LL) hinzuzufügen, müssen wir neue Variablen erstellen, um diese alten Daten zu speichern, bevor sie mit den neuen überschrieben werden.

    In der Programmierung funktioniert dies wie eine Warteschlange: Bevor die neuen Daten eingelassen werden, müssen die aktuellen Daten an die “vorherige” Position verschoben werden, und die “vorherigen” Daten müssen an die “dritte” Position rücken.

    // --- Variable Initialization ---
    ONCE HH     = 0
    ONCE HHprec = 0
    // CHANGE 1: Declare variable for the 3rd Higher High
    ONCE HHprec2 = 0

    ONCE LL     = 0
    ONCE LLprec = 0
    // CHANGE 2: Declare variable for the 3rd Lower Low
    ONCE LLprec2 = 0

    // --- Initial Setup ---
    IF NOT OnMarket THEN
        UseST = 0
    ENDIF

    cp = 3
    sp = close // Define sp earlier to avoid errors

    // Position Size Management
    IF TradePrice = 0 THEN
        PositionSize1 = 1
    ELSE
        // Ensure sp is not 0 to avoid division by zero errors
        IF sp > 0 THEN
            PositionSize1 = 1000 / sp
        ELSE
            PositionSize1 = 1
        ENDIF
    ENDIF

    ONCE lastpoint = 0

    // --- Peak and Trough Detection ---

    // Peak Detection
    IF high[cp] >= highest[2*cp+1](high) THEN
        PEAK = 1
    ELSE
        PEAK = 0
    ENDIF

    // Trough Detection
    IF low[cp] <= lowest[2*cp+1](low) THEN
        TROUGH = -1
    ELSE
        TROUGH = 0
    ENDIF

    // Store Coordinates
    IF PEAK = 1 THEN
        TOPy = high[cp]
        TOPx = barindex[cp]
    ENDIF

    IF TROUGH = -1 THEN
        BOTy = low[cp]
        BOTx = barindex[cp]
    ENDIF

    // --- HH Update Logic ---
    IF PEAK > 0 AND (lastpoint = -1 OR lastpoint = 0) THEN
        lastpoint = 1
        lastX = TOPx
        lastY = TOPy

        // CHANGE 3: Variable shift for the 3rd HH
        // First save the previous value into the 3rd, then the current into the previous
        HHprec2 = HHprec  // The old previous becomes the 3rd
        HHprec  = HH      // The old current becomes the previous
        HH      = TOPy    // The new value is assigned to the current
        HHbar   = TOPx
    ENDIF

    // --- LL Update Logic ---
    IF TROUGH < 0 AND (lastpoint = 1 OR lastpoint = 0) THEN
        lastpoint = -1
        lastX = BOTx
        lastY = BOTy

        // CHANGE 4: Variable shift for the 3rd LL
        LLprec2 = LLprec  // The old previous becomes the 3rd
        LLprec  = LL      // The old current becomes the previous
        LL      = BOTy    // The new value is assigned to the current
        LLbar   = BOTx
    ENDIF

    // --- Trend Attempt ---
    atr = AverageTrueRange[14](close)

    IF TOPy > TOPy[1] AND TOPy <> lasttop THEN
        lasttop = TOPy
        trendup = 1
    ELSE
        trendup = 0
    ENDIF

    // --- Entry Conditions ---
    IF NOT LongOnMarket AND close > LL AND close < HH AND (HH > 0) AND (LL > LLprec) AND (LLprec > 0) AND (HH > HHprec) AND (HHprec > HHprec2) AND (HH > LL) AND (HHprec > LLprec) THEN
        // Your buy order would go here
    ENDIF




    axmichi thanked this post
    #257834 quote
    axmichi
    Participant
    Senior

    Ok vielen Dankf ür die Erklärung.

    Wenn ich nun noch ein weiteres HH hinzufügen möchte, das ich HHprec3 nenne, dann muss ich es oben im code hinzufügen und unten so ändern??

    HHprec3 = HHprec2 ????
    HHprec2 = HHprec  // The old previous becomes the 3rd
        HHprec  = HH      // The old current becomes the previous
        HH      = TOPy    // The new value is assigned to the current
        HHbar   = TOPx



    #257882 quote
    Iván González
    Moderator
    Master

    Genau

    #257953 quote
    axmichi
    Participant
    Senior

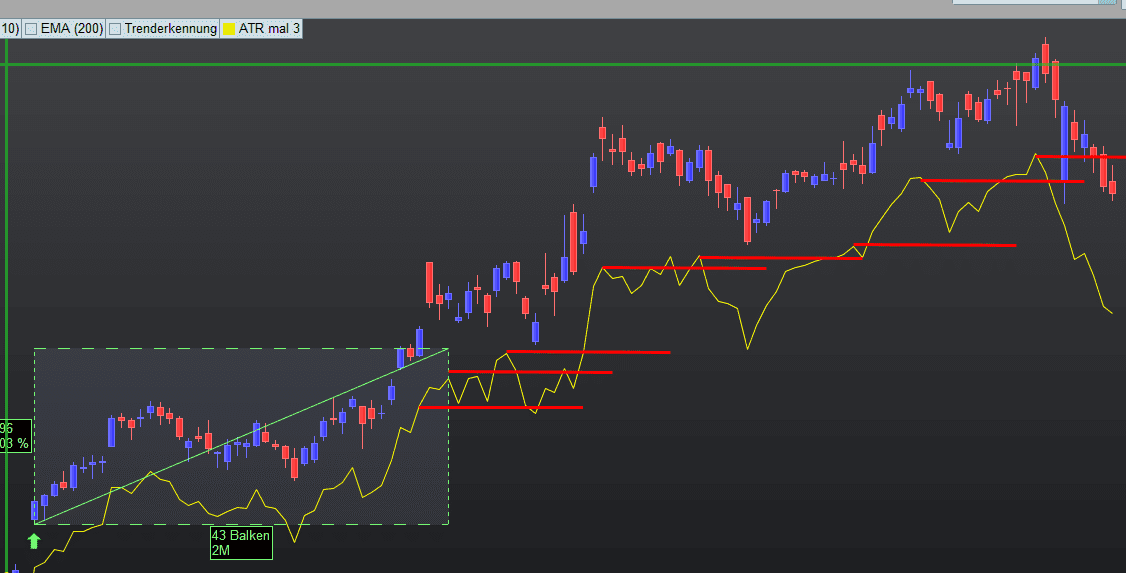

    Hallo, können Sie mir bitte in diesen Trendfolge_Code einen Trailingstop einbauen.


    Nach dem die Aktie gekauft wude (Bild Grüner Pfeil) , soll zunächst der SL ein ganz normaler Trailingstop von 50 % des Kaufpreises sein, also set stop %Trailing 50

    Siehe Bild:

    Wenn der Kurs der Aktie 30 % gestiegen ist, dann soll der ART (14) * 3 (close – averagetruerange[14](close)*3) der Trailingstop sein und mit dem Kurs mitgehen, wie die roten Linien kennzeichnen. Der Stop loss geht nicht mehr runter!!

    Wenn der Kurs der Aktie dann auf 60 % gestiegen ist, dann soll der ART (14) * 3 Trailingstop auf den ART (14) * 2 geändert werden, sodass er näher am Kurs dran ist.

    Der Trade soll geschlossen werden, wenn der Kurs unter dem ATR Stop schließt


    Vielen Dank


    Hier der Code

    ONCE HH   = 0

    ONCE HHprec = 0

    ONCE LL   = 0

    ONCE LLprec = 0


    if Not OnMarket Then

    UseST = 0

    ENDIF


    cp = 3


    IF TradePrice = 0 THEN

    PositionSize1 = 1


    ELSE

    PositionSize1 = 1000 / sp //Compute PositionSize


    ENDIF

    once lastpoint = 0


    if high[cp] >= highest[2*cp+1](high) then

    PEAK = 1

    else

    PEAK = 0

    endif


    if low[cp] <= lowest[2*cp+1](low) then

    TROUGH = -1

    else

    TROUGH = 0

    endif


    if PEAK = 1 then

    TOPy = high[cp]

    TOPx = barindex[cp]

    endif


    if TROUGH = -1 then

    BOTy = low[cp]

    BOTx = barindex[cp]

    endif


    if PEAK>0 and (lastpoint=-1 or lastpoint=0) then

    //DRAWSEGMENT(lastX,lastY,TOPx,TOPy) COLOURED(127,255,0,1000)

    //DRAWTEXT(“■”,TOPx,TOPy,Dialog,Bold,10) coloured(200,0,0,255)

    lastpoint = 1

    lastX = TOPx

    lastY = TOPy

    HHprec= HH

    HH  = TOPy

    HHbar = TOPx

    endif


    if TROUGH<0 and (lastpoint=1 or lastpoint=0) then

    //DRAWSEGMENT(lastX,lastY,BOTx,BOTy) COLOURED(255,0,0,255)

    //DRAWTEXT(“■”,BOTx,BOTy,Dialog,Bold,10) coloured(0,200,0,255)

    lastpoint = -1

    lastX = BOTx

    lastY = BOTy

    LLprec= LL

    LL  = BOTy

    LLbar = BOTx

    endif


    //TREND ATTEMPT

    atr=AverageTrueRange[14](close)

    if TOPy > TOPy[1] and topy<>lasttop then

    //drawarrowup(barindex,low-atr/2) coloured(0,200,0)

    lasttop=topy

    trendup = 1

    else

    trendup = 0

    endif


    //RETURN TOPy as “TOPy”, BOTY as “BOTy”, trendup as “trendup”


    sp = close – 0

    // Long

    IF not longonmarket and close > LL and close < HH AND (HH > 0) AND (LL > LLprec) AND (LLprec > 0)and (HH > HHprec) and (HH > LL) and (HHprec > LLprec) THEN //

    set stop %trailing 50



    atr3-trailing.png atr3-trailing.png
    #258157 quote
    axmichi
    Participant
    Senior

    Hallo,


    ist es zu kompliziert, diese Stopsystem zu codieren, dann würde auch eine andere Variante gehen?…

    Vielen Dank

    #258163 quote
    Iván González
    Moderator
    Master

    Sie könnten dies als Beispiel verwenden. Anstelle von ATR könnten Sie einen Prozentsatz als Referenzwert verwenden:

    // ===========================
    // Trail Stop steps
    // ===========================
    triggerDistance = 100
    if not onmarket then
       MoveToBreakEven=0
    endif
    // Example entry condition
    IF NOT ONMARKET AND close CROSSES OVER Average[20](close) THEN
       BUY 1 CONTRACT AT MARKET
       stoploss = close-triggerDistance*pointsize
       newStopLevel = close + (triggerDistance * pointsize)
       set stop price stoploss
    ENDIF

    // Management of open position
    IF LONGONMARKET THEN
       // Check if profit is greater or equal to trigger distance
       IF close >= newStopLevel and MoveToBreakEven=0 THEN
          MoveToBreakEven=1
          stoploss=positionprice //breakeven
          newStopLevel = newStopLevel+triggerDistance*pointsize
          set stop price stoploss
       ENDIF

       if close >= newStopLevel + (triggerDistance * pointsize) and MoveToBreakEven=1 then
          stoploss = newStopLevel
          newStopLevel = newStopLevel+triggerDistance*pointsize
          set stop price stoploss
       endif
    ENDIF

    // ===========================
    // Graphic
    // ===========================
    // Trailing Stop and Next Level
    graphonprice newStopLevel coloured(0, 0, 255) AS "NextLevel"
    graphonprice stoploss coloured(255, 0, 0) AS "Trail Stop"
    // Moving Average
    graphonprice Average[20](close) coloured(255, 165, 0) AS "SMA"


    robertogozzi thanked this post
    #258277 quote
    axmichi
    Participant
    Senior

    Hallo, es sollte doch ein Trailling stop sein, der mit jedem neuen Hoch mit geht??

    So habe ich es oben beschrieben:

    Erst der Trailing Stop auf 50 % unter dem Aktienpreis, dann

    Wenn der Kurs der Aktie 30 % gestiegen ist, dann soll der ART (14) * 3 (close – averagetruerange[14](close)*3) der Trailingstop sein und mit dem Kurs mitgehen

    #258309 quote
    axmichi
    Participant
    Senior

    Hallo ist es möglich den Positionprice so berechnen zu lassen das die Anzahl auf eine gerade Zahl abgerundet oder aufgerundet wird und man dann einen Teilverkauf von der hälfte der gekauften Aktien macht, wenn der Kurs unter 25 % SL geht. Der 2. Stop loss liegt weiter bei 50%


    Man hätte dann 2 Stop loss einer bei 50% und 25%

Viewing 14 posts - 1 through 14 (of 14 total)
  • You must be logged in to reply to this topic.

ProOrder Trendsystem mit 4 höheren Hochs/Tiefs erweitern


ProOrder: Automatischer Handel & Backtesting

New Reply
Author
author-avatar
axmichi @axmichi Participant
Summary

This topic contains 13 replies,
has 2 voices, and was last updated by axmichi
2 weeks, 6 days ago.

Topic Details
Forum: ProOrder: Automatischer Handel & Backtesting
Language: German
Started: 01/20/2026
Status: Active
Attachments: 2 files
Logo Logo
Loading...
