Hello,
Today, I publish the V2 of the previous indicator.
This one is very similar to the first one however, it includes more precise calculations.

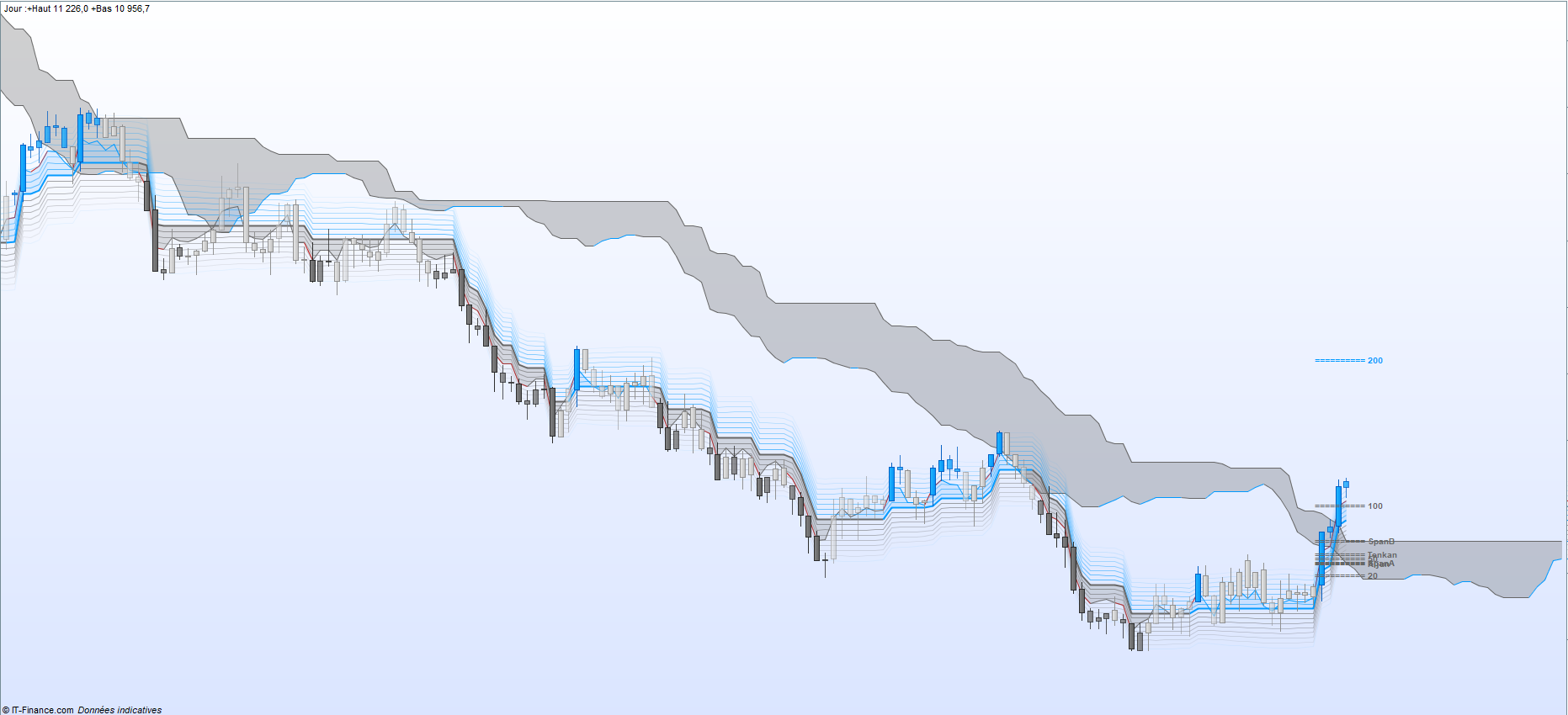

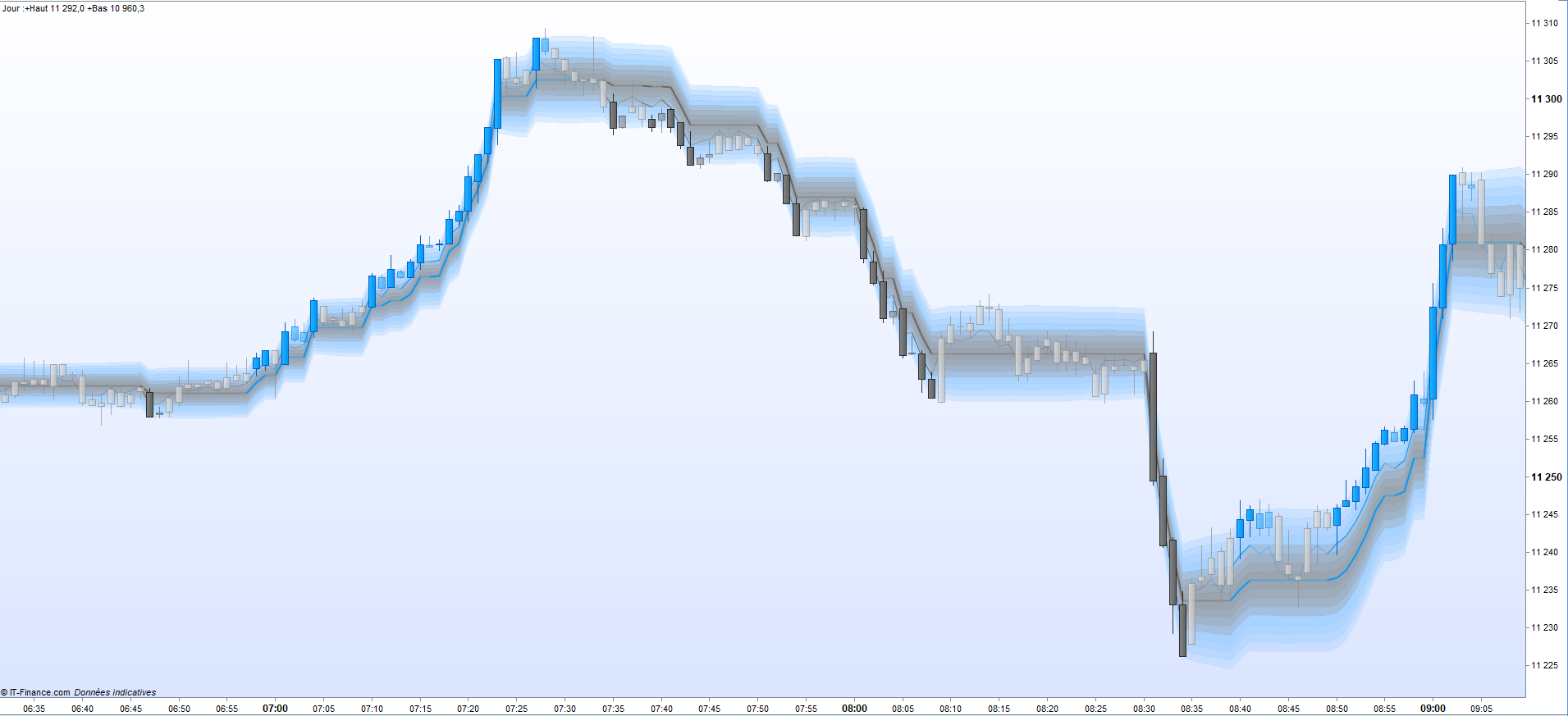

I chose to take the same sequence of the graph so that you can compare the two images.The notable effects are the detection of the ranges, they are done much earlier.
The entry points or pulse points remain the same, which means that the indicator is not seen with a secondary filter, but rather an adjustment in terms of precision.The external variable remains the same and the use of the same
IV
// //=/===============/=//=/===============/=//=/ Indicator Range Trend // RxUP = 0 GxUP = 153 BxUP = 255 RxDOWN = 102 GxDOWN = 102 BxDOWN = 102 // //=/===============/=//=/===============/=//=/ Range // //=/ Range Settings once rngfilt=close if barindex>max(14,27) then rngscale=max(1,min(rngscale,7)) scale = 2.618*average[14,1](abs(close-close[1])) endif r=average[27,1](scale) hh=close ll=close if 1<>1 then hh=high ll=low endif if 1=1 then if hh>rngfilt[1] then if (hh-r)<rngfilt[1] then rngfilt=rngfilt[1] else rngfilt=hh-r endif elsif (ll+r)>rngfilt[1] then rngfilt=rngfilt[1] else rngfilt=ll+r endif else if hh>=rngfilt[1]+r then rngfilt=(rngfilt[1]) + (abs(hh - (rngfilt[1]))/r)*r elsif ll<=rngfilt[1]-r then rngfilt=(rngfilt[1]) - (abs(ll - (rngfilt[1]))/r)*r else rngfilt=rngfilt[1] endif endif hiband = rngfilt + r loband = rngfilt - r if rngfilt>rngfilt[1] then upward=1 downward=0 endif if rngfilt<rngfilt[1] then upward=0 downward=1 endif TrendFast = rngfilt TrendMedium = Average[2](rngfilt) TrendLong = Average[4](rngfilt) Limitt = (close+TrendFast)/2 // //=/===============/=//=/===============/=//=/ Trend Color // //=/ Trend Fast Color Settings if upward > 0 and TrendFast > TrendFast[1] then cr = RxUP cg = GxUP cb = BxUP ct = 250 elsif downward > 0 and TrendFast < TrendFast[1] then cr = RxDOWN cg = GxDOWN cb = BxDOWN ct = 250 elsif upward > 0 and TrendFast = TrendFast[1] then cr = RxUP cg = GxUP cb = BxUP ct = 100 elsif downward > 0 and TrendFast = TrendFast[1] then cr = RxDOWN cg = GxDOWN cb = BxDOWN ct = 100 endif // //=/===============/=//=/===============/=//=/ Candle // //=/ Bullish Conditions 1P UP1 = upward > 0 UP2 = close > TrendFast UP3 = close > TrendLong UP4 = close > TrendMedium UP5 = TrendFast > TrendFast[1] UP6 = TrendLong > TrendLong[1] UP7 = TrendMedium > TrendMedium[1] UP8 = low =< Limitt UP9 = close > MID4 BullishConditions1P = UP1 and UP2 and UP3 and UP4 and UP5 and UP6 and UP7 and UP8 and UP9 //=/ Bullish Conditions 1PS UPS1 = upward > 0 UPS2 = close > TrendFast UPS3 = close > TrendLong UPS4 = close > TrendMedium UPS5 = TrendFast > TrendFast[1] UPS6 = TrendLong > TrendLong[1] UPS7 = TrendMedium > TrendMedium[1] UPS8 = low > Limitt UPS9 = Limitt => MID4 UPS10 = close > MID4 BullishConditions1PS = UPS1 and UPS2 and UPS3 and UPS4 and UPS5 and UPS6 and UPS7 and UPS8 and UPS9 and UPS10 //=/ Bullish Conditions 1 U1 = upward > 0 U2 = close > TrendFast U3 = close > TrendLong U4 = close > TrendMedium U5 = TrendFast > TrendFast[1] U6 = TrendLong > TrendLong[1] U7 = TrendMedium > TrendMedium[1] U8 = low > Limitt U9 = close > MID4 BullishConditions1 = U1 and U2 and U3 and U4 and U5 and U6 and U7 and U8 and U9 //=/ Bullish Conditions 2 UX1 = upward > 0 UX2 = close > TrendFast UX3 = close > TrendLong UX4 = close > TrendMedium UX5 = TrendFast = TrendFast[1] UX6 = TrendLong > TrendLong[1] UX7 = TrendMedium > TrendMedium[1] UX8 = low > Limitt UX9 = close > MID4 BullishConditions2 = UX1 and UX2 and UX3 and UX4 and UX5 and UX6 and UX7 and UX8 and UX9 //=/ Bullish Conditions 3 UXX1 = upward > 0 UXX2 = close > TrendFast UXX3 = close > TrendLong UXX4 = close > TrendMedium UXX5 = TrendFast = TrendFast[1] UXX6 = TrendLong > TrendLong[1] UXX7 = TrendMedium = TrendMedium[1] UXX8 = low > Limitt UXX9 = close > MID4 BullishConditions3 = UXX1 and UXX2 and UXX3 and UXX4 and UXX5 and UXX6 and UXX7 and UXX8 and UXX9 //=//=// //=/ Bearish Conditions 1P EP1 = downward > 0 EP2 = close < TrendFast EP3 = close < TrendLong EP4 = close < TrendMedium EP5 = TrendFast < TrendFast[1] EP6 = TrendLong < TrendLong[1] EP7 = TrendMedium < TrendMedium[1] EP8 = high => Limitt EP9 = close < MID11 BearishConditions1P = EP1 and EP2 and EP3 and EP4 and EP5 and EP6 and EP7 and EP8 and EP9 //=/ Bearish Conditions 1PS EPS1 = downward > 0 EPS2 = close < TrendFast EPS3 = close < TrendLong EPS4 = close < TrendMedium EPS5 = TrendFast < TrendFast[1] EPS6 = TrendLong < TrendLong[1] EPS7 = TrendMedium < TrendMedium[1] EPS8 = high < Limitt EPS9 = Limitt =< MID11 EPS10 = close < MID11 BearishConditions1PS = EPS1 and EPS2 and EPS3 and EPS4 and EPS5 and EPS6 and EPS7 and EPS8 and EPS9 and EPS10 //=/ Bearish Conditions 1 E1 = downward > 0 E2 = close < TrendFast E3 = close < TrendLong E4 = close < TrendMedium E5 = TrendFast < TrendFast[1] E6 = TrendLong < TrendLong[1] E7 = TrendMedium < TrendMedium[1] E8 = high < Limitt E9 = close < MID11 BearishConditions1 = E1 and E2 and E3 and E4 and E5 and E6 and E7 and E8 and E9 //=/ Bearish Conditions 2 EX1 = downward > 0 EX2 = close < TrendFast EX3 = close < TrendLong EX4 = close < TrendMedium EX5 = TrendFast = TrendFast[1] EX6 = TrendLong < TrendLong[1] EX7 = TrendMedium < TrendMedium[1] EX8 = high < Limitt EX9 = close < MID11 BearishConditions2 = EX1 and EX2 and EX3 and EX4 and EX5 and EX6 and EX7 and EX8 and EX9 //=/ Bearish Conditions 3 EXX1 = downward > 0 EXX2 = close < TrendFast EXX3 = close < TrendLong EXX4 = close < TrendMedium EXX5 = TrendFast = TrendFast[1] EXX6 = TrendLong < TrendLong[1] EXX7 = TrendMedium = TrendMedium[1] EXX8 = high < Limitt EXX9 = close < MID11 BearishConditions3 = EXX1 and EXX2 and EXX3 and EXX4 and EXX5 and EXX6 and EXX7 and EXX8 and EXX9 //=/ Candle Color Settings if BullishConditions1P then br = RxUP bg = GxUP bb = BxUP tz = 250 elsif BullishConditions1PS then br = RxUP bg = GxUP bb = BxUP tz = 250 elsif BullishConditions1 then br = RxUP bg = GxUP bb = BxUP tz = 185 elsif BullishConditions2 then br = RxUP bg = GxUP bb = BxUP tz = 125 elsif BullishConditions3 then br = RxUP bg = GxUP bb = BxUP tz = 100 //=//=// elsif BearishConditions1P then br = RxDOWN bg = GxDOWN bb = BxDOWN tz = 250 elsif BearishConditions1PS then br = RxDOWN bg = GxDOWN bb = BxDOWN tz = 250 elsif BearishConditions1 then br = RxDOWN bg = GxDOWN bb = BxDOWN tz = 185 elsif BearishConditions2 then br = RxDOWN bg = GxDOWN bb = BxDOWN tz = 125 elsif BearishConditions3 then br = RxDOWN bg = GxDOWN bb = BxDOWN tz = 100 //=//=// else br = 204 bg = 204 bb = 204 tz = 180 endif drawcandle(open,high,low,close) coloured(br,bg,bb,tz) // //=/===============/=//=/===============/=//=/ Visual // //=/ Visual Settings MIDX1 = (hiband-TrendFast)/8 MID1 = (TrendFast+MIDX1) MID2 = (MID1+MIDX1) MID3 = (MID2+MIDX1) MID4 = (MID3+MIDX1) MID5 = (MID4+MIDX1) MID6 = (MID5+MIDX1) MID7 = (MID6+MIDX1) MIDX2 = (TrendFast-loband)/8 MID8 = (TrendFast-MIDX2) MID9 = (MID8-MIDX2) MID10 = (MID9-MIDX2) MID11 = (MID10-MIDX2) MID12 = (MID11-MIDX2) MID13 = (MID12-MIDX2) MID14 = (MID13-MIDX2) // //=/===============/=//=/===============/=//=/ End // return TrendFast coloured (cr,cg,cb,ct) style(line,2) as "Trend Fast" , MID1 coloured (RxDOWN,GxDOWN,BxDOWN,15) style(line,1) as "MID1" , MID2 coloured (RxDOWN,GxDOWN,BxDOWN,15) style(line,1) as "MID2" , MID3 coloured (RxDOWN,GxDOWN,BxDOWN,15) style(line,1) as "MID3" , MID4 coloured (RxDOWN,GxDOWN,BxDOWN,15) style(line,1) as "MID4" , MID5 coloured (RxUP,GxUP,BxUP,15) style(line,1) as "MID5" , MID6 coloured (RxUP,GxUP,BxUP,15) style(line,1) as "MID6" , MID7 coloured (RxUP,GxUP,BxUP,15) style(line,1) as "MID7" , MID8 coloured (RxDOWN,GxDOWN,BxDOWN,15) style(line,1) as "MID8" , MID9 coloured (RxDOWN,GxDOWN,BxDOWN,15) style(line,1) as "MID9" , MID10 coloured (RxDOWN,GxDOWN,BxDOWN,15) style(line,1) as "MID10" , MID11 coloured (RxDOWN,GxDOWN,BxDOWN,15) style(line,1) as "MID11" , MID12 coloured (RxUP,GxUP,BxUP,15) style(line,1) as "MID12" , MID13 coloured (RxUP,GxUP,BxUP,15) style(line,1) as "MID13" , MID14 coloured (RxUP,GxUP,BxUP,15) style(line,1) as "MID14" , hiband coloured (RxUP,GxUP,BxUP,15) style(line,1) as "Hiband" , loband coloured (RxUP,GxUP,BxUP,15) style(line,1) as "Loband" , Limitt coloured (cr,cg,cb,ct) style(line,1) as "Limit"Nolubok thanked this postLa V3
// //=/===============/=//=/===============/=//=/ Indicator Range Trend // RxUP = 0 GxUP = 153 BxUP = 255 RxDOWN = 102 GxDOWN = 102 BxDOWN = 102 RxRange = 204 GxRange = 204 BxRange = 204 RxForce = 199 GxForce = 19 BxForce = 19 RangeScale = 2.338 // //=/===============/=//=/===============/=//=/ Range // //=/ Range Settings once RRange=close if barindex>max(14,27) then RNGScale=max(1,min(RNGScale,7)) scale = RangeScale*average[14,1](abs(close-close[1]))//2.338 endif r = average[27,1](scale) HH = close LL = close if 1 <> 1 then HH = high LL = low endif if 1 = 1 then if HH > RRange[1] then if (HH-R) < RRange[1] then RRange = RRange[1] else RRange = (HH-R) endif elsif (LL+R) > RRange[1] then RRange = RRange[1] else RRange = (LL+R) endif else if HH >= (RRange[1]+R) then RRange = (RRange[1]) + (abs (HH - (RRange[1]) )/ R)*R elsif LL <= (RRange[1]-R) then RRange = (RRange[1]) - (abs (LL - (RRange[1]) )/ R)*R else RRange = RRange[1] endif endif UpRange = RRange + R DwRange = RRange - R if RRange > RRange[1] then upward = 1 downward = 0 endif if RRange < RRange[1] then upward = 0 downward = 1 endif Trend = RRange TrendMedium = average[2](Trend) TrendLong= average[3](Trend) ForceINT = (close+Trend)/2 MidPLH = Trend + (UpRange - Trend)/2 MidPLB = Trend - (Trend - DwRange)/2 // //=/===============/=//=/===============/=//=/ Trend Color // //=/ Trend Color Settings if upward > 0 and Trend > Trend[1] then UPTrend = 1 DWTrend = 0 cr = RxUP cg = GxUP cb = BxUP ct = 250 elsif downward > 0 and Trend < Trend[1] then UPTrend = 0 DWTrend = 1 cr = RxDOWN cg = GxDOWN cb = BxDOWN ct = 250 elsif upward > 0 and Trend = Trend[1] then UPTrend = 0 DWTrend = 0 cr = RxUP cg = GxUP cb = BxUP ct = 250 elsif downward > 0 and Trend = Trend[1] then UPTrend = 0 DWTrend = 0 cr = RxDOWN cg = GxDOWN cb = BxDOWN ct = 250 endif // //=/===============/=//=/===============/=//=/ ForceINT Color // //=/ ForceINT Color Settings if upward > 0 and ForceINT => MID4 then fr = RxForce fg = GxForce fb = BxForce ft = 250 elsif downward > 0 and ForceINT =< MID11 then fr = RxForce fg = GxForce fb = BxForce ft = 250 elsif upward > 0 and ForceINT < MID4 then fr = RxUP fg = GxUP fb = BxUP ft = 250 elsif downward > 0 and ForceINT > MID11 then fr = RxDOWN fg = GxDOWN fb = BxDOWN ft = 250 endif // //=/===============/=//=/===============/=//=/ Candle // //=/ Bullish Conditions 1 UP1 = UpWard > 0 UP2 = UPTrend > 0 UP3 = low =< ForceINT BullishConditions1 = UP1 and UP2 and UP3 //=/ Bullish Conditions 2 UPX1 = UpWard > 0 UPX2 = UPTrend > 0 UPX3 = low > ForceINT BullishConditions2 = UPX1 and UPX2 and UPX3 //=/ Bullish Conditions 3 UPXX1 = UpWard > 0 UPXX2 = Trend = Trend[1] UPXX3 = TrendMedium > TrendMedium[1] UPXX4 = close > MidPLH BullishConditions3 = UPXX1 and UPXX2 and UPXX3 and UPXX4 //=/ Bullish Conditions 4 UPXXX1 = UpWard > 0 UPXXX2 = Trend = Trend[1] UPXXX3 = TrendMedium = TrendMedium[1] UPXXX4 = TrendLong > TrendLong[1] UPXXX5 = close > MidPLH BullishConditions4 = UPXXX1 and UPXXX2 and UPXXX3 and UPXXX4 and UPXXX5 //=/ Bullish Conditions R UPR1 = UpWard > 0 UPR2 = Close < Trend BullishConditionsR = UPR1 and UPR2 //=//=// //=/ Bearish Conditions 1 EP1 = DownWard > 0 EP2 = DWTrend > 0 EP3 = high => ForceINT BearishConditions1 = EP1 and EP2 and EP3 //=/ Bearish Conditions 2 EPX1 = DownWard > 0 EPX2 = DWTrend > 0 EPX3 = high < ForceINT BearishConditions2 = EPX1 and EPX2 and EPX3 //=/ Bearish Conditions 3 EPXX1 = DownWard > 0 EPXX2 = Trend = Trend[1] EPXX3 = TrendMedium < TrendMedium[1] EPXX4 = close < MidPLB BearishConditions3 = EPXX1 and EPXX2 and EPXX3 and EPXX4 //=/ Bearish Conditions 4 EPXXX1 = DownWard > 0 EPXXX2 = Trend = Trend[1] EPXXX3 = TrendMedium = TrendMedium[1] EPXXX4 = TrendLong < TrendLong[1] EPXXX5 = close < MidPLB BearishConditions4 = EPXXX1 and EPXXX2 and EPXXX3 and EPXXX4 and EPXXX5 //=/ Bearish Conditions R EPR1 = DownWard > 0 EPR2 = Close > Trend BearishConditionsR = EPR1 and EPR2 //=/ Candle Color Settings if BullishConditions1 then R = RxUP G = GxUP B = BxUP T = 250 elsif BullishConditions2 then R = RxUP G = GxUP B = BxUP T = 200 elsif BullishConditions3 then R = RxUP G = GxUP B = BxUP T = 200 elsif BullishConditions4 then R = RxUP G = GxUP B = BxUP T = 200 elsif BullishConditionsR then R = RxRange G = GxRange B = BxRange T = 150 //=//=// elsif BearishConditions1 then R = RxDOWN G = GxDOWN B = BxDOWN T = 250 elsif BearishConditions2 then R = RxDOWN G = GxDOWN B = BxDOWN T = 200 elsif BearishConditions3 then R = RxDOWN G = GxDOWN B = BxDOWN T = 200 elsif BearishConditions4 then R = RxDOWN G = GxDOWN B = BxDOWN T = 200 elsif BearishConditionsR then R = RxRange G = GxRange B = BxRange T = 150 //=//=// else R = 204 G = 204 B = 204 T = 250 endif drawcandle(open,high,low,close) coloured(R,G,B,T) // //=/===============/=//=/===============/=//=/ End // // //=/===============/=//=/===============/=//=/ Visual // //=/ Visual Settings MIDX1 = (UpRange-Trend)/8 MID1 = (Trend+MIDX1) MID2 = (MID1+MIDX1) MID3 = (MID2+MIDX1) MID4 = (MID3+MIDX1) MID5 = (MID4+MIDX1) MID6 = (MID5+MIDX1) MID7 = (MID6+MIDX1) MIDX2 = (Trend-DwRange)/8 MID8 = (Trend-MIDX2) MID9 = (MID8-MIDX2) MID10 = (MID9-MIDX2) MID11 = (MID10-MIDX2) MID12 = (MID11-MIDX2) MID13 = (MID12-MIDX2) MID14 = (MID13-MIDX2) return Trend coloured (cr,cg,cb,ct) style(line,2) as "Trend", ForceINT coloured (fr,fg,fb,ft) style(line,1) as "ForceINT", UpRange coloured (RxUP,GxUP,BxUP,15) style(line,1) as "UpRange", DwRange coloured (RxUP,GxUP,BxUP,15) style(line,1) as "DwRange", MID1 coloured (RxUP,GxUP,BxUP,150) style(line,1) as "MID1", MID2 coloured (RxUP,GxUP,BxUP,130) style(line,1) as "MID2", MID3 coloured (RxUP,GxUP,BxUP,110) style(line,1) as "MID3", MID4 coloured (RxUP,GxUP,BxUP,90) style(line,1) as "MID4", MID5 coloured (RxUP,GxUP,BxUP,70) style(line,1) as "MID5", MID6 coloured (RxUP,GxUP,BxUP,50) style(line,1) as "MID6", MID7 coloured (RxUP,GxUP,BxUP,30) style(line,1) as "MID7", MID8 coloured (RxDOWN,GxDOWN,BxDOWN,150) style(line,1) as "MID8", MID9 coloured (RxDOWN,GxDOWN,BxDOWN,130) style(line,1) as "MID9", MID10 coloured (RxDOWN,GxDOWN,BxDOWN,110) style(line,1) as "MID10", MID11 coloured (RxDOWN,GxDOWN,BxDOWN,90) style(line,1) as "MID11", MID12 coloured (RxDOWN,GxDOWN,BxDOWN,70) style(line,1) as "MID12", MID13 coloured (RxDOWN,GxDOWN,BxDOWN,50) style(line,1) as "MID13", MID14 coloured (RxDOWN,GxDOWN,BxDOWN,30) style(line,1) as "MID14"
