Trailing stop fails to move

• 10/26/2020 at 3:09 PM #148516
  nonetheless

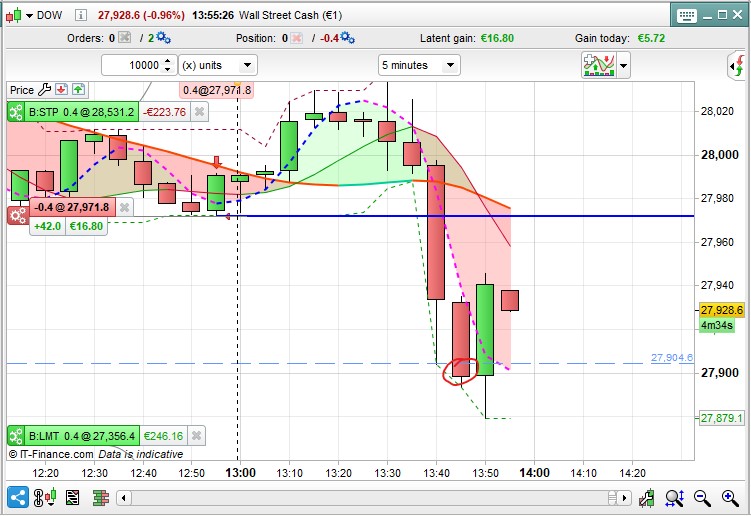

  In the attached image a short position has opened at 27971.8

  The TS should move to ~ break even after a close below .24%, or 27904.6

  //%trailing stop function once trailingpercentlong = 0.21 // % once trailingpercentshort = 0.24 // % once accelerator = 0.05 // 1 = default; always > 0 (i.e. 0.5-3) once accelerator2 = 0.01 // 1 = default; always > 0 (i.e. 0.5-3) once ts2sensitivity = 2 // [0]close;[1]high/low;[2]low;high //==================== once steppercentlong = (trailingpercentlong/10)*accelerator once steppercentshort = (trailingpercentshort/10)*accelerator2 if onmarket then trailingstartlong = tradeprice(1)*(trailingpercentlong/100) trailingstartshort = tradeprice(1)*(trailingpercentshort/100)

  1 2 3 4 5 6 7 8 9 10 11 12

  //%trailing stop function once trailingpercentlong  = 0.21 // % once trailingpercentshort = 0.24 // % once accelerator     = 0.05 // 1 = default; always > 0 (i.e. 0.5-3) once accelerator2     = 0.01 // 1 = default; always > 0 (i.e. 0.5-3) once ts2sensitivity  = 2 // [0]close;[1]high/low;[2]low;high //==================== once steppercentlong  = (trailingpercentlong/10)*accelerator once steppercentshort = (trailingpercentshort/10)*accelerator2 if onmarket then trailingstartlong = tradeprice(1)*(trailingpercentlong/100) trailingstartshort = tradeprice(1)*(trailingpercentshort/100)

  At 13:45 the candle closes at 27898.6 but the stop doesn’t move. I’ve never had this problem before using this TS code.



  nonetheless

  Participant

  Topics: 83

  Replies: 1237

  Been thanked: 978 times
  10/26/2020 at 3:19 PM #148518
  robertogozzi

  The code is missing.

  The above lines are just the settings and calculations, not the instructions that use them.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 18044

  Been thanked: 4611 times
  10/26/2020 at 3:41 PM #148524
  nonetheless

  this is the full TS code. do you need to see the whole algo?

  once trailingpercentlong = .21 // % once trailingpercentshort = .24 // % once accelerator = .05 // 1 = default; always > 0 (i.e. 0.5-3) once accelerator2 = .01// 1 = default; always > 0 (i.e. 0.5-3) once ts2sensitivity = 2 // [0]close;[1]high/low;[2]low;high //==================== once steppercentlong = (trailingpercentlong/10)*accelerator once steppercentshort = (trailingpercentshort/10)*accelerator2 if onmarket then trailingstartlong = tradeprice(1)*(trailingpercentlong/100) trailingstartshort = tradeprice(1)*(trailingpercentshort/100) trailingsteplong = tradeprice(1)*(steppercentlong/100) trailingstepshort = tradeprice(1)*(steppercentshort/100) endif if not onmarket or ((longonmarket and shortonmarket[1]) or (longonmarket[1] and shortonmarket)) then newsl=0 endif if ts2sensitivity=1 then ts2sensitivitylong=high ts2sensitivityshort=low elsif ts2sensitivity=2 then ts2sensitivitylong=low ts2sensitivityshort=high else ts2sensitivitylong=close ts2sensitivityshort=close endif if longonmarket then if newsl=0 and ts2sensitivitylong-tradeprice(1)>=trailingstartlong then newsl = tradeprice(1)+trailingsteplong endif if newsl>0 and ts2sensitivitylong-newsl>trailingsteplong then newsl = newsl+trailingsteplong endif endif if shortonmarket then if newsl=0 and tradeprice(1)-ts2sensitivityshort>=trailingstartshort then newsl = tradeprice(1)-trailingstepshort endif if newsl>0 and newsl-ts2sensitivityshort>trailingstepshort then newsl = newsl-trailingstepshort endif endif if barindex-tradeindex>1 then if longonmarket then if newsl>0 then sell at newsl stop endif if newsl>0 then if low crosses under newsl then sell at market endif endif endif if shortonmarket then if newsl>0 then exitshort at newsl stop endif if newsl>0 then if high crosses over newsl then exitshort at market endif endif endif endif

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66

  once trailingpercentlong  = .21 // % once trailingpercentshort = .24 // % once accelerator     = .05 // 1 = default; always > 0 (i.e. 0.5-3) once accelerator2     = .01// 1 = default; always > 0 (i.e. 0.5-3) once ts2sensitivity  = 2 // [0]close;[1]high/low;[2]low;high //==================== once steppercentlong  = (trailingpercentlong/10)*accelerator once steppercentshort = (trailingpercentshort/10)*accelerator2 if onmarket then trailingstartlong = tradeprice(1)*(trailingpercentlong/100) trailingstartshort = tradeprice(1)*(trailingpercentshort/100)   trailingsteplong = tradeprice(1)*(steppercentlong/100) trailingstepshort = tradeprice(1)*(steppercentshort/100) endif if not onmarket or ((longonmarket and shortonmarket[1]) or (longonmarket[1] and shortonmarket)) then newsl=0 endif if ts2sensitivity=1 then ts2sensitivitylong=high ts2sensitivityshort=low elsif ts2sensitivity=2 then ts2sensitivitylong=low ts2sensitivityshort=high else ts2sensitivitylong=close ts2sensitivityshort=close endif if longonmarket then if newsl=0 and ts2sensitivitylong-tradeprice(1)>=trailingstartlong then newsl = tradeprice(1)+trailingsteplong endif if newsl>0 and ts2sensitivitylong-newsl>trailingsteplong then newsl = newsl+trailingsteplong endif endif if shortonmarket then if newsl=0 and tradeprice(1)-ts2sensitivityshort>=trailingstartshort then newsl = tradeprice(1)-trailingstepshort endif if newsl>0 and newsl-ts2sensitivityshort>trailingstepshort then newsl = newsl-trailingstepshort endif endif if barindex-tradeindex>1 then if longonmarket then if newsl>0 then sell at newsl stop endif if newsl>0 then if low crosses under newsl then sell at market endif endif endif if shortonmarket then if newsl>0 then exitshort at newsl stop endif if newsl>0 then if high crosses over newsl then exitshort at market endif endif endif endif





  nonetheless

  Participant

  Topics: 83

  Replies: 1237

  Been thanked: 978 times
  10/26/2020 at 4:17 PM #148531
  robertogozzi

  It works fine for me, I think it can be due to your setting:

  ts2sensitivity = 2

  1	ts2sensitivity  = 2

  which sets HIGH for short trades and LOW for long trades to compute profits, which is rather uncommon , 1 is the settings that perfectly repliucates manual trading, many times 0 is also used.

  Another issue could be if you accumulate orders, then lines 10-14 would change everytime a new positio is added because TRADEPRICE(1) refers to the last entry price.





  robertogozzi

  Moderator

  Topics: 69

  Replies: 18044

  Been thanked: 4611 times
  10/26/2020 at 4:50 PM #148538
  nonetheless

  Thanks Roberto, it doesn’t accumulate orders so that’s not an issue.

  But are you saying that with ts2sensitivity  = 2 you would not expect the stop to move after a close below .24% ? and if not, at what point would it initiate? (I closed the position manually so I don’t know how it would have developed)

  What exactly is the effect of these lines? How does it change when the trailingstart begins?

  if shortonmarket then if newsl=0 and tradeprice(1)-ts2sensitivityshort>=trailingstartshort then newsl = tradeprice(1)-trailingstepshort endif

  1 2 3 4

  if shortonmarket then if newsl=0 and tradeprice(1)-ts2sensitivityshort>=trailingstartshort then newsl = tradeprice(1)-trailingstepshort endif

  If ts2sensitivityshort=high what does this pertain to? the high of what?



  nonetheless

  Participant

  Topics: 83

  Replies: 1237

  Been thanked: 978 times
  10/26/2020 at 4:58 PM #148540
  Paul

  That sensitivity had issues with the breakevenstop, “once” had to be removed and I made it different. Can you test this plz. Updated also the others. Or just remove it and use the close.

  The result is the same for positionprice & tradeprice(1) (old one)

  Using high/low low/high or close just made a small difference when the trailingstop activates.

  // %trailing stop function incl. cumulative positions once trailingstoptype1= 1 if trailingstoptype1 then //==================== trailingpercentlong = 0.75*sl // % trailingpercentshort = 0.75*sl // % once acceleratorlong = 0.1 // [1] default; always > 0 (i.e. 0.5-3) once acceleratorshort= 0.1 // 1 = default; always > 0 (i.e. 0.5-3) ts2sensitivity = 3 // [1] default [2] hl [3] lh (not use once) //==================== once steppercentlong = (trailingpercentlong/10)*acceleratorlong once steppercentshort = (trailingpercentshort/10)*acceleratorshort if onmarket then trailingstartlong = positionprice*(trailingpercentlong/100) trailingstartshort = positionprice*(trailingpercentshort/100) trailingsteplong = positionprice*(steppercentlong/100) trailingstepshort = positionprice*(steppercentshort/100) endif if not onmarket or ((longonmarket and shortonmarket[1]) or (longonmarket[1] and shortonmarket)) then newsl = 0 mypositionprice = 0 endif positioncount = abs(countofposition) if newsl > 0 then if positioncount > positioncount[1] then if longonmarket then newsl = max(newsl,positionprice * newsl / mypositionprice) else newsl = min(newsl,positionprice * newsl / mypositionprice) endif endif endif if ts2sensitivity=1 then ts2sensitivitylong=close ts2sensitivityshort=close elsif ts2sensitivity=2 then ts2sensitivitylong=high ts2sensitivityshort=low elsif ts2sensitivity=3 then ts2sensitivitylong=low ts2sensitivityshort=high endif if longonmarket then if newsl=0 and ts2sensitivitylong-positionprice>=trailingstartlong*pipsize then newsl = positionprice+trailingsteplong*pipsize endif if newsl>0 and ts2sensitivitylong-newsl>=trailingsteplong*pipsize then newsl = newsl+trailingsteplong*pipsize endif endif if shortonmarket then if newsl=0 and positionprice-ts2sensitivityshort>=trailingstartshort*pipsize then newsl = positionprice-trailingstepshort*pipsize endif if newsl>0 and newsl-ts2sensitivityshort>=trailingstepshort*pipsize then newsl = newsl-trailingstepshort*pipsize endif endif if barindex-tradeindex>1 then if longonmarket then if newsl>0 then sell at newsl stop endif if newsl>0 then if low crosses under newsl then sell at market endif endif endif if shortonmarket then if newsl>0 then exitshort at newsl stop endif if newsl>0 then if high crosses over newsl then exitshort at market endif endif endif endif mypositionprice = positionprice endif

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85

  // %trailing stop function incl. cumulative positions once trailingstoptype1= 1 if trailingstoptype1 then //==================== trailingpercentlong  = 0.75*sl // % trailingpercentshort = 0.75*sl // % once acceleratorlong = 0.1 // [1] default; always > 0 (i.e. 0.5-3) once acceleratorshort= 0.1 // 1 = default; always > 0 (i.e. 0.5-3) ts2sensitivity  = 3 // [1] default [2] hl [3] lh (not use once) //==================== once steppercentlong  = (trailingpercentlong/10)*acceleratorlong once steppercentshort = (trailingpercentshort/10)*acceleratorshort if onmarket then trailingstartlong = positionprice*(trailingpercentlong/100) trailingstartshort = positionprice*(trailingpercentshort/100) trailingsteplong = positionprice*(steppercentlong/100) trailingstepshort = positionprice*(steppercentshort/100) endif if not onmarket or ((longonmarket and shortonmarket[1]) or (longonmarket[1] and shortonmarket)) then newsl           = 0 mypositionprice = 0 endif positioncount = abs(countofposition) if newsl > 0 then if positioncount > positioncount[1] then if longonmarket then newsl = max(newsl,positionprice * newsl / mypositionprice) else newsl = min(newsl,positionprice * newsl / mypositionprice) endif endif endif if ts2sensitivity=1 then ts2sensitivitylong=close ts2sensitivityshort=close elsif ts2sensitivity=2 then ts2sensitivitylong=high ts2sensitivityshort=low elsif ts2sensitivity=3 then ts2sensitivitylong=low ts2sensitivityshort=high endif if longonmarket then if newsl=0 and ts2sensitivitylong-positionprice>=trailingstartlong*pipsize then newsl = positionprice+trailingsteplong*pipsize endif if newsl>0 and ts2sensitivitylong-newsl>=trailingsteplong*pipsize then newsl = newsl+trailingsteplong*pipsize endif endif if shortonmarket then if newsl=0 and positionprice-ts2sensitivityshort>=trailingstartshort*pipsize then newsl = positionprice-trailingstepshort*pipsize endif if newsl>0 and newsl-ts2sensitivityshort>=trailingstepshort*pipsize then newsl = newsl-trailingstepshort*pipsize endif endif if barindex-tradeindex>1 then if longonmarket then if newsl>0 then sell at newsl stop endif if newsl>0 then if low crosses under newsl then sell at market endif endif endif if shortonmarket then if newsl>0 then exitshort at newsl stop endif if newsl>0 then if high crosses over newsl then exitshort at market endif endif endif endif mypositionprice = positionprice endif



  1 user thanked author for this post.

  nonetheless



  Paul

  Participant

  Topics: 40

  Replies: 812

  Been thanked: 660 times
  10/26/2020 at 5:18 PM #148545
  robertogozzi

  Paul solved the issue in case of accumulation of positions.

  As to sensitivity try using 0 with the old code and 1 with the updated one.

  If you are Long CLOSE-TRADEPRICE (or better POSITIONPRICE) could trigger a trailing stop, while LOW-TRADEPRICE could not, especially when a long body shows.



  2 users thanked author for this post.

  Paul, nonetheless



  robertogozzi

  Moderator

  Topics: 69

  Replies: 18044

  Been thanked: 4611 times
  10/26/2020 at 6:02 PM #148550
  nonetheless

  Paul wrote:

  That sensitivity had issues with the breakevenstop

  Thanks Paul, I think I had misunderstood how the sensitivity worked. The new code you posted above gives exactly the same backtest results as what I had so I’ll just have to watch how it behaves in live trading.👍

  I didn’t use  *sl though, just the values that I had been using. Do you set your TS as a % of the stoploss?



  nonetheless

  Participant

  Topics: 83

  Replies: 1237

  Been thanked: 978 times
  10/26/2020 at 6:15 PM #148552
  nonetheless

  Also, can this be used both with or without cumulative orders ?



  nonetheless

  Participant

  Topics: 83

  Replies: 1237

  Been thanked: 978 times
  10/26/2020 at 6:29 PM #148559
  Paul

  robertogozzi that could mean that variation (ts=3) cannot be used reliable? but explains that gains are sometimes higher in a backtest. I will have a closer look.

  nonetheless I ‘ve tested it with the old code tradeprice(1) and modifications for positionprice and the results are identical so it seems that this version is allround, for normale use & with cumulative orders.

  About your other question about % for the SL, yes in another strategy. I will post it. Hope you find it interesting and have some new ideas!

  1 user thanked author for this post.

  nonetheless



  Paul

  Participant

  Topics: 40

  Replies: 812

  Been thanked: 660 times
  10/26/2020 at 6:30 PM #148560
  robertogozzi

  Yes, with Paul‘s update it works in both cases.



  1 user thanked author for this post.

  nonetheless



  robertogozzi

  Moderator

  Topics: 69

  Replies: 18044

  Been thanked: 4611 times
  10/26/2020 at 6:38 PM #148562
  robertogozzi

  Well Paul, it can be used but it seems contrary to the principles of a trailing stop which is locking in some profits. If you are Long, computing the difference between CLOSE (or even HIGH) and POSITIONSIZE grants the highest profit is taken into consideration, while using LOW will compute the lowest profit reached (in some cases it may not be enough to trigger the start of the trailing).

  Option 3 may actually yield better gains, but this can be accomplished using CLOSE (or HIGH) with a higher TrailingStart, which makes more sense in my opinion, rather than setting a lower trailing start but using LOW to compute a smaller gain.



  1 user thanked author for this post.

  nonetheless



  robertogozzi

  Moderator

  Topics: 69

  Replies: 18044

  Been thanked: 4611 times
  10/26/2020 at 8:11 PM #148574
  Paul

  I agree with all said. It’s an another parameter and not necessarily a very useful one, but the close can always be used. Thanks for the input!





  Paul

  Participant

  Topics: 40

  Replies: 812

  Been thanked: 660 times
  10/28/2020 at 1:24 PM #148775
  nonetheless

  @Paul, what do you think of this as a typicalprice sensitivity option? I only tried it on one algo and after re-optimizing was able to get a slightly better result. Seems logical as that is the calculation I mostly use for MAs, so it should best represent the point where price has crossed a certain level.

  elsif ts2sensitivity = 4 then ts2sensitivitylong=(low+high+close)/3 ts2sensitivityshort=(low+high+close)/3

  1 2 3

  elsif ts2sensitivity = 4 then ts2sensitivitylong=(low+high+close)/3 ts2sensitivityshort=(low+high+close)/3

  Could be a useful compromise in some cases … or maybe its just too many options for the sake of a few €  ???

  I didn’t try (low+high+close+open)/4



  nonetheless

  Participant

  Topics: 83

  Replies: 1237

  Been thanked: 978 times
  10/28/2020 at 2:42 PM #148789
  Paul

  It started with sometimes there was a long spike which closed much lower (long position) and the trailingstop wasn’t triggered and the market reversed. That’s why I added the option high for long/low for short instead of close, later I thought it couldn’t  hurt to add the opposite. In your case I should test it, and maybe you can test also long (high+high+close/3) but I think it’s a bit too much. If you plot the the trailingstop, you want to see quickly if it’s triggered or not and using such combinations it makes it a bit harder.



  Paul

  Participant

  Topics: 40

  Replies: 812

  Been thanked: 660 times
