Traduction Code pine tradingwiew

Viewing 10 posts - 1 through 10 (of 10 total)

Author

Posts
12/29/2024 at 1:05 AM #241867 quote
larouedegann
Participant

Master
bonjour,

est ce quelqu’un pourrait m’aider à traduire ce code pine tradinwiew

merci
```
// This Pine Script™ code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © AlgoAlpha

//@version=5
indicator(title="Momentum Bias Index [AlgoAlpha]", timeframe="", timeframe_gaps=false)
source = input(close, title="Source")
momentumLength = input.int(10, minval=1, title="Momentum Length")
biasLength = input.int(5, minval=1, title="Bias Length")
smoothLength = input.int(10, minval=1, title="Smooth Length")
impulseBoundaryLength = input.int(30, minval=1, title="Impulse Boundary Length")
stdDevMultiplier = input.float(3.0, minval=1, title="Standard Deviation Multiplier")
smoothIndicator = input.bool(true, "Smooth Indicator")
overlayMode = input.bool(false, "Overlay Mode")
colorUp = input.color(#00ffbb, "Up Color")
colorSecondaryUp = input.color(#008461, "Secondary Up Color")
colorDown = input.color(#ff1100, "Down Color")
colorSecondaryDown = input.color(#840900, "Secondary Down Color")

momentum = source - source[momentumLength]
stdDev = momentum / (ta.ema(high - low, momentumLength)) * 100
momentumUp = math.max(stdDev, 0)
momentumDown = math.min(stdDev, 0)
momentumUpBias = smoothIndicator ? math.max(ta.hma(math.sum(momentumUp, biasLength), smoothLength), 0) : math.sum(momentumUp, biasLength)
momentumDownBias = smoothIndicator ? math.max(ta.hma(-math.sum(momentumDown, biasLength), smoothLength), 0) : -math.sum(momentumDown, biasLength)
averageBias = math.avg(momentumDownBias, momentumUpBias)

chg1 = momentumUpBias*0.80
chg2 = momentumUpBias*0.60
chg3 = momentumUpBias*0.40
chg4 = momentumUpBias*0.20
chg1a = momentumDownBias*0.80
chg2a = momentumDownBias*0.60
chg3a = momentumDownBias*0.40
chg4a = momentumDownBias*0.20
boundary = ta.ema(averageBias, impulseBoundaryLength) + ta.stdev(averageBias, impulseBoundaryLength) * stdDevMultiplier

bullishSignal = ta.crossunder(momentumDownBias, momentumDownBias[1]) and momentumDownBias > boundary and momentumDownBias > momentumUpBias
bearishSignal = ta.crossunder(momentumUpBias, momentumUpBias[1]) and momentumUpBias > boundary and momentumUpBias > momentumDownBias

candleColor = overlayMode ? (momentumUpBias > momentumDownBias ? colorUp : momentumUpBias < momentumDownBias ? colorDown : color.gray) : na
transp = 20

plot(momentumUpBias > momentumUpBias[1] ? momentumUpBias : na, color = momentumUpBias > momentumUpBias[1] ? colorUp : colorSecondaryUp, style = plot.style_columns, display = not overlayMode ? display.all : display.none)
plot(momentumDownBias > momentumDownBias[1] ? momentumDownBias : na, color = momentumDownBias > momentumDownBias[1] ? colorDown : colorSecondaryDown, style = plot.style_columns, display = not overlayMode ? display.all : display.none)

plot(momentumUpBias < momentumUpBias[1] ? momentumUpBias : na, color = color.new(colorSecondaryUp, transp+60), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumUpBias < momentumUpBias[1] ? chg1 : na, color = color.new(colorSecondaryUp, transp+55), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumUpBias < momentumUpBias[1] ? chg2 : na, color = color.new(colorSecondaryUp, transp+45), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumUpBias < momentumUpBias[1] ? chg3 : na, color = color.new(colorSecondaryUp, transp+30), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumUpBias < momentumUpBias[1] ? chg4 : na, color = color.new(colorSecondaryUp, transp+25), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumUpBias < momentumUpBias[1] ? momentumUpBias : na, color = color.new(colorUp, transp), style = plot.style_linebr, display = not overlayMode ? display.all : display.none)

plot(momentumDownBias < momentumDownBias[1] ? momentumDownBias : na, color = color.new(colorSecondaryDown, transp+60), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumDownBias < momentumDownBias[1] ? chg1a : na, color = color.new(colorSecondaryDown, transp+55), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumDownBias < momentumDownBias[1] ? chg2a : na, color = color.new(colorSecondaryDown, transp+45), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumDownBias < momentumDownBias[1] ? chg3a : na, color = color.new(colorSecondaryDown, transp+30), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumDownBias < momentumDownBias[1] ? chg4a : na, color = color.new(colorSecondaryDown, transp+25), style = plot.style_columns, linewidth = 4, display = not overlayMode ? display.all : display.none)
plot(momentumDownBias < momentumDownBias[1] ? momentumDownBias : na, color = color.new(colorDown, transp), style = plot.style_linebr, display = not overlayMode ? display.all : display.none)

plot(boundary, style = plot.style_circles, color = color.gray, display = not overlayMode ? display.all : display.none)

plotshape(bullishSignal ? momentumDownBias * 1.2 : na, title = "Bullish TP Signal", color = color.new(colorUp, 30), textcolor = color.rgb(255, 255, 255), text = "TP", style = shape.labelup, location = location.belowbar, size = size.tiny, display = overlayMode ? display.all : display.none)
plotshape(bearishSignal ? momentumUpBias * 1.2 : na, title = "Bearish TP Signal", color = color.new(colorDown, 30), textcolor = color.rgb(255, 255, 255), text = "TP", style = shape.labeldown, location = location.abovebar, size = size.tiny, display = overlayMode ? display.all : display.none)
plotchar(bullishSignal ? momentumDownBias * 1.2 : na, "Bullish TP Signal", "X", location.absolute, color = color.new(colorUp, 30), size = size.tiny, display = not overlayMode ? display.all : display.none)
plotchar(bearishSignal ? momentumUpBias * 1.2 : na, "Bearish TP Signal", "X", location.absolute, color = color.new(colorDown, 30), size = size.tiny, display = not overlayMode ? display.all : display.none)

plotcandle(open, high, low, close, "Candle Color", candleColor, candleColor, bordercolor = candleColor, display = overlayMode ? display.all : display.none)
```
12/29/2024 at 5:55 PM #241901 quote

jacquesgermain
Participant

Senior

Bonjour

par exemple :

momentumLength = 10
biasLength = 5
smoothLength = 10
impulseBoundaryLength = 30
stdDevMultiplier = 3.0
smoothIndicator =1
// Calcul de Momentum et Déviation Standard
moment = close – close[momentumLength]
stdDev = moment / ExponentialAverage[momentumLength](high – low) * 100
momentumUp = max(stdDev, 0)
momentumDown = min(stdDev, 0)

// Calcul des sommes avec une boucle
sumMomentumUp = 0
sumMomentumDown = 0
FOR i = 0 TO biasLength – 1 DO
sumMomentumUp = sumMomentumUp + momentumUp[i]
sumMomentumDown = sumMomentumDown + momentumDown[i]
NEXT
// Lissage et calcul des biais
IF smoothIndicator=1 THEN
smoothedMomentumUp = HullAverage[smoothLength](momentumUp)
smoothedMomentumDown = HullAverage[smoothLength](momentumDown)
momentumUpBias = max(smoothedMomentumUp, 0)
momentumDownBias = max(-smoothedMomentumDown, 0)
ELSE
momentumUpBias = max(sumMomentumUp, 0)
momentumDownBias = max(-sumMomentumDown, 0)
ENDIF
// Moyenne des biais
averageBias = (momentumDownBias + momentumUpBias) / 2
// Calcul de la limite (boundary)
boundary = ExponentialAverage[impulseBoundaryLength](averageBias) + STD[impulseBoundaryLength](averageBias) * stdDevMultiplier
// Affichage des signaux
bullishSignal = momentumDownBias < momentumDownBias[1] AND momentumDownBias > boundary AND momentumDownBias > momentumUpBias
bearishSignal = momentumUpBias < momentumUpBias[1] AND momentumUpBias > boundary AND momentumUpBias > momentumDownBias
IF bullishSignal and not bullishSignal[1] THEN
DRAWTEXT(“X”, barindex, momentumDownBias + 0.2 * momentumDownBias, dialog, bold, 14) coloured(0, 175, 0)
ENDIF
IF bearishSignal and not bearishSignal[1] THEN
DRAWTEXT(“X”, barindex, momentumUpBias + 0.2 * momentumUpBias, dialog, bold, 14) coloured(150, 0, 0)
ENDIF
if momentumUpBias > momentumUpBias[1] then
r = 0
g = 150
b = 0
endif
if momentumUpBias < momentumUpBias[1] then
r =0
g =255
b =0
endif
if momentumDownBias > momentumDownBias[1] then
r =150
g = 0
b = 0
endif
if momentumDownBias < momentumDownBias[1] then
r =255
g = 0
b =0
endif
RETURN boundary as “boundary”, momentumUpBias coloured(r, g, b) style(histogram, 1) as “momentumUp”, momentumDownBias coloured(r,g,b) style(histogram, 1) as “momentumDown”

12/30/2024 at 7:24 PM #241977 quote
larouedegann
Participant

Master
bravo et merci pour ton travail que j’aurai été incapable de faire.

Toujours dans l’esprit de faire bien il y a quelques discordances dans les couleurs.

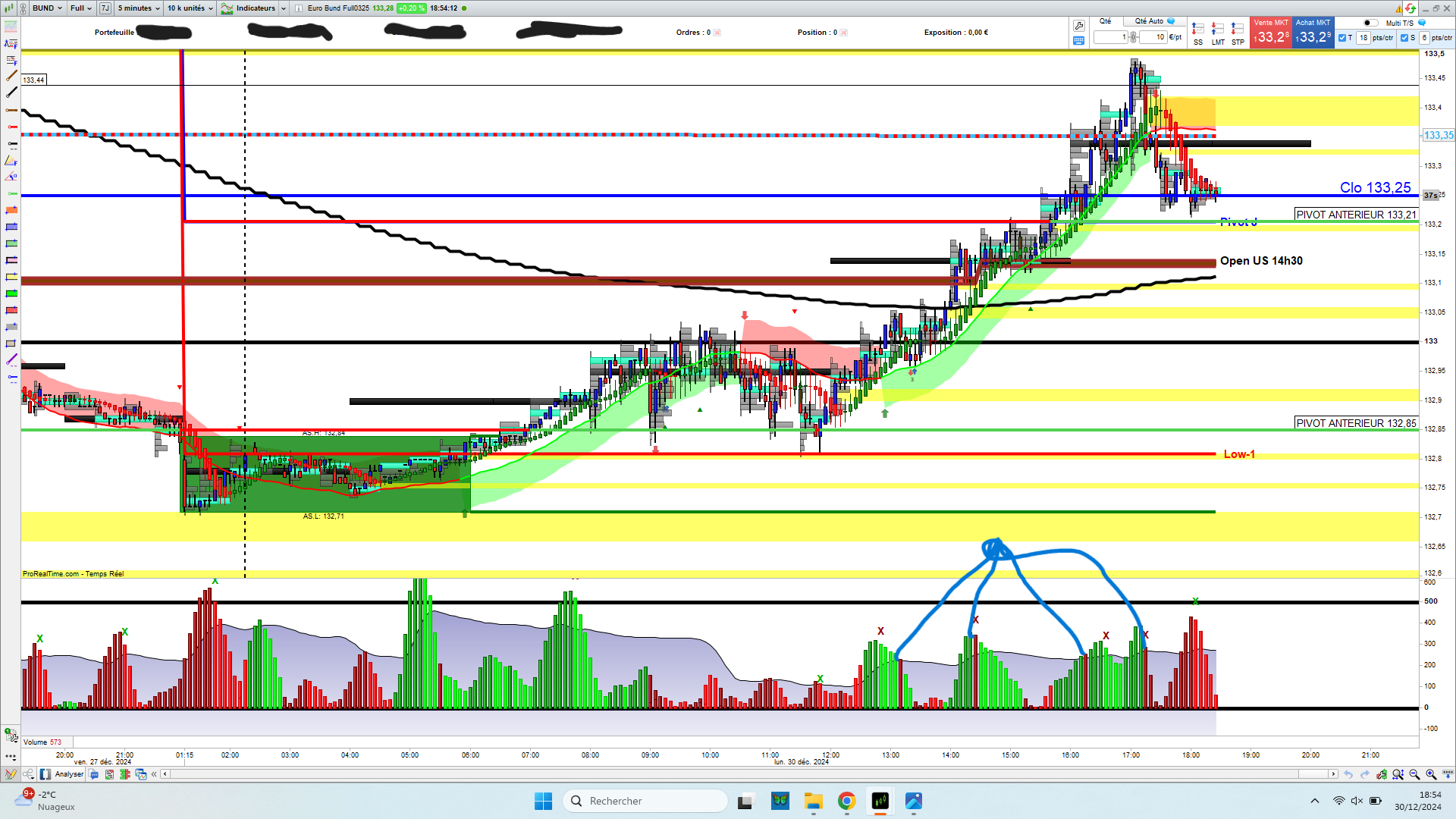

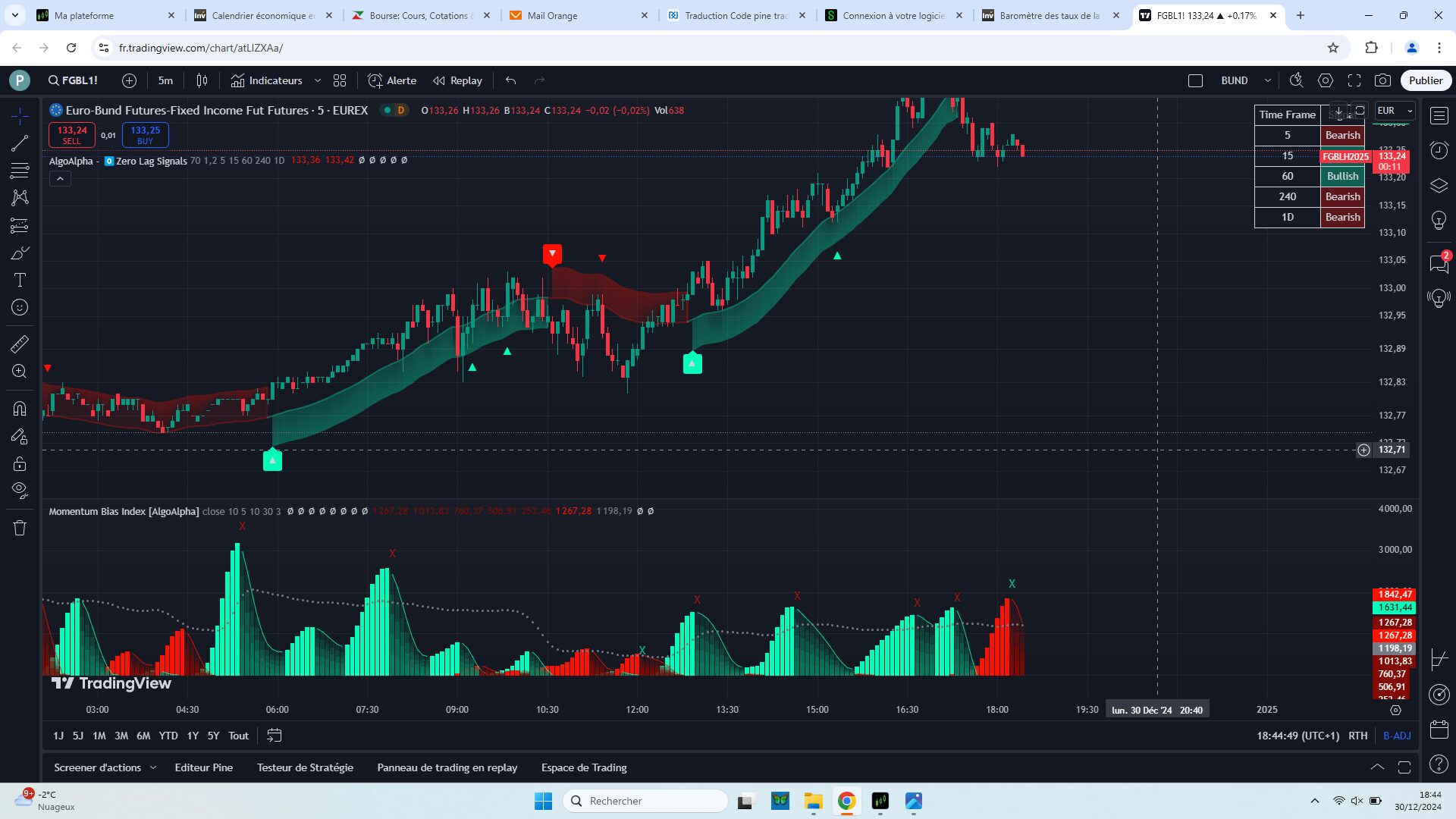

ci-joint 2 mêmes graphiques PRT et tradingview ou l’on s’aperçoit
- si les barres plus foncés pourraient etre en premier puis les barres plus claires (vert ou rouge)

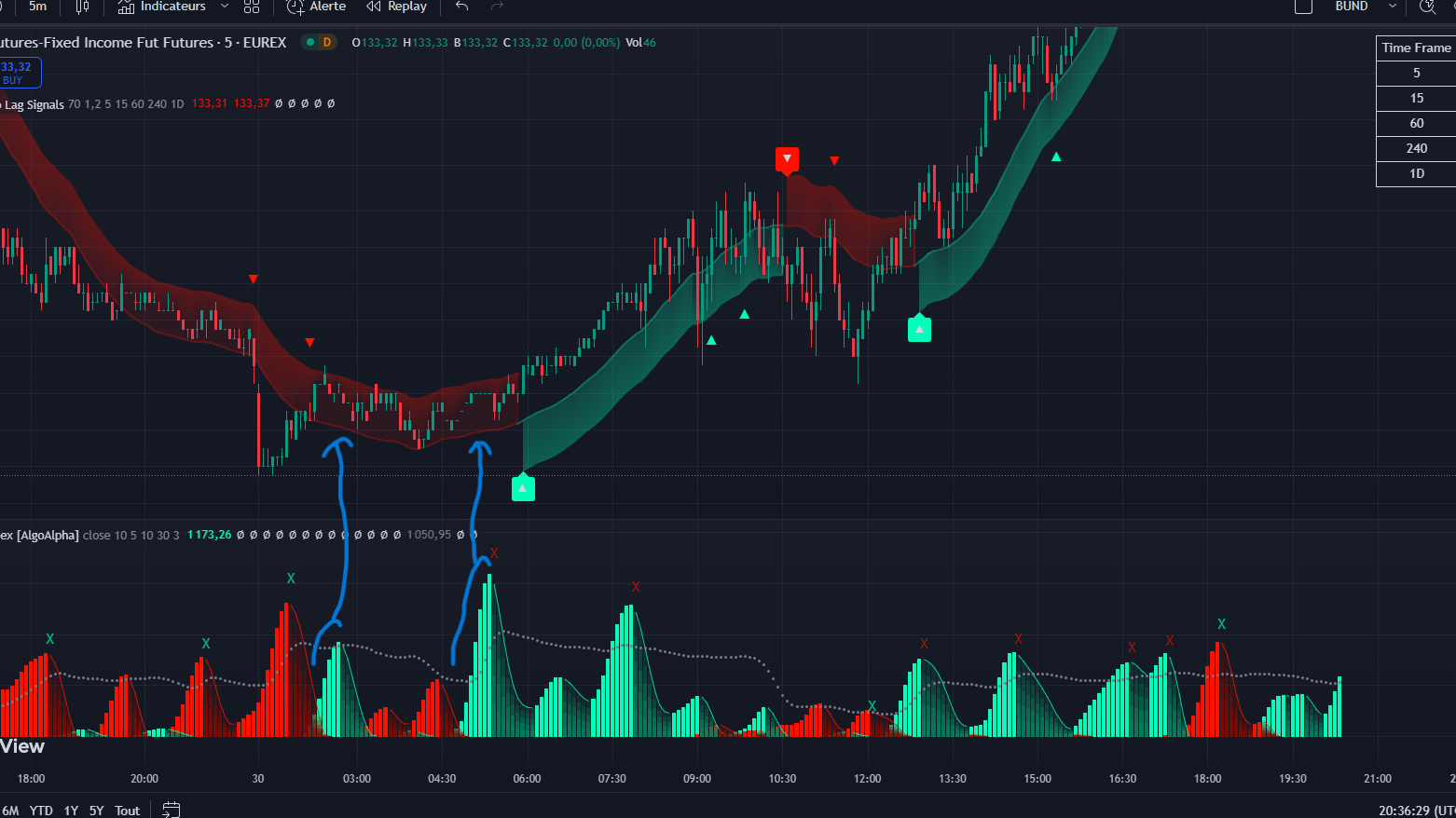

- il y a des barres rouges qui n’ont rien à faire dans le trend haussier (voir graphique)
Peut etre avec le boudary mais je ne sais pas ?

merci
12/30/2024 at 7:43 PM #241980 quote

jacquesgermain
Participant

Senior

bonjour

ok pour les couleurs claires en 1er :

momentumLength = 10
biasLength = 5
smoothLength = 10
impulseBoundaryLength = 30
stdDevMultiplier = 3.0
smoothIndicator =1
// Calcul de Momentum et Déviation Standard
moment = close – close[momentumLength]
stdDev = moment / ExponentialAverage[momentumLength](high – low) * 100
momentumUp = max(stdDev, 0)
momentumDown = min(stdDev, 0)

// Calcul des sommes avec une boucle
sumMomentumUp = 0
sumMomentumDown = 0
FOR i = 0 TO biasLength – 1 DO
sumMomentumUp = sumMomentumUp + momentumUp[i]
sumMomentumDown = sumMomentumDown + momentumDown[i]
NEXT
// Lissage et calcul des biais
IF smoothIndicator=1 THEN
smoothedMomentumUp = HullAverage[smoothLength](momentumUp)
smoothedMomentumDown = HullAverage[smoothLength](momentumDown)
momentumUpBias = max(smoothedMomentumUp, 0)
momentumDownBias = max(-smoothedMomentumDown, 0)
ELSE
momentumUpBias = max(sumMomentumUp, 0)
momentumDownBias = max(-sumMomentumDown, 0)
ENDIF
// Moyenne des biais
averageBias = (momentumDownBias + momentumUpBias) / 2
// Calcul de la limite (boundary)
boundary = ExponentialAverage[impulseBoundaryLength](averageBias) + STD[impulseBoundaryLength](averageBias) * stdDevMultiplier
// Affichage des signaux
bullishSignal = momentumDownBias < momentumDownBias[1] AND momentumDownBias > boundary AND momentumDownBias > momentumUpBias
bearishSignal = momentumUpBias < momentumUpBias[1] AND momentumUpBias > boundary AND momentumUpBias > momentumDownBias
IF bullishSignal and not bullishSignal[1] THEN
DRAWTEXT(“X”, barindex, momentumDownBias + 0.2 * momentumDownBias, dialog, bold, 14) coloured(0, 175, 0)
ENDIF
IF bearishSignal and not bearishSignal[1] THEN
DRAWTEXT(“X”, barindex, momentumUpBias + 0.2 * momentumUpBias, dialog, bold, 14) coloured(150, 0, 0)
ENDIF
if momentumUpBias > momentumUpBias[1] then
r = 0
g = 255
b = 0
endif
if momentumUpBias < momentumUpBias[1] then
r =0
g =150
b =0
endif
if momentumDownBias > momentumDownBias[1] then
r =255
g = 0
b = 0
endif
if momentumDownBias < momentumDownBias[1] then
r =150
g = 0
b =0
endif
RETURN boundary as “boundary”, momentumUpBias coloured(r, g, b) style(histogram, 1) as “momentumUp”, momentumDownBias coloured(r,g,b) style(histogram, 1) as “momentumDown”

12/30/2024 at 8:00 PM #241981 quote

jacquesgermain
Participant

Senior

pour le deuxième problème ( barres rouges qui n’ont rien à faire dans le trend haussier ) indicateur à tester avec ajout de la suppression des conflits de couleurs dans les tendances :

momentumLength = 10
biasLength = 5
smoothLength = 10
impulseBoundaryLength = 30
stdDevMultiplier = 3.0
smoothIndicator =1
// Calcul de Momentum et Déviation Standard
moment = close – close[momentumLength]
stdDev = moment / ExponentialAverage[momentumLength](high – low) * 100
momentumUp = max(stdDev, 0)
momentumDown = min(stdDev, 0)
// Calcul des sommes avec une boucle
sumMomentumUp = 0
sumMomentumDown = 0
FOR i = 0 TO biasLength – 1 DO
sumMomentumUp = sumMomentumUp + momentumUp[i]
sumMomentumDown = sumMomentumDown + momentumDown[i]
NEXT
// Lissage et calcul des biais
IF smoothIndicator=1 THEN
smoothedMomentumUp = HullAverage[smoothLength](momentumUp)
smoothedMomentumDown = HullAverage[smoothLength](momentumDown)
momentumUpBias = max(smoothedMomentumUp, 0)
momentumDownBias = max(-smoothedMomentumDown, 0)
ELSE
momentumUpBias = max(sumMomentumUp, 0)
momentumDownBias = max(-sumMomentumDown, 0)
ENDIF
// Moyenne des biais
averageBias = (momentumDownBias + momentumUpBias) / 2
// Calcul de la limite (boundary)
boundary = ExponentialAverage[impulseBoundaryLength](averageBias) + STD[impulseBoundaryLength](averageBias) * stdDevMultiplier
// Affichage des signaux
bullishSignal = momentumDownBias < momentumDownBias[1] AND momentumDownBias > boundary AND momentumDownBias > momentumUpBias
bearishSignal = momentumUpBias < momentumUpBias[1] AND momentumUpBias > boundary AND momentumUpBias > momentumDownBias
IF bullishSignal and not bullishSignal[1] THEN
DRAWTEXT(“X”, barindex, momentumDownBias + 0.2 * momentumDownBias, dialog, bold, 14) coloured(0, 175, 0)
ENDIF
IF bearishSignal and not bearishSignal[1] THEN
DRAWTEXT(“X”, barindex, momentumUpBias + 0.2 * momentumUpBias, dialog, bold, 14) coloured(150, 0, 0)
ENDIF
if momentumUpBias > momentumUpBias[1] then
r = 0
g = 255
b = 0
elsif momentumUpBias < momentumUpBias[1] then
r = 0
g = 150
b = 0
endif
if momentumDownBias > momentumDownBias[1] then
r = 255
g = 0
b = 0
elsif momentumDownBias < momentumDownBias[1] then
r = 150
g = 0
b = 0
endif

// Suppression des conflits de couleurs dans les tendances :
if trend = 1 then
// État haussier – bars rouges interdites
r = 0
g = max(g, 150) // Force le vert
elsif trend = -1 then
// État baissier – bars vertes interdites
r = max(r, 150)
g = 0
endif

RETURN boundary as “boundary”, momentumUpBias coloured(r, g, b) style(histogram, 1) as “momentumUp”, momentumDownBias coloured(r,g,b) style(histogram, 1) as “momentumDown”

12/30/2024 at 8:46 PM #241983 quote

larouedegann
Participant

Master

Merci pour les couleurs

par contre le deuxième probleme doit etre plus complexe

car il peut exister des barres vertes dans un trend baissier et inversement .

01/01/2025 at 6:31 PM #242037 quote

jacquesgermain
Participant

Senior

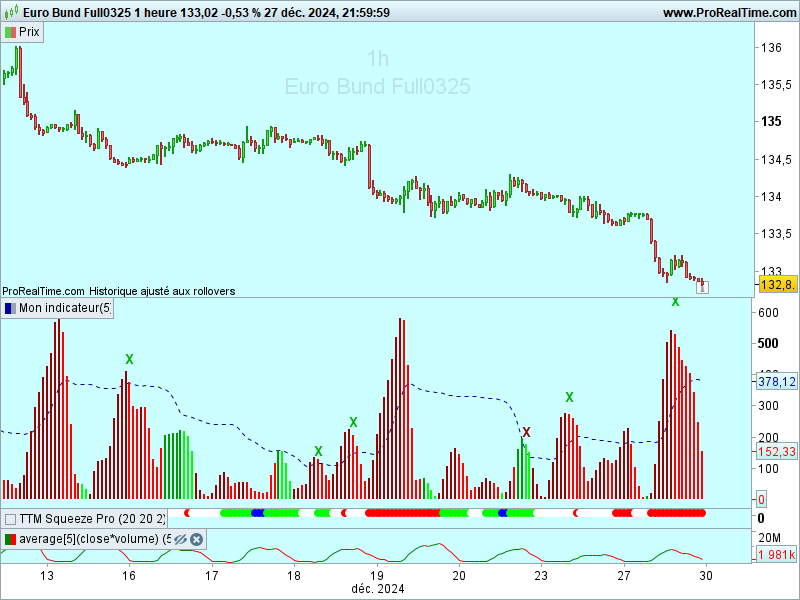

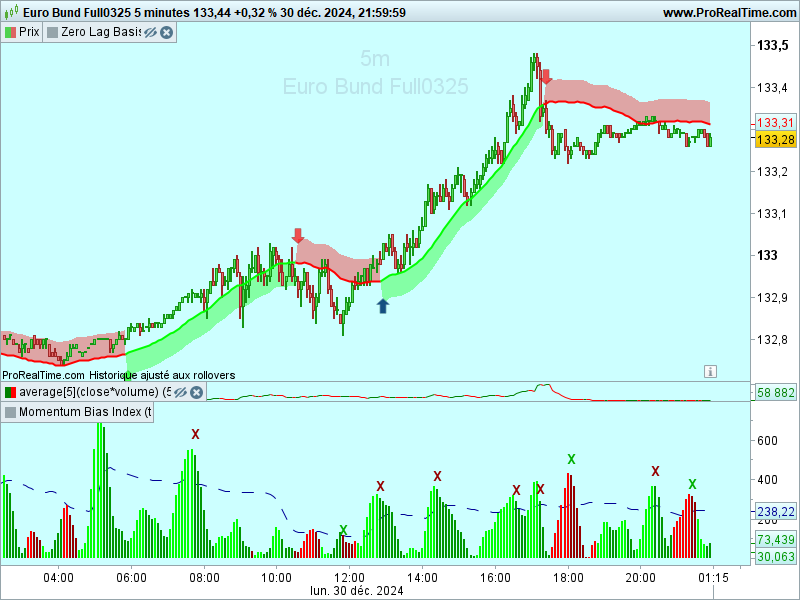

Bonjour voir fichier attaché on est à l’identique avec tradingview à tester …

01/02/2025 at 2:25 PM #242076 quote
larouedegann
Participant

Master
```
// Suppression des conflits de couleurs dans les tendances :
if trend = 1 then
// État haussier – bars rouges interdites
r = 0
g = max(g, 150) // Force le vert
elsif trend = -1 then
// État baissier – bars vertes interdites
r = max(r, 150)
g = 0
endif
```
excuse moi , mais je n’ai pas de “trend” dans le code…..
J’ai essayé avec “bullishsignal” et “bearish signal” mais ça ne fonctionne pas.
tu peux me le réécrire svp
merci
01/02/2025 at 4:48 PM #242084 quote

jacquesgermain
Participant

Senior

peux tu préciser ce que tu demandes car dans ma dernière version qui donne le même résultat que celui de tradingview la variable trend ne sert plus à rien …

momentumLength = 10
biasLength = 5
smoothLength = 10
impulseBoundaryLength = 30
stdDevMultiplier = 3
smoothIndicator =smoothIndicator
// Calcul de Momentum et Déviation Standard
moment = close – close[momentumLength]
stdDev = moment / ExponentialAverage[momentumLength](high – low) * 100
momentumUp = max(stdDev, 0)
momentumDown = min(stdDev, 0)
// Calcul des sommes avec une boucle
sumMomentumUp = 0
sumMomentumDown = 0
FOR i = 0 TO biasLength – 1 DO
sumMomentumUp = sumMomentumUp + momentumUp[i]
sumMomentumDown = sumMomentumDown + momentumDown[i]
NEXT
// Lissage et calcul des biais avec HMA intégrée
IF smoothIndicator=1 THEN
// Calcul de la Hull Moving Average (HMA) pour momentumUp
wmaHalfUp = WeightedAverage[ROUND(smoothLength / 2)](momentumUp)
wmaFullUp = WeightedAverage[smoothLength](momentumUp)
hullIntermediateUp = 2 * wmaHalfUp – wmaFullUp
smoothedMomentumUp = WeightedAverage[ROUND(SQRT(smoothLength))](hullIntermediateUp)
// Calcul de la Hull Moving Average (HMA) pour momentumDown
wmaHalfDown = WeightedAverage[ROUND(smoothLength / 2)](momentumDown)
wmaFullDown = WeightedAverage[smoothLength](momentumDown)
hullIntermediateDown = 2 * wmaHalfDown – wmaFullDown
smoothedMomentumDown = WeightedAverage[ROUND(SQRT(smoothLength))](hullIntermediateDown)
momentumUpBias = max(smoothedMomentumUp, 0)
momentumDownBias = max(-smoothedMomentumDown, 0)
ELSE
IF smoothIndicator=0 THEN
momentumUpBias = max(sumMomentumUp, 0)
momentumDownBias = max(-sumMomentumDown, 0)
ENDIF
ENDIF
// Moyenne des biais
averageBias = (momentumDownBias + momentumUpBias) / 2
// Calcul de la limite (boundary)
boundary = ExponentialAverage[impulseBoundaryLength](averageBias) + STD[impulseBoundaryLength](averageBias) * stdDevMultiplier
// Affichage des signaux
bullishSignal = momentumDownBias < momentumDownBias[1] AND momentumDownBias > boundary AND momentumDownBias > momentumUpBias
bearishSignal = momentumUpBias < momentumUpBias[1] AND momentumUpBias > boundary AND momentumUpBias > momentumDownBias
IF bullishSignal AND NOT bullishSignal[1] THEN
DRAWTEXT(“X”, barindex, momentumDownBias + 0.2 * momentumDownBias, dialog, bold, 14) COLOURED(0, 175, 0)
ENDIF
IF bearishSignal AND NOT bearishSignal[1] THEN
DRAWTEXT(“X”, barindex, momentumUpBias + 0.2 * momentumUpBias, dialog, bold, 14) COLOURED(150, 0, 0)
ENDIF
// Initialisation de la variable trend
//trend = 0
//IF bullishSignal THEN
//trend = 1
//ELSIF bearishSignal THEN
//trend = -1
//ENDIF
// Gestion des couleurs pour momentumUpBias et momentumDownBias
IF momentumUpBias > momentumUpBias[1] AND NOT (momentumDownBias > momentumDownBias[1]) THEN
// Couleur verte vive
r = 0
g = 255
b = 0
ELSIF momentumUpBias < momentumUpBias[1] AND NOT (momentumDownBias < momentumDownBias[1]) THEN
// Couleur verte atténuée
r = 0
g = 150
b = 0
ELSIF momentumDownBias > momentumDownBias[1] AND NOT (momentumUpBias > momentumUpBias[1]) THEN
// Couleur rouge vive
r = 255
g = 0
b = 0
ELSIF momentumDownBias < momentumDownBias[1] AND NOT (momentumUpBias < momentumUpBias[1]) THEN
// Couleur rouge atténuée
r = 150
g = 0
b = 0
ENDIF

// Suppression des conflits de couleurs dans les tendances
//IF trend = 1 THEN
// État haussier – force le vert
//r = 0
//g = max(g, 150)
//ELSIF trend = -1 THEN
// État baissier – force le rouge
//r = max(r, 150)
//g = 0
//ENDIF
// Application des couleurs aux histogrammes
RETURN boundary COLOURED(0, 0, 150) STYLE(DOTTEDLINE2) AS “boundary”,momentumUpBias COLOURED(r, g, b) STYLE(histogram, 1) AS “momentumUp”,momentumDownBias COLOURED(r, g, b) STYLE(histogram, 1) AS “momentumDown”,momentumUpBias COLOURED(r, g, b) STYLE(line, 1) AS “lmomentumUp”,momentumDownBias COLOURED(r, g, b) STYLE(line, 1) AS “lmomentumDown”

Iván González thanked this post

01/04/2025 at 5:05 PM #242154 quote

larouedegann
Participant

Master

Désolé je n’avais pas vu le fichier itf sous les graphiques.
Tout est OK . Merci à toi
Ce serait bien de le mettre en librairie

jacquesgermain thanked this post
Author

Posts

Viewing 10 posts - 1 through 10 (of 10 total)

You must be logged in to reply to this topic.

Traduction Code pine tradingwiew

ProBuilder : Indicateurs & Outils Personnalisés

New Reply

Author

larouedegann @larouedegann Participant

Summary

This topic contains 9 replies,
has 2 voices, and was last updated by larouedegann
1 year, 1 month ago.

Topic Details

Forum:	ProBuilder : Indicateurs & Outils Personnalisés
Language:	French
Started:	12/29/2024
Status:	Active
Attachments:	8 files

Expert Services

No recent search

Traduction Code pine tradingwiew

Traduction Code pine tradingwiew ProBuilder : Indicateurs & Outils Personnalisés

Author

Summary

Topic Details

About personal data collected

Get Assistance

Assistance Type

Your Need

Proposed Solutions

Choose Assistance Type

Your Need

Programming Help

Download Codes

Trading Help

ProRealTime Information

Account Assistance

Paid Programming Help

Traduction Code pine tradingwiew

ProBuilder : Indicateurs & Outils Personnalisés
