Trading View to Proreal time

• 02/19/2018 at 9:52 PM #63219
  NDT

  Hi All,

  I’ve been messin around with Trading View for quiet some time, but I’m coming back to Prorealtime as it’s just, well – better!

  The question I have is I’ve built a strategy using Trading Views language which is called “Pine” but does anyone have any experience in converting this language into ProRealTime?

  happily share the code with you all of it helps, just wanted to check if it’s pissible first without wasting anyone’s time.

  Thanks in advanced ☺️



  NDT

  Participant

  Topics: 4

  Replies: 8

  Been thanked: 0 times
  02/19/2018 at 11:21 PM #63229
  Despair

  If you have written this strategy and know exactly what it does, it should be possible to rebuild it in probuilder. Can you describe the entry and exit rules?



  Despair

  Blocked

  Topics: 97

  Replies: 1034

  Been thanked: 217 times
  02/20/2018 at 8:08 AM #63249
  Nicolas

  I’m used to convert PineScript into ProRealTime, share the code here and it should be no complicated to be translated.

  Next time use the form from this page to request for a code conversion: Ask for a free code conversion



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/20/2018 at 9:09 AM #63261
  NDT

  Hi Both,

  Thank you so much for your replies. 🙂

  Please find below the code followed by a brief over view:

  //@version=3 strategy("Refined CandleCounter Strategy by Matthew", overlay=true) stoploss = input(title="Stop Loss", type=integer, defval=0) //Stop loss input - default value 0 - 0 means disabled. takeprofit = input(title="Take profit", type=integer, defval=0) //Take profit input - default value 0 - 0 means disabled. // how many candles to count NUM_CANDLES = 7 // determine candle direction candle_dir = close > open ? 1 : (round(close-open) == 0 ? 0 : -1) // return # of candles with a given direction count_candles(dir, max) => count = 0 for i = 0 to max if candle_dir[i] == dir count := count + 1 count ups = count_candles(1, NUM_CANDLES) dns = count_candles(-1, NUM_CANDLES) neu = count_candles(0, NUM_CANDLES) indic = ups-dns if indic > 0 indic := indic+neu else indic := indic-neu plotarrow(neu, title="UP vs DN") longCondition = (indic) > 0 shortCondition = (indic) <= 0 strategy.entry("buy", strategy.long, 1, when = longCondition and not shortCondition) strategy.entry("sell", strategy.short, 1, when = shortCondition and not longCondition) if takeprofit > 0 strategy.exit("takeprofit",qty=1, profit=takeprofit) if stoploss > 0 strategy.exit("stoploss",qty=1, loss=stoploss)

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

  //@version=3 strategy("Refined CandleCounter Strategy by Matthew", overlay=true) stoploss = input(title="Stop Loss", type=integer, defval=0) //Stop loss input - default value 0 - 0 means disabled. takeprofit = input(title="Take profit", type=integer, defval=0) //Take profit input - default value 0 - 0 means disabled.   // how many candles to count NUM_CANDLES = 7   // determine candle direction candle_dir = close > open ? 1 : (round(close-open) == 0 ? 0 : -1)   // return # of candles with a given direction count_candles(dir, max) =>     count = 0     for i = 0 to max         if candle_dir[i] == dir             count := count + 1     count   ups = count_candles(1, NUM_CANDLES) dns = count_candles(-1, NUM_CANDLES) neu = count_candles(0, NUM_CANDLES)   indic = ups-dns     if indic > 0     indic := indic+neu else     indic := indic-neu   plotarrow(neu, title="UP vs DN")   longCondition = (indic) > 0 shortCondition = (indic) <= 0   strategy.entry("buy", strategy.long, 1, when = longCondition and not shortCondition) strategy.entry("sell", strategy.short, 1, when = shortCondition and not longCondition)   if takeprofit > 0     strategy.exit("takeprofit",qty=1, profit=takeprofit)   if stoploss > 0     strategy.exit("stoploss",qty=1, loss=stoploss)

  This system basically counts Heikin Ashi Candles and enters after the number of candles has been met and colour has been met- long or short. Unfortunately I don’t have any screen shots of it working on Pro Real Time, but I do on trading view which is attached below in a screen shot.

  I’m really grateful for you responses so I hope you can help me 🙂

  Best wishes

  Matthew





  NDT

  Participant

  Topics: 4

  Replies: 8

  Been thanked: 0 times
  02/20/2018 at 9:37 AM #63265
  Nicolas

  Not tested a lot, I let you make your own investigations if it works like the way it should and like it does in tradingview:

  defparam cumulateorders=false stoploss = 0//Stop loss input - default value 0 - 0 means disabled. takeprofit = 0 //Take profit input - default value 0 - 0 means disabled. // how many candles to count NUMCANDLES = 7 //heiken ashi candlesticks definition haclose=(open+close+low+high)/4 haopen=(haopen[1]+haclose[1])/2 ups=0 dns=0 neu=0 for i = 0 to NUMCANDLES do if haclose[i]>haopen[i] then ups=ups+1 elsif haclose[i]=haopen[i] then neu=neu+1 else dns=dns+1 endif next indic = ups-dns longCondition = (indic) > 0 shortCondition = (indic) <= 0 if not longonmarket and longcondition and not shortcondition then buy 1 contract at market endif if not shortonmarket and shortcondition and not longcondition then sellshort 1 contract at market endif if takeprofit>0 then set target pprofit takeprofit endif if stoploss>0 then set stop ploss stoploss endif

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

  defparam cumulateorders=false   stoploss = 0//Stop loss input - default value 0 - 0 means disabled. takeprofit = 0 //Take profit input - default value 0 - 0 means disabled. // how many candles to count NUMCANDLES = 7   //heiken ashi candlesticks definition haclose=(open+close+low+high)/4 haopen=(haopen[1]+haclose[1])/2   ups=0 dns=0 neu=0 for i = 0 to NUMCANDLES do if haclose[i]>haopen[i] then ups=ups+1 elsif haclose[i]=haopen[i] then neu=neu+1 else dns=dns+1 endif next   indic = ups-dns   longCondition = (indic) > 0 shortCondition = (indic) <= 0   if not longonmarket and longcondition and not shortcondition then buy 1 contract at market endif   if not shortonmarket and shortcondition and not longcondition then sellshort 1 contract at market endif   if takeprofit>0 then set target pprofit takeprofit endif if stoploss>0 then set stop ploss stoploss endif



  1 user thanked author for this post.

  NDT



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/20/2018 at 9:56 AM #63268
  NDT

  Nicholas, thank you so, so much! I’m so grateful for that! I’ll let you know how I get on. 🙂

  Is there anyone on this forum who can convert Prorealtime into MT4? Any introductions would be gratefully received. 🙂

  Thank you again Nicholas.



  NDT

  Participant

  Topics: 4

  Replies: 8

  Been thanked: 0 times
  02/20/2018 at 10:21 AM #63273
  Nicolas

  This website is dedicated to prorealtime programming only. But you can also send private job query with the form in this page: Programming services



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/22/2018 at 9:36 AM #63455
  NDT

  Thank you again for pointing me in the right direction for programming services.

  I’ve run some quick tests on the conversion code from trading view to Pro Real Time, and it looks like the entry and exit points are slightly slower than that when applied on trading view, perhaps 2-3 hours late. Here are some screen shots; All on the DAX (GERMANY 30) on the one hour time frame.

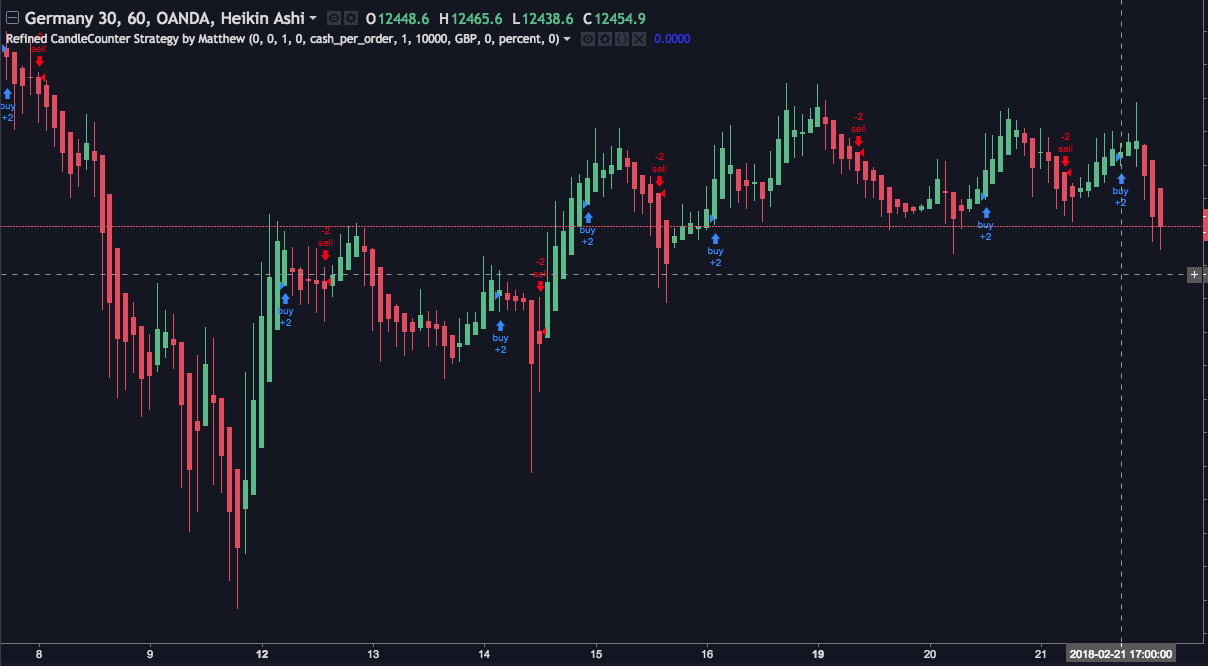

  Trading View:



  ProRealTime



  I’ve adjusted and tested some inputs but it either returns a N/A backtest result or I get a lot of sintax errors. The results are still great with no adjustment! But I just can’t seem to get the system to exactly mirror what appears on trading view as it would seem that it’s entering trades too late.

  I’m sure it’s something simple but I can’t see what’s wrong….

  Thanks again for all your help so far. 🙂

  Matthew



  NDT

  Participant

  Topics: 4

  Replies: 8

  Been thanked: 0 times
  02/22/2018 at 10:31 AM #63466
  Nicolas

  Sorry, I think I know why, I omitted a statement of the original code, here is the correct code:

  defparam cumulateorders=false stoploss = 0//Stop loss input - default value 0 - 0 means disabled. takeprofit = 0 //Take profit input - default value 0 - 0 means disabled. // how many candles to count NUMCANDLES = 7 //heiken ashi candlesticks definition haclose=(open+close+low+high)/4 haopen=(haopen[1]+haclose[1])/2 ups=0 dns=0 neu=0 for i = 0 to NUMCANDLES do if haclose[i]>haopen[i] then ups=ups+1 elsif haclose[i]=haopen[i] then neu=neu+1 else dns=dns+1 endif next indic = ups-dns if indic > 0 then indic = indic+neu else indic = indic-neu endif longCondition = (indic) > 0 shortCondition = (indic) <= 0 if not longonmarket and longcondition and not shortcondition then buy 1 contract at market endif if not shortonmarket and shortcondition and not longcondition then sellshort 1 contract at market endif if takeprofit>0 then set target pprofit takeprofit endif if stoploss>0 then set stop ploss stoploss endif

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

  defparam cumulateorders=false   stoploss = 0//Stop loss input - default value 0 - 0 means disabled. takeprofit = 0 //Take profit input - default value 0 - 0 means disabled. // how many candles to count NUMCANDLES = 7   //heiken ashi candlesticks definition haclose=(open+close+low+high)/4 haopen=(haopen[1]+haclose[1])/2   ups=0 dns=0 neu=0 for i = 0 to NUMCANDLES do if haclose[i]>haopen[i] then ups=ups+1 elsif haclose[i]=haopen[i] then neu=neu+1 else dns=dns+1 endif next   indic = ups-dns   if indic > 0 then indic = indic+neu else indic = indic-neu endif   longCondition = (indic) > 0 shortCondition = (indic) <= 0   if not longonmarket and longcondition and not shortcondition then buy 1 contract at market endif   if not shortonmarket and shortcondition and not longcondition then sellshort 1 contract at market endif   if takeprofit>0 then set target pprofit takeprofit endif if stoploss>0 then set stop ploss stoploss endif

  Bear in mind, that orders are always put on market at next open, that’s why you’ll see a 1 period delay on the price chart. It is a simple strategy but has the merit of being quite correct, it could be refined with the usual bells and whistles, trailing stop, breakeven, money management, etc.



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  02/22/2018 at 2:53 PM #63523
  NDT

  Awesome, thank you so much!

  You don’t need to apologies, 🙂 you’ve helped me out so much already, so thank you 🙂

  I’ll report back and give you a shout if I need any further assistance.

  Matthew



  NDT

  Participant

  Topics: 4

  Replies: 8

  Been thanked: 0 times
