This elliott wave Trading View Indicator to PRO real time please

Viewing 10 posts - 1 through 10 (of 10 total)

Author

Posts
05/31/2024 at 9:47 AM #233323 quote

yas
Participant

Junior

hi Ivan

Can you please convert this indicator to pro real time please i think this will benefit lot of people too

// This work is licensed under a Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) https://creativecommons.org/licenses/by-nc-sa/4.0/
// © LuxAlgo

//@version=5
indicator(“Elliott Wave [LuxAlgo]”, max_lines_count=500, max_labels_count=500, overlay=true, max_bars_back=5000)
//——————————————————————————
//Settings
//—————————————————————————–{
i_hi = input.string(‘high’ , title= ” , group=’source [high – low]’, inline=’hl’, options=[‘high’, ‘close’, ‘max open/close’])
i_lo = input.string(‘low’ , title= ” , group=’source [high – low]’, inline=’hl’, options=[‘low’ , ‘close’, ‘min open/close’])

s1 = input.bool (true , title= ” , group=’ZigZag’ , inline= ‘1’ )
len1 = input.int ( 4 , title= ‘  1 Length’, group=’ZigZag’ , inline= ‘1’, minval =1 )
col1 = input.color (color.red , title= ” , group=’ZigZag’ , inline= ‘1’ )
s2 = input.bool (true , title= ” , group=’ZigZag’ , inline= ‘2’ )
len2 = input.int ( 8 , title= ‘  2 Length’, group=’ZigZag’ , inline= ‘2’, minval =1 )
col2 = input.color (color.blue , title= ” , group=’ZigZag’ , inline= ‘2’ )
s3 = input.bool (true , title= ” , group=’ZigZag’ , inline= ‘3’ )
len3 = input.int (16 , title= ‘  3 Length’, group=’ZigZag’ , inline= ‘3’, minval =1 )
col3 = input.color (color.white , title= ” , group=’ZigZag’ , inline= ‘3’ )

i_500 = input.float (0.500 , title=’           level 1′, group=’Fibonacci values’ , minval =0, maxval =1, step =0.01 )
i_618 = input.float (0.618 , title=’           level 2′, group=’Fibonacci values’ , minval =0, maxval =1, step =0.01 )
i_764 = input.float (0.764 , title=’           level 3′, group=’Fibonacci values’ , minval =0, maxval =1, step =0.01 )
i_854 = input.float (0.854 , title=’           level 4′, group=’Fibonacci values’ , minval =0, maxval =1, step =0.01 )

shZZ = input.bool (false , title= ” , group=’show ZZ’ , inline=’zz’ )

//—————————————————————————–}
//User Defined Types
//—————————————————————————–{
type ZZ
int [] d
int [] x
float[] y
line [] l

type Ewave
line l1
line l2
line l3
line l4
line l5
label b1
label b2
label b3
label b4
label b5
//
bool on
bool br //= na
//
int dir
//
line lA
line lB
line lC
label bA
label bB
label bC
//
bool next = false
//
label lb
box bx

type fibL
line wave1_0_500
line wave1_0_618
line wave1_0_764
line wave1_0_854
line wave1_pole_
linefill l_fill_
bool _break_ //= na

//—————————————————————————–}
//Functions
//—————————————————————————–{
hi = i_hi == ‘high’ ? high : i_hi == ‘close’ ? close : math.max(open, close)
lo = i_lo == ‘low’ ? low : i_hi == ‘close’ ? close : math.min(open, close)

in_out(aZZ, d, x1, y1, x2, y2, col) =>
aZZ.d.unshift(d), aZZ.x.unshift(x2), aZZ.y.unshift(y2), aZZ.d.pop(), aZZ.x.pop(), aZZ.y.pop()
if shZZ
aZZ.l.unshift(line.new(x1, y1, x2, y2, color= col)), aZZ.l.pop().delete()

method isSame(Ewave gEW, _1x, _2x, _3x, _4x) =>
t1 = _1x == gEW.l1.get_x1()
t2 = _2x == gEW.l2.get_x1()
t3 = _3x == gEW.l3.get_x1()
t4 = _4x == gEW.l4.get_x1()
t1 and t2 and t3 and t4

method isSame2(Ewave gEW, _1x, _2x, _3x) =>
t1 = _1x == gEW.l3.get_x2()
t2 = _2x == gEW.l4.get_x2()
t3 = _3x == gEW.l5.get_x2()
t1 and t2 and t3

method dot(Ewave gEW) =>
gEW.l1.set_style(line.style_dotted)
gEW.l2.set_style(line.style_dotted)
gEW.l3.set_style(line.style_dotted)
gEW.l4.set_style(line.style_dotted)
gEW.l5.set_style(line.style_dotted)
gEW.b1.set_textcolor (color(na))
gEW.b2.set_textcolor (color(na))
gEW.b3.set_textcolor (color(na))
gEW.b4.set_textcolor (color(na))
gEW.b5.set_textcolor (color(na))
gEW.on := false

method dash(Ewave gEW) =>
gEW.lA.set_style(line.style_dashed)
gEW.lB.set_style(line.style_dashed)
gEW.lC.set_style(line.style_dashed)
gEW.bA.set_textcolor (color(na))
gEW.bB.set_textcolor (color(na))
gEW.bC.set_textcolor (color(na))
gEW.bx.set_bgcolor (color(na))
gEW.bx.set_border_color (color(na))

method sol_dot(fibL nFibL, sol_dot, col) =>
style =
sol_dot == ‘dot’ ?
line.style_dotted :
sol_dot == ‘sol’ ?
line.style_solid :
line.style_dashed
nFibL.wave1_0_500.set_style(style)
nFibL.wave1_0_618.set_style(style)
nFibL.wave1_0_764.set_style(style)
nFibL.wave1_0_854.set_style(style)
nFibL.l_fill_.set_color(col)

method set(fibL nFibL, int x1, int x2, float max_500, float max_618, float max_764, float max_854, float y2) =>
nFibL.wave1_0_500.set_xy1(x1, max_500)
nFibL.wave1_0_500.set_xy2(x2, max_500)
nFibL.wave1_0_618.set_xy1(x1, max_618)
nFibL.wave1_0_618.set_xy2(x2, max_618)
nFibL.wave1_0_764.set_xy1(x1, max_764)
nFibL.wave1_0_764.set_xy2(x2, max_764)
nFibL.wave1_0_854.set_xy1(x1, max_854)
nFibL.wave1_0_854.set_xy2(x2, max_854)
nFibL.wave1_pole_.set_xy1(x1, y2 )
nFibL.wave1_pole_.set_xy2(x1, max_854)
nFibL.l_fill_.get_line1().set_xy1(x1, max_764)
nFibL.l_fill_.get_line1().set_xy2(x2, max_764)
nFibL.l_fill_.get_line2().set_xy1(x1, max_854)
nFibL.l_fill_.get_line2().set_xy2(x2, max_854)

method setNa(fibL nFibL) =>
nFibL.wave1_0_500.set_xy1(na, na)
nFibL.wave1_0_500.set_xy2(na, na)
nFibL.wave1_0_618.set_xy1(na, na)
nFibL.wave1_0_618.set_xy2(na, na)
nFibL.wave1_0_764.set_xy1(na, na)
nFibL.wave1_0_764.set_xy2(na, na)
nFibL.wave1_0_854.set_xy1(na, na)
nFibL.wave1_0_854.set_xy2(na, na)
nFibL.wave1_pole_.set_xy1(na, na)
nFibL.wave1_pole_.set_xy2(na, na)
nFibL.l_fill_.set_color(color(na))

draw(enabled, left, col, n) =>
//
max_bars_back(time, 2000)
var int dir = na, var int x1= na, var float y1 = na, var int x2 = na, var float y2 = na, var Ewave gEW = na
var int last_0x = na , var float last_0y = na , var int last_6x = na , var float last_6y = na
//
if enabled
var fibL nFibL = fibL.new(
wave1_0_500 = line.new(na, na, na, na, color= color.new(col, 50), style= line.style_solid ),
wave1_0_618 = line.new(na, na, na, na, color= color.new(col, 38), style= line.style_solid ),
wave1_0_764 = line.new(na, na, na, na, color= color.new(col, 24), style= line.style_solid ),
wave1_0_854 = line.new(na, na, na, na, color= color.new(col, 15), style= line.style_solid ),
wave1_pole_ = line.new(na, na, na, na, color= color.new(col, 50), style= line.style_dashed),
l_fill_ = linefill.new(
line.new(na, na, na, na, color= color(na))
, line.new(na, na, na, na, color= color(na))
, color= color(na))
, _break_ = na
)
//
var ZZ aZZ = ZZ.new(array.new < int > ()
, array.new < int > ()
, array.new < float > ()
, array.new < line > () )
var Ewave[] aEW = array.new < Ewave > ()
//
if barstate.isfirst
aEW.unshift(Ewave.new())
for i = 0 to 10
aZZ.d.unshift(0)
aZZ.x.unshift(0)
aZZ.y.unshift(0)
aZZ.l.unshift(shZZ ? line.new(na, na, na, na) : na)
//
sz = aZZ.d.size( )
x2 := bar_index -1
ph = ta.pivothigh(hi, left, 1)
pl = ta.pivotlow (lo, left, 1)
t = n == 2 ? ‘\n\n’ : n == 1 ? ‘\n’ : ”
//
// when a new Pivot High is found
if not na(ph)
gEW := aEW.get (0)
dir := aZZ.d.get (0)
x1 := aZZ.x.get (0)
y1 := aZZ.y.get (0)
y2 := nz(hi[1])
//
if dir < 1 // if previous point was a pl, add, and change direction ( 1)
in_out(aZZ, 1, x1, y1, x2, y2, col)
else
if dir == 1 and ph > y1
aZZ.x.set(0, x2), aZZ.y.set(0, y2)
if shZZ
aZZ.l.get(0).set_xy2(x2, y2)
//
_6x = x2, _6y = y2
_5x = aZZ.x.get(1), _5y = aZZ.y.get(1)
_4x = aZZ.x.get(2), _4y = aZZ.y.get(2)
_3x = aZZ.x.get(3), _3y = aZZ.y.get(3)
_2x = aZZ.x.get(4), _2y = aZZ.y.get(4)
_1x = aZZ.x.get(5), _1y = aZZ.y.get(5)
//
// –––––––––––––––––––––[ 12345 ]–––––––––––––––––––––
_W5 = _6y – _5y
_W3 = _4y – _3y
_W1 = _2y – _1y
min = math.min(_W1, _W3, _W5)
isWave =
_W3 != min and
_6y > _4y and
_3y > _1y and
_5y > _2y
//
same = gEW.isSame(_1x, _2x, _3x, _4x)
if isWave
if same
gEW.l5.set_xy2(_6x, _6y)
gEW.b5.set_xy (_6x, _6y)
else
tx = ”
if _2x == aEW.get(0).b5.get_x()
tx := ‘(5) (1)’
aEW.get(0).b5.set_text(”)
else
tx := ‘(1)’
//
wave = Ewave.new(
l1 = line.new (_1x, _1y, _2x, _2y , color=col , style= line.style_solid ),
l2 = line.new (_2x, _2y, _3x, _3y , color=col , style= line.style_solid ),
l3 = line.new (_3x, _3y, _4x, _4y , color=col , style= line.style_solid ),
l4 = line.new (_4x, _4y, _5x, _5y , color=col , style= line.style_solid ),
l5 = line.new (_5x, _5y, _6x, _6y , color=col , style= line.style_solid ),
b1 = label.new(_2x, _2y, text= tx + t, textcolor=col, color= color(na), style=label.style_label_down),
b2 = label.new(_3x, _3y, text= t + ‘(2)’, textcolor=col, color= color(na), style=label.style_label_up ),
b3 = label.new(_4x, _4y, text= ‘(3)’ + t, textcolor=col, color= color(na), style=label.style_label_down),
b4 = label.new(_5x, _5y, text= t + ‘(4)’, textcolor=col, color= color(na), style=label.style_label_up ),
b5 = label.new(_6x, _6y, text= ‘(5)’ + t, textcolor=col, color= color(na), style=label.style_label_down),
on = true ,
br = false ,
dir = 1
)
aEW.unshift(wave)
nFibL._break_ := false
alert(‘New EW Motive Bullish Pattern found’ , alert.freq_once_per_bar_close)
//
if not isWave
if same and gEW.on == true
gEW.dot()
alert(‘Invalidated EW Motive Bullish Pattern’, alert.freq_once_per_bar_close)
//
// –––––––––––––––––––––[ ABC ]–––––––––––––––––––––
getEW = aEW.get(0)
last_0x := getEW.l1.get_x1(), last_0y := getEW.l1.get_y1()
last_6x := getEW.l5.get_x2(), last_6y := getEW.l5.get_y2()
diff = math.abs(last_6y – last_0y)
//
if getEW.dir == -1
getX = getEW.l5.get_x2()
getY = getEW.l5.get_y2()
isSame2 = getEW.isSame2 (_1x, _2x, _3x)
isValid =
_3x == getX and
_6y < getY + (diff * i_854) and
_4y < getY + (diff * i_854) and
_5y > getY
//
if isValid
width = _6x – _2x // –––[ width (4) – (c) ]–––
if isSame2 and getEW.bA.get_x() > _3x
getEW.lC.set_xy1(_5x, _5y), getEW.lC.set_xy2(_6x, _6y), getEW.bC.set_xy(_6x, _6y), getEW.bx.set_lefttop(_6x, _6y), getEW.bx.set_right(_6x + width)
else
getEW.lA := line.new (_3x, _3y, _4x, _4y, color=col), getEW.bA := label.new(_4x, _4y, text= ‘(a)’ + t, textcolor=col, color= color(na), style=label.style_label_down)
getEW.lB := line.new (_4x, _4y, _5x, _5y, color=col), getEW.bB := label.new(_5x, _5y, text= t + ‘(b)’, textcolor=col, color= color(na), style=label.style_label_up )
getEW.lC := line.new (_5x, _5y, _6x, _6y, color=col), getEW.bC := label.new(_6x, _6y, text= ‘(c)’ + t, textcolor=col, color= color(na), style=label.style_label_down)
getEW.bx := box.new (_6x, _6y, _6x + width, _4y, bgcolor=color.new(col, 93), border_color=color.new(col, 65))
alert(‘New EW Corrective Bullish Pattern found’ , alert.freq_once_per_bar_close)
else
if isSame2 and getEW.bA.get_x() > _3x
getEW.dash()
alert(‘Invalidated EW Corrective Bullish Pattern’, alert.freq_once_per_bar_close)
//
// –––––––––––––––––––––[ new (1) ? ]–––––––––––––––––––––
if getEW.dir == 1
if _5x == getEW.bC.get_x() and
_6y > getEW.b5.get_y() and
getEW.next == false
getEW.next := true
getEW.lb := label.new(_6x, _6y, style=label.style_circle, color=color.new(col, 65), yloc=yloc.abovebar, size=size.tiny)
alert(‘Possible new start of EW Motive Bullish Wave’, alert.freq_once_per_bar_close)
//
// when a new Pivot Low is found
if not na(pl)
gEW := aEW.get (0)
dir := aZZ.d.get (0)
x1 := aZZ.x.get (0)
y1 := aZZ.y.get (0)
y2 := nz(lo[1])
//
if dir > -1 // if previous point was a ph, add, and change direction (-1)
in_out(aZZ, -1, x1, y1, x2, y2, col)
else
if dir == -1 and pl < y1
aZZ.x.set(0, x2), aZZ.y.set(0, y2)
if shZZ
aZZ.l.get(0).set_xy2(x2, y2)
//
_6x = x2, _6y = y2
_5x = aZZ.x.get(1), _5y = aZZ.y.get(1)
_4x = aZZ.x.get(2), _4y = aZZ.y.get(2)
_3x = aZZ.x.get(3), _3y = aZZ.y.get(3)
_2x = aZZ.x.get(4), _2y = aZZ.y.get(4)
_1x = aZZ.x.get(5), _1y = aZZ.y.get(5)
//
// –––––––––––––––––––––[ 12345 ]–––––––––––––––––––––
_W5 = _5y – _6y
_W3 = _3y – _4y
_W1 = _1y – _2y
min = math.min(_W1, _W3, _W5)
isWave =
_W3 != min and
_4y > _6y and
_1y > _3y and
_2y > _5y
//
same = isSame(gEW, _1x, _2x, _3x, _4x)
if isWave
if same
gEW.l5.set_xy2(_6x, _6y)
gEW.b5.set_xy (_6x, _6y)
else
tx = ”
if _2x == aEW.get(0).b5.get_x()
tx := ‘(5) (1)’
aEW.get(0).b5.set_text(”)
else
tx := ‘(1)’
//
wave = Ewave.new(
l1 = line.new (_1x, _1y, _2x, _2y , color=col , style= line.style_solid ),
l2 = line.new (_2x, _2y, _3x, _3y , color=col , style= line.style_solid ),
l3 = line.new (_3x, _3y, _4x, _4y , color=col , style= line.style_solid ),
l4 = line.new (_4x, _4y, _5x, _5y , color=col , style= line.style_solid ),
l5 = line.new (_5x, _5y, _6x, _6y , color=col , style= line.style_solid ),
b1 = label.new(_2x, _2y, text= t + tx, textcolor=col, color= color(na), style=label.style_label_up ),
b2 = label.new(_3x, _3y, text= ‘(2)’ + t, textcolor=col, color= color(na), style=label.style_label_down),
b3 = label.new(_4x, _4y, text= t + ‘(3)’, textcolor=col, color= color(na), style=label.style_label_up ),
b4 = label.new(_5x, _5y, text= ‘(4)’ + t, textcolor=col, color= color(na), style=label.style_label_down),
b5 = label.new(_6x, _6y, text= t + ‘(5)’, textcolor=col, color= color(na), style=label.style_label_up ),
on = true ,
br = false ,
dir =-1
)
aEW.unshift(wave)
nFibL._break_ := false
alert(‘New EW Motive Bearish Pattern found’ , alert.freq_once_per_bar_close)
//
if not isWave
if same and gEW.on == true
gEW.dot()
alert(‘Invalidated EW Motive Bearish Pattern’, alert.freq_once_per_bar_close)
//
// –––––––––––––––––––––[ ABC ]–––––––––––––––––––––
getEW = aEW.get(0)
last_0x := getEW.l1.get_x1(), last_0y := getEW.l1.get_y1()
last_6x := getEW.l5.get_x2(), last_6y := getEW.l5.get_y2()
diff = math.abs(last_6y – last_0y)
//
if getEW.dir == 1
getX = getEW.l5.get_x2()
getY = getEW.l5.get_y2()
isSame2 = getEW.isSame2 (_1x, _2x, _3x)
isValid =
_3x == getX and
_6y > getY – (diff * i_854) and
_4y > getY – (diff * i_854) and
_5y < getY
//
if isValid
width = _6x – _2x // –––[ width (4) – (c) ]–––
if isSame2 and getEW.bA.get_x() > _3x
getEW.lC.set_xy1(_5x, _5y), getEW.lC.set_xy2(_6x, _6y), getEW.bC.set_xy(_6x, _6y), getEW.bx.set_lefttop(_6x, _6y), getEW.bx.set_right(_6x + width)
else
getEW.lA := line.new (_3x, _3y, _4x, _4y, color=col), getEW.bA := label.new(_4x, _4y, text= t + ‘(a)’, textcolor=col, color= color(na), style=label.style_label_up )
getEW.lB := line.new (_4x, _4y, _5x, _5y, color=col), getEW.bB := label.new(_5x, _5y, text= ‘(b)’ + t, textcolor=col, color= color(na), style=label.style_label_down)
getEW.lC := line.new (_5x, _5y, _6x, _6y, color=col), getEW.bC := label.new(_6x, _6y, text= t + ‘(c)’, textcolor=col, color= color(na), style=label.style_label_up )
getEW.bx := box.new (_6x, _6y, _6x + width, _4y, bgcolor=color.new(col, 93), border_color=color.new(col, 65))
alert(‘New EW Corrective Bearish Pattern found’ , alert.freq_once_per_bar_close)
else
if isSame2 and getEW.bA.get_x() > _3x
getEW.dash()
alert(‘Invalidated EW Corrective Bullish Pattern’, alert.freq_once_per_bar_close)
//
// –––[ check (only once) for a possible new (1) after an impulsive AND corrective wave ]–––
if getEW.dir == -1
if _5x == getEW.bC.get_x() and
_6y < getEW.b5.get_y() and
getEW.next == false
getEW.next := true
getEW.lb := label.new(_6x, _6y, style=label.style_circle, color=color.new(col, 65), yloc=yloc.belowbar, size=size.tiny)
alert(‘Possible new start of EW Motive Bearish Wave’, alert.freq_once_per_bar_close)
//
// –––[ check for break box ]–––
if aEW.size() > 0
gEW := aEW.get(0)
if gEW.dir == 1
if ta.crossunder(low , gEW.bx.get_bottom()) and bar_index <= gEW.bx.get_right()
label.new(bar_index, low , yloc= yloc.belowbar, style= label.style_xcross, color=color.red, size=size.tiny)
else
if ta.crossover (high, gEW.bx.get_top ()) and bar_index <= gEW.bx.get_right()
label.new(bar_index, high, yloc= yloc.abovebar, style= label.style_xcross, color=color.red, size=size.tiny)
//
if barstate.islast
// –––[ get last 2 EW’s ]–––
getEW = aEW.get(0)
if aEW.size() > 1
getEW1 = aEW.get(1)
last_0x := getEW.l1.get_x1(), last_0y := getEW.l1.get_y1()
last_6x := getEW.l5.get_x2(), last_6y := getEW.l5.get_y2()
//
diff = math.abs(last_6y – last_0y) // –––[ max/min difference ]–––
_500 = diff * i_500
_618 = diff * i_618
_764 = diff * i_764
_854 = diff * i_854
bull = getEW.dir == 1
// –––[ if EW is not valid or an ABC has developed -> remove fibonacci lines ]–––
if getEW.on == false or getEW.bC.get_x() > getEW.b5.get_x()
nFibL.setNa()
else
// –––[ get.on == true ~ valid EW ]–––
max_500 = last_6y + ((bull ? -1 : 1) * _500)
max_618 = last_6y + ((bull ? -1 : 1) * _618)
max_764 = last_6y + ((bull ? -1 : 1) * _764)
max_854 = last_6y + ((bull ? -1 : 1) * _854)
//
nFibL.set(last_6x, bar_index + 10, max_500, max_618, max_764, max_854, last_6y)
// –––[ if (2) label overlap with (C) label ]–––
if getEW.b2.get_x() == getEW1.bC.get_x()
getEW.b1.set_textcolor(color(na))
getEW.b2.set_textcolor(color(na))
strB = getEW1.bB.get_text()
strC = getEW1.bC.get_text()
strB_ = str.replace(strB, “(b)”, “(b) (1)”, 0)
strC_ = str.replace(strC, “(c)”, “(c) (2)”, 0)
getEW1.bB.set_text(strB_)
getEW1.bC.set_text(strC_)
//
// –––[ check if fib limits are broken ]–––
getP_854 = nFibL.wave1_0_854.get_y1()
for i = 0 to bar_index – nFibL.wave1_0_854.get_x1()
if getEW.dir == -1
if high[i] > getP_854
nFibL._break_ := true
break
else
if low [i] < getP_854
nFibL._break_ := true
break
//––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
switch nFibL._break_
true => nFibL.sol_dot(‘dot’, color.new(color.red , 95))
false => nFibL.sol_dot(‘sol’, color.new(color.lime, 95))
=>
nFibL.wave1_0_500.set_xy1(na, na)
nFibL.wave1_0_500.set_xy2(na, na)
nFibL.wave1_0_618.set_xy1(na, na)
nFibL.wave1_0_618.set_xy2(na, na)
nFibL.wave1_0_764.set_xy1(na, na)
nFibL.wave1_0_764.set_xy2(na, na)
nFibL.wave1_0_854.set_xy1(na, na)
nFibL.wave1_0_854.set_xy2(na, na)
nFibL.wave1_pole_.set_xy1(na, na)
nFibL.wave1_pole_.set_xy2(na, na)
nFibL.l_fill_.set_color(color(na))

if aEW.size() > 15
pop = aEW.pop()
pop.l1.delete(), pop.b1.delete()
pop.l2.delete(), pop.b2.delete()
pop.l3.delete(), pop.b3.delete()
pop.l4.delete(), pop.b4.delete()
pop.l5.delete(), pop.b5.delete()
pop.lA.delete(), pop.bA.delete()
pop.lB.delete(), pop.bB.delete()
pop.lC.delete(), pop.bC.delete()
pop.lb.delete(), pop.bx.delete()
//———————————-

//—————————————————————————–}
//Plots
//—————————————————————————–{
draw(s1, len1, col1, 0)
draw(s2, len2, col2, 1)
draw(s3, len3, col3, 2)

//—————————————————————————–}

06/05/2024 at 6:49 AM #233505 quote

yas
Participant

Junior

Hi ivan

Can this be converted in to pro real time code please or any one else can reply

many thanks

06/05/2024 at 8:06 AM #233508 quote

Iván González
Moderator

Master

Hi,
It’s not an easy task. I’ll try to convert it but be patient please.

06/05/2024 at 8:55 AM #233517 quote

yas
Participant

Junior

Thanks mate

07/17/2024 at 12:19 PM #235381 quote
Iván González
Moderator

Master
Hi,
Here you have the code. Is not the translation because it needs functions not yet available.
```
//-------------------------------------------------------------------------------//
//PRC_Elliot Wave ZigZag
//version = 0
//17.07.24
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//-------------------------------------------------------------------------------//
defparam drawonlastbaronly=true
//-----Inputs--------------------------------------------------------------------//
perc=1
//-------------------------------------------------------------------------------//
$newhigh[0]=0
//-------------------------------------------------------------------------------//
zz=ZigZag[perc](close)
//---Pivot high------------------------------------------------------------------//
if zz<zz[1] and zz[1]>zz[2] then

$pivoty[n+1]=close[1]
$pivotx[n+1]=barindex[1]
$newhigh[n+1]=1
n=n+1

endif
//-------------------------------------------------------------------------------//
//---Pivot low-------------------------------------------------------------------//
if zz>zz[1] and zz[1]<zz[2] then

$pivoty[n+1]=close[1]
$pivotx[n+1]=barindex[1]
$newhigh[n+1]=0
n=n+1

endif
//-------------------------------------------------------------------------------//
//-------------------------------------------------------------------------------//
if islastbarupdate then

for i=n downto 3 do
//drawpoint($pivotx[i],$pivoty[i],2)coloured("white")
if $newhigh[i]=1 then

////Populate all points
l6xx=$pivotx[i]
l6yy=$pivoty[i]
l5xx=$pivotx[max(0,i-1)]
l5yy=$pivoty[max(0,i-1)]
l4xx=$pivotx[max(0,i-2)]
l4yy=$pivoty[max(0,i-2)]
l3xx=$pivotx[max(0,i-3)]
l3yy=$pivoty[max(0,i-3)]
l2xx=$pivotx[max(0,i-4)]
l2yy=$pivoty[max(0,i-4)]
l1xx=$pivotx[max(0,i-5)]
l1yy=$pivoty[max(0,i-5)]
l0xx=$pivotx[max(0,i-6)]
l0yy=$pivoty[max(0,i-6)]
l7xx=$pivotx[i+1]
l7yy=$pivoty[i+1]
l8xx=$pivotx[i+2]
l8yy=$pivoty[i+2]

////Checking waves performance
ww1=l0yy-l1yy
ww2=l2yy-l1yy
ww3=l2yy-l3yy
ww4=l4yy-l3yy
ww5=l4yy-l5yy
wwA=l6yy-l5yy
wwB=l6yy-l7yy
wwC=l8yy-l7yy
minww=min(ww1,min(ww3,ww5))

checkDN0=ww1>0 and ww3>0 and ww5>0 and ww2>0 and ww4>0 and wwA>0 and wwB>0 and wwC>0
//Checking levels
//Wave 1:
//No specific strict conditions other than being the start of a new trend.

//Wave 2:
checkDN1=l2yy<=l0yy//Must not retrace more than 100% of Wave 1.
//Wave 3:
checkDN2=ww3<>minWw// Cannot be the shortest among Waves 1, 3, and 5.
checkDN3=l3yy<l1yy//Must exceed the end of Wave 1.
checkDN4=ww3>ww1//Must be greater in price than Wave 1.
//Wave 4:
checkDN5=l4yy<l1yy//Must not overlap with the price range of Wave 1 (in futures or highly leveraged markets, this rule can be violated, but in stock markets, it is strict).
//Wave 5:
checkDN6=l5yy<l3yy
checkDN7=l6yy<l2yy
//Waves A-B-C
checkDN8=l7yy>=l5yy//Wave B must not retrace more than 100% of Wave A
checkDN9=l8yy>=l6yy
//Setup
setupDNTrend=checkDN0 and checkDN1 and checkDN2 and checkDN3 and checkDN4 and checkDN5 and checkDN6 and checkDN7 and checkDN8 and checkDN9

if setupDNTrend then

drawsegment(l7xx,l7yy,l8xx,l8yy)coloured("white")style(line,2)
drawsegment(l7xx,l7yy,l6xx,l6yy)coloured("white")style(line,2)
drawsegment(l5xx,l5yy,l6xx,l6yy)coloured("white")style(line,2)
drawsegment(l5xx,l5yy,l4xx,l4yy)coloured("red")style(line,2)
drawsegment(l3xx,l3yy,l4xx,l4yy)coloured("red")style(line,2)
drawsegment(l3xx,l3yy,l2xx,l2yy)coloured("red")style(line,2)
drawsegment(l1xx,l1yy,l2xx,l2yy)coloured("red")style(line,2)
drawsegment(l1xx,l1yy,l0xx,l0yy)coloured("red")style(line,2)
drawtext("(0)",l0xx,l0yy+0.15*tr)coloured("yellow")
drawtext("(1)",l1xx,l1yy-0.15*tr)coloured("yellow")
drawtext("(2)",l2xx,l2yy+0.15*tr)coloured("yellow")
drawtext("(3)",l3xx,l3yy-0.15*tr)coloured("yellow")
drawtext("(4)",l4xx,l4yy+0.15*tr)coloured("yellow")
drawtext("(5)",l5xx,l5yy-0.15*tr)coloured("yellow")
drawtext("(6)",l6xx,l6yy+0.15*tr)coloured("yellow")

endif

elsif $newhigh[i]=0 then

//Populate all points
l6x=$pivotx[i]
l6y=$pivoty[i]
l5x=$pivotx[max(0,i-1)]
l5y=$pivoty[max(0,i-1)]
l4x=$pivotx[max(0,i-2)]
l4y=$pivoty[max(0,i-2)]
l3x=$pivotx[max(0,i-3)]
l3y=$pivoty[max(0,i-3)]
l2x=$pivotx[max(0,i-4)]
l2y=$pivoty[max(0,i-4)]
l1x=$pivotx[max(0,i-5)]
l1y=$pivoty[max(0,i-5)]
l0x=$pivotx[max(0,i-6)]
l0y=$pivoty[max(0,i-6)]
l7x=$pivotx[i+1]
l7y=$pivoty[i+1]
l8x=$pivotx[i+2]
l8y=$pivoty[i+2]

//Checking waves and conditions
w1=l1y-l0y
w2=l1y-l2y
w3=l3y-l2y
w4=l3y-l4y
w5=l5y-l4y
wA=l5y-l6y
wB=l7y-l6y
wC=l7y-l8y

checkUP0=w1>0 and w3>0 and w5>0 and w2>0 and w4>0 and wA>0 and wB>0 and wC>0
//Wave 1:
//No specific strict conditions other than being the start of a new trend.
//Wave 2:
checkUP1=l2y>=l0y//Must not retrace more than 100% of Wave 1.
//Wave 3:
minw=min(w1,min(w3,w5))//
checkUP2=w3<>minW// Cannot be the shortest among Waves 1, 3, and 5.
checkUP3=l3y>l1y//Must exceed the end of Wave 1.
checkUP4=w3>w1//Must be greater in price than Wave 1.
//Wave 4:
checkUP5=l4y>l1y//Must not overlap with the price range of Wave 1 (in futures or highly leveraged markets, this rule can be violated, but in stock markets, it is strict).
//Wave 5: Wave 5 must extend beyond the end of Wave 3.
checkUP6=l5y>l3y
checkUP7=l6y>l2y
//Waves A-B-C
checkUP8=l7y<=l5y//Wave B must not retrace more than 100% of Wave A
checkUP9=l8y<=l6y
//Setup
setupUpTrend=checkUP0 and checkUP1 and checkUP2 and checkUP3 and checkUP4 and checkUP5 and checkUP6 and checkUP7 and checkUP8 and checkUP9

//Draw waves
if setupUpTrend then

drawsegment(l7x,l7y,l8x,l8y)coloured("white")style(line,2)
drawsegment(l7x,l7y,l6x,l6y)coloured("white")style(line,2)
drawsegment(l5x,l5y,l6x,l6y)coloured("white")style(line,2)
drawsegment(l5x,l5y,l4x,l4y)coloured("blue")style(line,2)
drawsegment(l3x,l3y,l4x,l4y)coloured("blue")style(line,2)
drawsegment(l3x,l3y,l2x,l2y)coloured("blue")style(line,2)
drawsegment(l1x,l1y,l2x,l2y)coloured("blue")style(line,2)
drawsegment(l1x,l1y,l0x,l0y)coloured("blue")style(line,2)
drawtext("(0)",l0x,l0y-0.15*tr)coloured("yellow")
drawtext("(1)",l1x,l1y+0.15*tr)coloured("yellow")
drawtext("(2)",l2x,l2y-0.15*tr)coloured("yellow")
drawtext("(3)",l3x,l3y+0.15*tr)coloured("yellow")
drawtext("(4)",l4x,l4y-0.15*tr)coloured("yellow")
drawtext("(5)",l5x,l5y+0.15*tr)coloured("yellow")
drawtext("(6)",l6x,l6y-0.15*tr)coloured("yellow")

endif
endif
next

endif
//-------------------------------------------------------------------------------//
return zz as "ZigZag" coloured("yellow",150)
```
RicLg thanked this post
07/17/2024 at 1:18 PM #235389 quote

yas
Participant

Junior

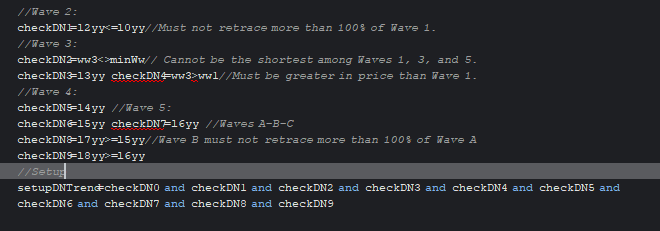

Thank you for your help and assistant when i past the code in the pro real time i see this error on these lines please see the attach file

any ideas what is it

07/17/2024 at 1:50 PM #235396 quote

PeterSt
Participant

Master

Try the version you see below. Import that into PRT as Indicator.
(open it on the price panel is advised)

Iván González and RicLg thanked this post

07/17/2024 at 2:31 PM #235398 quote

Iván González
Moderator

Master

Hi!
Yas, I think you didn’t copy/paste correctly…

Thanks Peter!

07/17/2024 at 2:32 PM #235399 quote

GraHal
Participant

Master

yas wrote:

any ideas what is it

Copy and paste error … place cursor just before the red lined error and hit return and you should be good to go?

PS / Edit

Ha, we are ‘falling over ourselves’ to be helpful! 😉

07/17/2024 at 2:38 PM #235401 quote

GraHal
Participant

Master

Link to Ivan’s Elliott Wave Indicator code above, added as Log 391 here …

Snippet Link Library

Iván González thanked this post
Author

Posts

Viewing 10 posts - 1 through 10 (of 10 total)

You must be logged in to reply to this topic.

This elliott wave Trading View Indicator to PRO real time please

ProBuilder: Indicators & Custom Tools

New Reply

Author

yas @yas Participant

Summary

This topic contains 9 replies,
has 4 voices, and was last updated by GraHal
1 year, 6 months ago.

Topic Details

Forum:	ProBuilder: Indicators & Custom Tools
Language:	English
Started:	05/31/2024
Status:	Active
Attachments:	2 files

Expert Services

No recent search

This elliott wave Trading View Indicator to PRO real time please

This elliott wave Trading View Indicator to PRO real time please ProBuilder: Indicators & Custom Tools

Author

Summary

Topic Details

About personal data collected

Get Assistance

Assistance Type

Your Need

Proposed Solutions

Choose Assistance Type

Your Need

Programming Help

Download Codes

Trading Help

ProRealTime Information

Account Assistance

Paid Programming Help

This elliott wave Trading View Indicator to PRO real time please

ProBuilder: Indicators & Custom Tools
