Hi, here you have the translation:
//---------------------------------------------------------

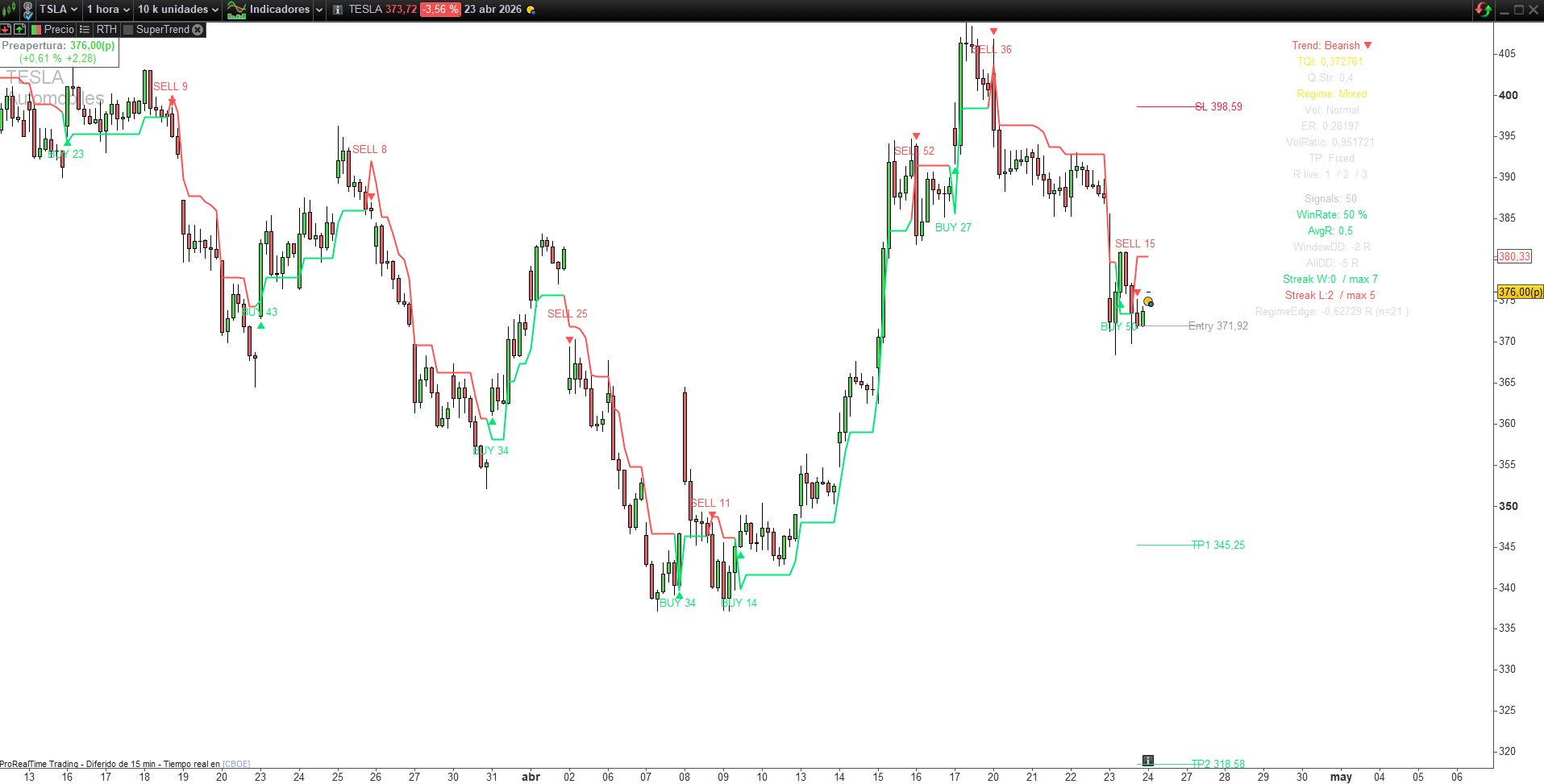

//PRC_Self-Aware Trend System [WillyAlgoTrader]
//version = 0
//21.04.2026
//Iván González @ www.prorealcode.com
//Sharing ProRealTime knowledge
//---------------------------------------------------------
//==========================================================
// 1. INPUTS
//==========================================================
// --- Main ---
atrLen = 14 // ATR length
baseMult = 2.0 // base band width (xATR)
// --- Adaptive Engine (legacy ER) ---
useAdaptive = 1 // 1=on
erLen = 20 // efficiency window
adaptStrength = 0.5
atrBaselineLen = 100
// --- Trend Quality Engine ---
useTqi = 1
qualityStrength = 0.4
qualityCurve = 1.5
multSmooth = 1 // EMA-smooth multipliers
useAsymBands = 1
asymStrength = 0.5
useEffAtr = 1 // efficiency-weighted ATR
useCharFlip = 1
charFlipMinAge = 5
charFlipHighTqi = 0.55
charFlipLowTqi = 0.25
wEr = 0.35
wVol = 0.20
wStruct = 0.25
wMom = 0.20
structLen = 20
momLen = 10
// --- Risk ---
slAtrMult = 1.5
useDynTp = 0 // 0=Fixed, 1=Dynamic
tp1R = 1.0
tp2R = 2.0
tp3R = 3.0
// --- Dynamic TP ---
dynTpTqiW = 0.6
dynTpVolW = 0.4
dynTpMinScale = 0.5
dynTpMaxScale = 2.0
dynTpFloorR1 = 0.5
dynTpCeilR3 = 8.0
labelOffsetBars = 10
tradeMaxAge = 100
// --- Self-learning ---
useAutoCalib = 0
calibWindow = 20
calibBadR = 0.0
calibGoodR = 0.7
calibStepQ = 0.05
calibCooldown = 5
calibMinQ = 0.1
calibMaxQ = 0.9
// --- Score (display) ---
rsiLen = 14
rsiOB = 70
rsiOS = 30
rsiLookback = 20
pivotLen = 3
volLen = 20
useVolScore = 1
useRsiScore = 1
useStructScore = 1
showDash = 1
showBands = 1
showSignals = 1
//==========================================================
// 2. CONSTANTS
//==========================================================
maxHistory = 50 // rolling signal buffer size (reduced from 100 for PRT cost)
erLow = 0.25
erHigh = 0.50
volLow = 0.7
volHigh = 1.3
ewmaAlpha = 0.2
multSmoothAlpha = 0.15
//==========================================================
// 3. WARMUP
//==========================================================
warmup = max(50, max(atrLen, max(erLen, max(rsiLen, max(volLen, max(structLen, momLen))))) + 10)
isWarm = barindex >= warmup
//==========================================================
// 4. BASE CALCULATIONS: ATR, ER, efficiency-weighted ATR
//==========================================================
rawAtr = averagetruerange[atrLen](close)
atrBase = average[atrBaselineLen](rawAtr)
if atrBase <= 0 then
volRatio = 1.0
else
volRatio = rawAtr / atrBase
endif
// Efficiency Ratio manual (Kaufman)
erChange = abs(close - close[erLen])
erVolSum = summation[erLen](abs(close - close[1]))
if erVolSum > 0 then
erValue = erChange / erVolSum
else
erValue = 0
endif
if useEffAtr = 1 then
atrValue = rawAtr * (0.5 + 0.5 * erValue)
else
atrValue = rawAtr
endif
//==========================================================
// 5. TREND QUALITY INDEX (TQI, 4 factors)
//==========================================================
// Factor 1: ER clamped
tqiEr = min(1.0, max(0.0, erValue))
// Factor 2: Volatility regime
// Z-score del volumen si hay; si no, mapeo sobre volRatio
hasVol = volume > 0
if hasVol then
vMean = average[volLen](volume)
vStd = std[volLen](volume)
if vStd > 0 then
volZ = (volume - vMean) / vStd
else
volZ = 0
endif
// map [-1..2] to [0..1]
tqiVolRaw = (volZ - (-1.0)) / 3.0
else
volZ = 0
// map volRatio [0.6..1.8] to [0..1]
tqiVolRaw = (volRatio - 0.6) / 1.2
endif
tqiVol = min(1.0, max(0.0, tqiVolRaw))
// Factor 3: Structure (precio en el rango N-barras, desviación de 0.5)
sHi = highest[structLen](high)
sLo = lowest[structLen](low)
sRange = sHi - sLo
if sRange > 0 then
pricePos = (close - sLo) / sRange
else
pricePos = 0.5
endif
tqiStruct = min(1.0, max(0.0, abs(pricePos - 0.5) * 2.0))
// Factor 4: Momentum persistence — fracción de barras alineadas con el cambio N
aligned = 0
if barindex > momLen then
winChg = close - close[momLen]
for k = 0 to momLen - 1 do
barChg = close[k] - close[k+1]
if winChg > 0 and barChg > 0 then
aligned = aligned + 1
endif
if winChg < 0 and barChg < 0 then
aligned = aligned + 1
endif
next
endif
tqiMom = aligned / momLen
// Suma ponderada
wSum = wEr + wVol + wStruct + wMom
if wSum <= 0 then
wSum = 1.0
endif
if useTqi = 1 then
tqi = (tqiEr*wEr + tqiVol*wVol + tqiStruct*wStruct + tqiMom*wMom) / wSum
else
tqi = 0.5
endif
tqi = min(1.0, max(0.0, tqi))
//==========================================================
// 6. ADAPTIVE MULTIPLIERS (active / passive)
//==========================================================
if useAdaptive = 1 then
legacyAdapt = 1.0 + adaptStrength * (0.5 - erValue)
else
legacyAdapt = 1.0
endif
// qualityStrength puede ser modificado por auto-calibración
once effQStrength = qualityStrength
if useTqi = 1 then
qDev = 1.0 - tqi
if qDev > 0 then
qDevP = pow(qDev, qualityCurve)
else
qDevP = 0
endif
else
qDevP = 0.5
endif
tqiMult = 1.0 - effQStrength + effQStrength * (0.6 + 0.8 * qDevP)
symMult = baseMult * legacyAdapt * tqiMult
if useTqi = 1 and useAsymBands = 1 then
asymTighten = 1.0 - asymStrength * tqi * 0.3
asymWiden = 1.0 + asymStrength * tqi * 0.4
activeMultRaw = symMult * asymTighten
passiveMultRaw = symMult * asymWiden
else
activeMultRaw = symMult
passiveMultRaw = symMult
endif
// EMA-smoothing de los multiplicadores
once activeMultSm = activeMultRaw
once passiveMultSm = passiveMultRaw
if multSmooth = 1 then
activeMultSm = activeMultSm * (1.0 - multSmoothAlpha) + activeMultRaw * multSmoothAlpha
passiveMultSm = passiveMultSm * (1.0 - multSmoothAlpha) + passiveMultRaw * multSmoothAlpha
else
activeMultSm = activeMultRaw
passiveMultSm = passiveMultRaw
endif
//==========================================================
// 7. ADAPTIVE SUPERTREND (máquina de estado canónica PRT)
//==========================================================
// Patrón canónico (learning 003): una sola stLine que hace trailing + flip atómico.
// Se preserva el carácter asimétrico: lado activo (tighter) para el trail, lado pasivo (wider) al flipear.
once trendDir = 1
once stLine = close
once trendStartBar = 0
// prevTrend robusto en primeras barras
if barindex < 2 then
prevTrend = 1
else
prevTrend = trendDir[1]
endif
// Warmup guard: no operar máquina de estado hasta tener ATR válido.
// Durante el warmup stLine queda en su semilla (close de barindex=0) y trendDir = 1.
if barindex >= atrLen then
// Bandas raw según la dirección previa
if prevTrend = 1 then
activeBandRaw = close - activeMultSm * atrValue // lowerBand "tight"
flipBandRaw = close + passiveMultSm * atrValue // upperBand "wide" tras flip
else
activeBandRaw = close + activeMultSm * atrValue // upperBand "tight"
flipBandRaw = close - passiveMultSm * atrValue // lowerBand "wide" tras flip
endif
// Primera barra post-warmup: re-inicializar stLine según dirección
if barindex = atrLen then
stLine = activeBandRaw
trendDir = 1
else
// Máquina de estado: trail + flip
if prevTrend = 1 then
// Alcista: stLine = lowerBand, sube (nunca baja)
if activeBandRaw > stLine then
stLine = activeBandRaw
endif
if close < stLine then
trendDir = -1
stLine = flipBandRaw
else
trendDir = 1
endif
else
// Bajista: stLine = upperBand, baja (nunca sube)
if activeBandRaw < stLine then
stLine = activeBandRaw
endif
if close > stLine then
trendDir = 1
stLine = flipBandRaw
else
trendDir = -1
endif
endif
endif
endif
// Character-flip (colapso de TQI fuerza inversión sobre la dirección PREVIA)
// Solo aplica si no hubo ya un price-flip en esta barra.
if barindex < 2 then
prevTqi = 0.5
else
prevTqi = tqi[1]
endif
trendAge = barindex - trendStartBar
priceFlipped = trendDir <> prevTrend
charBase = (useCharFlip = 1) and (useTqi = 1) and (prevTqi > charFlipHighTqi) and (tqi < charFlipLowTqi) and (trendAge >= charFlipMinAge)
if charBase and not priceFlipped then
if prevTrend = 1 then
trendDir = -1
stLine = close + passiveMultSm * atrValue
else
trendDir = 1
stLine = close - passiveMultSm * atrValue
endif
endif
// Trend-start tracking
if trendDir <> prevTrend then
trendStartBar = barindex
endif
flipUp = (trendDir = 1) and (prevTrend = -1)
flipDn = (trendDir = -1) and (prevTrend = 1)
//==========================================================
// 7.5 RSI + PIVOTS (para score de señales)
//==========================================================
rsiVal = rsi[rsiLen](close)
// Pivots high/low simétricos (ventana 2*pivotLen+1)
once lastPivotHigh = 0
once lastPivotLow = 0
if barindex >= 2*pivotLen then
if high[pivotLen] = highest[2*pivotLen+1](high) then
lastPivotHigh = high[pivotLen]
endif
if low[pivotLen] = lowest[2*pivotLen+1](low) then
lastPivotLow = low[pivotLen]
endif
endif
//==========================================================
// 7.6 SIGNAL SCORE (6 componentes)
//==========================================================
bypassScore = 12.0
// Componente 1: momentum (mov en dirección contraria 3 barras previas)
dirMoveBuy = close[3] - close
dirMoveSell = close - close[3]
if atrValue > 0 then
momRatioBuy = dirMoveBuy / atrValue
momRatioSell = dirMoveSell / atrValue
else
momRatioBuy = 0
momRatioSell = 0
endif
// mapClamp(x, 0.3, 2.0, 0, 17) → t = (x-0.3)/1.7 clamp, * 17
tMomBuy = min(1.0, max(0.0, (momRatioBuy - 0.3) / 1.7))
tMomSell = min(1.0, max(0.0, (momRatioSell - 0.3) / 1.7))
momScoreBuy = tMomBuy * 17.0
momScoreSell = tMomSell * 17.0
// Componente 2: efficiency ratio mapClamp(er, 0.15, 0.7, 0, 17)
tEr = min(1.0, max(0.0, (erValue - 0.15) / 0.55))
erScore = tEr * 17.0
// Componente 3: volumen Z mapClamp(volZ, 0, 3, 0, 17) o bypass
if hasVol and (useVolScore = 1) then
tVol = min(1.0, max(0.0, volZ / 3.0))
vScore = tVol * 17.0
else
vScore = bypassScore
endif
// Componente 4: RSI depth
if useRsiScore = 1 then
rsiWinLow = lowest[rsiLookback](rsiVal)
rsiWinHigh = highest[rsiLookback](rsiVal)
rsiDepthBuy = max(0.0, rsiOS - rsiWinLow)
rsiDepthSell = max(0.0, rsiWinHigh - rsiOB)
tRsiBuy = min(1.0, max(0.0, rsiDepthBuy / 15.0))
tRsiSell = min(1.0, max(0.0, rsiDepthSell / 15.0))
rsiScoreBuy = tRsiBuy * 17.0
rsiScoreSell = tRsiSell * 17.0
else
rsiScoreBuy = bypassScore
rsiScoreSell = bypassScore
endif
// Componente 5: structure (distancia al último pivot)
if useStructScore = 1 then
if lastPivotLow > 0 then
pivDistBuy = abs(close - lastPivotLow)
else
pivDistBuy = 0
endif
if lastPivotHigh > 0 then
pivDistSell = abs(lastPivotHigh - close)
else
pivDistSell = 0
endif
if atrValue > 0 then
pivRatioBuy = pivDistBuy / atrValue
pivRatioSell = pivDistSell / atrValue
else
pivRatioBuy = 0
pivRatioSell = 0
endif
// mapClampInv(x, 0, 1.5, 16, 6): desciende con x
tStructBuy = min(1.0, max(0.0, pivRatioBuy / 1.5))
tStructSell = min(1.0, max(0.0, pivRatioSell / 1.5))
structScoreBuy = 16.0 - tStructBuy * 10.0
structScoreSell = 16.0 - tStructSell * 10.0
else
structScoreBuy = bypassScore
structScoreSell = bypassScore
endif
// Componente 6: break depth (profundidad de rotura del SuperTrend previo)
breakDepthBuy = max(0.0, stLine[1] - close[1])
breakDepthSell = max(0.0, close[1] - stLine[1])
if atrValue > 0 then
breakRatioBuy = breakDepthBuy / atrValue
breakRatioSell = breakDepthSell / atrValue
else
breakRatioBuy = 0
breakRatioSell = 0
endif
tBrkBuy = min(1.0, max(0.0, breakRatioBuy))
tBrkSell = min(1.0, max(0.0, breakRatioSell))
breakScoreBuy = tBrkBuy * 16.0
breakScoreSell = tBrkSell * 16.0
// Suma (máx ~102)
buyScore = momScoreBuy + erScore + vScore + rsiScoreBuy + structScoreBuy + breakScoreBuy
sellScore = momScoreSell + erScore + vScore + rsiScoreSell + structScoreSell + breakScoreSell
buyScoreInt = round(buyScore)
sellScoreInt = round(sellScore)
//==========================================================
// 8. DYNAMIC TP R-MULTIPLES (per-bar, for live signal use)
//==========================================================
// Scale por blend TQI + volRatio
tqiComp = min(1.0, max(0.0, tqi))
volComp01 = (volRatio - 0.5) / 1.5
volComp = min(1.0, max(0.0, volComp01))
wTpSum = dynTpTqiW + dynTpVolW
if wTpSum <= 0 then
wTpSum = 1.0
endif
rawScale = (tqiComp * dynTpTqiW + volComp * dynTpVolW) / wTpSum
finalScale = dynTpMinScale + rawScale * (dynTpMaxScale - dynTpMinScale)
// TP base re-ordenados (garantizar tp1<tp2<tp3)
fixedTp1R = min(tp1R, min(tp2R, tp3R))
fixedTp3R = max(tp1R, max(tp2R, tp3R))
fixedTp2R = tp1R + tp2R + tp3R - fixedTp1R - fixedTp3R
if useDynTp = 1 then
// Floors proporcionales
tp1Floor = dynTpFloorR1
if fixedTp1R > 0.01 then
tp2Floor = dynTpFloorR1 * (fixedTp2R / fixedTp1R)
tp3Floor = dynTpFloorR1 * (fixedTp3R / fixedTp1R)
else
tp2Floor = dynTpFloorR1
tp3Floor = dynTpFloorR1
endif
effTp1R = min(dynTpCeilR3, max(tp1Floor, fixedTp1R * finalScale))
effTp2R = min(dynTpCeilR3, max(tp2Floor, fixedTp2R * finalScale))
effTp3R = min(dynTpCeilR3, max(tp3Floor, fixedTp3R * finalScale))
// Re-sort tras scaling
sTp1 = min(effTp1R, min(effTp2R, effTp3R))
sTp3 = max(effTp1R, max(effTp2R, effTp3R))
sTp2 = effTp1R + effTp2R + effTp3R - sTp1 - sTp3
liveTp1R = sTp1
liveTp2R = sTp2
liveTp3R = sTp3
else
liveTp1R = fixedTp1R
liveTp2R = fixedTp2R
liveTp3R = fixedTp3R
endif
//==========================================================
// 9. ACTIVE TRADE STATE (solo 1 señal viva a la vez)
//==========================================================
once tradeDir = 0
once tradeClosed = 1 // 1 = no hay trade vivo; se pone a 0 al abrir
once tradeEntryBar = 0
once tradeEntry = 0
once tradeSl = 0
once tradeTp1 = 0
once tradeTp2 = 0
once tradeTp3 = 0
once tradeTp1R = 1.0
once tradeTp2R = 2.0
once tradeTp3R = 3.0
once hitTp1 = 0
once hitTp2 = 0
once hitTp3 = 0
once tradeCellIdx = -1
confirmedBuy = flipUp and isWarm
confirmedSell = flipDn and isWarm
if confirmedBuy then
tEntry = close
// SL basado en el último pivot low (réplica Pine): el más conservador entre pivot-SL y close-SL
if lastPivotLow > 0 then
slBase = lastPivotLow
else
slBase = low
endif
rawSl = slBase - slAtrMult * atrValue
minSl = close - slAtrMult * atrValue
tSl = min(rawSl, minSl)
risk = tEntry - tSl
tradeDir = 1
tradeClosed = 0
tradeEntryBar = barindex
tradeEntry = tEntry
tradeSl = tSl
tradeTp1 = tEntry + risk * liveTp1R
tradeTp2 = tEntry + risk * liveTp2R
tradeTp3 = tEntry + risk * liveTp3R
tradeTp1R = liveTp1R
tradeTp2R = liveTp2R
tradeTp3R = liveTp3R
hitTp1 = 0
hitTp2 = 0
hitTp3 = 0
endif
if confirmedSell then
tEntry = close
// SL basado en el último pivot high (réplica Pine): el más conservador entre pivot-SL y close-SL
if lastPivotHigh > 0 then
slBase = lastPivotHigh
else
slBase = high
endif
rawSl = slBase + slAtrMult * atrValue
minSl = close + slAtrMult * atrValue
tSl = max(rawSl, minSl)
risk = tSl - tEntry
tradeDir = -1
tradeClosed = 0
tradeEntryBar = barindex
tradeEntry = tEntry
tradeSl = tSl
tradeTp1 = tEntry - risk * liveTp1R
tradeTp2 = tEntry - risk * liveTp2R
tradeTp3 = tEntry - risk * liveTp3R
tradeTp1R = liveTp1R
tradeTp2R = liveTp2R
tradeTp3R = liveTp3R
hitTp1 = 0
hitTp2 = 0
hitTp3 = 0
endif
//==========================================================
// 10. HIT DETECTION + REALIZED R + LEARNING
//==========================================================
// Rolling buffer de últimas maxHistory señales cerradas (array $sigR)
once writeIdx = 0 // puntero rotante 0..maxHistory-1
once bufFilled = 0 // cuántos slots llenos (hasta maxHistory)
once winStreak = 0
once lossStreak = 0
once maxWinStreak = 0
once maxLossStreak = 0
once allCount = 0
once allRSum = 0
once allCumR = 0
once allPeak = 0
once allTrough = 0
once signalsSinceCalib = 0
// Regime grid (3×3): idx = erBin*3 + volBin
once gridC0 = 0
once gridC1 = 0
once gridC2 = 0
once gridC3 = 0
once gridC4 = 0
once gridC5 = 0
once gridC6 = 0
once gridC7 = 0
once gridC8 = 0
once gridE0 = 0
once gridE1 = 0
once gridE2 = 0
once gridE3 = 0
once gridE4 = 0
once gridE5 = 0
once gridE6 = 0
once gridE7 = 0
once gridE8 = 0
// Bin del regime actual (para clasificar la señal que se abre)
if erValue < erLow then
curErBin = 0
elsif erValue < erHigh then
curErBin = 1
else
curErBin = 2
endif
if volRatio < volLow then
curVolBin = 0
elsif volRatio < volHigh then
curVolBin = 1
else
curVolBin = 2
endif
curCell = curErBin * 3 + curVolBin
// Memorizar cell del trade cuando abre
if confirmedBuy or confirmedSell then
tradeCellIdx = curCell
endif
if (tradeDir <> 0) and (tradeClosed = 0) and (barindex > tradeEntryBar) then
if tradeDir = 1 then
tp1Reached = high >= tradeTp1
tp2Reached = high >= tradeTp2
tp3Reached = high >= tradeTp3
slHit = low <= tradeSl
else
tp1Reached = low <= tradeTp1
tp2Reached = low <= tradeTp2
tp3Reached = low <= tradeTp3
slHit = high >= tradeSl
endif
if tp1Reached and (hitTp1 = 0) then
hitTp1 = 1
endif
if tp2Reached and (hitTp2 = 0) then
hitTp2 = 1
endif
if tp3Reached and (hitTp3 = 0) then
hitTp3 = 1
endif
tradeAge = barindex - tradeEntryBar
timeoutHit = tradeAge >= tradeMaxAge
if (hitTp3 = 1) or slHit or timeoutHit then
// Calcular realized R (fórmula Pine: 1/3 por tramo)
if hitTp3 = 1 then
realizedR = (tradeTp1R + tradeTp2R + tradeTp3R) / 3.0
elsif slHit then
taken = 0
remaining = 1.0
if hitTp1 = 1 then
taken = taken + (1.0/3.0) * tradeTp1R
remaining = remaining - (1.0/3.0)
endif
if hitTp2 = 1 then
taken = taken + (1.0/3.0) * tradeTp2R
remaining = remaining - (1.0/3.0)
endif
realizedR = taken + remaining * (-1.0)
else
// timeout: solo suma los TPs tocados
taken = 0
if hitTp1 = 1 then
taken = taken + (1.0/3.0) * tradeTp1R
endif
if hitTp2 = 1 then
taken = taken + (1.0/3.0) * tradeTp2R
endif
if hitTp3 = 1 then
taken = taken + (1.0/3.0) * tradeTp3R
endif
realizedR = taken
endif
// Clamp
realizedR = max(-1.0, min(tradeTp3R, realizedR))
// Push al buffer rotante
$sigR[writeIdx] = realizedR
writeIdx = writeIdx + 1
if writeIdx >= maxHistory then
writeIdx = 0
endif
if bufFilled < maxHistory then
bufFilled = bufFilled + 1
endif
// Stats acumuladas
allRSum = allRSum + realizedR
allCount = allCount + 1
allCumR = allCumR + realizedR
if allCumR > allPeak then
allPeak = allCumR
endif
curDD = allCumR - allPeak
if curDD < allTrough then
allTrough = curDD
endif
if realizedR > 0 then
winStreak = winStreak + 1
lossStreak = 0
if winStreak > maxWinStreak then
maxWinStreak = winStreak
endif
else
lossStreak = lossStreak + 1
winStreak = 0
if lossStreak > maxLossStreak then
maxLossStreak = lossStreak
endif
endif
// Grid 3×3 EWMA update (despiadadamente manual por falta de arrays anidados)
if tradeCellIdx = 0 then
gridC0 = gridC0 + 1
if gridC0 = 1 then
gridE0 = realizedR
else
gridE0 = gridE0*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
if tradeCellIdx = 1 then
gridC1 = gridC1 + 1
if gridC1 = 1 then
gridE1 = realizedR
else
gridE1 = gridE1*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
if tradeCellIdx = 2 then
gridC2 = gridC2 + 1
if gridC2 = 1 then
gridE2 = realizedR
else
gridE2 = gridE2*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
if tradeCellIdx = 3 then
gridC3 = gridC3 + 1
if gridC3 = 1 then
gridE3 = realizedR
else
gridE3 = gridE3*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
if tradeCellIdx = 4 then
gridC4 = gridC4 + 1
if gridC4 = 1 then
gridE4 = realizedR
else
gridE4 = gridE4*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
if tradeCellIdx = 5 then
gridC5 = gridC5 + 1
if gridC5 = 1 then
gridE5 = realizedR
else
gridE5 = gridE5*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
if tradeCellIdx = 6 then
gridC6 = gridC6 + 1
if gridC6 = 1 then
gridE6 = realizedR
else
gridE6 = gridE6*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
if tradeCellIdx = 7 then
gridC7 = gridC7 + 1
if gridC7 = 1 then
gridE7 = realizedR
else
gridE7 = gridE7*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
if tradeCellIdx = 8 then
gridC8 = gridC8 + 1
if gridC8 = 1 then
gridE8 = realizedR
else
gridE8 = gridE8*(1-ewmaAlpha) + realizedR*ewmaAlpha
endif
endif
// Auto-calibración (simplificación 1: determinista histórico)
signalsSinceCalib = signalsSinceCalib + 1
if (useAutoCalib = 1) and (bufFilled >= calibWindow) and (signalsSinceCalib >= calibCooldown) then
// Avg R de los últimos calibWindow samples del buffer
sumR = 0
cnt = 0
n = calibWindow
if n > bufFilled then
n = bufFilled
endif
// lee hacia atrás desde writeIdx (que apunta al próximo slot libre)
for k = 1 to n do
idx = writeIdx - k
if idx < 0 then
idx = idx + maxHistory
endif
sumR = sumR + $sigR[idx]
cnt = cnt + 1
next
if cnt > 0 then
postAvgR = sumR / cnt
if postAvgR < calibBadR then
if effQStrength > qualityStrength then
drift = 0 - calibStepQ
else
drift = calibStepQ
endif
effQStrength = min(calibMaxQ, max(calibMinQ, effQStrength + drift))
signalsSinceCalib = 0
elsif postAvgR > calibGoodR then
signalsSinceCalib = 0
endif
endif
endif
// Cerrar trade (mantener tradeDir para que las líneas persistan en el dibujo)
tradeClosed = 1
tradeCellIdx = -1
endif
endif
if useAutoCalib = 0 then
effQStrength = qualityStrength
endif
//==========================================================
// 11. ROLLING STATS (win-rate, avg R, window DD)
//==========================================================
n = calibWindow
if n > bufFilled then
n = bufFilled
endif
sumR2 = 0
wins = 0
runR = 0
minRun = 0
for k = 1 to n do
idx = writeIdx - k
if idx < 0 then
idx = idx + maxHistory
endif
rVal = $sigR[idx]
sumR2 = sumR2 + rVal
if rVal > 0 then
wins = wins + 1
endif
runR = runR + rVal
if runR < minRun then
minRun = runR
endif
next
if n > 0 then
rollWinRate = wins / n
rollAvgR = sumR2 / n
else
rollWinRate = 0
rollAvgR = 0
endif
rollWindowDD = minRun
//==========================================================
// 12. DRAW SIGNAL LABELS
//==========================================================
if showSignals = 1 then
if confirmedBuy then
// Flecha pegada al mínimo
drawtext("▲", barindex, low - 0.15*rawAtr) coloured(0, 230, 118, 255)
// Score junto a la flecha, debajo de stLine (que está debajo del precio en compra)
drawtext("BUY #buyScoreInt#", barindex, stLine - 0.3*rawAtr) coloured(0, 230, 118, 255)
endif
if confirmedSell then
// Flecha pegada al máximo
drawtext("▼", barindex, high + 0.15*rawAtr) coloured(255, 82, 82, 255)
// Score junto a la flecha, encima de stLine (que está encima del precio en venta)
drawtext("SELL #sellScoreInt#", barindex, stLine + 0.3*rawAtr) coloured(255, 82, 82, 255)
endif
endif
//==========================================================
// 13. DRAW TP/SL LINES + etiquetas de precio al final
//==========================================================
if tradeDir <> 0 and islastbarupdate then
xEnd = barindex + labelOffsetBars
xLabel = xEnd + 3
// Redondeo a 2 decimales para texto (evita cola de floats feos)
entryFmt = round(tradeEntry * 100) / 100
slFmt = round(tradeSl * 100) / 100
tp1Fmt = round(tradeTp1 * 100) / 100
tp2Fmt = round(tradeTp2 * 100) / 100
tp3Fmt = round(tradeTp3 * 100) / 100
// Entry
drawsegment(tradeEntryBar, tradeEntry, xEnd, tradeEntry) coloured(150, 150, 150, 200)
drawtext("Entry #entryFmt#", xLabel, tradeEntry) coloured(150, 150, 150, 255)
// SL
drawsegment(tradeEntryBar, tradeSl, xEnd, tradeSl) coloured(255, 23, 68, 255)
drawtext("SL #slFmt#", xLabel, tradeSl) coloured(255, 23, 68, 255)
// TPs (color distinto si ya tocado + marca ✓)
if hitTp1 = 1 then
drawsegment(tradeEntryBar, tradeTp1, xEnd, tradeTp1) coloured(64, 224, 208, 255)
drawtext("TP1 #tp1Fmt# ✓", xLabel, tradeTp1) coloured(64, 224, 208, 255)
else
drawsegment(tradeEntryBar, tradeTp1, xEnd, tradeTp1) coloured(0, 230, 118, 200)
drawtext("TP1 #tp1Fmt#", xLabel, tradeTp1) coloured(0, 230, 118, 255)
endif
if hitTp2 = 1 then
drawsegment(tradeEntryBar, tradeTp2, xEnd, tradeTp2) coloured(64, 224, 208, 255)
drawtext("TP2 #tp2Fmt# ✓", xLabel, tradeTp2) coloured(64, 224, 208, 255)
else
drawsegment(tradeEntryBar, tradeTp2, xEnd, tradeTp2) coloured(0, 230, 118, 200)
drawtext("TP2 #tp2Fmt#", xLabel, tradeTp2) coloured(0, 230, 118, 255)
endif
if hitTp3 = 1 then
drawsegment(tradeEntryBar, tradeTp3, xEnd, tradeTp3) coloured(64, 224, 208, 255)
drawtext("TP3 #tp3Fmt# ✓", xLabel, tradeTp3) coloured(64, 224, 208, 255)
else
drawsegment(tradeEntryBar, tradeTp3, xEnd, tradeTp3) coloured(0, 230, 118, 255)
drawtext("TP3 #tp3Fmt#", xLabel, tradeTp3) coloured(0, 230, 118, 255)
endif
endif
//==========================================================
// 14. DASHBOARD (fixed top-right, anchor)
//==========================================================
if showDash = 1 and islastbarupdate then
// Header
drawtext("SATS v1.9", -200, -10) anchor(topright, xshift, yshift) coloured(255,255,255,255)
// Trend
if trendDir = 1 then
drawtext("Trend: Bullish ▲", -200, -30) anchor(topright, xshift, yshift) coloured(0, 230, 118, 255)
else
drawtext("Trend: Bearish ▼", -200, -30) anchor(topright, xshift, yshift) coloured(255, 82, 82, 255)
endif
// TQI
if tqi > 0.6 then
tqR = 0
tqG = 230
tqB = 118
elsif tqi > 0.35 then
tqR = 255
tqG = 235
tqB = 59
else
tqR = 255
tqG = 82
tqB = 82
endif
drawtext("TQI: #tqi#", -200, -50) anchor(topright, xshift, yshift) coloured(tqR, tqG, tqB, 255)
// Q.Strength (efectivo, puede diferir del input por calibración)
drawtext("Q.Str: #effQStrength#", -200, -70) anchor(topright, xshift, yshift) coloured(220,220,220,255)
// Regime ER
if erValue >= erHigh then
drawtext("Regime: Trending", -200, -90) anchor(topright, xshift, yshift) coloured(0, 230, 118, 255)
elsif erValue >= erLow then
drawtext("Regime: Mixed", -200, -90) anchor(topright, xshift, yshift) coloured(255, 235, 59, 255)
else
drawtext("Regime: Choppy", -200, -90) anchor(topright, xshift, yshift) coloured(255, 82, 82, 255)
endif
// Vol regime
if volRatio < volLow then
drawtext("Vol: Low", -200, -110) anchor(topright, xshift, yshift) coloured(150,150,255,255)
elsif volRatio < volHigh then
drawtext("Vol: Normal", -200, -110) anchor(topright, xshift, yshift) coloured(220,220,220,255)
else
drawtext("Vol: High", -200, -110) anchor(topright, xshift, yshift) coloured(255, 180, 100, 255)
endif
drawtext("ER: #erValue#", -200, -130) anchor(topright, xshift, yshift) coloured(220,220,220,255)
drawtext("VolRatio: #volRatio#", -200, -150) anchor(topright, xshift, yshift) coloured(220,220,220,255)
// TP mode
if useDynTp = 1 then
drawtext("TP: Dynamic ×#finalScale#", -200, -170) anchor(topright, xshift, yshift) coloured(100,200,255,255)
else
drawtext("TP: Fixed", -200, -170) anchor(topright, xshift, yshift) coloured(220,220,220,255)
endif
drawtext("R live: #liveTp1R# / #liveTp2R# / #liveTp3R#", -200, -190) anchor(topright, xshift, yshift) coloured(220,220,220,255)
// Stats
drawtext("Signals: #bufFilled#", -200, -220) anchor(topright, xshift, yshift) coloured(200,200,200,255)
if bufFilled >= 5 then
if rollWinRate >= 0.5 then
wrR = 0
wrG = 230
wrB = 118
else
wrR = 255
wrG = 82
wrB = 82
endif
else
wrR = 150
wrG = 150
wrB = 150
endif
wrPct = rollWinRate * 100
drawtext("WinRate: #wrPct#%", -200, -240) anchor(topright, xshift, yshift) coloured(wrR, wrG, wrB, 255)
if bufFilled >= 5 then
if rollAvgR > 0 then
arR = 0
arG = 230
arB = 118
else
arR = 255
arG = 82
arB = 82
endif
else
arR = 150
arG = 150
arB = 150
endif
drawtext("AvgR: #rollAvgR#", -200, -260) anchor(topright, xshift, yshift) coloured(arR, arG, arB, 255)
drawtext("WindowDD: #rollWindowDD#R", -200, -280) anchor(topright, xshift, yshift) coloured(220,220,220,255)
drawtext("AllDD: #allTrough#R", -200, -300) anchor(topright, xshift, yshift) coloured(220,220,220,255)
drawtext("Streak W:#winStreak# / max #maxWinStreak#", -200, -320) anchor(topright, xshift, yshift) coloured(0,230,118,255)
drawtext("Streak L:#lossStreak# / max #maxLossStreak#", -200, -340) anchor(topright, xshift, yshift) coloured(255,82,82,255)
// Current regime edge (de la celda actual)
if curCell = 0 then
regC = gridC0
regE = gridE0
elsif curCell = 1 then
regC = gridC1
regE = gridE1
elsif curCell = 2 then
regC = gridC2
regE = gridE2
elsif curCell = 3 then
regC = gridC3
regE = gridE3
elsif curCell = 4 then
regC = gridC4
regE = gridE4
elsif curCell = 5 then
regC = gridC5
regE = gridE5
elsif curCell = 6 then
regC = gridC6
regE = gridE6
elsif curCell = 7 then
regC = gridC7
regE = gridE7
else
regC = gridC8
regE = gridE8
endif
drawtext("RegimeEdge: #regE#R (n=#regC#)", -200, -360) anchor(topright, xshift, yshift) coloured(220,220,220,255)
endif
//==========================================================
// 15. PLOT: SuperTrend (patrón canónico PRT — ver PRC_Supertrend-TV)
//==========================================================
// UNA sola variable con coloured(r,g,b) dinámico. PRT pinta por tramos correctamente.
if trendDir = 1 then
stR = 0
stG = 230
stB = 118
else
stR = 255
stG = 82
stB = 82
endif
if isWarm then
plotLine = stLine
else
plotLine = undefined
endif
return plotLine coloured(stR, stG, stB) style(line, 2) as "SuperTrend"
