request & warning graph(onprice)

Viewing 9 posts - 1 through 9 (of 9 total)

Author

Posts
03/20/2019 at 5:37 PM #94178 quote

Paul
Participant

Master

Request; increase the number graph & graphonprice 5 (best is 10)

Request; ability to use style function i.e. set lines to dots, so when used it doesn’t show vertical lines when market is not active and resets to zero in a backtest.

Warning;

using the graph & graphonprice are limited to max 5.

If using too many in the code, the last lines & graph are automatically not displayed.

But it has influence on the code below that too, because it seems it doesn’t gets activated in backtest!

in pictures below

used 1 graph and 6 graphonprice

last 2 gets skipped, from the profittarget (greenline) & graph (to display trade performance)

exitcode is on friday 17.30.

this part of the code is at the end of the code (but above graph); if to many lines it doesn’t gets activated and resulted in a stoploss after friday 17.30

If this code is moved straight under the buy/sellshort entries, it gets activated.

So only when using too many graph in the code it becomes unreliable!

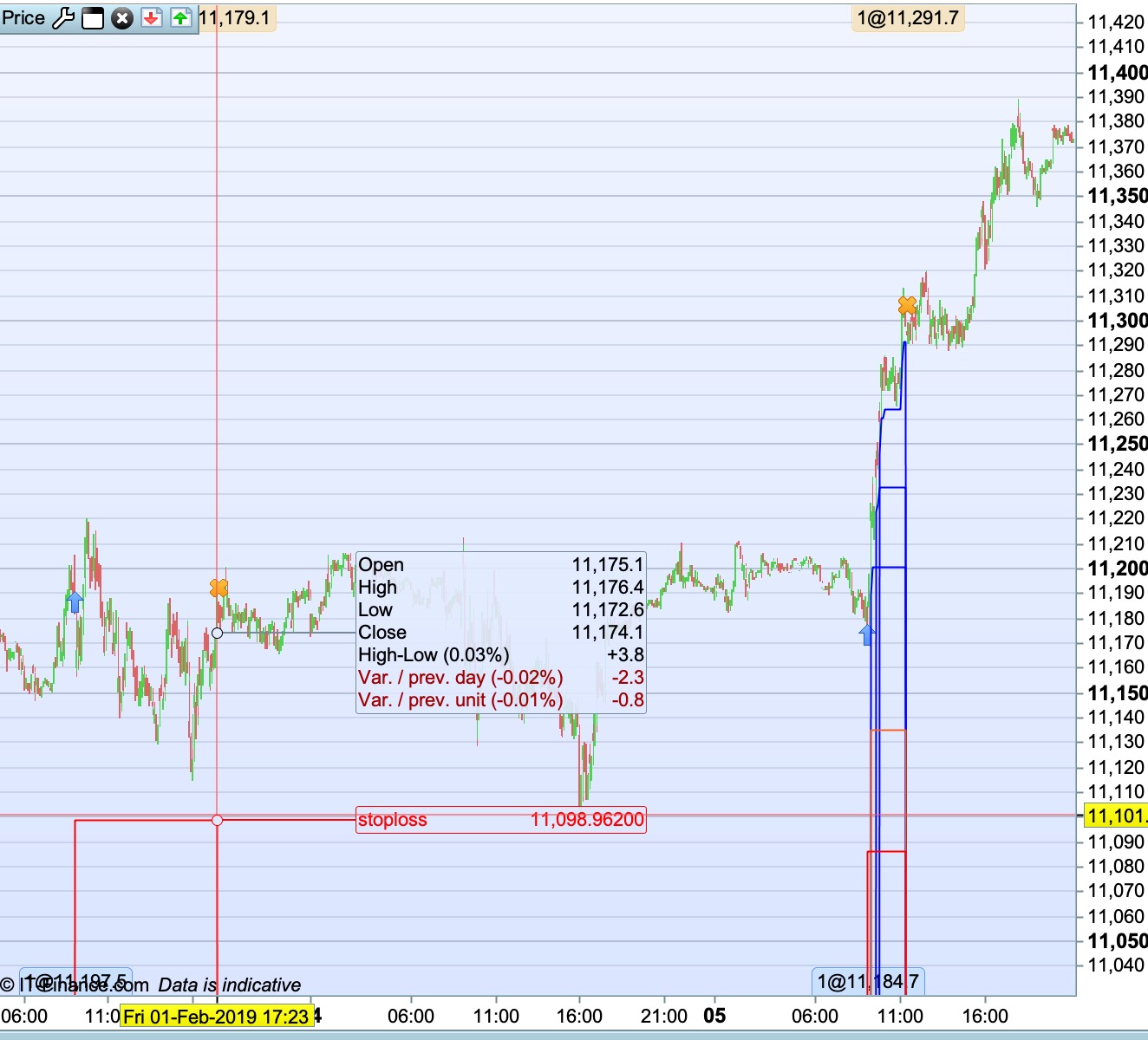

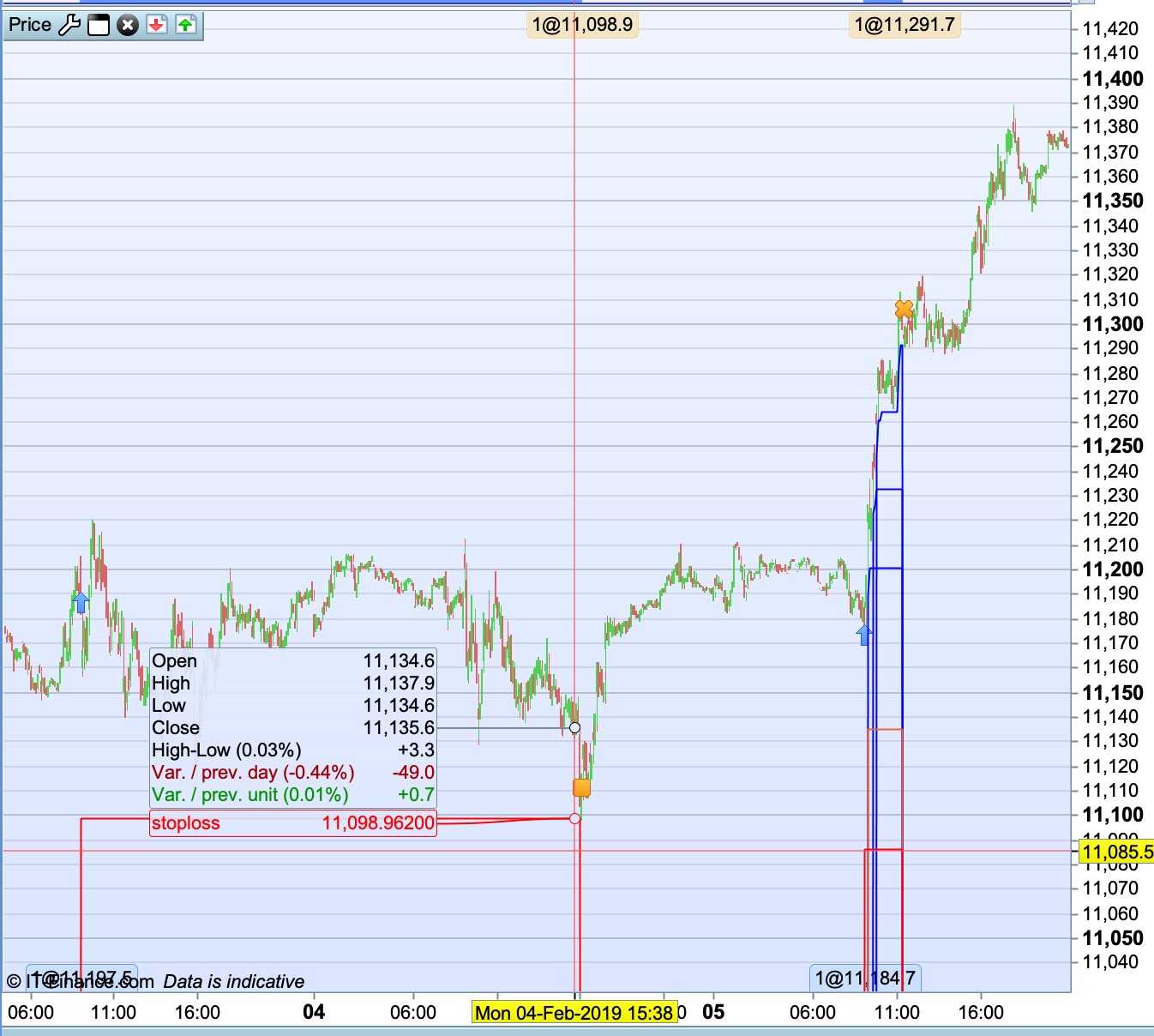

too-many-lines-and-exit-time-criteria-below-entry.jpg too-many-lines-and-exit-time-in-bottom-of-code.jpg

03/20/2019 at 5:55 PM #94182 quote

Nicolas
Keymaster

Master

Always put GRAPH at the end of the code. It is not limited to 5 variables only, I don’t remember now how many is the limit but it is more than that.

03/21/2019 at 6:58 PM #94347 quote
Paul
Participant

Master
Thanks for the response Nicolas.

I did a test to check.
```
if time >= 080000 and COUNTOFPOSITION < 1 and close > dopen(0) then
buy 1 contract at market
endif

if onmarket then
graphonprice dclose(1)
graphonprice dclose(2)
graphonprice dclose(3)
graphonprice dclose(4)
graphonprice dclose(5)
graphonprice dclose(6)
endif

if time = 173000 then
sell at market
endif
```
in above code, the exit-time from 173000 is not activated !

if you make a change like
```
//graphonprice dclose(6)
```
the exit-time from 173000 is activated.

That’s reason to request an increase of the number graphonprice and the warning, because it can be quickly overlooked.

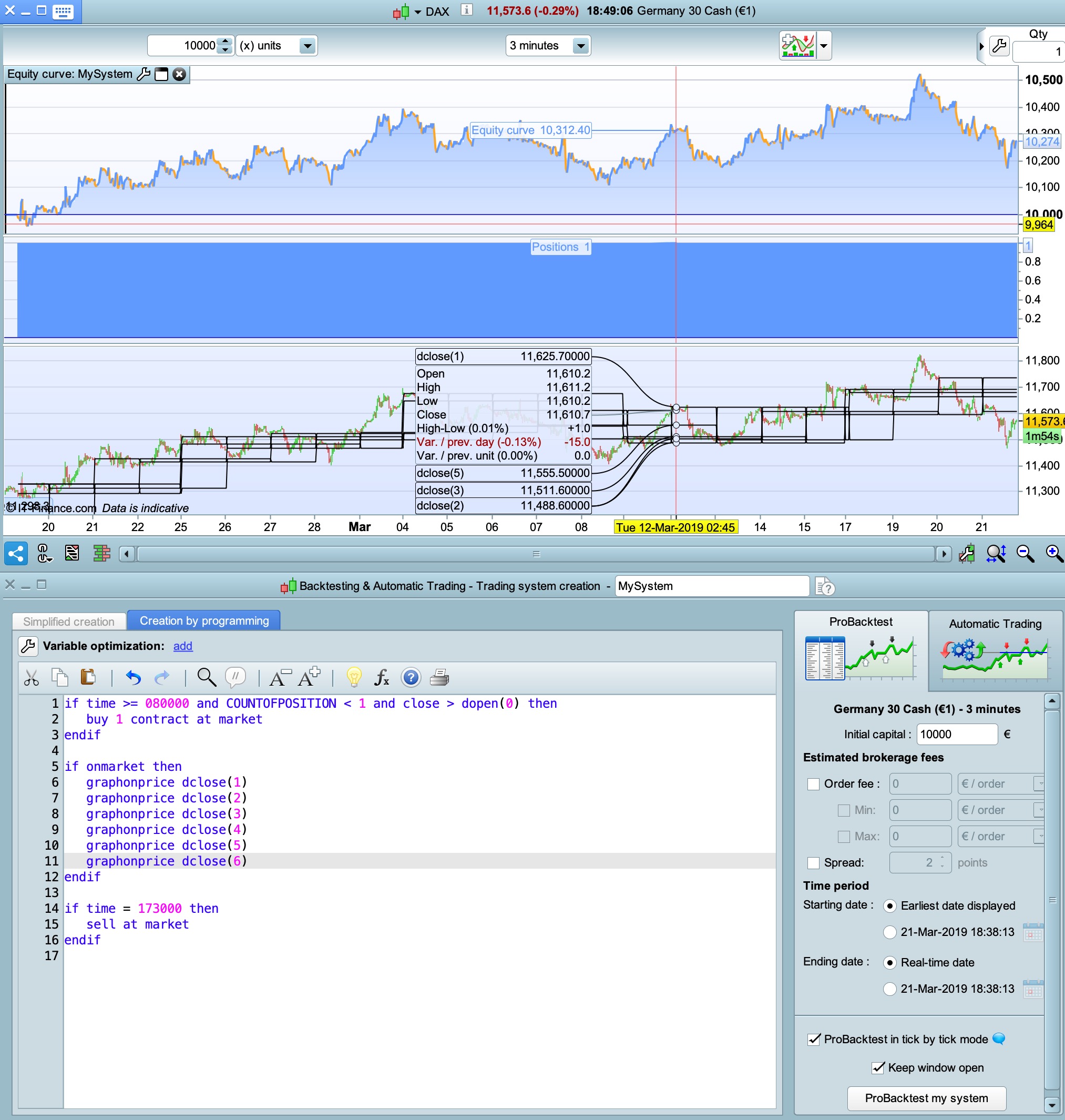

exit-173000-activated.jpg exit-173000-not-activated.jpg
03/22/2019 at 4:08 AM #94372 quote

Finning
Participant

Veteran

Hi Paul, thanks for the tip about the error. I knew about the 5 graph limit, but not the problem of improper calculation.

Finning

03/22/2019 at 7:23 AM #94375 quote
Vonasi
Moderator

Master
As Nicolas said – you should always put GRAPH and GRAPHONPRICE as the last lines of code. If you want them to switch to zero if not on market then use a variable in the code and graph this variable.
```
if time >= 080000 and COUNTOFPOSITION < 1 and close > dopen(0) then
buy 1 contract at market
endif

if onmarket then
a = dclose(1)
b = dclose(2)
c = dclose(3)
d = dclose(4)
e = dclose(5)
f = dclose(6)
endif

if time = 173000 then
sell at market
endif

graphonprice a
graphonprice b
graphonprice c
graphonprice d
graphonprice e
graphonprice f
```
What you have found may be just a minor bug but I’m guessing that if you do what I just suggested then everything will work just fine. My platform is not open at the moment to test.
03/22/2019 at 8:42 AM #94378 quote

Nicolas
Keymaster

Master

@Paul

What broker and account type (demo or real), please?

03/22/2019 at 2:15 PM #94403 quote

Paul
Participant

Master

@Nicolas IG and real account.

If it’s time-exit or an indicator exit or a hard stoploss, they all get skipped in backtesting in the code above.

I found this problem, as I used a trailing stop/breakeven/stoploss/profittarget, all embedded with one or more graphonprice commands.

So that will be on the bottom from now on.

Always like to see the performance gain, that number 5 is the total of graph and graphonprice together. So that leaves only 4 to use for graphonprice which is a bit limited.

@Vonasi Thanks for the tip! I did test it but lines didn’t go to zero when there was no market position.

03/23/2019 at 4:46 PM #94505 quote
Vonasi
Moderator

Master
Paul wrote:

I did test it but lines didn’t go to zero when there was no market position.

Ooops sorry – one of my usual forgets. Always zero the values if you ever want them to be zero! Try this:
```
if time >= 080000 and COUNTOFPOSITION < 1 and close > dopen(0) then
buy 1 contract at market
endif

a = 0
b = 0
c = 0
d = 0
e = 0
f = 0

if onmarket then
a = dclose(1)
b = dclose(2)
c = dclose(3)
d = dclose(4)
e = dclose(5)
f = dclose(6)
endif

if time = 173000 then
sell at market
endif

graphonprice a
graphonprice b
graphonprice c
graphonprice d
graphonprice e
graphonprice f
```
Once again not tested!

Paul thanked this post
03/23/2019 at 8:14 PM #94512 quote

Paul
Participant

Master

That one works! Very useful & solves a problem for me. Thanks!
