Range Box Indicator

• 03/07/2017 at 1:09 PM #27534
  ajmTrader

  Hi all,

  This is likely very basic for those that can.  I am looking for a box indicator that shows the high and low of a range (adjustable times).  For examples sake lets say ) 00:00 – 06:00. and that can show historical data too.  Some of the historical data indicators ive seen ‘connect’ from day to day, I would like for each days box to be independent if possible.

  Can anyone help?

  Many thanks.



  ajmTrader

  Participant

  Topics: 1

  Replies: 3

  Been thanked: 0 times
  03/10/2017 at 9:43 AM #28044
  Nicolas

  It’s possible for historical data, but the box of the current day will appear at 06:01, is it a problem?



  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  03/10/2017 at 10:41 AM #28059
  ajmTrader

  Hi Nicolas,

  Thanks for the reply!  The box appearing at 6.01 would not be an problem.  Would it be possible to have adjustable times for the box range?





  ajmTrader

  Participant

  Topics: 1

  Replies: 3

  Been thanked: 0 times
  03/10/2017 at 1:58 PM #28091
  Nicolas

  Here is the code to draw rectangle between 2 schedules. Please let us know if it looks how you expect. Thank you.

  starttime = 050000 endtime = 090000 if intradaybarindex=0 then hh = 0 ll = 0 alreadydrawn = 0 endif if time=starttime then startbar=barindex endif if time=endtime then endbar=barindex endif if time>=starttime and time<=endtime then if high>hh then hh = high endif if low<ll or ll=0 then ll = low endif endif if time>endtime and alreadydrawn=0 then drawrectangle(startbar,hh,endbar,ll) alreadydrawn=1 endif RETURN

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

  starttime = 050000 endtime = 090000   if intradaybarindex=0 then hh = 0 ll = 0 alreadydrawn = 0 endif   if time=starttime then startbar=barindex endif   if time=endtime then endbar=barindex endif   if time>=starttime and time<=endtime then if high>hh then hh = high endif if low<ll or ll=0 then ll = low endif endif   if time>endtime and alreadydrawn=0 then drawrectangle(startbar,hh,endbar,ll) alreadydrawn=1 endif   RETURN





  Nicolas

  Keymaster

  Topics: 81

  Replies: 20828

  Been thanked: 4739 times
  03/10/2017 at 2:59 PM #28098
  ajmTrader

  Hi Nicolas,



  Thank you for the code.  It’s basically what I’d like however there are two things I wonder if you can modify?

  1.Box range able to go over the midnight period.  For example 22:00 – 07:00

  2.  Functionality to change line and box fill colour



  Many thanks!



  ajmTrader

  Participant

  Topics: 1

  Replies: 3

  Been thanked: 0 times
  03/10/2017 at 3:11 PM #28100
  ajmTrader

  One final thing can it only display H1 and lower timeframe?

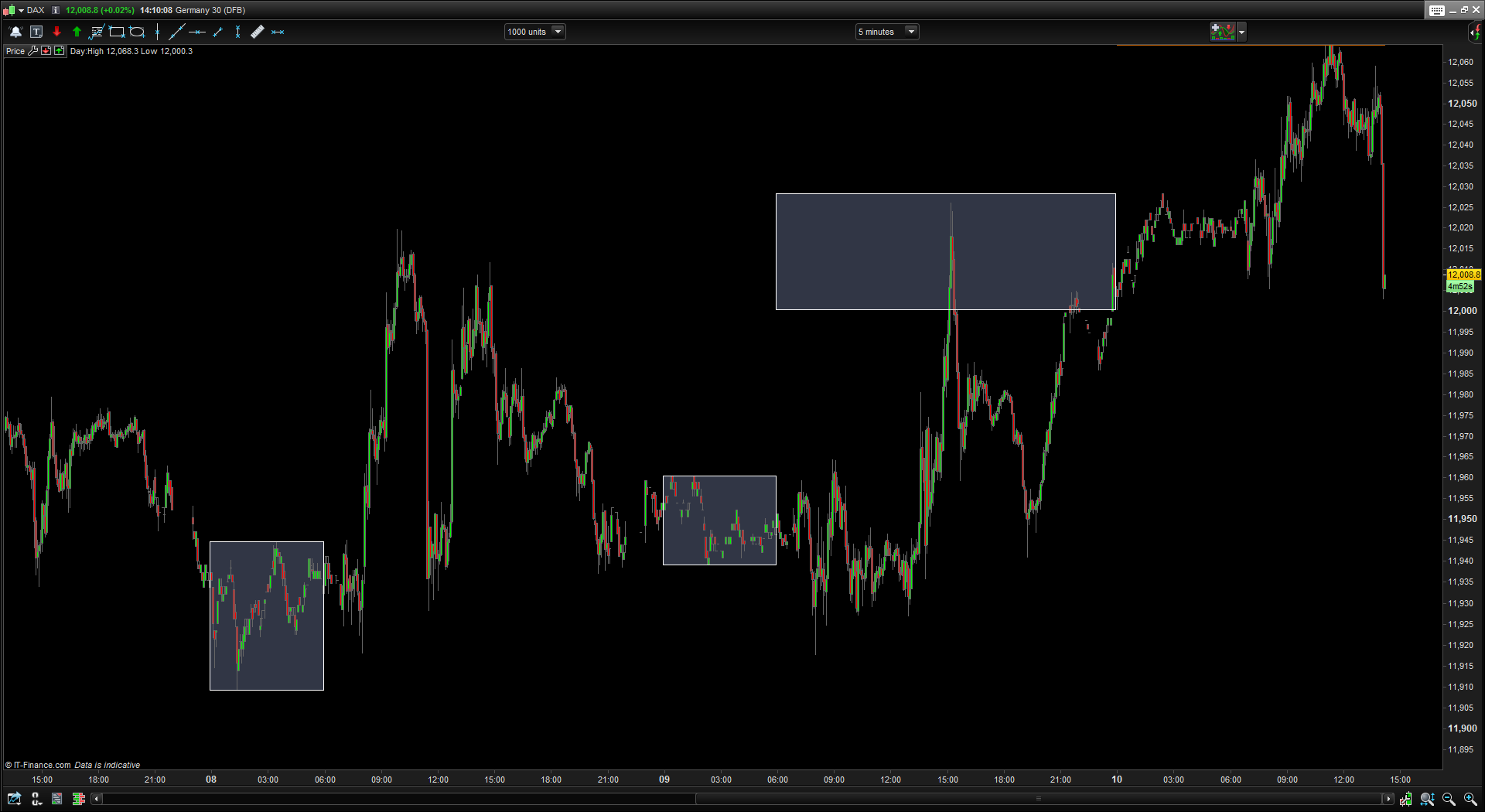

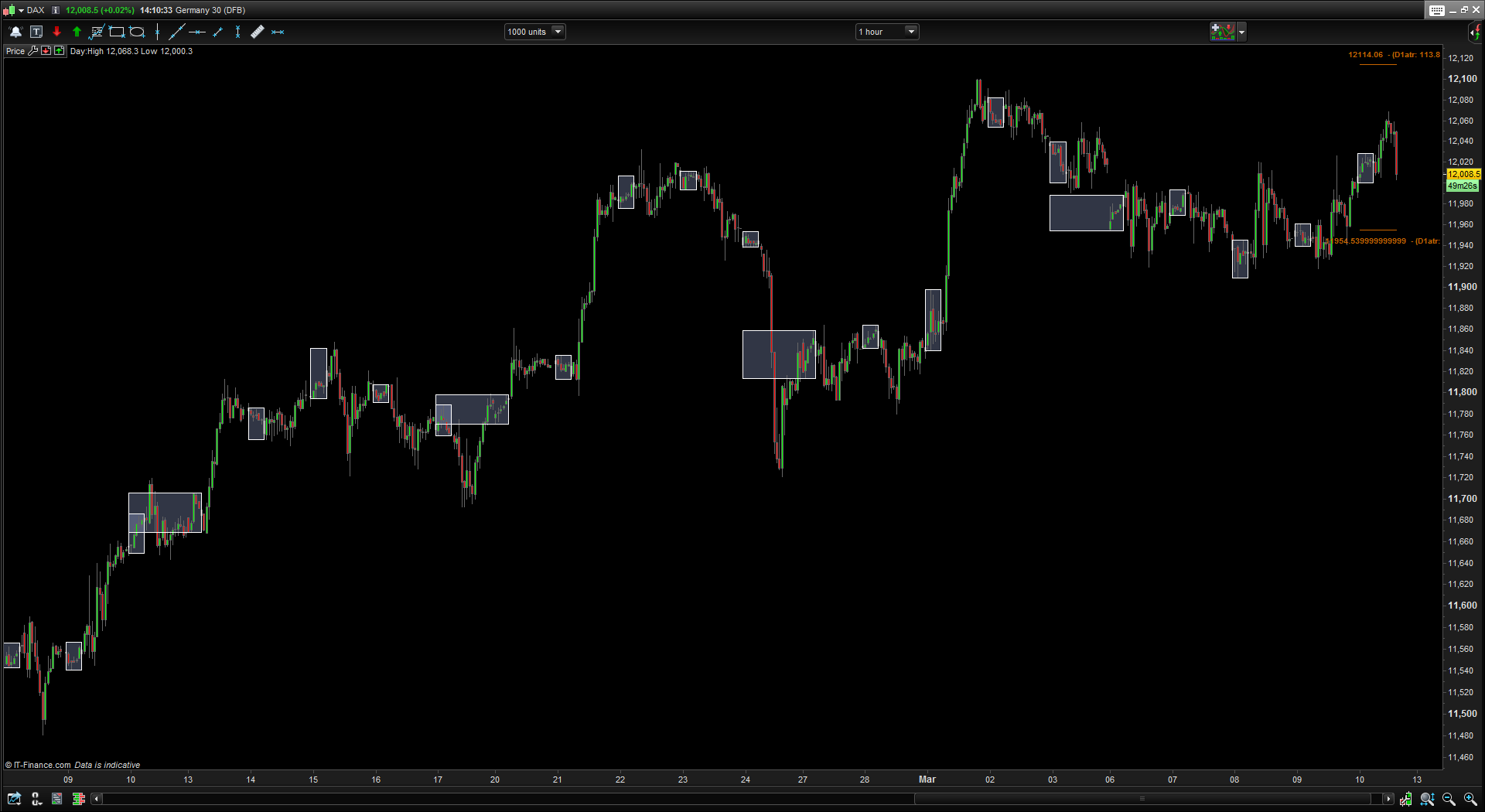

  Also on M5 timeframe and H1 it seem’s to draw oddly.



  Many thanks



  ajmTrader

  Participant

  Topics: 1

  Replies: 3

  Been thanked: 0 times
