Problème d’opacité Indicateur FVG (UT 5/15 min)

• 06/05/2025 at 1:13 PM #247950
  AdilMed10

  Bonjour,

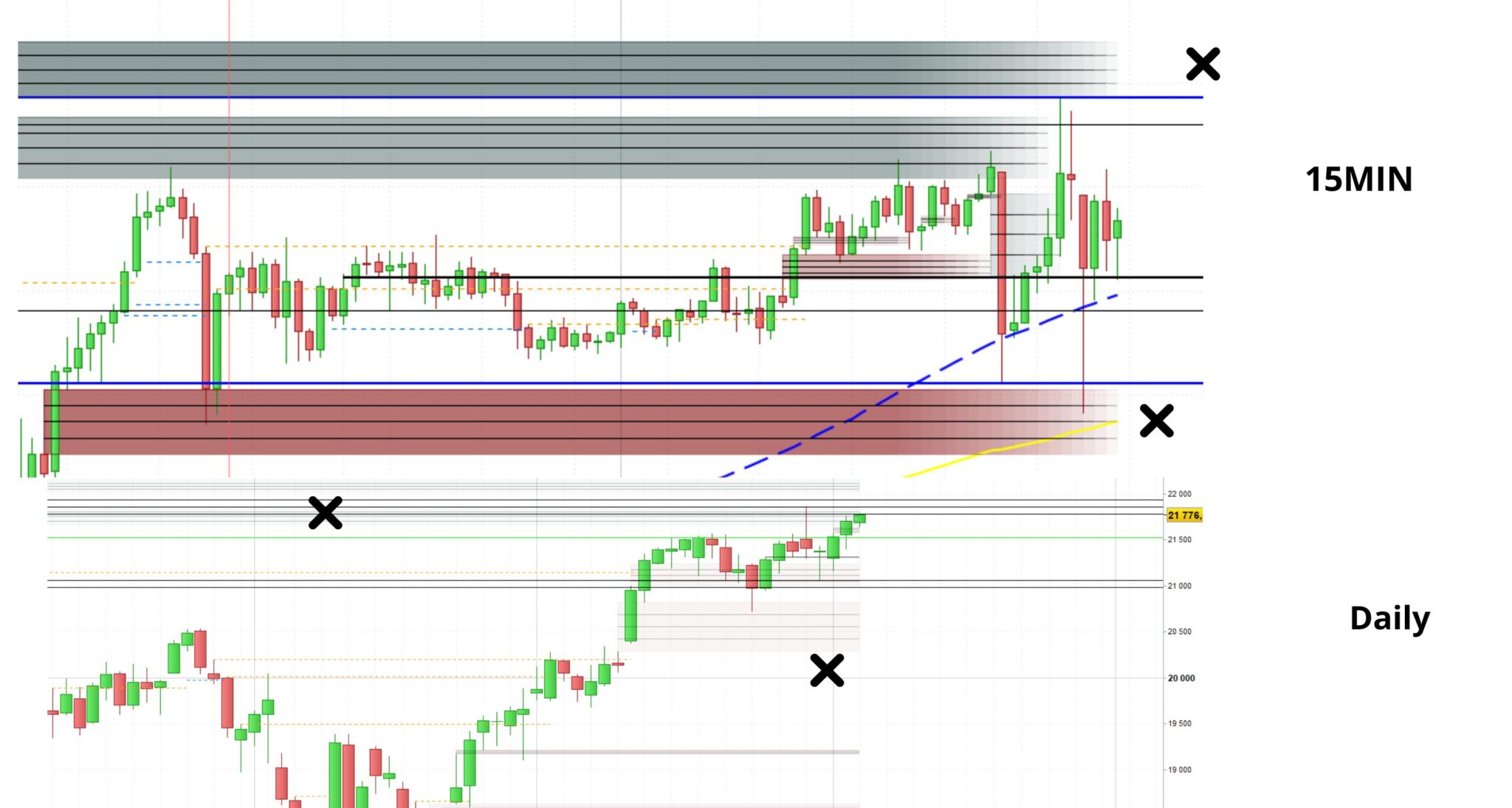

  J’utilise un indicateur FVG trouvé sur le forum ProRealCode. Il fonctionne bien, mais sur les graphiques 5 et 15-30 minutes (avec 15 000 bougies), j’ai un problème d’affichage :

  Les rectangles FVG non mitigés s’empilent à chaque bougie

  Même avec une opacité faible (ex : 20), le fond devient très sombre

  Si je mets une durée fixe (ex : 50, 300, 999999), les FVG disparaissent ou ne s’affichent plus

  J’ai essayé plusieurs solutions avec l’IA mais sans succès.

  Je souhaiterais garder la logique actuelle du code, mais pouvoir afficher les FVG non mitigés sans effet de sur-opacité ni disparition des anciennes FVG
  Pourriez-vous m’aider à corriger ce point tout en gardant la structure du code ?

  Merci d’avance,

  //---------------------------------------------// // PRC_Fair Value Gap modifié (visuel optimisé) // Garde tous les FVG non mitigés visibles sans sur-opaquage //---------------------------------------------// thresholdPer = 0 auto = 0 dynamic = 0 mitigationsLevels = 1 //---------------------------------------------// // Threshold //---------------------------------------------// if barindex > 0 and auto then threshold = summation[barindex]((high - low) / low) / barindex else threshold = thresholdPer / 100 endif //---------------------------------------------// // FVG Detection //---------------------------------------------// bullFvg = low > high[2] and close[1] > high[2] and (low - high[2]) / high[2] > threshold bearFvg = high < low[2] and close[1] < low[2] and (low[2] - high) / high > threshold if bullFvg then newFvgmax = low newFvgmin = high[2] newFvgisbull = 1 newFvgx = barindex r = 8 g = 153 b = 129 a = 0 elsif bearFvg then newFvgmax = low[2] newFvgmin = high newFvgisbull = 0 newFvgx = barindex r = 244 g = 54 b = 69 a = 0 else a = 100 endif //---------------------------------------------// // Anti-doublons //---------------------------------------------// alreadyExists = 0 for j = 0 to z do if $newFvgx[j] = newFvgx then alreadyExists = 1 break endif next //---------------------------------------------// // Bull FVG //---------------------------------------------// if bullFvg and alreadyExists = 0 then if dynamic then maxbullFvg = newFvgmax minbullFvg = newFvgmin endif if dynamic = 0 then $boxleft[z+1] = barindex[2] $boxrigth[z+1] = barindex // extensible $boxbot[z+1] = newFvgmin $boxTop[z+1] = newFvgmax endif $newFvgmax[z+1] = newFvgmax $newFvgmin[z+1] = newFvgmin $newFvgisbull[z+1] = newFvgisbull $newFvgx[z+1] = newFvgx z = z + 1 bullcount = bullcount + 1 t = newFvgx elsif dynamic then maxBullFvg = max(min(close, maxBullFvg), minBullFvg) endif //---------------------------------------------// // Bear FVG //---------------------------------------------// if bearFvg and alreadyExists = 0 then if dynamic then maxbearFvg = newFvgmax minbearFvg = newFvgmin endif if dynamic = 0 then $boxleft[z+1] = barindex[2] $boxrigth[z+1] = barindex $boxbot[z+1] = newFvgmin $boxTop[z+1] = newFvgmax endif $newFvgmax[z+1] = newFvgmax $newFvgmin[z+1] = newFvgmin $newFvgisbull[z+1] = newFvgisbull $newFvgx[z+1] = newFvgx z = z + 1 bearcount = bearcount + 1 t = newFvgx elsif dynamic then minBearFvg = min(max(close, minBearFvg), maxBearFvg) endif //---------------------------------------------// // Mitigated lines //---------------------------------------------// if z > 0 then for i = z - 1 downto 0 do if $newFvgisbull[i] = 1 and close < $newFvgmin[i] then if dynamic = 0 then $boxleft[i] = undefined $boxrigth[i] = undefined $boxbot[i] = undefined $boxTop[i] = undefined endif $newFvgmax[i] = undefined $newFvgmin[i] = undefined $newFvgisbull[i] = undefined $newFvgx[i] = undefined bullMitigated = bullMitigated + 1 elsif $newFvgisbull[i] = 0 and close > $newFvgmax[i] then if dynamic = 0 then $boxleft[i] = undefined $boxrigth[i] = undefined $boxbot[i] = undefined $boxTop[i] = undefined endif $newFvgmax[i] = undefined $newFvgmin[i] = undefined $newFvgisbull[i] = undefined $newFvgx[i] = undefined bearMitigated = bearMitigated + 1 endif next endif //---------------------------------------------// // Unmitigated lines (visuel) //---------------------------------------------// if islastbarupdate and z > 0 and dynamic = 0 then for i = z downto 0 do if $boxleft[i] <> undefined then if $boxrigth[i] < barindex then $boxrigth[i] = barindex endif if $newFvgisbull[i] = 1 then drawrectangle($boxleft[i], $boxbot[i], $boxrigth[i], $boxTop[i]) fillcolor(128, 0, 0, 10) coloured(128, 0, 0, 10) else drawrectangle($boxleft[i], $boxbot[i], $boxrigth[i], $boxTop[i]) fillcolor(47, 79, 79, 10) coloured(47, 79, 79, 10) endif hauteur = $boxTop[i] - $boxbot[i] niv25 = $boxbot[i] + hauteur * 0.25 niv50 = $boxbot[i] + hauteur * 0.5 niv75 = $boxbot[i] + hauteur * 0.75 drawsegment($boxleft[i], niv25, $boxrigth[i], niv25) coloured(0, 0, 0, 64) drawsegment($boxleft[i], niv50, $boxrigth[i], niv50) coloured(0, 0, 0, 64) drawsegment($boxleft[i], niv75, $boxrigth[i], niv75) coloured(0, 0, 0, 64) endif next endif //---------------------------------------------// // Dynamic view (si activé) if dynamic then if newFvgisbull then colorbetween($newFvgmax[z], $newFvgmin[z], r, g, b, a) else colorbetween($newFvgmax[z], $newFvgmin[z], r, g, b, a) endif endif //---------------------------------------------// return

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177

  //---------------------------------------------// // PRC_Fair Value Gap modifié (visuel optimisé) // Garde tous les FVG non mitigés visibles sans sur-opaquage //---------------------------------------------// thresholdPer = 0 auto = 0 dynamic = 0 mitigationsLevels = 1   //---------------------------------------------// // Threshold //---------------------------------------------// if barindex > 0 and auto then threshold = summation[barindex]((high - low) / low) / barindex else threshold = thresholdPer / 100 endif   //---------------------------------------------// // FVG Detection //---------------------------------------------// bullFvg = low > high[2] and close[1] > high[2] and (low - high[2]) / high[2] > threshold bearFvg = high < low[2] and close[1] < low[2] and (low[2] - high) / high > threshold   if bullFvg then newFvgmax = low newFvgmin = high[2] newFvgisbull = 1 newFvgx = barindex r = 8 g = 153 b = 129 a = 0 elsif bearFvg then newFvgmax = low[2] newFvgmin = high newFvgisbull = 0 newFvgx = barindex r = 244 g = 54 b = 69 a = 0 else a = 100 endif   //---------------------------------------------// // Anti-doublons //---------------------------------------------// alreadyExists = 0 for j = 0 to z do if $newFvgx[j] = newFvgx then alreadyExists = 1 break endif next   //---------------------------------------------// // Bull FVG //---------------------------------------------// if bullFvg and alreadyExists = 0 then if dynamic then maxbullFvg = newFvgmax minbullFvg = newFvgmin endif if dynamic = 0 then $boxleft[z+1] = barindex[2] $boxrigth[z+1] = barindex  // extensible $boxbot[z+1] = newFvgmin $boxTop[z+1] = newFvgmax endif $newFvgmax[z+1] = newFvgmax $newFvgmin[z+1] = newFvgmin $newFvgisbull[z+1] = newFvgisbull $newFvgx[z+1] = newFvgx z = z + 1 bullcount = bullcount + 1 t = newFvgx elsif dynamic then maxBullFvg = max(min(close, maxBullFvg), minBullFvg) endif   //---------------------------------------------// // Bear FVG //---------------------------------------------// if bearFvg and alreadyExists = 0 then if dynamic then maxbearFvg = newFvgmax minbearFvg = newFvgmin endif if dynamic = 0 then $boxleft[z+1] = barindex[2] $boxrigth[z+1] = barindex $boxbot[z+1] = newFvgmin $boxTop[z+1] = newFvgmax endif $newFvgmax[z+1] = newFvgmax $newFvgmin[z+1] = newFvgmin $newFvgisbull[z+1] = newFvgisbull $newFvgx[z+1] = newFvgx z = z + 1 bearcount = bearcount + 1 t = newFvgx elsif dynamic then minBearFvg = min(max(close, minBearFvg), maxBearFvg) endif   //---------------------------------------------// // Mitigated lines //---------------------------------------------// if z > 0 then for i = z - 1 downto 0 do if $newFvgisbull[i] = 1 and close < $newFvgmin[i] then if dynamic = 0 then $boxleft[i] = undefined $boxrigth[i] = undefined $boxbot[i] = undefined $boxTop[i] = undefined endif $newFvgmax[i] = undefined $newFvgmin[i] = undefined $newFvgisbull[i] = undefined $newFvgx[i] = undefined bullMitigated = bullMitigated + 1 elsif $newFvgisbull[i] = 0 and close > $newFvgmax[i] then if dynamic = 0 then $boxleft[i] = undefined $boxrigth[i] = undefined $boxbot[i] = undefined $boxTop[i] = undefined endif $newFvgmax[i] = undefined $newFvgmin[i] = undefined $newFvgisbull[i] = undefined $newFvgx[i] = undefined bearMitigated = bearMitigated + 1 endif next endif   //---------------------------------------------// // Unmitigated lines (visuel) //---------------------------------------------// if islastbarupdate and z > 0 and dynamic = 0 then for i = z downto 0 do if $boxleft[i] <> undefined then if $boxrigth[i] < barindex then $boxrigth[i] = barindex endif if $newFvgisbull[i] = 1 then drawrectangle($boxleft[i], $boxbot[i], $boxrigth[i], $boxTop[i]) fillcolor(128, 0, 0, 10) coloured(128, 0, 0, 10) else drawrectangle($boxleft[i], $boxbot[i], $boxrigth[i], $boxTop[i]) fillcolor(47, 79, 79, 10) coloured(47, 79, 79, 10) endif hauteur = $boxTop[i] - $boxbot[i] niv25 = $boxbot[i] + hauteur * 0.25 niv50 = $boxbot[i] + hauteur * 0.5 niv75 = $boxbot[i] + hauteur * 0.75 drawsegment($boxleft[i], niv25, $boxrigth[i], niv25) coloured(0, 0, 0, 64) drawsegment($boxleft[i], niv50, $boxrigth[i], niv50) coloured(0, 0, 0, 64) drawsegment($boxleft[i], niv75, $boxrigth[i], niv75) coloured(0, 0, 0, 64) endif next endif   //---------------------------------------------// // Dynamic view (si activé) if dynamic then if newFvgisbull then colorbetween($newFvgmax[z], $newFvgmin[z], r, g, b, a) else colorbetween($newFvgmax[z], $newFvgmin[z], r, g, b, a) endif endif   //---------------------------------------------// return



  AdilMed10

  Participant

  Topics: 5

  Replies: 13

  Been thanked: 0 times
  06/06/2025 at 7:43 AM #247988
  Iván

  Entrez dans la première ligne de code defparam drawonlastbaronly=true

  2 users thanked author for this post.

  robertogozzi, AdilMed10



  Iván

  Moderator

  Topics: 0

  Replies: 1659

  Been thanked: 680 times
  06/06/2025 at 9:50 AM #248003
  AdilMed10

  MERCI BCP
